基于人群密度风险的无人机动态路径规划研究

doi:10.18306/dlkxjz.2021.09.007

Abstract

Abstract:

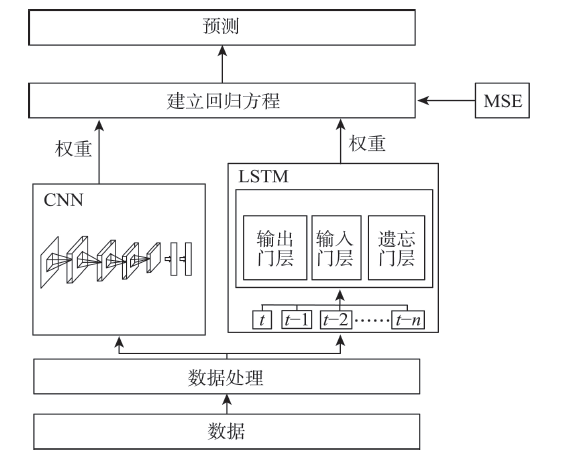

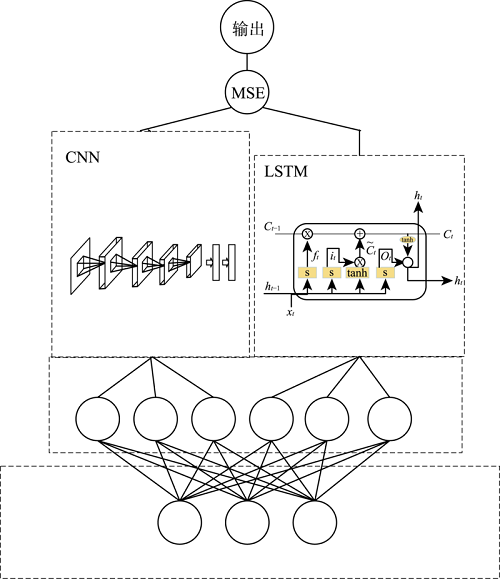

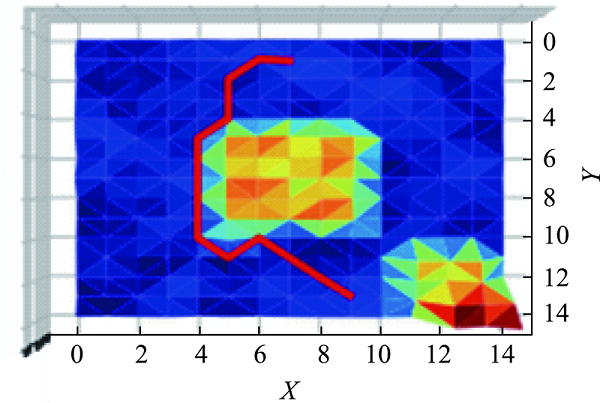

With the rapid growth of the number of unmanned aerial vehicles (UAVs), in order to assess the risk of people on the ground especially in cities, improve the operational efficiency of UAV, and reduce the threat of UAV to the crowd, it is necessary to make a specific path planning for UAVs based on the crowd density. However, static demographic data are still used as the ground risk analysis basis for the path planning of UAV, and real-time path planning of UAV according to the spatial-temporal characteristics of crowd density are often not performed. This study first analyzed the characteristics of urban road network crowd density based on the spatiotemporal data. Second, the convolutional neural network-long short-term memory (CNN-LSTM) combined model (C-Snet model) was established to predict the population density in different urban areas. Finally, the improved A* algorithm was used for real-time path planning and risk assessment of UAV according to the predicted crowd density data. The results show that the risk of UAV operation is reduced by 76%, which can provide a theoretical reference for the development of real-time path planning function of UAV traffic management system.

Key words: UAV traffic management, risk assessment, CNN, crowd density, path planning

JIAO Qingyu, CHEN Xinfeng, ZHENG Zhigang, BAI Yiqin, LIU Yansi, ZHANG Zhengjuan, SUN Longni. Dynamic path planning of unmanned aerial vehicle based on crowd density prediction[J].PROGRESS IN GEOGRAPHY, 2021, 40(9): 1516-1527.

Figures/Tables 21

Fig.1

Tab.1

Tab.2

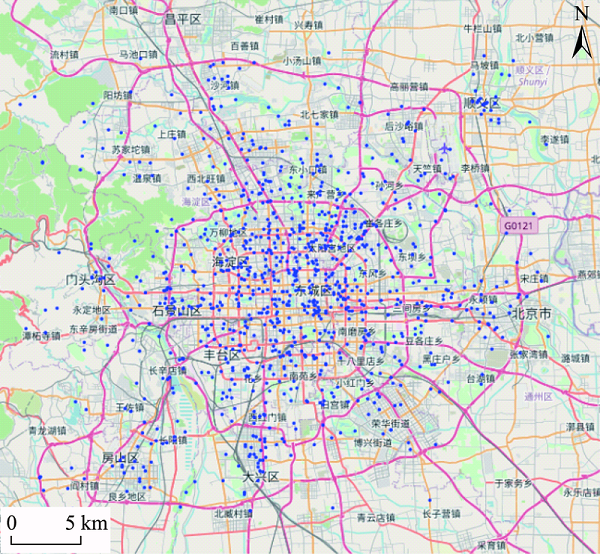

Fig.2

Fig.3

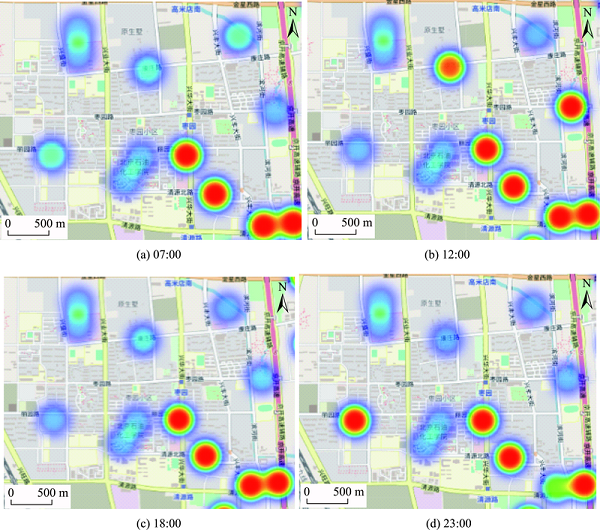

Fig.4

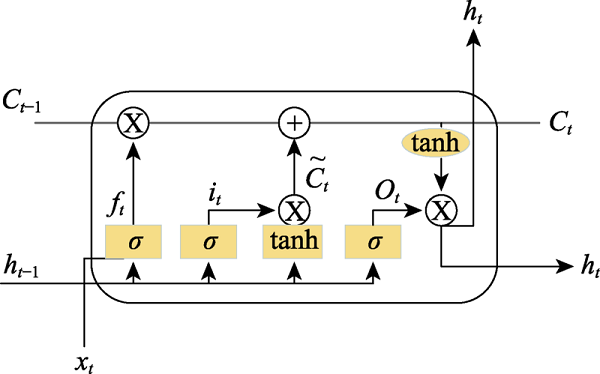

Fig.5

Tab.3

Fig.6

Fig.7

Fig.8

Tab.4

Tab.5

Tab.6

Tab.7

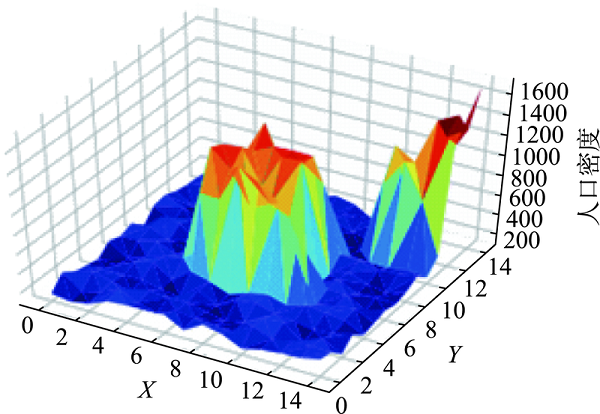

Fig.9

Tab.8

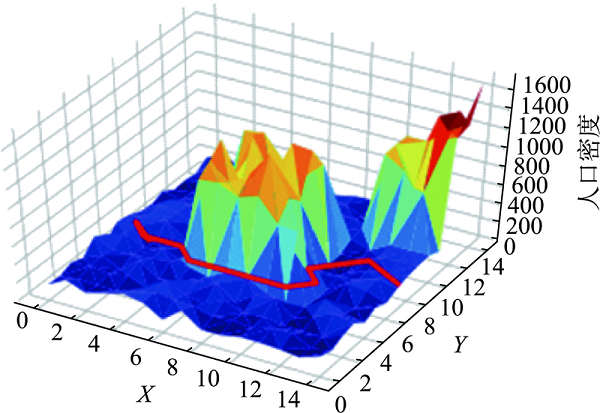

Fig.10

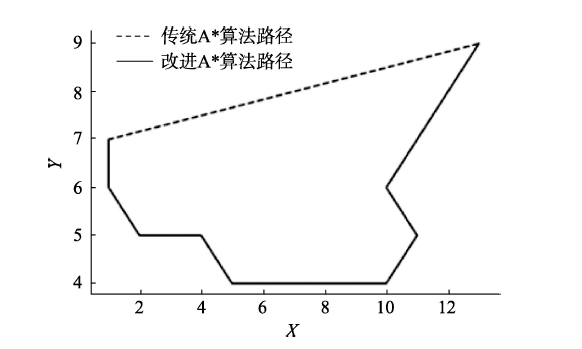

Fig.11

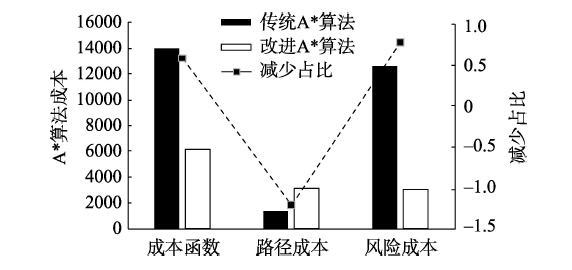

Fig.12

Fig.13

References 21

[1]	中国民航局. 中国民用航空局低空联网无人机安全飞行测试报告 [EB/OL]. 2018-02-06 [2020-11-01]. http://www.caac.gov.cn/XXGK/XXGK/GFXWJ/201811/t20181127_193186.html.
	[Civil Aviation Administration of China. CAAC low altitude networking UAV flight safety test report. 2018-02-06 [2020-11-01]. http://www.caac.gov.cn/XXGK/XXGK/GFXWJ/201811/t20181127_193186.html.]
[2]	徐瑞华, 罗帆. 机场净空区无人机扰航监管演化博弈研究[J]. 中国安全科学学报, 2019, 29(5):25-30.
	[ Xu Ruihua, Luo Fan. Evolutionary game research of supervision on unmanned aerial vehicle interference with flights in airfield clearance area. China Safety Science Journal, 2019, 29(5):25-30. ]
[3]	全权, 李刚, 柏艺琴, 等. 低空无人机交通管理概览与建议[J]. 航空学报, 2020, 41(1):023238. doi: 10.7527/S1000-6893.2019.23238. doi: 10.7527/S1000-6893.2019.23238
	[ Quan Quan, Li Gang, Bai Yi-qin, et al. Low altitude UAV traffic management: An introductory overview and proposal. Acta Aeronautica et Astronautica Sinica, 2020, 41(1):023238. doi: 10.7527/S1000-6893.2019.23238.] doi: 10.7527/S1000-6893.2019.23238
[4]	中国民用航空局航空器适航审定司. 基于运行风险的无人机适航审定指导意见 [EB/OL]. 2019-01-25 [2020-11-01]. http://www.caac.gov.cn/XXGK/XXGK/ZFGW/201901/P020190125609946283900.pdf.
	[CAAC Aircraft Airworthiness Certification Department. Guidance on airworthiness certification of UAV based on operational risk. 2019-01-25 [2020-11-01]. http://www.caac.gov.cn/XXGK/XXGK/ZFGW/201901/P020190125609946283900.pdf.]
[5]	Ma S, Zheng Y, Wolfson O. T-share: A large-scale dynamic taxi ridesharing service[C]// 2013 IEEE 29th international conference on data engineering (ICDE). Brisbane, Australia: IEEE, 2013: 410-421.
[6]	Zhang J B, Zheng Y, Qi D K, et al. Predicting citywide crowd flows using deep spatio-temporal residual networks[J]. Artificial Intelligence, 2018, 259:147-166. doi: 10.1016/j.artint.2018.03.002
[7]	Wu X M, Ding S Y, Chen W H, et al. Short-term urban traffic flow prediction using deep spatio-temporal residual networks[C]// 2018 13th IEEE conference on industrial electronics and applications (ICIEA). Wuhan, China: IEEE, 2018: 1073-1078.
[8]	张启钱, 许卫卫, 张洪海, 等. 复杂低空物流无人机路径规划[J]. 北京航空航天大学学报, 2020, 46(7):1275-1286.
	[ Zhang Qiqian, Xu Weiwei, Zhang Honghai, et al. Path planning for logistics UAV in complex low-altitude airspace. Journal of Beijing University of Aeronautics and Astronautics, 2020, 46(7):1275-1286. ]
[9]	Corbetta M, Banerjee P, Okolo W, et al. Real-time UAV trajectory prediction for safety monitoring in low-altitude airspace[C]// AIAA aviation 2019 forum. Reston, USA: AIAA, 2019.
[10]	Yu X B, Li C L, Zhou J F. A constrained differential evolution algorithm to solve UAV path planning in disaster scenarios[J]. Knowledge-Based Systems, 2020, 204:106209. doi: 10.1016/j.knosys.2020.106209. doi: 10.1016/j.knosys.2020.106209
[11]	Shen L X, Wang Y D, Liu K P, et al. Synergistic path planning of multi-UAVs for air pollution detection of ships in ports[J]. Transportation Research Part E: Logistics and Transportation Review, 2020, 144:102128. doi: 10.1016/j.tre.2020.102128. doi: 10.1016/j.tre.2020.102128
[12]	Xu C, Xu M, Yin C J. Optimized multi-UAV cooperative path planning under the complex confrontation environment[J]. Computer Communications, 2020, 162:196-203. doi: 10.1016/j.comcom.2020.04.050
[13]	Joint Authorities for Rulemaking of Unmanned Systems. JARUS guidelines on Specific Operations Risk Assessment (SORA)[EB/OL]. 2019-01-30 [2020-11-01]. https://rpas-regulations.com/wp-content/uploads/2017/07/170626_JARUS_Specific-Operations-Risk-Assessment_SORA_v1.0.pdf.
[14]	胡莘婷, 戴福青. 基于城区行人安全的无人机运行风险评估[J]. 中国安全科学学报, 2020, 30(8):137-142.
	[ Hu Xinting, Dai Fuqing. Risk assessment model for UAV operation considering safety of ground pedestrians in urban areas. China Safety Science Journal, 2020, 30(8):137-142. ]
[15]	中国民用航空局航空器适航审定司. 无人机云系统数据规范: MH-T2011-2019 [EB/OL]. 2019-10-22 [2020-11-01]. http://www.caac.gov.cn/XXGK/XXGK/BZGF/HYBZ/202008/P020200824383769494708.pdf.
	[CAAC Aircraft Airworthiness Certification Department. UAV cloud system data specification: MH-T2011-2019. 2019-10-22 [2020-11-01]. http://www.caac.gov.cn/XXGK/XXGK/BZGF/HYBZ/202008/P020200824383769494708.pdf. ]
[16]	中国民用航空局航空器适航审定司. 无人机云系统接口数据规范: MH-T2009-2017 [EB/OL]. 2017-10-20[2020-11-01]. http://www.caac.gov.cn/HDJL/YJZJ/201707/P020170711601854912740.pdf.
	[CAAC Aircraft Airworthiness Certification Department. Specification for interface data of unmanned aircraft system: MH-T2009-2017. 2017-10-20[2020-11-01]. http://www.caac.gov.cn/HDJL/YJZJ/201707/P020170711601854912740.pdf.]
[17]	廖小罕. 地理科学发展与新技术应用[J]. 地理科学进展, 2020, 39(5):709-715. doi: 10.18306/dlkxjz.2020.05.001
	[ Liao Xiaohan. Advance of geographic sciences and new technology applications. Progress in Geography, 2020, 39(5):709-715. ]
[18]	付婧婷, 陈慈发. 风力下的无人机偏离公共航路仿真研究[J]. 信息通信, 2020, 33(11):49-53.
	[ Fu Jingting, Chen Cifa. Simulation study of UAV deviation from public channel under wind. Information & Communications, 2020, 33(11):49-53. ]
[19]	魏宗康, 高荣荣, 周姣, 等. 基于椭圆概率误差的落点精度评定方法[J]. 导弹与航天运载技术, 2020(2):58-63.
	[ Wei Zongkang, Gao Rongrong, Zhou Jiao, et al. An accuracy evaluation method of fall points based on elliptic error probable. Missiles and Space Vehicles, 2020(2):58-63. ]
[20]	Chawla N V, Bowyer K W, Hall L O, et al. SMOTE: Synthetic minority over-sampling technique[J]. Journal of Artificial Intelligence Research, 2002, 16:321-357. doi: 10.1613/jair.953
[21]	LeCun Y, Bengio Y, Hinton G. Deep learning[J]. Nature, 2015, 521:436-444. doi: 10.1038/nature14539

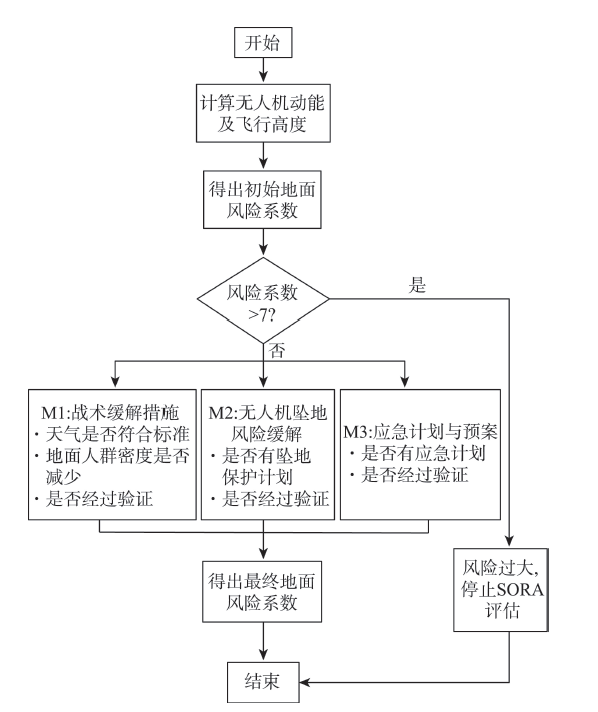

指标	无人机尺寸/m
指标	1	3	8	>8
动能	<700 J	<34 kJ	<1084 kJ	>1084 kJ
运行场景
视距内运行(VLOS),受控区域且人口稀少	1	2	3	4
视距外运行(BVLOS),受控区域且人口稀少	2	3	4	5
VLOS,人口居住区	3	4	5	6
BVLOS,受控区域且在人口居住区	4	5	6	8
BVLOS,人口居住区	5	6	8	10
VLOS,密集人群	7
BVLOS,密集人群	8

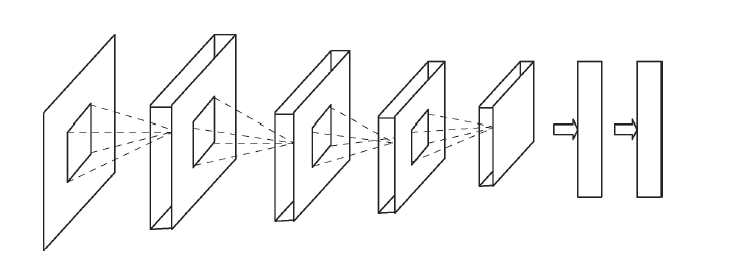

隐藏层	卷积核数量	卷积核大小
卷积层 Conv1	32	2×2
Conv2	64	2×2
池化层 Maxpooling	512	4×4
全连接层 FC	512	512×1

编号	观测时间	中心点经度/(°E)	中心点纬度/(°N)	范围面积/m²	区域人群密度指数
1	2020-01-17T01:00	116.201	39.906	90062	2.9
2	2020-01-17T03:00	116.311	39.933	100235	1.0
3	2020-01-17T09:00	116.251	39.920	73640	6.5

epoch	学习速率(lr)
	MSE (标准化)
	0.1		0.01	0.001
100		0.98	0.22	0.22
500		1.00	0.19	0.15
1000		0.63	0.14	0.08

Conv1	Conv2	Maxpooling	MSE
3×3	3×3	3×3	14.7
5×5	3×3	3×3	10.5
7×7	3×3	3×3	12.3

Dynamic path planning of unmanned aerial vehicle based on crowd density prediction

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 21

References 21

Related Articles 15

Metrics

Comments

Recommended 0

神经元数量	MSE	拟合速率/s
64-64-64	15.48(欠拟合)	1048.06
256-256-256	7.03	1326.51
256-128-64	7.07	1023.37

模型	R²	MSE	MAE
SVM	0.73	4.02	18.30
RF	0.82	3.77	10.25
Multi regression	0.70	14.23	22.30
C-Snet	0.86	3.78	5.32
