基于遥感数据的叶尔羌河流域水文过程模拟与分析

doi:10.18306/dlkxjz.2017.06.010

Abstract

Abstract:

In the desert-oasis ecology system of northwest China, water cycle in the mountain region is very important for the water resources management in downstream regions. To accurately understand the hydrological processes in high altitude and cold mountainous areas, a MIKE SHE model was applied to the Yarkant River Basin based on the remote sensing data of precipitation, temperature, and potential evapotranspiration, and the hydrological processes were analyzed based on the simulated outputs of runoff, snow, and evapotranspiration. The results suggest that the corrected remote sensing data are suitable for hydrological modeling of the Yarkant River Basin. At the Kaqun station, Nash efficiency coefficient and correlation coefficient are 0.71 and 0.85 at the daily scale. The annual mean stream runoff was 146.66 mm, among which base flow was 21.3%. The annual mean snowfall was 231 mm, which accounted for 74% of precipitation; 73.9% of the snowmelt occurred in July to September, and the snow storage is primarily distributed in the elevation zone above 5000 m. The evapotranspiration mainly occurred in the mid-low mountains covered by vegetation in June to September. The satellite data processed by appropriate methods are useful for the hydrological study in high-cold alpine catchments; multiple hydrological components could improve the understanding of water resources’ transition, storage, and distribution, which will contribute to the water resource management in the downstream regions.

Key words: hydrological model, hydrological processes, remote sensing data, Yarkant River Basin

Jiao LIU, Tie LIU, Yue HUANG, Anming BAO. Simulation and analysis of the hydrological processes in the Yarkant River Basin based on remote sensing data[J].PROGRESS IN GEOGRAPHY, 2017, 36(6): 753-761.

Figures/Tables 11

Fig.1

Tab.1

Fig.2

Tab.2

Fig.3

Tab.3

Fig.4

Fig.5

Tab.4

Fig.6

Fig.7

References 27

[10]	熊喆, 延晓冬. 2014. 黑河流域高分辨率区域气候模式建立及其对降水模拟验证[J]. 科学通报, 59(7): 605-614.
	[Xiong Z, Yan X D.2013. Building a high-resolution regional climate model for the Heihe River Basin and simulating precipitation over this region[J]. Chinese Science Bulletin, 58(36): 4670-4678.]
[11]	许宝荣, 邹松兵, 刘勇, 等. 2015. GIS支持下黑河流域降水台站的地形代表性[J]. 兰州大学学报: 自然科学版, 51(2): 166-172.
	[Xu B R, Zou S B, Liu Y, et al.2015. Terrain representation for the precipitation stations in Heihe River Basin based on GIS[J]. Journal of Lanzhou University: Natural Sciences, 51(2): 166-172. ]
[12]	颜伟, 刘景时, 罗光明, 等. 2014. 基于MODIS数据的2000-2013年西昆仑山玉龙喀什河流域积雪面积变化[J]. 地理科学进展, 33(3): 315-325. doi: 10.11820/dlkxjz.2014.03.003
	[Yan W, Liu J S, Luo G M, et al.2014. Snow cover area changes in the Yurungkax River Basin of West Kunlun Mountains during 2000-2013 using MODIS data[J]. Processes in Geography, 33(3): 315-325.] doi: 10.11820/dlkxjz.2014.03.003
[13]	杨惠安, 安瑞珍. 1991. 叶尔羌河流域现代冰川资源及分布特征[M]//中国冰川编目(塔里木河内陆流域: 叶尔羌河流域). 北京: 科学出版社.
	[Yang H A, An R Z.1991. Yarkant River Basin (interior drainage area of Tarim Basin)[M]//Glacier inventory of China. Beijing: Science Press.]
[14]	Chen Y N, Xu C C, Chen Y P, et al.2010. Response of glacial-lake outburst floods to climate change in the Yarkant River Basin on northern slope of Karakoram Mountains, China[J]. Quaternary International, 226(1-2): 75-81. doi: 10.1016/j.quaint.2010.01.003
[15]	Cristóbal J, Ninyerola M, Pons X.2008. Modeling air temperature through a combination of remote sensing and GIS data[J]. Journal of Geophysical Research, 113(D13): D13106. doi: 10.1029/2007JD009318
[16]	Fan Y T, Chen Y N, Liu Y B, et al.2013. Variation of baseflows in the headstreams of the Tarim River Basin during 1960-2007[J]. Journal of Hydrology, 487: 98-108. doi: 10.1016/j.jhydrol.2013.02.037
[17]	Hulley G C, Hook S J.2009. Intercomparison of versions 4, 4.1 and 5 of the MODIS Land Surface Temperature and Emissivity products and validation with laboratory measurements of sand samples from the Namib desert, Namibia[J]. Remote Sensing of Environment, 113(6): 1313-1318. doi: 10.1016/j.rse.2009.02.018
[18]	Liu J, Liu T, Bao A M, et al.2016a. Assessment of different modelling studies on the spatial hydrological processes in an arid alpine catchment[J]. Water Resources Management, 30(5): 1757-1770. doi: 10.1007/s11269-016-1249-2
[19]	Liu J, Liu T, Bao A M, et al.2016b. Response of hydrological processes to input data in high alpine catchment: An assessment of the Yarkant River Basin in China[J]. Water, 8(5): 181. doi: 10.3390/w8050181
[20]	Liu T, Willems P, Feng X W, et al.2012. On the usefulness of remote sensing input data for spatially dis-tributed hydrological modelling: Case of the Tarim River Basin in China[J]. Hydrological Processes, 26(3): 335-344. doi: 10.1002/hyp.8129
[21]	Marks D, Dozier J, Davis R E.1992. Climate and energy exchange at the snow surface in the alpine region of the sierra Nevada: 1. Meteorological measurements and monitoring[J]. Water Resources Research, 28(11): 3029-3042.
[1]	陈仁升, 康尔泗, 丁永建. 2014. 中国高寒区水文学中的一些认识和参数[J]. 水科学进展, 25(3): 307-317.
	[Chen R S, Kang E S, Ding Y J.2014. Some knowledge on and parameters of China's alpine hydrology[J]. Advances in Water Science, 25(3): 307-317.]
[22]	Prigent C.2010. Precipitation retrieval from space: An overview[J]. Comptes Rendus Geoscience, 342(4-5): 380-389. doi: 10.1016/j.crte.2010.01.004
[23]	Prince S D, Goetz S J, Dubayah R O, et al.1998. Inference of surface and air temperature, atmospheric precipitable water and vapor pressure deficit using advanced very high-resolution radiometer satellite observations: Comparison with field observations[J]. Journal of Hydrology, 212-213: 230-249.
[24]	Schmidli J, Frei C, Vidale P L.2006. Downscaling from GCM precipitation: A benchmark for dynamical and statistical downscaling methods[J]. International Journal of Climatology, 26(5): 679-689. doi: 10.1002/joc.1287
[2]	陈亚宁, 李稚, 范煜婷, 等. 2014. 西北干旱区气候变化对水文水资源影响研究进展[J]. 地理学报, 69(9): 1295-1304. doi: 10.11821/dlxb201409005
	[Chen Y N, Li Z, Fan Y T, et al.2014. Research progress on the impact of climate change on water resources in the arid region of Northwest China[J]. Acta Geographica Sinica, 69(9): 1295-1304.] doi: 10.11821/dlxb201409005
[25]	Sun W C, Ishidaira H, Bastola S.2012. Calibration of hydrological models in ungauged basins based on satellite radar altimetry observations of river water level[J]. Hydrological Processes, 26(23): 3524-3537. doi: 10.1002/hyp.8429
[26]	Tang H, Yang D G, Zhang Y F.2013. Food security and agricultural structural adjustment in Yarkant River Basin, Northwest China[J]. Journal of Food Agriculture and Environment, 11(1): 324-328.
[3]	傅国斌, 刘昌明. 2001. 遥感技术在水文学中的应用于研究进展[J]. 水科学进展, 12(4): 547-559. doi: 10.3321/j.issn:1001-6791.2001.04.020
	[Fu G B, Liu C M.2001. Advances in Applications of remote sensing data to hydrology[J]. Advances in Water Science, 12(4): 547-559. ] doi: 10.3321/j.issn:1001-6791.2001.04.020
[4]	高前兆, 史胜生, 温培安, 等. 1992. 中国西北干旱地区的水资源[J]. 中国沙漠, 12(4): 1-12.
	[Gao Q Z, Shi S S, Wen P A, et al.1992. Water resources in the arid zone of Northwest China[J]. Journal of Desert Research, 12(4): 1-12.]
[5]	高鑫, 张世强, 叶柏生, 等. 2010. 1961-2006年叶尔羌河上游流域冰川融水变化及其对径流的影响[J]. 冰川冻土, 32(3): 445-453.
	[Gao X, Zhang S Q, Ye B S, et al.2010. Glacier runoff change in the upper stream of Yarkant River and its impact on river runoff during 1961-2006[J]. Journal of Glaciology and Geocryology, 32(3): 445-453.]
[6]	胡庆芳, 杨大文, 王银堂, 等. 2013. 赣江流域TRMM降水数据的误差特征与成因[J]. 水科学进展, 24(6): 794-800.
	[Hu G B, Yang D W, Wang Y T, et al.2013. Characteristics and sources of errors in daily TRMM precipitation product over Ganjiang River Basin in China[J]. Advances in Water Science, 24(6): 794-800.]
[7]	黄晓东, 张学通, 李霞, 等. 2007. 北疆牧区MODIS积雪产品MOD10A1和MOD10A2的精度分析与评价[J]. 冰川冻土, 29(5): 722-729.
	[Huang X D, Zhang X T, Li X, et al.2007. Accuracy analysis for MODIS snow products of MOD10A1 and MOD10A2 in Northern Xinjiang Area[J]. Journal of Glaciology and Geocryology, 29(5): 722-729.]
[8]	季漩, 罗毅. 2013. TRMM降水数据在中天山区域的精度评估分析[J]. 干旱区地理, 36(2): 253-262.
	[Ji X, Luo Y.2013. Quality assessment of the TRMM precipitation data in Mid Tianshan Mountains[J]. Arid Land Geog-raphy, 36(2): 253-262.]
[9]	牛竞飞, 刘景时, 王迪, 等. 2011. 2009年喀喇昆仑山叶尔羌河冰川阻塞湖及冰川跃动监测[J]. 山地科学, 29(3): 276-282.
	[Niu J F, Liu J S, Wang D, et al.2011. Monitoring on ice-dammed lake and related surging glaciers in Yarkant River, Karakorum in 2009[J]. Journal of Mountain Science, 29(3): 276-282.]
[27]	Zhang Q, Xu C Y, Tao H, et al.2009. Climate changes and their impacts on water resources in the arid regions: A case study of the Tarim River Basin, China[J]. Stochastic Environmental Research and Risk Assessment, 24(3): 349-358. doi: 10.1007/s00477-009-0324-0

数据	来源	分辨率	提供参数
DEM	SRTM	90 m×90 m	地形、流域边界、河网水系
土地利用	基于2010年Landsat TM的解译	.shp 文件	地表的植被覆盖类型
土壤类型	HWSD	500 m×500 m	土壤类型及其属性
降水	TRMM 3B42 V6	0.25°×0.25°	日值的降水量

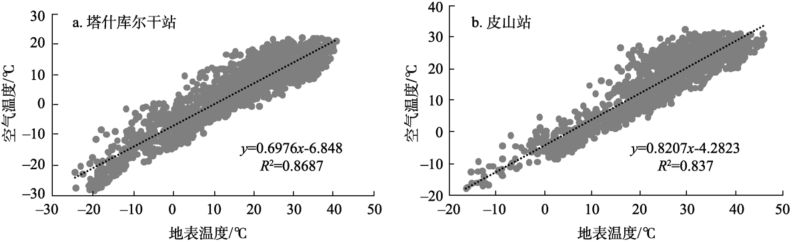

温度	MODIS 11C1	0.05°×0.05°	日值的平均地表温度
潜在蒸散发	FEWS NET Data Portal	0.5°×0.5°	日值的潜在蒸散发量

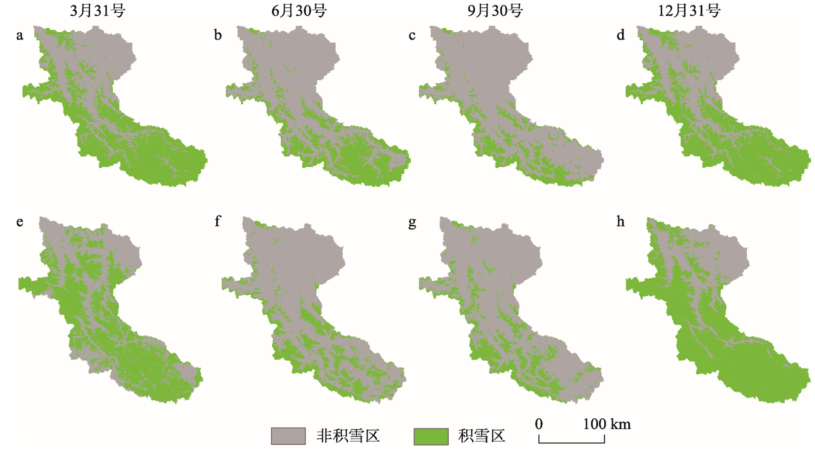

积雪覆盖	MODIS 10A2	500 m×500 m	8天的最大积雪覆盖面

站点	D_r	D_w	D_{w_0.3}	R_raw	R_cor	PRE_TRMM	PRE_TRMM._cor	PRE_OBS
塔什库尔干	0.54	0.75	0.95	0.26	0.56	210.95	111.03	94.57
皮山	0.15	0.88	0.99	0.36	0.67	40.25	49.46	54.28

月份	总降水/mm	降雪/mm	融雪/mm	储雪变化/mm	地表径流/mm	基流/mm	实际蒸散发/mm
3~5月	76.03	62.33	32.24	15.33	12.87	5.04	32.56
6~8月	145.57	88.90	112.74	-29.49	75.45	13.68	59.73
9~11月	40.55	32.68	7.34	17.39	22.26	8.71	22.12
12~次年2月	47.49	47.03	0.24	43.41	4.73	3.94	4.32
年平均	309.64	230.93	152.56	46.64	115.30	31.36	118.72
