基于水循环模拟的水生态产品价值量核算——以黄河上游湟水河流域为例
刘玉(1982— ),女,四川资阳人,副研究员,主要从事流域水文水资源研究。E-mail: liuyu@aircas.ac.cn |
收稿日期: 2023-05-06
修回日期: 2023-08-21
网络出版日期: 2023-09-27
基金资助
国家重点研发计划课题(2021YFC3201102)
Valuation of aquatic ecological products based on water cycle simulation: Taking the Huangshui River Basin as an example
Received date: 2023-05-06
Revised date: 2023-08-21
Online published: 2023-09-27
Supported by
National Key Research and Development Program of China(2021YFC3201102)
水生态产品实物量计算是水生态产品价值量核算及价值实现的基础。为客观反映水生态产品价值量与水循环过程的联系,论文以黄河上游湟水河流域为例,采用流域水循环多过程模拟、情景分析和社会经济调查等手段,核算了1986—2015年水生态产品(水资源供给、水资源存量、土壤保持、洪水调蓄、水质净化)实物量及其价值,系统分析了水生态产品价值量组成及时空分布规律。结果表明:湟水河流域1986—1995年水生态产品总价值量为604.81亿元/a,1996—2005、2006—2015年分别增加了10.87%、24.49%。水生态产品价值主要由水资源存储贡献(占比66.59%~69.53%),水库防洪价值、水资源供给、水质净化价值次之(分别占比18.91%~23.54%、5.08%~5.53%、4.77%~6.12%),土壤保持贡献最小(占比约0.02%)。从上游到下游子流域水生态产品价值量通常呈减小趋势,个别子流域由于有水利工程,水生态产品价值量明显增加。研究可为黄河上游流域水生态系统管理提供可靠的理论和技术支撑。
刘玉 , 翟晓燕 , 张永勇 , 李淼 , 刘晓洁 . 基于水循环模拟的水生态产品价值量核算——以黄河上游湟水河流域为例[J]. 地理科学进展, 2023 , 42(9) : 1704 -1716 . DOI: 10.18306/dlkxjz.2023.09.004
The calculation of the physical quantity of aquatic ecological products is the basis for the accounting and realization of the value of aquatic ecological products. In order to objectively reflect the relationship between the value of aquatic ecological products and water cycle processes, this study took the Huangshui River Basin in the upper reaches of the Yellow River as an example, and calculated the physical quantity and value of aquatic ecological products (water resources supply, water resources stock, soil conservation, flood regulation and storage, and water quality purification) in the basin from 1986 to 2015 by means of multi-process simulation of the water cycle in the basin, scenario analysis, and socio-economic condition investigation. The value composition and spatiotemporal distribution pattern of aquatic ecological products were systematically analyzed. The results show that the total value of aquatic ecological products in the Huangshui River Basin from 1986 to 1995 was 60.481 billion yuan/a, which increased by 10.87% and 24.49% in 1996-2005 and 2005-2015, respectively. The contribution of water resources storage was the highest (66.59%-69.53%), followed by reservoir flood control, water supply, and water purification (accounting for 18.91%-23.54%, 5.08%-5.53%, and 4.77%-6.12%, respectively), and the contribution of soil conservation was negligible (0.02%). The value of aquatic ecological products in sub-basins usually decreased from the upstream to the downstream, but the values of aquatic ecological products have increased significantly in sub-basins with water conservancy projects. This study provides a theoretical and technical support for the management of water ecosystems in the upper reaches of the Yellow River.
表1 研究区分布式水循环模型率定及验证结果Tab.1 Calibration and verification results of the distributed water cycle model in the study area |
站点 | 率定期 | 验证期 | |||||||
---|---|---|---|---|---|---|---|---|---|
时段 | 偏差 | 相关系数 | 效率系数 | 时段 | 偏差 | 相关系数 | 效率系数 | ||
民和 | 1970—1989年 | 0.05 | 0.81 | 0.64 | 2008—2010年 | 0.28 | 0.74 | 0.43 | |
亨堂 | 1960—1989年 | -0.11 | 0.84 | 0.69 | 2008—2010年 | 0.06 | 0.82 | 0.63 |
表2 水生态产品实物量及价值核算Tab.2 Physical quantity and value accounting of aquatic ecological products |
核算科目 | 类别 | 核算内容 | 单位 | 1986—1995年 | 1996—2005年 | 2006—2015年 | |
---|---|---|---|---|---|---|---|
水资源供给 | 实物量 | 灌溉供水量 | 亿m3/a | 10.00 | 12.50 | 15.45 | |
城市供水量 | 亿m3/a | 5.00 | 6.00 | 7.75 | |||
发电供水量 | 亿kWh/a | 50.00 | 50.00 | 57.50 | |||
价值量 | 灌溉价值量 | 亿元/a | 1.10 | 1.38 | 1.70 | ||
城市供水价值量 | 亿元/a | 14.65 | 17.58 | 22.71 | |||
发电价值量 | 亿元/a | 15.00 | 15.00 | 17.25 | |||
水资源存储 | 实物量 | 地表水存储量 | 亿m3/a | 3.98 | 3.95 | 3.80 | |
土壤水存储量 | 亿m3/a | 16.36 | 24.66 | 30.22 | |||
地下水存储量 | 亿m3/a | 24.66 | 22.02 | 24.47 | |||
价值量 | 水资源存储价值量 | 亿元/a | 402.74 | 453.07 | 523.50 | ||
防洪调蓄 | 实物量 | 防洪库容 | 亿m3/a | 15.91 | 15.91 | 15.91 | |
价值量 | 防洪调蓄价值量 | 亿元/a | 142.41 | 142.41 | 142.41 | ||
土壤保持 | 实物量 | 农田调节泥沙总量 | 亿kg/a | 0.08 | 0.17 | 0.19 | |
林地调节泥沙总量 | 亿kg/a | 0.27 | 0.21 | 0.34 | |||
草地调节泥沙总量 | 亿kg/a | 0.26 | 0.27 | 0.58 | |||
价值量 | 减少泥沙淤积价值量 | 万元/a | 9.50 | 11.30 | 22.67 | ||
减少面源污染价值量(折合氮肥) | 万元/a | 38.66 | 41.83 | 70.99 | |||
减少面源污染价值量(折合钾肥) | 万元/a | 42.84 | 46.35 | 78.66 | |||
减少面源污染价值量(折合磷肥) | 万元/a | 891.42 | 964.49 | 1660.08 | |||
水质净化 | 实物量 | 农田净化COD总量 | 亿kg/a | 0.10 | 0.18 | 0.20 | |
林地净化COD总量 | 亿kg/a | 0.38 | 0.39 | 0.27 | |||
草地净化COD总量 | 亿kg/a | 0.84 | 1.31 | 1.60 | |||
价值量 | 水质净化价值量 | 亿元/a | 28.82 | 41.04 | 45.19 | ||
水生态产品价值量总计 | 亿元/a | 604.81 | 670.58 | 752.95 |

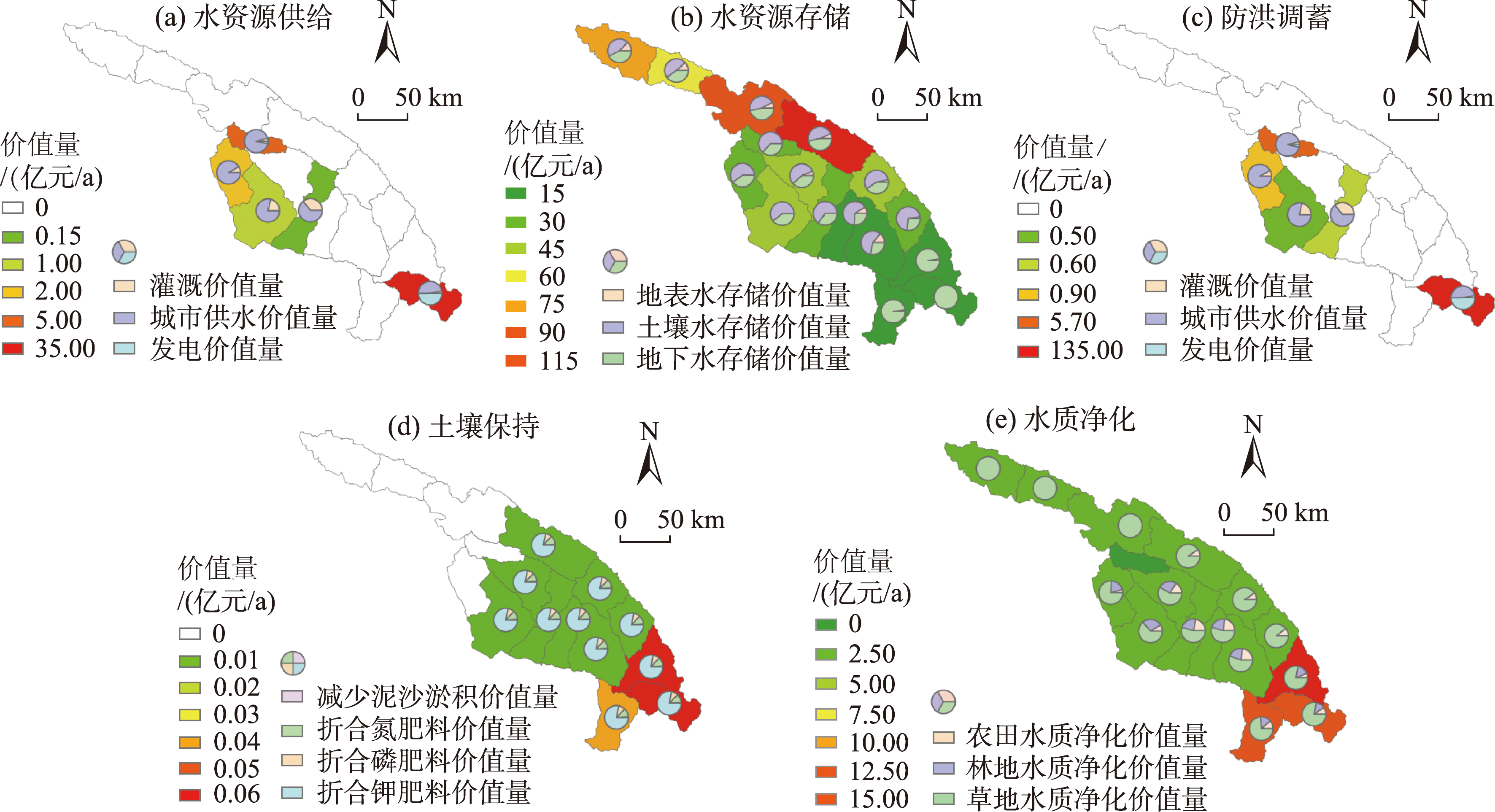

图5 研究区2006—2015年单项水生态产品价值量、组成及空间分布Fig.5 Value, composition and spatial distribution of individual aquatic ecological products in the study area during 2006-2015 |
[1] |
欧阳志云, 朱春全, 杨广斌, 等. 生态系统生产总值核算: 概念、核算方法与案例研究[J]. 生态学报, 2013, 33(21): 6747-6761.
[
|
[2] |
|
[3] |
|
[4] |
|
[5] |
|
[6] |
|
[7] |
国家林业局. 森林生态系统服务功能评估规范: LY/T 2735—2016[S]. 北京: 中国标准出版社, 2016.
[State Forestry Administration of the People's Republic of China. Specifications for assessment of nature resources (forest) property in China: LY/T 2735-2016. Beijing, China: Standard of Forestry Industry of People's Republic of China, 2016. ]
|
[8] |
国家林业局. 荒漠生态系统服务评估规范: LY/T 2006—2012 [S]. 北京: 中国标准出版社, 2012.
[State Forestry Administration of the People's Republic of China. Assessment criteria of desert ecosystem services in China:LY/T 2006-2012. Beijing, China: Standards Press of China, 2012. ]
|
[9] |
欧阳志云, 王金南, 肖燚, 等. 陆地生态系统生产总值(GEP)核算技术指南[S]. 北京: 生态环境部环境规划院, 2020.
[
|
[10] |
南方都市报. 为绿水青山打“价码”! 深圳去年GEP为1363.87亿元[N/OL]. 2022-12-29 [2023-05-22]. https://m.sohu.com/a/622342666_161795/
[Southern Metropolis Daily. Set a 'price code' for green waters and green mountains! Shenzhen's GEP last year was 136.387 billion yuan. 2022-12-29 [2023-05-22]. https://m.sohu.com/a/622342666_161795/
|
[11] |
浙江省林业局. 浙江湖州率先建成县域GEP核算决策支持系统[EB/OL]. 2021-07-21 [2023-05-22]. http://www.forestry.gov.cn/main/586/20210720/141507708869880.Html
[Zhejiang Provincial Forestry Bureau. Zhejiang Huzhou took the lead in establishing a county-level GEP accounting decision support system. 2021-07-21 [2023-05-22]. http://www.forestry.gov.cn/main/586/20210720/141507708869880.Html
|
[12] |
朱智翔, 晏利扬, 孟琳, 等. 德清推出“数字两山”GEP核算平台[EB/OL]. 中国环境网, 2021-06-21 [2023-05-22]. http://hbw.chinaenvironment.com/zxxwlb/index_55_113325.Html
[
|
[13] |
浙江省市场监督管理局. DB33/T 2274—2020: 生态系统生产总值(GEP)核算技术规范陆域生态系统 [S]. 北京: 中国标准出版社, 2020.
[Zhejiang Provincial Market Supervision and Administration Bureau. DB33/T 2274-2020: Technical specification for gross ecosystem product (GEP) accounting of land ecosystems. Beijing, China: Standards Press of China, 2020. ]
|
[14] |
深圳市场监督管理局. DB4403/T 141—2021: 深圳市生态系统生产总值核算技术规范 [S]. 北京: 中国标准出版社, 2021.
[Shenzhen Market Supervision and Administration Bureau. DB4403/T 141-2021: Technical specification for accounting of gross ecosystem product in Shenzhen. Beijing, China: Standards Press of China, 2021. ]
|
[15] |
范小杉, 何萍. 河流生态系统服务研究进展[J]. 地球科学进展, 2018, 33(8): 852-864.
[
|
[16] |
贾建辉, 陈建耀, 龙晓君, 等. 水电开发对河流生态系统服务的效应评估与时空变化特征分析: 以武江干流为例[J]. 自然资源学报, 2020, 35(9): 2163-2176.
[
|
[17] |
杜婷婷, 罗维, 李中和, 等. 湖泊生态系统服务功能价值评估: 以太湖为例[J]. 中国人口·资源与环境, 2012, 22(S2): 208-211.
[
|
[18] |
唐寅, 王中根, 王婉清, 等. 适用于遥感影像的水生态空间多功能分类体系研究[J]. 地理科学进展, 2020, 39(3): 454-460.
[
|
[19] |
高俊峰, 高永年, 张志明. 湖泊型流域水生态功能分区的理论与应用[J]. 地理科学进展, 2019, 38(8): 1159-1170.
[
|
[20] |
江波,
[
|
[21] |
巩杰, 降同昌, 谢余初, 等. 民勤红崖山水库生态系统服务功能的经济价值[J]. 水资源保护, 2012, 28(4): 82-86.
[
|
[22] |
王娇月, 邴龙飞, 尹岩, 等. 湿地生态系统服务功能及其价值核算: 以福州市为例[J]. 应用生态学报, 2021, 32(11): 3824-3834.
[
|
[23] |
吴后建, 但新球, 刘世好, 等. 湖南省湿地生态系统服务价值初步评价[J]. 湿地科学, 2016, 14(6): 781-787.
[
|
[24] |
杨青, 刘耕源. 湿地生态系统服务价值能值评估: 以珠江三角洲城市群为例[J]. 环境科学学报, 2018, 38(11): 4527-4538.
[
|
[25] |
赵同谦, 欧阳志云, 王效科, 等. 中国陆地地表水生态系统服务功能及其生态经济价值评价[J]. 自然资源学报, 2003, 18(4): 443-452.
[
|
[26] |
陈默, 林育青, 张建云, 等. 水生态系统生产总值核算体系及应用[J]. 水资源保护, 2023, 39(1): 234-242.
[
|
[27] |
陈恩民, 姜利杰, 于新花, 等. 水生态产品价值核算与实现研究综述[J]. 浙江水利科技, 2023, 51(1): 58-64.
[
|
[28] |
王建华, 贾玲, 刘欢, 等. 水生态产品内涵及其价值解析研究[J]. 环境保护, 2020, 48(14): 37-41.
[
|
[29] |
吴浓娣, 庞靖鹏. 关于水生态产品价值实现的若干思考[J]. 水利发展研究, 2021, 21(2): 32-35.
[
|
[30] |
於方. 中国环境经济核算技术指南[M]. 北京: 中国环境科学出版社, 2009.
[
|
[31] |
水利部水利建设经济定额站. 中华人民共和国水利部水利建筑工程预算定额[M]. 郑州: 黄河水利出版社. 2002.
[Economic Quota Station for Water Conservancy Construction of the Ministry of Water Resources. Budget quota for water conservancy construction projects of the Ministry of Water Resources of the People's Republic of China. Zhengzhou, China: Yellow River Water Conservancy Press, 2002. ]
|
[32] |
赵定平, 汤小云, 何海涛. 水库泥沙淤积量计算方法探讨[J]. 科技资讯, 2008(35): 241-242.
[
|
[33] |
|
[34] |
|
[35] |
|
[36] |
|
/
〈 |
|
〉 |
