PROGRESS IN GEOGRAPHY ›› 2022, Vol. 41 ›› Issue (8): 1453-1466.doi: 10.18306/dlkxjz.2022.08.009
• Articles • Previous Articles Next Articles
WANG Na1(), ZHA Xiaochun1,*(
), HUANG Chunchang1, ZHANG Yuzhu2, ZHOU Yali1, PANG Jiangli1, RONG Xiaoqing3, SHANG Ruiqing1, CHAI Jianan1
Received:
2022-01-20
Revised:
2022-03-16
Online:
2022-08-28
Published:
2022-10-25
Contact:
ZHA Xiaochun
E-mail:wn072701@163.com;zhaxch@snnu.edu.cn
Supported by:
WANG Na, ZHA Xiaochun, HUANG Chunchang, ZHANG Yuzhu, ZHOU Yali, PANG Jiangli, RONG Xiaoqing, SHANG Ruiqing, CHAI Jianan. Sedimentary evidence and age of the Zoige Basin dissected by the Yellow River in eastern Tibetan Plateau[J].PROGRESS IN GEOGRAPHY, 2022, 41(8): 1453-1466.
Tab.1

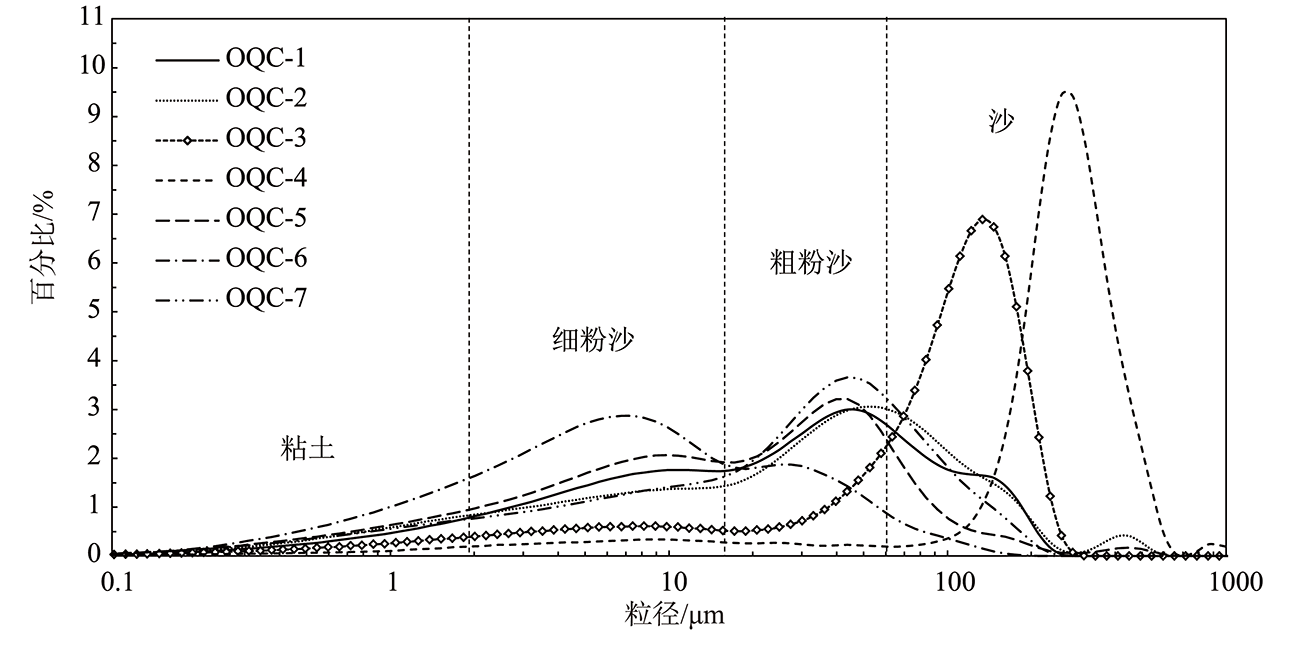

Characteristic values of grain size for each stratum of the OQC profile in the Zoige Basin
地层 编号 | 地层层位 | 黏粒 (<2 μm)/% | 细粉沙 (2~16 μm)/% | 粗粉沙 (16~63 μm)/% | 沙 (>63 μm)/% | 平均粒径 Mz/μm | 标准偏差 | 峰度 | 偏度 |
---|---|---|---|---|---|---|---|---|---|
OQC-1 | 现代草甸土层 | 8.99 | 31.41 | 35.90 | 23.70 | 38.27 | 2.19 | 0.93 | 0.25 |
OQC-2 | 古土壤层 | 10.80 | 26.20 | 34.30 | 28.70 | 44.05 | 2.35 | 0.93 | 0.34 |
OQC-3 | 风成沙层 | 5.27 | 12.01 | 14.00 | 68.72 | 95.05 | 1.96 | 1.61 | 0.66 |
OQC-4 | 古河床河漫滩相沉积层 | 2.41 | 6.37 | 3.51 | 87.71 | 272.57 | 1.38 | 3.29 | 0.46 |
OQC-5 | 古滨浅湖相沉积层 | 12.40 | 36.65 | 38.05 | 12.90 | 25.62 | 2.16 | 0.96 | 0.25 |
OQC-6 | 古深湖相沉积层 | 18.50 | 53.30 | 24.00 | 4.20 | 12.92 | 2.02 | 0.98 | 0.05 |
OQC-7 | 古滨浅湖相沉积层 | 10.90 | 25.70 | 41.50 | 21.90 | 36.18 | 2.21 | 1.01 | 0.40 |
Tab.2
OSL dating results for the OQC profile in the Zoige Basin
样品 编号 | 深度 /cm | 地层层位 | U /10-6 | Th /10-6 | K /% | 含水量 /% | 环境剂量率 /(Gy·ka-1) | 等效剂量 /Gy | OSL年龄 /ka |
---|---|---|---|---|---|---|---|---|---|
OSL-1 | 75~80 | 现代草甸土层底部 | 1.29±0.3 | 8.07±0.6 | 1.72±0.04 | 20±3 | 2.45±0.08 | 6.81±0.14 | 2.79±0.10 |
OSL-2 | 155~160 | 古土壤层底部 | 1.51±0.3 | 8.74±0.6 | 1.57±0.04 | 20±3 | 2.37±0.07 | 20.35±0.68 | 8.59±0.39 |
OSL-3 | 165~170 | 风成沙层顶部 | 1.42±0.3 | 8.94±0.6 | 1.54±0.04 | 21±3 | 2.31±0.07 | 19.68±0.43 | 8.60±0.38 |
OSL-4 | 545~550 | 风成沙层底部 | 1.43±0.3 | 8.14±0.6 | 1.58±0.04 | 21±3 | 2.20±0.07 | 20.29±0.32 | 9.24±0.32 |
OSL-5 | 645~650 | 古河床河漫滩相沉积层上部 | 1.01±0.3 | 5.82±0.6 | 1.47±0.04 | 22±3 | 1.86±0.06 | 24.57±0.92 | 13.20±0.67 |
OSL-6 | 895~900 | 古河床河漫滩相沉积层下部 | 1.73±0.3 | 9.45±0.6 | 1.81±0.04 | 22±3 | 2.44±0.07 | 81.25±0.96 | 33.35±1.06 |
OSL-7 | 955~960 | 古滨浅湖相沉积层顶部 | 3.35±0.4 | 11.23±0.7 | 1.64±0.04 | 23±3 | 2.67±0.08 | 94.00±5.41 | 35.15±2.30 |
OSL-8 | 990~995 | 古滨浅湖相沉积层底部 | 1.86±0.4 | 10.99±0.7 | 1.75±0.04 | 25±3 | 2.42±0.08 | 85.77±4.64 | 35.42±2.40 |
OSL-9 | 1005~1010 | 古深湖相沉积层顶部 | 2.37±0.4 | 14.99±0.7 | 2.43±0.04 | 25±3 | 3.30±0.09 | 122.64±9.39 | 37.17±3.03 |
OSL-10 | 1045~1150 | 古深湖相沉积层底部 | 2.15±0.4 | 10.71±0.7 | 1.97±0.04 | 25±3 | 2.65±0.08 | 105.97±6.56 | 40.01±2.77 |
OSL-11 | 1110~1115 | 古滨浅湖相沉积层顶部 | 1.41±0.3 | 9.22±0.6 | 1.67±0.04 | 25±3 | 2.17±0.07 | 100.27±7.40 | 46.29±3.70 |
[1] |
黄春长. 若尔盖盆地河流古洪水沉积及其对黄河水系演变问题的启示[J]. 地理学报, 2021, 76(3): 612-625.
doi: 10.11821/dlxb202103009 |
[ Huang Chunchang. Palaeoflood deposits in the Zoige Basin and the enlightening on the formation of the Yellow River drainage system on the Tibetan Plateau. Acta Geographica Sinica, 2021, 76(3): 612-625. ]
doi: 10.11821/dlxb202103009 |
|
[2] | 孙广友, 张文芬. 若尔盖高原黄河古河道及其古地理意义[J]. 地理科学, 1987, 7(3): 266-272, 296. |
[ Sun Guang-you, Zhang Wenfen. Old channels of the Huanghe River on Ruoergai Plateau and it's palaeogeographic significence. Scientia Geographica Sinica, 1987, 7(3): 266-272, 296. ] | |
[3] | 周明镇. 阿坝藏族自治州第四纪哺乳动物化石[J]. 第四纪研究, 1959, 2(1): 8-13. |
[ Zhou Mingzhen. Pleistocene Mammalia fossils from the eastern border of the Tibetian Plateau. Quaternary Sciences, 1959, 2(1): 8-13. ] | |
[4] | 王云飞, 王苏民, 薛滨, 等. 黄河袭夺若尔盖古湖时代的沉积学依据[J]. 科学通报, 1995, 40(8): 723-725. |
[ Wang Yunfei, Wang Sumin, Xue Bin, et al. Sediment evidence of the Zoige paleo-lake captured by the Yellow River. Chinese Science Bulletin, 1995, 40(8): 723-725. ] | |
[5] | 李世杰, 施雅风, 王苏民. 若尔盖盆地3万年来气候与环境变化的地质记录[C]// 青藏项目专家委员会. 青藏高原形成演化、环境变迁与生态系统研究. 北京: 科学出版社, 1995: 227-235. |
[ Li S J, Shi Y F, Wang S M. Geological record of climatic and environmental changes in Zoige Basin during the last 30000 years // The Steering Commission of the Qinghai-Xizang Program. The evolution, environment change and ecosystem study of Qinghai-Xizang Plateau. Beijing, China: Science Press, 1995: 227-235. ] | |
[6] | 杨达源, 吴胜光, 王云飞. 黄河上游的阶地与水系变迁[J]. 地理科学, 1996, 16(2): 137-143. |
[ Yang Dayuan, Wu Shengguang, Wang Yunfei. On river terraces of the upper reaches of the Huanghe River and change of the river system. Scientia Geographica Sinica, 1996, 16(2): 137-143. ] | |
[7] | 魏全伟, 谭利华, 王随继. 河流阶地的形成、演变及环境效应[J]. 地理科学进展, 2006, 25(3): 55-61. |
[ Wei Quanwei, Tan Lihua, Wang Suiji. Formation and evolution of river terrace and environment responses. Progress in Geography, 2006, 25(3): 55-61. ] | |
[8] | 徐茂其. 川西北若尔盖高原第四纪环境演变概要[J]. 西南师范大学学报(自然科学版), 1988, 13(4): 94-100. |
[ Xu Maoqi. An outline of the quaternary environmental evolution of the Roer Gai Plateau in northwestern Sichuan. Journal of Southwest China Normal University (Natural Science), 1988, 13(4): 94-100. ] | |
[9] | 李志威, 王兆印, 余国安, 等. 黄河源玛曲河段河型沿程变化及其原因[J]. 泥沙研究, 2013(3): 51-58. |
[ Li Zhiwei, Wang Zhaoyin, Yu Guo'an, et al. River pattern transition and its causes along Maqu reach of Yellow River source region. Journal of Sediment Research, 2013(3): 51-58. ] | |
[10] | 胡光印, 董治宝, 张正偲, 等. 若尔盖盆地起沙风风况与输沙势特征[J]. 中国沙漠, 2020, 40(5): 20-24. |
[ Hu Guangyin, Dong Zhibao, Zhang Zhengcai, et al. The regime of sand driving wind and sand drift potential in Zoige Basin. Journal of Desert Research, 2020, 40(5): 20-24. ] | |
[11] |
褚琳, 黄翀, 刘高焕, 等. 2000-2010年黄河源玛曲高寒湿地生态格局变化[J]. 地理科学进展, 2014, 33(3): 326-335.
doi: 10.11820/dlkxjz.2014.03.004 |
[ Chu Lin, Huang Chong, Liu Gaohuan, et al. Changes in ecological patterns of Maqu alpine wetland in Yellow River source area during 2000-2010. Progress in Geography, 2014, 33(3): 326-335. ] | |
[12] | 何文贵, 袁道阳, 熊振, 等. 东昆仑断裂带东段玛曲断裂新活动特征及全新世滑动速率研究[J]. 地震, 2006, 26(4): 67-75. |
[ He Wengui, Yuan Daoyang, Xiong Zhen, et al. Study on characteristics of new activity and Holocene slip rate along Maqu Fault of East Kunlun Active Fault. Earthquake, 2006, 26(4): 67-75. ] | |
[13] |
Prescott J R, Hutton J T. Cosmic ray contributions to dose rates for luminescence and ESR dating: Large depths and long-term time variations[J]. Radiation Measurements, 1994, 23(2/3): 497-500.
doi: 10.1016/1350-4487(94)90086-8 |
[14] | 李玫, 罗鸿兵, 宋慧瑾, 等. 若尔盖湿地土壤水分特征及动态模拟[J]. 人民黄河, 2014, 36(3): 64-66. |
[ Li Mei, Luo Hongbing, Song Huijin, et al. Characteristics and dynamic simulation of soil water in the Zoige Plateau wetland. Yellow River, 2014, 36(3): 64-66. ] | |
[15] |
戎晓庆, 庞奖励, 黄春长, 等. 青海官亭盆地史前灾难性地表过程及其影响研究[J]. 地理科学进展, 2020, 39(8): 1319-1332.
doi: 10.18306/dlkxjz.2020.08.007 |
[ Rong Xiaoqing, Pang Jiangli, Huang Chunchang, et al. Prehistoric catastrophic surface processes and their impacts in the Guanting Basin, Qinghai Province. Progress in Geography, 2020, 39(8): 1319-1332. ]
doi: 10.18306/dlkxjz.2020.08.007 |
|
[16] |
薛天翼, 王红亚. 湖泊(水库)沉积物分析在土壤侵蚀研究中的运用[J]. 地理科学进展, 2018, 37(7): 890-900.
doi: 10.18306/dlkxjz.2018.07.003 |
[ Xue Tianyi, Wang Hongya. Soil erosion investigation based on sediments in lakes and reservoirs. Progress in Geography, 2018, 37(7): 890-900. ]
doi: 10.18306/dlkxjz.2018.07.003 |
|
[17] | 陈京, 吉力力·阿不都外力, 马龙. 赛里木湖沉积物有机质变化特征及其环境信息[J]. 冰川冻土, 2016, 38(3): 761-768. |
[ Chen Jing, Jilili Abuduwaili, Ma Long. Variation of the organic matter content of the sediment abstracted from Sayram Lake and its environmental significance. Journal of Glaciology and Geocryology, 2016, 38(3): 761-768. ] | |
[18] |
Murray A S, Wintle A G. Luminescence dating of quartz using an improved single-aliquot regenerative-dose protocol[J]. Radiation Measurements, 2000, 32(1): 57-73.
doi: 10.1016/S1350-4487(99)00253-X |
[19] |
赖忠平, 欧先交. 光释光测年基本流程[J]. 地理科学进展, 2013, 32(5): 683-693.
doi: 10.11820/dlkxjz.2013.05.001 |
[ Lai Zhongping, Ou Xianjiao. Basic procedures of optically stimulated luminescence (OSL) dating. Progress in Geography, 2013, 32(5): 683-693. ]
doi: 10.11820/dlkxjz.2013.05.001 |
|
[20] |
Thomsen K J, Murray A S, Bøtter-Jensen L, et al. Determination of burial dose in incompletely bleached fluvial samples using single grains of quartz[J]. Radiation Measurements, 2007, 42(3): 370-379.
doi: 10.1016/j.radmeas.2007.01.041 |
[21] |
Bailey R M, Arnold L J. Statistical modelling of single grain quartz De distributions and an assessment of procedures for estimating burial dose[J]. Quaternary Science Reviews, 2006, 25: 2475-2502.
doi: 10.1016/j.quascirev.2005.09.012 |
[22] |
Arnold L J, Bailey R M, Tucker G E. Statistical treatment of fluvial dose distributions from southern Colorado arroyo deposits[J]. Quaternary Geochronology, 2007, 2: 162-167.
doi: 10.1016/j.quageo.2006.05.003 |
[23] |
Galbraith R F, Roberts R G, Laslett G M, et al. Optical dating of single and multiple grains of quartz from Jinmium rock shelter, Northern Australia: Part Ⅰ, experimental design and statistical models[J]. Archaeometry, 1999, 41(2): 339-364.
doi: 10.1111/j.1475-4754.1999.tb00987.x |
[24] | 川西北地质大队. 四川省若尔盖高原泥炭区泥炭资源远景地质调查报告[R]. 成都: 四川省地质矿产局科学研究所, 1987. |
[Northwest Sichuan Geology Group. Investigating report of peat resource in the Zoige Plateau of Sichuan Province. Chengdu, China: Sichuan Institute of Geology and Mineral Ore, 1987. ] | |
[25] | 宗冠福, 徐钦琦, 陈万勇. 阿坝藏族自治州若尔盖晚更新世地层及哺乳类化石[J]. 古脊椎动物学报, 1985, 23(2): 161-166, 186. |
[ Zong Guanfu, Xu Qinqi, Chen Wanyong. Note on the late Pleistocene Mammalian fossils in the Apa Zangzu Zizhizhou. Vertebrata Palasiatica, 1985, 23(2): 161-166, 186. ] | |
[26] | 盛海洋, 王丽. 黄河上游若尔盖盆地黄河古河道研究[J]. 人民黄河, 2008, 30(12): 6-8. |
[ Sheng Haiyang, Wang Li. Paleo-channel in the Zoige Basin along the upper Yellow River. Yellow River, 2008, 30(12): 6-8. ] | |
[27] | 赵志中, 乔彦松, 王书兵, 等. 青藏高原东缘第四纪地质与环境调查的新进展[C]// 地质力学专业委员会与第四纪地质专业委员会. 青藏高原地质过程与环境灾害效应文集. 北京: 地震出版社, 2005. |
[ Zhao Zhizhong, Qiao Yansong, Wang Shubing, et al. New progress of Quaternary geological and environmental survey in the eastern margin of the Qinghai-Tibet Plateau // Specialized Committee of Geomechanics and Specialized Committee of Quaternary Geology. Geological process and environmental disaster effect of the Qinghai-Tibet Plateau. Beijing: Earthquake Press, 2005. ] | |
[28] |
Chen H, Yang G, Peng C H, et al. The carbon stock of alpine peatlands on the Qinghai-Tibetan Plateau during the Holocene and their future fate[J]. Quaternary Science Reviews, 2014, 95: 151-158.
doi: 10.1016/j.quascirev.2014.05.003 |
[29] | 孙晓红, 赵艳, 李泉. 青藏高原东部若尔盖盆地全新世泥炭地发育和植被变化[J]. 中国科学(地球科学), 2017, 47(9): 1097-1109. |
[ Sun Xiaohong, Zhao Yan, Li Quan. Holocene peatland development and vegetation changes in the Zoige Basin, eastern Tibetan Plateau. Scientia Sinica Terrae, 2017, 47(9): 1097-1109. ]
doi: 10.1360/N072017-0048 |
|
[30] | 陈莹璐, 黄春长, 张玉柱, 等. 黄河源区玛曲段末次冰消期古洪水事件及其光释光测年研究[J]. 冰川冻土, 2017, 39(3): 549-562. |
[ Chen Yinglu, Huang Chunchang, Zhang Yuzhu, et al. Study of the sedimentology and OSL dating of the last deglaciation paleoflood events along Maqu section in the source regions of the Yellow River. Journal of Glaciology and Geocryology, 2017, 39(3): 549-562. ] | |
[31] | 王富葆, 韩辉友, 阎革, 等. 青藏高原东北部30 ka以来的古植被与古气候演变序列[J]. 中国科学(地球科学), 1996, 26(2): 111-117. |
[ Wang Fubao, Han Huiyou, Yan Ge, et al. The sequence of paleovegetation and paleoclimate evolution in the northeastern Tibetan Plateau since 30 ka. Scientia Sinica Terrae, 1996, 26(2): 111-117. ] | |
[32] | 潘保田, 李吉均, 周尚哲. 黄河最上游发育历史初步研究[C]// 中国地理学会地貌与第四纪专业委员会. 地貌过程与环境. 北京: 地震出版社, 1993: 17-21. |
[ Pan Baotian, Li Jijun, Zhou Shangzhe. Study on the forming history of the upper-most Yellow River // Geomorphology and Quaternary Professional Committee of the Geographical Society of China. Geomorphological process and environment. Beijing, China: Earthquake Press, 1993: 17-21. ] | |
[33] | 甄治国, 钟巍, 薛积彬, 等. 中国不同区域MIS-3时期气候特征研究进展[J]. 冰川冻土, 2008, 30(5): 814-824. |
[ Zhen Zhiguo, Zhong Wei, Xue Jibin, et al. Progress in the studies of climatic features in different areas of China during the MIS-3. Journal of Glaciology and Geocryology, 2008, 30(5): 814-824. ] | |
[34] |
Lisiecki L E, Raymo M E. A Pliocene-Pleistocene stack of 57 globally distributed benthic δ18O records[J]. Paleoceanography, 2005, 20: PA1003. doi: 10.1029/2004PA001071.
doi: 10.1029/2004PA001071 |
[35] |
Fuji N, Horowitz A. Brunhes epoch paleoclimates of Japan and Israel[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 1989, 72: 79-88.
doi: 10.1016/0031-0182(89)90133-8 |
[36] |
Wang Y J, Cheng H, Edwards R L, et al. Millennial- and orbital-scale changes in the East Asian monsoon over the past 224000 years[J]. Nature, 2008, 451: 1090-1093.
doi: 10.1038/nature06692 |
[37] | 施雅风, 贾玉连, 于革, 等. 40-30 kaBP青藏高原及邻区高温大降水事件的特征、影响及原因探讨[J]. 湖泊科学, 2002, 14(1): 1-11. |
[ Shi Yafeng, Jia Yulian, Yu Ge, et al. Features, impacts and causes of the high temperature and large precipitation event in the Tibetan Plateau and its adjacent area during 40-30 kaBP. Journal of Lake Sciences, 2002, 14(1): 1-11. ]
doi: 10.18307/2002.0101 |
|
[38] | 黄赐璇, 张青松, 刘福涛. 西藏日土县班公错地区晚更新世晚期植物群与古气候探讨[J]. 自然资源学报, 1989, 4(3): 247-253. |
[ Huang Cixuan, Zhang Qingsong, Liu Futao. A preliminary study of paleovegetation and paleoclimate in the later period of late Pleistocene in the Bangongcuo Lake region of Xizang. Journal of Natural Resources, 1989, 4(3): 247-253. ] | |
[39] | 山发寿, 杜乃秋, 孔昭宸. 青海湖盆地35万年来的植被演化及环境变迁[J]. 湖泊科学, 1993, 5(1): 9-17, 99-100. |
[ Shan Fashou, Du Naiqiu, Kong Zhaochen. Vegetational and environmental changes in the last 350 ka in Erlangjian, Qinghai Lake. Journal of Lake Sciences, 1993, 5(1): 9-17, 99-100. ]
doi: 10.18307/1993.0102 |
|
[40] |
李炳元. 青藏高原大湖期[J]. 地理学报, 2000, 55(2): 174-182.
doi: 10.11821/xb200002005 |
[ Li Bingyuan. The last greatest lakes on the Xizang (Tibetan) Plateau. Acta Geographica Sinica, 2000, 55(2): 174-182. ]
doi: 10.11821/xb200002005 |
|
[41] | 吴敬禄, 王苏民, 潘红玺, 等. 青藏高原东部RM孔140 ka以来湖泊碳酸盐同位素记录的古气候特征[J]. 中国科学(地球科学), 1997, 27(3): 255-259. |
[ Wu Jinglu, Wang Sumin, Pan Hongxi, et al. Paleoclimate characteristics recorded by lake carbonate isotope in the RM core on the Tibetan Plateau. Scientia Sinica Terrae, 1997, 27(3): 255-259. ] | |
[42] | 沈才明, 唐领余, 王苏民, 等. 若尔盖盆地RM孔孢粉记录及其年代序列[J]. 科学通报, 2005, 50(3): 246-254. |
[ Shen Caiming, Tang Lingyu, Wang Sumin, et al. Sporopollen records and chronology of RM pore in Zoige Basin. Chinese Science Bulletin, 2005, 50(3): 246-254. ] | |
[43] | 马寅生, 施炜, 张岳桥, 等. 东昆仑活动断裂带玛曲段活动特征及其东延[J]. 地质通报, 2005, 24(1): 30-35. |
[ Ma Yinsheng, Shi Wei, Zhang Yueqiao, et al. Characteristics of the activity of the Maqu segment of the East Kunlun active fault belt and its eastward extension. Geological Bulletin of China, 2005, 24(1): 30-35. ] |
|
