基于无人机摄影测量的梅里雪山明永冰川末端表面高程动态监测

doi:10.18306/dlkxjz.2021.09.012

Abstract

Abstract:

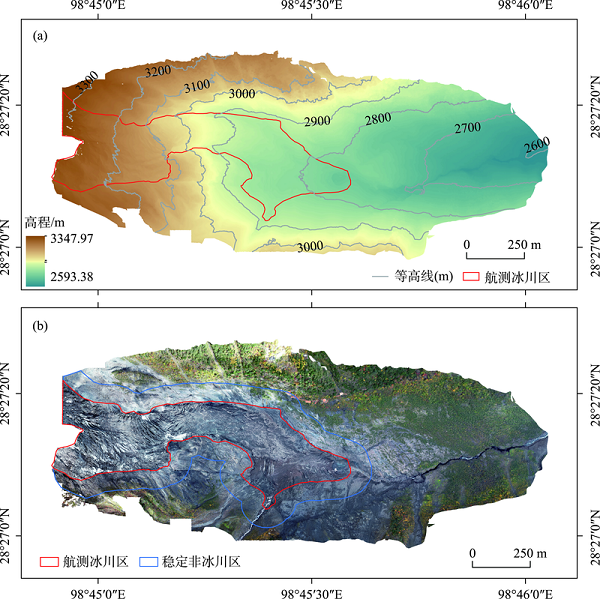

The glaciers of the Meili Snow Mountain are now rapidly retreating and thinning, owing to climate change. The main aim of this study was to monitor the dynamics of the Mingyong Glacier in the Meili Snow Mountain based on unmanned aerial vehicle (UAV) survey and UBase. The result of the digital surface model (DSM) in the Mingyong Glacier terminus shows that the surface morphology has a significant difference between the upper and lower sections. The lower section was covered by a large amount of debris, and a few crevasses developed along the direction of glacier flow. Little debris was found in the upper section, and a lot of transverse crevasses developed there. A mean ice thinning of 1.67 m was observed in the terminus of the Mingyong Glacier from November 2018 to November 2019, and surface lowering was heterogeneous. There were positive and negative alternations in surface lowering in the upper section, surface thinning was observed in the middle section, while a significant thickening was observed in the lower section. Compared with glacier changes in other areas in the High Asia Mountains, the Meili Snow Mountain was the region with the most significant glacier surface elevation change.

Key words: unmanned aerial vehicle, photogrammetry, glacier, Meili Snow Mountain

WU Kunpeng, LIU Shiyin, ZHU Yu, XIE Fuming, GAO Yongpeng. High-resolution monitoring of glacier dynamics based on unmanned aerial vehicle survey in the Meili Snow Mountain[J].PROGRESS IN GEOGRAPHY, 2021, 40(9): 1581-1589.

Figures/Tables 7

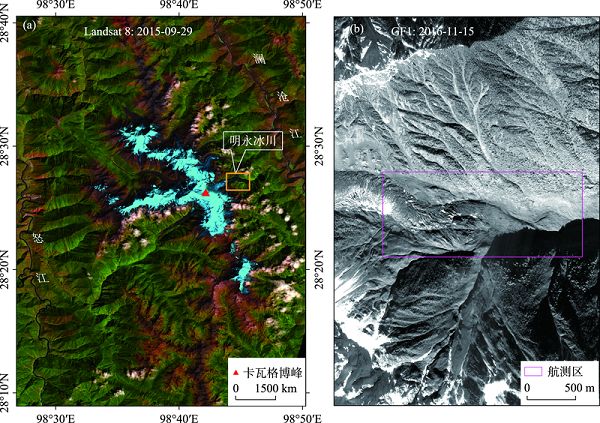

Fig.1

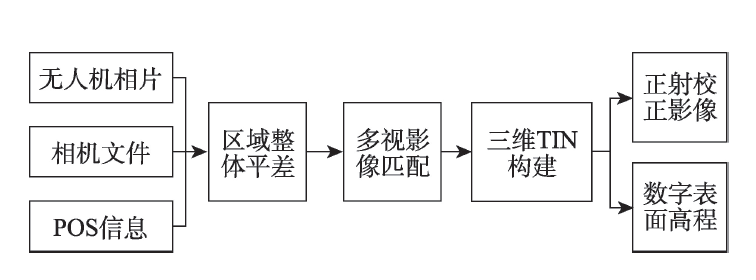

Fig.2

Fig.3

Tab.1

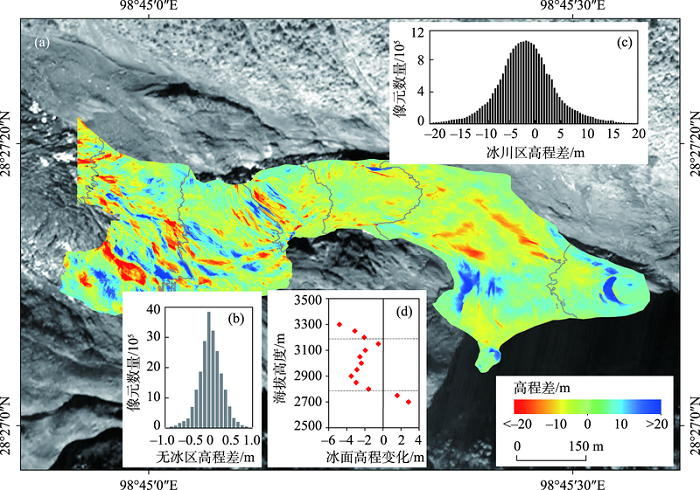

Fig.4

Fig.5

Tab.2

References 32

[1]	Oerlemans J. Extracting a climate signal from 169 glacier records[J]. Science, 2005, 308:675-677. pmid: 15746388
[2]	Immerzeel W W, van Beek L P H, Bierkens M F P. Climate change will affect the Asian water towers[J]. Science, 2010, 328:1382-1385. doi: 10.1126/science.1183188 pmid: 20538947
[3]	IPCC. Climate change 2013: The physical science basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change[M]. Cambridge, UK: Cambridge University Press, 2013.
[4]	秦大河, 姚檀栋, 丁永建, 等. 冰冻圈科学概论[M]. 北京: 科学出版社, 2017.
	[ Qin Dahe, Yao Tandong, Ding Yongjian, et al. Introduction to cryosphere science. Beijing, China: Science Press, 2017. ]
[5]	姚檀栋, 邬光剑, 徐柏青, 等. “亚洲水塔”变化与影响[J]. 中国科学院院刊, 2019, 34(11):1203-1209.
	[ Yao Tandong, Wu Guangjian, Xu Baiqing, et al. Asian water tower change and its impacts. Bulletin of Chinese Academy of Sciences, 2019, 34(11):1203-1209. ]
[6]	Bhambri R, Scott Watson C, Hewitt K, et al. The hazardous 2017-2019 surge and river damming by Shispare Glacier, Karakoram[J]. Scientific Reports, 2020, 10(1):4685. doi: 10.1038/s41598-020-61277-8. doi: 10.1038/s41598-020-61277-8 pmid: 32170170
[7]	崔鹏, 郭晓军, 姜天海, 等. “亚洲水塔”变化的灾害效应与减灾对策[J]. 中国科学院院刊, 2019, 34(11):1313-1321.
	[ Cui Peng, Guo Xiaojun, Jiang Tianhai, et al. Disaster effect induced by Asian water tower change and mitigation strategies. Bulletin of Chinese Academy of Sciences, 2019, 34(11):1313-1321. ]
[8]	邬光剑, 姚檀栋, 王伟财, 等. 青藏高原及周边地区的冰川灾害[J]. 中国科学院院刊, 2019, 34(11):1285-1292.
	[ Wu Guangjian, Yao Tandong, Wang Weicai, et al. Glacial hazards on Tibetan Plateau and surrounding alpines. Bulletin of Chinese Academy of Sciences, 2019, 34(11):1285-1292. ]
[9]	Shean D E, Bhushan S, Montesano P, et al. A systematic, regional assessment of high mountain Asia glacier mass balance[J]. Frontiers in Earth Science, 2020, 7:363. doi: 10.3389/feart.2019.00363. doi: 10.3389/feart.2019.00363
[10]	IMBIE Team. Mass balance of the Greenland Ice Sheet from 1992 to 2018[J]. Nature, 2020, 579:233-239. doi: 10.1038/s41586-019-1855-2
[11]	Yao T D, Thompson L, Yang W, et al. Different glacier status with atmospheric circulations in Tibetan Plateau and surroundings[J]. Nature Climate Change, 2012, 2:663-667. doi: 10.1038/nclimate1580
[12]	Zemp M, Huss M, Thibert E, et al. Global glacier mass changes and their contributions to sea-level rise from 1961 to 2016[J]. Nature, 2019, 568:382-386. doi: 10.1038/s41586-019-1071-0
[13]	Ke L H, Song C Q, Yong B, et al. Which heterogeneous glacier melting patterns can be robustly observed from space? A multi-scale assessment in southeastern Tibetan Plateau[J]. Remote Sensing of Environment, 2020, 242, 111777. doi: 10.1016/j.rse.2020.111777. doi: 10.1016/j.rse.2020.111777
[14]	Wu K P, Liu S Y, Jiang Z L, et al. Glacier mass balance over the central Nyainqentanglha Range during recent decades derived from remote-sensing data[J]. Journal of Glaciology, 2019, 65:422-439. doi: 10.1017/jog.2019.20
[15]	Gardelle J, Berthier E, Arnaud Y, et al. Region-wide glacier mass balances over the Pamir-Karakoram-Himalaya during 1999-2011[J]. The Cryosphere, 2013, 7(4):1263-1286. doi: 10.5194/tc-7-1263-2013
[16]	Kääb A, Berthier E, Nuth C, et al. Contrasting patterns of early twenty-first-century glacier mass change in the Himalayas[J]. Nature, 2012, 488:495-498. doi: 10.1038/nature11324
[17]	Jacob T, Wahr J, Pfeffer W T, et al. Recent contributions of glaciers and ice caps to sea level rise[J]. Nature, 2012, 482:514-518. doi: 10.1038/nature10847
[18]	施雅风, 刘朝海, 王宗太, 等. 简明中国冰川目录 [M]. 上海: 上海科学普及出版社, 2005.
	[ Shi Yafeng, Liu Chaohai, Wang Zongtai, et al. Concise glacier inventory of China. Shanghai, China: Shanghai Popular Science Press, 2005. ]
[19]	Immerzeel W W, Kraaijenbrink P D A, Shea J M, et al. High-resolution monitoring of Himalayan glacier dynamics using unmanned aerial vehicles[J]. Remote Sensing of Environment, 2014, 150:93-103. doi: 10.1016/j.rse.2014.04.025
[20]	Kraaijenbrink P D A, Shea J M, Pellicciotti F, et al. Object-based analysis of unmanned aerial vehicle imagery to map and characterise surface features on a debris-covered glacier[J]. Remote Sensing of Environment, 2016, 186:581-595. doi: 10.1016/j.rse.2016.09.013
[21]	Wigmore O, Mark B. Monitoring tropical debris-covered glacier dynamics from high-resolution unmanned aerial vehicle photogrammetry, Cordillera Blanca, Peru[J]. The Cryosphere, 2017, 11:2463-2480. doi: 10.5194/tc-11-2463-2017
[22]	Yang W, Zhao C X, Westoby M, et al. Seasonal dynamics of a temperate Tibetan glacier revealed by high-resolution UAV photogrammetry and in situ measurements[J]. Remote Sensing, 2020, 12:2389. doi: 10.3390/rs12152389. doi: 10.3390/rs12152389
[23]	车彦军, 王世金, 刘婧. 无人机在冰川复杂地形监测中的应用: 以玉龙雪山白水河1号冰川为例[J]. 冰川冻土, 2020, 42(4):1391-1399.
	[ Che Yanjun, Wang Shijin, Liu Jing. Application of Unmanned Aerial Vehicle (UAV) in the glacier region with complex terrain: A case study in Baishui River Glacier No.1 located in the Yulong Snow Mountain. Journal of Glaciology and Geocryology, 2020, 42(4):1391-1399. ]
[24]	刘宇硕, 秦翔, 郭万钦, 等. 控制点布设对冰川区无人机摄影测量精度的影响[J]. 遥感学报, 2020, 24(2):161-172.
	[ Liu Yushuo, Qin Xiang, Guo Wanqin, et al. Influence of the use of photogrammetric measurement precision on low-altitude micro-UAVs in the glacier region. Journal of Remote Sensing, 2020, 24(2):161-172. ]
[25]	蓝永如, 刘高焕, 邵雪梅. 近40a来基于树轮年代学的梅里雪山明永冰川变化研究[J]. 冰川冻土, 2011, 33(6):1229-1234.
	[ Lan Yongru, Liu Gaohuan, Shao Xuemei. Variation of the Melang Glacier in Mount Kawa Karpo in the past 40 years, based on Dendrochronolog. Journal of Glaciology and Geocryology, 2011, 33(6):1229-1234. ]
[26]	欧晓昆, 张志明, 王崇云. 梅里雪山植被研究 [M]. 北京: 科学出版社, 2006.
	[ Ou Xiaokun, Zhang Zhiming, Wang Chongyun. Vegetation research in Meili Snow Mountain. Beijing, China: Science Press, 2006. ]
[27]	郑本兴, 赵希涛, 李铁松, 等. 梅里雪山明永冰川的特征与变化[J]. 冰川冻土, 1999, 21(2):145-150.
	[ Zheng Benxing, Zhao Xitao, Li Tiesong, et al. Features and fluctuation of the Melang Glacier in the Mainri Mountain. Journal of Glaciology and Geocryology, 1999, 21(2):145-150. ]
[28]	谢自楚, 刘潮海. 冰川学导论 [M]. 上海: 上海科学普及出版社, 2010.
	[ Xie Zichu, Liu Chaohai. The introduction of glacier. Shanghai, China: Shanghai Popular Science Press, 2010. ]
[29]	卞敏, 徐亮, 骆元鹏, 等. 空地一体精细化三维模型构建方法[J]. 测绘通报, 2019(7):83-86.
	[ Bian Min, Xu Liang, Luo Yuanpeng, et al. Method of refined 3D model construction of space-ground integration. Bulletin of Surveying and Mapping, 2019(7):83-86. ]
[30]	Wu K P, Liu S Y, Jiang Z L, et al. Recent glacier mass balance and area changes in the Kangri Karpo Mountains from DEMs and glacier inventories[J]. The Cryosphere, 2018, 12:103-121. doi: 10.5194/tc-12-103-2018
[31]	Li J, Li Z W, Zhu J J, et al. Early 21st century glacier thickness changes in the Central Tien Shan[J]. Remote Sensing of Environment, 2017, 192:12-29. doi: 10.1016/j.rse.2017.02.003
[32]	Neckel N, Kropáček J, Bolch T, et al. Glacier mass changes on the Tibetan Plateau 2003-2009 derived from ICESat laser altimetry measurements[J]. Environmental Research Letters, 2014, 9:014009. doi: 10.1088/1748-9326/9/1/014009. doi: 10.1088/1748-9326/9/1/014009

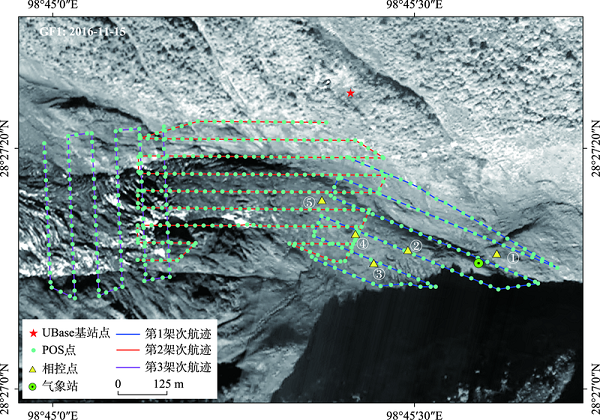

相控点ID	X方向	Y方向	Z方向
1	0.228	0.026	-0.570
2	0.120	0.007	0.457
3	-0.034	-0.248	-0.377
4	-0.170	0.413	0.431
5	-0.161	-0.140	-0.423
平均误差(E_M)	±0.003	±0.012	±0.096
均方根误差(E_R)	±0.055	±0.110	±0.310

研究区	时段	冰川表面高程变化/(m·a^-1)	文献来源
天山	2000—2012年	-0.40 ± 0.22	[31]
帕米尔	2000—2011年	-0.02 ± 0.13	[15]
喀喇昆仑山	2000—2011年	-0.33 ± 0.16	[15]
西昆仑山	2003—2009年	0.04 ± 0.29	[32]
青藏高原内流区	2003—2009年	-0.05 ± 0.26	[32]
唐古拉山	2003—2009年	-0.68 ± 0.35	[32]
喜马拉雅山	2003—2009年	-1.15 ± 0.44	[32]
念青唐古拉山	2000—2014年	-1.50 ± 0.15	[30]
梅里雪山	2018—2019年	-1.67 ± 0.05	本文
