无人机低空飞行障碍物环境风险评估方法研究——以京津新城为例

doi:10.18306/dlkxjz.2021.09.006

Abstract

Abstract:

Unmanned aerial vehicle (UAV) is increasingly widely used, but with the continuous progress of urban development, the safe operation of UAV in cities is increasingly more prominent. Therefore, environmental risk assessment of obstacles has become one of the key issues in the field of low-altitude UAV research. In this study, taking the Beijing-Tianjin New Town as an example, the low-altitude airspace was divided into micro, light, and small UAV flight zones according to the low-altitude UAV types and operating heights. Based on the shape and size of UAVs, their motion constraints, and obstacle constraints, this research proposed an algorithm for approximation point expansion. The algorithm generates an expanded boundary on the basis of the original boundary of the obstacles, and this expanded boundary serves as a transitional zone between high risk and low risk areas in the low-altitude flight environment. Based on the UAV image data of 0.5 m resolution in the Beijing-Tianjin New Town in 2019, this study extracted obstacle elements in different assessment areas, and generated low-altitude flight obstacle environmental risk maps for different UAV types and different heights based on the risk assessment. The study area was divided into high-risk zone, high-risk transitional zone, medium-risk zone, and low-risk zone according to the threat posed to UAVs. The results show that: 1) The risk transitional zone in the micro, light, and small UAV control areas in the study area accounted for 10.9%, 7.3% and 9.0%, respectively, and the sharp-angle convex vertex optimization of the approximate point expansion algorithm can save about 1% of the airspace resources. 2) The proposed method can calculate the potential collision risk area of the UAVs in the flight area based on the mutual influence of the UAVs and the obstacles, and realize the effective assessment of the environmental risk of the low-altitude obstacles and provide a scientific reference for the navigability of the UAVs of different types in the flight area.

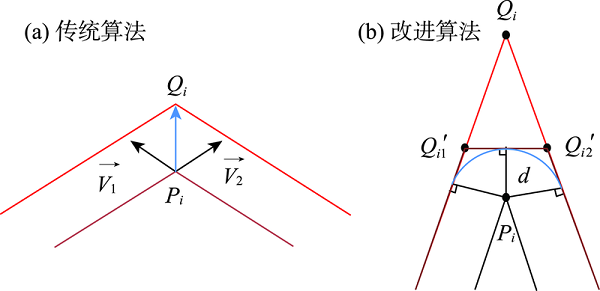

Key words: UAV, low-altitude flight environment, approximate expansion algorithm of polygons, risk map, Beijing-Tianjin New Town

HE Hongbo, XU Chenchen, YE Huping. Environmental risk assessment of obstacles in low-altitude flight of unmanned aerial vehicle: Taking the Beijing-Tianjin New Town as an example[J].PROGRESS IN GEOGRAPHY, 2021, 40(9): 1503-1515.

Figures/Tables 14

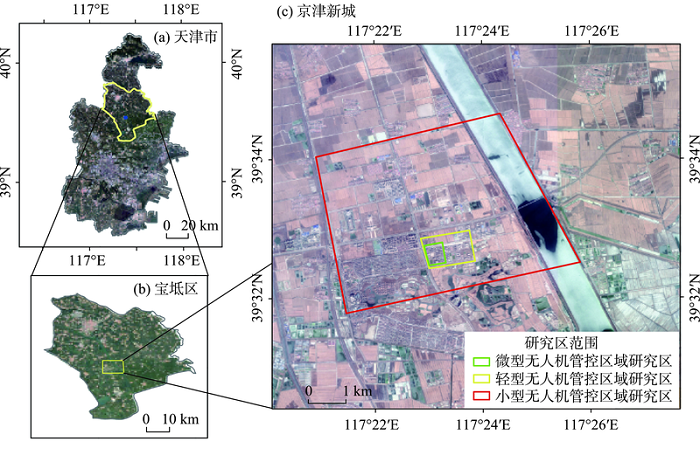

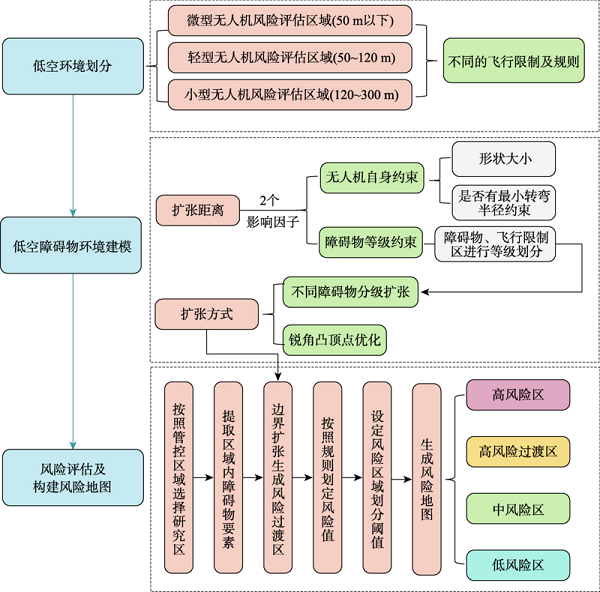

Fig.1

Fig.2

Fig.3

Tab.1

Distance limitation between UAV and various obstacles

障碍物等级	障碍物类型	不同类型的无人机应保持的最小距离
障碍物等级	障碍物类型	微型 $D lim 1$	轻型 $D lim 2$	小型 $D lim 3$
Ⅰ	民用航路	10 km
Ⅰ	国界线、边境线	我方一侧5 km
Ⅱ	军事机场净空区、民用机场障碍物限制面	2 km
Ⅱ	有人驾驶航空器临时起降点	2 km
Ⅲ	军事禁区及管理区、党政机关、核电站	10 m	20 m	1000 m
	易燃易爆危险品相关企业和仓库、电力设施、加油站、车站码头	10 m	20 m	1000 m
	高塔、电网、风力发电	5 m	10 m	1000 m
Ⅳ	建筑物、高铁、公路	5 m	10 m	500 m
Ⅳ	电线杆、交通设施	5 m	5 m	200 m
Ⅴ	农田、树林、江河湖泊、操场、山川、无人机飞行验证场	获得空域申请后,保证安全前提下,可以飞行

Tab.1

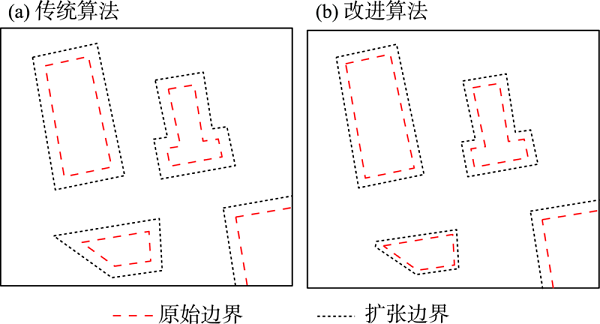

Fig.4

Tab.2

Environmental risk factors for UAV low-altitude operation based on aircraft type and altitude

无人机类型	政策规定安全距离 $D lim$	自身性能安全距离 $D 1$	运行高度H/m	适用场景
微型	$D lim 1$	$V n τ + 12 max (a, b)$	<50	城市航拍/农林植保
轻型	$D lim 2$	$V n τ + 12 max (a, b)$	50~120	城市低空快递/安防监控/公共安全

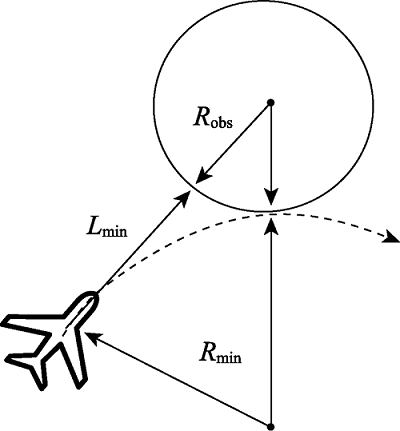

小型	$D lim 3$	$L min + V n τ + 12 max (a, b)$	120~300	应急救援/空中测绘

Tab.2

Tab.3

Tab.4

Fig.5

Tab.5

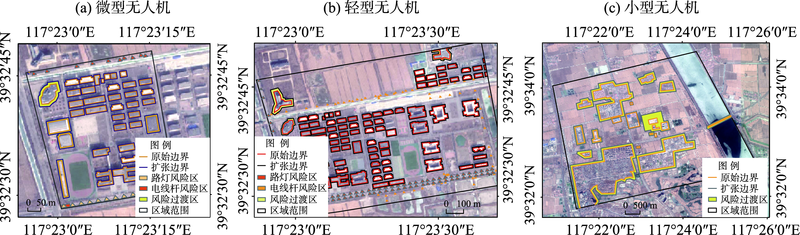

Fig.6

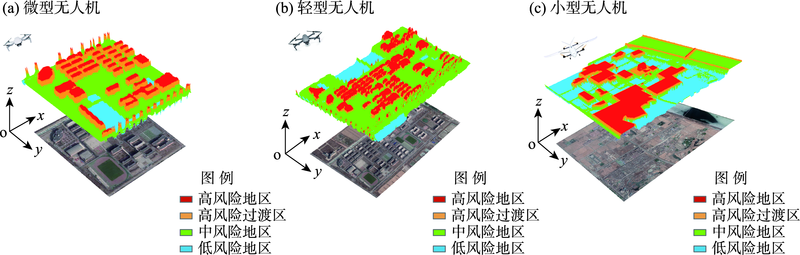

Fig.7

Fig.8

Fig.9

References 33

[1]	廖小罕, 周成虎, 苏奋振, 等. 无人机遥感众创时代[J]. 地球信息科学学报, 2016, 18(11):1439-1447. doi: 10.3724/SP.J.1047.2016.01439
	[ Liao Xiaohan, Zhou Chenghu, Su Fenzhen, et al. The mass innovation era of UAV remote sensing. Journal of Geo-information Science, 2016, 18(11):1439-1447. ]
[2]	民用无人机检验中心. 2019年无人机云数据统计报告 [EB/OL]. 2020-07-13 [2020-11-02]. http://news.carnoc.com/list/538/538437.html.
	[Civil UAV Test Center. UAV cloud data statistical report in 2019. 2020-07-13 [2020-11-02]. http://news.carnoc.com/list/538/538437.html.]
[3]	深圳统计局. 深圳市2018年国民经济和社会发展统计公报 [EB/OL]. 2019-04-19 [2020-11-02]. http://tjj.sz.gov.cn/zwgk/zfxxgkml/tjsj/tjgb/content/post_3084909.html.
	[Shenzhen Statistical Bureau. Shenzhen statistical bulletin of national economic and social development in 2018. 2019-04-19 [2020-11-02]. http://tjj.sz.gov.cn/zwgk/zfxxgkml/tjsj/tjgb/content/post_3084909.html.]
[4]	廖小罕. 地理科学发展与新技术应用[J]. 地理科学进展, 2020, 39(5):709-715. doi: 10.18306/dlkxjz.2020.05.001
	[ Liao Xiaohan. Advance of geographic sciences and new technology applications. Progress in Geography, 2020, 39(5):709-715. ]
[5]	廖小罕, 肖青, 张颢. 无人机遥感: 大众化与拓展应用发展趋势[J]. 遥感学报, 2019, 23(6):1046-1052.
	[ Liao Xiaohan, Xiao Qing, Zhang Hao. UAV remote sensing: Popularization and expand application development trend. Journal of Remote Sensing, 2019, 23(6):1046-1052. ]
[6]	廖小罕, 徐晨晨, 岳焕印. 基于地理信息的无人机低空公共航路规划研究[J]. 无人机, 2018(2):45-49.
	[ Liao Xiaohan, Xu Chenchen, Yue Huanyin. Research on UAV low-altitude public air route planning based on geographic information. Unmanned Vehicles, 2018(2):45-49. ]
[7]	徐晨晨, 叶虎平, 岳焕印, 等. 城镇化区域无人机低空航路网迭代构建的理论体系与技术路径[J]. 地理学报, 2020, 75(5):917-930. doi: 10.11821/dlxb202005003
	[ Xu Chenchen, Ye Huping, Yue Huanyin, et al. Iterative construction of UAV low-altitude air route network in an urbanized region: Theoretical system and technical roadmap. Acta Geographica Sinica, 2020, 75(5):917-930. ]
[8]	Lum C, Waggoner B. A risk based paradigm and model for unmanned aerial systems in the national airspace[R]. AIAA 2011-1424. Reston, USA: American Institute of Aeronautics and Astronautics, 2011.
[9]	Primatesta S, Rizzo A, la Cour-Harbo A. Ground risk map for unmanned aircraft in urban environments[J]. Journal of Intelligent & Robotic Systems, 2020, 97:489-509.
[10]	Primatesta S, Guglieri G, Rizzo A. A risk-aware path planning strategy for UAVs in urban environments[J]. Journal of Intelligent & Robotic Systems, 2019, 95(2):629-643.
[11]	杨乐. 面向海岛航拍的无人机航迹规划算法研究[D]. 青岛: 中国海洋大学, 2014.
	[ Yang Le. Research on the algorithm of UAV route planning for island's aerial photography. Qingdao, China: Ocean University of China, 2014. ]
[12]	中国民航局. 无人驾驶航空器飞行管理暂行条例(征求意见稿) [EB/OL]. 2018-01-26 [2020-11-02]. http://www.caac.gov.cn/HDJL/YJZJ/201801/t20180126_48853.html.
	[Civil Aviation Administration of China. Interim regulations on flight management of unmanned aircraft (Draft for solicitation of comments). 2018-01-26 [2020-11-02]. http://www.caac.gov.cn/HDJL/YJZJ/201801/t20180126_48853.html.]
[13]	陈麒杰, 晋玉强, 韩露. 无人机路径规划算法研究综述[J]. 飞航导弹, 2020(5):54-58.
	[ Chen Qijie, Jin Yuqiang, Han Lu. Overview of UAV path planning algorithm. Aerodynamic Missile, 2020(5):54-58. ]
[14]	Wein R. Exact and approximate construction of offset polygons[J]. Computer-Aided Design, 2007, 39(6):518-527. doi: 10.1016/j.cad.2007.01.010
[15]	张会, 李铖, 程炯, 等. 基于"H-E-V"框架的城市洪涝风险评估研究进展[J]. 地理科学进展, 2019, 38(2):175-190. doi: 10.18306/dlkxjz.2019.02.003
	[ Zhang Hui, Li Cheng, Cheng Jiong, et al. A review of urban flood risk assessment based on the framework of hazard-exposure-vulnerability. Progress in Geography, 2019, 38(2):175-190. ]
[16]	Ahmed M, Abdel-Aty M. A data fusion framework for real-time risk assessment on freeways[J]. Transportation Research Part C: Emerging Technologies, 2013, 26:203-213. doi: 10.1016/j.trc.2012.09.002
[17]	Stevenson J D, O'Young S, Rolland L. Estimated levels of safety for small unmanned aerial vehicles and risk mitigation strategies[J]. Journal of Unmanned Vehicle Systems, 2015, 3(4):205-221. doi: 10.1139/juvs-2014-0016
[18]	Di Donato P F A, Atkins E M. Evaluating risk to people and property for aircraft emergency landing planning[J]. Journal of Aerospace Information Systems, 2017, 14(5):259-278. doi: 10.2514/1.I010513
[19]	杨宙翔. 无人机航空摄影测量技术在地形测量中的应用[J]. 资源信息与工程, 2018, 33(5):127-128.
	[ Yang Zhouxiang. Application of UAV aerial photogrammetry technology in topographic survey. Resource Information and Engineering, 2018, 33(5):127-128. ]
[20]	la Cour-Harbo A. Quantifying risk of ground impact fatalities for small unmanned aircraft[J]. Journal of Intelligent & Robotic Systems, 2019, 93(1/2):367-384.
[21]	Raghuvanshi T K, Negassa L, Kala P M. GIS based Grid overlay method versus modeling approach: A comparative study for landslide hazard zonation (LHZ) in Meta Robi District of West Showa Zone in Ethiopia[J]. The Egyptian Journal of Remote Sensing and Space Science, 2015, 18(2):235-250. doi: 10.1016/j.ejrs.2015.08.001
[22]	Mishra A K, Deep S, Choudhary A. Identification of suitable sites for organic farming using AHP & GIS[J]. The Egyptian Journal of Remote Sensing and Space Science, 2015, 18(2):181-193. doi: 10.1016/j.ejrs.2015.06.005
[23]	Hescock J, Newman C, Agioutantis Z. Development of a new algorithm for implementing the edge effect offset for subsidence calculations[J]. International Journal of Mining Science and Technology, 2018, 28(1):61-66. doi: 10.1016/j.ijmst.2017.11.010
[24]	Duan Y X, Zhang Y M, Li S, et al. An integrated method of health risk assessment based on spatial interpolation and source apportionment[J]. Journal of Cleaner Production, 2020, 276:123218. doi: 10.1016/j.jclepro.2020.123218. doi: 10.1016/j.jclepro.2020.123218
[25]	Teodoro A C, Duarte L. Forest fire risk maps: A GIS open source application: A case study in Norwest of Portugal[J]. International Journal of Geographical Information Science, 2013, 27(4):699-720. doi: 10.1080/13658816.2012.721554
[26]	Yang B, Liu L, Lan M X, et al. A spatio-temporal method for crime prediction using historical crime data and transitional zones identified from nightlight imagery[J]. International Journal of Geographical Information Science, 2020, 34(9):1740-1764. doi: 10.1080/13658816.2020.1737701
[27]	Lyu H M, Sun W J, Shen S L, et al. Flood risk assessment in metro systems of mega-cities using a GIS-based modeling approach[J]. Science of the Total Environment, 2018, 626:1012-1025. doi: 10.1016/j.scitotenv.2018.01.138
[28]	Kumar S, Agrawal S. Prevention of vector-borne disease by the identification and risk assessment of mosquito vector habitats using GIS and remote sensing: A case study of Gorakhpur, India[J]. Nanotechnology for Environmental Engineering, 2020, 5(2):1-15. doi: 10.1007/s41204-019-0065-3
[29]	葛声, 刘聪锋, 蔡啸. 无人机航路规划评估[J]. 舰船电子对抗, 2018, 41(1):20-25, 50.
	[ Ge Sheng, Liu Congfeng, Cai Xiao. Assessment of UAV route planning. Shipboard Electronic Countermeasure, 2018, 41(1):20-25, 50. ]
[30]	彭珍妮, 裴锦华. 我国民用无人机管理现状与思考[J]. 科技资讯, 2017, 15(31): 136, 138.
	[ Peng Zhenni, Pei Jinhua. Current situation and reflection on civil UAV management in China. Science & Technology Information, 2017, 15(31): 136, 138.]
[31]	刘向君. 基于蚁群算法的无人机未知环境路径规划[D]. 太原: 中北大学, 2020.
	[ Liu Xiangjun. Path planning of UAV in unknown environment based on ant colony algorithm. Taiyuan, China: North University of China, 2020. ]
[32]	邓晓斌. 基于ArcGIS两种空间插值方法的比较[J]. 地理空间信息, 2008, 6(6):85-87.
	[ Deng Xiaobin. Comparison between two space interpolation methods based on ArcGIS. Geospatial Information, 2008, 6(6):85-87. ]
[33]	王翰章. 小型无人机室外非结构化环境中的自主路径规划[D]. 大连: 大连海事大学, 2020.
	[ Wang Hanzhang. Autonomous path planning of small UAV in outdoor unstructured environment. Dalian, China: Dalian Maritime University, 2020. ]

障碍物要素等级	障碍物要素	风险值划定
障碍物要素等级	障碍物要素	原边界内风险值	风险过渡区风险值
Ⅰ	民用航路、国界线	999	900
Ⅱ	机场净空区、机场障碍物限制面	888	800
Ⅲ	军事禁区、核电站、党政机关、易燃易爆物品仓库、加油站、电力设施、车站码头	666	600
Ⅳ	建筑物、路灯、电线杆、高铁、公路	99 70	89 69
Ⅴ	树林、山川、操场农田、水体、无人机飞行验证场	50 30

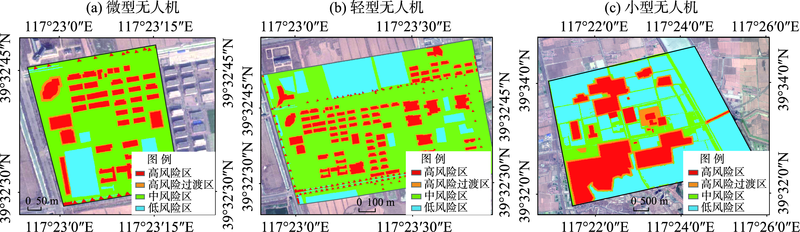

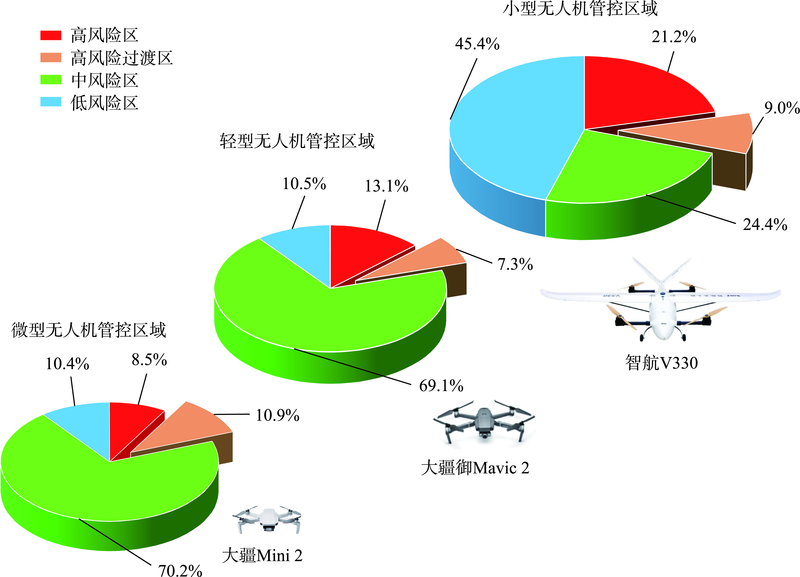

风险区域	风险指数阈值	风险区描述
高风险区	>0.86	多为飞行限制区以及影响无人机正常飞行的障碍物
高风险过渡区	0.70~0.86	根据无人机机型、障碍物约束得到的风险缓冲区
中风险区	0.28~0.70	无人机在该区域内飞行有潜在航行风险
低风险区	<0.28	无人机在该区域内飞行风险较低

相关参数	微型无人机	轻型无人机	小型无人机
型号	大疆Mini 2	大疆御Mavic 2	智航V330
类型	多旋翼无人机	多旋翼无人机	垂直起降固定翼无人机
长、宽、高/mm	159×203×56	322×242×84	1650×3300×680
机身重量/g	249 g	905g	15000g
最大飞行高度/m	500	500	3500
最大水平飞行速度/(km/h)	40	72	91
续航/min	25~30 min	25~30	90
最小转弯半径	无	无	30 m
障碍物扩张距离参数影响因子	外形+障碍物等级约束	外形+障碍物等级约束	外形+最小转弯半径 +障碍物等级约束
