1980—2016年黄土高原地区人口和可达性异速标度分析

doi:10.18306/dlkxjz.2020.11.009

Abstract

Abstract:

Based on the 1980, 1990, 2000, 2010, and 2016 panel data at the town and township level on the Loess Plateau, this study analyzed the population and accessibility scale structure, hierarchical system, and allometric scaling by using rank-size distribution and allometric growth model of the fractal theory. The results show that: 1) Population size was mainly small and medium, and population of 60% of the towns and townships was growing at a positive rate. The distribution of population presented a pattern of "high in the north and south, and low in the middle". Potential accessibility on the Loess Plateau tended to increase over time and the spatial distribution of potential accessibility gradually decreases from southeast to northwest. Population and potential accessibility of valley plains both are the highest. 2) The rank-size distributions of population and accessibility comply with the power-law relation, and both present a log-normal distribution. The distribution of population size changed from equilibrium to polarization, and the distribution of potential accessibility tended to be further balanced. The population rank-size distribution was characterized by dual fractals from 1980 to 2016, while the accessibility rank-size distribution had evolved from dual fractals to single fractals with 2000 as a turning point. Accessibility scale distribution tended to be stable. 3) The characteristics of population-accessibility allometric growth were clear. The 3006 towns and township mainly showed positive allometry, supplemented by negative allometry. The allometric growth types of towns and townships in the gully areas of the Loess Plateau and the valley plains were dominated by positive allometric growth with population growth. The allometric growth types of towns and townships in the hilly-gully areas of the Loess Plateau, sandy and desert areas, and earth-rock mountain areas were dominated by negative allometric growth with population decline. The irrigated regions were dominated by positive allometric growth with population growth and negative allometric growth with population decline. Finally, according to the population and accessibility allotypes and spatial distribution characteristics, some policy recommendations for the development of each region are put forward.

Key words: population scale, accessibility, rank-size, allometric scaling, the Loess Plateau

LV Minjuan, CAO Xiaoshu. Allometric scaling analysis of population and accessibility on the Loess Plateau from 1980 to 2016[J].PROGRESS IN GEOGRAPHY, 2020, 39(11): 1884-1897.

Figures/Tables 13

Fig.1

Fig.2

Tab.1

Tab.2

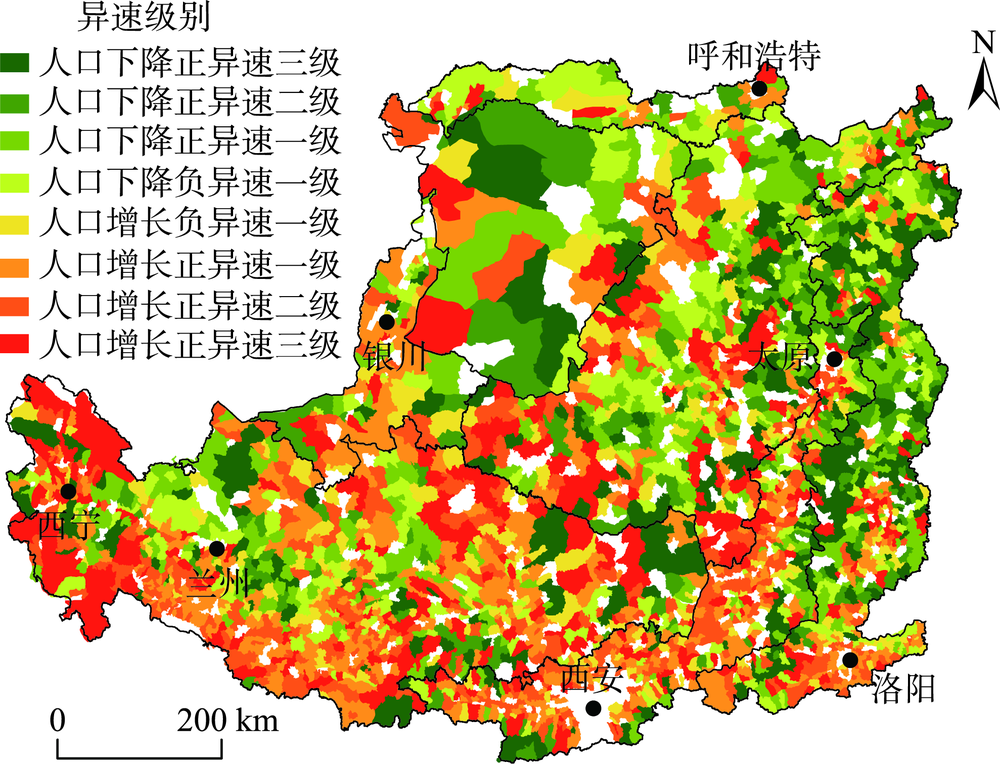

Allometric levels of population and accessibility"

异速类型	划分标准	异速级别	特征
正异速	$b < - 3$	人口下降正异速三级	可达性相对增长速度远高于人口相对下降速度
	$- 3 < b < - 2$	人口下降正异速二级	可达性相对增长速度高于人口相对下降速度
	$- 2 < b < - 1$	人口下降正异速一级	可达性相对增长速度较高于人口相对下降速度
负异速	$- 1 < b < 0$	人口下降负异速一级	人口相对下降速度较高于可达性相对增长速度
负异速	$0 < b < 1$	人口增长负异速一级	人口相对增长速度较高于可达性相对增长速度
正异速	$1 < b < 2$	人口增长正异速一级	可达性相对增长速度较高于人口相对增长速度
	$2 < b < 3$	人口增长正异速二级	可达性相对增长速度高于人口相对增长速度
	$3 < b$	人口增长正异速三级	可达性相对增长速度远高于人口相对增长速度

Tab.2

Fig.3

Fig.4

Fig.5

Fig.6

Tab.3

Fig.7

Fig.8

Tab.4

Fig.9

References 31

[1]	Kim J Y, Han J H. Straw effects of new highway construction on local population and employment growth[J]. Habitat International, 2016,53:123-132.
[2]	Atack J, Haines M R, Margo R A. Did railroads induce or follow economic growth? Urbanization and population growth in the American Midwest, 1850-60[J]. Social Science History, 2009,34(2):171-197.
[3]	Kotavaara O, Antikainen H, Rusanen J. Population change and accessibility by road and rail networks: GIS and statistical approach to Finland 1970-2007[J]. Journal of Transport Geography, 2011,19(4):926-935. doi: 10.1016/j.jtrangeo.2010.10.013
[4]	李涛, 曹小曙, 黄晓燕. 珠江三角洲交通通达性空间格局与人口变化关系[J]. 地理研究, 2012,31(9):1661-1672.
	[ Li Tao, Cao Xiaoshu, Huang Xiaoyan. The relationship between spatial structure of accessibility and population change in Pearl River Delta. Geographical Research, 2012,31(9):1661-1672. ]
[5]	Chi G Q. The impacts of transport accessibility on population change across rural, suburban and urban areas: A case study of Wisconsin at sub-county levels[J]. Urban Studies, 2012,49(12):2711-2731. doi: 10.1177/0042098011431284
[6]	Schwartz R, Gregory I, Thevenin T. Spatial history: Railways, uneven development, and population change in France and Great Britain, 1850-1914[J]. Journal of Interdisciplinary History, 2009,42(1):53-88.
[7]	Voss P R, Chi G Q. Highways and population change[J]. Rural Sociology, 2006,71(1):33-58.
[8]	Jiwattanakulpaisarn P, Noland R B, Graham D J, et al. Highway infrastructure investment and county employment growth: A dynamic panel regression analysis[J]. Journal of Regional Science, 2009,49(2):263-286.
[9]	Asher V, Boris A P, Yehuda G. Train access and financial performance of local authorities: Greater Tel Aviv as a case study[J]. Journal of Transport Geography, 2011,19(2):224-234.
[10]	王振波, 徐建刚, 朱传耿, 等. 中国县域可达性区域划分及其与人口分布的关系[J]. 地理学报, 2010,65(4):416-426.
	[ Wang Zhenbo, Xu Jiangang, Zhu Chuangeng, et al. The county accessibility divisions in China and its correlation with population distribution. Acta Geographica Sinica, 2010,65(4):416-426. ]
[11]	赵璟, 党兴华, 王修来. 城市群空间结构的演变: 来自中国西部地区的经验证据[J]. 经济评论, 2009(4):27-34.
	[ Zhao Jing, Dang Xinghua, Wang Xiulai. Evolution of urban agglomeration's spatial structure: Evidence from western area in China. Economic Review, 2009(4):27-34. ]
[12]	Soo K T. Zipf's Law for cities: Across-country investigation[J]. Regional Science and Urban Economics, 2005,35(3):239-263.
[13]	Chi G Q, Kasu B, Hall S. Economic and demographic impacts of passenger rail systems: The impact of intercity passenger rails on population and employment change in the United States, 2000-2010 [R/OL]. NCITEC Project No. 13-008. http://www.ncitec.msstate.edu/wp-content/uploads/2013-08FR.pdf. 2015.
[14]	崔彩辉, 韩志刚, 苗长虹, 等. 河南省人口分布与乡镇可达性空间耦合特征[J]. 人文地理, 2017,31(5):98-118.
	[ Cui Caihui, Han Zhigang, Miao Changhong, et al. Spatial coupling features of population and township accessibility distribution in Henan Province. Human Geography, 2017,31(5):98-118. ]
[15]	郭建科, 何瑶, 王绍博, 等. 1985年以来中国大陆沿海集装箱港口体系位序—规模分布及其网络联系[J]. 地理研究, 2019,38(4):869-883.
	[ Guo Jianke, He Yao, Wang Shaobo, et al. Rank-size distribution changes and transportation network connections of the coastal container port system in Chinese mainland since 1985. Geographical Research, 2019,38(4):869-883. ]
[16]	李涛, 曹小曙, 杨文越. 珠江三角洲客货运量位序-规模分布特征及其变化[J]. 地理科学进展, 2016,35(1):108-117.
	[ Li Tao, Cao Xiaoshu, Yang Wenyue. Rank-size distribution and evolution of passenger and freight flows in the Pearl River Delta. Progress in Geography, 2016,35(1):108-117. ]
[17]	陈伟, 修春亮, 陈金星. 中国城市间交通流强度的空间格局[J]. 人文地理, 2015,29(4):116-122.
	[ Chen Wei, Xiu Chunliang, Chen Jinxing. Spatial patterns of traffic flow intensity among cities in China. Human Geography, 2015,29(4):116-122. ]
[18]	龙玉清, 陈彦光. 基于灯光数据的京津冀城市多标度异速分析[J]. 地理科学进展, 2019,38(1):88-100.
	[ Long Yuqing, Chen Yanguang. Multi-scaling allometric analysis of the Beijing-Tianjin-Hebei urban system based on nighttime light data. Progress in Geography, 2019,38(1):88-100. ]
[19]	Bettercourt L M A. The origins of scaling in cities[J]. Science, 2013,340:1438-1441. pmid: 23788793
[20]	Bettercourt L M A, Lebo J, Helbing D, et al. Growth innovation, scaling, and the pace of life in cities[J]. PNAS, 2007,104(17):7301-7306. pmid: 17438298
[21]	王成新, 王波涛, 王翔宇. 基于结构视角的中国人口城市化与土地城市化异速增长研究[J]. 中国人口·资源与环境, 2016,26(8):135-141.
	[ Wang Chengxin, Wang Botao, Wang Xiangyu. Study on population urbanization and land urbanization allometric growth in China based on the structure. China Population, Resources and Environment, 2016,26(8):135-141. ]
[22]	Batty M. The size, scale, and shape of cities[J]. Science, 2008,319:769-771. pmid: 18258906
[23]	Batty M. A theory of city size[J]. Science, 2013,340:1418-1419. pmid: 23788792
[24]	中国科学院黄土高原综合科学考察队. 黄土高原地区土地资源[M]. 北京: 中国科学技术出版社, 1991.
	[ Integrated Scientific Survey Team of Loess Plateau, CAS. Land resources in Loess Plateau Region. Beijing, China: Science and Technology of China Press, 1991. ]
[25]	中国统计局. 中国县域统计年鉴[M]. 北京: 中国统计出版社, 2017.
	[ National Bureau of Statistics of China. China statistical yearbook. Beijing, China: China Statistical Press, 2017. ]
[26]	中国交通运输部. 公路工程技术标准(JTGB01—2014)[S/OL]. https://www.doc88.com/p-0931767258907.html.
	[ Ministry of Communications of China. Technique standards of highway engineering (JTGB01-2014). https://www.doc88.com/p-0931767-258907.html. ]
[27]	郭建科, 陈园月, 于旭会, 等. 1985年来环渤海地区港口体系位序—规模分布及作用机制[J]. 地理学报, 2017,72(10):1812-1826.
	[ Guo Jianke, ChenYuanyue, Yu Xuhui, et al. Rank-size distribution and mechanism of port system in the Bohai Rim during the past thirty years. Acta Geographica Sinica, 2017,72(10):1812-1826. ]
[28]	陈彦光. 城市异速标度研究的起源、困境和复兴[J]. 地理研究, 2013,32(6):1033-1045.
	[ Chen Yanguang. The rise, fall, and revival process of allometric scaling analysis in urban studies. Geographical Research, 2013,32(6):1033-1045. ]
[29]	曹小曙, 薛德升, 阎小培. 中国干线公路网络联结的城市可达性[J]. 地理学报, 2005,60(6):903-910.
	[ Cao Xiaoshu, Xue Desheng, Yan Xiaopei. A study on the urban accessibility of national trunk highway system in China. Acta Geographica Sinica, 2005,60(6):903-910. ]
[30]	Gutierrez J. Location, economic potential and daily accessibility: An analysis of the accessibility impact of the high-speed line Madrid-Barcelona-French Border[J]. Journal of Transport Geography, 2001,9(1):229-242.
[31]	Rich D. Accessibility and economic activity: A study of locational disadvantage in Scotland[D]. Cambridge, UK: University of Cambridge, 1975.

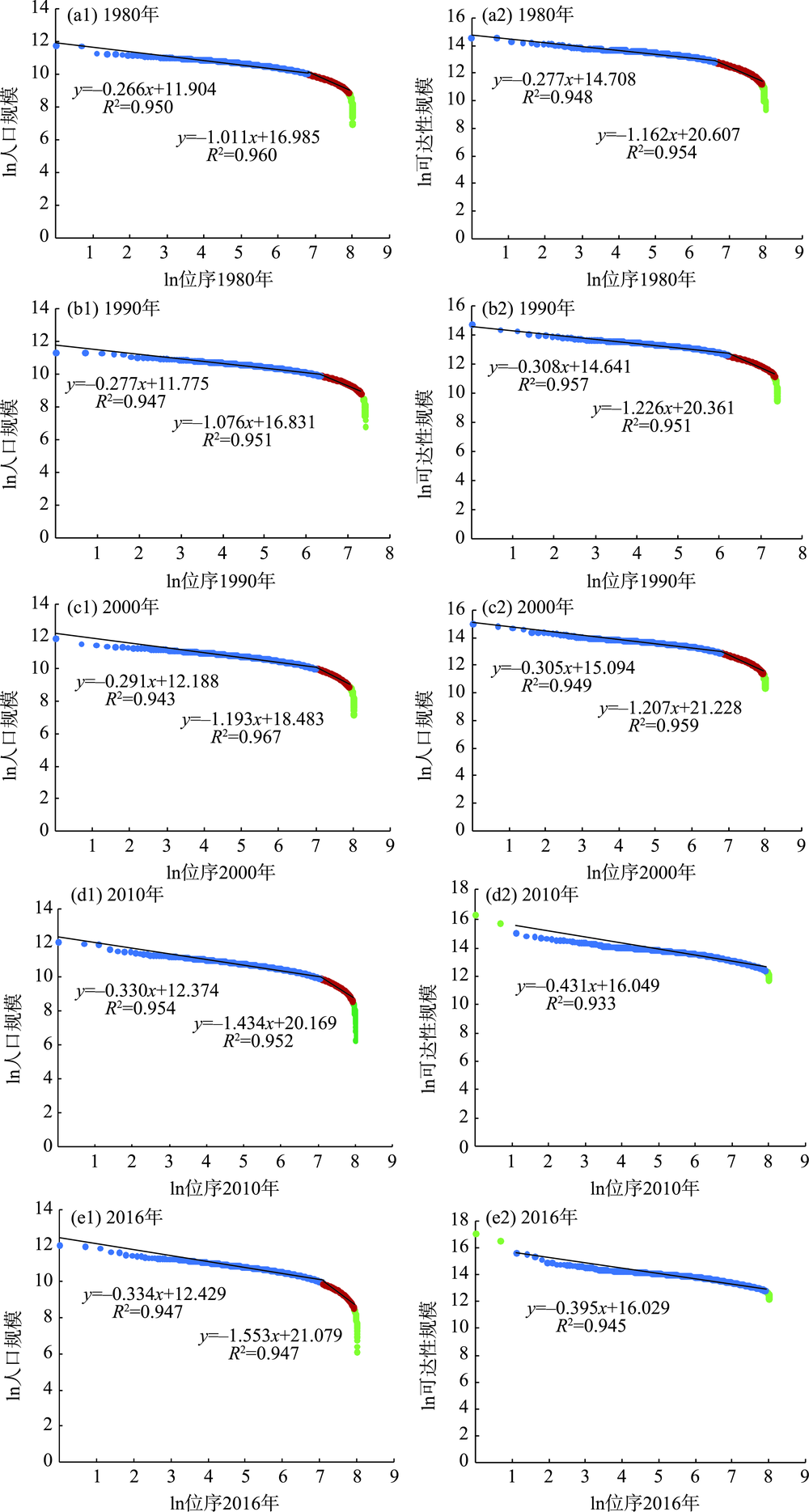

年份	标度区分段	人口				可达性
		无标度区范围	位序—规模			无标度区范围	位序—规模
		无标度区范围	q值	R²值	q值	无标度区范围		R²值
1980	全局	1~2980	0.559	0.77		1~2980	0.672	0.76
	无标度区一	1~897	0.266	0.95		1~757	0.277	0.95
	无标度区二	898~2697	1.011	0.96		758~2724	1.162	0.95
	无效标度区	2698~2980				2725~2980
1990	全局	1~1639	0.560	0.76		1~1639	0.658	0.77
	无标度区一	1~557	0.278	0.95		1~492	0.308	0.96
	无标度区二	558~1480	1.076	0.95		493~1525	1.226	0.95
	无效标度区	1481~1639				1526~1639
2000	全局	1~3000	0.587	0.76		1~3000	0.642	0.81
	无标度区一	1~1064	0.287	0.95		1~897	0.305	0.95
	无标度区二	1097~2697	1.176	0.97		898~2835	1.207	0.96
	无效标度区	2698~3000				2836~3000
2010	全局	1~3006	0.641	0.76		1~3006	0.463	0.90
	无标度区一	1~1164	0.330	0.95		2~2751	0.431	0.93
	无标度区二	1165~2815	1.434	0.95		2~2751	0.431	0.93
	无效标度区	2816~3006
2016	全局	1~3006	0.671	0.73		1~3006	0.424	0.91
	无标度区一	1~1203	0.334	0.95		3~2751	0.395	0.95
	无标度区二	1204~2760	1.553	0.95		3~2751	0.395	0.95
	无效标度区	2761~3006				2752~3006

年份	黄土高原地区	河谷平原区	黄土丘陵沟壑区	黄土高塬沟壑区	农灌区	土石山区	沙地和沙漠区
1980	1.035	1.003	0.908	0.935	0.897	1.018	1.113
1990	0.983	0.984	0.948	0.902	0.895	1.011	0.996
2000	0.917	0.879	0.797	0.811	0.872	0.923	0.678
2010	0.543	0.519	0.400	0.518	0.613	0.534	0.483
2016	0.449	0.462	0.295	0.431	0.493	0.464	0.290

Allometric scaling analysis of population and accessibility on the Loess Plateau from 1980 to 2016

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 13

References 31

Related Articles 15

Metrics

Comments

Recommended 0

[1]	CHEN Zhuo, LIANG Yi, JIN Fengjun. Simulation of city network accessibility and its influence on regional development pattern in China based on integrated land transport system [J]. PROGRESS IN GEOGRAPHY, 2021, 40(2): 183-193.
[2]	GE Yujuan, ZHAO Yuluan, LI Xiubin. Farmland fragmentation and land use intensity in mountain areas: A case study of Yayu Village, Guizhou Province [J]. PROGRESS IN GEOGRAPHY, 2020, 39(7): 1095-1105.
[3]	GUO Qingbin, LUO Kang, LIU Chengliang. A comparative study on the differences of factors aggregating ability among urban agglomerations in the Yangtze River Economic Belt [J]. PROGRESS IN GEOGRAPHY, 2020, 39(4): 542-552.
[4]	ZHANG Chun, CHENG Zhihua, YU Xiaoping, WANG Yaqun, SHEN Chen. Impact of public transportation infrastructure on employment of the low-income group in Urumqi [J]. PROGRESS IN GEOGRAPHY, 2020, 39(1): 111-119.
[5]	LUO Jing,JIANG Liang,LUO Minghai,TIAN Lingling,CHEN Guolei,TIAN Ye,WU Yikun. Rural development level of villages in Wuhan City’s new urban districts and its hierarchical structure [J]. PROGRESS IN GEOGRAPHY, 2019, 38(9): 1370-1381.
[6]	Nanchen CHU, Pingyu ZHANG, He LI. High-speed rail impact on regional accessibility and its spatial effects:A case study of the Blagoveshchensk-Vladivostok railway [J]. PROGRESS IN GEOGRAPHY, 2019, 38(7): 988-997.
[7]	YANG Qingqing, YANG Xinjun, GAO Yanhui. Change in vulnerability of rural human settlement in the semi-arid area of the Loess Plateau since 1980: A case study of Jiaxian County, Shaanxi Province [J]. PROGRESS IN GEOGRAPHY, 2019, 38(5): 756-771.
[8]	Dongsheng ZHAN, Wenzhong ZHANG, Li Chen, Xiaofen YU, Yunxiao DANG. Research progress and its enlightenment of urban public service facilities allocation [J]. PROGRESS IN GEOGRAPHY, 2019, 38(4): 506-519.
[9]	YIN Jiaojiao, WANG Xiaofang, JIA Yaoyan, LI Chunming, WANG Juan. Spatial accessibility distribution characteristics and influencing factors of the tourism poverty alleviation key villages in Wuling Mountain area, Hubei Province [J]. PROGRESS IN GEOGRAPHY, 2019, 38(12): 1865-1876.
[10]	Jingtian ZHAO, Yanguang CHEN, Shuangcheng LI. Bi-fractal structure and evolution of the Beijing-Tianjin-Hebei region urban land-use patterns [J]. PROGRESS IN GEOGRAPHY, 2019, 38(1): 77-87.
[11]	Yuqing LONG, Yanguang CHEN. Multi-scaling allometric analysis of the Beijing-Tianjin-Hebei urban system based on nighttime light data [J]. PROGRESS IN GEOGRAPHY, 2019, 38(1): 88-100.
[12]	Lifan SHEN, Chun ZHANG, He LI, Ye WANG. Interaction between commuting modes and job-housing imbalance in metropolis: An empirical study by Bayesian-tobit analysis in Beijing [J]. PROGRESS IN GEOGRAPHY, 2018, 37(9): 1277-1290.
[13]	Deyou MENG, Xiaojian LI. Spatial pattern of cost accessibility of provincial capital cities by high-speed rail and consumption in China [J]. PROGRESS IN GEOGRAPHY, 2018, 37(8): 1055-1065.
[14]	Tieshan SUN, Yingling FAN, Yunlei QI. Job accessibility by transit and variation among different population groups and in different regions in Beijing [J]. PROGRESS IN GEOGRAPHY, 2018, 37(8): 1066-1074.
[15]	Yinhua TAO, Yue SHEN. Spatial difference of medical facility accessibility and influencing factors: A comparative study of registered and floating populations in Shanghai [J]. PROGRESS IN GEOGRAPHY, 2018, 37(8): 1075-1085.

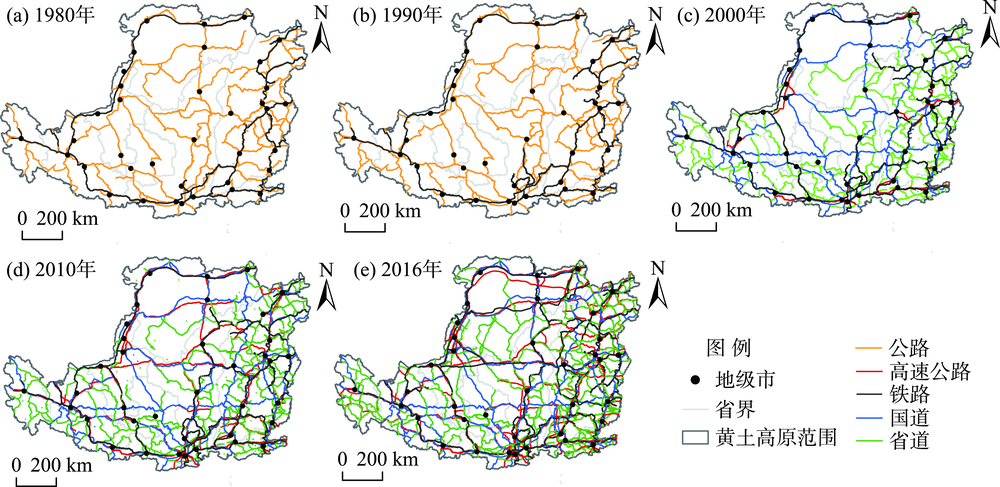

年份	高速公路	国道	省道	县乡道	铁路
