基于共同犯罪的犯罪人地域关系网络的空间演化及其影响因素——以北京市诈骗案件为例

doi:10.18306/dlkxjz.2020.05.008

Abstract

Abstract:

A series of studies have been conducted on the phenomenon of co-offending from the aspects of relationship and relationship structure of offenders, but there is a lack of stability analysis on the regional relationship between offenders. Based on the data of the street fraud cases in Beijing in 2005, 2010, and 2014, this study constructed a regional relation network model of offenders based on the principle of social network, and analyzed the structural characteristics and changing trend of the regional relation network of offenders participating in co-offending by means of network analysis. The main results are as follows. The spatial distribution of origins of offenders participating in the co-offending in Beijing was gradually concentrated, and a pattern of coexistenting multicenters was formed with North China as the main area. The small-world effect of regional relation network of offenders gradually strengthened and developed from power-law distribution mode to exponential distribution mode. Among the offenders who participated in the co-offending, the influence of offenders from Beijing gradually decreased, while that of offenders from Hebei Province gradually increased. The cohesive subgroup structure of the regional relation network of offenders gradually polarized, and a few offender regional subgroup structures that are closely related to co-offending appeared. This study also explored the reasons for the existence and evolution of the cross-area co-offending network from the perspectives of social relation reconstruction and subculture of floating population. The results of this study have some implications for the further research on the relationship pattern of the offenders' co-offending.

Key words: fraud crime, regional relationship network, comparative analysis of changes, social network analysis, Beijing

ZHU Guanyu, CHEN Peng. Spatial evolution and influencing factors of criminals’ cross-area co-offending network: An example of fraud in Beijing[J].PROGRESS IN GEOGRAPHY, 2020, 39(5): 792-803.

Figures/Tables 9

Fig.1

Tab.1

Main indicators of social network analysis"

指标名称	表达式	表达式解释	参数解释
网络密度(D)	$D = 2 M Z (Z - 1)$	反映网络中节点之间关系的密集程度	M表示网络中的边数,Z为网络中节点的数量
聚集系数(C)	$C i = 2 E i k i (k i - 1)$	反映图中节点之间聚集成团的程度	E_i为k_i个节点间相互连接的边数
度数中心度(C_D)	$C D (i) = ∑ j = 1 N a ij$	反映节点在网络中的重要性程度	a_ij为表示社会网络关系的矩阵,节点v_i与v_j之间有关系则赋值为1,否则为0
中介中心度(C_B)	$C B (i) = ∑ j = 1; k = 1; j ≠ k ≠ i N N jk (i) N jk$	测量网络中所有最短路径中经过某一节点的数量比例,反映该节点对资源的控制程度	N_jk表示节点v_j和v_k之间的最短路径条数;N_jk(i)表示节点v_j和v_k之间的最短路径经过节点v_i的条数
强度中心度(C_S)	$C S (i) = ∑ w ij$	测量节点所有关联的关系的权重的集合,反映节点考虑连接关系权重的重要性程度	N_i表示节点v_i的相邻节点集合;w_ij表示连接节点v_i和节点v_j的关系权重

Tab.1

Fig.2

Tab.2

Fig.3

Tab.3

Tab.4

Fig.4

Fig.5

References 49

[1]	Frank O . Statistical estimation of co-offending youth networks [J]. Social Networks, 2001,23(3):203-214.
[2]	D"Alessio S J, Stolzenberg L . Do cities influence co-offending? [J]. Journal of Criminal Justice, 2010,38(4):711-719.
[3]	Tayebi M A, Bakker L, Glasser U, et al. Locating central actors in co-offending networks[C]// International Conference on Advances in Social Networks Analysis & Mining. Kaohsiung, China, 2011: 171-179.
[4]	Lindquist M J, Zenou Y. Key players in co-offending networks [R]. IZA Discussion Paper No.8012, 2014. https://ssrn.com/abstract=2409534.
[5]	Fischer C S . The subculture theory of urbanism: A twentieth-year assessment [J]. American Journal of Sociology, 1995,101:543-577.
[6]	Mcgloin J M, Sullivan C J, Piquero A R , et al. Investigation the stability of co-offending and co-offenders among a sample of youthful offenders [J]. Criminology, 2010,46(1):155-188.
[7]	Grund T, Morselli C . Overlapping crime: Stability and specialization of co-offending relationships [J]. Social Network, 2017,51:14-22.
[8]	Tillyer M S, Tillyer R . Co-offending, violence and situational moderators [J]. Journal of Criminal Justice, 2019,64:52-60.
[9]	Stevenson R J . The stolen goods market in New South Wales, Australia: An analysis of disposal avenues and tactics [J]. British Journal of Criminology, 2001,41(1):101-118.
[10]	Antonopoulos G . Cigarette smuggling: A case study of a smuggling network in Greece [J]. European Journal of Crime, Criminal Law and Criminal Justice, 2006,14(3):239-255.
[11]	Natarajan M . Understanding the structure of a large heroin distribution network: A quantitative analysis of qualitative data [J]. Journal of Quantitative Criminology, 2006,22(2):171-192.
[12]	Kersel M M . Transcending borders: Objects on the move [J]. Archaeologies, 2007,3(2):81-98.
[13]	Coluccello S, Massey S . Out of Africa: The human trade between Libya and Lampedusa [J]. Trends in Organized Crime, 2007,10(4):77-90.
[14]	Malm A, Bichler G, Stephanie V D W. Comparing the ties that bind criminal networks: Is blood thicker than water? [J]. Security Journal, 2010,23(1):52-74.
[15]	Schaefer D R . Youth co-offending networks: An investigation of social and spatial effects [J]. Social Network, 2012,34:141-149.
[16]	Charette Y, Papachristos A V . The network dynamics of co-offending careers [J]. Social Network, 2017,51:3-13.
[17]	Zhang S X, Chin K L, Miller J . Women's participation in Chinese transnational human muggling: A gendered market perspective [J]. Criminology, 2007,45(3):699-733.
[18]	Godson R, Olson W J . International organized crime [J]. Society, 1995,32(2):18-29.
[19]	Mcillwain J S . Organized crime: A social network approach [J]. Crime Law & Social Change, 1999,32(4):301-323.
[20]	Tenti V, Morselli C . Group co-offending networks in Italy's illegal drug trade [J]. Crime, Law and Social Change, 2014,62(1):21-44.
[21]	O'Neill A . International trafficking in women from Central Europe and the NIS [J]. Trends in Organized Crime, 1998,4(2):133-136.
[22]	Albanese J . White-collar crime in America [M]. Englewood Cliffs, USA: Prentice Hall, 1995.
[23]	白晓荣 . 兰州市东乡族外来人口聚落的社会关系研究 [J]. 中南民族大学学报(人文社会科学版), 2013,33(2):71-74.
	[ Bai Xiaorong . Study on the social relationship of Dongxiang floating population in Lanzhou. Journal of South- Central University for Nationalities (Humanities and Social Sciences), 2013,33(2):71-74. ]
[24]	李吉和, 杨春娥 . 中、东部地区城市穆斯林外来人口社会关系融入状况: 基于武汉、广州、杭州、宁波的调查 [J]. 西南民族大学学报(人文社科版), 2015,36(5):19-23.
	[ Li Jihe, Yang Chun'e. Integration of social relations among urban Muslim migrants in central and eastern China: Based on a survey in Wuhan, Guangzhou, Hangzhou and Ningbo. Journal of Southwest Minzu University (Humanities and Social Science), 2015,36(5):19-23. ]
[25]	陈鹏, 胡啸峰, 瞿珂 . 基于社会网络分析的犯罪人团伙地域关系研究 [J]. 中国刑警学院学报, 2016(2):3-6.
	[ Chen Peng, Hu Xiaofeng, Qu Ke . Research on the regional relationship of criminal groups based on social network analysis. Journal of Criminal Investigation Police University of China, 2016(2):3-6. ]
[26]	Chen P, Lu Y . Exploring co-offending networks by considering geographic background: An investigation of electric bicycle thefts in Beijing [J]. The Professional Geographer, 2018,70(1):73-83.
[27]	李丹丹, 汪涛, 周辉 . 基于不同时空尺度的知识溢出网络结构特征研究 [J]. 地理科学, 2013,33(10):1180-1187.
	[ Li Dandan, Wang Tao, Zhou Hui . The structural characteristics of knowledge spillover networks based on different spatial and temporal scales. Scientia Geographica Sinica, 2013,33(10):1180-1187. ]
[28]	刘承良, 管明明, 段德忠 . 中国城际技术转移网络的空间格局及影响因素 [J]. 地理学报, 2018,73(8):70-85.
	[ Liu Chengliang, Guan Mingming, Duan Dezhong . Spatial pattern and influential mechanism of interurban technology transfer network in China. Acta Geographica Sinica, 2018,73(8):70-85. ]
[29]	于谨凯, 马健秋 . 山东半岛城市群经济联系空间格局演变研究 [J]. 地理科学, 2018,38(11):1875-1882.
	[ Yu Jinkai, Ma Jianqiu . Spatial pattern evolution of economic links of urban agglomeration in Shandong Peninsula. Scientia Geographica Sinica, 2018,38(11):1875-1882. ]
[30]	刘承良, 牛彩澄 . 东北三省城际技术转移网络的空间演化及影响因素 [J]. 地理学报, 2019,74(10):2092-2107.
	[ Liu Chengliang, Niu Caicheng . Spatial evolution and factors of interurban technology transfer network in Northeast China from national to local perspectives. Acta Geographica Sinica, 2019,74(10):2092-2107. ]
[31]	赵金丽, 盛彦文, 张璐璐 , 等. 基于细分行业的中国城市群金融网络演化 [J]. 地理学报, 2019,74(4):109-122.
	[ Zhao Jinli, Sheng Yanwen, Zhang Lulu , et al. Evolution of urban agglomeration financial network in China based on subdivision industry. Acta Geographica Sinica, 2019,74(4):109-122. ]
[32]	马佳卉, 贺灿飞 . 中间产品贸易网络结构及其演化的影响因素探究: 基于贸易成本视角 [J]. 地理科学进展, 2019,38(10):1607-1620.
	[ Ma Jiahui, He Canfei . Structure and change of international trade network of intermediate goods: From the perspective of trade costs. Progress in Geography, 2019,38(10):1607-1620. ]
[33]	Liu C, Xu J, Zhang H . Competitiveness or complementarity? A dynamic network analysis of international agri-trade along the belt and road [J]. Applied Spatial Analysis and Policy, 2019. doi: 10.1007/s12061-019-09307-5.
[34]	任怡 . 街头诈骗案件的分析与控制对策 [J]. 北京警察学院学报, 2006(4):46-48.
	[ Ren Yi . Analysis and control countermeasures of street fraud cases. Journal of Beijing Police College, 2006(4):46-48. ]
[35]	汤放华, 汤迪莎, 汤慧 , 等. 长江中游城市集群经济网络结构分析 [J]. 地理学报, 2013,68(10):1357-1366.
	[ Tang Fanghua, Tang Disha, Tang Hui , et al. Analysis of the economic network structure of urban agglomerations in the middle Yangtze River. Acta Geographica Sinica, 2013,68(10):1357-1366. ]
[36]	刘军 . 整体网分析讲义: UCINET软件实用指南 [M]. 上海: 格致出版社, 2009.
	[ Liu Jun. Lecture on whole network approach: A practical guide to UCINET. Shanghai, China: Truth & Wisdom Press, 2009. ]
[37]	德·诺伊, 安德烈·姆尔, 弗拉迪米尔·巴塔盖尔. 蜘蛛: 社会网络分析技术 [M]. 林枫, 译. 北京: 世界图书出版公司, 2014.
	[ Nooy W, Mrvar A, Batagelj V . Pajek: Social network analysis technology. Translated by Lin Feng. Beijing, China: World Publishing Corporation, 2014. ]
[38]	吴康, 方创琳, 赵渺希 . 中国城市网络的空间组织及其复杂性结构特征 [J]. 地理研究, 2015,34(4):711-728.
	[ Wu Kang, Fang Chuanglin, Zhao Miaoxi . The spatial organization and structure complexity of Chinese intercity networks. Geographical Research, 2015,34(4):711-728. ]
[39]	Freeman L C . Centrality in social networks' conceptual clarification [J]. Social Networks, 1979,1(3):215-239.
[40]	王诺, 董玲玲, 吴暖 , 等. 蓄意攻击下全球集装箱海运网络脆弱性变化 [J]. 地理学报, 2016,71(2):293-303.
	[ Wang Nuo, Dong Lingling, Wu Nuan , et al. The change of global container shipping network vulnerability under intentional attack. Acta Geographica Sinica, 2016,71(2):293-303. ]
[41]	龙冬平, 柳林, 周素红 , 等. 地理学视角下犯罪者行为研究进展 [J]. 地理科学进展, 2017,36(7):886-902.
	[ Long Dongping, Liu Lin, Zhou Suhong , et al. Research progress of criminal behavior from the perspective of geography. Progress in Geography, 2017,36(7):886-902. ]
[42]	严小兵, 焦华富 . 犯罪地理国际研究进展 [J]. 地理科学进展, 2012,31(10):1390-1398.
	[ Yan Xiaobing, Jiao Huafu . A review on the foreign criminal geography research. Progress in Geography, 2012,31(10):1390-1398. ]
[43]	叶鹏飞, 康熙熙, 王鼎 . 流动青年的关系重构与城市融入: 北京市F社区青年汇的案例分析 [J]. 北京青年研究, 2015(1):66-72.
	[ Ye Pengfei, Kang Xixi, Wang Ding . Relationship reconstruction and urban integration of floating youth: A case study about F community youth gathering in Beijing. Beijing Youth Research, 2015(1):66-72. ]
[44]	任义科, 宋连成, 佘瑞芳 , 等. 属性和网络结构双重视角下农民工流动规律研究 [J]. 地理科学进展, 2017,36(8):940-951.
	[ Ren Yike, Song Liancheng, Yu Ruifang , et al. Migrant workers' migration patterns from the dual perspectives of attributes and network structures. Progress in Geography, 2017,36(8):940-951. ]
[45]	姚乐 . 城中村外来人口社会融入研究 [J]. 轻工科技, 2019(6):138-139.
	[ Yao Le . Research on social integration of floating population in urban villages. Guangxi Journal of Light Industry, 2019(6):138-139. ]
[46]	李卒 . 亚文化与广州市外来人口犯罪 [J]. 广州市公安管理干部学院学报, 2001(4):4-12.
	[ Li Zu . Subculture and crime of floating population in Guangzhou. Journal of Guangzhou Police College, 2001(4):4-12. ]
[47]	叶鹏飞 . 探索农民工城市社会融合之路: 基于社会交往“内卷化”的分析 [J]. 城市发展研究, 2012(1):89-93, 117.
	[ Ye Pengfei . Exploring the road of urban social integration of migrant workers: Based on the analysis of integration about social interaction. Urban Studies, 2012(1):89-93, 117. ]
[48]	任九光 . 地域性犯罪群体的概念、成因及预防: 对北京地区外来人口犯罪状况的考察 [J]. 中国人民公安大学学报, 2004(5):149-154.
	[ Ren Jiuguang . The concept, cause and prevention of regional crime group: Investigation on the crime situation of floating population in Beijing. Journal of Chinese People's Public Security University (Social Sciences Edition), 2004(5):149-154. ]
[49]	王明涵, 于莉 . 城市化背景下外来人口的城市融入研究 [J]. 管理观察, 2019(8):89-91, 97.
	[ Wang Minghan, Yu Li . Urban integration of floating population under the background of urbanization. Management Observer, 2019(8):89-91, 97. ]

年份	Z	M	D	Avg.D	C₁	C₂	L	C₁/L
2005	151	485	0.0428	6.4238	0.6240	0.0444	2.6519	0.2353
2010	199	988	0.0501	9.9296	0.6000	0.0500	2.6296	0.2282
2014	203	4241	0.2068	41.7833	0.7936	0.2067	1.9652	0.4038

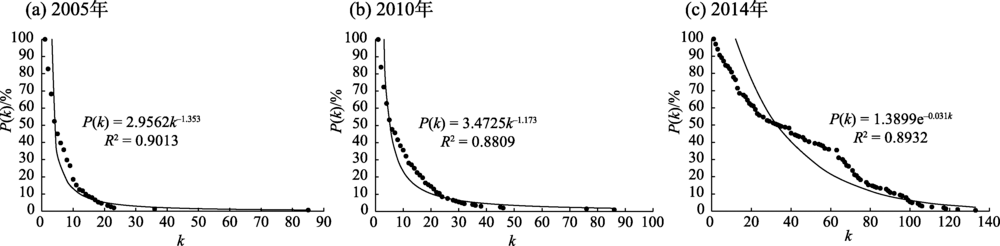

年份	拟合函数
年份	幂次函数	指数函数
2005	P(k)=2.9562k^-1.353,R²=0.9013	P(k)=0.341e^-0.066k,R²=0.6680
2010	P(k)=3.4725k^-1.173,R²=0.8809	P(k)=0.5329e^-0.06k,R²=0.8668
2014	P(k)=5.7008k^-0.849,R²=0.5741	P(k)=1.3899e^-0.031k,R²=0.8932

排序	点度中心度				中介中心度				强度中心度
排序	2005年	2010年	2014年		2005年	2010年	2014年		2005年	2010年	2014年
1 2 3 4 5 6 7 8 9 10	北京 (85) 齐齐哈尔 (36) 沧州 (23) 牡丹江 (22) 哈尔滨 (21) 菏泽 (19) 保定 (19) 衡水 (18) 呼伦贝尔 (17) 张家口 (17)	北京 (86) 张家口 (86) 承德 (76) 石家庄 (46) 邯郸 (45) 保定 (38) 沧州 (36) 德州 (35) 信阳 (32) 重庆 (31)	保定 (133) 张家口 (124) 承德 (118) 北京 (117) 齐齐哈尔 (111) 徐州 (106) 济宁 (105) 沧州 (104) 邢台 (104) 咸阳 (101)		北京 (0.543) 齐齐哈尔 (0.064) 牡丹江 (0.052) 沧州 (0.048) 衡水 (0.043) 沈阳 (0.040) 南平 (0.026) 太原 (0.025) 广州 (0.025) 邯郸 (0.024)	北京 (0.275) 张家口 (0.226) 承德 (0.105) 石家庄 (0.062) 保定 (0.048) 沧州 (0.044) 达州 (0.042) 菏泽 (0.041) 信阳 (0.041) 六安 (0.036)	北京 (0.068) 保定 (0.055) 咸阳 (0.042) 张家口 (0.038) 徐州 (0.036) 湛江 (0.035) 齐齐哈尔 (0.032) 廊坊 (0.024) 河池 (0.024) 承德 (0.024)		北京 (1612) 衡水 (879) 齐齐哈尔 (870) 德州 (862) 呼伦贝尔 (733) 延边 (700) 南平 (700) 秦皇岛 (301) 保定 (259) 咸宁 (225)	承德 (669) 北京 (656) 保定 (606) 张家口 (556) 聊城 (465) 沧州 (439) 潜江 (342) 宜昌 (331) 牡丹江 (316) 德州 (306)	呼伦贝尔 (1378) 绵阳 (1338) 廊坊 (1297) 沧州 (1271) 邯郸 (1244) 鹤岗 (1212) 保定 (270) 北京 (237) 张家口 (229) 齐齐哈尔 (225)
