中国城市网络空间结构研究——基于A股上市医药公司网络

doi:10.18306/dlkxjz.2018.08.009

Abstract

Abstract:

Urban network research based on a specific type of industry has unique value and is essential for understanding the industrial pattern and urban function. Using the data of headquarters and branches of the Chinese A-share listed medicine enterprises, this article analyzes the characteristics of urban networks shaped by these firms. The results show that: (1) Most of the headquarters of medicine enterprises are concentrated in the coastal economic regions, including the Yangtze River Delta, the Pearl River Delta, and the Beijing-Tianjin-Hebei Region. Wuhan, Beijing, and Hangzhou are the important nodes in the network. (2) Five urban clusters stand out in the urban networks shaped by Chinese medicine enterprises. Moreover, the connectivity values in urban networks are significantly different, which are mainly formed by hierarchical diffusion and proximity diffusion, with strong connections between the developed city pairs and their surrounding cities. (3) Developed cities generally have high power and influence in the network. Meanwhile, some small or medium-sized cities with abundant resources have also played an important role in the network. (4) China's medicine industry is still in the early stages of internationalization. Only a few cities, such as Hangzhou, Shenzhen, Kunming, and Tianjin, have strong international connections. (5) The spatial structures of urban networks vary greatly among different subsectors of medicine enterprises, while Beijing, Shanghai, Wuhan, and other major cities play a central role in all subnetworks.

Key words: medicine enterprise, urban network, spatial structure, publicly listed firm, firm network, China

Yaling YE, Bofei YANG, Ziyun HE, Beini ZENG, Fenghua PAN, Cheng FANG. Spatial structure of urban network based on Chinese A-share listed medicine enterprise network[J].PROGRESS IN GEOGRAPHY, 2018, 37(8): 1096-1105.

Figures/Tables 10

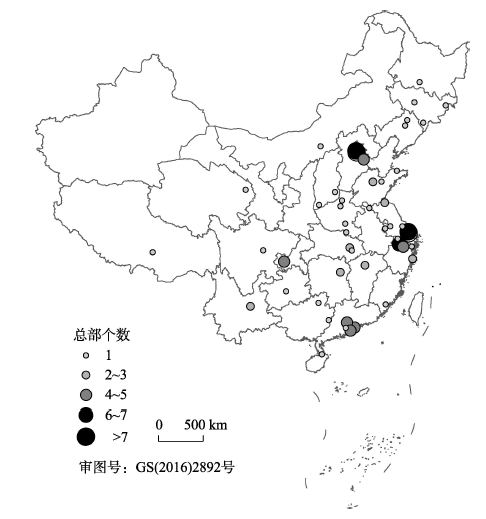

Fig.1

Tab.1

Fig.2

Tab.2

Tab.3

Tab.4

Fig.3

Tab.5

Fig.4

Fig.5

References 46

[22]	叶磊, 段学军. 2016. 基于物流企业的长三角地区城市网络结构[J]. 地理科学进展, 35(5): 622-631. doi: 10.18306/dlkxjz.2016.05.009
	[Ye L, Duan X J.2016. City network structure of the Yangtze River Delta region based on logistics enterprise network[J]. Progress in Geography, 35(5): 622-631.] doi: 10.18306/dlkxjz.2016.05.009
[23]	尹俊, 甄峰, 王春慧. 2011. 基于金融企业布局的中国城市网络格局研究[J]. 经济地理, 31(5): 754-759.
	[Yin J, Zhen F, Wang C H.2011. China's city network pattern: An empirical analysis based on financial enterprises layout[J]. Economic Geography, 31(5): 754-759.]
[24]	赵旭明, 杨晓涵. 2016. 跨境电子商务发展对我国对外贸易模式转型影响分析[J]. 商业经济研究, (8): 75-77.
	[Zhao X M, Yang X H.2016. Kuajing dianzi shangwu fazhan dui woguo duiwai maoyi moshi zhuanxing yingxiang fenxi[J]. Journal of Commercial Economics, (8): 75-77.]
[25]	周一星, 胡智勇. 2002. 从航空运输看中国城市体系的空间网络结构[J]. 地理研究, 21(3): 276-286.
	[Zhou Y X, Hu Z Y.2002. Looking into the network structure of Chinese urban system from the perspective of air transportation[J]. Geographical Research, 21(3): 276-286.]
[26]	Alderson A S, Beckfield J.2004. Power and position in the world city system[J]. American Journal of Sociology, 109(4): 811-851. doi: 10.1086/378930
[27]	Bruinsma F, Rietveld P.1993. Urban agglomerations in European infrastructure networks[J]. Urban Studies, 30(6): 919-934. doi: 10.1080/00420989320080861
[28]	Derudder B, Taylor P J, Hoyler M, et al.2013. Measurement and interpretation of connectivity of Chinese cities in world city network, 2010[J]. Chinese Geographical Science, 23(3): 261-273. doi: 10.1007/s11769-013-0604-y
[29]	Derudder B, Taylor P J, Witlox F, et al.2003. Hierarchical tendencies and regional patterns in the world city network: a global urban analysis of 234 Cities[J]. Regional Studies, 37(9): 875-886.
[30]	Graham S.1999. Global grids of glass: On global cities, telecommunications and planetary urban networks[J]. Urban Studies, 36(5): 929-949. doi: 10.1080/0042098993286
[31]	Grubesic T H, O'Kelly M E.2002. Using points of presence to measure accessibility to the commercial internet[J]. The Professional Geographer, 54(2): 259-278. doi: 10.1111/0033-0124.00330
[32]	Guy S, Graham S, Marvin S.1997. Splintering networks: Cities and technical networks in 1990s Britain[J]. Urban Studies, 34(2): 191-216.
[33]	Li Z Y, Dawood S R S.2016. World city network in China: A network analysis of air transportation network[J]. Modern Applied Science, 10(10): 213. doi: 10.5539/mas.v10n10p213
[34]	Liefner I, Hennemann S.2011. Structural holes and new dimensions of distance: The spatial configuration of the scientific knowledge network of China's optical technology sector[J]. Environment and Planning A, 43(4): 810-29.
[35]	Lu L, Huang R.2012. Urban hierarchy of innovation capability and inter-city linkages of knowledge in Post-reform China[J]. Chinese Geographical Science, 22(5): 602-16.
[36]	Ma H T, Fang C L, Pang B, et al.2015. Structure of Chinese city network as driven by technological knowledge flows[J]. Chinese Geographical Science, 25(4): 498-510. doi: 10.1007/s11769-014-0731-0
[37]	Martinus K, Sigler T J, Searle G, et al.2015. Strategic globalizing centers and sub-network geometries: A social network analysis of multi-scalar energy networks[J]. Geoforum, 64: 78-89.
[38]	Pan F H, Bi W K, Lenzer J, et al.2017. Mapping urban networks through inter-firm service relationships: The case of China[J]. Urban Studies, 54(16): 3639-3654. doi: 10.1177/0042098016685511
[39]	Pan F H, He Z Y, Sigler T J, et al.2018. How Chinese financial centers integrate into global financial center networks: An empirical study based on overseas expansion of Chinese financial service firms[J]. Chinese Geographical Science, 28(2): 217-230.
[40]	Pan F H, Zhao S X B, Wójcik D.2016. The rise of venture capital centres in China: A spatial and network analysis[J]. Geoforum, 75: 148-158. doi: 10.1016/j.geoforum.2016.07.013
[41]	Sigler T J, Martinus K.2016. Extending beyond 'world cities' in World City Network (WCN) research: Urban positionality and economic linkages through the Australia-based corporate network[J]. Environment and Planning A, 49(12): 2916-2937.
[1]	鲍超, 陈小杰. 2014. 中国城市体系的空间格局研究评述与展望[J]. 地理科学进展, 33(10): 1300-1311. doi: 10.11820/dlkxjz.2014.10.002
	[Bao C, Chen X J.2014. Reivew and prospect of research on the spatial pattern of China's urban system[J]. Progress in Geography, 33(10): 1300-1311.] doi: 10.11820/dlkxjz.2014.10.002
[42]	Taylor P J.2004. World city network: A global urban analysis[M]. London, UK: Routledge.
[43]	Taylor P J, Derudder B, Faulconbridge J, et al.2013. Advanced producer service firms as strategic networks, global cities as strategic places[J]. Economic Geography, 90(3): 267-91.
[44]	Taylor P J, Derudder B, Hoyler M, et al.2014. City-dyad analyses of China's integration into the world city network[J]. Urban Studies, 51(5): 868-82. doi: 10.1177/0042098013494419
[45]	Zhao M X, Liu X J, Derudder B, et al.2015. Mapping producer services networks in mainland Chinese cities[J]. Urban Studies, 52(16): 3018-3034. doi: 10.1177/0042098014558541
[2]	陈伟, 刘卫东, 柯文前, 等. 2017. 基于公路客流的中国城市网络结构与空间组织模式[J]. 地理学报, 72(2): 224-241. doi: 10.11821/dlxb201702004
	[Chen W, Liu W D, Ke W Q, et al.2017. The spatial structures and organization patterns of China's city networks based on the highway passenger flows[J]. Acta Geographica Sinica, 72(2): 224-241.] doi: 10.11821/dlxb201702004
[3]	陈映雪, 甄峰, 王波, 等. 2013. 基于社会网络分析的中国城市网络信息空间结构[J]. 经济地理, 33(4): 56-63.
	[Chen Y X, Zhen F, Wang B, et al.2013. Chinese city network structure in the cyberspace based on social network analysis[J]. Economic Geography, 33(4): 56-63.]
[4]	程婧瑶, 樊杰, 陈东. 2013. 基于重力模型的中国金融中心体系识别[J]. 经济地理, 33(3): 8-14.
	[Cheng J Y, Fan J, Chen D.2013. Discernment of Chinese financial center system: Gravity model approach[J]. Economic Geography, 33(3): 8-14.]
[5]	程玉鸿, 孟俊华. 2014. 基于高端消费文化视角的中国城市中心性及其网络结构的实证分析[J]. 经济地理, 34(2): 28-34. doi: 10.3969/j.issn.1000-8462.2014.02.005
	[Cheng Y H, Meng J H.2014. Empirical analysis of Chinese urban network architecture based on centrality: From the world's top luxury brands city location perspective.[J]. Economic Geography, 34(2): 28-34.] doi: 10.3969/j.issn.1000-8462.2014.02.005
[6]	董琦, 甄峰. 2013. 基于物流企业网络的中国城市网络空间结构特征研究[J]. 人文地理, 28(4): 71-76.
	[Dong Q, Zheng F.2013. The study on spatial structure characteristics of China's city network based on the logistics enterprise network[J]. Human Geography, 28(4): 71-76.]
[7]	何菊香, 赖世茜, 廖小伟. 2015. 互联网产业发展影响因素的实证分析[J]. 管理评论, 27(1): 138-147.
	[He J X, Lai S X, Liao X W.2015. An empirical analysis on the determinants of internet industry development[J]. Management Review, 27(1): 138-147.]
[8]	金凤君. 2001. 我国航空客流网络发展及其地域系统研究[J]. 地理研究, 20(1): 31-39. doi: 10.3321/j.issn:1000-0585.2001.01.005
	[Jin F J.2001. A study on network of domestic air passenger flow in China[J]. Geographical Research, 20(1): 31-39.] doi: 10.3321/j.issn:1000-0585.2001.01.005
[9]	金钟范. 2010. 基于企业母子联系的中国跨国城市网络结构: 以中韩城市之间联系为例[J]. 地理研究, 29(9): 1670-1682.
	[Jin Z F.2010. On structural properties of transnational urban network based on multinational enterprises network in China: As the case of link with South Korea[J]. Geographical Research, 29(9): 1670-1682.]
[10]	冷炳荣, 杨永春, 李英杰, 等. 2011. 中国城市经济网络结构空间特征及其复杂性分析[J]. 地理学报, 66(2): 199-211. doi: 10.11821/xb201102006
	[Leng B R, Yang Y C, Li Y J, et al.2011. Spatial characteristics and complex analysis: A perspective from basic activities of urban networks in China[J]. Acta Geographica Sinica, 66(2): 199-211.] doi: 10.11821/xb201102006
[11]	李仙德. 2014. 基于上市公司网络的长三角城市网络空间结构研究[J]. 地理科学进展, 33(12): 1587-1600. doi: 10.11820/dlkxjz.2014.12.002
	[Li X D.2014. Spatial structure of the Yangtze River Delta urban network based on the pattern of listed companies network[J]. Progress in Geography, 33(12): 1587-1600.] doi: 10.11820/dlkxjz.2014.12.002
[12]	马海涛, 方创琳. 2011. 基于企业微观视角的城市区域生产网络空间组织研究: 以粤东城镇群服装生产为例[J]. 地理科学, 31(10): 1172-1180.
	[Ma H T, Fang C L.2011. Spatial organization of production networks in city-region based on enterprises relationship: A case of apparel production in urban agglomeration of Eastern Guangdong Province[J]. Scientia Geographica Sinica, 31(10): 1172-1180.]
[13]	谭一洺, 杨永春, 冷炳荣, 等. 2011. 基于高级生产者服务业视角的成渝地区城市网络体系[J]. 地理科学进展, 30(6): 724-732.
	[Tan Y M, Yang Y C, Leng B Q, et al.2011. Urban network system in Chengdu-Chongqing Region in the perspective of advanced producer service[J]. Progress in Geography, 30(6): 724-732.]
[14]	汤放华, 汤慧, 孙倩, 等. 2013. 长江中游城市集群经济网络结构分析[J]. 地理学报, 68(10): 1357-1366. doi: 10.11821/dlxb201310005
	[Tang F H, Tang H, Sun Q, et al.2013. Analysis of the economic network structure of urban agglomerations in the middle Yangtze River[J]. Acta Geographica Sinica, 68(10): 1357-1366.] doi: 10.11821/dlxb201310005
[15]	唐子来, 李涛. 2014. 长三角地区和长江中游地区的城市体系比较研究: 基于企业关联网络的分析方法[J]. 城市规划学刊, (2): 24-31.
	[Tang Z L, Li T.A comparative analysis of urban systems in the Yangtze Delta Region and the Yangtze Region: An approach of firm-based interlocking network[J]. Urban Planning Forum, (2): 24-31.]
[16]	汪明峰, 宁越敏. 2006. 城市的网络优势: 中国互联网骨干网络结构与节点可达性分析[J]. 地理研究, 25(2): 193-203. doi: 10.3321/j.issn:1000-0585.2006.02.002
	[Wang M F, Ning Y M.2006. The network advantage of cities: An analysis of spatial structure and node accessibility of Internet backbones in China[J]. Geographical Research, 25(2): 193-203.] doi: 10.3321/j.issn:1000-0585.2006.02.002
[17]	王成金. 2008. 中国物流企业的空间组织网络[J]. 地理学报, 63(2): 135-146. doi: 10.3321/j.issn:0375-5444.2008.02.003
	[Wang C J.2008. Spatial organizational network of logistics company in China[J]. Acta Geographica Sinica, 63(2): 135-146.] doi: 10.3321/j.issn:0375-5444.2008.02.003
[18]	王维刚. 2007. 中国医药产业成长特征与机理研究[D]. 上海: 同济大学.
	[Wang W G.2007. The research on the growth features and mechanisms of China's medical industry[D]. Shanghai, China: Tongji University.]
[19]	吴康, 方创琳, 赵渺希. 2015. 中国城市网络的空间组织及其复杂性结构特征[J]. 地理研究, 34(4): 711-728. doi: 10.11821/dlyj201504010
	[Wu K, Fang C L, Zhao M X.2015. The spatial organization and structure complexity of Chinese intercity networks[J]. Geographical Research, 34(4): 711-728.] doi: 10.11821/dlyj201504010
[20]	武前波, 宁越敏. 2012. 中国城市空间网络分析: 基于电子信息企业生产网络视角[J]. 地理研究, 31(2): 207-219.
	[Wu Q B, Ning Y M.2012. China's urban network based on spatial organization of electronic information enterprises[J]. Geographical Research, 31(2): 207-219.]
[21]	谢丽云. 2014. 我国医药制造业经济产出状况及其影响因素分析[D]. 北京: 北京中医药大学.
	[Xie L Y.2014. Woguo yiyao zhizaoye jingji chanchu zhuangkuang jiqi yingxiang yinsu fenxi[D]. Beijing, China: Beijing University of Chinese Medicine.]
[46]	Zhu Z R, Zhang A, Zhang Y H.2017. Connectivity of intercity passenger transportation in China: A multi-modal and network approach[J]. Journal of Transport Geography, https://doi.org/10.1016/j.jtrangeo.2017.05.009. doi: 10.2139/ssrn.2897428

城市对	联系强度	城市对	联系强度	城市对	联系强度
北京-张家口	54	南昌-宜春	42	重庆-新乡	30
杭州-上海	51	绍兴-杭州	39	北京-海口	27
杭州-台州	48	北京-武汉	39	北京-烟台	24
北京-上海	48	上海-武汉	36	北京-泰安	21
上海-淄博	45	广州-深圳	36	北京-广州	21
北京-衡阳	42	南京-福州	33	北京-淄博	21

特征向量中心性		点出度		点入度
上海	1.00	武汉	1.00	上海	1.00
香港	0.91	北京	0.82	北京	0.92
北京	0.81	长沙	0.77	香港	0.77
广州	0.64	杭州	0.70	成都	0.54
武汉	0.64	深圳	0.46	广州	0.46
成都	0.63	海口	0.38	杭州	0.42
杭州	0.60	淄博	0.36	苏州	0.42
昆明	0.53	重庆	0.31	武汉	0.38
苏州	0.47	上海	0.30	深圳	0.35
济南	0.45	烟台	0.30	天津	0.35

城市	功能得分	城市	功能得分	城市	功能得分	城市	功能得分
特伦顿	6	新德里	2	鹿特丹	1	塔什干	1
维尔京群岛	6	法兰克福	1	洛杉矶	1	维多利亚	1
开曼群岛	5	汉堡	1	名古屋	1	温哥华	1
圣地亚哥	5	吉隆坡	1	莫斯科	1	悉尼	1
纽约	4	金边	1	内罗毕	1	巴黎	1
巴西利亚	2	坎帕拉	1	萨摩亚群岛	1	达雷斯萨拉姆	1
多佛	2	埃克斯顿	1	拉各斯	1	新加坡	1
山景城	2	安提瓜	1	博尔斯瓦德	1	马哈拉施特拉邦	1
首尔	2	杜塞尔多夫	1

城市	杭州	深圳	昆明	天津	连云港	广州	上海	台州
对外连接度	42	33	18	15	12	9	9	9
城市	北京	海口	淄博	沈阳	通化	武汉	信阳	长沙
对外连接度	6	6	6	3	3	3	3	3

Spatial structure of urban network based on Chinese A-share listed medicine enterprise network
