考虑防灾减灾能力的洪涝灾害灾损率曲线构建——以里下河地区的李中镇为例

doi:10.18306/dlkxjz.2016.02.009

Abstract

Abstract:

As an important part of resilience, disaster prevention and mitigation capabilities of the exposure units are a key consideration in disaster economic loss assessment. Based on the data collected from Lizhong Town in the Lixiahe region of Jiangsu Province, the initial depth-damage scatter diagrams and fitted curves were drawn for residential property, industrial property, business, infrastructure, and agriculture. Then the modified depth-damage scatter diagrams and fitted curves in line with the actual damage situation were drawn by taking into consideration disaster prevention and mitigation capabilities. The results show that: (1) At the significance level of 0.05, the correlation between submersion depth and depth-damage rate under different scenarios for residential property, industrial property, business, infrastructure, and agriculture is a power function; (2) Taking into consideration disaster prevention and mitigation capabilities, economic losses of different exposure units caused by flood disaster decreased. Residential property flood losses were reduced by 34% at the submersion depth of 3 m; industrial property losses were reduced by 17% at the submersion depth of 2 m; business losses were reduced by 24% at the submersion depth of 3 m; and infrastructure losses were reduced by 11% at the submersion depth of 2 m. The influence of disaster prevention and mitigation capabilities on residential property flood losses was most obvious. This study may serve as a useful supplement for research on flood depth-damage relation and provide references for disaster prevention and mitigation decisions and disaster risk management in similar areas.

Key words: flood disaster, disaster prevention and mitigation capabilities, depth-damage curve, Lixiahe region, China

Xianhua WU, Lei ZHOU, Ge GAO, Zhonghui JI, Ji GUO. Flood depth-damage curves for urban properties considering disaster prevention and mitigation capabilities: Evidence from Lizhong Town, Lixiahe region, China[J].PROGRESS IN GEOGRAPHY, 2016, 35(2): 223-231.

Figures/Tables 6

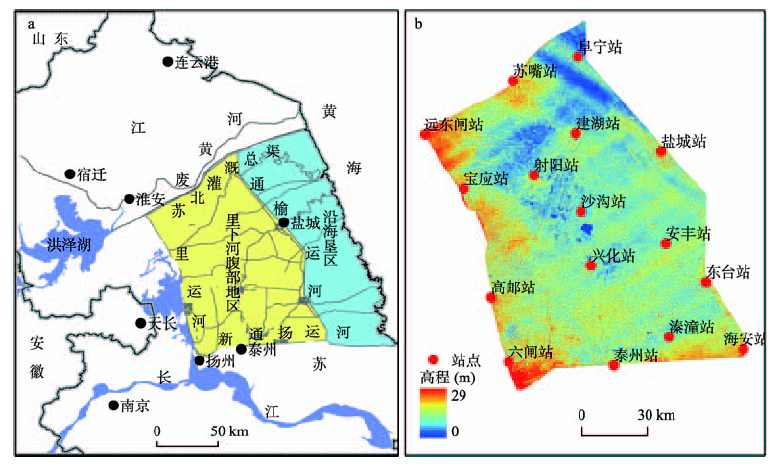

Fig.1

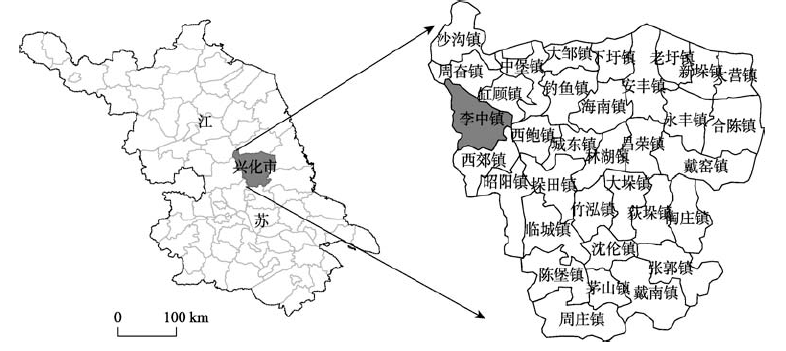

Fig.2

Tab.1

Tab.2

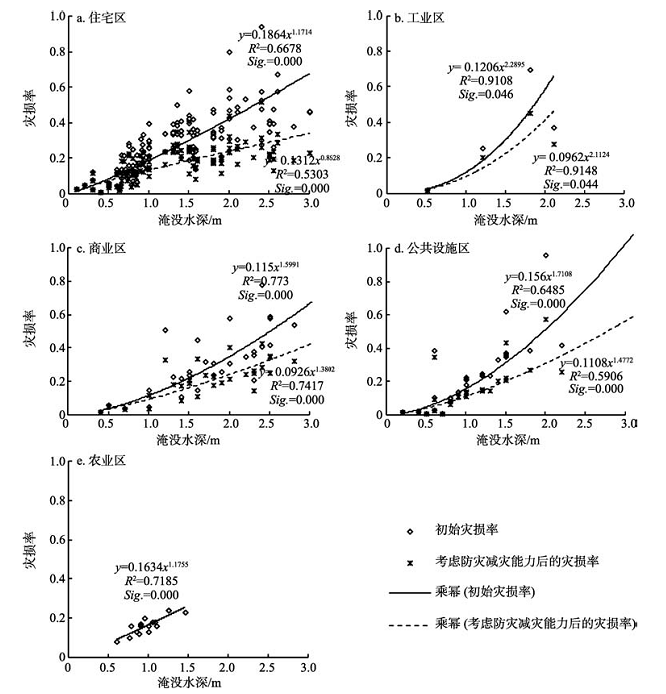

Fig.3

Tab.3

References 24

[1]	陈锡林, 闻余华, 黄利亚, 等. 2008. 里下河地区降雨量多时间尺度分析[J]. 水文, 28(3): 83-85. doi: 10.3969/j.issn.1000-0852.2008.03.022
	[Chen X L, Wen Y H, Huang L Y, et al.2008. Multiple-time scale analysis of precipitation in Lixiahe Region[J]. Journal of China Hydrology, 28(3): 83-85.] doi: 10.3969/j.issn.1000-0852.2008.03.022
[2]	丁建国, 徐明, 傅国圣, 等. 2010. 2006年扬泰里下河地区梅雨期暴雨洪水分析[J]. 江苏水利,(7): 22-23, 25. doi: 10.3969/j.issn.1007-7839.2010.07.011
	[Ding J G, Xu M, Fu G S, et al.2010. 2006 nian Yangtai Lixiahe meiyuqi bayu hongshui fenxi[J]. Jiangsu Water Resources,(7): 22-23, 25.] doi: 10.3969/j.issn.1007-7839.2010.07.011
[3]	董姝娜, 姜鎏鹏, 张继权, 等. 2012. 基于“3S”技术的村镇住宅洪灾脆弱性曲线研究[J]. 灾害学, 27(2): 34-38, 42. doi: 10.3969/j.issn.1000-811X.2012.02.007
	[Dong S N, Jiang L P, Zhang J Q, et al.2012. Research on flood vulnerability curves of rural dwellings based on“3S”technology[J]. Journal of Catastrophology, 27(2): 34-38, 42.] doi: 10.3969/j.issn.1000-811X.2012.02.007
[4]	胡俊锋, 张宝军, 杨佩国, 等. 2013. 区域综合减灾能力评价模型和方法研究与实证分析[J]. 自然灾害学报, 22(5): 13-22.
	[Hu J F, Zhang B J, Yang P G, et al.2013. Research and empirical analysis of evaluation model and method on regional comprehensive disasters reduction ability[J]. Journal of Natural Disaster, 22(5): 13-22.]
[5]	黄大鹏, 郑伟, 张人禾, 等. 2011. 安徽淮河流域洪涝灾害防灾减灾能力评估[J]. 地理研究, 30(3): 523-530.
	[Huang D P, Zheng W, Zhang R H, et al.2011. Assessment of capacity of flood disaster prevention and reduction of Huaihe River Basin in Anhui Province[J]. Geographical Research, 30(3): 523-530.]
[6]	刘耀龙, 陈振楼, 王军, 等. 2011. 经常性暴雨内涝区域房屋财(资)产脆弱性研究: 以温州市为例[J]. 灾害学, 26(2): 66-71. doi: 10.3969/j.issn.1000-811X.2011.02.013
	[Liu Y L, Chen Z L, Wang J, et al.2011. Study on Property (capital) vulnerability of houses in regular rainstorm water-logging areas: Taking Wenzhou City as example[J]. Journal of Catastrophology, 26(2): 66-71.] doi: 10.3969/j.issn.1000-811X.2011.02.013
[7]	石勇. 2010. 灾害情景下城市脆弱性评估研究: 以上海市为例[D]. 上海: 华东师范大学.
	[Shi Y.2010. Research on vulnerability assessment of cities on the disaster scenario: A case study of Shanghai City[D]. Shanghai: East China Normal University.]
[8]	石勇, 许世远, 石纯, 等. 2009. 洪水灾害脆弱性研究进展[J]. 地理科学进展, 28(1): 41-46. doi: 10.11820/dlkxjz.2009.01.006
	[Shi Y, Xu S Y, Shi C, et al.2009. A review on development of vulnerability assessment of floods[J]. Progress in Geography, 28(1): 41-46.] doi: 10.11820/dlkxjz.2009.01.006
[9]	石勇, 许世远, 石纯, 等. 2011. 自然灾害脆弱性研究进展[J]. 自然灾害学报, 20(2): 131-137.
	[Shi Y, Xu S Y, Shi C, et al.2011. Progress in research on vulnerability of natural disasters[J]. Journal of Natural Disasters, 20(2): 131-137.]
[10]	田辉, 黄万春, 马开玉. 1998. 里下河地区梅雨量的可能异常和变化规律[J]. 气象科学, 18(3): 262-265.
	[Tian H, Huang W C, Ma K Y.1998. Possible anomaly and changing rule of precipitation during mei-yu period in Lixiahe region[J]. Scientia Meteorologica Sinica, 18(3): 262-265.]
[11]	叶正伟, 许有鹏, 潘光波. 2011. 江淮平原水网区汛期雨量与洪涝水位关系: 以江苏里下河腹部地区为例[J]. 地理研究, 30(6): 1137-1146.
	[Ye Z W, Xu Y P, Pang G B.2011.Relationship between flood rainfall and water level in a Jianghuai Plain river network region: A case study in the inner Lixiahe, Jiangsu[J]. Geographical Research, 30(6): 1137-1146.]
[12]	叶正伟, 许有鹏, 徐金涛. 2009. 江苏里下河地区洪涝灾害演变趋势与成灾机理分析[J]. 地理科学, 29(6): 880-885.
	[Ye Z W, Xu Y P, Xu J T.2009. Flood changing trend and flooding mechanism in Lixiahe region, Jiangsu, China[J]. Scientia Geographica Sinica, 29(6): 880-885.]
[13]	尹占娥, 许世远, 殷杰, 等. 2010. 基于小尺度的城市暴雨内涝灾害情景模拟与风险评估[J]. 地理学报, 65(5): 553-562.
	[Yin Z E, Xu S Y, Yin J, et al.2010. Small-scale based scenario modeling and disaster risk assessment of urban rainstorm waterlogging[J]. Acta Geographica Sinica, 65(5): 553-562.]
[14]	Coto E B.2002. Flood hazard, vulnerability and risk assessment in the city of Turrialba, Costa Rica[M]. Costa Rica: International Institute for Geo-information Science and Earth Observation(ITC): 1-102.
[15]	Dutta D, Tingsanchali T.2003. Development of loss functions for urban flood risk analysis in Bangkok[C]//Proceedings of the second international symposium on new technologies for urban safety of mega cities in Asia. Tokyo, Japan: International Center for Urban Safety Engineering: 229-238.
[16]	Ikeda S, Nagasaka T.2011. An emergent framework of disaster risk governance towards innovating coping capability for reducing disaster risks in local communities[J]. International Journal of Disaster Risk Science, 2(2): 1-9. doi: 10.1007/s13753-011-0006-7
[17]	Jin J L, Fu J, Wei Y M, et al.2015. Integrated risk assessment method of waterlog disaster in Huaihe River Basin of China[J]. Natural Hazards, 75(2): 155-178. doi: 10.1007/s11069-014-1307-0
[18]	Kelman I.2003. Physical flood vulnerability of residential properties in coastal, eastern England[D]. Cambridge, UK: University of Cambridge.
[19]	Kleist L, ThiekenA H, Koehler P, et al.2006. Estimation of the regional stock of residential buildings as a basis for a comparative risk assessment in Germany[J]. Natural Hazards and Earth System Sciences, 6(4): 541-552. doi: 10.5194/nhess-6-541-2006
[20]	Mavhura E, Manyena S B, Collins A E, et al.2013. Indigenous knowledge, coping strategies and resilience to floods in Muzarabani, Zimbabwe[J]. International Journal of Disaster Risk Reduction, 5: 38-48. doi: 10.1016/j.ijdrr.2013.07.001
[21]	Naumann T, Nikolowski J, Golz S, et al.2010. Resilience and resistance of buildings and built structures to flood impacts: Approaches to analysis and evaluation[M]//Müller B. German annual of spatial research and policy 2010. Berlin, Germany: Springer: 89-100.
[22]	Tiwari A.2015. The capacity crisis in disaster risk management environmental hazards: why disaster management capacity remains low in developing countries and what can be done[M]. Berlin, Germany: Springer International Publishing.
[23]	Turner B L, Kasperson R E, Matson P A, et al.2003. A framework for vulnerability analysis in sustainability science[J]. Proceedings of the National Academy of Sciences of the United States of America, 100(14): 8074-8079. doi: 10.1073/pnas.1231335100 pmid: 12792023
[24]	United States Army Corps of Engineers.1985. Business depth-damage analysis procedures[R]. US: Institute for Water Resource.

调研类型	统计单元	调研对象	样本数量	总数量	占总体的百分比/%
住宅区	家庭	居民	145	9637	1.50
农业区	行政村	行政村负责人	15	15	100.00
工业区	工厂	工业负责人	4	26	15.38
商业区	零售店铺	商业负责人	30	60	50.00
公共设施区	事业单位	事业单位负责人	28	32	87.50

统计项目	住宅区		工业区		商业区		公共设施区		农业区
统计项目	灾损率1	灾损率2	灾损率1	灾损率2	灾损率1	灾损率2	灾损率1	灾损率2	灾损率1
Pearson 相关性	0.784^**	0.648^**	0.786	0.835	0.789^**	0.776^**	0.723^**	0.662^**	0.838^**
相伴概率（双侧）	0.000	0.000	0.214	0.165	0.000	0.000	0.000	0.000	0.000
样本数	123	123	4	4	30	30	28	28	15

水深/m	住宅区			商业区
水深/m	灾损率1	灾损率2	差值	灾损率1		灾损率2		差值
0.5	0.07	0.07	0.00	0.04		0.04		0.00
1.0	0.19	0.13	0.06	0.12		0.09		0.02
1.5	0.33	0.18	0.15	0.22		0.16		0.06
2.0	0.48	0.24	0.24	0.35		0.24		0.11
2.5	0.55	0.29	0.26	0.49		0.32		0.17
3.0	0.68	0.34	0.34	0.66		0.41		0.24
水深/m	工业区			公共设施区					农业区灾损率
水深/m	灾损率1	灾损率2	差值	灾损率1	灾损率2		差值		农业区灾损率
0.5	0.02	0.02	0.00	0.04	0.01		0.03		0.07
1.0	0.12	0.10	0.02	0.11	0.05		0.07		0.16
1.5	0.31	0.23	0.08	0.20	0.11		0.09		0.26
2.0	0.59	0.42	0.17	0.31	0.20		0.11
