PROGRESS IN GEOGRAPHY ›› 2023, Vol. 42 ›› Issue (1): 12-26.doi: 10.18306/dlkxjz.2023.01.002
• Articles • Previous Articles Next Articles
GUO Yuanzhi1(), LI Xuhong1,2,*(
)
Received:
2022-06-22
Revised:
2022-09-27
Online:
2023-01-28
Published:
2023-03-28
Contact:
LI Xuhong
E-mail:guoyz.16b@igsnrr.ac.cn;lixuhong2479@igsnrr.ac.cn
Supported by:
GUO Yuanzhi, LI Xuhong. Spatiotemporal changes of urban construction land structure and driving mechanism in the Yellow River Basin based on random forest model[J].PROGRESS IN GEOGRAPHY, 2023, 42(1): 12-26.
Tab.1

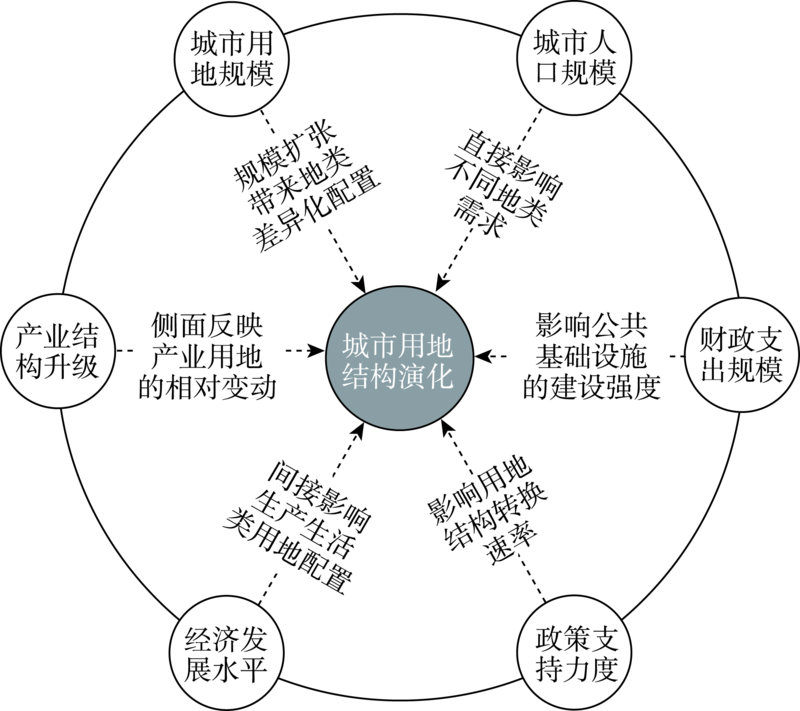

Pre-selection of driving factors for urban construction land structural change in the Yellow River Basin
变量 | 变量名称 | 变量符号 | 含义 | 单位 |
---|---|---|---|---|
被解释变量 | 城市建设用地结构 | Y | 建设用地结构信息熵 | Nat |
解释变量 | 城市用地规模 | X1 | 城市建设用地面积 | km2 |
城市人口规模 | X2 | 城市年末人口 | 万人 | |
经济发展水平 | X3 | 职工年平均工资 | 元 | |
产业结构升级 | X4 | 三产产值/二产产值 | — | |
财政支出规模 | X5 | 一般公共预算支出 | 亿元 | |
政策支持力度 | X6 | 房地产开发投资/GDP | — |
Tab.2

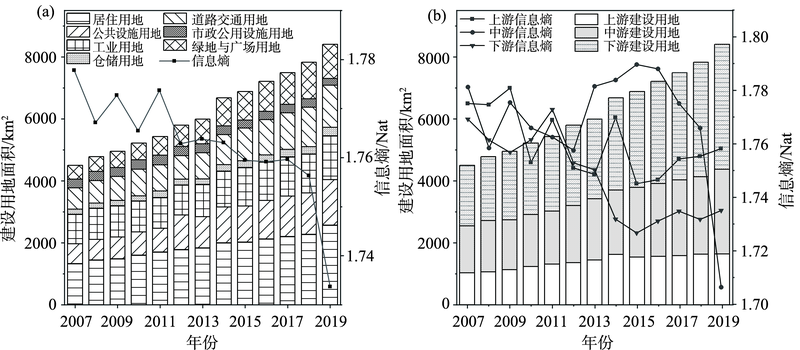

Urban construction land use structure and information entropy in the Yellow River Basin during 2007-2019
年份 | 城市建设用地结构/% | 信息熵/ Nat | ||||||
---|---|---|---|---|---|---|---|---|
居住用地 | 公共设施用地 | 工业用地 | 仓储用地 | 道路交 通用地 | 市政公用 设施用地 | 绿地与广场用地 | ||
2007 | 29.45 | 14.18 | 21.23 | 3.73 | 15.23 | 6.22 | 9.96 | 1.7778 |
2008 | 30.16 | 13.92 | 21.12 | 3.38 | 15.32 | 6.10 | 10.01 | 1.7672 |
2009 | 29.96 | 14.23 | 20.28 | 3.48 | 15.66 | 5.89 | 10.50 | 1.7727 |
2010 | 30.62 | 14.35 | 19.19 | 3.22 | 16.45 | 5.81 | 10.38 | 1.7655 |
2011 | 31.29 | 14.21 | 18.28 | 3.81 | 15.59 | 5.77 | 11.05 | 1.7737 |
2012 | 30.72 | 19.36 | 16.63 | 3.34 | 12.97 | 5.19 | 11.78 | 1.7629 |
2013 | 30.57 | 16.88 | 17.29 | 3.04 | 14.06 | 4.90 | 13.26 | 1.7638 |
2014 | 29.97 | 17.32 | 17.27 | 3.20 | 14.46 | 4.28 | 13.50 | 1.7631 |
2015 | 29.34 | 17.02 | 17.97 | 3.21 | 15.28 | 3.72 | 13.46 | 1.7595 |
2016 | 29.47 | 17.18 | 17.24 | 3.21 | 15.74 | 3.70 | 13.46 | 1.7591 |
2017 | 29.38 | 17.44 | 16.83 | 3.26 | 15.73 | 3.61 | 13.74 | 1.7596 |
2018 | 29.08 | 17.05 | 16.05 | 3.00 | 16.29 | 3.43 | 15.11 | 1.7563 |
2019 | 30.61 | 17.46 | 16.80 | 3.24 | 16.17 | 2.59 | 13.13 | 1.7337 |
[1] | 陈明星, 陆大道, 张华. 中国城市化水平的综合测度及其动力因子分析[J]. 地理学报, 2009, 64(4): 387-398. |
[Chen Mingxing, Lu Dadao, Zhang Hua. Comprehensive evaluation and the driving factors of China's urbanization. Acta Geographica Sinica, 2009, 64(4): 387-398. ]
doi: 10.11821/xb200904001 |
|
[2] |
高金龙, 包菁薇, 刘彦随, 等. 中国县域土地城镇化的区域差异及其影响因素[J]. 地理学报, 2018, 73(12): 2329-2344.
doi: 10.11821/dlxb201812005 |
[Gao Jinlong, Bao Jingwei, Liu Yansui, et al. Regional disparity and the influencing factors of land urbanization in China at the county level, 2000-2015. Acta Geographica Sinica, 2018, 73(12): 2329-2344. ] | |
[3] | 国家统计局. 2021年中国统计年鉴[M]. 北京: 中国统计出版社, 2021: 30-31. |
[National Bureau of Statistics. China statistical yearbook in 2021. Beijing, China: China Statistical Publishing House, 2021: 30-31. ] | |
[4] | 朱英明, 姚士谋, 李玉见. 我国城市化进程中的城市空间演化研究[J]. 地理学与国土研究, 2000, 16(2): 12-16. |
[Zhu Yingming, Yao Shimou, Li Yujian. On the urban spatial evolution in the process of urbanization in China. Geography and Territorial Research, 2000, 16(2): 12-16. ] | |
[5] |
Ding C R, Zhao X S. Land market, land development and urban spatial structure in Beijing[J]. Land Use Policy, 2014, 40: 83-90.
doi: 10.1016/j.landusepol.2013.10.019 |
[6] | 陈彦光, 刘明华. 城市土地利用结构的熵值定律[J]. 人文地理, 2001, 16(4): 20-24. |
[Chen Yanguang, Liu Minghua. The basic laws of the Shannon entropy values of urban land-use composition. Human Geography, 2001, 16(4): 20-24. ] | |
[7] | 谭永忠, 吴次芳. 区域土地利用结构的信息熵分异规律研究[J]. 自然资源学报, 2003, 18(1): 112-117. |
[Tan Yongzhong, Wu Cifang. The laws of the information entropy values of land use composition. Journal of Natural Resources, 2003, 18(1): 112-117. ] | |
[8] |
王玉明, 王瑞康. 城市化时期郊区土地利用结构信息熵上升的原因[J]. 地理学报, 2018, 73(9): 1647-1657.
doi: 10.11821/dlxb201809003 |
[Wang Yuming, Wang Ruikang. Reasons for the increasing information entropy of suburban land use structure during the period of urbanization. Acta Geographica Sinica, 2018, 73(9): 1647-1657. ]
doi: 10.11821/dlxb201809003 |
|
[9] | 陈彦光, 刘继生. 城市土地利用结构和形态的定量描述: 从信息熵到分数维[J]. 地理研究, 2001, 20(2): 146-152. |
[Chen Yanguang, Liu Jisheng. An index of equilibrium of urban land-use structure and information dimension of urban form. Geographical Research, 2001, 20(2): 146-152. ]
doi: 10.11821/yj2001020003 |
|
[10] | 张恒义, 刘卫东, 石秋义. 基于偏移—份额法的区域建设用地结构变化和空间分布研究[J]. 中国土地科学, 2010, 24(11): 63-68. |
[Zhang Hengyi, Liu Weidong, Shi Qiuyi. Research on regional structural changes and spatial distribution of construction land based on shift-share analysis. China Land Science, 2010, 24(11): 63-68. ] | |
[11] | 卢新海, 葛堃, 柯善淦. 中国城市建设用地结构时空演变特征及机理研究[J]. 经济问题探索, 2018(10): 25-32. |
[Lu Xinhai, Ge Kun, Ke Shangan. Research on space-time evolution features and mechanism of China's urban construction land structure. Inquiry into Economic Issues, 2018(10): 25-32. ] | |
[12] | 吕涛, 郝泳涛, 王力生. 基于生态算法的城市建设用地结构优化[J]. 同济大学学报(自然科学版), 2016, 44(7): 1130-1138. |
[Lv Tao, Hao Yongtao, Wang Lisheng. Structure optimization of urban development land based on ecological algorithm. Journal of Tongji University (Natural Science), 2016, 44(7): 1130-1138. ] | |
[13] | 孔雪松, 刘艳芳, 谭传凤. 嘉鱼县土地利用结构与效益变化的耦合效应分析[J]. 资源科学, 2009, 31(7): 1095-1101. |
[Kong Xuesong, Liu Yanfang, Tan Chuanfeng. Correlation analysis of the changes of land use structure and land use efficiency: A case study of Jiayu County in Hubei Province. Resources Science, 2009, 31(7): 1095-1101. ] | |
[14] | 孙雁, 刘志强, 王秋兵, 等. 1910—2010年沈阳城市土地利用空间结构演变特征[J]. 地理科学进展, 2012, 31(9): 1204-1211. |
[Sun Yan, Liu Zhiqiang, Wang Qiubing, et al. Spatial structure evolution of urban land use in Shenyang during 1910-2010. Progress in Geography, 2012, 31(9): 1204-1211. ]
doi: 10.11820/dlkxjz.2012.09.012 |
|
[15] |
Feng J, Chen Y G. Spatiotemporal evolution of urban form and land-use structure in Hangzhou, China: Evidence from fractals[J]. Environment and Planning B: Planning and Design, 2010, 37(5): 838-856.
doi: 10.1068/b35078 |
[16] | 陆汝成, 黄贤金, 李衡. 基于信息熵的建设用地演化和人文驱动分析: 以黑龙江省为例[J]. 经济地理, 2009, 29(5): 827-831. |
[Lu Rucheng, Huang Xianjin, Li Heng. The evolution of construction land and analysis of human driving force based on information entropy: A case study of Heilongjiang Province. Economic Geography, 2009, 29(5): 827-831. ] | |
[17] | 许芸鹭, 雷国平. 辽中南城市群城市用地结构的时空演变分析[J]. 经济地理, 2018, 38(1): 69-77. |
[Xu Yunlu, Lei Guoping. Study on evolution of urban land structure in Liaozhongnan city groups. Economic Geography, 2018, 38(1): 69-77. ] | |
[18] |
宋洋, 朱道林, Yeung Godfrey, 等. 收缩情境下城市用地结构时空格局演变及动力机制: 以中国东北地区为例[J]. 地理研究, 2021, 40(5): 1387-1403.
doi: 10.11821/dlyj020200410 |
[Song Yang, Zhu Daolin, Yeung G, et al. Spatio-temporal evolution and driving mechanism of urban land use structure with the context of urban shrinkage: Evidence from Northeast China. Geographical Research, 2021, 40(5): 1387-1403. ]
doi: 10.11821/dlyj020200410 |
|
[19] | 匡兵, 卢新海, 周敏, 等. 武汉城市群城市用地结构时空演变特征及其机理[J]. 经济地理, 2016, 36(5): 71-78. |
[Kuang Bing, Lu Xinhai, Zhou Min, et al. Spatio-temporal features of urban land structure change in Wuhan City group and underlying causes. Economic Geography, 2016, 36(5): 71-78. ] | |
[20] |
Li C X, Wu K N, Wu J Y. Urban land use change and its socio-economic driving forces in China: A case study in Beijing, Tianjin and Hebei region[J]. Environment, Development and Sustainability, 2018, 20(3): 1405-1419.
doi: 10.1007/s10668-017-9928-6 |
[21] | 谢汀, 刘爱宁, 高雪松, 等. 基于信息熵和灰色关联的成都市建设用地结构时空变化及驱动力分析[J]. 农业现代化研究, 2015, 36(1): 118-125. |
[Xie Ting, Liu Aining, Gao Xuesong, et al. Temporal-spatial changes and driving forces of built-up land structure in Chengdu City based on information entropy and gray correlative degree analyses. Research of Agricultural Modernization, 2015, 36(1): 118-125. ] | |
[22] | 张雪茹, 姚亦锋, 孔少君, 等. 南京市2000—2014年城市建设用地变化及驱动因子研究[J]. 长江流域资源与环境, 2017, 26(4): 552-562. |
[Zhang Xueru, Yao Yifeng, Kong Shaojun, et al. The analysis on urban construction land change and driving forces in Nanjing from 2000 to 2014. Resources and Environment in the Yangtze Basin, 2017, 26(4): 552-562. ] | |
[23] | 曾刚, 胡森林. 百年未有之大变局下中国区域发展格局演变[J]. 经济地理, 2021, 41(10): 42-48, 69. |
[Zeng Gang, Hu Senlin. Spatial evolution process of China's regional development pattern in big changes unseen in a century. Economic Geography, 2021, 41(10): 42-48, 69. ] | |
[24] |
Tuan Y F. Geography, phenomenology, and the study of human nature[J]. The Canadian Geographer, 1971, 15(3): 181-192.
doi: 10.1111/j.1541-0064.1971.tb00156.x |
[25] | 龙花楼, 屠爽爽. 土地利用转型与乡村振兴[J]. 中国土地科学, 2018, 32(7): 1-6. |
[Long Hualou, Tu Shuang- shuang. Land use transition and rural vitalization. China Land Science, 2018, 32(7): 1-6. ] | |
[26] | 邓祥征, 杨开忠, 单菁菁, 等. 黄河流域城市群与产业转型发展[J]. 自然资源学报, 2021, 36(2): 273-289. |
[Deng Xiangzheng, Yang Kaizhong, Shan Jingjing, et al. Urban agglomeration and industrial transformation and development in the Yellow River Basin. Journal of Natural Resources, 2021, 36(2): 273-289. ]
doi: 10.31497/zrzyxb.20210201 |
|
[27] | 方创琳. 黄河流域城市群形成发育的空间组织格局与高质量发展[J]. 经济地理, 2020, 40(6): 1-8. |
[Fang Chuanglin. Spatial organization pattern and high-quality development of urban agglomeration in the Yellow River Basin. Economic Geography, 2020, 40(6): 1-8. ]
doi: 10.2307/142170 |
|
[28] | 徐维祥, 徐志雄, 刘程军. 黄河流域地级城市土地集约利用效率与生态福利绩效的耦合性分析[J]. 自然资源学报, 2021, 36(1): 114-130. |
[Xu Weixiang, Xu Zhixiong, Liu Chengjun. Coupling analysis of land intensive use efficiency and ecological well-being performance of cities in the Yellow River Basin. Journal of Natural Resources, 2021, 36(1): 114-130. ]
doi: 10.31497/zrzyxb.20210108 |
|
[29] | 童绍玉, 蔡运龙, 李双成. 云南省楚雄市与双柏县土地利用变化对比研究[J]. 地理研究, 2006, 25(3): 397-405, 563. |
[Tong Shaoyu, Cai Yunlong, Li Shuangcheng. The comparative analysis of land use change between Chuxiong and Shuangbai in Yunnan Province. Geographical Research, 2006, 25(3): 397-405, 563. ]
doi: 10.11821/yj2006030004 |
|
[30] | 陈彦光. 中国城市发展的自组织特征与判据: 为什么说所有城市都是自组织的?[J]. 城市规划, 2006, 30(8): 24-30. |
[Chen Yanguang. Self-organized characteristics and criteria of the development of Chinese cities. City Planning Review, 2006, 30(8): 24-30. ] | |
[31] |
Breiman L. Random forests[J]. Machine Learning, 2001, 45(1): 5-32.
doi: 10.1023/A:1010933404324 |
[32] |
陈凯, 刘凯, 柳林, 等. 基于随机森林的元胞自动机城市扩展模拟: 以佛山市为例[J]. 地理科学进展, 2015, 34(8): 937-946.
doi: 10.18306/dlkxjz.2015.08.001 |
[Chen Kai, Liu Kai, Liu Lin, et al. Urban expansion simulation by random-forest-based cellular automata: A case study of Foshan City. Progress in Geography, 2015, 34(8): 937-946. ]
doi: 10.18306/dlkxjz.2015.08.001 |
|
[33] |
赵艳艳, 张晓平, 陈明星, 等. 中国城市空气质量的区域差异及归因分析[J]. 地理学报, 2021, 76(11): 2814-2829.
doi: 10.11821/dlxb202111015 |
[Zhao Yanyan, Zhang Xiaoping, Chen Mingxing, et al. Regional variation of urban air quality in China and its dominant factors. Acta Geographica Sinica, 2021, 76(11): 2814-2829. ]
doi: 10.11821/dlxb202111015 |
|
[34] |
张琍, 李斌, 阳文静, 等. 基于时序遥感的庐山自然保护区植被分类及其变化分析[J]. 地理科学进展, 2021, 40(4): 703-712.
doi: 10.18306/dlkxjz.2021.04.014 |
[Zhang Li, Li Bin, Yang Wenjing, et al. Forest vegetation classification and its variation in Lushan Nature Reserve using Proba-V vegetation products. Progress in Geography, 2021, 40(4): 703-712. ]
doi: 10.18306/dlkxjz.2021.04.014 |
|
[35] | 崔继昌, 郭贯成. 省际交界地区城市用地结构时空演变及影响因素: 基于信息熵视角的分析[J]. 城市问题, 2022, 41(3): 33-42, 65. |
[Cui Jichang, Guo Guancheng. Research on spatio-temporal evolution of urban land use structure in interprovincial border areas and the influencing factors: Based on information entropy theory. Urban Problems, 2022, 41(3): 33-42, 65. ] | |
[36] |
叶强, 莫正玺, 许乙青. 1979—2014年长沙市城市功能用地扩展与驱动力研究[J]. 地理研究, 2019, 38(5): 1063-1079.
doi: 10.11821/dlyj020171193 |
[Ye Qiang, Mo Zhengxi, Xu Yiqing. The expansion and driving forces of the functional space land: A case study of Changsha from 1979 to 2014. Geographical Research, 2019, 38(5): 1063-1079. ]
doi: 10.11821/dlyj020171193 |
|
[37] |
刘奎, 王健. 土地经营对中国城市空间扩张的驱动机制: 基于273个地级市的实证分析[J]. 资源科学, 2021, 43(4): 764-775.
doi: 10.18402/resci.2021.04.11 |
[Liu Kui, Wang Jian. Driving mechanism of land conduct on urban spatial expansion in China: Empirical analysis based on 273 prefecture-level cities. Resources Science, 2021, 43(4): 764-775. ]
doi: 10.18402/resci.2021.04.11 |
|
[38] | 李咪, 王成新, 姬宇, 等. 山东半岛城市群建设用地结构的时空特征及变化机理研究[J]. 世界地理研究, 2018, 27(4): 108-117. |
[Li Mi, Wang Chengxin, Ji Yu, et al. Spatio-temporal characteristics and changing mechanism of construction land structure in Shandong Peninsula Urban Agglomerations. World Regional Studies, 2018, 27(4): 108-117. ] | |
[39] | 高金龙, 陈雯. 转型期中国城市用地结构动态演变及其机理: 基于长三角51个样本城市的实证研究[J]. 长江流域资源与环境, 2017, 26(4): 540-551. |
[Gao Jinlong, Chen Wen. Dynamic evolution and its driving mechanism of urban land use restructuring within the transition context: Case study of 51 sample cities in the Yangtze River Delta. Resources and Environment in the Yangtze Basin, 2017, 26(4): 540-551. ] | |
[40] | 王玉明. 地理环境演化趋势的熵变化分析[J]. 地理学报, 2011, 66(11): 1508-1517. |
[Wang Yuming. The analysis of entropy changes on the evolutional tendency of geographical environment. Acta Geographica Sinica, 2011, 66(11): 1508-1517. ]
doi: 10.11821/xb201111007 |
|
[41] | 方创琳, 李广东, 张蔷. 中国城市建设用地的动态变化态势与调控[J]. 自然资源学报, 2017, 32(3): 363-376. |
[Fang Chuanglin, Li Guangdong, Zhang Qiang. The variation characteristics and control measures of the urban construction land in China. Journal of Natural Resources, 2017, 32(3): 363-376. ] | |
[42] |
谭荣辉, 刘耀林, 刘艳芳, 等. 城市增长边界研究进展: 理论模型、划定方法与实效评价[J]. 地理科学进展, 2020, 39(2): 327-338.
doi: 10.18306/dlkxjz.2020.02.013 |
[Tan Ronghui, Liu Yaolin, Liu Yanfang, et al. A literature review of urban growth boundary: Theory, modeling, and effectiveness evaluation. Progress in Geography, 2020, 39(2): 327-338. ]
doi: 10.18306/dlkxjz.2020.02.013 |
