基于无人机摄影测量的地形变化检测方法与小流域输沙模型研究

doi:10.18306/dlkxjz.2021.09.011

Abstract

Abstract:

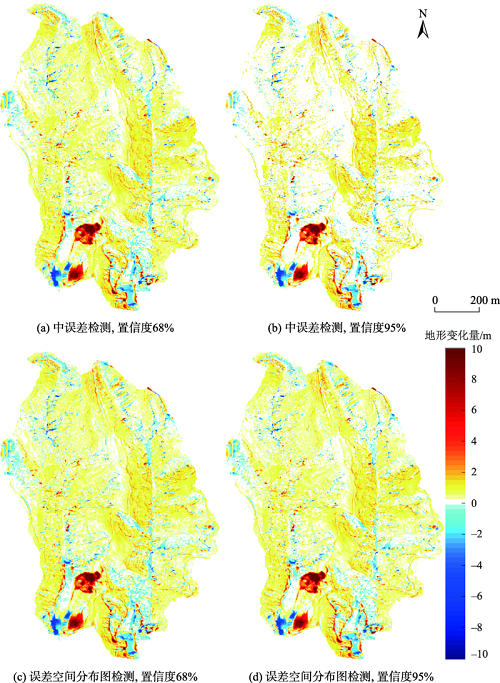

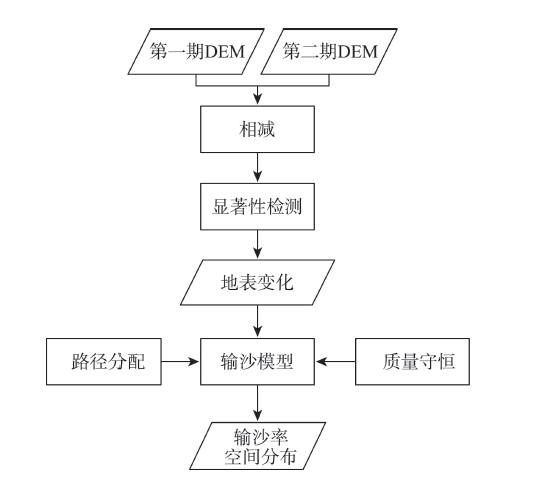

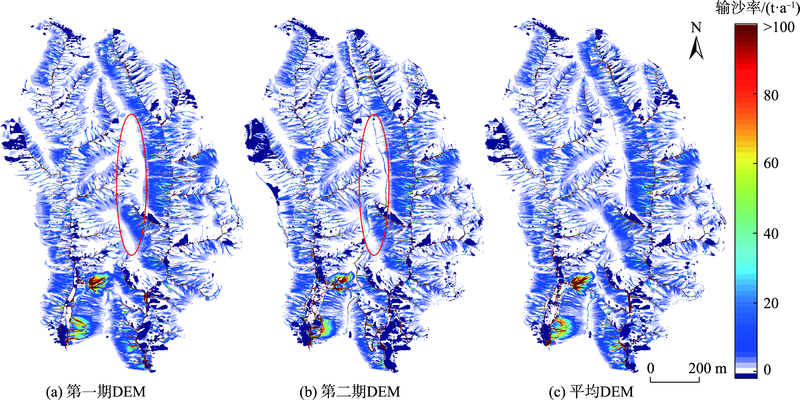

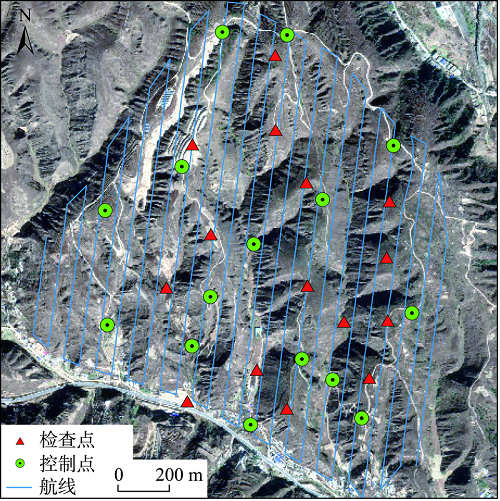

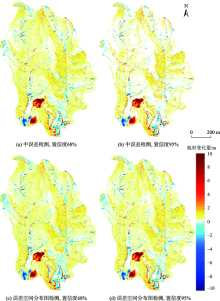

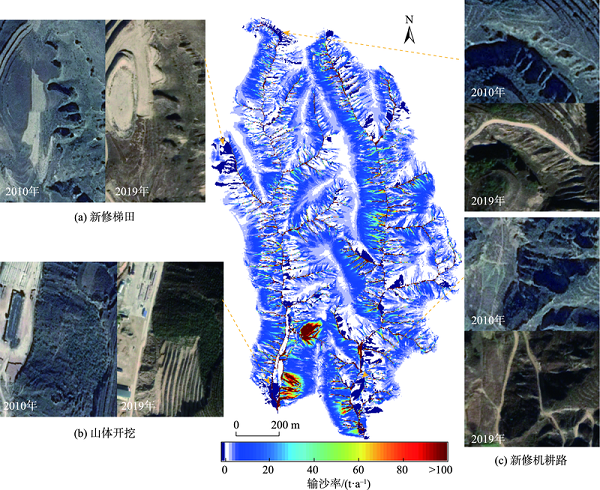

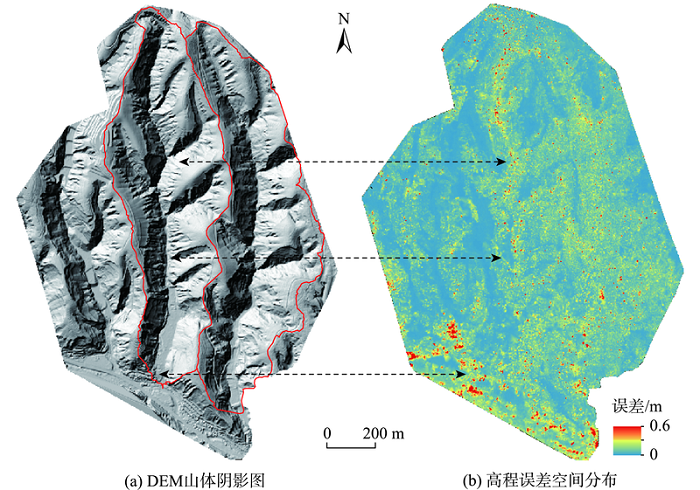

Sediment transport rate, as an important indicator for studying Earth surface processes and for planning soil and water conservation, is a spatial variable. However, traditional monitoring methods can only obtain the global sediment transport rate in a certain area and are unable to map the spatial distribution of sediment transport rate. In this study, unmanned aerial vehicle (UAV) photogrammetry was used to obtain a two-phase digital elevation model (DEM) and calculate the amount of topographic change. In accordance with the principle of mass conservation and using a multi-flow direction algorithm, a spatial sediment transport model was established, by which the spatial sediment transport rate from a loess watershed was obtained. The results show that this method can effectively simulate the transportation of sediment in space. The area where the mass is not conserved is less than 4%, and the non-conserved areas are mostly those that are affected by human activities. The effects of DEM choice and the level of topographic change detection on the proposed model are also discussed. When DEM in the first phase is used to calculate the sediment transportation path, the area where the mass is not conserved is significantly reduced. The results of the spatial sediment transport model are more robust when a precision map is used to detect topographic changes, whereas the results from topographic changes detected by root mean square error (RMSE) greatly varied under different confidence levels. The proposed model can conveniently and quickly provide a detailed spatial distribution of sediment transport rate through UAV-based topographic change detection, which provides new perspectives for research of Earth surface processes.

Key words: UAV photogrammetry, soil erosion monitoring in a watershed, topographic change detection, spatial distribution of sediment transport rate, precision map, sediment transport

DAI Wen, TANG Guo'an, HU Guanghui, YANG Xin, XIONG Liyang, WANG Lei. Modelling sediment transport in space in a watershed based on topographic change detection by UAV survey[J].PROGRESS IN GEOGRAPHY, 2021, 40(9): 1570-1580.

Figures/Tables 9

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Tab.1

Fig.8

References 30

[1]	Persichillo M G, Bordoni M, Cavalli M, et al. The role of human activities on sediment connectivity of shallow landslides[J]. Catena, 2018, 160:261-274. doi: 10.1016/j.catena.2017.09.025
[2]	Lane S N, Bakker M, Costa A, et al. Making stratigraphy in the Anthropocene: Climate change impacts and economic conditions controlling the supply of sediment to Lake Geneva[J]. Scientific Reports, 2019, 9:8904. doi: 10.1038/s41598-019-44914-9. doi: 10.1038/s41598-019-44914-9 pmid: 31266964
[3]	Dai W, Yang X, Na J M, et al. Effects of DEM resolution on the accuracy of gully maps in loess hilly areas[J]. Catena, 2019, 177:114-125. doi: 10.1016/j.catena.2019.02.010
[4]	刘希林. 全球视野下崩岗侵蚀地貌及其研究进展[J]. 地理科学进展, 2018, 37(3):342-351. doi: 10.18306/dlkxjz.2018.03.005
	[ Lin Xilin. Benggang erosion landform and research progress in a global perspective. Progress in Geography, 2018, 37(3):342-351. ]
[5]	薛天翼, 武旭同, 朱晨怡, 等. 红水河流域输沙量变化及其影响因素[J]. 地理科学进展, 2019, 38(5):772-782. doi: 10.18306/dlkxjz.2019.05.013
	[ Xue Tianyi, Wu Xutong, Zhu Chenyi, et al. Change of sediment load and its influencing factors in the Hongshui River Basin in Southwestern China. Progress in Geography, 2019, 38(5):772-782. ]
[6]	田义超, 王世杰, 白晓永, 等. 桐梓河流域输沙量变化及其对气候和人类活动的响应[J]. 自然资源学报, 2019, 34(12):2701-2716.
	[ Tian Yichao, Wang Shijie, Bai Xiaoyong, et al. Sediment transport variation and its response to climate and human activities in Tongzi River Basin. Journal of Natural Resources, 2019, 34(12):2701-2716. ]
[7]	Einstein H A, Chien N. Can the rate of wash load be predicted from the bed-load function?[J]. Eos, Transactions American Geophysical Union, 1953, 34(6):876-882.
[8]	Meyer-Peter E, Favre H, Einstein H. Neuere versuchsresultate über den geschiebetrieb[J]. Schweizerische Bauzeitung, 1934, 103(13):147-150.
[9]	Leopold L B, Emmett W W. Bedload measurements, East Fork River, Wyoming[J]. PNAS, 1976, 73(4):1000-1004. pmid: 16592302
[10]	Fu B J, Zhao W W, Chen L D, et al. Assessment of soil erosion at large watershed scale using RUSLE and GIS: A case study in the Loess Plateau of China[J]. Land Degradation & Development, 2005, 16(1):73-85. doi: 10.1002/ldr.v16:1
[11]	Laflen J M, Lane L J, Foster G R. WEPP: A new generation of erosion prediction technology[J]. Journal of Soil and Water Conservation, 1991, 46(1):34-38.
[12]	De Roo A P J, Wesseling C G, Ritsema C J. LISEM: A single-event physically based hydrological and soil erosion model for drainage basins. I: Theory, input and output[J]. Hydrological Processes, 1996, 10(8):1107-1117. doi: 10.1002/(ISSN)1099-1085
[13]	Morgan R P C, Quinton J N, Smith R E, et al. The European Soil Erosion Model (EUROSEM): A dynamic approach for predicting sediment transport from fields and small catchments[J]. Earth Surface Processes and Landforms, 1998, 23(6):527-544. doi: 10.1002/(ISSN)1096-9837
[14]	Hessel R, Jetten V, Liu B Y, et al. Calibration of the LISEM model for a small Loess Plateau catchment[J]. Catena, 2003, 54(1/2):235-254. doi: 10.1016/S0341-8162(03)00067-5
[15]	Wang B, Zheng F L, Römkens M J M. Comparison of soil erodibility factors in USLE, RUSLE2, EPIC and Dg models based on a Chinese soil erodibility database[J]. Acta Agriculturae Scandinavica, Section B: Soil & Plant Science, 2013, 63(1):69-79.
[16]	Brasington J, Langham J, Rumsby B. Methodological sensitivity of morphometric estimates of coarse fluvial sediment transport[J]. Geomorphology, 2003, 53(3/4):299-316. doi: 10.1016/S0169-555X(02)00320-3
[17]	李斌兵, 黄磊, 冯林, 等. 基于点云数据的切沟泥沙负载量不确定性研究[J]. 农业工程学报, 2014, 30(17):183-191.
	[ Li Binbing, Huang Lei, Feng Lin, et al. Uncertainty of gully sediment budgets based on laser point cloud data. Transactions of the CSAE, 2014, 30(17):183-191. ]
[18]	Liu K, Ding H, Tang G A, et al. Detection of catchment-scale gully-affected areas using Unmanned Aerial Vehicle (UAV) on the Chinese Loess Plateau[J]. ISPRS International Journal of Geo-Information, 2016, 5(12):238. doi: 10.3390/ijgi5120238. doi: 10.3390/ijgi5120238
[19]	周高伟, 李英成, 任延旭, 等. 低空无人机双介质水下礁盘深度测量试验与分析[J]. 测绘学报, 2015, 44(5):548-554, 562.
	[ Zhou Gaowei, Li Yingcheng, Ren Yanxu, et al. Research of two-media underwater reefs depth measurement experiment based on low-altitude UAV. Acta Geodaetica et Cartographica Sinica, 2015, 44(5):548-554, 562. ]
[20]	代文, 那嘉明, 杨昕, 等. 基于 DEM 光照晕渲模拟的梯田自动提取方法[J]. 地球信息科学学报, 2017, 19(6):754-762. doi: 10.3724/SP.J.1047.2017.00754
	[ Dai Wen, Na Jiaming, Yang Xin, et al. An automatic retrieval method for artificial terrace based on illumination model of DEM shading. Journal of Geo-information Science, 2017, 19(6):754-762. ]
[21]	Vericat D, Wheaton J M, Brasington J. Revisiting the morphological approach: Opportunities and challenges with repeat high-resolution topography[M]// Tsutsumi D, Laronne J B. Gravel-bed rivers: Process and disasters. New York, USA: Wiley-Blackwell, 2017: 121-158.
[22]	Bakker M, Antoniazza G, Odermatt E, et al. Morphological response of an alpine braided reach to sediment-laden flow events[J]. Journal of Geophysical Research: Earth Surface, 2019, 124(5):1310-1328. doi: 10.1029/2018JF004811
[23]	Antoniazza G, Bakker M, Lane S N. Revisiting the morphological method in two-dimensions to quantify bed-material transport in braided rivers[J]. Earth Surface Processes and Landforms, 2019, 44(11):2251-2267. doi: 10.1002/esp.4633
[24]	Agisoft L. Agisoft PhotoScan user manual: Professional edition[M]. St Petersburg, Russia: Agisoft LLC, 2014.
[25]	武汉大学测绘学院测量平差学科组. 误差理论与测量平差基础[M]. 2版. 武汉: 武汉大学出版社, 2014.
	[Discipline Group of Surveying Adjustment of School of Geodesy and Geomatics of Wuhan University. Error theory and foundation of surveying adjustment. 2nd Edition. Wuhan, China: Wuhan University Press, 2014. ]
[26]	James M R, Robson S, Smith M W. 3-D uncertainty-based topographic change detection with structure-from-motion photogrammetry: Precision maps for ground control and directly georeferenced surveys[J]. Earth Surface Processes and Landforms, 2017, 42(12):1769-1788. doi: 10.1002/esp.v42.12
[27]	Lane S N, Westaway R M, Murray Hicks D. Estimation of erosion and deposition volumes in a large, gravel-bed, braided river using synoptic remote sensing[J]. Earth Surface Processes and Landforms, 2003, 28(3):249-271. doi: 10.1002/(ISSN)1096-9837
[28]	Exner F M. Uber die wechselwirkung zwischen wasser und geschiebe in flussen[J]. Akad Wiss Wien Math Naturwiss Klasse, 1925, 134:165-204.
[29]	Holmgren P. Multiple flow direction algorithms for runoff modelling in grid based elevation models: An empirical evaluation[J]. Hydrological Processes, 1994, 8(4):327-334. doi: 10.1002/(ISSN)1099-1085
[30]	李雄飞. 陕西省土壤侵蚀模数计算与空间分布特征[J]. 陕西水利, 2014(4):122-123.
	[ Li Xiongfei. Calculation and spatial distribution characteristics of soil erosion modulus in Shaanxi Province. Shaanxi Water Resources, 2014(4):122-123. ]

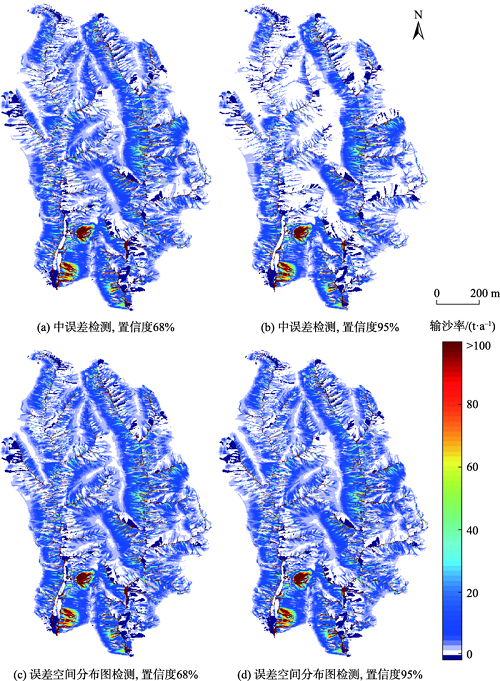

检测水平	输沙率/(t·a^-1)				负值面积比例/%
检测水平	最小值	最大值	平均值	中位数	负值面积比例/%
中误差,置信度68%	-56.84	12629.48	25.98	0.56	4.24
中误差,置信度95%	-60.92	11828.90	18.00	0.28	5.96
误差空间分布图, 置信度68%	-56.83	12689.05	27.49	0.62	3.90
误差空间分布图, 置信度95%	-56.87	12341.59	26.46	0.59	3.98
