PROGRESS IN GEOGRAPHY ›› 2021, Vol. 40 ›› Issue (4): 693-702.doi: 10.18306/dlkxjz.2021.04.013
• Articles • Previous Articles Next Articles
Received:
2020-07-08
Revised:
2020-10-09
Online:
2021-04-28
Published:
2021-06-28
Contact:
CHEN Yangbo
E-mail:liuzx39@mail2.sysu.edu.cn;eescyb@mail.sysu.edu.cn
Supported by:
LIU Zexing, CHEN Yangbo. Spatiotemporal change of urban river in urbanization process based on remote sensing and GIS: A case study of the Buji River in Shenzhen City[J].PROGRESS IN GEOGRAPHY, 2021, 40(4): 693-702.
Tab.1
Improvement projects of the Buji River, 1980-2020"
序号 | 工程名称 | 开始年份 | 结束年份 | 工程位置 | 具体河段 | 工程内容 |
---|---|---|---|---|---|---|
1 | 深圳河及布吉河治理 | 1980 | 1985 | 下游 | 笋岗滞洪区、笋岗滞洪区泄洪闸至蔡屋围 | 滞洪区建设;河道截弯取直、拓宽 |
2 | 笋岗泄洪区及排沙道建设及整改 | 1981 | 1991 | 下游 | 笋岗泄洪区 | 泄洪区及排沙道建设及整改 |
3 | 布吉河河段整治 | 1987 | — | 下游 | 草铺铁路桥至笋岗滞洪区 | — |
4 | 布吉河蔡屋围水闸拆除工程 | 1993 | — | 下游 | 蔡屋围 | 拆除水闸、拓宽河段 |
5 | 布吉河下游清淤工程 | 1993 | 1996 | 下游 | 草埔北桥至笋岗泄洪闸段 | 河道截弯取直 |
6 | 罗湖小区治涝工程 | 1995 | — | 下游 | 河口 | 建设泵站、挡潮闸、河口堤防 |
7 | 布吉河(龙岗段)综合整治工程 | 2006 | 2006 | 上游 | 龙岗区河段 | 河堤修复、治理沿河污染源 |
8 | 布吉河(特区内)水环境综合整治工程 | 2009 | 2016 | 下游 | 罗湖区河段 | 水质改善、防洪、生态、景观等,综合治理 |
9 | 布吉河(龙岗段)“EPC+O”项目 | 2017 | 2021 | 上游 | 龙岗区河段 | 河道防洪、水质改善及水生态修复 |
10 | 布吉河泥岗桥至河口段(罗湖段)清淤工程 | 2018 | 2018 | 下游 | 罗湖区河段 | 河道清淤 |
Tab.3
Built-up area of the Buji River Basin in different years (km2) "
地区 | 1988年 | 1993年 | 1996年 | 1999年 | 2001年 | 2005年 | 2008年 | 2011年 | 2013年 | 2015年 |
---|---|---|---|---|---|---|---|---|---|---|
上游地区 | 2.85 | 5.27 | 9.28 | 13.35 | 14.06 | 17.01 | 17.14 | 17.84 | 19.13 | 19.73 |
下游地区 | 12.06 | 12.33 | 15.43 | 17.08 | 16.15 | 15.03 | 16.07 | 16.79 | 17.86 | 17.80 |
总计 | 14.91 | 17.60 | 24.71 | 30.44 | 30.21 | 32.04 | 33.21 | 34.63 | 36.99 | 37.53 |

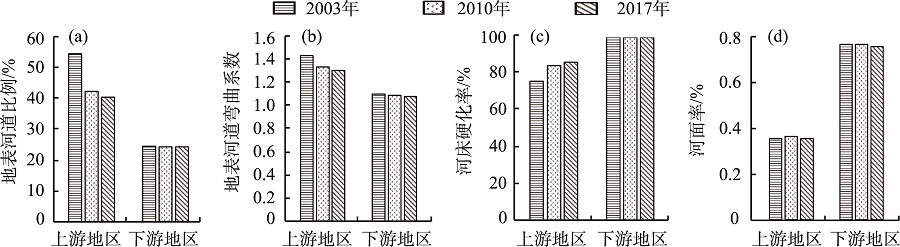

Tab.4
Characteristics of river channel change in the Buji River Basin"
特征参数 | 2003年 | 2010年 | 2017年 | 变化幅度/% | ||
---|---|---|---|---|---|---|
2003—2010年 | 2010—2017年 | 2003—2017年 | ||||
地表河道比例/% | 41.29 | 34.22 | 33.42 | -17.12 | -2.34 | -19.06 |
地表河道弯曲系数 | 1.35 | 1.24 | 1.22 | -8.15 | -1.61 | -9.63 |
河床硬化率/% | 86.84 | 91.72 | 92.46 | 5.62 | 0.81 | 6.47 |
河面率/% | 0.56 | 0.56 | 0.55 | 0 | -1.79 | -1.79 |
[1] | 王雪, 田涛, 杨建英, 等. 城市河道生态治理综述[J]. 中国水土保持科学, 2008, 6(5):106-111. |
Wang Xue, Tian Tao, Yang Jianying, et al. Summary on ecological treatment of urban river. Science of Soil and Water Conservation, 2008, 6(5):106-111. | |
[2] |
Nilsson C, Reidy C A, Dynesius M, et al. Fragmentation and flow regulation of the world's large river systems[J]. Science, 2005, 308:405-408.
doi: 10.1126/science.1107887 pmid: 15831757 |
[3] | Yang L, Xu Y P, Han L F, et al. River networks system changes and its impact on storage and flood control capacity under rapid urbanization[J]. Hydrological Processes, 2016, 30(13):2401-2412. |
[4] | Steele M K, Heffernan J B. Morphological characteristics of urban water bodies: Mechanisms of change and implications for ecosystem function[J]. Ecological Applications, 2014, 24(5):1070-1084. |
[5] | Chin A. Urban transformation of river landscapes in a global context[J]. Geomorphology, 2006, 79:460-487. |
[6] | Napieralski J, Keeling R, Dziekan M, et al. Urban stream deserts as a consequence of excess stream burial in urban watersheds[J]. Annals of the Association of American Geographers, 2015, 105(4):649-664. |
[7] | Napieralski J A, Carvalhaes T. Urban stream deserts: Mapping a legacy of urbanization in the United States[J]. Applied Geography, 2016, 67:129-139. |
[8] | Steele M K, Heffernan J B, Bettez N, et al. Convergent surface water distributions in US cities[J]. Ecosystems, 2014, 17(4):685-697. |
[9] | Lin Z X, Xu Y P, Dai X , et al. Changes in the plain river system and its hydrological characteristics under urbanization: Case study of Suzhou City, China[J]. Hydrological Sciences Journal, 2019, 64(16):2068-2079. |
[10] | Deng X J, Xu Y P. Degrading flood regulation function of river systems in the urbanization process[J]. Science of the Total Environment, 2018, 622/623:1379-1390. |
[11] | 林芷欣, 许有鹏, 代晓颖, 等. 城市化对平原河网水系结构及功能的影响: 以苏州市为例[J]. 湖泊科学, 2018, 30(6):1722-1731. |
Lin Zhixin, Xu Youpeng, Dai Xiao-ying, et al. Effect of urbanization on the river network structure and functions: A case study in Suzhou City. Journal of Lake Sciences, 2018, 30(6):1722-1731. | |
[12] | 吴雷, 许有鹏, 徐羽, 等. 平原水网地区快速城市化对河流水系的影响[J]. 地理学报, 2018, 73(1):104-114. |
Wu Lei, Xu Youpeng, Xu Yu, et al. Impact of rapid urbanization on river system in a river network plain. Acta Geographica Sinica, 2018, 73(1):104-114. | |
[13] | 张凤, 陈彦光, 刘鹏. 京津冀城镇体系与水系结构的时空关系研究[J]. 地理科学进展, 2020, 39(3):377-388. |
Zhang Feng, Chen Yanguang, Liu Peng. Spatiotemporal relationships between urban system and water system in the Beijing-Tianjin-Hebei region. Progress in Geography, 2020, 39(3):377-388. | |
[14] | 黄奕龙, 王仰麟, 刘珍环, 等. 快速城市化地区水系结构变化特征: 以深圳市为例[J]. 地理研究, 2008, 27(5):1212-1220. |
Huang Yilong, Wang Yanglin, Liu Zhenhuan, et al. Stream construction characteristics in rapid urbanization area: Shenzhen City as a case. Geographical Research, 2008, 27(5):1212-1220. | |
[15] | 傅春, 李云翊, 王世涛. 城市化进程下南昌市城区水系格局与连通性分析[J]. 长江流域资源与环境, 2017, 26(7):1042-1048. |
Fu Chun, Li Yunyi, Wang Shitao. Analysis of water system structure and connectivity in the center of Nanchang under the urbanization process. Resources and Environment in the Yangtze Basin, 2017, 26(7):1042-1048. | |
[16] | 郭科, 王鸿翔, 郭文献, 等. 郑州市水系结构特征演变趋势分析[J]. 河南科技, 2018(5):80-83. |
Guo Ke, Wang Hongxiang, Guo Wenxian, et al. Analysis on evolution trend characteristics of river system in Zhengzhou City. Henan Science and Technology, 2018(5):80-83. | |
[17] | 吴健生, 马洪坤, 彭建. 基于“功能节点—关键廊道”的市生态安全格局构建: 以深圳市为例[J]. 地理科学进展, 2018, 37(12):1663-1671. |
Wu Jiansheng, Ma Hongkun, Peng Jian. Improving urban ecological security pattern based on functional nodes-key corridors: A case study of Shenzhen City. Progress in Geography, 2018, 37(12):1663-1671. | |
[18] | Langat P K, Kumar L, Koech R, et al. Characterisation of channel morphological pattern changes and flood corridor dynamics of the tropical Tana River fluvial systems, Kenya[J]. Journal of African Earth Sciences, 2020, 163: 103748. doi: 10.1016/j.jafrearsci.2019.103748. |
[19] | 廖小罕. 地理科学发展与新技术应用[J]. 地理科学进展, 2020, 39(5):709-715. |
Liao Xiaohan. Advance of geographic sciences and new technology applications. Progress in Geography, 2020, 39(5):709-715. | |
[20] | 史卓琳, 黄昌. 河流水情要素遥感研究进展[J]. 地理科学进展, 2020, 39(4):670-684. |
Shi Zhuolin, Huang Chang. Recent advances in remote sensing of river characteristics. Progress in Geography, 2020, 39(4):670-684. | |
[21] | Dou P, Chen Y B. Dynamic monitoring of land-use/land-cover change and urban expansion in Shenzhen using Landsat imagery from 1988 to 2015 [J]. International Journal of Remote Sensing, 2017, 38(19):5388-5407. |
[22] | 王若兵. 深圳市水利志[M]. 广州: 广东科技出版社, 1990. |
Wang Ruobing. Water conservancy of Shenzhen. Guangzhou, China: Guangdong Science and Technology Press, 1990. | |
[23] | 王若兵. 深圳市水务志[M]. 深圳: 海天出版社, 2001. |
Wang Ruobing. Shenzhen water affairs. Shenzhen, China: Haitian Press, 2001. | |
[24] | 贾保安. 深圳市罗湖区志[M]. 北京: 方志出版社, 2013. |
Jia Baoan. Records of Luohu District, Shenzhen. Beijing, China: Fangzhi Press, 2013. | |
[25] | 应恩宇, 付涛, 张纯权. 深圳城市河道综合整治工程水土流失及防治研究: 以布吉河(龙岗段)河道综合整治工程为例[J]. 南昌工程学院学报, 2017, 36(6):52-56. |
Ying Enyu, Fu Tao, Zhang Chunquan. Study on soil and water erosion and its prevention in Shenzhen Urban River Comprehensive Improvement Project: Taking comprehensive rehabilitation project of Buji River (Longgang Section) as example. Journal of Nanchang Institute of Technology, 2017, 36(6):52-56. | |
[26] | 谢能标. 布吉河泥岗桥至河口段清淤工程施工难点与应对措施[J]. 中国水运, 2018, 18(12):171-172. |
Xie Nengbiao. Construction difficulties and countermeasures of dredging project from Nigang Bridge to estuary of Buji River. China Water Transport, 2018, 18(12):171-172. | |
[27] | 毕国学. 龙岗区众志成城“铁腕治污”[N/OL]. 深圳商报, 2006-09-26 [2020-05-08]. http://news.sina.com.cn/o/2006-09-26/001210108271s.shtml. |
Bi Guoxue. Longgang District united as one "Iron fist to control pollution". Shenzhen Business Daily, 2006-09-26 [2020-05-08].http://news.sina.com.cn/o/2006-09-26/001210108271s.shtml. | |
[28] | 夏凡. 深圳布吉河(龙岗段)2018年底前完成综合整治[N/OL]. 深圳晚报, 2017-10-25[2020-05-08]. http://sz.people.com.cn/n2/2017/1025/c202846-30855709.html. |
Xia Fan . Shenzhen Buji River (Longgang section) to be completed by the end of 2018. Shenzhen Evening News, 2017-10-25 [2020-05-08]. http://sz.people.com.cn/n2/2017/1025/c202846-30855709.html. | |
[29] | 深圳市(特区内)水环境综合整治工程(第二阶段)[N/OL]. 深圳新闻网, 2018-10-20 [2020-05-08]. http://mini.eastday.com/a/181020080318883.html. |
[Shenzhen Buji River (within the special zone) water environment comprehensive improvement project (phase II). Shenzhen News, 2018-10-20 [2020-05-08]. http://mini.eastday.com/a/181020080318883.html. ] | |
[30] | 黄静. 城市水景观体系规划研究[D]. 南京: 南京林业大学, 2013. |
Huang Jing. Theoretical study on the urban landscape river system planning. Nanjing, China: Nanjing Forestry University, 2013. | |
[31] | Shi P J, Yuan Y, Zheng J, et al. The effect of land use/cover change on surface runoff in Shenzhen region, China[J]. Catena, 2007, 69(1):31-35. |
|
