基于MODIS数据的2001—2018年中国耕地复种指数反演研究

doi:10.18306/dlkxjz.2020.11.008

Abstract

Abstract:

Stability of cropping intensity of the cultivated land is related to the national food security of China, and it is of great significant to obtain detailed process information of the spatiotemporal change of cropping intensity in a timely and efficient manner. Based on the MODIS09A1 data of 500 m resolution in 2001-2018, this study mapped the spatiotemporal distribution of the national cropping intensity by using the fast automatic detection method of continuous wavelet transform, and examined the spatiotemporal change of cropping intensity and driving mechanisms by Mann-Kendall nonparametric test and heuristic segmentation method. The results show that the cropland multiple cropping index in China had risen steadily, and the average value of multiple cropping index had increased from 1.14 in 2001 to 1.30 in 2018. In 6% of the country's cultivated land area (about 135000 km², equivalent to the area of Anhui Province), multiple cropping index changed significantly. The areas with multiple cropping index increase account for about 2/3 of the total area of multiple cropping index change, and the areas with decreased multiple cropping index account for about 1/3 of the total area of multiple cropping index change. The key regions with positive change are the Loess Plateau and the Gansu-Xinjiang region (from fallow to single cropping), and the Yellow River-Huai River-Hai River region (from single cropping to double cropping), and the changes mainly took place in 2004-2013. Since 2013, the national multiple cropping index has continued to increase. An important contributing factor is the continued increase in area of double cropping (converted from single cropping), which was mainly in the Yellow River-Huai River-Hai River region. Negative change mainly took place in the middle and lower reaches of the Yangtze River Basin where double cropping was partially replaced by single cropping in 2009-2013. Maintaining effective planting area of the cultivated land in the Loess Plateau and the Gansu-Xinjiang region and double cropping planting area of the cultivated land in the Yellow River- Huai River- Hai River region, and preventing the decline of multiple cropping of the middle and lower reaches of the Yangtze River Basin are of great significance for stabilizing the multiple cropping index and ensuring food security in China.

Key words: multiple cropping index, wavelet features-based method, fallow to single cropping, MOD09A1, China

LI Yu, QIU Bingwen, HE Yuhua, CHEN Gong, YE Zhiyan. Cropping intensity based on MODIS data in China during 2001-2018[J].PROGRESS IN GEOGRAPHY, 2020, 39(11): 1874-1883.

Figures/Tables 8

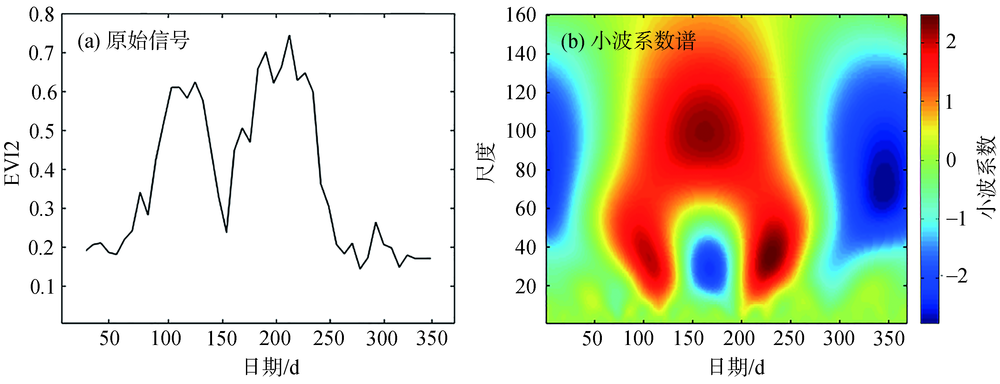

Fig.1

Fig.2

Fig.3

Tab.1

Fig.4

Fig.5

Fig.6

Fig.7

References 22

[1]	Liu L, Xu X, Zhuang D, et al. Changes in the potential multiple cropping system in response to climate change in China from 1960-2010[J]. PLoS One, 2013,8(12):135-141.
[2]	Liu L, Xiao X, Qin Y, et al. Mapping cropping intensity in China using time series Landsat and Sentinel-2 images and Google Earth Engine[J]. Remote Sensing of Environment, 2020,239(5):111-124.
[3]	Zhou D, An P, Pan Z, et al. Arable land use intensity change in China from 1985 to 2005: Evidence from integrated cropping systems and agro economic analysis[J]. Journal of Agricultural Science, 2012,150(2):179-190.
[4]	Biradar C M, Xiao X. Quantifying the area and spatial distribution of double-and triple-cropping croplands in India with multi-temporal MODIS imagery in 2005[J]. International Journal of Remote Sensing, 2011,32(2):367-386.
[5]	Gray J, Friedl M, Frolking S, et al. Mapping Asian cropping intensity with MODIS[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2014,7(8):3373-3379.
[6]	Jain M, Mondal P, DeFries R S, et al. Mapping cropping intensity of smallholder farms: A comparison of methods using multiple sensors[J]. Remote Sensing of Environment, 2013,134(16):210-223.
[7]	Griffiths P, Nendel C, Hostert P. Intra-annual reflectance composites from Sentinel-2 and Landsat for national-scale crop and land cover mapping[J]. Remote Sensing of Environment, 2019,220(9):135-151.
[8]	Qiu B W, Huang Y Z, Chen C C, et al. Mapping spatiotemporal dynamics of maize in China from 2005 to 2017 through designing leaf moisture based indicator from normalized multi-band drought index[J]. Computers and Electronics in Agriculture, 2018,153(4):82-93.
[9]	左丽君, 张增祥, 董婷婷, 等. 耕地复种指数研究的国内外进展[J]. 自然资源学报, 2009,24(3):553-560.
	[ Zuo Lijun, Zhang Zengxiang, Dong Tingting, et al. Progress in the research of cultivated land multiple cropping index at home and abroad. Journal of Natural Resources, 2009,24(3):553-560. ]
[10]	Qiu B, Lu D, Tang Z, et al. Mapping cropping intensity trends in China during 1982-2013[J]. Applied Geography, 2017,79(12):212-222.
[11]	Yan H, Liu F, Qin Y, et al. Tracking the spatio-temporal change of cropping intensity in China during 2000-2015[J]. Environmental Research Letters, 2018,14(3):035008. doi: 10.1088/1748-9326/aaf9c7.
[12]	Li S, Li X, Sun L, et al. An estimation of the extent of cropland abandonment in mountainous regions of China[J]. Land Degradation & Development, 2018,29(5):1327-1342.
[13]	李卓, 刘淑亮, 孙然好, 等. 黄淮海地区耕地复种指数的时空格局演变[J]. 生态学报, 2018,38(12):4454-4460.
	[ Li Zhuo, Liu Shuliang, Sun Ranhao, et al. Identifying the temporal-spatial pattern evolution of the multiple cropping index in the Huang-Huai-Hai region. Acta Ecologica Sinica, 2018,38(12):4454-4460. ]
[14]	蒋敏, 李秀彬, 辛良杰, 等. 南方水稻复种指数变化对国家粮食产能的影响及其政策启示[J]. 地理学报, 2019,74(1):34-45.
	[ Jiang Min, Li Xiubin, Xin Liangjie, et al. The impact of paddy rice multiple cropping index changes in Southern China on national grain production capacity and its policy implications. Acta Geographica Sinica, 2019,74(1):32-43. ]
[15]	田罗, 周文佐, 何万华, 等. 2000—2016年四川省耕地种植指数时空变化及其自然潜力分析[J]. 中国生态农业学报, 2018,26(8):1206-1216.
	[ Tian Luo, Zhou Wenzuo, He Wanhua, et al. Temporal and spatial changes and natural potential of cultivated land planting index in Sichuan Province from 2000 to 2016. Chinese Journal of Eco-Agriculture, 2018,26(8):1206-1216. ]
[16]	丁明军, 陈倩, 辛良杰, 等. 1999—2013年中国耕地复种指数的时空演变格局[J]. 地理学报, 2015,70(7):1080-1090.
	[ Ding Mingjun, Chen Qian, Xin Liangjie, et al. Spatial and temporal variations of multiple cropping index in China based on SPOT-NDVI during 1999-2013. Acta Geographica Sinica, 2015,70(7):1080-1090. ]
[17]	彭代亮, 黄敬峰, 金辉民. 基于MODIS-NDVI的浙江省耕地复种指数监测[J]. 中国农业科学, 2006,39(7):1352-1357.
	[ Peng Dailiang, Huang Jingfeng, Jin Huimin. Monitoring of multiple cropping index of cultivated land in Zhejiang Province based on MODIS-NDVI. Scientia Agricultura Sinica, 2006,39(7):1352-1357. ]
[18]	Wang Y, Zhang J, Liu D, et al. Accuracy assessment of GlobeLand30 2010 land cover over China based on geographically and categorically stratified validation sample data[J]. Remote Sensing, 2018,10(8):1213. doi: 10.3390/rs10081213.
[19]	李世东. 中国退耕还林发展阶段研究[J]. 世界林业研究, 2003,16(1):36-41.
	[ Li Shidong. Study on the development stages of converting cropland for forest and grassland. World Forestry Research, 2003,16(1):36-41. ]
[20]	封国林, 龚志强, 董文杰, 等. 基于启发式分割算法的气候突变检测研究[J]. 物理学报, 2005,54(11):5494-5499.
	[ Feng Guolin, Gong Zhiqiang, Dong Wenjie, et al. Abrupt climate change detection based on heuristic segmentation algorithm. Acta Physica Sinica, 2005,54(11):5494-5499. ]
[21]	陈学庚, 赵岩. 新疆兵团农业机械化现状与发展趋势[J]. 华东交通大学学报, 2015,32(2):1-7.
	[ Chen Xuegeng, Zhao Yan. Status and development trend of agricultural mechanization in Xinjiang production and construction corps. Journal of East China Jiaotong University, 2015,32(2):1-7. ]
[22]	Qiu B, Chen G, Tang Z, et al. Assessing the Three-North Shelter Forest Program in China by a novel framework for characterizing vegetation changes[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2017,133:75-88.

	耕地复种指数			生产者精度/%
	单季	双季	三季	生产者精度/%
单季	774	62	0	92.58
双季	87	853	5	90.26
三季	3	5	40	83.33
用户精度/%	89.58	92.72	88.89
总体精度: 91.14%; Kappa系数: 0.8308
