天气因素对城市地铁客流时空分布的影响——基于智能交通卡数据的实证研究

doi:10.18306/dlkxjz.2020.01.005

Abstract

Abstract:

Urban geographic space, climate, and transportation system are interrelated, and recently available traffic and spatial big data bring new opportunities for understanding the relationship among them. Urban rail transit is an important transport mode for residents to travel green and relieve traffic congestion in big cities in China. In-depth study of factors that affect the changes in the spatial and temporal distributions of metro passenger flows is conducive to the formulation of reasonable land use and traffic demand management policies, and can also provide a theoretical basis for real-time response to the changes in travel demand under specific weather conditions and optimization of transit service operation. To study the impact of weather conditions on metro usage in densely populated areas, in this research the influence of local weather factors (including temperature, humidity, rainfall and so on) on hourly metro passenger flows was investigated based on metro smart card data and weather data from Nanjing City, China. A time series model—seasonal autoregressive integrated moving average with explanatory variables (SARIMAX)—was developed to investigate the impact of weather conditions on metro passenger flows. It is found that some weather factors such as rainfall have significant influence on metro passenger flows. Except for some special sites (large residential areas and large transportation hubs), the influence of weather factors on metro passenger flows reduces gradually from the city center to suburban areas. The effects of weather conditions on regular metro passengers and irregular metro passengers were explicitly compared in this study. Irregular metro passengers are found more vulnerable to adverse weather conditions than regular metro passengers.

Key words: urban metro system, smart card data, passenger flow distribution, weather factors, Nanjing City

XU Manling, FU Xiao, TANG Junyou, LIU Zhiyuan. Effects of weather factors on the spatial and temporal distributions of metro passenger flows: An empirical study based on smart card data[J].PROGRESS IN GEOGRAPHY, 2020, 39(1): 45-55.

Figures/Tables 13

Fig.1

Tab.1

Tab.2

Tab.3

Fig.2

Tab.4

Tab.5

Tab.6

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

References 25

[1]	关雪峰, 曾宇媚 . 时空大数据背景下并行数据处理分析挖掘的进展及趋势[J]. 地理科学进展, 2018,37(10):1314-1327.
	[ Guan Xuefeng, Zeng Yumei . Research progress and trends of parallel processing, analysis, and mining of big spatiotemperal data. Progress in Geography, 2018,37(10):1314-1327. ]
[2]	黄洁, 王姣娥, 靳海涛 , 等. 北京市地铁客流的时空分布格局及特征: 基于智能交通卡数据[J]. 地理科学进展, 2018,37(3):397-406.
	[ Huang Jie, Wang Jiaoe, Jin Haitao , et al. Investigating spatiotemporal patterns of passenger flows in the Beijing metro system from smart card data. Progress in Geography, 2018,37(3):397-406. ]
[3]	Huang J, Levinson D, Wang J , et al. Job-worker spatial dynamics in Beijing: Insights from smart card data[J]. Cities, 2019,86:83-93.
[4]	Zhou J P, Murphy E, Long Y . Commuting efficiency in the Beijing metropolitan area: An exploration combining smartcard and travel survey data[J]. Journal of Transport Geography, 2014,41:175-183.
[5]	Huang J, Levinson D, Wang J , et al. Tracking job and housing dynamics with smartcard data[J]. PNAS, 2018,115(50):12710-12715.
[6]	Hofman M, O'mahony M. The impact of adverse weather conditions on urban bus performance measures: An analysis using ITS technology [C]// Intelligent Transportation Systems. 2005: 84-89. doi: 10.1109/ITSC.2005.1520087.
[7]	Koetse M J, Rietveld P . The impact of climate change and weather on transport: An overview of empirical findings[J]. Transportation Research Part D, 2009,14:205-221.
[8]	Teerayut H, Santi P, Tuck W L , et al. Weather effects on the patterns of people's everyday activities: A study using GPS traces of mobile phone users[J]. PLoS One, 2013,8(12):e81153. doi: 10.1371/journal.pone.0081153.
[9]	楚昌 . 城市公共自行车出行特征及预测研究: 以纽约市为例[D]. 成都: 西南交通大学, 2016.
	[ Chu Chang . Research on the public bicycle travel characteristics and prediction: A New York case study. Chengdu, China: Southwest Jiaotong University, 2016. ]
[10]	陶遂 . 基于智能公交卡数据的出行行为的时空分析及规划启示: 以布里斯班为例[J]. 上海城市规划, 2017(5):94-99.
	[ Tao Sui . Spatial-temporal analysis of travel behavior using transit smart card data and its planning implications: A case study of Brisbane, Australia. Shanghai Urban Planning Review, 2017(5):94-99. ]
[11]	刘欣彤 . 降雨天气条件下短时公交客流预测研究[D]. 深圳: 哈尔滨工业大学, 2016.
	[ Liu Xintong . Research on short-term bus passenger demand forcasting under rainy weather conditons. Shenzhen, China: Harbin Institude of Technology, 2016. ]
[12]	周顺 . 基于IC卡刷卡数据的雨天轨道交通出行特征 [C]// 中国城市规划学会城市交通规划学术委员会, 中国城市规划设计研究院. 交叉创新与转型重构: 2017年中国城市交通规划年会论文集. 北京: 中国建筑工业出版社, 2017: 1-9.
	[ Zhou Shun. Travel characteristics of rail transit in rainy days based on IC card data // Urban Transportation Planning Academic Committee of China Urban Planning Society, China Academy Of Urban Planning & Design. Cross innovation and transformation reconstruction: Annual National Traffic Planning Conference 2017. Beijing, China: China Architecture & Building Press, 2017: 1-9. ]
[13]	谢振东, 刘雪琴, 吴金成 , 等. 公交IC卡数据客流预测模型研究[J]. 广东工业大学学报, 2018,35(1):16-22.
	[ Xie Zhendong, Liu Xueqin, Wu Jincheng , et al. Research on forecasting model of public passenger flow based on IC card data. Journal of Guangdong University of Technology, 2018,35(1):16-22. ]
[14]	Trepantier M, Agard B, Morency C. Using smart card data to assess the impact of weather on public transport user behavior [C]// Department of Transport Engineering and Logistics of the Pontificia Universidad Católica de Chile Conference on Advanced Systems for Public Transit. Santiago, Chile: The Ritz-Carlton, 2012: 1-15.
[15]	Tao S, Corcoran J, Rowe F . To travel or not to travel: 'Weather' is the question. Modelling the effect of local weather conditions on bus ridership[J]. Transportation Research Part C, 2018,86:147-167.
[16]	Singhal A, Kamga C, Yazici A . Impact of weather on urban transit ridership[J]. Transportation Research Part A, 2014: 379-391.
[17]	Arana P, Cabezudo S, Penalba M . Influence of weather conditions on transit ridership: A statistical study using data from smartcards[J]. Transportation Research Part A, 2014,59:1-12.
[18]	Stover V M, Mccormack E D . The impact of weather on bus ridership in Pierce County, Washington[J]. Journal of Public Transportation, 2012,15(1):95-110.
[19]	Mesbah M, Luy M, Currie G . Investigating the lagged effect of weather parameters on travel time reliability[J]. WIT Transactions on Ecology and the Environment, 2014,191:795-801.
[20]	Kashfi S A, Bunker J M . Adverse weather effects on bus ridership[J]. Road & Transportation Research, 2015,24(1):44-57.
[21]	Zhan G, Nigel H M W, Adam R. The impact of weather on transit ridership in Chicago[J]. Transportation Research Record, 2004,2034:3-10.
[22]	Lars B, Martin D, Jan P . Impact of everyday weather on individual daily travel behaviours in perspective: A literature review[J]. Transport Reviews: A Transnational Transdisciplinary Journal, 2013,33(1):71-91.
[23]	Kashfi S A, Bunker J M B, Yigitcanlar T. Modelling and analysing effects of complex seasonality and weather on an area's daily transit ridership rate[J]. Journal of Transport Geagraphy, 2016,54:310-324.
[24]	王莹, 韩宝明, 张琦 . 基于SARIMA模型的北京地铁进站客流量预测[J]. 交通运输系统工程与信息, 2015,15(6):205-211.
	[ Wang Ying, Han Baoming, Zhang Qi . Forecasting of entering passenger flow volume in Beijing subway based on SARIMA model. Journal of Transportation Systems Engineering and Information Technology, 2015,15(6):205-211. ]
[25]	陶长琪 . 计量经济学 [M]. 上海: 复旦大学出版社, 2012.
	[ Tao Changqi. Econometrics. Shanghai, China: Fudan University Press, 2012. ]

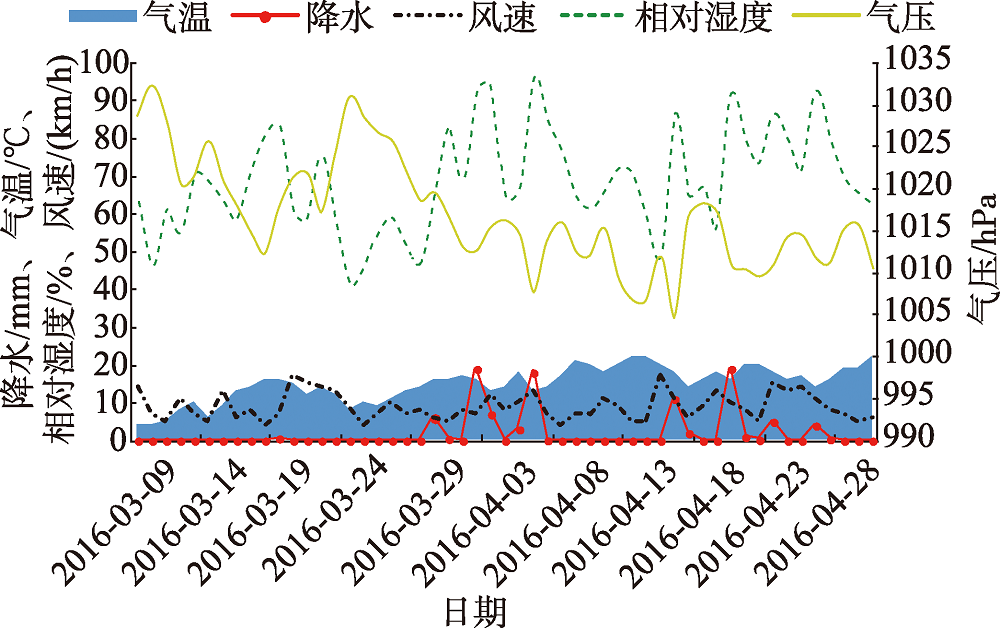

时间	气温差/℃	相对湿度差/%	气压差/hPa	风速差/（km/h）	降雨天数占比/%
1—2月	10.00	53.0	32.51	13	33.3
3—4月	18.34	50.0	27.77	25	29.5
5—6月	14.44	44.0	19.64	18	47.5
7—8月	11.11	44.5	12.19	11	27.4
9—10月	17.77	41.0	30.82	24	42.6
11—12月	16.67	35.5	22.01	21	36.1
研究时段(3月9日—4月30日)	18.34	50.0	27.77	25	28.3

日期	卡号	卡种	设备编号	进站时间	进站站点编号	出站时间	出站站点编号
2016-03-09	990772894357	102	22079702	15:58:08	98	16:07:42	97
2016-03-09	990772838262	101	22022805	15:23:43	25	15:38:29	28
2016-03-09	993172771712	3	22046202	13:09:36	2	13:38:18	62

日期	时间	气温/℃	相对湿度/%	气压/hPa	风向	风速/(km/h)	天气状况
2016-03-09	5:00	3	75	1027	东北偏北	10.8	晴间多云
2016-03-09	6:00	3	70	1027	东北	14.4	晴间多云
2016-03-09	8:00	3	70	1029	东北	21.6	晴

时段	变量	系数	P值	AIC	MAPE
早高峰	气温	-47	0.81	1236.27	1.68%
	相对湿度	-31	0.55
	气压	-96	0.59
	风速	190	0.01^**
	降雨	-2827	0.09^*
晚高峰	气温	315	0.59	1467.68	5.94%
	相对湿度	-77	0.60
	气压	262	0.62
	风速	-473	0.04^**
	降雨	-3533	0.57

时间	变量	系数	P值	AIC	MAPE
周六	气温	-57	0.31	2797.00	7.79%
	相对湿度	-2	0.88
	气压	-51	0.30
	风速	-31	0.34
	降雨(小雨)	-469	0.78
	降雨(中雨到大雨)	-672	0.46
	降雨(雷阵雨)	-1329	0.24
周日	气温	98	0.40	2399.27	8.67%
	相对湿度	12	0.52
	气压	65	0.28
	风速	-8	0.79
	降雨(小雨)	-1429	0.04^**
	降雨(中到大雨)	-3968	0.02^**

Effects of weather factors on the spatial and temporal distributions of metro passenger flows: An empirical study based on smart card data

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 13

References 25

Related Articles 13

Metrics

Comments

Recommended 0

代表点	O1	O2	O3	O4	O5	D1	D2	D3	D4	D5
实际地铁站点	柳洲东路	油坊桥	双龙大道	马群	迈皋桥	新街口	集庆门大街	元通	仙林中心	百家湖
站点性质	西北向居住区	西向居住区	南向居住区	东北向居住区	北向居住区	CBD	西向商住混合区	西南向商住混合区	东北向商住混合区	南向商住混合区
