基于自然区块的城市热环境空间分异性研究

doi:10.18306/dlkxjz.2019.12.010

Abstract

Abstract:

Addressing the issue of subdivision of construction land for quantitative evaluation of spatial variability of urban thermal environment is of great significance for improving the ecological environment of cities and realizing the healthy development of urban areas. In this study, we used Landsat 8 remote sensing imageries to retrieve the surface temperature data of Guangzhou City. Based on the concept of natural city combined with the classification standard of urban construction land, we identified five types of natural blocks based on the open data of point of interest (POI). On this basis, the distribution pattern of land surface heat field levels, thermal field average value of natural blocks, and thermal environment footprint range were calculated and analyzed to evaluate the spatial variability of the urban thermal environment of the city. The results show that: 1) The identification of natural blocks may accurately reflect the spatial distribution of all kinds of POI and realize a meaningful division of the sub-types of construction land. 2) Land surface heat field in the five types of natural blocks was dominated by high temperature pixels (more than 90%), and the distribution range of low temperature pixels is small (less than 1%). But the distribution of the heat field levels was significantly different across the natural blocks. In the residential, road and traffic, and public management and service natural blocks, the proportion of land surface heat field levels was similar; the proportion of mesothermal pixels in the commercial and services natural block was less than half of the above three types of natural blocks. The proportion of high temperature pixels in the industrial natural block was the highest, reaching 99%, and there was no low temperature pixel. The order of thermal field average value of natural blocks from high to low is: industrial natural block > commercial and services natural block > road and traffic natural block > residential natural block > public management and service natural block. 3) Heat diffusion exists in the high temperature agglomeration area formed by natural blocks, and the actual influence range is larger than its physical boundary. The thermal environment footprint range of the five types of natural blocks was different. The thermal environment footprint of industrial natural block was the widest, and the 6th ring buffer zone was still in the scope of impact. While the thermal environment footprint of public management and service natural block only affects the 2nd ring buffer zone, compared with the other four types of natural blocks, the effect of heat diffusion was not significant. The influence range of thermal environment footprint from large to small is: industrial natural block > commercial and services natural block > residential natural block > road and traffic natural block > public management and service natural block. The result of this study may provide some scientific basis for the analysis of urban thermal environment, the improvement of urban ecological environment, and the healthy development of urbanization.

Key words: point of interest (POI), natural block, thermal environment, spatial variability, Guangzhou City

YANG Zhiwei, CHEN Yingbiao, WU Zhifeng, QIAN Qinglan, HUANG Qingyao. Spatial variability of urban thermal environment based on natural blocks[J].PROGRESS IN GEOGRAPHY, 2019, 38(12): 1944-1956.

Figures/Tables 10

Tab.1

Usage of mean-standard deviation method to divide land surface heat fields"

地表热场等级	划分方法
Ⅰ 级	$T < A - 2.5 SD$
Ⅱ 级	$A - 2.5 SD ≤ T ≤ A - 1.5 SD$
Ⅲ 级	$A - 1.5 SD < T ≤ A - 0.5 SD$
Ⅳ 级	$A - 0.5 SD < T ≤ A + 0.5 SD$
Ⅴ 级	$A + 0.5 SD < T ≤ A + 1.5 SD$
Ⅵ 级	$A + 1.5 SD < T ≤ A + 2.5 SD$
Ⅶ 级	$T > A + 2.5 SD$

Tab.1

Fig.1

Fig.2

Tab.2

Fig.3

Fig.4

Tab.3

Fig.5

Tab.4

Fig.6

References 42

[1]	陈超, 周广胜 . 2013. 1961—2010年桂林气温和地温的变化特征[J]. 生态学报, 33(7):2043-2053. doi: 10.5846/stxb201112312022
	[ Chen C, Zhou G S . 2013. Analysis on variation characteristics of air temperature and ground temperature in Guilin from 1961 to 2010. Acta Ecologica Sinica, 33(7):2043-2053. ] doi: 10.5846/stxb201112312022
[2]	陈康林, 龚建周, 陈晓越 , 等. 2016. 广州城市绿色空间与地表温度的格局关系研究[J]. 生态环境学报, 25(5):842-849.
	[ Chen K L, Gong J Z, Chen X Y . 2016. The pattern relationship research of green space and surface temperature in Guangzhou City. Ecology and Environmental Sciences, 25(5):842-849. ]
[3]	陈世莉, 李郇, 赖安琪 , 等. 2017. 广佛同城化发展的热岛效应研究[J]. 地理科学进展, 36(6):720-731. doi: 10.18306/dlkxjz.2017.06.007
	[ Chen S L, Li X, Lai A Q , et al. 2017. Guangzhou-Foshan urban integration and its urban heat island effects. Progress in Geography, 36(6):720-731. ] doi: 10.18306/dlkxjz.2017.06.007
[4]	陈松林, 王天星 . 2009. 等间距法和均值-标准差法界定城市热岛的对比研究[J]. 地球信息科学学报, 11(2):145-150.
	[ Chen S L, Wang T X . 2009. Comparison analyses of equal interval method and mean-standard deviation method used to delimitate urban heat island. Journal of Geo-information Science, 11(2):145-150. ]
[5]	陈蔚珊, 柳林, 梁育填 . 2016. 基于POI数据的广州零售商业中心热点识别与业态集聚特征分析[J]. 地理研究, 35(4):703-716. doi: 10.11821/dlyj201604009
	[ Chen W S, Liu L, Liang Y T . 2016. Retail center recognition and spatial aggregating feature analysis of retail formats in Guangzhou based on POI data. Geographical Research, 35(4):703-716. ] doi: 10.11821/dlyj201604009
[6]	关雪峰, 曾宇媚 . 2018. 时空大数据背景下并行数据处理分析挖掘的进展及趋势[J]. 地理科学进展, 37(10):1314-1327. doi: 10.18306/dlkxjz.2018.10.002
	[ Guan X F, Zeng Y M . 2018. Research progress and trends of parallel processing, analysis, and mining of big spatiotemporal data. Progress in Geography, 37(10):1314-1327. ] doi: 10.18306/dlkxjz.2018.10.002
[7]	郭冠华, 吴志峰, 刘晓南 . 2015. 城市热环境季相变异及与非渗透地表的定量关系分析: 以广州市中心区为例[J]. 生态环境学报, 24(2):270-277.
	[ Guo G H, Wu Z F, Liu X N . 2015. Seasonal variations of urban heat environment and its relationship to impervious surface: A case study of Guangzhou core urban area. Ecology and Environmental Sciences, 24(2):270-277. ]
[8]	浩飞龙, 王士君, 冯章献 , 等. 2018. 基于POI数据的长春市商业空间格局及行业分布[J]. 地理研究, 37(2):366-378. doi: 10.11821/dlyj201802010
	[ Hao F L, Wang S J, Feng Z X , et al. 2018. Spatial pattern and its industrial distribution of commercial space in Changchun based on POI data. Geographical Research, 37(2):366-378. ] doi: 10.11821/dlyj201802010
[9]	李元征, 尹科, 周宏轩 , 等. 2016. 基于遥感监测的城市热岛研究进展[J]. 地理科学进展, 35(9):1062-1074. doi: 10.18306/dlkxjz.2016.09.002
	[ Li Y Z, Yin K, Zhou H X , et al. 2016. Progress in urban heat island monitoring by remote sensing. Progress in Geography, 35(9):1062-1074. ] doi: 10.18306/dlkxjz.2016.09.002
[10]	廖伟华, 聂鑫 . 2017. 基于大数据的城市服务业空间关联分析[J]. 地理科学, 37(9):1310-1317. doi: 10.13249/j.cnki.sgs.2017.09.003
	[ Liao W H, Nie X . 2017. Spatial association analysis for urban service based on big data. Scientia Geographica Sinica, 37(9):1310-1317. ] doi: 10.13249/j.cnki.sgs.2017.09.003
[11]	刘嘉慧, 赵小锋, 林剑艺 . 2018. 基于地表能量平衡的厦门岛城市功能区人为热排放分析[J]. 地球信息科学学报, 20(7):1026-1036. doi: 10.12082/dqxxkx.2018.170450
	[ Liu J H, Zhao X F, Lin J Y . 2018. Analysis of anthropogenic heat discharge of urban functional regions based on surface energy balance in Xiamen Island. Journal of Geo-information Science, 20(7):1026-1036. ] doi: 10.12082/dqxxkx.2018.170450
[12]	彭文甫, 周介铭, 罗怀良 , 等. 2011. 城市土地利用与地面热效应时空变化特征的关系: 以成都市为例[J]. 自然资源学报, 26(10):1738-1749. doi: 10.11849/zrzyxb.2011.10.010
	[ Peng W F, Zhou J M, Luo H L , et al. 2011. Relationship between urban land use and spatio-temporal change characteristics of surface heat effect: A case study of Chengdu City. Jouranl of Natural Resources, 26(10):1738-1749. ] doi: 10.11849/zrzyxb.2011.10.010
[13]	钱乐祥, 丁圣彦 . 2005. 珠江三角洲土地覆盖变化对地表温度的影响[J]. 地理学报, 60(5):761-770. doi: 10.11821/xb200505007
	[ Qian L X, Ding S Y . 2005. Influence of land cover change on land surface temperature in Zhujiang Delta. Acta Geographica Sinica, 60(5):761-770. ] doi: 10.11821/xb200505007
[14]	覃志豪 , Li Wenjuan, Zhang Minghua, 等. 2003. 单窗算法的大气参数估计方法[J]. 国土资源遥感, 15(2):37-43. doi: 10.6046/gtzyyg.2003.02.10
	[ Qin Z H, Li W J, Zhang M H , et al. 2003. Estimating of the essential atmospheric parameters of Mono-Window algorithm for land surface temperature retrieval from Landsat TM6. Remote Sensing for Land & Resources, 15(2):37-43. ] doi: 10.6046/gtzyyg.2003.02.10
[15]	覃志豪 , Zhang Minghua, Arnon K, 等. 2001. 用陆地卫星TM6数据演算地表温度的单窗算法[J]. 地理学报, 56(4):456-466.
	[ Qin Z H, Zhang M H, Arnon K , et al. 2001. Mono-window algorithm for retrieving land surface temperature from Landsat TM6 data. Acta Geographica Sinica, 56(4):456-466. ]
[16]	孙然好, 王业宁, 陈婷婷 . 2017. 人为热排放对城市热环境的影响研究展望[J]. 生态学报, 37(12):3991-3997. doi: 10.5846/stxb201611182342
	[ Sun R H, Wang Y N, Chen T T . 2017. Impacts of anthropogenic heat emissions on urban thermal environment: A review. Acta Ecologica Sinica, 37(12):3991-3997. ] doi: 10.5846/stxb201611182342
[17]	王琳, 徐涵秋, 李胜 . 2018. 重钢重工业区迁移对区域生态的影响研究[J]. 遥感技术与应用, 33(3):387-397.
	[ Wang L, Xu H Q, Li S . 2018. Effects of relocation of Chongqing iron and steel group industrial area on regional ecological quality. Remote Sensing Technology and Application, 33(3):387-397. ]
[18]	徐智邦, 周亮, 蓝婷 , 等. 2018. 基于POI数据的巨型城市消防站空间优化: 以北京市五环内区域为例[J]. 地理科学进展, 37(4):535-546. doi: 10.18306/dlkxjz.2018.04.009
	[ Xu Z B, Zhou L, Lan T , et al. 2018. Spatial optimization of mega-city fire station distribution based on Point of Interest data: A case study within the 5th Ring Road in Beijing. Progress in Geography, 37(4):535-546. ] doi: 10.18306/dlkxjz.2018.04.009
[19]	许泽宁, 高晓路 . 2016. 基于电子地图兴趣点的城市建成区边界识别方法[J]. 地理学报, 71(6):928-939. doi: 10.11821/dlxb201606003
	[ Xu Z N, Gao X L . 2016. A novel method for identifying the boundary of urban built-up areas with POI data. Acta Geographica Sinica, 71(6):928-939. ] doi: 10.11821/dlxb201606003
[20]	杨敏, 杨贵军, 王艳杰 , 等. 2018. 北京城市热岛效应时空变化遥感分析[J]. 国土资源遥感, 30(3):213-223.
	[ Yang M, Yang G J, Wang Y J , et al. 2018. Remote sensing analysis of temporal-spatial variations of urban heat island effect over Beijing. Remote Sensing for Land & Resources, 30(3):213-223. ]
[21]	杨智威, 陈颖彪, 吴志峰 , 等. 2018. 粤港澳大湾区建设用地扩张与城市热岛扩张耦合态势研究[J]. 地球信息科学学报, 20(11):1592-1603. doi: 10.12082/dqxxkx.2018.180242
	[ Yang Z W, Chen Y B, Wu Z F , et al. 2018. The coupling between construction land expansion and urban heat island expansion in Guangdong-Hong Kong-Macao Greater Bay. Journal of Geo- information Science, 20(11):1592-1603. ] doi: 10.12082/dqxxkx.2018.180242
[22]	张棋斐, 文雅, 吴志峰 , 等. 2018. 高密度建成区湖泊水体的热缓释效应及其季相差异: 以广州市中心城区为例[J]. 生态环境学报, 27(7):1323-1334.
	[ Zhang Q F, Wen Y, Wu Z F , et al. 2018. Seasonal variations of the cooling effect of water landscape in high-density urban built-up area: A case study of the center urban district of Guangzhou. Ecology and Environmental Sciences, 27(7):1323-1334. ]
[23]	祝新明, 王旭红, 周永芳 , 等. 2017. 建成区扩张下的西安市热环境空间分异性[J]. 生态学杂志, 36(12):3574-3583.
	[ Zhu X M, Wang X H, Zhou Y F , et al. Spatial variability of thermal environment in Xi'an under the build-up area expansion. Chinese Journal of Ecology, 36(12):3574-3583. ]
[24]	Barsi J, Schott J, Hook S , et al. 2014. Landsat-8 thermal infrared sensor (TIRS) vicarious radiometric calibration[J]. Remote Sensing, 6(11):11607-11626. doi: 10.3390/rs61111607
[25]	Bokaie M, Zarkesh M K, Arasteh P D , et al. 2016. Assessment of urban heat island based on the relationship between land surface temperature and land use/land cover in Tehran[J]. Sustainable Cities & Society, 23:94-104. doi: 10.1016/j.jenvman.2019.109575 pmid: 31870511
[26]	Butler D . 2007. Energy efficiency: Super savers: Meters to manage the future[J]. Nature, 445:586. doi: 10.1038/445586a. doi: 10.1038/445586a pmid: 17287788
[27]	Estoque R C, Murayama Y, Myint S W . 2017. Effects of landscape composition and pattern on land surface temperature: An urban heat island study in the megacities of Southeast Asia[J]. Science of the Total Environment, 577:349-359. doi: 10.1016/j.scitotenv.2016.10.195 pmid: 27832866
[28]	Jiang B . 2013. Head/tail breaks: A new classification scheme for data with a heavy-tailed distribution[J]. Professional Geographer, 65(3):482-494. doi: 10.1080/00330124.2012.700499
[29]	Jiang B . 2015. Head/tail breaks for visualization of city structure and dynamics[J]. Cities, 43(3):69-77. doi: 10.1016/j.cities.2014.11.013
[30]	Jiang B, Jia T . 2011. Zipf''s law for all the natural cities in the United States: A geospatial perspective[J]. International Journal of Geographical Information Science, 25(8):1269-1281. doi: 10.1080/13658816.2010.510801
[31]	Jiang B, Liu X T . 2012. Scaling of geographic space from the perspective of city and field blocks and using volunteered geographic information[J]. International Journal of Geographical Information Science, 26(2):215-229. doi: 10.1080/13658816.2011.575074
[32]	Jiang B, Ma D . 2018. How complex is a fractal? Head/tail breaks and fractional hierarchy[J]. Journal of Geovisualization & Spatial Analysis, 2(1):6. doi: 10.1007/s41651-017-0009-z. doi: 10.1007/s10916-019-1493-0 pmid: 31823031
[33]	Keeratikasikorn C, Bonafoni S . 2018. Urban heat island analysis over the land use zoning plan of Bangkok by means of Landsat 8 imagery[J]. Remote Sensing, 10(3):440. doi: 10.3390/rs10030440. doi: 10.3390/rs10030440
[34]	Long Y, Zhai W X, Shen Y , et al. 2018. Understanding uneven urban expansion with natural cities using open data[J]. Landscape and Urban Planning, 177:281-293. doi: 10.1016/j.landurbplan.2017.05.008
[35]	Miao Y F . 2015. The evolution of natural cities from the perspective of location-based social media[J]. Professional Geographer, 67(2):295-306. doi: 10.1080/00330124.2014.968886
[36]	Mohan M, Kandya A . 2015. Impact of urbanization and land-use/land-cover change on diurnal temperature range: A case study of tropical urban airshed of India using remote sensing data[J]. Science of the Total Environment, 506:453-465. doi: 10.1016/j.scitotenv.2014.11.006 pmid: 25437763
[37]	Rao Y H, Xu Y, Zhang J J , et al. 2018. Does subclassified industrial land have a characteristic impact on land surface temperatures? Evidence for and implications of coal and steel processing industries in a Chinese mining city[J]. Ecological Indicators, 89:22-34. doi: 10.1016/j.ecolind.2018.01.058
[38]	Wang C Y, Myint S, Wang Z H , et al. 2016. Spatio-temporal modeling of the urban heat island in the Phoenix Metropolitan area: Land use change implications[J]. Remote Sensing, 8(3):185. doi: 10.3390/rs8030185. doi: 10.3390/rs8030185
[39]	Wang F, Qin Z H, Song C Y , et al. 2015. An improved Mono-Window algorithm for land surface temperature retrieval from Landsat 8 thermal infrared sensor data[J]. Remote Sensing, 7(4):4268-4289. doi: 10.3390/rs70404268
[40]	Wu W J, Zhao H R, Jiang S L . 2018. A Zipf's law-based method for mapping urban areas using NPP-VIIRS nighttime light data[J]. Remote Sensing, 10(1):130. doi: 10.3390/rs10010130. doi: 10.3390/rs10010130
[41]	Xiong Y Z, Huang S P, Chen F , et al. 2012. The impacts of rapid urbanization on the thermal environment: A remote sensing study of Guangzhou, South China[J]. Remote Sensing, 4(7):2033-2056. doi: 10.3390/rs4072033
[42]	Zhou D C, Zhao S Q, Zhang L X , et al. 2015. The footprint of urban heat island effect in China[J]. Scientific Reports, 5:11160. doi: 10.1038/srep11160. doi: 10.1038/srep11160 pmid: 26060039

地表热场等级	原始数据		剔除干扰后数据
地表热场等级	数量	比例/%	数量	比例/%
Ⅰ 级	19004	0.23	4040	0.07
Ⅱ 级	474344	5.79	66110	1.10
Ⅲ 级	1917824	23.39	678199	11.33
Ⅳ 级	3332268	40.65	2812505	46.98
Ⅴ 级	1822772	22.24	1797897	30.03
Ⅵ 级	549189	6.70	546626	9.13
Ⅶ 级	81771	1.00	81553	1.36

地表热场等级	居住区块		工业区块		商业服务业区块		道路与交通区块		公共管理与服务区块
地表热场等级	数量	占比/%	数量	占比/%	数量	占比/%	数量	占比/%	数量	占比/%
Ⅰ 级	0	0	0	0	22	0.03	4	<0.01	39	0.03
Ⅱ 级	0	0	0	0	1	<0.01	27	0.01	6	<0.01
Ⅲ 级	22	0.01	0	0	13	0.02	96	0.05	59	0.04
Ⅳ 级	11546	7.77	430	0.43	2692	3.22	12477	6.66	11401	7.34
Ⅴ 级	98683	66.43	35868	36.16	47015	56.20	118375	63.21	106785	68.78
Ⅵ 级	37744	25.41	57604	58.07	31997	38.25	54543	29.12	36144	23.28
Ⅶ 级	553	0.37	5300	5.53	1923	2.30	1755	0.94	816	0.53

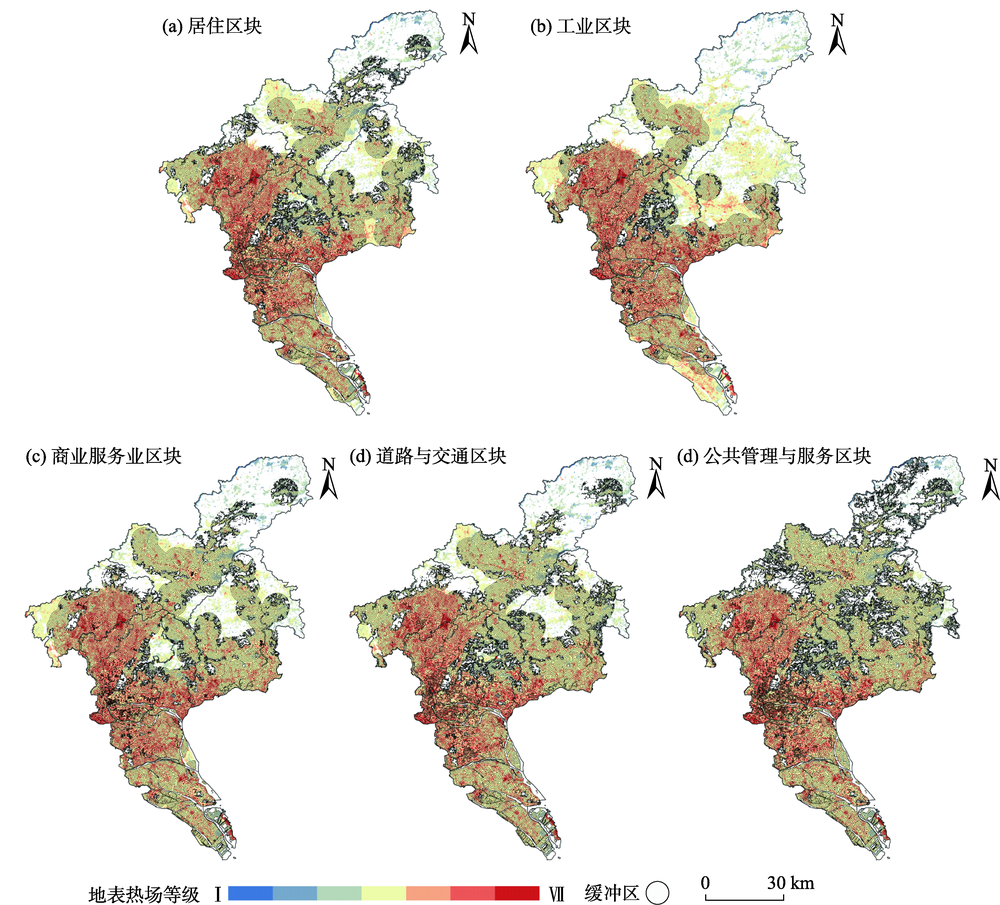

缓冲区距离/m	热场平均值
缓冲区距离/m	居住区块	工业区块	商业服务业区块	道路与交通区块	公共管理与服务区块
500	5.116	5.242	5.111	5.077	4.963
1000	4.758	4.886	4.788	4.654	4.486
1500	4.518	4.679	4.581	4.405	4.231
2000	4.369	4.558	4.465	4.268	4.087
2500	4.287	4.505	4.365	4.154	3.938
3000	4.193	4.428	4.254	4.061	3.822
3500	4.131	4.324	4.149	4.008	3.689
4000	4.053	4.261	4.091	3.937	3.611
4500	4.016	4.219	4.056	3.911	3.589
5000	3.983	4.192	4.051	3.834	3.487
