基于UCMap的城市环境气候空间格局分析——以广州市为例

doi:10.18306/dlkxjz.2019.03.014

Abstract

Abstract:

With the development of urbanization, the underlying land surface of urban areas also changes. The greatly declined natural landscape and increased number of buildings have significance influence on the urban climate and environment. Urban Climatic Map, a tool and platform for analyzing and evaluating the situation of urban climate, expands the application of urban climate information in urban planning and development. Based on the current situation in southern China for urban climate research, this study examined the difference of environment climate influence level caused by different factors. Combined with the existing compilation method of Urban Climatic Map, Guangzhou City was selected as the study area because of its typical subtropical monsoon climate characteristics. A complex underlying surface urban climatic map system was constructed with multiple environmental factors, assessment periods, and technical methods. Several technical means, including numerical model simulation, remote-sensing inversion, and spatial analysis in GIS, were comprehensively applied to evaluation urban air pollution, thermal load, and ventilation potential in Guangzhou City. We also put forward some preliminary planning recommendations. The results indicate that air pollution and thermal load are characterized by significant differences in seasonal and spatial distribution, while ventilation potential shows a clear difference in space and slight seasonal change. Guangzhou City is subsequently divided into seven zones and a spatial pattern of "superior north and inferior south" is observed. Specifically, the optimum types are mainly distributed in the woodlands and intercity cultivated land in the northern mountainous areas, and the most degraded types are located in the urban core areas of Tianhe, Yuexiu, and Liwan Districts, as well as the industrial areas in Baiyun and Zengcheng Districts. Finally, based on the results of environmental climatic analysis, planning measures of each climatic type are suggested to provide some scientific advices and direction for the sustainable development of Guangzhou City.

Key words: air quality, thermal load, ventilation potential, environmental climate spatial pattern, Guangzhou City

Wenbo ZHAO, Hongjie LIU, Xueting TIAN, Baolin LI, Weihong CAO. Environmental climate spatial pattern of Guangzhou City based on urban climatic map[J].PROGRESS IN GEOGRAPHY, 2019, 38(3): 452-464.

Figures/Tables 13

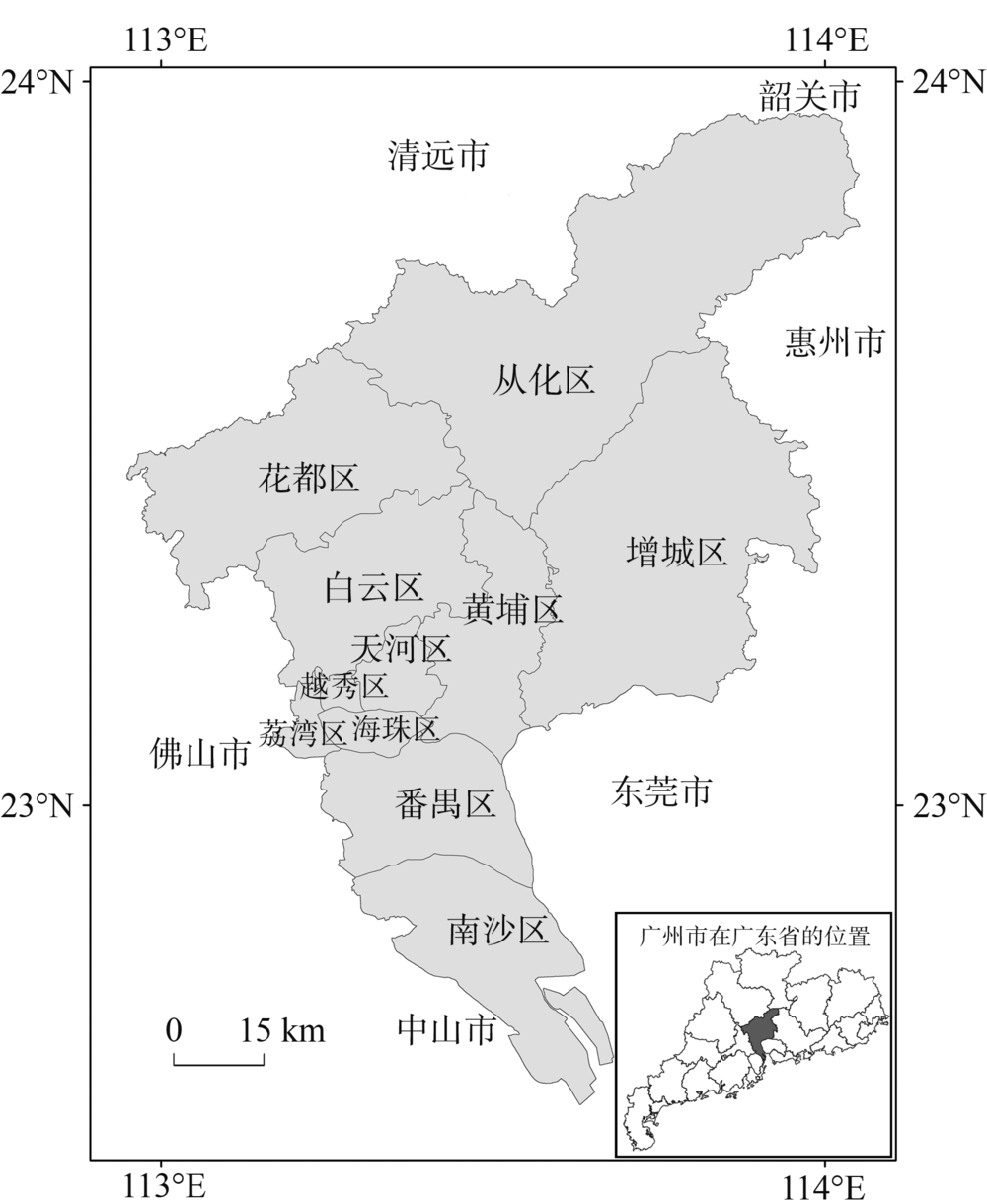

Fig.1

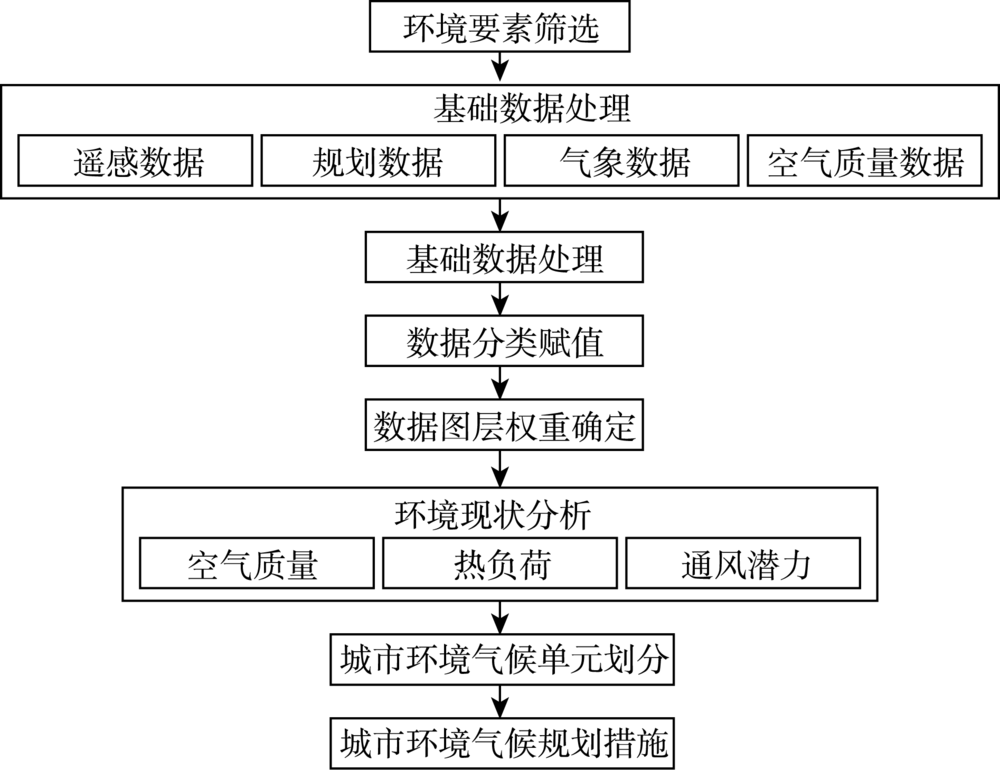

Fig.2

Tab.1

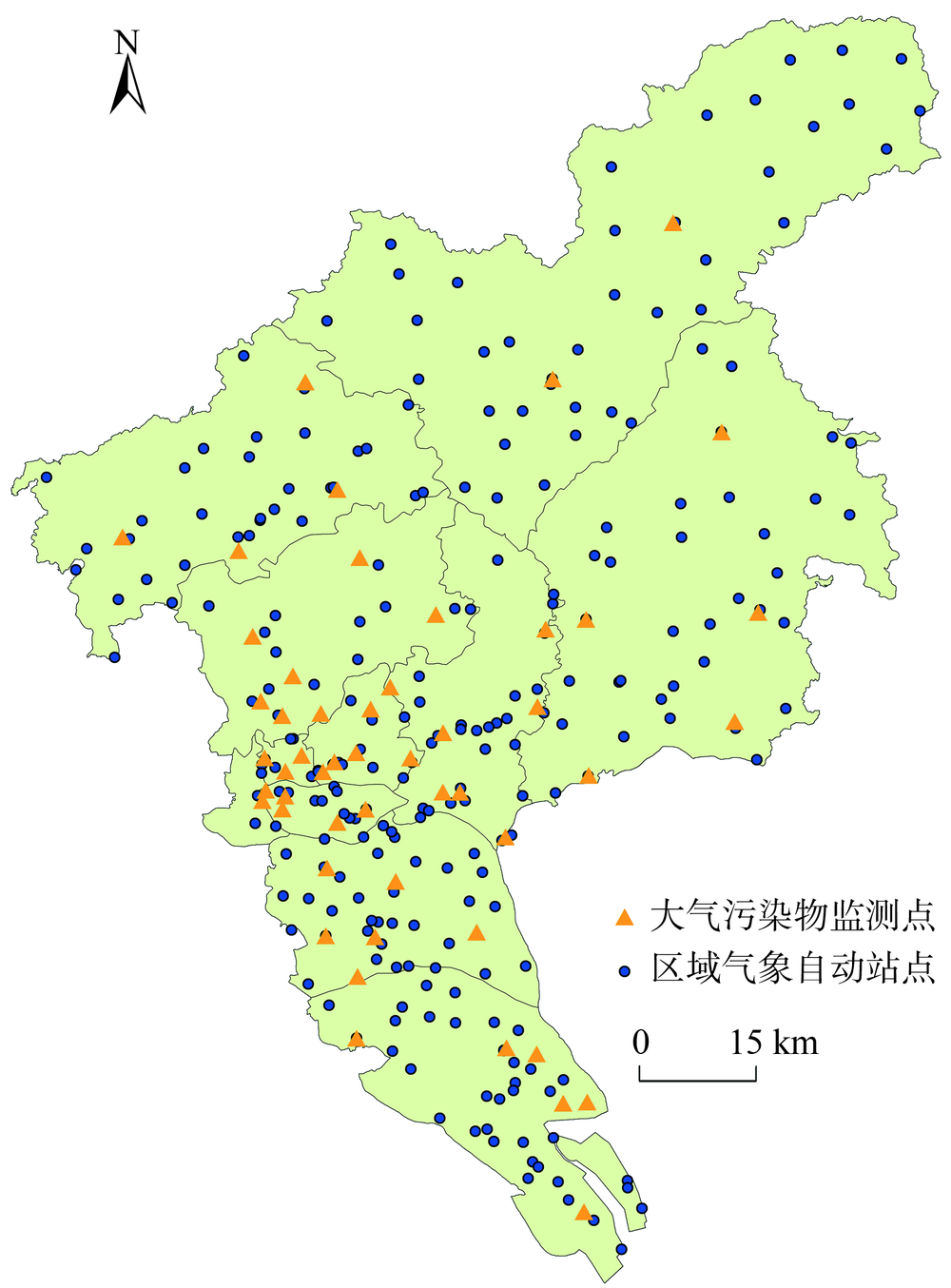

Fig.3

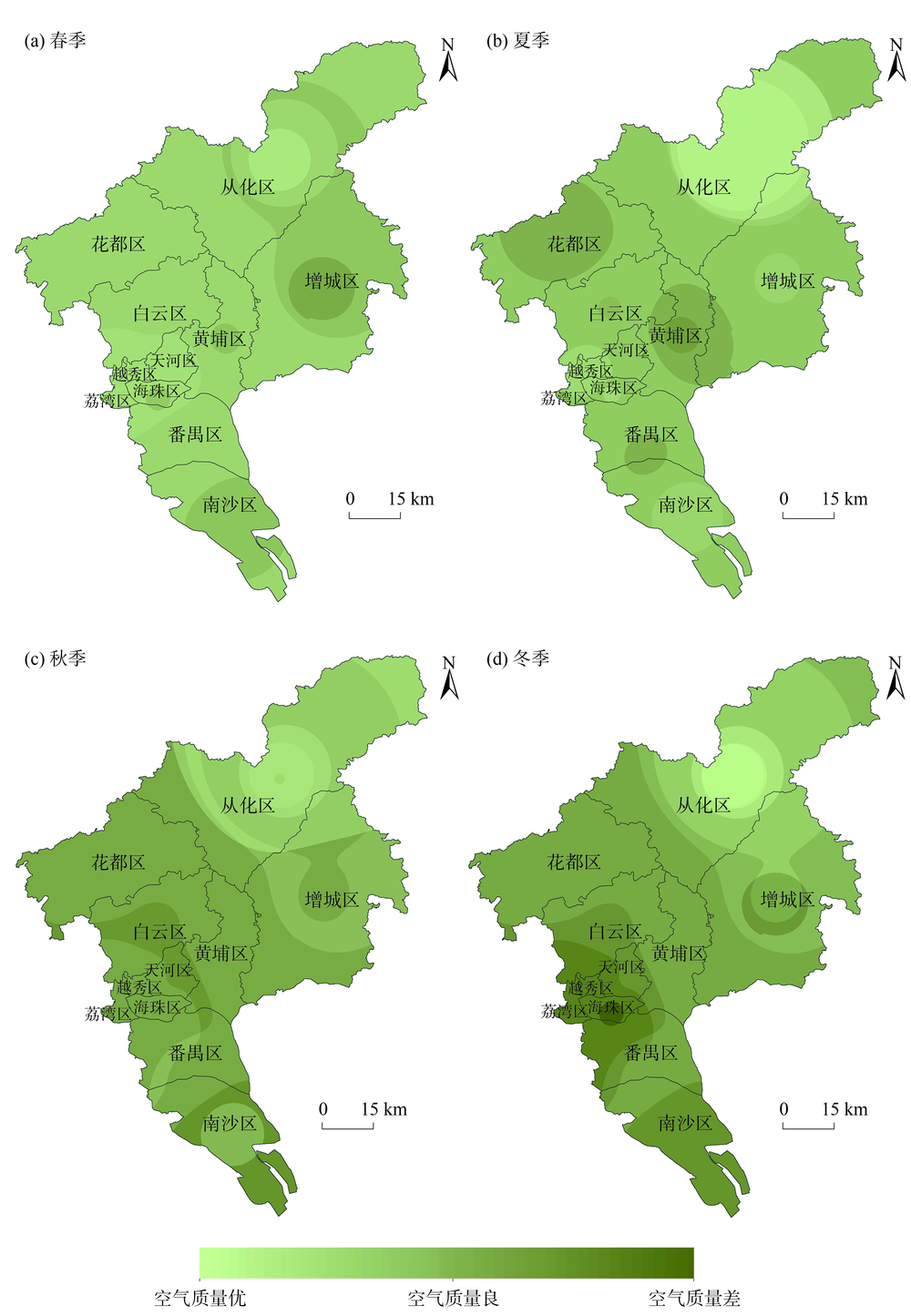

Fig.4

Tab.2

Tab.3

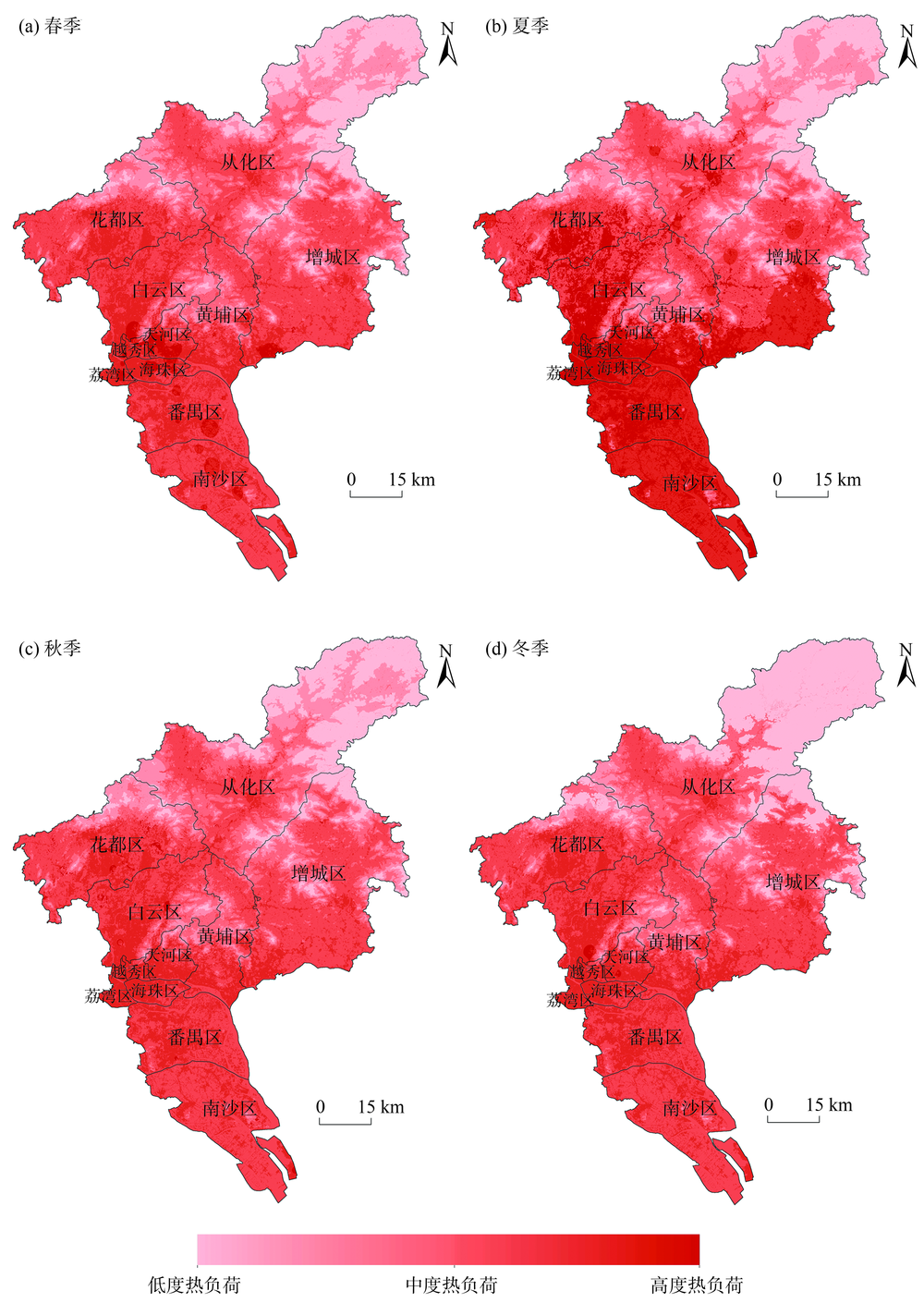

Fig.5

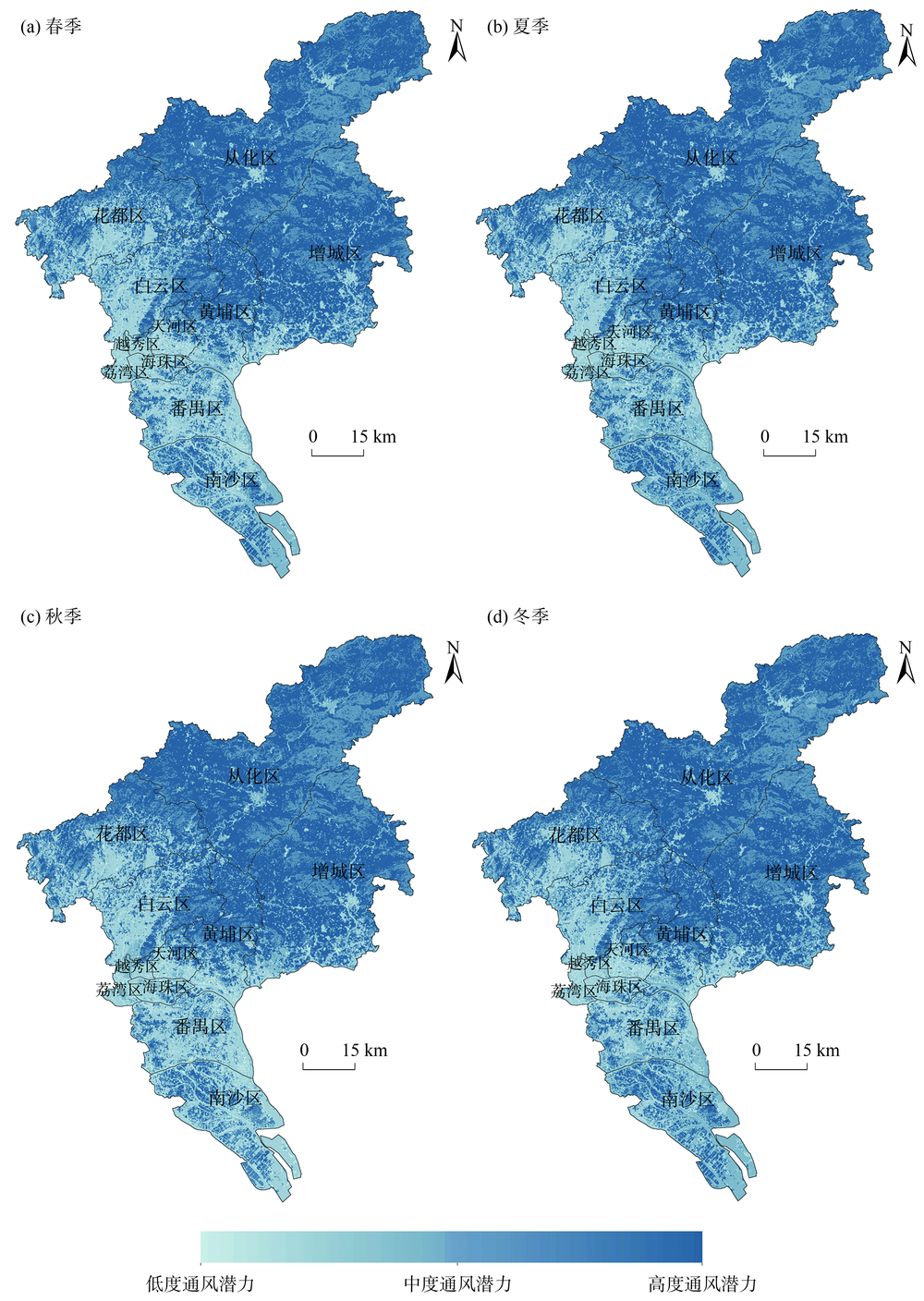

Fig.6

Fig.7

Fig.8

Tab.4

Tab.5

References 29

[1]	鲍文杰, 马蔚纯, 邢超群, 等. 2010. 超大城市热岛研究方法对比: 以上海为例[J]. 复旦学报(自然科学版), 49(5): 636-641.
	[Bao W J, Ma W C, Xing C Q, et al.2010. A comparison study of research methods for urban heat island of megacity: With special regards on Shanghai. Journal of Fudan University (Natural Science), 49(5): 636-641. ]
[2]	丁卉, 余志, 徐伟嘉, 等. 2016. 3种区域空气质量空间插值方法对比研究[J]. 安全与环境学报, 16(3): 309-315. doi: 10.13637/j.issn.1009-6094.2016.03.061
	[Ding H, Yu Z, Xu W J, et al.2010. Comparative study of the three spatial interpolation methods for the regional air quality evaluation. Journal of Safety and Environment, 16(3): 309-315. ] doi: 10.13637/j.issn.1009-6094.2016.03.061
[3]	贺晓冬, 苗世光, 窦晶晶, 等. 2014. 北京城市气候图系统的初步建立[J]. 南京大学学报(自然科学), 50(6): 759-771. doi: 10.13232/j.cnki.jnju.2014.06.004
	[He X D, Miao S G, Dou J J, et al.2014. The initial establishment of urban climate map system in Beijing. Journal of Nanjing University (Natural Science), 50(6): 759-771. ] doi: 10.13232/j.cnki.jnju.2014.06.004
[4]	吉振明, 高学杰, 张东峰, 等. 2010. 亚洲地区气溶胶及其对中国区域气候影响的数值模拟[J]. 大气科学, 34(2): 262-274. doi: 10.3878/j.issn.1006-9895.2010.02.03
	[Ji Z, Gao X J, Zhang D F, et al.2010. Simulation of the aerosols over Asia and its climate effect on China. Chinese Journal of Atmospheric Sciences, 34(2): 262-274. ] doi: 10.3878/j.issn.1006-9895.2010.02.03
[5]	姜栋, 赵文吉, 朱红春, 等. 2008. DEM地形信息提取对比研究: 以坡度为例[J]. 测绘科学, 33(5): 177-179. doi: 10.3771/j.issn.1009-2307.2008.05.063
	[Jiang D, Zhao W J, Zhu H C, et al.2008. Comparison of land form information extracted from DEMs: A case study of slope. Science of Surveying and Mapping, 33(5): 177-179. ] doi: 10.3771/j.issn.1009-2307.2008.05.063
[6]	江学顶, 夏北成, 郭泺, 等. 2007. 广州城市热岛空间分布及时域-频域多尺度变化特征[J]. 应用生态学报, 18(1): 133-139.
	[Jiang X D, Xia B C, Guo L, et al.2007. Characteristics of multi scale temporal spatial distribution of urban heat island in Guangzhou. Chinese Journal of Applied Ecology, 18(1): 133-139. ]
[7]	李久枫, 刘艳艳, 吴大放, 等. 2017. 近30年珠海市耕地生态安全评价及未来预测[J]. 广东农业科学, 44(1): 156-166. doi: 10.16768/j.issn.1004-874X.2017.01.024
	[Li J F, Liu Y Y, Wu D F, et al.2017. Evaluation of cultivated land ecological security in Zhuhai City in recent 30 years and its future prediction. Guangdong Agricultural Sciences, 44(1): 156-166. ] doi: 10.16768/j.issn.1004-874X.2017.01.024
[8]	林姚宇, 王丹, 单樑, 等. 2014. 深圳国际低碳城环境气候图集编制方法与应用技术研究[J]. 建筑经济, (2): 84-91.
	[Lin Y Y, Wang D, Shan L, et al.2014. Research on the method and application technology of environmental climate atlas of Shenzhen international low-carbon city. Construction Economics, (2): 84-91. ]
[9]	刘乐乐, 赵小锋, 赵颜创, 等. 2017. 基于城市环境气候图的宁波大气环境分析与调控对策[J]. 生态学报, 37(2): 606-618. doi: 10.5846/stxb201507091458
	[Liu L L, Zhao X F, Zhao Y C, et al.2017. Ningbo atmospheric environment analysis and regulating countermeasure based on urban climatic map. Acta Ecologica Sinica, 37(2): 606-618. ] doi: 10.5846/stxb201507091458
[10]	牟凤云, 张增祥, 谭文彬, 等. 2007. 广州城市空间形态特征与时空演化分析[J]. 地球信息科学, 9(5): 94-98. doi: 10.3969/j.issn.1560-8999.2007.05.016
	[Mu F Y, Zhang Z X, Tan W B, et al.2007. Analysis on the spatial-temporal characteristics of Guangzhou City's spatial morphologic evolution. Geo-information Science, 9(5): 94-98. ] doi: 10.3969/j.issn.1560-8999.2007.05.016
[11]	任超, 吴恩融. 2012. 城市环境气候图: 可持续城市规划辅助信息系统工具 [M]. 北京: 中国建筑工业出版社: 14-15.
	[Ren C, Wu E R.2012. Urban environment climate map: Sustainable urban planning aid information system tool. Beijing, China: Architecture & Building Press: 14-15. ]
[12]	任超, 吴恩融, Katzschner Lutz, 等. 2012. 城市环境气候图的发展及其应用现状[J]. 应用气象学报, 23(5): 593-603. doi: 10.11898/1001-7313.20120510
	[Ren C, Wu E R, Katzschner L, et al.2012. The development of urban environmental climate map and its application. Journal of Applied Meteorological Science, 23(5): 593-603. ] doi: 10.11898/1001-7313.20120510
[13]	孙武, 王义明, 王越雷, 等. 2012. 珠江三角洲地面风场的特征及其城市群风道的构建[J]. 生态学报, 32(18): 5630-5636. doi: 10.5846/stxb201108021129
	[Sun W, Wang Y M, Wang Y L, et al.2012. Wind fields and the development of wind corridors in the urban metropolis of the Pearl River Delta. Acta Ecologica Sinca, 32(18): 5630-5636. ] doi: 10.5846/stxb201108021129
[14]	汤惠君. 2004. 广州城市规划的气候条件分析[J]. 经济地理, 24(4): 490-493. doi: 10.3969/j.issn.1000-8462.2004.04.014
	[Tang H J.2004. Analysis on climate conditions of urban planning in Guangzhou. Economic Geography, 24(4): 490-493. ] doi: 10.3969/j.issn.1000-8462.2004.04.014
[15]	王刚, 管东生. 2012. 植被覆盖度和归一化湿度指数对热力景观格局的影响: 以广州为例[J]. 应用生态学报, 23(9): 2429-2436.
	[Wang G, Guan D S.2012. Effects of vegetation cover and normalized difference moisture index on thermal landscape pattern: A case study of Guangzhou, South China. Chinese Journal of Applied Ecology, 23(9): 2429-2436. ]
[16]	吴玉琴, 严茂超. 2011. 广州城市代谢与土地利用变化指标评价[J]. 地理研究, 30(8): 1380-1390. doi: 10.11821/yj2011080004
	[Wu Y Q, Yan M C.2011. Analysis of the indicator between urban metabolism and land use change in Guangzhou. Geographical Research, 30(8): 1380-1390. ] doi: 10.11821/yj2011080004
[17]	肖荣波, 欧阳志云, 李伟峰, 等. 2005. 城市热岛的生态环境效应[J]. 生态学报, 25(8): 2055-2060. doi: 10.3321/j.issn:1000-0933.2005.08.032
	[Xiao R B, Ouyang Z Y, Li W F, et al.2005. Eco-environmental effects of urban heat island. Acta Ecologica Sinica, 25(8): 2055-2060. ] doi: 10.3321/j.issn:1000-0933.2005.08.032
[18]	张伟, 张崇, 王朝霞. 2014. 城市气候地图的绘制及其在规划设计中的应用[J]. 西安建筑科技大学学报(自然科学版), 46(2): 261-265. doi: 10.3969/j.issn.1006-7930.2014.02.019
	[Zhang W, Zhang C, Wang Z X.2014. The drawing of urban climate map and its application in planning and design. Journal of Xi'an University of Architecture & Technology(Natural Science Edition), 46(2): 261-265. ] doi: 10.3969/j.issn.1006-7930.2014.02.019
[19]	朱勇, 李书桂, 温建荣. 2015. 华南典型城市旅游气候舒适度的评价[J]. 广东气象, 37(4): 66-68.
	[Zhu Y, Li S G, Wen J R.2015. Evaluation of tourism climate comfort in typical cities of South China. Guangdong Meteorology, 37(4): 66-68. ]
[20]	Baumüller J, Reuter U.2001. Demands and requirements on a climate atlas for urban planning and design [R]. Stuttgart, Germany: Office of Environmental Protection: 21-27.
[21]	Matzarakis A.2005. Country report: Urban climate research in Germany[J]. IAUC Newsletter, 11: 4-6.
[22]	Ng E.2012. Towards planning and practical understanding of the need for meteorological and climatic information in the design of high-density cities: A case-based study of Hong Kong[J]. International Journal of Climatology. 32(4): 582-598. doi: 10.1002/joc.2292
[23]	Ren C, Lau K L, Yiu K P, et al.2013. The application of urban climatic mapping to the urban planning of high-density cities: The case of Kaohsiung, Taiwan[J]. Cities, 31: 1-16. doi: 10.1016/j.cities.2012.12.005
[24]	Ren C, Ng E, Katzschner L.2011. Urban climatic map studies: A review[J]. International Journal of Climatology, 31(15): 2213-2233. doi: 10.1002/joc.2237
[25]	Scherer D, Beha H D E, Fehrenbach U.1999. Improved concepts and methods in analysis and evaluation of the urban climate for optimizing urban planning processes[J]. Atmospheric Environment, 33(24): 4185-4193. doi: 10.1136/oem.2004.013896
[26]	Suder A, Szymanowski M.2014. Determination of ventilation channels in urban area: A case study of Wroclaw (Poland)[J]. Pure and Applied Geophysics, 171(6): 965-975. doi: 10.1007/s00024-013-0659-9
[27]	Unger J.2004. Intra-urban relationship between surface geometry and urban heat island: Review and new approach[J]. Climate research, 27: 253-264. doi: 10.3354/cr027253
[28]	VDI.1997. VDI-Guideline 3787, Part 1, Environmental meteorology-climate and air pollution maps for cities and regions [Z]. Berlin: VDI, Beuth Verlag: 73.
[29]	Wang T J, Jiang F, Deng J J, et al.2012. Urban air quality and regional haze weather forecast for Yangtze River Delta region[J]. Atmospheric Environment, 58: 70-83. doi: 10.1016/j.atmosenv.2012.01.014

城市物理环境	对城市物理环境的影响	所选要素
空气质量	负面影响	SO₂月均浓度
		NO₂月均浓度
		PM_2.5月均浓度
热负荷	正面影响	热岛强度
	负面影响	海拔高程
		自然景观分布
		人体舒适度指数
通风潜力	正面影响	水体分布
		开阔绿地分布
	负面影响	建设用地分布
		风阻强度

所选要素	单位	分类范围与分类规则	分类值
SO₂月平均浓度	μg/m³	≥20	-2
		15~20	-1
		10~15	0
		5~10	1
		≤5	2
NO₂月平均浓度	μg/m³	≥55	-2
		40~55	-1
		25~40	0
		10~25	1
		≤10	2
PM_2.5月平均浓度	μg/m³	≥45	-2
		35~45	-1
		25~35	0
		15~25	1
		15	2
热岛强度	无量纲	≥2.5	-3
		1.5~2.5	-2
		0.5~1.5	-1
		-0.5~0.5	0
		-0.5~-1.5	1
		-1.5~-2.5	2
		≤-2.5	3
海拔高程	m	≥300	-3
		150~300	-2
		50~150	-1
		≤50	0
自然景观分布		森林、草地、水体覆盖区	0
		建设用地、耕地、其他未利用地覆盖区	1
人体舒适度指数	无量纲	≥95	4
		80~85	3
		75~70	2
		70~75	1
		60~70	0
		50~60	-1
		40~50	-2
		25~40	-3
		≤25	-4
水体分布		水体及距水体边界≤70 m	2
		70 m<距水体边界<140 m	1
		距水体边界≥140 m	0
开阔绿地分布		森林、草地、耕地覆盖且坡度≤15°的区域	1
		分类值为1以外的区域	0
建设用地分布		建设用地覆盖区	1
		无建设用地覆盖区	0
风阻强度	无量纲	≥1.0	3
		0.6~1.0	2
		0.2~0.6	1
		-0.2~0.2	0
		-0.6~-0.2	-1
		-1.0~-0.6	-2
		≤-1.0	-3

城市物理环境	权重	所选要素	权重
空气质量	15.81	SO₂月平均浓度	20.29
		NO₂月平均浓度	38.85
		PM_2.5月平均浓度	40.86
热负荷	43.90	热岛强度	14.86
		海拔高程	54.04
		自然景观分布	17.89
		人体舒适度指数	13.21
通风潜力	40.29	水体及其缓冲区分布	21.17
		开阔绿地分布	40.92
		建设用地分布	22.01
		风阻强度	15.90

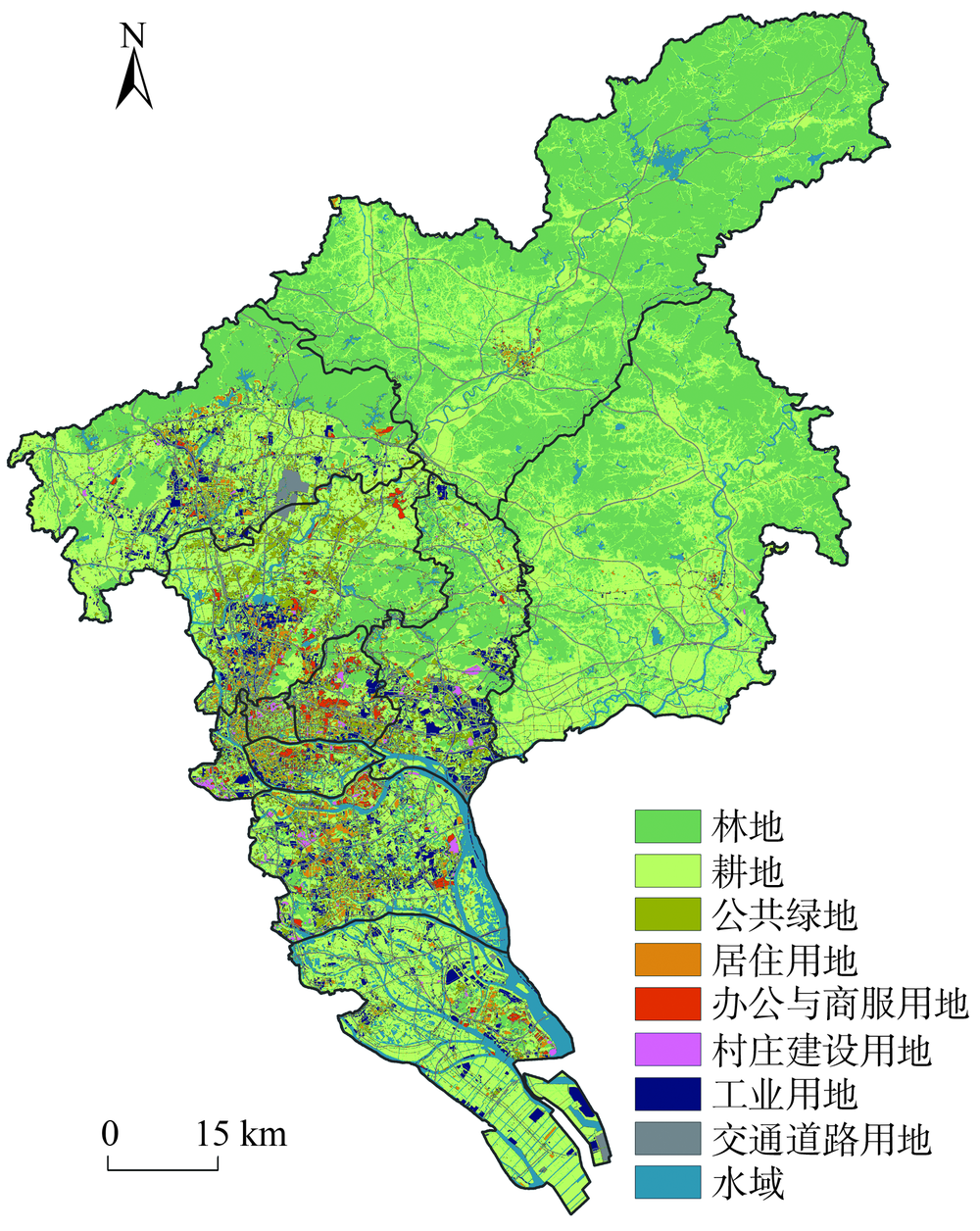

土地利用类型	环境气候类型
土地利用类型	最适宜类型	适宜类型	较适宜类型	过渡类型	较不适宜类型	不适宜类型	最不适宜类型
林地	84.11	73.68	41.75	23.63	6.86	5.98	6.49
耕地	10.76	18.21	41.45	46.41	37.50	35.76	39.48
公共绿地	2.34	2.80	4.84	11.26	36.19	8.87	16.76
居住用地	0.47	0.96	2.07	3.58	3.80	9.03	7.42
办公与商服用地	0.35	0.74	1.58	2.73	2.77	5.34	5.21
村庄建设用地	0.77	1.31	2.65	4.32	5.48	13.29	8.52
工业用地	1.12	1.92	4.10	5.72	5.37	13.57	11.05
交通道路用地	0.07	0.29	1.25	1.70	1.51	7.52	4.29
水域	0.01	0.09	0.31	0.65	0.52	0.64	0.78

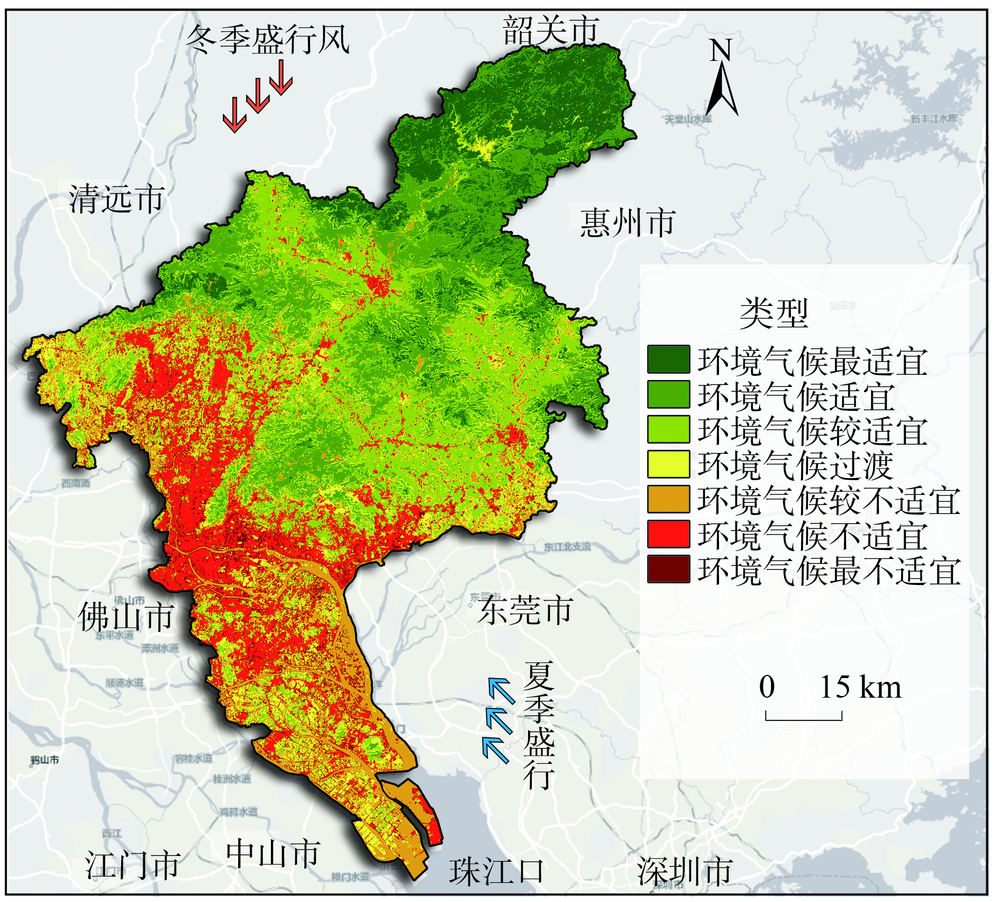

城市环境气候类型	对生产生活的影响	规划措施
环境气候最适宜类型	高度正效应	保护
环境气候适宜类型	中度正效应	保护及改善
环境气候较适宜类型	轻度正效应	改善
环境气候过渡类型	中和
环境气候较不适宜类型	轻度负效应
环境气候不适宜类型	中度负效应	建议采取修补行动
环境气候最不适宜类型	高度负效应	必须采取修补行动
