PROGRESS IN GEOGRAPHY ›› 2018, Vol. 37 ›› Issue (12): 1693-1704.doi: 10.18306/dlkxjz.2018.12.011
• Articles • Previous Articles Next Articles
Han REN(), Jingjing ZHANG, Wenbo ZHU, Liyuan WANG, Lijuan ZHANG, Lianqi ZHU*(
)
Received:
2017-12-06
Revised:
2018-09-25
Online:
2018-12-28
Published:
2018-12-28
Contact:
Lianqi ZHU
E-mail:hren_edu@163.com;lqzhu@henu.edu.cn
Supported by:
Han REN, Jingjing ZHANG, Wenbo ZHU, Liyuan WANG, Lijuan ZHANG, Lianqi ZHU. Impact of land use change on habitat in the Qihe River Basin of Taihang Mountains[J].PROGRESS IN GEOGRAPHY, 2018, 37(12): 1693-1704.
Tab.2
Habitat types and their sensitivity to each threat"
土地利用类型 | 生境适宜度 | 耕地 | 农村居民点 | 城镇用地 | 道路 |
---|---|---|---|---|---|
耕地 | 0.5 | 0.30 | 0.35 | 0.50 | 0.30 |
有林地 | 1.0 | 0.70 | 0.80 | 0.80 | 0.65 |
灌木林 | 1.0 | 0.60 | 0.65 | 0.70 | 0.60 |
疏林地 | 0.8 | 0.60 | 0.60 | 0.60 | 0.50 |
其他林地 | 1.0 | 0.80 | 0.85 | 0.85 | 0.70 |
高覆盖度草地 | 0.8 | 0.50 | 0.55 | 0.60 | 0.35 |
中覆盖度草地 | 0.7 | 0.55 | 0.60 | 0.65 | 0.40 |
低覆盖度草地 | 0.6 | 0.50 | 0.50 | 0.60 | 0.30 |
水体 | 0.9 | 0.65 | 0.65 | 0.75 | 0.60 |
城镇用地 | 0.0 | 0.00 | 0.00 | 0.00 | 0.00 |
农村居民点 | 0.0 | 0.00 | 0.00 | 0.00 | 0.00 |
其他建设用地 | 0.0 | 0.00 | 0.00 | 0.00 | 0.00 |
未利用地 | 0.1 | 0.10 | 0.20 | 0.20 | 0.15 |

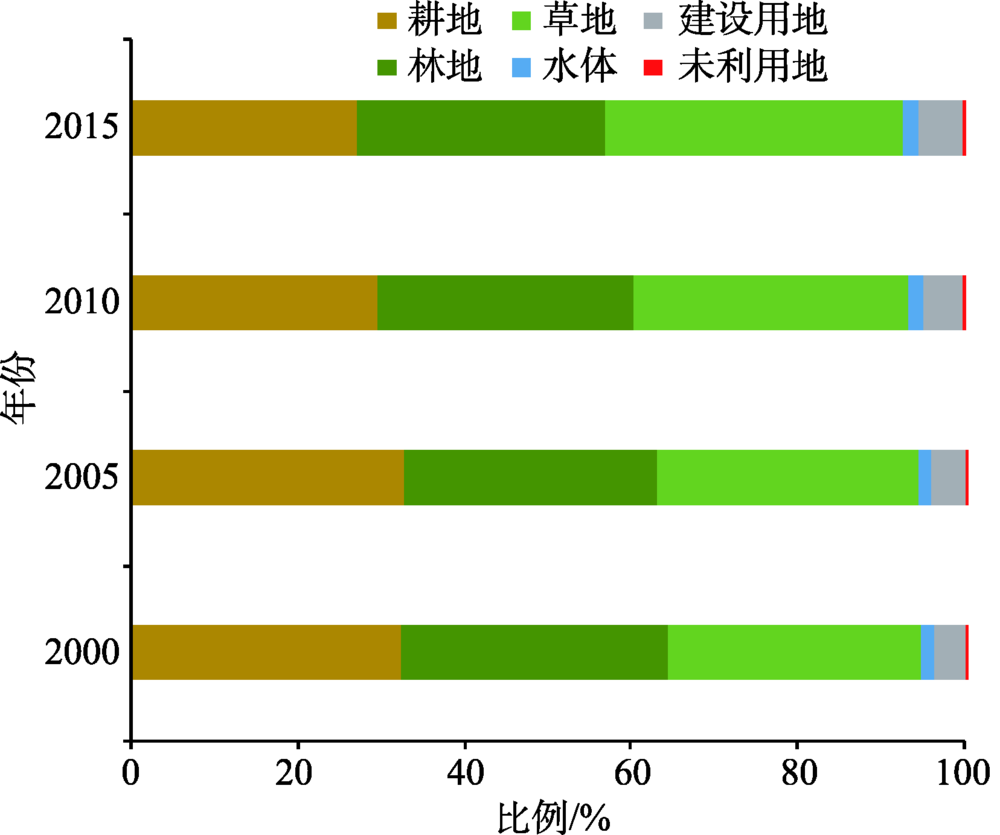

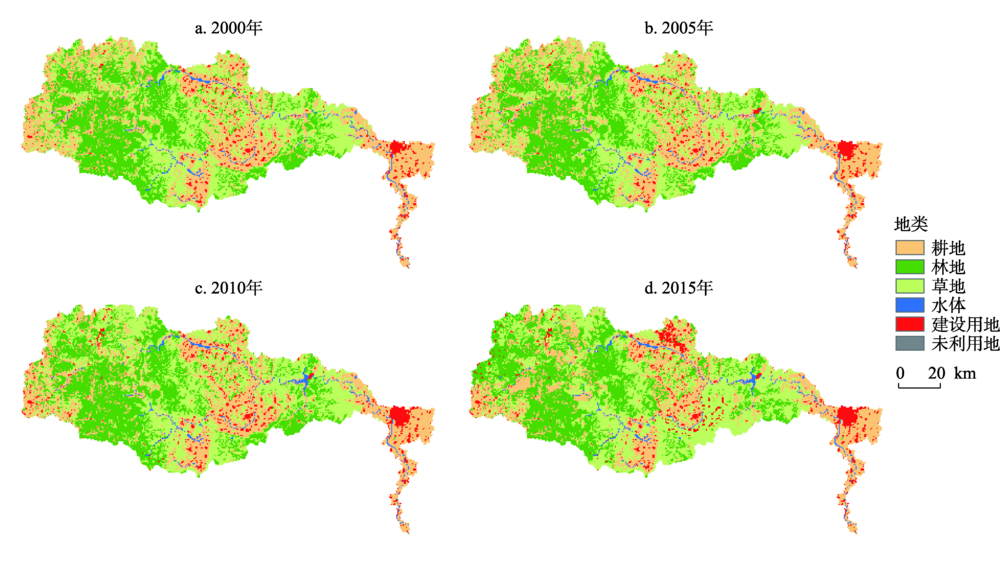

Tab.3
Land use change matrix/km2, 2000-2015"
时段 | 地类 | 耕地 | 林地 | 草地 | 水体 | 建设用地 | 未利用地 |
---|---|---|---|---|---|---|---|
2000-2005 | 耕地 | 708.50 | 9.08 | 7.89 | 0.41 | 0.61 | 0.00 |
林地 | 9.08 | 668.30 | 4.93 | 0.04 | 0.05 | 0.01 | |
草地 | 7.85 | 4.96 | 681.00 | 0.10 | 0.12 | ||
水体 | 0.31 | 0.18 | 0.11 | 35.40 | 0.01 | ||
建设用地 | 8.39 | 0.36 | 0.46 | 0.01 | 78.15 | 0.01 | |
未利用地 | 0.01 | 0.01 | 0.09 | ||||
2005-2010 | 耕地 | 647.74 | 1.55 | 3.93 | 0.74 | 7.86 | 0.01 |
林地 | 6.17 | 664.08 | 8.40 | 0.02 | 0.63 | ||
草地 | 42.27 | 15.63 | 676.46 | 0.13 | 0.91 | ||
水体 | 3.76 | 0.18 | 0.89 | 35.07 | 0.74 | ||
建设用地 | 26.26 | 1.52 | 4.26 | 0.06 | 77.19 | 0.03 | |
未利用地 | 0.38 | 0.09 | 0.20 | 0.05 | 0.07 | ||
2010-2015 | 耕地 | 552.23 | 23.45 | 28.34 | 0.62 | ||
林地 | 43.81 | 540.54 | 77.54 | 0.00 | 0.13 | ||
草地 | 65.57 | 115.05 | 616.16 | 0.00 | 0.16 | ||
水体 | 0.00 | 0.00 | 40.64 | ||||
建设用地 | 0.22 | 0.27 | 13.37 | 108.58 | |||
未利用地 | 0.64 |

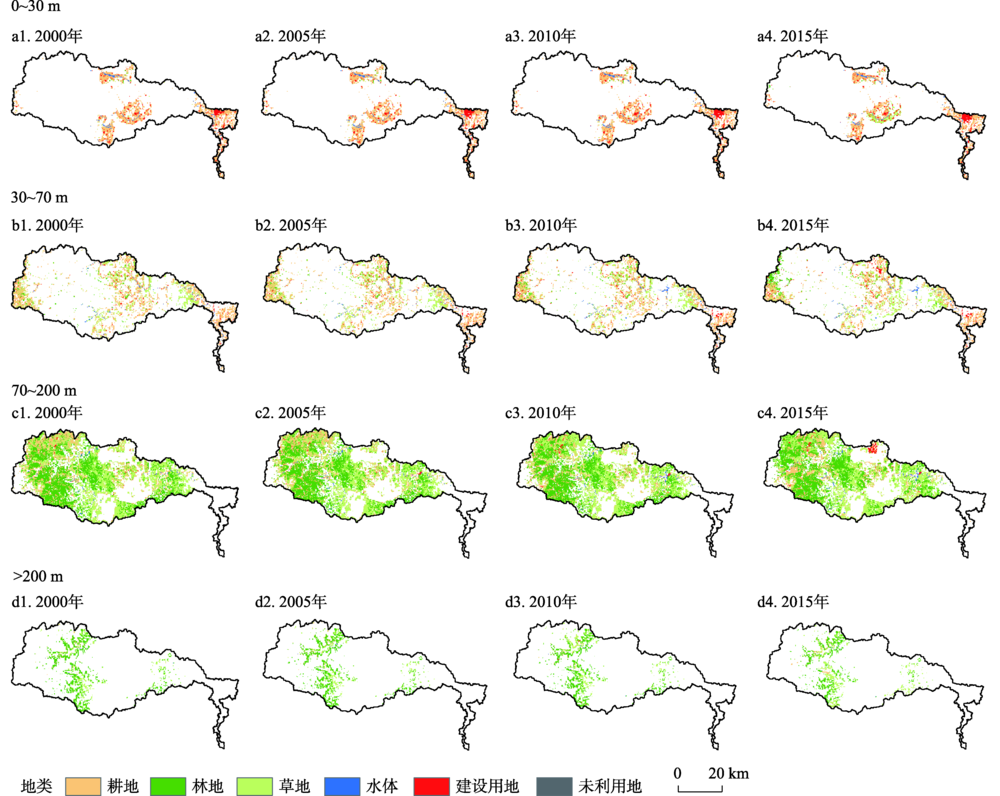

Tab.4
Change in total area of each land use type by relief class"
地形起伏度等级 | 年份 | 各地类面积比例/% | |||||
---|---|---|---|---|---|---|---|
耕地 | 林地 | 草地 | 水体 | 建设用地 | 未利用地 | ||
0~30 m | 2000 | 9.75 | 0.11 | 0.27 | 0.63 | 2.24 | 0.00 |
2005 | 9.57 | 0.11 | 0.27 | 0.63 | 2.42 | 0.00 | |
2010 | 9.29 | 0.11 | 0.24 | 0.62 | 2.73 | 0.00 | |
2015 | 7.99 | 0.17 | 1.47 | 0.62 | 2.75 | 0.00 | |
30~70 m | 2000 | 12.11 | 1.24 | 5.78 | 0.54 | 1.04 | 0.00 |
2005 | 12.01 | 1.23 | 5.78 | 0.53 | 1.16 | 0.00 | |
2010 | 11.50 | 1.32 | 5.69 | 0.64 | 1.54 | 0.01 | |
2015 | 9.77 | 2.40 | 6.16 | 0.64 | 1.73 | 0.01 | |
70~200 m | 2000 | 10.49 | 23.15 | 23.35 | 0.43 | 0.28 | 0.00 |
2005 | 10.49 | 23.10 | 23.31 | 0.44 | 0.36 | 0.00 | |
2010 | 8.53 | 23.18 | 24.89 | 0.56 | 0.55 | 0.01 | |
2015 | 8.82 | 22.47 | 24.92 | 0.56 | 0.94 | 0.01 | |
>200 m | 2000 | 0.44 | 6.05 | 2.07 | 0.03 | 0.00 | 0.00 |
2005 | 0.47 | 6.02 | 2.07 | 0.04 | 0.00 | 0.00 | |
2010 | 0.36 | 5.70 | 2.45 | 0.04 | 0.03 | 0.00 | |
2015 | 0.56 | 4.55 | 3.42 | 0.04 | 0.02 | 0.00 |

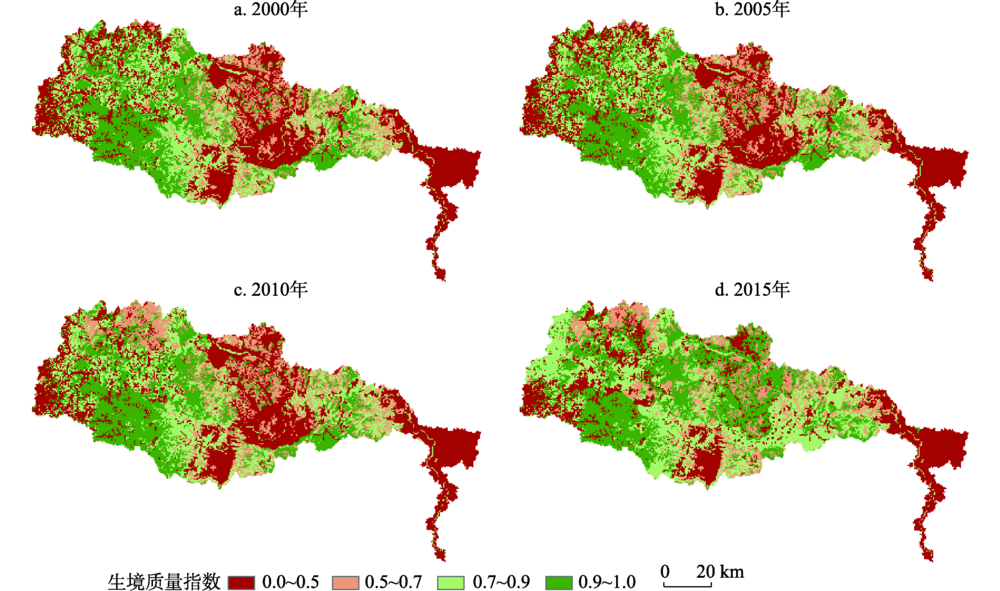

Tab.6
Habitat quality index of each land use type"
地类 | 2000年 | 2005年 | 2010年 | 2015年 | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
生境质量指数 | 比例/% | 生境质量指数 | 比例/% | 生境质量指数 | 比例/% | 生境质量指数 | 比例/% | ||||
耕地 | 0.537 | 32.97 | 0.543 | 32.62 | 0.537 | 29.71 | 0.642 | 27.15 | |||
林地 | 0.910 | 30.67 | 0.908 | 30.67 | 0.908 | 30.50 | 0.900 | 29.72 | |||
草地 | 0.749 | 31.19 | 0.743 | 31.17 | 0.731 | 33.02 | 0.761 | 35.78 | |||
水体 | 0.728 | 1.62 | 0.737 | 1.62 | 0.749 | 1.82 | 0.772 | 1.82 | |||
建设用地 | 0.197 | 3.55 | 0.190 | 3.92 | 0.191 | 4.91 | 0.275 | 5.50 | |||
未利用地 | 0.497 | 0.00 | 0.500 | 0.00 | 0.499 | 0.04 | 0.549 | 0.03 |

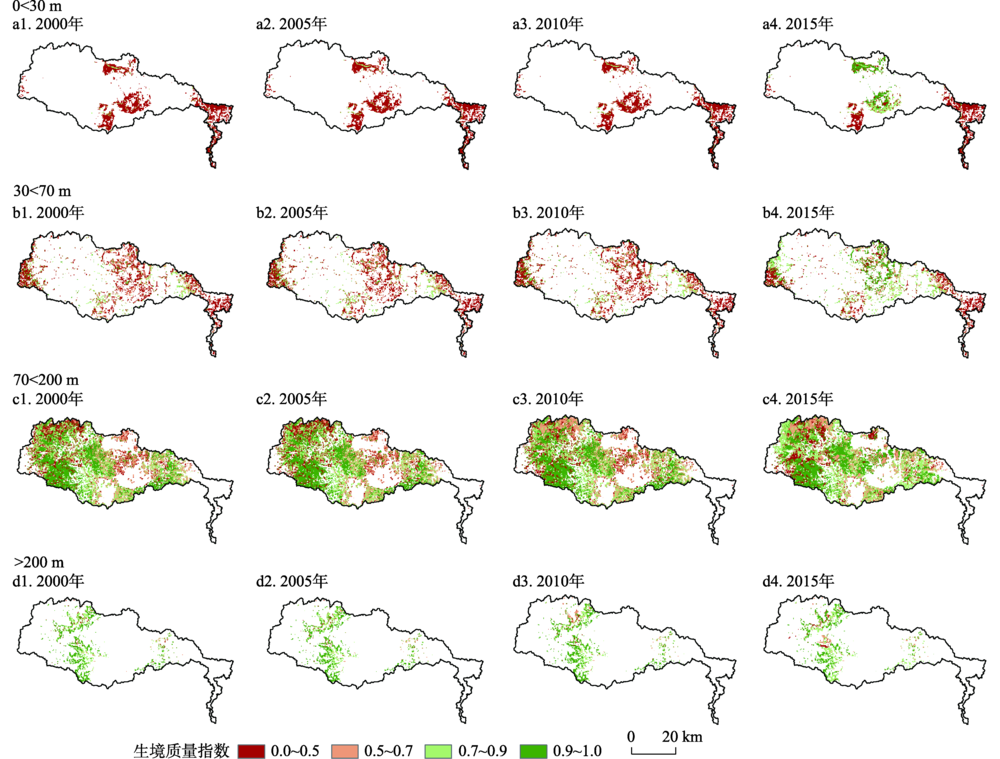

Tab.7
Change in total area of each habitat quality grade by relief class"
地形起伏度等级 | 年份 | 各等级面积比例/% | |||
---|---|---|---|---|---|
一般生境 | 中度重要生境 | 高度重要生境 | 极重要生境 | ||
0~30 m | 2000 | 11.97 | 0.23 | 0.81 | 0.07 |
2005 | 11.93 | 0.27 | 0.79 | 0.09 | |
2010 | 11.93 | 0.27 | 0.79 | 0.09 | |
2015 | 7.98 | 0.20 | 2.05 | 2.84 | |
30~70 m | 2000 | 12.89 | 3.03 | 3.66 | 1.16 |
2005 | 12.85 | 3.01 | 3.69 | 1.19 | |
2010 | 12.74 | 3.07 | 3.66 | 1.27 | |
2015 | 8.16 | 2.60 | 5.50 | 4.48 | |
70~200 m | 2000 | 11.29 | 9.72 | 17.10 | 19.35 |
2005 | 11.43 | 9.80 | 16.93 | 19.30 | |
2010 | 9.66 | 12.63 | 15.69 | 19.50 | |
2015 | 8.39 | 10.69 | 18.39 | 20.01 | |
>200 m | 2000 | 0.48 | 0.39 | 2.79 | 5.04 |
2005 | 0.44 | 0.36 | 2.78 | 5.14 | |
2010 | 0.38 | 0.78 | 2.39 | 5.17 | |
2015 | 0.57 | 0.76 | 3.40 | 3.98 |
[1] | 白健, 刘健, 余坤勇, 等. 2015. 基于InVEST-Biodiversity模型的闽江流域生境质量变化评价[J]. 中国科技论文, 10(15): 1782-1788. |
[Bai J, Liu j, Yu K Y, et al.2015. Evaluation of change in the ecological quality for Minjiang River Basin based on the InVEST-Biodiver model[J]. China Sciencepaper, 10(15): 1782-1788.] | |
[2] | 包玉斌, 刘康, 李婷, 等. 2015. 基于InVEST模型的土地利用变化对生境的影响: 以陕西省黄河湿地自然保护区为例[J]. 干旱区研究, 32(3): 622-629. |
[Bao Y B, Liu K, Li T, et al.2015. Effects of land use change on Habitat based on INVEST model: A case study of the Yellow River Wetland Nature Reserve in Shaanxi Province[J]. Arid Zone Research, 32(3): 622-629.] | |
[3] | 陈学兄, 毕如田, 刘正春, 等. 2016. 基于ASTERGDEM数据的山西地形起伏度分析研究[J]. 山西农业大学学报: 自然科学版, 36(6): 417-421. |
[Chen X X, Bi R T, Liu Z C, et al.2016. Anakytical study of the relief amplitude in Shanxi Province based on ASTER GDEM data[J]. Journal of Shanxi Agricultural University: Nature Science Edition, 36(6): 417-421.] | |
[4] | 陈妍, 乔飞, 江磊. 2016. 基于InVEST模型的土地利用格局变化对区域尺度生境质量的评估研究: 以北京为例[J]. 北京大学学报: 自然科学版, 52(3): 553-562. |
[Chen Y, Qiao F, Jiang L.2016. Effects of land use pattern change on regional scale habitat quality based on InVEST model: A case study in Beijing[J]. Journal of Peking University: Nature Science Edition, 52(3): 553-562.] | |
[5] | 褚琳, 黄翀, 刘庆生, 等. 2015. 2000-2010年辽宁省海岸带景观格局与生境质量变化研究[J]. 资源科学, 37(10): 1962-1972. |
[Chu L, Hang C, Liu Q S, et al.2015. Study on landscape pattern and habitat quality of Liaoning coastal zone in 2000-2010[J]. Resources Science, 37(10): 1962-1972.] | |
[6] | 杜世勋, 荣月静. 2015. 基于InVEST模型山西省土地利用变化的生物多样性功能研究[J]. 环境与可持续发展, 40(6): 65-70. |
[Du S X, Rong Y J.2015. Biodiversity function of land use change in Shanxi Province based on InVEST model[J]. Environment and Sustainable Development, 40(6): 65-70.] | |
[7] | 傅伯杰, 张立伟. 2014. 土地利用变化与生态系统服务: 概念、方法与进展[J]. 地理科学进展, 33(4): 441-446. |
[Fu B J, Zhang L W.2014. Land-use change and ecosystem services: Concepts, methods and progress[J]. Progress in Geography, 33(4): 441-446.] | |
[8] | 李晓秀. 1997. 北京山区生态环境质量评价体系初探[J]. 资源科学, 19(5): 31-35. |
[Li X X.1997. Study on Evaluation System of ecological environment quality in Beijing mountainous area[J]. Resources Science, 19(5): 31-35.] | |
[9] | 刘华, 蔡颖, 於梦秋, 等. 2012. 太湖流域宜兴片河流生境质量评价[J]. 生态学杂志, 31(5): 1288-1295. |
[Liu H, Cai Y, Yu M Q, et al.2012. Assessment of river habitat quality in Yixing district of Taihu Lake Basin[J]. Chinese Journal of Ecology, 31(5): 1288-1295.] | |
[10] | 刘纪远. 1997. 国家资源环境遥感宏观调查与动态监测研究[J]. 遥感学报, 1(3): 225-230. |
[Liu J Y.1997. Research of national resources and environment remote sensing macro survey and dynamic monitoring[J]. Journa of remote sensin, 1(3): 225-230.] | |
[11] | 欧阳志云, 郑华. 2009. 生态系统服务的生态学机制研究进展[J]. 生态学报, 29(11): 6183-6188. |
[Ouyang Z Y, Zheng H.2009. Ecological mechanism of ecosystem services[J]. Acta Ecologica Sinica, 29(11): 6183-6188.] | |
[12] | 王琼, 卢聪, 韩青, 等. 2017. 太子河流域生境质量及其与社会经济的关系[J]. 生态学杂志, 36(10): 2917-2925. |
[Wang Q, Lu C, Han Q, et al.2017. Habitat quality and its relationship with social economy in Taizi River Basin[J]. Chinese Journal of Ecology, 36(10): 2917-2925.] | |
[13] | 吴健生, 曹祺文, 石淑芹, 等. 2015. 基于土地利用变化的京津冀生境质量时空演变[J]. 应用生态学报, 26(11): 3457-3466. |
[Wu J S, Cao Q W, Shi S Q, et al.Spatio-temporal variability of habitat quality in Beijing-Tianjin-Hebei area based on land ues change[J]. Chinese Journal of Applied Ecology, 26(11): 3457-3466.] | |
[14] | 吴健生, 冯喆, 高阳, 等. 2014. 基于DLS模型的城市土地政策生态效应研究: 以深圳市为例[J]. 地理学报, 69(11): 1673-1682. |
[Wu J S, Feng Z, Gao Y, et al.2014. Research on ecological effects of urban land policy based on DLS model: A case study on Shenzhen City[J]. Acta Geographica Sinica, 69(11): 1673-1682.] | |
[15] | 吴健生, 毛家颖, 林倩, 等. 2017. 基于生境质量的城市增长边界研究: 以长三角地区为例[J]. 地理科学, 37(1): 28-36. |
[Wu J S, Mao J Y, Lin Q, et al.2017. Urban growth boundary based on the evaluation of habitat quality: Taking the Yangtze River Delta as an example[J]. Scientia Geographica Sinica, 37(1): 28-36.] | |
[16] | 吴未, 张敏, 许丽萍, 等. 2015. 土地利用变化对生境网络的影响: 以苏锡常地区白鹭为例[J]. 生态学报, 35(14): 4897-4906. |
[Wu W, Zhang M, Xu L P, et al.2015. The impact of land use change on habitat network: A case study of Egretta garzetta in Su-Xi-Chang area[J]. Acta Ecologica Sinica, 35(14): 4897-4906.] | |
[17] | 吴哲, 陈歆, 刘贝贝, 等. 2013. InVEST模型及其应用的研究进展[J]. 热带农业科学, 33(4):58-62. |
[Wu Z, Chen X, Liu B B, et al.2013. Research progress and application of InVEST model[J]. Chinese Journal of Tropical Agriculture, 33(4): 58-62.] | |
[18] | 杨建强, 朱永贵, 宋文鹏, 等. 2014. 基于生境质量和生态响应的莱州湾生态环境质量评价[J]. 生态学报, 34(1): 105-114. |
[Yang J Q, Zhu Y G, Song W P, et al.2014. The eco-environmental evaluation based on habitat quality and ecological response of Laizhou Bay[J]. Acta Ecologica Sinica, 34(1): 105-114.] | |
[19] | 杨娟, 葛剑平, 洪军. 2006. 卧龙地区流域土地覆盖变化及其对大熊猫潜在生境的影响[J]. 生态学报, 26(6): 1975-1980. |
[Yang J, Ge J P, Hong J.2006. The land cover changes of watersheds in Wolong and their impacts on Giant Panda potential habitats[J]. Acta Ecologica Sinica, 26(6): 1975-1980.] | |
[20] | 杨朦, 龚毅, 何蕊. 2016. 资源枯竭型城市生态景观现状研究: 以鹤壁市淇河生态区为例[J]. 绿色科技, (15): 107-110. |
[Yang M, Gong Y, He R, et al.Resource exhausted city ecological landscape situation: A case study of Qihe River Ecological District of Hebi[J]. Journal of Green Science and Technology, (15): 107-110.] | |
[21] | 叶亚平, 刘鲁君. 2000. 中国省域生态环境质量评价指标体系研究[J]. 环境科学研究, 13(3): 33-36. |
[Ye Y P, Liu L J.2000. Research on index system of provincial eco-environmental quality evaluation in China[J]. Research of Environmental Sciences, 13(3): 33-36.] | |
[22] | 余新晓, 周彬, 吕锡芝, 等. 2012. 基于InVEST模型的北京山区森林水源涵养功能评估[J]. 林业科学, 48(10): 1-5. |
[Yu X X, Zhou B, Lv X Z, et al.Assessment of forest water conservation function in Beijing mountainous area based on InVEST model[J]. Scientia Silvae Sinicae, 48(10): 1-5.] | |
[23] | 张静静, 朱文博, 赵芳, 等.2018. 山地平原过渡带地形起伏特征及其对景观格局的影响: 以太行山淇河流域为例[J]. 中国科学: 地球科学, 48(4): 476-486. |
[Zhang J J, Zhu W B, Zhao F, et al.2018. Spatial variations of terrain and their impacts on landscape patterns in the transition zone from mountains to plains: A case study of Qihe River Basin in the Taihang Mountains[J]. Science China: Earth Sciences, 48(4): 476-486.] | |
[24] | 张磊. 2009. 基于地形起伏度的地貌形态划分研究[D]. 石家庄: 河北师范大学: 31-35. |
[Zhang L.2009. A sutdy of the geomorphologic forms classification based on relief[D]. Shijiazhuang, China: Hebei Normal University: 31-35.] | |
[25] | 赵志龙, 吴雪, 张镱锂, 等. 2017. 基于土地覆被变化和CA-Markov模型的喜马拉雅中部柯西河流域生态系统服务价值变化评估[J]. 资源与生态学报: 英文版, 8(1): 67-76. |
[Zhao Z L, Wu X, Zhang Y L.2017. Assessment of changes in the value of ecosystem services in the Koshi River Basin, cetral high Himalayas based on land cover change and the CA-Markov model[J]. Journal of Resources and Ecology, 8(1): 67-76.] | |
[26] | 周方文, 马田田, 李晓文, 等. 2015. 黄河三角洲滨海湿地生态系统服务模拟及评估[J]. 湿地科学, 13(6):667-674. |
[Zhou F W, Ma T T, Li X W, et al.2015. Ecosystem service simulation and evaluation of the Yellow River Delta Wetland[J]. Wetland Science, 13(6): 667-674.] | |
[27] | Fleskens L, Duarte F, Eicher I.2009. A conceptual framework for the assessment of multiple functions of agro-ecosystems: A case study of Trás-os-Montes olive groves[J]. Journal of Rural Studies, 25(1): 141-155. |
[28] | Forman R, Sperling D, Bissonette J, et al.2003. Road ecology: Science and solutions[M]. New York: Island Press: 645-678. |
[29] | Häyhä T, Franzese P P, Paletto A, et al.2015. Assessing, valuing, and mapping ecosystem services in Alpine forests[J]. Ecosystem Services, 14(4): 12-23. |
[30] | Lindenmayer D, Hobbs R J, Montague-Drake R, et al.2008. A checklist for ecological management of landscapes for conservation[J]. Ecology Letters, 11(1): 78-91. |
[31] | Mckinney M L.2002. Urbanization, biodiversity, and conservation[J]. Bioscience, 52(10): 883-890. |
[32] | Mushet D M, Neau J L, Jr N H E.2014. Modeling effects of conservation grassland losses on amphibian habitat[J]. Biological Conservation, 174(3): 93-100. |
[33] | Stoll S, Frenzel M, Burkhard B, et al.2015. Assessment of ecosystem integrity and service gradients across Europe using the LTER Europe network[J]. Ecological Modelling, 295: 75-87. |
[34] | Tallis H, Ricketts T, Guerry A, et al. 2012. InVEST 2.4.4 User'S Guide: Integrated valuation of environmental services and tradeoffs[EB/OL]. 2012-10-24[2017-04-20]. . |
[35] | Wong C P, Bo J, Kinzig A P, et al.2015. Linking ecosystem characteristics to final ecosystem services for public policy[J]. Ecology Letters, 18(1): 108. |
