基于空间聚类方法的京津冀城市群多层级空间结构研究

doi:10.18306/dlkxjz.2017.11.005

Abstract

Abstract:

With the main focus of regional competition shifting from cities to urban agglomerations, it is important to analyze the spatial structure and direction of coordinated development in urban agglomerations. This is especially significant in the Beijing-Tianjin-Hebei urban agglomeration, which is a core urban agglomeration in China. Machine learning algorithms are relatively new methods for addressing geographical problems. Clustering method, as unsupervised learning, is useful for classifying geographical units without the need for priori knowledge. Using data from 156 counties in the Beijing-Tianjin-Hebei urban agglomeration, this study applied four clustering algorithms: the K-means, density-based spatial clustering of applications with noise (DBSCAN), Chameleon, and self-organizing map (SOM) methods, for classifying counties and districts in the Beijing-Tianjin-Hebei urban agglomeration from the perspectives of economic centrality, traffic centrality, information centrality, and population centrality. GDP of the counties in 2014 was used to represent economic centrality; density of road networks in counties and attraction factor, calculated by the unsold train tickets in different time periods of the year, represent traffic centrality; Sina Weibo check-in data were used to represent information centrality; and county/district population represents population centrality. The result classifies the urban agglomeration into several levels. Respectively, K-means algorithm classifies counties into five levels; DBSCAN algorithm classifies counties into six levels; Chameleon algorithm classifies counties into six levels; and SOM algorithm classifies counties into five levels. SOM is the most applicable algorithm for the division of the urban agglomeration because the structure of counties is stable. This study further analyzed the spatial structure of the urban agglomeration with the central place theory, which points out that an agglomeration should contain certain number of counties in every level. The result of the SOM algorithm matches the central place theory. This research shows that there were remarkable gaps between different levels of the urban agglomeration. The central area of Beijing, as the core of the region, has strong radiation effect on the surrounding areas, but its functions are shared by the nearby counties. Moreover, the second and third level central cities distribute evenly and play an important role in regional development.

Key words: spatial clustering, spatial structure, Beijing-Tianjin-Hebei Region Agglomeration

Xun ZHANG, Jianzhang CHEN, Jinchuan HUANG, Chongchong YU, Xiuxin CHEN. Multi-level spatial structure analysis of urban agglomeration in the Beijing-Tianjin-Hebei region based on spatial clustering algorithms[J].PROGRESS IN GEOGRAPHY, 2017, 36(11): 1359-1367.

Figures/Tables 9

Tab.1

Tab.2

Tab.3

Tab.4

Fig.1

Fig.2

Fig.3

Tab.5

Fig.4

References 31

[1]	陈园园, 李宁, 丁四保. 2011. 城市群空间联系能力与SOM 神经网络分级研究: 以辽中南城市群为例[J]. 地理科学, 31(12): 1461-1467.
	[Chen Y Y, Li N, Ding S B.2011. Spatial combination capacity and classification based on SOM network of urban agglomerations: A case study of central and southern Liaoning urban agglomerations[J]. Scientia Geographica Sinica, 31(12): 1461-1467.]
[2]	方碧琪, 汪永新. 1991. 北京市各区县经济分析的聚类方法[J]. 数理统计与管理, (1): 25-30. doi: 10.3969/j.issn.1002-1566.1999.01.006
	[Fang B Q, Wang Y X.1991. Clustering analysis on the economy of Beijing regions[J]. Application of Statistics and Management, (1): 25-30.] doi: 10.3969/j.issn.1002-1566.1999.01.006
[3]	顾朝林, 王颖, 邵园, 等. 2015. 基于功能区的行政区划调整研究: 以绍兴城市群为例[J]. 地理学报, 70(8): 1187-1201. doi: 10.11821/dlxb201508001
	[Gu C L, Wang Y, Shao Y, et al.2015. Research on administrative divisions based on functional areas analysis: A case of Shaoxing metropolitan area[J]. Acta Geographica Sinica, 70(8): 1187-1201.] doi: 10.11821/dlxb201508001
[4]	韩玉刚, 叶雷. 2016. 中国欠发达省际边缘区核心城市的选择与区域带动效应: 以豫皖省际边缘区为例[J]. 地理研究, 35(6): 1127-1140. doi: 10.11821/dlyj201606010
	[Han Y G, Ye L.2016. Core city selection in Chinese undeveloped provincial border-region and its promoting effects on regional development: A case study of Anhui-Henan Provincial Border-region[J]. Geographical Research, 35(6): 1127-1140.] doi: 10.11821/dlyj201606010
[5]	黄金川, 刘倩倩, 陈明. 2014. 基于GIS的中国城市群发育格局识别研究[J]. 城市规划学刊, (3): 37-44.
	[Huang J C, Liu Q Q, Chen M.2014. The identification of urban agglomeration distribution in China based on GIS analysis[J]. Urban Planning Forum, (3): 37-44.]
[6]	金建国. 2014. 聚类方法综述[J]. 计算机科学, 41(Z2): 288-293.
	[Jin J G.2014. Review of clustering method[J]. Computer Science, 41(Z2): 288-293.]
[7]	李国平, 罗心然. 2017. 京津冀地区人口与经济协调发展关系研究[J]. 地理科学进展, 36(1): 25-33. doi: 10.18306/dlkxjz.2017.01.003
	[Li G P, Luo X R.2017. Coordinated development between population and economy in the Beijing-Tianjin-Hebei region[J]. Progress in Geography, 36(1): 25-33.] doi: 10.18306/dlkxjz.2017.01.003
[8]	李新延, 李德仁. 2005. DBSCAN空间聚类算法及其在城市规划中的应用[J]. 测绘科学, 30(3): 51-53. doi: 10.3771/j.issn.1009-2307.2005.03.014
	[Li X Y, Li D R.2005. DBSCAN spatial clustering algorithm and its application in urban planning[J]. Science of Surveying and Mapping, 30(3): 51-53.] doi: 10.3771/j.issn.1009-2307.2005.03.014
[9]	刘卫东, 金凤君, 张文忠, 等. 2011. 中国经济地理学研究进展与展望[J]. 地理科学进展, 30(12): 1479-1487. doi: 10.11820/dlkxjz.2011.12.003
	[Liu W D, Jin F J, Zhang W Z, et al.2011. Progress in economic geography (2006-2011)[J]. Progress in Geography, 30(12): 1479-1487.] doi: 10.11820/dlkxjz.2011.12.003
[10]	马林靖, 周立群. 2010. 基于聚类分析法的县域均衡发展指数构建与测度应用研究: 以天津12个涉农区县为例[J]. 经济经纬, (2): 57-60. doi: 10.3969/j.issn.1006-1096.2010.02.014
	[Ma L J, Zhou L Q.2010. A research into the construction and measurement of county balanced development indexes and its application based on cluster analysis method[J]. Economic Survey, (2): 57-60.] doi: 10.3969/j.issn.1006-1096.2010.02.014
[11]	牛方曲, 刘卫东, 宋涛, 等. 2015. 城市群多层次空间结构分析算法及其应用:以京津冀城市群为例[J]. 地理研究, 34(8): 1447-1460. doi: 10.11821/dlyj201508004
	[Niu F Q, Liu W D, Song T, et al.2015. A multi-level spatial structure analysis algorithm for urban agglomeration study in China[J]. Geographical Research, 34(8): 1447-1460.] doi: 10.11821/dlyj201508004
[12]	王波, 甄峰. 2016. 网络社区交流中距离的作用: 以新浪微博为例[J]. 地理科学进展, 35(8): 983-989.
	[Wang B, Zhen F.2016. The role of distance in online social networks: A case study of Sina micro-blog[J]. Progress in Geography, 35(8): 983-989.]
[13]	闫友彪, 陈元琰. 2004. 机器学习的主要策略综述[J]. 计算机应用研究, 21(7): 4-10, 13. doi: 10.3969/j.issn.1001-3695.2004.07.002
	[Yan Y B, Chen Y Y.2004. A survey on machine learning and its main strategy[J]. Application Research of Computers, 21(7): 4-10, 13.] doi: 10.3969/j.issn.1001-3695.2004.07.002
[14]	杨志民, 化祥雨, 叶娅芬, 等. 2015. 金融空间联系及K-means聚类中心等级识别研究: 以长三角为例[J]. 地理科学, 35(2): 144-150.
	[Yang Z M, Hua X Y, Ye Y F, et al.2015. Spatial combination of finance and center level identify based on K-means clustering: A case study of the Changjiang river delta[J]. Scientia Geographica Sinica, 35(2): 144-150.]
[15]	袁媛, 王仰麟, 马晶, 等. 2014. 河北省县域贫困度多维评估[J]. 地理科学进展, 33(1): 124-133. doi: 10.11820/dlkxjz.2014.01.014
	[Yuan Y, Wang Y L, Ma J, et al.2014. Multidimensional evaluation of county poverty degree in Hebei Province[J]. Progress in Geography, 33(1): 124-133.] doi: 10.11820/dlkxjz.2014.01.014
[16]	张旺, 申玉铭. 2012. 京津冀都市圈生产性服务业空间集聚特征[J]. 地理科学进展, 31(6): 742-749. doi: 10.11820/dlkxjz.2012.06.010
	[Zhang W, Shen Y M.2012. The spatial characteristics of producer service agglomeration in Beijing-Tianjin-Hebei metropolitan region[J]. Progress in Geography, 31(6): 742-749.] doi: 10.11820/dlkxjz.2012.06.010
[17]	周一星, 张莉, 武悦. 2001. 城市中心性与我国城市中心性的等级体系[J]. 地域研究与开发, 20(4): 1-5. doi: 10.3969/j.issn.1003-2363.2001.04.001
	[Zhou Y X, Zhang L, Wu Y.2001. Study of China's urban centrality hierarchy[J]. Areal Research and Development, 20(4): 1-5.] doi: 10.3969/j.issn.1003-2363.2001.04.001
[18]	Bação F, Lobo V, Painho M.2005. Self-organizing maps as substitutes for K-means clustering[C]//Proceedings of the 5th international conference on computational science. Berlin, Heidelberg, Germany: Springer-Verlag: 476-483.
[19]	Baselice F, Coppolino L, D'Antonio S, et al.2015. A DBSCAN based approach for jointly segment and classify brain MR images[C]// Proceedings of the 37th International Conference of the IEEE Engineering in Medicine and Biology Society. Milan, Italy.
[20]	Bell T L, Lieber S R, Rushton G.2015. Clusterg of services in central places[J]. Annals of the Association of American Geographers, 64(2): 214-225. doi: 10.1111/j.1467-8306.1974.tb00972.x
[21]	Duda R O, Hart P E, Stork D G.2001. Pattern classification[M]. 2nd ed. New York, NY: A Wiley-Interscience Publication, 2001.
[22]	Ferrari D C, de Castro L N.2015. Clustering algorithm selection by meta-learning systems: A new distance-based problem characterization and ranking combination methods[J]. Information Sciences, 301: 181-194. doi: 10.1016/j.ins.2014.12.044
[23]	Gong W W.2010. ARMA-GRNN for passenger demand forecasting[C]//2010 Sixth international conference on natural computation (ICNC). Yantai, China: IEEE.
[24]	Gómeza D, Zarrazolab E, Yáñezc J, et al.2015. A Divide-and-Link algorithm for hierarchical clustering in networks[J]. Information Science, 316: 308-328. doi: 10.1016/j.ins.2015.04.011
[25]	Grubesic T H, Wei R, Murray A T.2014. Spatial clustering overview and comparison: Accuracy, sensitivity, and computational expense[J]. Annals of the Association of American Geographers, 104(6): 1134-1156. doi: 10.1080/00045608.2014.958389
[26]	Hagen L, Kahng A B.2006. New spectral methods for ratio cut partitioning and clustering[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 11(9): 1074-1085. doi: 10.1109/43.159993
[27]	Kohonen T.1990. The self-organizing map[J]. Neurocomputing, 21(1-3): 1-6.
[28]	Lin G F, Wu M C.2007. A SOM-based approach to estimating design hyetographs of ungauged sites[J]. Journal of Hydrology, 339(3-4): 216-226. doi: 10.1016/j.jhydrol.2007.03.016
[29]	Marshall J U.1989. The structure of urban systems[M]. Toronto, Canada: University of Toronto Press.
[30]	Preston R E.1970. Two centrality models[J]. Yearbook of the Association of Pacific Coast Geographers, 32: 59-78. doi: 10.1353/pcg.1970.0006
[31]	Zhou Y H, Guo H, Dong Y S, et al.2011. Cluster analysis for drilling-quality based on the modified algorithm of InDBSCAN[J]. Key Engineering Materials, 480-481: 877-882. doi: 10.4028/www.scientific.net/KEM.480-481.877

城区名称	包含区
北京城区	东城区、西城区、朝阳区、丰台区、海淀区、石景山区
天津城区	和平区、河东区、河西区、南开区、河北区、红桥区
保定城区	莲池区、竞秀区(含高新区)、徐水区、清苑区、满城区
沧州城区	新华区、运河区
承德城区	双桥区、双滦区、高新区、营子区
邢台城区	桥东区、桥西区
张家口城区	桥东区、桥西区、宣化区、下花园区、万全区、崇礼区
唐山城区	路北区、路南区、古冶区、开平区、丰润区、丰南区、曹妃甸区
石家庄城区	桥西区、新华区、长安区、裕华区、井陉矿区、藁城区、鹿泉区、栾城区
廊坊城区	安次区、广阳区
邯郸城区	丛台区、复兴区、邯山区、峰峰矿区
秦皇岛城区	海港区、山海关区、北戴河区、抚宁区

算法	算法效率	适合的数据类型	发现的聚类类型	对噪声数据或异常数据的敏感性	对输入顺序的敏感性	其他
K-means	高	数值	凸形或球形	不敏感	一般	易于理解和实现,时间复杂度低
Chameleon	一般	任意	任意形状	不敏感	不敏感	算法灵活但执行时间长
DBSCAN	一般	数值	任意形状	敏感	敏感	处理高纬度数据效果差
SOM	高	任意	任意形状	不敏感	敏感	结果有特征映射,能可视化

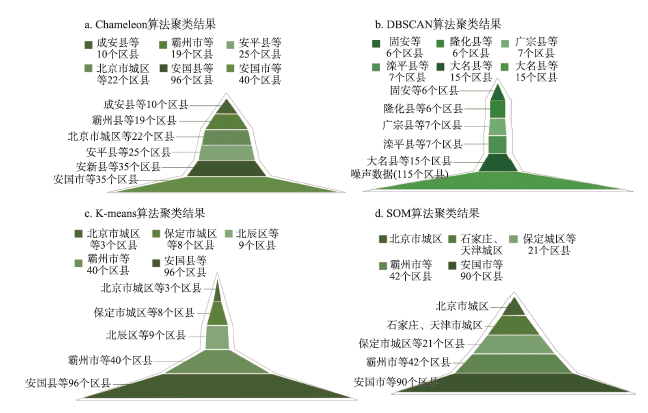

	第一类	第二类	第三类	第四类	第五类	第六类
K-means	北京市城区等3个区县	保定市城区等8个区县	北辰区等9个区县	霸州市等40个区县	安国县等96个区县
Chameleon	成安县等10个区县	霸州市等19个区县	安平县等25个区县	北京市城区等22个区县	安新县等35个区县	安国市等40个区县
DBSCAN	固安县等6个区县	隆化县等6个区县	广宗县等7个区县	滦平县等7个区县	大名县等15个区县	噪声数据(115个区县)

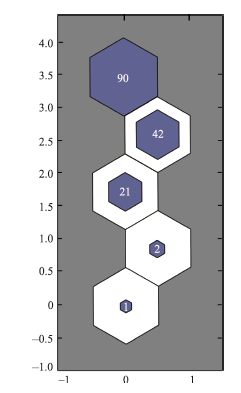

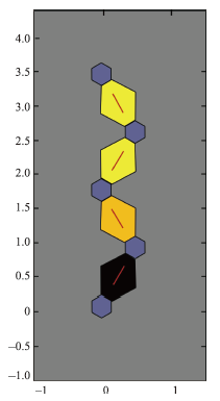

SOM	北京市城区	石家庄、天津市城区	保定市城区等21个区县	霸州市等42个区县	安国市等90个区县

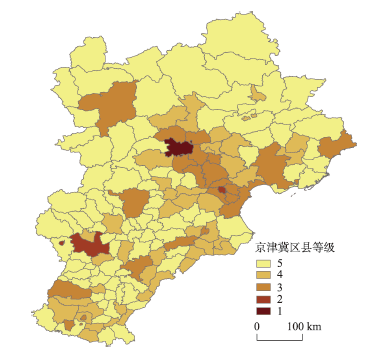

	人口	GDP	路网密度	吸引因子	微博签到数
第一级	1.000000	1.000000	0.566022	0.925568	1.000000
第二级	0.187632	0.323590	0.712439	0.824197	0.089826
第三级	0.079778	0.066928	0.263885	0.202920	0.016356
第四级	0.015132	0.036220	0.096532	0.052529	0.003622
第五级	0.008050	0.025172	0.048087	0.013577	0.000620
