基于TETIS模型的黑土区乌裕尔河流域径流与侵蚀产沙模拟研究

doi:10.18306/dlkxjz.2017.07.009

Abstract

Abstract:

In order to understand the characteristics of soil erosion in a basin and explore the applicability of the TETIS model for simulating runoff and sediment yield in the black soil region of Northeast China, the Wuyuer River Basin was taken as an example in this study. Daily runoff and sediment discharge data series from 1971 to 1987 were used to calibrate and validate the TETIS model. On this basis, characteristics of soil erosion intensity and their relationships with slope and land use types in the basin were analyzed. The results show that the TETIS model has good applicability in the Wuyuer River Basin. Nash-Sutcliffe efficiency coefficients of daily discharge and sediment ranged from 0.52 to 0.70, coefficients of determination ranged from 0.60 to 0.71, and volume errors were no more than 15%. Average soil erosion intensity was 397.2 t/(km²·a) in the basin. Slight erosion and light erosion were the dominant soil erosion types and about 90% of sediment yield was from hillslope. Average erosion intensity increased with increasing slope gradients. Slopes of 0°~5° were the main erosion area in the basin. Different land use types have different soil erosion intensities and arable land has the highest value (556.3 t/(km²·a)). Priority of erosion control should focus on the arable lands with steep slopes and low vegetation covered regions. Comparison of these simulation results with other study results in the black soil region of Northeast China demonstrates a promising future of the TETIS model for simulating runoff and sediment yields in the region. This study may provide a scientific basis for the implementation of soil and water conservation measures in the study area.

Key words: TETIS model, black soil region of Northeast China, Wuyuer River Basin, soil erosion simulation

Zhiying LI, Haiyan FANG. Simulation of runoff, soil erosion, and sediment yield using the TETIS model in the Wuyuer River Basin of the black soil region, Northeast China[J].PROGRESS IN GEOGRAPHY, 2017, 36(7): 873-885.

Figures/Tables 12

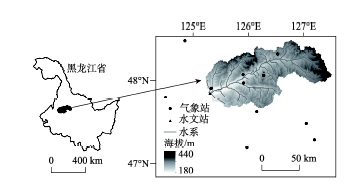

Fig.1

Fig.2

Tab.1

Tab.2

Parameters for sedimentological sub-model and their values"

参数名称	参数范围	最终值
坡面输沙校正参数 $α$	(1×10^-8)~10	4.700
沟道输沙校正参数 $β 1$	(1×10^-8)~10	0.070
河道输沙校正参数 $β 2$	(1×10^-8)~10	0.004

Tab.2

Fig.3

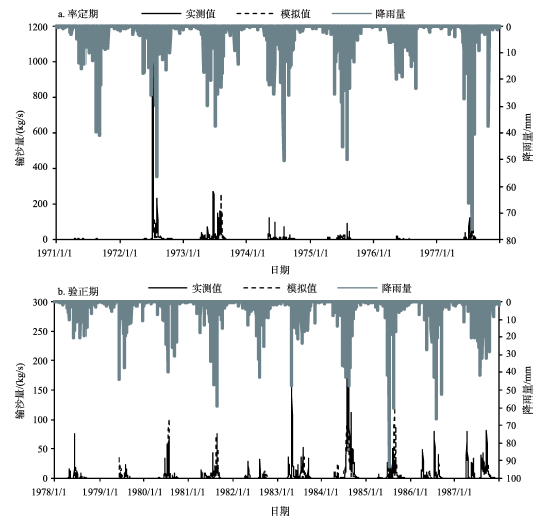

Fig.4

Tab.3

Tab.4

Fig.5

Tab.5

Tab.6

Tab.7

References 57

1	陈云明, 刘国彬, 郑粉莉, 等. 2004. RUSLE侵蚀模型的应用及进展[J]. 水土保持研究, 11(4): 80-83.
	[Chen Y M, Liu G B, Zheng F L, et al.2004. Proceeding and application on soil erosion model of RUSLE[J]. Research of Soil and Water Conservation, 11(4): 80-83.]
2	崔明, 张旭东, 蔡强国, 等. 2008. 东北典型黑土区气候、地貌演化与黑土发育关系[J]. 地理研究, 27(3): 527-535. doi: 10.3321/j.issn:1000-0585.2008.03.006
	[Cui M, Zhang X D, Cai Q G, et al.2008. Relationship between black soil development and climate change and geomorphological evolution in Northeast China[J]. Geographical Research, 27(3): 527-535.] doi: 10.3321/j.issn:1000-0585.2008.03.006
3	鄂立思. 2015. 乌裕尔河流域土壤侵蚀时空分布特征及影响因素研究[D]. 哈尔滨: 哈尔滨师范大学. [E L S. 2015. Study on spatial temporal patterns and contributory factors of soil erosion in Wuyur River basin[D]. Harbin, China: Harbin Normal University.]
4	鄂立思, 孙丽, 李苗, 等. 2015. 基于GIS和RUSLE乌裕尔河流域土壤侵蚀定量评价[J]. 哈尔滨师范大学自然科学学报, 31(2): 154-158. [E L S, Sun L, Li M, et al. 2015. Quantitative assessment of soil erosion in Wuyuer River basin based on GIS and RUSLE[J]. Natural Sciences Journal of Harbin Normal University, 31(2): 154-158.] doi: 10.3969/j.issn.1000-5617.2015.02.042
5	方海燕, 蔡强国, 李秋艳. 2009. 东北典型黑土区乌裕尔河中游泥沙输移月年时间尺度特征[J]. 泥沙研究, (2): 16-21. doi: 10.3321/j.issn:0468-155X.2009.02.003
	[Fang H Y, Cai Q G, Li Q Y.2009. Sediment transport characteristics at the monthly and yearly scales in midstream of Wuyuer River in the typical black soil region of Northeastern China[J]. Journal of Sediment Research, (2): 16-21.] doi: 10.3321/j.issn:0468-155X.2009.02.003
6	高燕, 张延玲, 焦剑, 等. 2016. 松花江流域不同空间尺度典型流域泥沙输移比及其影响因素[J]. 中国水土保持科学, 14(1): 21-27.
	[Gao Y, Zhang Y L, Jiao J, et al.2016. Sediment delivery ratios of typical watersheds on different spatial scales in Songhua River basin and its affecting factors[J]. Science of Soil and Water Conservation, 14(1): 21-27.]
7	高玉芳, 陈耀登, 蒋义芳, 等. 2015. DEM数据源及分辨率对HEC-HMS水文模拟的影响[J]. 水科学进展, 26(5): 624-630. doi: 10.14042/j.cnki.32.1309.2015.05.003
	[Gao Y F, Chen Y D, Jiang Y F, et al.2015. Effects of DEM source and resolution on the HEC-HMS hydrological simulation[J]. Advances in Water Science, 26(5): 624-630.] doi: 10.14042/j.cnki.32.1309.2015.05.003
8	胡刚, 宋慧, 刘宝元, 等. 2015. 黑土区基准坡长和LS算法对地形因子的影响[J]. 农业工程学报, 31(3): 166-173. doi: 10.3969/j.issn.1002-6819.2015.03.023
	[Hu G, Song H, Liu B Y, et al.2015. Effects of both slope length of standard plot and algorithms of LS on calculated values of topography factor (LS) in black soil areas in Northeast China[J]. Transactions of the Chinese Society of Agricultural Engineering, 31(3): 166-173.] doi: 10.3969/j.issn.1002-6819.2015.03.023
9	胡刚, 伍永秋, 刘宝元, 等. 2006. 东北漫川漫岗黑土区浅沟和切沟发生的地貌临界模型探讨[J]. 地理科学, 26(4): 449-454. doi: 10.3969/j.issn.1000-0690.2006.04.011
	[Hu G, Wu Y Q, Liu B Y, et al.2006. Geomorphic threshold model for ephemeral gully incision in rolling hills with black soil in Northeast China[J]. Scientia Geographica Sinica, 26(4): 449-454.] doi: 10.3969/j.issn.1000-0690.2006.04.011
10	简金世. 2011. 松花江流域不同侵蚀类型区泥沙输移比的估算[D]. 杨凌: 西北农林科技大学. [Jian J S. 2011. Estimation of sediment delivery ratio in different soil erosion regions in the Songhua River Basin[D]. Yangling, China: Northwest A&F University.]
11	雷廷武, 李法虎. 2012. 水土保持学[M]. 北京: 中国农业大学出版社. [Lei T W, Li F H. 2012. Soil and water conservation[M]. Beijing, China: China Agricultural University Press.]
12	李百安. 2015. 基于USLE模型的吉林梨树县土壤侵蚀现状初步分析[D]. 长春: 东北师范大学. [Li B A. 2015. A preliminary analysis of the current situation of soil erosion in Lishu County of Jilin based on USLE model[D]. Changchun, China: Northeast Normal University.]
13	李浩. 2012. 黑土区典型小流域水土流失演变与输移特征研究[D]. 北京: 中国科学院大学. [Li H. 2012. Evolvement of soil erosion and sediment transport in typical black soil small watershed[D]. Beijing, China: University of Chinese Academy of Sciences.]
14	李雪莹, 杨俊, 温海明, 等. 2015. 基于RUSLE模型的土壤侵蚀量估算: 以辽宁省阜新市为例[J]. 水土保持通报, 35(1): 199-204.
	[Li X Y, Yang J, Wen H M, et al.2015. Estimation of soil erosion amount based on RUSLE model: A case study in Fuxin City of Liaoning Province[J]. Bulletin of Soil and Water Conservation, 35(1): 199-204.]
15	刘远利. 2010. WEPP模型(坡面版)在东北黑土区的适用性评价[D]. 杨凌: 西北农林科技大学. [Liu Y L. 2010. Assessment on WEPP Model (hillslope version) applicability to the black soil region in Northeast China[D]. Yangling, China: Northwest A&F University.]
16	马丽娟, 秦大河. 2012. 1957-2009年中国台站观测的关键积雪参数时空变化特征[J]. 冰川冻土, 34(1): 1-11.
	[Ma L J, Qin D H.2012. Spatial-temporal characteristics of observed key parameters for snow cover in China during 1957-2009[J]. Journal of Glaciology and Geocryology, 34(1): 1-11.]
17	孟凡影, 付伟涛, 杨欢, 等. 2015. 基于GIS技术的古城小流域土壤侵蚀研究[J]. 水土保持研究, 22(5): 9-13.
	[Meng F Y, Fu W T, Yang H, et al.2015. GIS-based research of soil erosion in Gucheng small watershed[J]. Research of Soil and Water Conservation, 22(5): 9-13.]
18	盛美玲, 方海燕. 2014. WaTEM/SEDEM模型及其应用研究进展与展望[J]. 地理科学进展, 33(1): 85-91. doi: 10.11820/dlkxjz.2014.01.010
	[Sheng M L, Fang H Y.2014. Research progress in WaTEM/SEDEM model and its application prospect[J]. Progress in Geography, 33(1): 85-91.] doi: 10.11820/dlkxjz.2014.01.010
19	盛美玲, 方海燕, 郭敏. 2015. 东北黑土区小流域侵蚀产沙WaTEM/SEDEM模型模拟[J]. 资源科学, 37(4): 815-822.
	[Sheng M L, Fang H Y, Guo M.2015. Modeling soil erosion and sediment yield using WaTEM/SEDEM model for the black soil region of Northeast China[J]. Resources Science, 37(4): 815-822.]
20	仕玉治. 2011. 气候变化及人类活动对流域水资源的影响及实例研究[D]. 大连: 大连理工大学. [Shi Y Z. 2011. The influence of climate change and human activities on basin water resources and cases study[D]. Dalian, China: Dalian University of Technology.]
21	汤洁, 张爱丽, 侯克怡, 等. 2014. 辽河重污染支流招苏台河径流和泥沙模拟研究[J]. 水土保持研究, 21(2): 111-115.
	[Tang J, Zhang A L, Hou K Y, et al.2014. The simulation of runoff and sediment in heavy polluted tributary in Liaohe-Zhaosutai River[J]. Research of Soil and Water Conservation, 21(2): 111-115.]
22	唐克丽. 2004. 中国水土保持[M]. 北京: 科学出版社. [Tang K L. 2004. Zhongguo shuitu baochi[M]. Beijing, China: Science Press.]
23	王文娟, 张树文, 方海燕. 2012. 东北典型黑土区坡沟侵蚀耦合关系[J]. 自然资源学报, 27(12): 2113-2122.
	[Wang W J, Zhang S W, Fang H Y.2012. Coupling mechanism of slope-gully erosion in typical black soil area of Northeast China[J]. Journal of Natural Resources, 27(12): 2113-2122.]
24	王志杰, 简金世, 焦菊英, 等. 2013. 基于RUSLE的松花江流域不同侵蚀类型区泥沙输移比估算[J]. 水土保持研究, 20(5): 50-56.
	[Wang Z J, Jian J S, Jiao J Y, et al.2013. Estimation of sediment delivery ratio in different soil erosion regions in the Songhua River basin based on RUSLE[J]. Research of Soil and Water Conservation, 20(5): 50-56.]
25	魏建兵, 肖笃宁, 李秀珍, 等. 2006. 东北黑土区小流域农业景观结构与土壤侵蚀的关系[J]. 生态学报, 26(8): 2608-2615. doi: 10.3321/j.issn:1000-0933.2006.08.025
	[Wei J B, Xiao D N, Li X Z, et al.2006. Relationship between landscape pattern and soil erosion of an agricultural watershed in the mollisols region of Northeastern China[J]. Acta Ecologica Sinica, 26(8): 2608-2615.] doi: 10.3321/j.issn:1000-0933.2006.08.025
26	魏守才. 2015. 水土流失对黑土坡耕地土壤有机碳的影响[D]. 北京: 中国科学院大学. [Wei S C. 2015. Effect of soil erosion on soil organic carbon on sloping field of Black Soil area in Northeast China[D]. Beijing, China: University of Chinese Academy of Sciences.]
27	吴发启, 张洪江. 2012. 土壤侵蚀学[M]. 北京: 科学出版社. [Wu F Q, Zhang H J. 2012. Turang qinshi xue[M]. Beijing, China: Science Press.]
28	于书霞, 王宁, 朱颜明, 等. 2001. 基于地理信息系统的土壤侵蚀研究[J]. 水土保持通报, 21(3): 20-23. doi: 10.3969/j.issn.1000-288X.2001.03.006
	[Yu S X, Wang N, Zhu Y M, et al.2001. Applications of GIS in soil erosion research[J]. Bulletin of Soil and Water Conservation, 21(3): 20-23.] doi: 10.3969/j.issn.1000-288X.2001.03.006
29	张爱静. 2013. 东北地区流域径流对气候变化与人类活动的响应特征研究[D]. 大连: 大连理工大学. [Zhang A J. 2013. Research on the streamflow responses to climate variability and human activities in Northeast China[D]. Dalian, China: Dalian University of Technology.]
30	张素梅, 王宗明, 闫百兴, 等. 2008. 辉发河流域景观格局与土壤侵蚀的关系研究[J]. 水土保持学报, 22(3): 29-35. doi: 10.3321/j.issn:1009-2242.2008.03.007
	[Zhang S M, Wang Z M, Yan B X, et al.2008. Relationship between landscape pattern and soil erosion of Huifa River watershed[J]. Journal of Soil and Water Conservation, 22(3): 29-35.] doi: 10.3321/j.issn:1009-2242.2008.03.007
31	张晓平, 梁爱珍, 申艳, 等. 2006. 东北黑土水土流失特点[J]. 地理科学, 26(6): 687-692. doi: 10.3969/j.issn.1000-0690.2006.06.008
	[Zhang X P, Liang A Z, Shen Y, et al.2006. Erosion characteristics of black soils in Northeast China[J]. Scientia Geographica Sinica, 26(6): 687-692.] doi: 10.3969/j.issn.1000-0690.2006.06.008
32	Buendia C, Bussi G, Tuset J, et al.2016. Effects of afforestation on runoff and sediment load in an upland Mediterranean catchment[J]. Science of the Total Environment, 540: 144-157. doi: 10.1016/j.scitotenv.2015.07.005 pmid: 26188652
33	Bussi G, Francés F, Horel E, et al.2014. Modelling the impact of climate change on sediment yield in a highly erodible Mediterranean catchment[J]. Journal of Soils and Sediments, 14(12): 1921-1937. doi: 10.1007/s11368-014-0956-7
34	Bussi G, Francés F, Montoya J J, et al.2014. Distributed sediment yield modelling: Importance of initial sediment conditions[J]. Environmental Modelling & Software, 58: 58-70. doi: 10.1016/j.envsoft.2014.04.010
35	Bussi G, Rodríguez-Lloveras X, Francés F, et al.2013. Sediment yield model implementation based on check dam infill stratigraphy in a semiarid Mediterranean catchment[J]. Hydrology and Earth System Sciences, 17(8): 3339-3354. doi: 10.5194/hess-17-3339-2013
36	Coccia G, Todini E.2011. Recent developments in predictive uncertainty assessment based on the model conditional processor approach[J]. Hydrology and Earth System Sciences, 15(10): 3253-3274. doi: 10.5194/hess-15-3253-2011
37	Engelund F, Hansen E.1967. A monograph on sediment transport in alluvial streams[R]. Hydraulic Engineering Reports. Copenhagen, Denmark: TEKNISKFORLAG: 699-703.
38	Fang H Y.2015. Temporal variations of sediment source from a reservoir catchment in the black soil region, Northeast China[J]. Soil and Tillage Research, 153: 59-65. doi: 10.1016/j.still.2015.04.009
39	Fang H Y.2016. Impact of land use change and dam construction on soil erosion and sediment yield in the black soil region, Northeastern China[J]. Land Degradation & Development, doi: 10.1002/ldr.2677. doi: 10.1002/ldr.2677
40	Francés F, Vélez J I, Vélez J J.2007. Split-parameter structure for the automatic calibration of distributed hydrological models[J]. Journal of Hydrology, 332(1-2): 226-240. doi: 10.1016/j.jhydrol.2006.06.032
41	Kilinc M, Richardson E V.1973. Mechanics of soil erosion from overland flow generated by simulated rainfall[R]. Hydrology Paper No. 63. Fort Collins, CO: Colorado State University.
42	Kim K B, Han D W.2016. Exploration of sub-annual calibration schemes of hydrological models[J]. Hydrology Research, 47(6): doi: 10.2166/nh.2016.296. doi: 10.2166/nh.2016.296
43	Le Lay M, Galle S.2005. How changing rainfall regimes may affect the water balance: A modelling approach in West Africa[C]//Franks S, Wagener T, Bogh E, et al. Regional hydrological impacts of climatic change: Hydroclimatic variability: Proceedings. Wallingford: AISH: 203-210.
44	Leopold L B, Maddock Jr T.1953. The hydraulic geometry of stream channels and some physiographic implications[R]. Geological Survey Professional Paper 252. Washington, DC: United States Government Printing Office.
45	Moriasi D N, Arnold J G, Van Liew M W, et al.2007. Model evaluation guidelines for systematic quantification of accuracy in watershed simulations[J]. Transactions of the ASABE, 50(3): 885-900. doi: 10.13031/2013.23153
46	Rodriguez-Lloveras X, Bussi G, Francés F, et al.2015. Patterns of runoff and sediment production in response to land-use changes in an ungauged Mediterranean catchment[J]. Journal of Hydrology, 531: 1054-1066. doi: 10.1016/j.jhydrol.2015.11.014
47	Rodriguez-Lloveras X, Buytaert W, Benito G.2016. Land use can offset climate change induced increases in erosion in Mediterranean watersheds[J]. Catena, 143: 244-255. doi: 10.1016/j.catena.2016.04.012
48	Ruiz-Villanueva V, Stoffel M, Bussi G, et al.2015. Climate change impacts on discharges of the Rhone River in Lyon by the end of the twenty-first century: Model results and implications[J]. Regional Environmental Change, 15(3): 505-515. doi: 10.1007/s10113-014-0707-8
49	Sánchez R R.2002. GIS-based upland erosion modeling, geovisualization and grid size effects on erosion simulations with CASC2D-SED[D]. Fort Collins, US: Colorado State University.
50	Salazar S, Francés F, Komma J, et al.2012. A comparative analysis of the effectiveness of flood management measures based on the concept of "retaining water in the landscape" in different European hydro-climatic regions[J]. Natural Hazards and Earth System Science, 12(11): 3287-3306. doi: 10.5194/nhess-12-3287-2012
51	Seibert J, Vis M J P.2012. Teaching hydrological modeling with a user-friendly catchment-runoff-model software package[J]. Hydrology and Earth System Sciences, 16(9): 3315-3325. doi: 10.5194/hessd-9-5905-2012
52	Sharply A N, Williams J R.1990. EPIC-erosion/productivity impact calculator: Model documentation[M]. Beltsville, MD: US Department of Agriculture Technical Bulletin: 1768.
53	Shrestha R, Tachikawa Y, Takara K.2006. Input data resolution analysis for distributed hydrological modeling[J]. Journal of Hydrology, 319(1-4): 36-50. doi: 10.1016/j.jhydrol.2005.04.025
54	Wang W J, Qiu L, Zu Y G, et al.2011. Changes in soil organic carbon, nitrogen, pH and bulk density with the development of larch (Larix gmelinii) plantations in China. Global Change Biology, 17(8): 2657-2676. doi: 10.1111/j.1365-2486.2011.02447.x
55	Wood E F, Sivapalan M, Beven K, et al.1988. Effects of spatial variability and scale with implications to hydrologic modeling[J]. Journal of Hydrology, 102(1-4): 29-47. doi: 10.1016/0022-1694(88)90090-X
56	Woods R, Sivapalan M, Duncan M.1995. Investigating the representative elementary area concept: An approach based on field data[J]. Hydrological Processes, 9(3-4): 291-312. doi: 10.1002/hyp.3360090306
57	Xie Z B, Zhu J G, Liu G, et al.2007. Soil organic carbon stocks in China and changes from 1980s to 2000s[J]. Global Change Biology, 13(9): 1989-2007. doi: 10.1111/j.1365-2486.2007.01409.x

土地利用类型	C值	P值
有林地	0.005	1
灌木林	0.07	1
疏林和其他林地	0.05	1
高覆盖草地	0.04	1
中覆盖草地	0.08	1
水域	0	0
城镇用地、其他建设用地、沼泽地	0	1
农村居民点	0.03	1
裸土地、裸岩石砾地	1	1
水田	0.18	0.03
旱地	1	0.352

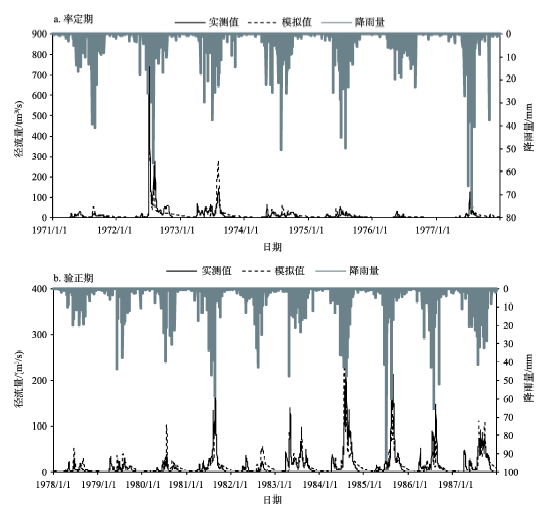

模拟时期	NSE			R²				VE/%
模拟时期	日值		月值	年值	日值	月值	年值	日值	月值	年值
率定期(1971-1977)	0.60	0.77	0.92	0.69	0.88	0.97		-6.93	-7.19	-5.65
验证期(1978-1987)	0.52	0.74	0.82	0.60	0.73	0.90		-14.41	-14.62	-14.40

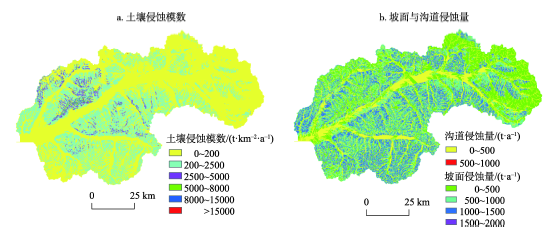

土壤侵蚀级别	土壤侵蚀强度/[t/(km²·a)]	面积/km²	百分比/%
微度	0~200	4657.92	63.23
轻度	200~2500	2478.96	33.65
中度	2500~5000	189.60	2.57
强烈	5000~8000	30.64	0.42
极强烈	8000~15000	8.48	0.12
剧烈	>15000	0.80	0.01

坡度分级/°	面积 /km²	百分比 /%	侵蚀量 /(10⁴t/a)	平均侵蚀模数 /[t/(km²·a)]
0~5	6262.12	85.01	210.40	335.98
5~8	748.36	10.16	56.35	752.93
8~15	316.20	4.29	23.33	738.05
15~25	38.04	0.52	2.28	599.76
25~35	1.44	0.02	0.15	1054.17
>35	0.28	/	0.09	3307.14
合计	7366.44	/	292.60	397.21

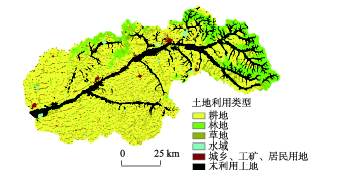

土地利用类型	面积/km²	百分比/%	侵蚀量/(10⁴t/a)	平均侵蚀模数/[t/(km²·a)]
耕地	4704.32	63.86	261.68	556.25
林地	1007.00	13.67	11.64	115.62
草地	352.36	4.78	8.50	241.38
水域	76.56	0.7	0.34	44.41
城乡、工矿、居民用地	271.20	3.68	5.31	195.73
未利用土地	955.00	12.96	5.13	53.75
总计	7366.44	/	292.60	397.21

Simulation of runoff, soil erosion, and sediment yield using the TETIS model in the Wuyuer River Basin of the black soil region, Northeast China

RichHTML

PDF (PC)

Like

Knowledge

Cited

Abstract

Cite this article

share this article

Figures/Tables 12

References 57

Related Articles 0

Metrics

Comments

Recommended 0

坡耕地坡度/°	面积/km²	占耕地面积百分比/%	侵蚀量/10⁴ t	平均侵蚀模数/(t/(km²·a))
0~5	4207.80	89.52	191.68	455.54
5~8	401.72	8.55	50.09	1247.00
8~15	87.80	1.97	18.31	2085.52
15~24	3.00	0.06	0.75	2508.67
