多元统计回归及地理加权回归方法在多尺度人口空间化研究中的应用

doi:10.18306/dlkxjz.2016.12.006

Abstract

Abstract:

Population distribution data are essential for socioeconomic and environmental studies, such as population estimation, spread of disease, natural disaster relief, and environmental protection. Existing research has proved that spatialized population grid data can precisely delineate the spatial pattern of population distribution, while model selection and size of grids may influence the accuracy of population distribution modeling. It is therefore important to estimate population distribution using appropriate models and at a proper spatial scale. This study mainly focused on the spatialization modeling of Anhui Province county-level population census data in 2010 at three grid scales. Anhui Province was selected for the study due to its complex landforms and significant difference of population distribution within its area. Population regionalization was carried out as a preprocessing step: 78 counties in Anhui Province were divided into four groups. Combining with land-use data and nighttime light (DMSP/OLS), urban residential areas were reclassified to reflect regional differences. Based on the population regionalization, multi-factor linear regression (MFLR) and geographically weighted regression (GWR) models were employed to integrate the reclassified urban residential land-use data with the rural residential land-use data. This study established three population spatial datasets at 1 km, 5 km, and 10 km gird scales. Comparing the two models’ precision at each scale, the results show that the modeling and grid scale have much influence on the accuracy of the spatialization result, which increased with the grid scale by using the MFLR model and the highest accuracy was achieved in the 10 km grid datasets. For the GWR model, the accuracy decreased as the grid scale increased, and the highest model accuracy was obtained at the 1 km scale. Overall, the GWR model had a higher accuracy (22.31%) than the MFLR model when taking into account the geographic location and local modeling. This study may provide a scientific basis for the production and application of population spatial data and provide a reference of spatialization for other types of statistical data in the future.

Key words: population distribution, spatialization, multi-scales, multi-factor linear regression, Geographically Weighted Regression (GWR), Anhui Province

Kejing WANG, Hongyan CAI, Xiaohuan YANG. Multiple scale spatialization of demographic data with multi-factor linear regression and geographically weighted regression models[J].PROGRESS IN GEOGRAPHY, 2016, 35(12): 1494-1505.

Figures/Tables 12

Tab.1

Fig.1

Fig.2

Tab.2

Fig.3

Tab.3

Fig.4

Tab.4

Tab.5

Fig.5

Fig.6

Tab.6

References 25

[1]	曹丽琴, 李平湘, 张良培. 2009. 基于 DMSP/OLS夜间灯光数据的城市人口估算: 以湖北省各县市为例[J]. 遥感信息, (1): 83-87. doi: 10.3969/j.issn.1000-3177.2009.01.016
	[Cao L Q, Li P X, Zhang L P.2009. Urban population estimation based on the DMSP/OLS night-time satellite data: A case of Hubei Province[J]. Remote Sensing Information, (1): 83-87.] doi: 10.3969/j.issn.1000-3177.2009.01.016
[2]	陈晴, 侯西勇. 2015. 集成土地利用数据和夜间灯光数据优化人口空间化模型[J]. 地球信息科学学报, 17(11): 1370-1377. doi: 10.3724/SP.J.1047.2015.01370
	[Chen Q, Hou X Y.2015. An improved population spatialization model by combining land use data and DMSP/OLS data[J]. Journal of Geo-Information Science, 17(11): 1370-1377.] doi: 10.3724/SP.J.1047.2015.01370
[3]	杜国明, 张树文, 张有全. 2007. 城市人口分布的空间自相关分析: 以沈阳市为例[J]. 地理研究, 26(2): 383-390. doi: 10.3321/j.issn:1000-0585.2007.02.020
	[Du G M, Zhang S W, Zhang Y Q.2007. Analyzing spatial auto-correlation of population distribution: A case of Shenyang City[J]. Geographical Research, 26(2): 383-390.] doi: 10.3321/j.issn:1000-0585.2007.02.020
[4]	江东, 杨小唤, 王乃斌, 等. 2002. 基于RS、GIS的人口空间分布研究[J]. 地球科学进展, 17(5): 734-738. doi: 10.3321/j.issn:1001-8166.2002.05.016
	[Jiang D, Yang X H, Wang N B, et al.2002. Study on spatial distribution of population based on remote sensing and GIS[J]. Advance in Earth Sciences, 17(5): 734-738.] doi: 10.3321/j.issn:1001-8166.2002.05.016
[5]	李双成, 蔡运龙. 2005. 地理尺度的转换若干问题的初步探讨[J]. 地理研究, 24(1): 11-18. doi: 10.11821/yj2005010002
	[Li S C, Cai Y L.2005. Some scaling issues of geography[J]. Geographical Research, 24(1): 11-18.] doi: 10.11821/yj2005010002
[6]	李月娇, 杨小唤, 王静. 2014. 基于景观生态学的人口空间数据适宜格网尺度研究: 以山东省为例[J]. 地理与地理信息科学, 30(1): 97-100. doi: 10.7702/dlydlxxkx20140120
	[Li Y J, Yang X H, Wang J.2014. Grid size suitability of population spatial distribution in Shandong Province based on landscape ecology[J]. Geography and Geo-Information Science, 30(1): 97-100.] doi: 10.7702/dlydlxxkx20140120
[7]	刘明亮, 唐先明, 刘纪远, 等. 2001. 基于1 km格网的空间数据尺度效应研究[J]. 遥感学报, 5(3): 183-190. doi: 10.3321/j.issn:1007-4619.2001.03.005
	[Liu M L, Tang X M, Liu J Y, et al.2001. Research on scaling effect based on 1 km grid cell data[J]. Journal of Remote Sensing, 5(3): 183-190.] doi: 10.3321/j.issn:1007-4619.2001.03.005
[8]	田永中, 陈述彭, 岳天祥, 等. 2004. 基于土地利用的中国人口密度模拟[J]. 地理学报, 59(2): 283-292. doi: 10.3321/j.issn:0375-5444.2004.02.015
	[Tian Y Z, Chen S P, Yue T X, et al.2004. Simulation of Chinese population density based on land use[J]. Acta Geographica Sinica, 59(2): 283-292.] doi: 10.3321/j.issn:0375-5444.2004.02.015
[9]	王静, 杨小唤, 石瑞香. 2012. 山东省人口空间分布格局的多尺度分析[J]. 地理科学进展, 31(2): 176-182. doi: 10.11820/dlkxjz.2012.02.006
	[Wang J, Yang X H, Shi R X.2012. Spatial distribution of the population in Shandong Province at multi-scales[J]. Progress in Geography, 31(2): 176-182.] doi: 10.11820/dlkxjz.2012.02.006
[10]	王珂靖, 蔡红艳, 杨小唤, 等. 2015. 基于城镇居民用地再分类的人口数据空间化方法研究: 以长江中游4省为例[J]. 遥感技术与应用, 30(5): 987-995. doi: 10.11873/j.issn.1004-0323.2015.5.0987
	[Wang K J, Cai H Y, Yang X H, et al.2015. Spatialization method for census data based on reclassifying residential land use in urban areas: A case study in the middle reaches of the Yangtze River Watershed[J]. Remote Sensing Technology and Application, 30(5): 987-995.] doi: 10.11873/j.issn.1004-0323.2015.5.0987
[11]	王培震, 石培基, 魏伟, 等. 2012. 基于空间自相关特征的人口密度格网尺度效应与空间化研究: 以石羊河流域为例[J]. 地球科学进展, 27(12): 1363-1372. doi: 10.11867/j.issn.1001-8166.2012.12.1363
	[Wang P Z, Shi P J, Wei W, et al.2012. Grid scale effect and spatialization of population density based on the characteristics of spatial autocorrelation in Shiyang River Basin[J]. Advances in Earth Science, 27(12): 1363-1372.] doi: 10.11867/j.issn.1001-8166.2012.12.1363
[12]	王雪梅, 李新, 马明国. 2004. 基于遥感和GIS的人口数据空间化研究进展及案例分析[J]. 遥感技术与应用, 19(5): 320-327. doi: 10.3969/j.issn.1004-0323.2004.05.006
	[Wang X M, Li X, Ma M G.2004. Advance and case analysis in population spatial distribution based on remote sensing and GIS[J]. Remote Sensing Technology and Application, 19(5): 320-327.] doi: 10.3969/j.issn.1004-0323.2004.05.006
[13]	杨小唤, 江东, 王乃斌, 等. 2002. 人口数据空间化的处理方法[J]. 地理学报, 57(S1): 70-75.
	[Yang X H, Jiang D, Wang N B, et al.2002. Method of pixelizing population data[J]. Acta Geographica Sinica, 57(Sl): 70-75.]
[14]	杨小唤, 刘业森, 江东, 等. 2006. 一种改进人口数据空间化的方法: 农村居住地重分类[J]. 地理科学进展, 25(3): 62-69. doi: 10.3969/j.issn.1007-6301.2006.03.008
	[Yang X H, Liu Y S, Jiang D, et al.2006. An enhanced method for spatial distributing census data: Re-classifying of rural residential[J]. Progress in Geography, 25(3): 62-69.] doi: 10.3969/j.issn.1007-6301.2006.03.008
[15]	杨续超, 高大伟, 丁明军, 等. 2013. 基于多源遥感数据及DEM的人口统计数据空间化: 以浙江省为例[J]. 长江流域资源与环境, 22(6): 729-734.
	[Yang X C, Gao D W, Ding M J, et al.2013. Modeling population density using multi-sensor remote sensing data and DEM: A case study of Zhejiang Province[J]. Resources and Environment in the Yangtze Basin, 22(6): 729-734.]
[16]	叶靖, 杨小唤, 江东. 2010. 乡镇级人口统计数据空间化的格网尺度效应分析: 以义乌市为例[J]. 地球信息科学学报, 12(1): 40-47.
	[Ye J, Yang X H, Jiang D.2010. The grid scale effect analysis on town leveled population statistical data spatialization[J]. Journal of Geo-Information Science, 12(1): 40-47.]
[17]	张建辰, 王艳慧. 2014. 基于土地利用类型的村级人口空间分布模拟: 以湖北鹤峰县为例[J]. 地球信息科学学报, 16(3): 435-442. doi: 10.3724/SP.J.1047.2014.00435
	[Zhang J C, Wang Y H.2014. Simulation of village-level population distribution based on land use: A case study of Hefeng County in Hubei Province[J]. Journal of Geo-Information Science, 16(3): 435-442.] doi: 10.3724/SP.J.1047.2014.00435
[18]	周成虎, 程维明. 2010. 《中华人民共和国地貌图集》的研究与编制[J]. 地理研究, 29(6): 970-979. doi: 10.11821/yj2010060002
	[Zhou C H, Cheng W M.2010. Research and compilation of the geomorphological atlas of the People's Republic of China[J]. Geographical Research, 29(6): 970-979.] doi: 10.11821/yj2010060002
[19]	卓莉, 陈晋, 史培军, 等. 2005. 基于夜间灯光数据的中国人口密度模拟[J]. 地理学报, 60(2): 266-276. doi: 10.3321/j.issn:0375-5444.2005.02.010
	[Zhuo L, Chen J, Shi P J, et al.2005. Modeling population density of China in 1998 based on DMSP/OLS nighttime light image[J]. Acta Geographica Sinica, 60(2): 266-276.] doi: 10.3321/j.issn:0375-5444.2005.02.010
[20]	Azar D, Engstrom R, Graesser J, et al.2013. Generation of fine-scale population layers using multi-resolution satellite imagery and geospatial data[J]. Remote Sensing of Environment, 130: 219-232. doi: 10.1016/j.rse.2012.11.022
[21]	Fotheringham A S, Brunsdon C, Charlton M.2002. Geographically weighted regression: The analysis of spatially varying relationships[M]. New York: Wiley.
[22]	Linard C, Gilbert M, Tatem A J.2011. Assessing the use of global land cover data for guiding large area population distribution modelling[J]. GeoJournal, 76(5): 525-538. doi: 10.1007/s10708-010-9364-8 pmid: 3617592
[23]	Yang X H, Huang Y H, Dong P L, et al.2009. An updating system for the gridded population database of China based on remote sensing, GIS and spatial database technologies[J]. Sensors, 9(2): 1128-1140. doi: 10.3390/s90201128 pmid: 22399959
[24]	Yang X H, Ma H Q.2009. Natural environment suitability of China and its relationship with population distributions[J]. International Journal of Environmental Research and Public Health, 6(12): 3025-3039. doi: 10.3390/ijerph6123025 pmid: 20049243
[25]	Zeng C Q, Zhou Y, Wang S X, et al.2011. Population spatialization in China based on night-time imagery and land use data[J]. International Journal of Remote Sensing, 32(24): 9599-9620. doi: 10.1080/01431161.2011.569581

数据名称	数据时相	数据类型	空间数据比例尺/分辨率	数据来源
县级人口统计数据	2010年	表格	/	2010年人口普查资料
县级GDP统计数据	2010年	表格	/	安徽省社会经济统计年鉴
县级行政边界数据	2010年	矢量	1:100万	中国科学院资源环境科学数据中心
河流、交通数据	2008年	矢量	1:100万	中国科学院资源环境科学数据中心
地貌数据	2009年	矢量	1:100万	中国科学院资源环境科学数据中心
ASTER-DEM	1999年	栅格	30 m	中国科学院资源环境科学数据中心
土地利用数据	2010年	栅格	1 km×1 km	中国科学院资源环境科学数据中心
DMSP/OLS(F182010)	2010年	栅格	1 km×1 km(重采样后)	http://www.ngdc.noaa.gov

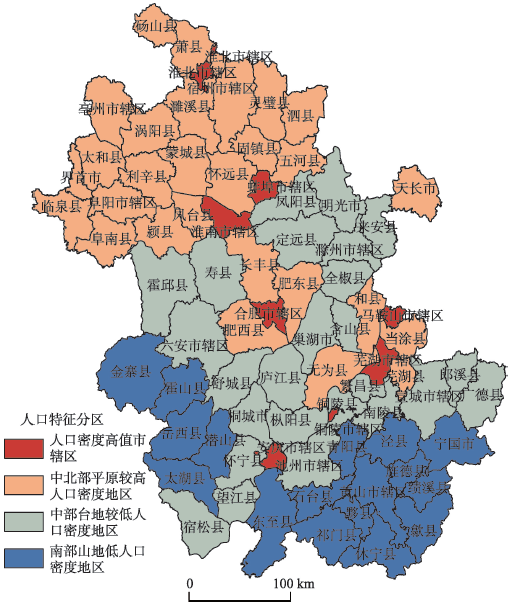

分区序号	分区名称	县(市、区)个数	人口密度/(人/km²)	GDP密度/(万元/km²)	河流密度/(km/km²)	坡度/°	高程/m	耕地面积比例/%	城镇建设用地面积比例/%
1	人口密度高值市辖区	8	2414	13506	1.02	3	28	48	30
2	中北部平原较高人口密度地区	28	531	783	0.98	2	23	78	15
3	中部台地较低人口密度地区	25	334	607	0.87	4	58	59	7
4	南部山地低人口密度地区	17	155	291	0.58	15	345	19	2

分区	基于多元统计回归方法的R²			Sig.	基于GWR方法的R²			Sig.
分区	1 km		5 km	Sig.	10 km	1 km	5 km	10 km
分区1	0.98	0.98	0.98	0.00	0.82	0.83	0.81	0.00
分区2	0.93	0.94	0.93	0.00
分区3	0.90	0.90	0.91	0.00
分区4	0.83	0.84	0.82	0.00

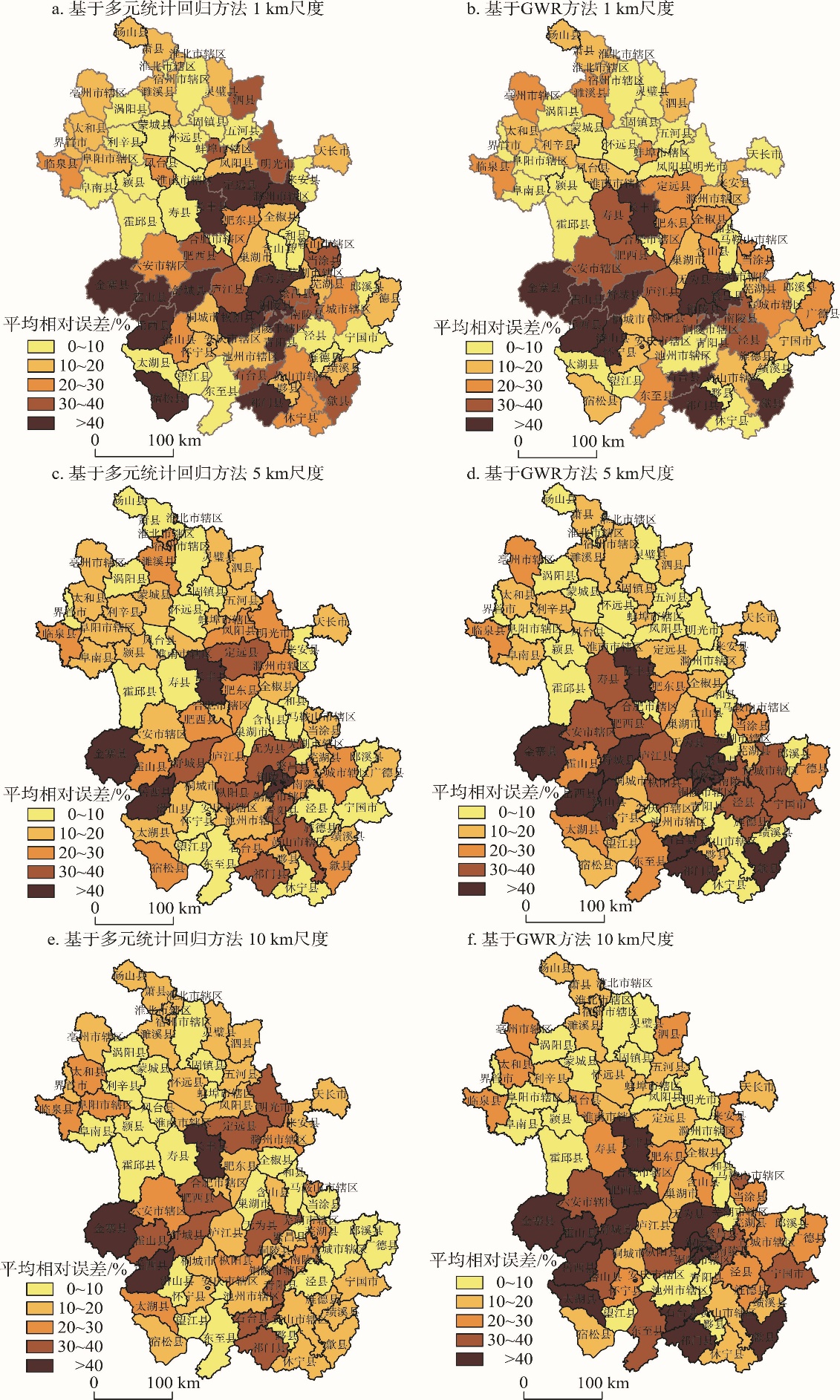

分区	基于多元统计回归方法的误差(RE)/%				基于GWR方法的误差(RE)/%
分区	1 km		5 km	10 km	1 km	5 km	10 km
分区1	18.52	17.15	14.51		17.71	12.00	18.09
分区2	19.94	19.40	22.10		16.89	16.43	18.30
分区3	27.20	26.57	20.27		24.02	24.18	22.18
分区4	29.46	29.92	29.67		30.86	34.55	35.86
全省均值	24.20	23.76	23.38		22.31	22.41	23.35

模型方法	尺度	误差范围/%	县个数	占总数比例/%
基于夜间灯光数据再分类的多元统计回归方法	1 km	<10	24	30.77
		10~20	21	26.92
		20~30	9	11.54
		>30	24	30.77
	5 km	<10	21	26.92
		10~20	24	30.77
		20~30	13	16.67
		>30	20	25.64
	10 km	<10	26	33.33
		10~20	22	28.21
		20~30	11	14.10
		>30	19	24.36
基于夜间灯光数据再分类的 GWR方法	1 km	<10	26	33.33
		10~20	19	24.36
		20~30	13	16.67
		>30	20	25.64
	5 km	<10	24	30.76
		10~20	22	28.21
		20~30	10	12.82
		>30	22	28.21
	10 km	<10	22	28.21
		10~20	19	24.36
		20~30	16	20.51
		>30	21	26.92
