基于陆路交通的丝绸之路经济带可达性与城市空间联系

doi:10.18306/dlkxjz.2015.06.001

Abstract

Abstract:

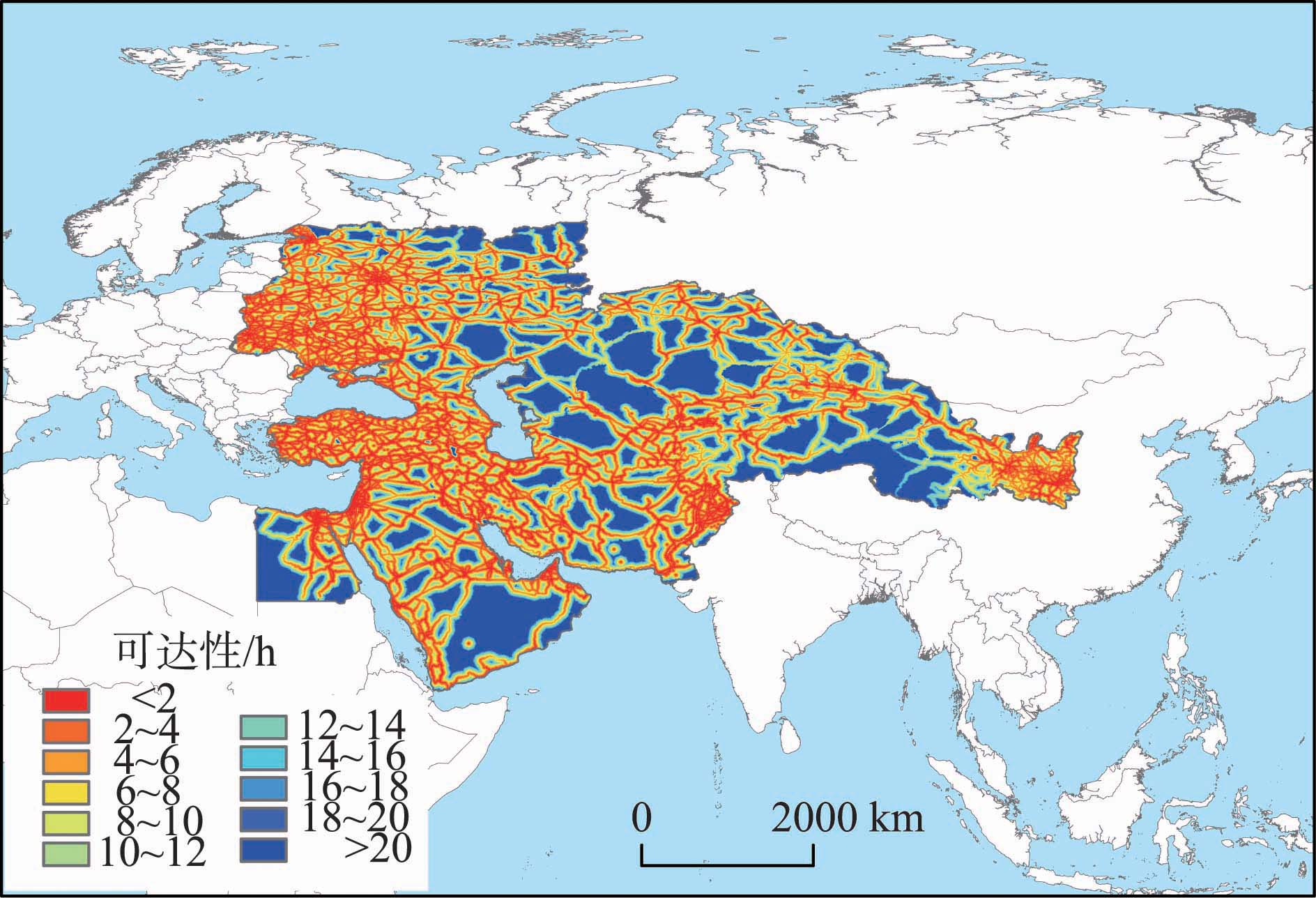

Analyzing accessibility and urban spatial connection of the Silk Road Economic Belt is the basis for implementing the strategy of the Silk Road Economic Belt and facilitating cooperation and achieving mutual benefits of the region along the economic belt. Based on GIS spatial analysis technology, the spatial pattern of raster grid accessibility for the Silk Road Economic Belt is studied and the states of urban spatial relation are simulated using land transportation network in this research. The result shows that the spatial distribution of urban accessibility in the Silk Road Economic Belt presents clear spatial characteristics of aggregated distribution along the main corridors. Average accessibility of urban nodes as measured by travel time is 16.25 hours, and the areas accessible within 2 hours occupies 10.6% of the total area. Most of the areas with the lowest accessibility are found in the margins of the deserts, with the worst accessibility of 171 hours. Xi'an as the gateway city connects the five provinces of Northwest China and other countries, regions, and cities of the Silk Road Economic Belt. The spatial connections of Central Asian countries within e national boundaries and with cities outside are relatively weak. The Silk Road Economic Belt is forming four main axes. In the future strategic development of the Silk Road Economic Belt, it should consider to implement a "point-axis" growth structure to drive the development of corridors and central cities (dense urban area).

Key words: land transportation, accessibility, urban spatial connection, the Silk Road Economic Belt

Xiaoshu CAO, Tao LI, Wenyue YANG, Xiaoyan HUANG, Jiangbin YIN, Yongwei LIU, Feiwen LIANG, Wulin WANG, Miaomiao WANG, Huiling CHEN, Baixian ZHANG. Accessibility and urban spatial connections of cities in the Silk Road Economic Belt based on land transportation[J].PROGRESS IN GEOGRAPHY, 2015, 34(6): 657-664.

Figures/Tables 8

Fig.1

Tab.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

References 17

1	董锁成, 黄永斌, 李泽红, 等. 2014. 丝绸之路经济带经济发展格局与区域经济一体化模式[J]. 资源科学, 36(12): 2451-2458.
	[Dong S C, Huang Y B, Li Z H, et al.2014. Economic development patterns and regional economic integration modes for the Silk Road Economic Zone[J]. Resources Science, 36(12): 2451-2458.]
2	冯朝阳. 2014. 新丝绸之路经济带城市规模与空间分布及其演化研究[J]. 新疆农垦经济, (6): 32-38.
	[Feng C Y.2014. Xin sichouzhilu jingjidai chengshi guimo yu kongjian fenbu jiqi yanhua yanjiu[J]. Xinjiang State Farms Economy, (6): 32-38.]
3	高新才, 杨芳. 2015. 丝绸之路经济带城市经济联系的时空变化分析: 基于城市流强度的视角[J]. 兰州大学学报: 社会科学版, 43(1): 9-18.
	[Gao X C, Yang F.2015. Analysis of temporal-spatial changes of urban economic ties on the Silk Road Economic Belt: from the perspective of urban flow intensity[J]. Journal of Lanzhou University: Social Sciences, 43(1): 9-18.]
4	顾朝林, 庞海峰. 2008. 基于重力模型的中国城市体系空间联系与层域划分[J]. 地理研究, 27(1): 1-12.
	[Gu C L, Pang H F.2008. Study on spatial relations of Chinese urban system: gravity model approach[J]. Geographical Research, 27(1): 1-12.]
5	郭爱君, 毛锦凰. 2014. 丝绸之路经济带: 优势产业空间差异与产业空间布局战略研究[J]. 兰州大学学报: 社会科学版, 42(1): 40-49.
	[Guo A J, Mao J H.2014. A strategic study on the spatial diversity and distribution of the competitive industries on the Silk Road Economic Belt[J]. Journal of Lanzhou University: Social Sciences, 42(1): 40-49.]
6	郭鹏, 董锁成, 李泽红, 等. 2014. 丝绸之路经济带旅游业格局与国际旅游合作模式研究[J]. 资源科学, 36(12): 2459-2467.
	[Guo P, Dong S C, Li Z H, et al.2014. Research on spatial distribution and international cooperation model of tourism industry in Silk Road[J]. Resources Science, 36(12): 2459-2467.]
7	胡鞍钢, 马伟, 鄢一龙. 2014. "丝绸之路经济带": 战略内涵、定位和实现路径[J]. 新疆师范大学学报: 哲学社会科学版, 35(2): 1-10.
	[Hu A G, Ma W, Yan Y L.2014. Connotation, definition and passage of "Silk-road Economic Belt" strategy[J]. Journal of Xinjiang Normal University: Edition of Philosophy and Social Sciences, 35(2): 1-10.]
8	贾百俊, 李建伟, 王旭红. 2012. 丝绸之路沿线城镇空间分布特征研究[J]. 人文地理, 27(2): 103-106.
	[Jia B J, Li J W, Wang X H.2012. A study on the spatial distribution characteristics of towns along the Silk Road[J]. Human Geography, 27(2): 103-106.]
9	李泽红, 王卷乐, 赵中平, 等. 2014. 丝绸之路经济带生态环境格局与生态文明建设模式[J]. 资源科学, 36(12): 2476-2482.
	[Li Z H, Wang J L, Zhao Z P, et al.2014. Eco-environment patterns and ecological civilization modes in the Silk Road Economic Zone[J]. Resources Science, 36(12): 2476-2482.]
10	潘竟虎, 从忆波. 2012. 中国4A级及以上旅游景点(区)空间可达性测度[J]. 地理科学, 32(11): 1321-1327.
	[Pan J H, Cong Y B.2012. Spatial accessibility of scenic spot at 4A level and above in China[J]. Scientia Geographica Sinica, 32(11): 1321-1327.]
11	冉淑青. 2015. 丝绸之路经济带城市群经济联系强度空间分异[J]. 淮阴工学院学报, 24(1): 54-59.
	[Ran S Q.2015. Spatial differentiation of economic relation intensity of city group on the Silk Road[J]. Journal of Huaiyin Institute of Technology, 24(1): 54-59.]
12	王姣娥, 王涵, 焦敬娟. 2015. "一带一路"与中国对外航空运输联系[J]. 地理科学进展, 34(5): 554-562.
	[Wang J E, Wang H, Jiao J J.2015. China's international aviation transport to the Belt and Road Initiative area[J]. Progress in Geography, 34(5): 554-562.].
13	王振波, 徐建刚, 朱传耿, 等. 2010. 中国县域可达性区域划分及其与人口分布的关系[J]. 地理学报, 65(4): 416-426.
	[Wang Z B, Xu J G, Zhu C G, et al.2010. The county accessibility divisions in china and its correlation with population distribution[J]. Acta Geographica Sinica, 65(4): 416-426.]
14	于会录, 董锁成, 李宇, 等. 2014. 丝绸之路经济带资源格局与合作开发模式研究[J]. 资源科学, 36(12): 2468-2475.
	[Yu H L, Dong S C, Li Y, et al.2014. Resource cooperation development modes in the Silk Road Economic Zone based on resource distribution patterns[J]. Resources Science, 36(12): 2468-2475.]
15	袁丹, 雷宏振. 2014. 丝绸之路经济带经济联系与协调发展的社会网络分析[J]. 云南财经大学学报, (4): 61-67.
	[Yuan D, Lei H Z.2014. Analysis on the social network of the economic ties and the coordinated development of the Silk Road Economic Belt[J]. Journal of Yunnan University of Finance and Economics, (4): 61-67.]
16	中国科学院地理科学与资源研究所课题组. 2014. 丝绸之路经济带可持续发展模式探析[J]. 中国国情国力, (10): 24-26.
	[Research Group of Institute of Geographic Sciences and Natural Resources Research.2014. Sichouzhilu jingjidai kechixufazhan moshi tanxi[J]. China National Conditions and Strength, (10): 24-26.]
17	Rykov P V, Zehong L.2015. Development of urban agglomerations of the Republic of Kazakhstan in conditions of the formation of the New Silk Road[J]. Journal of Resources and Ecology, 6(2): 101-105.

空间对象	陆地	水域	铁路	高速公路	国道	省道	干线公路	地方公路	汽车轮渡
速度/(km/h)	5	1	90	100	80	60	100	50	35
时间成本/min	12	60	0.67	0.6	0.75	1	0.6	1.2	1.71
