基于MODIS影像的土地覆被分类研究——以京津冀地区为例

doi:10.11820/dlkxjz.2014.09.012

Abstract

Abstract:

With intensifying human activities global ecological and environmental problems have become increasingly pressing. Therefore the study of global change has become more prominent. Obtaining accurate land cover information in a timely fashion is critically important for such research. With the development of remote sensing science and technology and application, numerous studies have the issue of land cover classification using remote sensing image. In this study, the Beijing-Tianjin-Hebei region was selected as a study area for land cover classification using MODIS data. The 16-day MOD13Q1/EVI data in 2013, MOD09Q1 (Band1, 2) and MOD09A1(Band3-7) products in May 2013 were used as the basic data. Harmonic analysis method was employed to remove clouds and noises of the whole year's EVI, so that it can better reflect plant phenology. Then, the processed MOD13Q1/EVI data, surface albedo of MODIS/Ref1-7, modified normalized difference water index (MNDWI), normalized difference soil brightness index (NDSI), and normalized difference water index (NDWI) were integrated to construct three schemes of CART decision tree to investigate the land cover classification of the Beijing-Tianjin-Hebei region. The three band combinations are scheme1: 23 phases of EVI of 2013; scheme2: 23 phases of EVI of 2013 plus B1-B7 of MOD09; and scheme3: scheme2+MNDWI+NDSI+NDWI. The results show that the overall classification accuracy of the three schemes reaches 86.70%, 89.98%, and 89.98% respectively. Their Kappa coefficients are 84.94%, 88.66%, and 90.20% respectively. Therefore, MODIS images with various classification characteristics, combined with the decision trees can achieve higher precision land cover classification. This proves the feasibility of the proposed method for land cover classification at the regional scale.

Key words: land cover, classification, MODIS images, harmonics analysis, CART decision tree, classification feature combination, Beijing-Tianjin-Hebei region

CLC Number:

TP79

Yushan ZUO, Wei WANG, Yanli HAO, Hong LIU. Land cover classification based on MODIS images: taking the Beijing-Tianjin-Hebei region as an example[J].PROGRESS IN GEOGRAPHY, 2014, 33(11): 1556-1565.

Figures/Tables 10

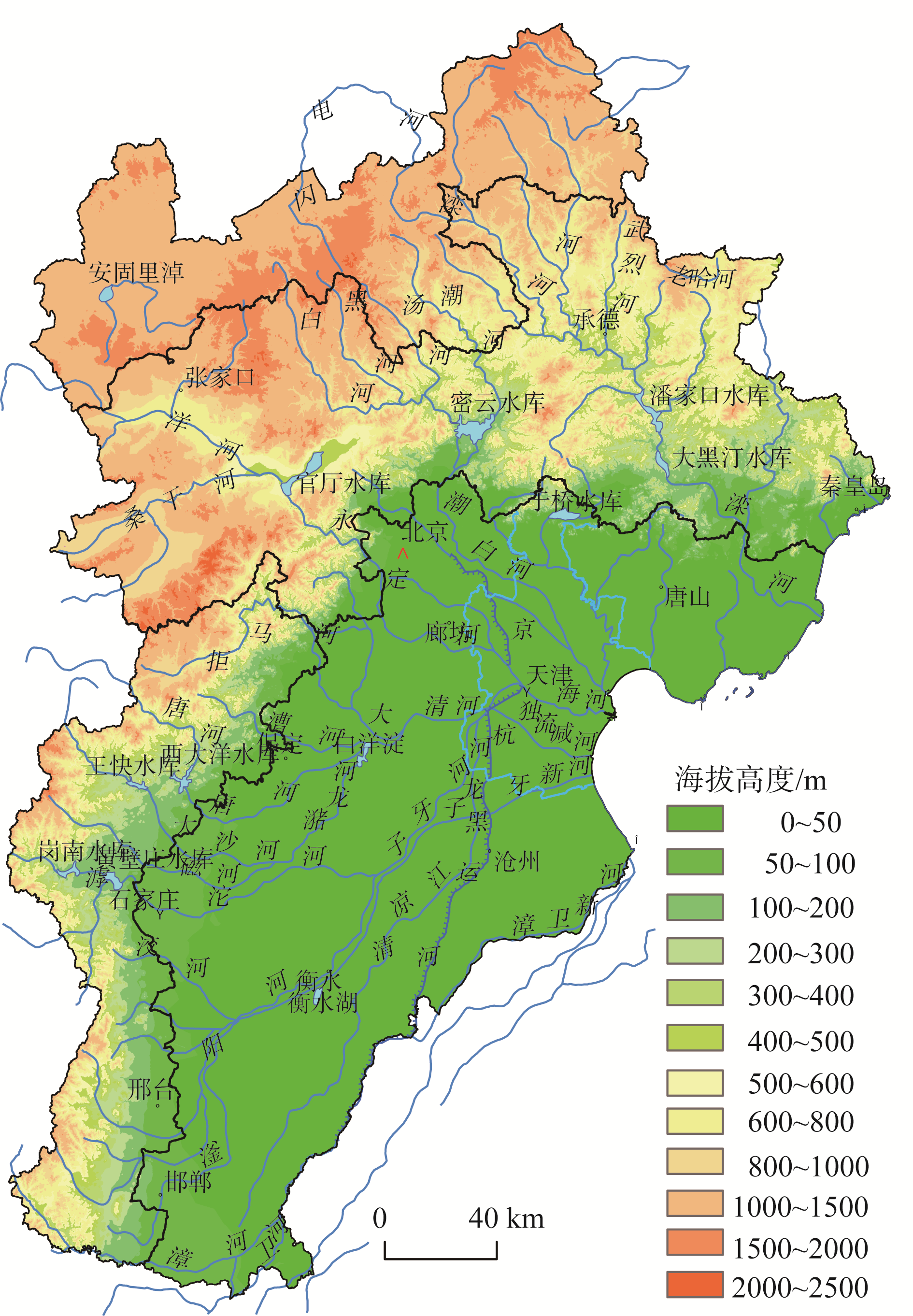

Fig. 1

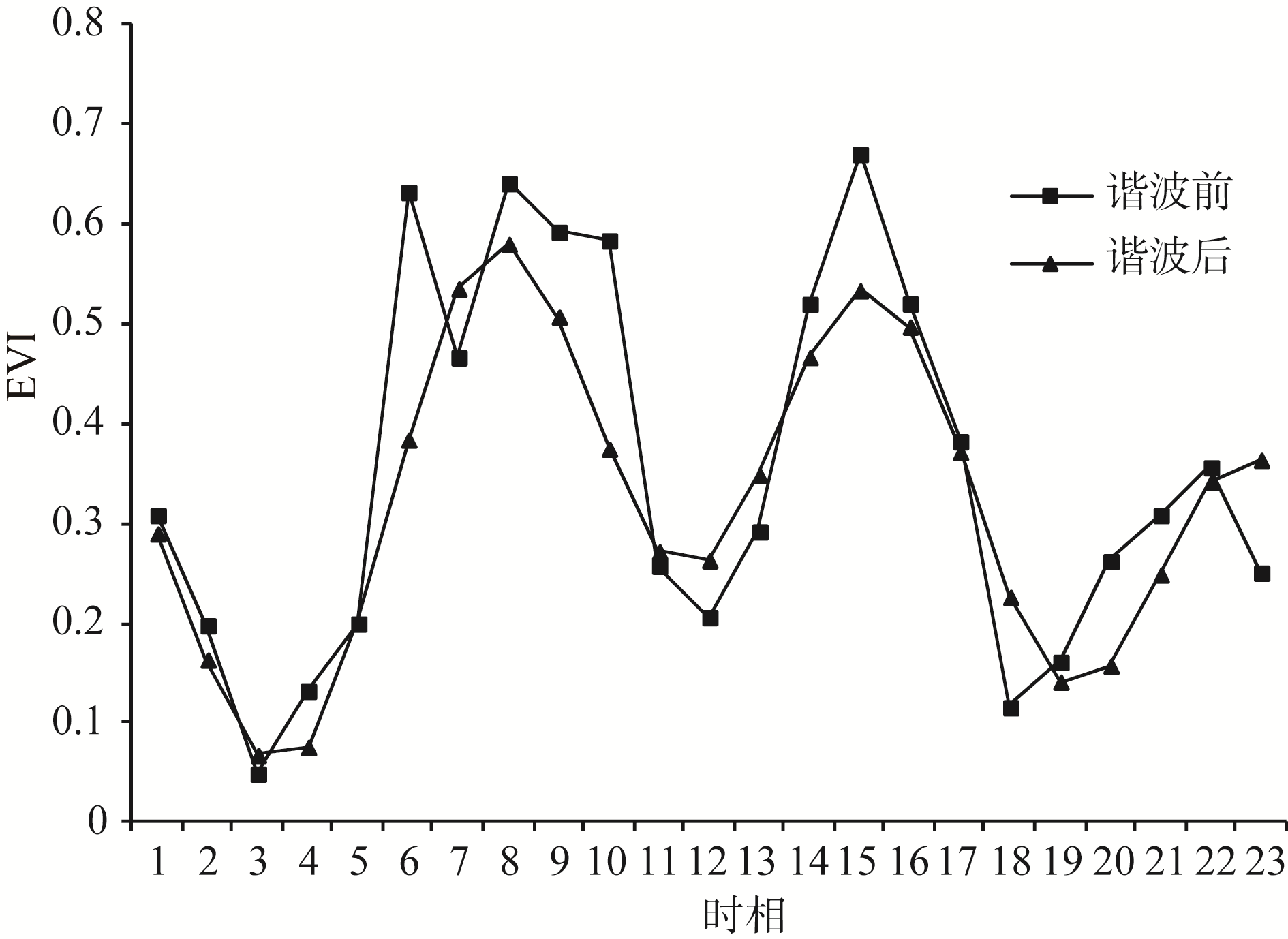

Fig. 2

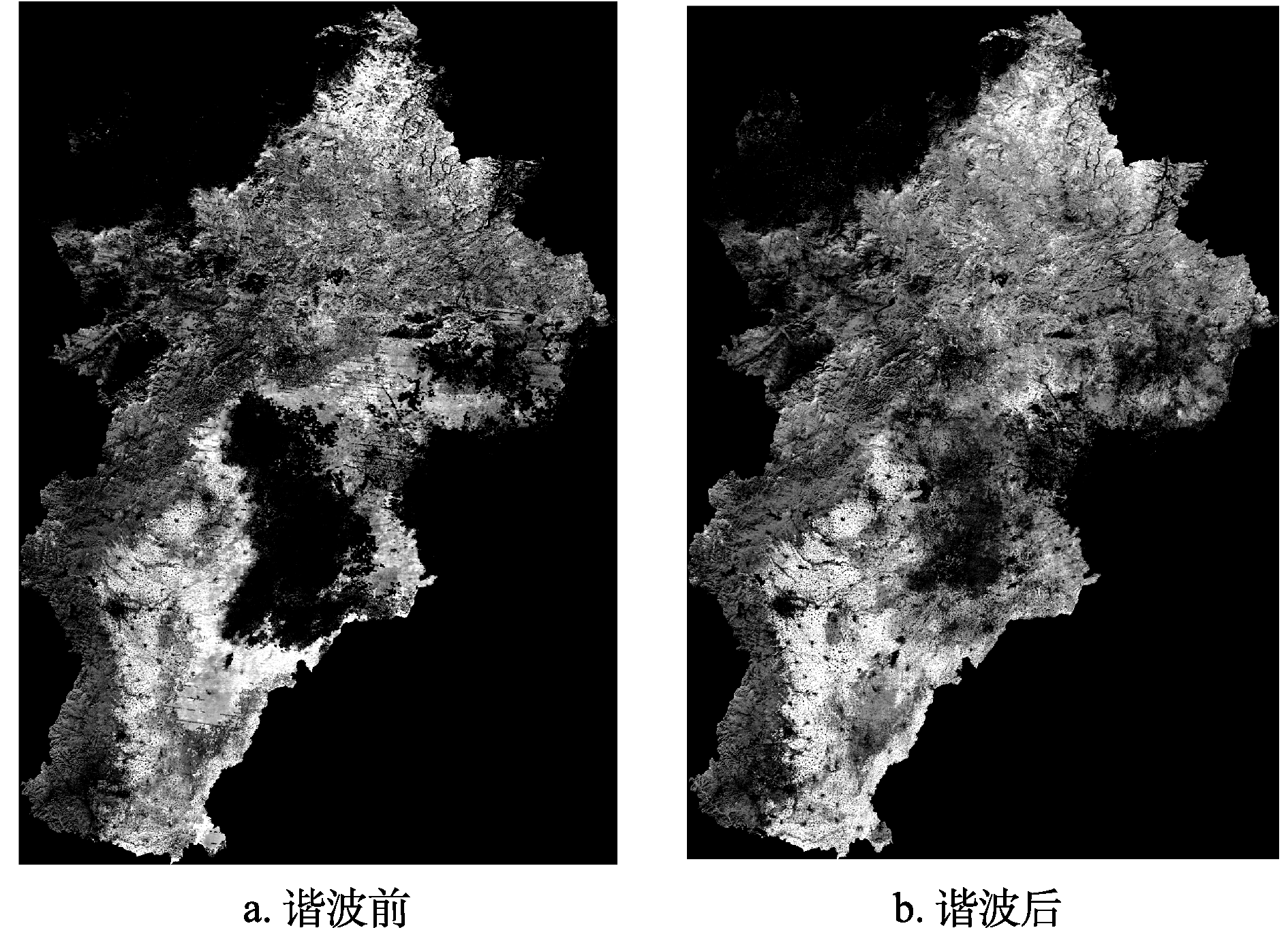

Fig. 3

Tab. 1

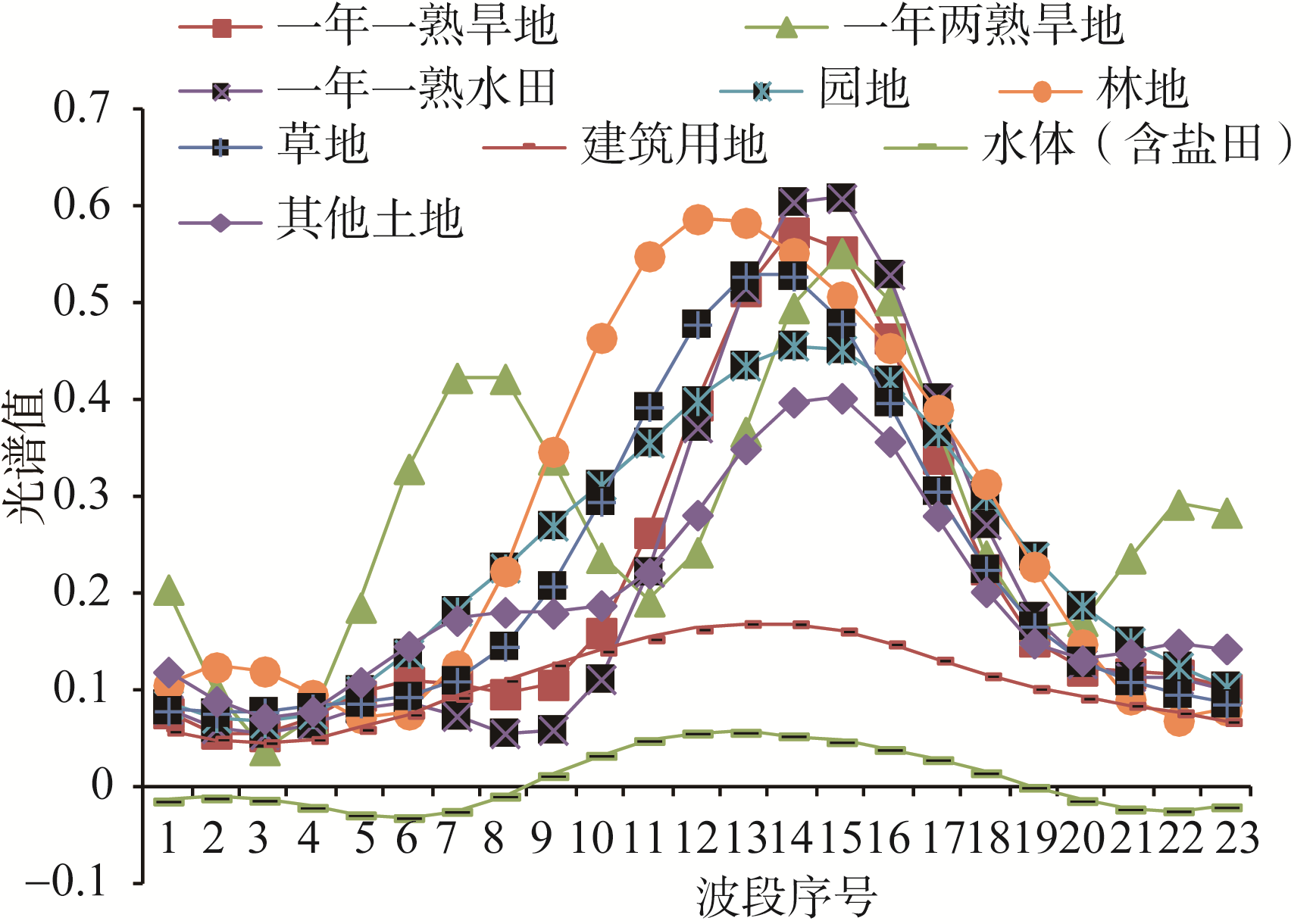

Fig. 4

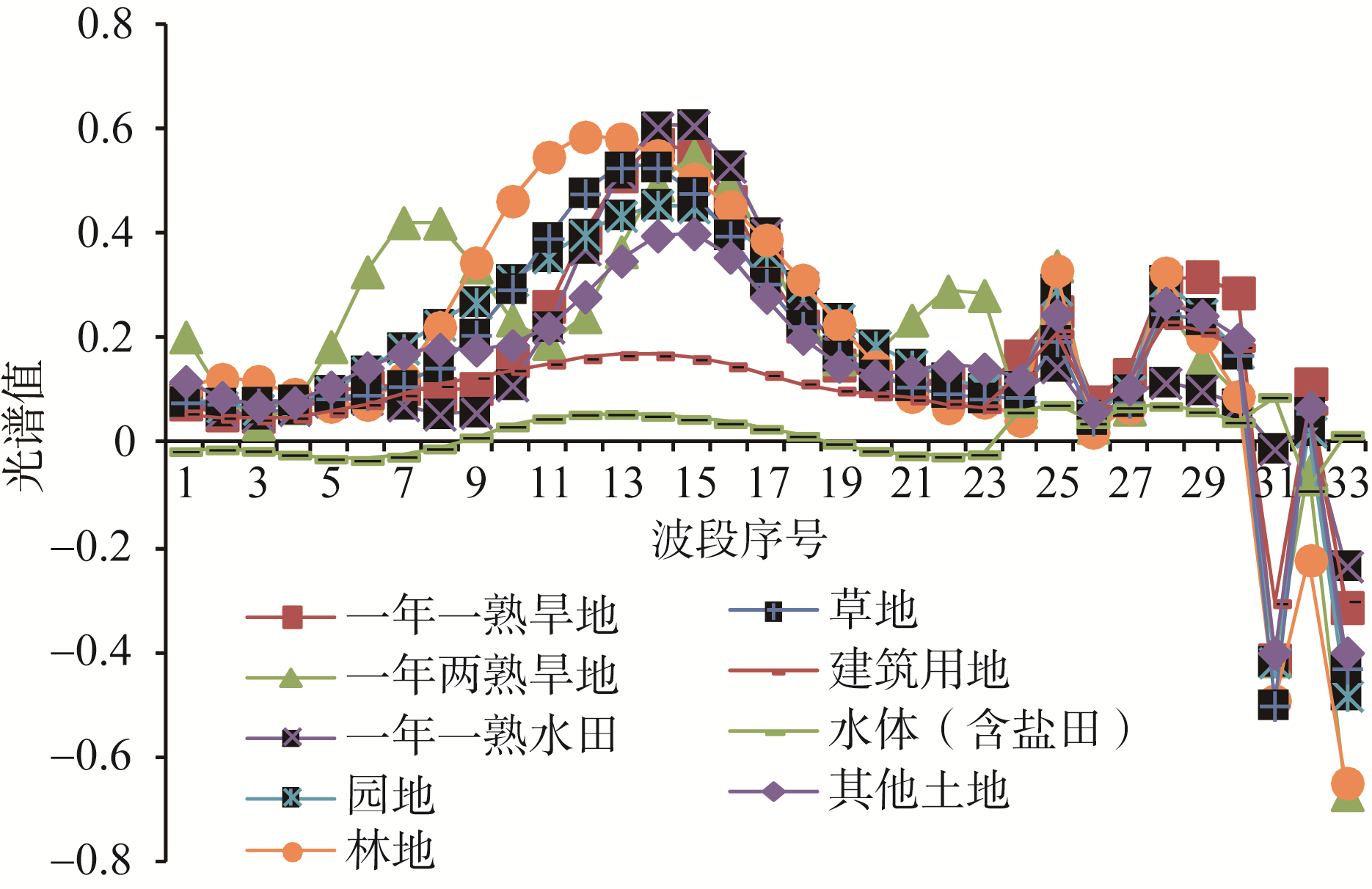

Fig. 5

Tab. 2

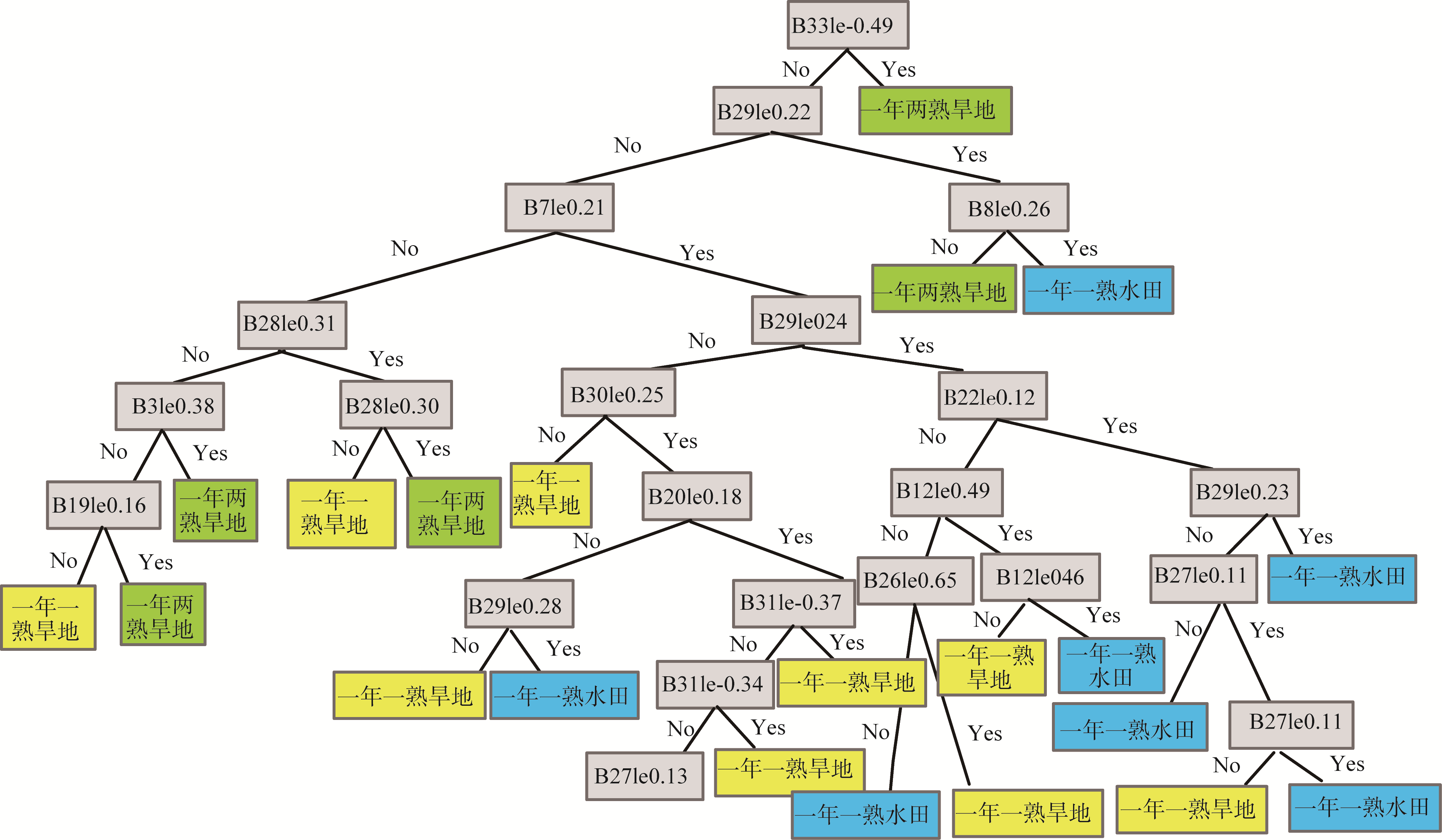

Fig. 6

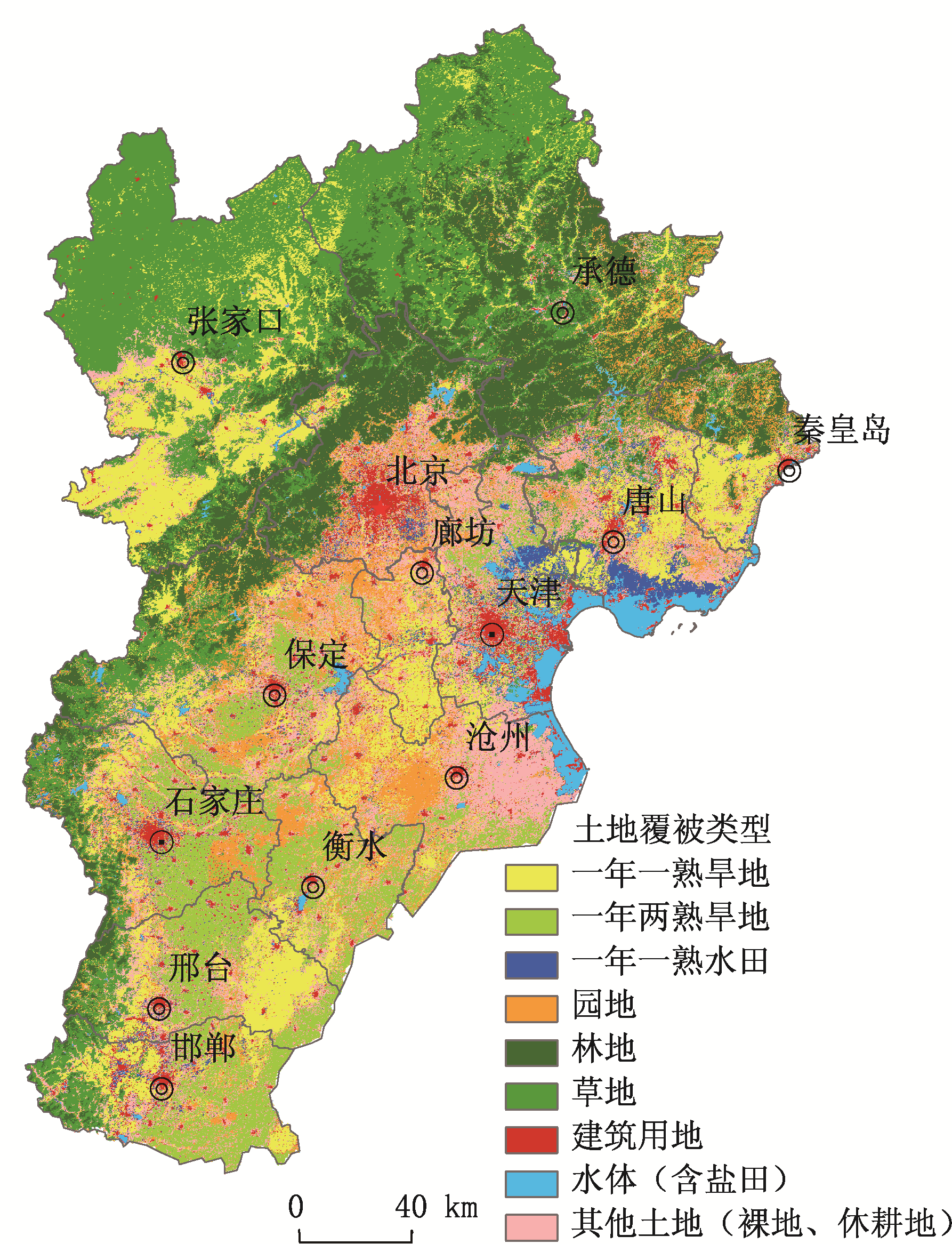

Fig. 7

Tab. 3

References 35

[1]	陈云, 戴锦芳, 李俊杰. 2008. 基于影像多特征的CART决策树分类方法及其应用. 地理与地理信息科学, 24(2): 33-36.
	Chen Y, Dai J F, Li J J.2008. CART-based decision tree classifier using multi-feature of image and its application. Geography and Geo-Information Science, 24(2): 33-36.
[2]	金卫斌, 熊勤学, 薛莲. 2011. 基于MODIS-EVI时序数据的江汉平原四湖地区土地覆被动态分析. 湖北农业科学, 50(11): 2220-2224.
	Jin W B, Xiong Q X, Xue L.2011. Dynamic analysis of the land cover in Four-Lake area in Jianghan Plain based on MODIS-EVI time-series data. Hubei Agricultural Sciences, 50(11): 2220-2224.
[3]	孔凡明, 蒋卫国, 李京, 等. 2013. 基于MODIS的2011年泰国洪涝受灾信息提取与分析. 灾害学, 28(2): 95-99.
	Kong F M, Jiang W G, Li J, et al.2013. Extraction and analysis of Thailand flood affected region in 2011 based on MODIS data. Journal of Catastrophology, 28(2): 95-99.
[4]	李红军, 郑力, 雷玉平. 2007. 基于EOS/MODIS数据的NDVI与EVI比较研究. 地理科学进展, 26(1): 26-32.
	Li H J, Zheng L, Lei Y P.2007. Comparison of NDVI and EVI based on EOS/MODIS data. Progress Progress in Geography, 26(1): 26-32.
[5]	李淼.2007. 基于支持向量机的MODIS数据土地覆被分类研究[D]. 阜新: 辽宁工程大学.
	Li M.2007. Land cover classification with SVM applied to MODIS imagery[D]. Fuxin, China: Liaoning Technical University.
[6]	李文梅, 覃志豪, 杨强. 2010. MODIS NDVI 与MODIS EVI 的比较分析. 遥感信息, (6): 73-78.
	Li W M, Tan Z H, Yang Q.2010. Comparison and analysis of MODIS NDVI and MODIS EVI. Remote Sensing Information, (6): 73-78.
[7]	刘爱霞, 王静, 吕春艳. 2006. 基于MODIS数据的北京西北部地区土地覆被分类研究. 地理科学进展, 25(2): 96-102.
	Liu A X, Wang J, Lv C Y.2006. Land cover classification based on MODIS data in area to the north-west of Beijing. Progress in Geography, 25(2): 96-102.
[8]	刘建光, 李红, 孙丹峰, 等. 2010. MODIS土地利用/土地覆被多时相多光谱决策树分类. 农业工程学报, 26(10): 312-318.
	Liu J G, Li H, Sun D F, et al.2010. Land use/cover decision tree classification fusing multi-temporal and multi-spectral of MODIS. Transactions of the CSAE, 26(10): 312-318.
[9]	刘纪远.1996. 中国资源遥感宏观调查与动态研究. 北京: 中国科学技术出版社.
	LIU J Y.1996. Zhongguo ziyuan yaogan hongguan diaocha yu dongtai yanjiu. Beijing, China:China Science and Technology Press .
[10]	刘勇洪, 牛铮. 2004. 基于MODIS遥感数据的宏观土地覆被特征分类方法与精度分析研究. 遥感技术与应用, 19(4): 217-224.
	Liu Y H, Niu Z.2004. Regional land cover image classification and accuracy evaluation using MODIS data. Remote Sensing Technology and Application, 19(4): 217-224.
[11]	刘勇洪, 牛铮, 徐永明, 等. 2006. 基于MODIS数据设计的中国土地覆被分类系统与应用研究. 农业工程学报, 22(5): 99-105.
	Liu Y H, Niu Z, Xu Y M, et al.2006. Design of land cover classification system for China and its application research based on MODIS data. Transactions of the CSAE, 22(5): 99-105.
[12]	马娜, 胡云峰, 庄大方, 等. 2010. 基于最佳波段指数和JM距离可分性的高光谱数据最佳波段组合选取研究. 遥感技术与应用, 25(3): 358-365.
	Ma N, Hu Y F, Zhuang D F, et al.2010. Determination on the optimum band combination of HJ-1A hyperspectral data in the case region of Dongguan based on optimum index factor and J-M distance. Remote Sensing Technology and Application, 25(3): 358-365.
[13]	马少平, 朱小燕. 2004. 人工智能. 北京: 清华大学出版社.
	Ma S P, Zhu X Y.2004. Rengong zhineng. Beijing, China: Tsinghua University Press.
[14]	那晓东, 张树清, 李晓峰, 等. 2007. MODIS NDVI时间序列在三江平原湿地植被信息提取中的应用. 湿地科学, 5(3): 227-236.
	Na X D, Zhang S Q, Li X F, et al.2007. Application of MODS NDVI time series to extracting wetland vegetation information in the Sanjiang Plain. Wetland Science, 5(3): 227-236.
[15]	申文明, 王文杰, 罗江海, 等. 2007. 基于决策树分类技术的遥感影像分类方法研究. 遥感技术与应用, 22(3): 333-338.
	Shen W M, Wang W J, Luo J H, et al.2007. Classification methods of remote sensing image based on decision tree technologies. Remote Sensing Technology and Application, 22(3): 333-338.
[16]	王大鹏, 王周龙, 李德一, 等. 2007. 综合非光谱信息的荒漠化土地CART分类. 遥感学报, 11(4): 487-492.
	Wang D P, Wang Z L, Li D Y, et al.2007. The extraction of desertification information using CART under knowledge guide. Journal of Remote Sensing, 11(4): 487-492.
[17]	魏强.2009. 基于MODIS和TM数据的京津冀地区土地覆被分类方法研究[D]. 石家庄: 河北师范大学
	Wei Q.2009. Research on land cover classification method of Beijing-Tianjin-Heibei region using MODIS and TM data[D]. Shijiazhuang, China: Hebei Normal University.
[18]	徐涵秋.2005. 利用改进的归一化差异水体指数(MNDWI)提取水体信息的研究. 遥感学报, 9(5): 589-595.
	Xu H Q.2005. A study on information extraction of water body with the modified normalized difference water index (MNDWI). Journal of Remote Sensing, 9(5): 589-595.
[19]	延昊.2002. 中国土地覆被变化与环境影响遥感研究[D]. 北京: 中国科学院遥感应用研究所.
	Yan H.2002. Remote sensing study of land cover change and its environmental in China[D]. Beijing, China: Institute of Remote Sensing Applications, CAS.
[20]	岳瑞红.2010. 基于MODIS数据的蒙古高原土地覆被分类研究[D]. 呼和浩特: 内蒙古师范大学.
	Yue R H.2010. Research on land cover classification in Mongolian Plateau based on MODIS data[D]. Hohhot, China: Inner Mongolia Normal University.
[21]	张会, 闫金凤. 2013. 基于MODIS影像多特征的CART决策树分类. 地理空间信息, 11(2): 111-113.
	Zhang H, Yan J F.2013. CART decision tree classifier based on multi-feature of MODIS data. Geospatial Information, 11(2): 111-113.
[22]	张楠楠, 王文, 王胤. 2012. 鄱阳湖面积的卫星遥感估计及其与水位关系分析. 遥感技术与应用, 27(6): 947-953.
	Zhang N N, Wang W, Wang Y.2012. Estimate the area of the Poyang Lake using statellite remote sensing data and analyze its relationship with water level. Remote Sensing Technology and Application, 27(6): 947-953.
[23]	赵萍, 傅云飞, 郑刘根, 等. 2005. 基于分类回归树分析的遥感影像土地利用/覆被分类研究. 遥感学报, 9(6): 708-716.
	Zhao P, Fu Y F, Zheng L G, et al.2005. Cart-based land use/cover classification of remote sensing images. Journal of Remote Sensing, 9(6): 708-716.
[24]	赵英时.2001. 美国中西部沙山地区环境变化的遥感研究. 地理研究, 20(2): 213-219.
	Zhao Y S.2001. A study on environmental change analysis in Sand Hill of Nebraska using remote sensing. Geographical Research, 20(2): 213-219.
[25]	赵英时.2003. 遥感应用分析原理与方法. 北京: 科学出版社.
	Zhao Y S.2003. Yaogan yingyong fenxi yuanli yu fangfa. Beijing, China: Science Press.
[26]	Chen Y, Huang C, Ticehurst C, et al.2013. An evaluation of MODIs daily and 8-day composite products for floodplain and wetland inundation mapping. Wetlands, 33(5): 823-835.
[27]	DeFries R S, Hansen M, Towsend J G R, et al.1998. Global land coverclassification at 8 km spatial resolution: the use of training data from landsat imagery in decision tree classifies. International Journal of Remote Sensing, 19(6): 3141-3168.
[28]	Friedl M A, McIver D K, Hodges J C F.2002. Global land cover mapping from MODIS: algorithms and early results. Remote Sensing of Environment, 83: 287-302.
[29]	Gopal S, Woodcock C E, Strahler A H.1999. Fuzzy neural network classification of global land cover from a 1°AVHRR data set. Remote Sensing of Environment, 67(2): 230-243.
[30]	Julien Y, Sobrino J A, Verhoef W.2006. Changes in land surface temperatures and NDVI values over Europe between 1982 and 1999. Remote Sensing of Environment, 103(1): 43-55.
[31]	Mackin K J, Nunohiro E, Ohshiro M, et al.2006. Land cover classification from MODIS satellite data using probabilisti-cally optimal ensemble of artificial neural networks. Lecture Notes in Computer Science, 4253: 820-826.
[32]	Muchoney D, Borak J.2000. Application of the MODIS global supervised classification refel to vegetation and land cover mapping of central America. International Journal of Remote Sensing, 21: 1115-1138.
[33]	Price J C.2003. Compare MODIS and ETM+ data for regional and global land classification. Remote Sensing of Environment, 86(4): 491-499.
[34]	Roerink G J, Menen M, Verhoef W.2000. Reconstructing cloudfree NDVI composites using Fourier analysis of time series. International Journal of Remote Sensing, 21(9): 1911-1917.
[35]	Vogelmann J E, Sohl T L, Campbell P V.1998. Regional characterization of land cover using multiple sources of data. Photogrammetric Engineering and Remote Sensing, 64(1): 45-57.

土地覆被类型	含义	样区数	样本数
一年一熟旱地	指一年收获一季,种植旱生农作物的耕地	26	1522
一年两熟旱地	指一年收获二季,种植旱生农作物的耕地	22	1269
一年一熟水田	指一年收获一季,用于种植水稻等水生农作物的耕地	28	1116
园地	人工种植的经济林地	25	1011
林地	指生长乔木、灌丛为主的土地	23	1558
草地	指生长草本植物为主的土地	20	1379
建筑用地	指居民点、交通、工矿用地	20	1550
水体	指陆地水域、海涂（含盐田）等用地	35	1433
其他土地	指上述地类以外的其他类型土地,主要包括裸地和休耕地	26	1289
合计			12127

类对	分类特征组合
	方案一		方案二		方案三

一年一熟旱地_一年一熟水田	1.2935	1.4901	1.9907	1.9999	1.9997	2.0000
一年一熟旱地_园地	1.8468	1.9921	1.9921	2.0000	1.9998	2.0000
一年一熟旱地_草地	1.7404	1.9577	1.9588	1.9996	1.9947	2.0000
一年一熟旱地_其他	1.8405	1.9401	1.9704	1.9989	1.9978	2.0000
一年一熟水田_草地	1.8810	1.9811	1.9980	1.9999	1.9999	2.0000
园地_其他	1.8783	1.9734	1.9748	1.9989	1.9921	2.0000
林地_草地	1.7494	1.9390	1.9953	1.9999	1.9994	2.0000
草地_其他	1.8119	1.9941	1.9658	1.9999	1.9880	2.0000
建筑用地_水体(含盐田)	1.8176	1.9993	1.9979	1.9999	1.9999	2.0000
水体(含盐田)_其他	1.8593	1.9999	1.9999	2.0000	2.0000	2.0000

类别	不同分类特征组合方案下的分类精度/%
	方案一			方案二			方案三
	制图精度		用户精度		制图精度	用户精度	制图精度	用户精度
一年一熟旱地	87.22	87.76		94.23	94.81		93.81	90.10
一年两熟旱地	85.06	92.82		87.34	96.37		94.94	96.65
一年一熟水田	90.33	73.28		96.98	76.61		91.24	75.88
园地	98.08	88.99		92.01	93.51		95.53	85.43
林地	77.60	94.27		95.68	92.06		94.89	95.45
草地	77.13	76.97		76.30	90.62		81.70	97.28
建筑用地	87.24	95.64		86.82	93.47		88.28	96.57
水体（含盐田）	87.79	96.86		88.74	98.49		88.33	99.69
其他土地	93.82	75.79		94.01	76.76		96.25	82.64
Kappa系数	84.94		88.66			90.20
总体分类精度	86.70		89.98			91.34
