1979—2017年冬半年京津冀区域大风的变化及其环流背景分析

doi:10.18306/dlkxjz.2019.07.011

地理科学进展 ›› 2019, Vol. 38 ›› Issue (7): 1069-1079.doi: 10.18306/dlkxjz.2019.07.011

1979—2017年冬半年京津冀区域大风的变化及其环流背景分析

石晓雪^1,²(), 龚道溢^1,^2,^*(), 胡毅鸿^1,²

1. 北京师范大学地理科学学部/应急管理部-教育部减灾与应急管理研究院,北京 100875
2. 北京师范大学地理科学学部/地表过程与资源生态国家重点实验室,北京 100875

收稿日期:2019-03-15 修回日期:2019-04-08 出版日期:2019-07-28 发布日期:2019-07-28
通讯作者: 龚道溢
作者简介:石晓雪(1994— ),女,黑龙江海伦人,硕士生,主要从事气候变化研究。E-mail: <email>sxx1020@mail.bnu.edu.cn</email>
基金资助:
国家自然科学基金项目(41621061)

Regional strong winter wind events over Beijing-Tianjin-Hebei and the associated atmospheric circulation changes during 1979-2017

Xiaoxue SHI^1,²(), Daoyi GONG^1,^2,^*(), Yihong HU^1,²

1. Academy of Disaster Reduction and Emergency Management, Ministry of Emergency Management and Ministry of Education, Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China
2. State Key Laboratory of Earth Surface Processes and Resource Ecology, Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China

Received:2019-03-15 Revised:2019-04-08 Online:2019-07-28 Published:2019-07-28
Contact: Daoyi GONG
Supported by:
National Natural Science Foundation of China, No. 41621061.

摘要/Abstract

摘要：

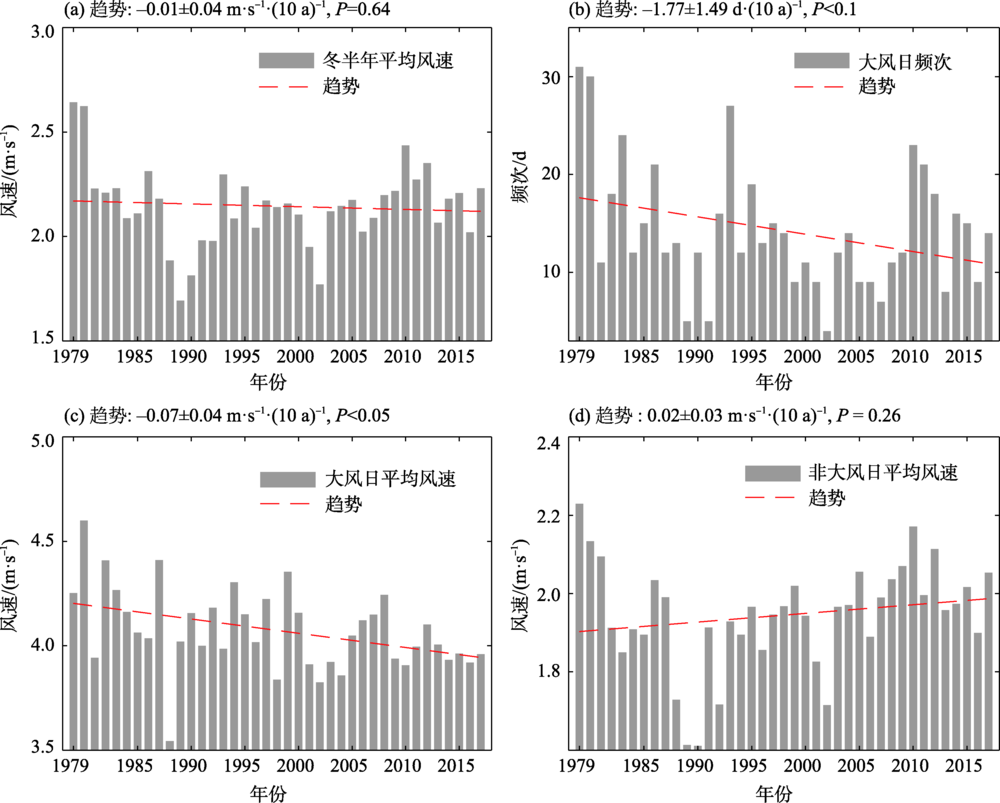

利用1979—2017年冬半年(从11月至次年3月)站点的日平均风速和ERA-Interim再分析资料,分析了京津冀冬半年区域大风的变化及其环流背景。结果表明,研究时段共计有556次区域性大风日,风向以偏北风为主(约占90%)。近40 a资料显示：区域性大风日频次在显著减少,线性趋势达-1.77 d·(10 a)^-1 (P<0.1);同时大风平均风速也在减弱[-0.07 m·s^-1·(10 a)^-1,P<0.05]。同期北半球大气环流的异常显示,东亚西风急流强度偏强时大风日频次易偏多;同时,大风日频次的变化与北半球对流层中低层大尺度的环流异常存在明显相关,北大西洋和欧亚大陆存在多个显著异常中心,其中北大西洋地区南北向的偶极子型异常与大风日频次及风速的相关系数均接近0.30(P<0.1)。表明京津冀区域性大风的变化,不仅与东亚地区大气环流有关,还可能受上游地区环流及北半球大尺度环流的影响。这对理解风速逐渐减小的原因具有重要的参考价值。

关键词: 区域性大风日频次, 东亚西风急流, 北半球大气环流, 京津冀

Abstract:

In this study, the variability of the strong wind events in the Beijing-Tianjin-Hebei (BTH) region during the period 1979 to 2017 and its relationship with atmospheric circulation were analyzed, by employing the daily average wind speed records from the meteorological stations and the ERA-Interim reanalysis data. The analysis boreal winter months cover November to March of the following year. During 1979-2017, there were 556 strong wind events, and nearly 90% of them were dominated by northerly winds. The frequency of strong wind events has decreased significantly at a rate of -1.77 d·(10 a)^-1 (P<0.1), and the mean wind speed for these events has weakened with a trend of -0.07 m·s^-1·(10 a)^-1 (P<0.05). The regional and hemispheric atmospheric circulation anomalies were also analyzed. It was found that the East Asian westerly jet has a significant positive correlation with the frequency of strong wind events. The North Atlantic region has a negative-positive stratospheric circulation anomaly distribution in the north-south direction, and its correlation coefficients with both the frequency and mean wind speed of strong wind events are close to 0.30. These analyses suggest that the wind variability in northern China is related to the regional atmospheric circulation over East Asia, the large-scale circulation in the northern hemisphere, and the upstream circulation in the North Atlantic

Key words: regional strong wind events, East Asian westerly jet stream, atmospheric circulation in the northern hemisphere, Beijing-Tianjin-Hebei region

石晓雪, 龚道溢, 胡毅鸿. 1979—2017年冬半年京津冀区域大风的变化及其环流背景分析[J]. 地理科学进展, 2019, 38(7): 1069-1079.

Xiaoxue SHI, Daoyi GONG, Yihong HU. Regional strong winter wind events over Beijing-Tianjin-Hebei and the associated atmospheric circulation changes during 1979-2017[J]. PROGRESS IN GEOGRAPHY, 2019, 38(7): 1069-1079.

图/表 12

图1

图2

图3

图4

表1

图5

表2

图6

图7

图8

表3

图9

参考文献 36

[1]	龚强, 汪宏宇, 朱玲, 等. 2015. 辽宁省近地层风切变特征研究[J]. 自然资源学报, 30(9): 1560-1569.
	[Gong Q, Wang H Y, Zhu L, et al.2015. Study on the near surface wind shear characteristics in Liaoning Province. Journal of Natural Resources, 30(9): 1560-1569. ]
[2]	胡毅鸿, 龚道溢, 毛睿, 等. 2019. 中国北方农牧交错带春季风速的年际变化与冬季海温的关系[J]. 地理科学进展, 38(5): 709-717.
	[Hu Y H, Gong D Y, Mao R, et al.2019. Relationships between interannual variations of spring winds in the agro-pastoral transitional zone of Northern China and winter sea surface temperature. Progress in Geography, 38(5): 709-717. ]
[3]	孔锋, 李颖, 王一飞, 等. 2017. 1961—2016年中国近地表大风日数时空分异特征研究[J]. 安徽农业科学, 45(31): 188-196.
	[Kong F, Li Y, Wang Y F, et al.2017. Spatial and temporal variation characteristics of near-surface gale days in China from 1961 to 2016. Journal of Anhui Agricultural Sciences, 45(31): 188-196. ]
[4]	李耀辉, 张存杰, 高学杰. 2004. 西北地区大风日数的时空分布特征[J]. 中国沙漠, 24(6): 715-723.
	[Li Y H, Zhang C J, Gao X J.2004. Temporal and spatial characteristics of gale weather over Northwest China. Journal of Desert Research, 24(6): 715-723. ]
[5]	史培军, 张钢锋, 孔锋, 等. 2015. 中国1961—2012年风速变化区划[J]. 气候变化研究进展, 11(6): 387-394. doi: 10.3969/j.issn.1673-1719.2015.06.002
	[Shi P J, Zhang G F, Kong F, et al.2015. Wind speed chang regionalization in China in 1961-2012. Climate Change Research, 11(6): 387-394. ] doi: 10.3969/j.issn.1673-1719.2015.06.002
[6]	孙照渤, 刘华, 倪东鸿. 2017. 中国华北地区冬季降水异常特征及其与大气环流和海温的关系[J]. 大气科学学报, 40(5): 577-586.
	[Sun Z B, Liu H, Ni D H.2017. Characteristics of North China winter precipitation anomaly and its relationship with atmospheric circulation and SST. Transactions of Atmospheric, 40(5): 577-586. ]
[7]	吴息, 吴文倩, 王彬滨. 2016. 城市化对近地层风速概率分布及参数的影响[J]. 气象学报, 74(4): 623-632.
	[Wu X, Wu W Q, Wang B B.2016. Effect of urbanization on surface layer wind speed probability distribution and its parameters. Acta Meteorologica Sinica 74(4): 623-632. ]
[8]	徐海明, 何金海, 管兆勇, 等. 2000. 北半球冬季WA遥相关型影响东亚初夏季风的可能途径[J]. 南京气象学院学报, 23(3): 361-369.
	[Xu H M, He J H, Guan Z Y, et al.2000. Possible way of the effect of WA teleconnection pattern on the early summer monsoon over eastern Asia. Journal of Nanjing Institute of Meteorology, 23(3): 361-369. ]
[9]	于宏敏, 任国玉, 刘玉莲. 2013. 黑龙江省大气边界层不同高度风速变化[J]. 自然资源学报, 28(10): 1718-1730. doi: 10.11849/zrzyxb.2013.10.007
	[Yu H M, Ren G Y, Liu Y L.2013. The characteristics of wind speed variation at different altitudes of boundary layer in Heilongjiang Province. Journal of Natural Resources, 28(10): 1718-1730. ] doi: 10.11849/zrzyxb.2013.10.007
[10]	张丽娟, 陈红, 高玉宏, 等. 2011. 黑龙江省大风分布特征及风险区划研究[J]. 地理科学进展, 30(7): 899-905. doi: 10.11820/dlkxjz.2011.07.016
	[Zhang L J, Chen H, Gao Y H, et al.2011. Study on the distribution and risk zoning of strong winds in Heilongjiang Province. Progress in Geography, 30(7): 899-905. ] doi: 10.11820/dlkxjz.2011.07.016
[11]	Azorin-Molina C, Guijarro J A, McVicar T R, et al.2016. Trends of daily peak wind gusts in Spain and Portugal, 1961-2014[J]. Journal of Geophysical Research: Atmospheres, 121(3): 1059-1078. doi: 10.1002/2015JD024485. doi: 10.1002/2015JD024485
[12]	Blunden J, Arndt D S.2016. State of the Climate in 2015[J]. Bulletin of the American Meteorological Society, 97(8): Si-S275. doi: 10.1175/2016BAMSStateoftheClimate.1.
[13]	Coutts A M, Beringer J, Tapper N J.2007. Impact of increasing urban density on local climate: Spatial and temporal variations in the surface energy balance in Melbourne, Australia[J]. Journal of Applied Meteorology and Climatology, 46(4): 477-493. doi: 0.1175/JAM2462.1. doi: 10.1175/JAM2462.1
[14]	Chen L, Li D, Pryor S C.2013. Wind speed trends over China: Quantifying the magnitude and assessing causality[J]. International Journal of Climatology, 33(11): 2579-2590. doi: 10.1002/joc.3613. doi: 10.1002/joc.3613
[15]	Cheng H, Liu C, Li J, et al.2017. Wind erosion mass variability with sand bed in a wind tunnel[J]. Soil and Tillage Research, 165: 181-189. doi: 10.1016/j.still.2016.08.013. doi: 10.1016/j.still.2016.08.013
[16]	Earl N, Dorling S, Hewston R, et al.2013. 1980-2010 variability in UK surface wind climate[J]. Journal of Climate, 26(4): 1172-1191. doi: 10.1175/JCLI-D-12-00026.1. doi: 10.1175/JCLI-D-12-00026.1
[17]	Fu G, Yu J, Zhang Y, et al.2011. Temporal variation of wind speed in China for 1961-2007[J]. Theoretical and Applied Climatology, 104(3-4): 313-324. doi: 10.1007/s00704-010-0348-x. doi: 10.1007/s00704-010-0348-x
[18]	Gong D Y, Wang S W, Zhu J H.2001. East Asian winter monsoon and Arctic Oscillation[J]. Geophysical Research Letters, 28(10): 2073-2076. doi : 10.1029/2000GL012311. doi: 10.1029/2000GL012311
[19]	Jeong J H, Ou T, Linderholm H W, et al.2011. Recent recovery of the siberian high intensity[J]. Journal of Geophysical Research: Atmospheres, 116(D23). doi: 10.1029/2011JD015904.
[20]	Jiang Y, Luo Y, Zhao Z, et al.2010. Changes in wind speed over China during 1956-2004[J]. Theoretical and Applied Climatology, 99(3-4): 421. doi: 10.1007/s00704-009-0152-7. doi: 10.1007/s00704-009-0152-7
[21]	Li Y, Wang Y, Chu H Y, et al.2008. The climate influence of anthropogenic land-use changes on near-surface wind energy potential in China[J]. Chinese Science Bulletin, 53(18): 2859-2866. doi: 10.1007/s11434-008-0360-z.
[22]	Li Z, Guo J, Ding A, et al.2017. Aerosol and boundary-layer interactions and impact on air quality[J]. National Science Review, 4(6): 810-833. doi: 10.1093/nsr/nwx117. doi: 10.1093/nsr/nwx117
[23]	Lin C, Yang K, Huang J, et al.2015. Impacts of wind stilling on solar radiation variability in China[J]. Scientific Reports, 5: 15135. doi: 10.1038/srep15135. doi: 10.1038/srep15135
[24]	Liu X, Zhang X J, Tang Q, et al.2014. Effects of surface wind speed decline on modeled hydrological conditions in China[J]. Hydrology and Earth System Sciences, 18(8): 2803-2813. doi: 0.5194/hess-18-2803-2014. doi: 10.5194/hess-18-2803-2014
[25]	McVicar T R, Roderick M L, Donohue R J, et al.2012. Global review and synthesis of trends in observed terrestrial near-surface wind speeds: Implications for evaporation[J]. Journal of Hydrology, 416: 182-205. doi: 10.1016/j.jhydrol. 2011.10.024.
[26]	Sun J, Wang H, Yuan W.2008. Decadal variations of the relationship between the summer North Atlantic Oscillation and middle East Asian air temperature[J]. Journal of Geophysical Research: Atmospheres, 113(D15). doi: 10.1029/2007JD009626.
[27]	Sung M K, Lim G H, Kug J S.2010. Phase asymmetric downstream development of the North Atlantic Oscillation and its impact on the East Asian winter monsoon[J]. Journal of Geophysical Research: Atmospheres, 115(D9). doi: 10.1029/2009JD013153.
[28]	Vautard R, Cattiaux J, Yiou P, et al.2010. Northern Hemisphere atmospheric stilling partly attributed to an increase in surface roughness[J]. Nature Geoscience, 3(11): 756. doi: 10.1038/NGEO979. doi: 10.1038/ngeo979
[29]	Wallace J M, Gutzler D S.1981. Teleconnections in the geopotential height field during the Northern Hemisphere winter[J]. Monthly Weather Review, 109(4): 784-812.doi: 10.1175/1520-0493(1981)109<0784: TITGHF>2.0.CO;2 doi: 10.1175/1520-0493(1981)109<0784:TITGHF>2.0.CO;2
[30]	Wu J, Zha J, Zhao D.2016. Estimating the impact of the changes in land use and cover on the surface wind speed over the East China Plain during the period 1980-2011[J]. Climate Dynamics, 46(3-4): 847-863. doi: 10.1007/s00382-015-2616-z. doi: 10.1007/s00382-015-2616-z
[31]	Wu J, Zha J, Zhao D.2017. Evaluating the effects of land use and cover change on the decrease of surface wind speed over China in recent 30 years using a statistical downscaling method[J]. Climate Dynamics, 48(1-2): 131-149. doi: 10.1007/s00382-016-3065-z. doi: 10.1007/s00382-016-3065-z
[32]	Wu Z, Li J, Jiang Z, et al.2012. Possible effects of the North Atlantic Oscillation on the strengthening relationship between the East Asian summer monsoon and ENSO[J]. International Journal of Climatology, 32(5): 794-800. doi: 10.1002/joc.2309. doi: 10.1002/joc.v32.5
[33]	Xu M, Chang C P, Fu C, et al.2006. Steady decline of East Asian monsoon winds, 1969-2000: Evidence from direct ground measurements of wind speed[J]. Journal of Geophysical Research: Atmospheres, D24111. doi: 10.1029/2006JD007337.
[34]	Yang S, Lau K M, Kim K M.2002. Variations of the East Asian jet stream and Asian-Pacific-American winter climate anomalies[J]. Journal of Climate, 15(3): 306-325. doi: 10.1175/1520-0442(2002)015<0306:VOTEAJ>2.0.CO;2 doi: 10.1175/1520-0442(2002)015<0306:VOTEAJ>2.0.CO;2
[35]	Zha J, Wu J, Zhao D.2016. Changes of probabilities in different wind grades induced by land use and cover change in Eastern China Plain during 1980-2011[J]. Atmospheric Science Letters, 17(4): 264-269. doi: 10.1002/asl.653. doi: 10.1002/asl.2016.17.issue-4
[36]	Zha J, Wu J, Zhao D.2017. Effects of land use and cover change on the near-surface wind speed over China in the last 30 years[J]. Progress in Physical Geography, 41(1): 46-67. doi: 10.1177/0309133316663097. doi: 10.1177/0309133316663097

站点	最大风速/(m·s^-1)	平均风速/(m·s^-1)	偏北风所占比重(大于1.5 m·s^-1)/%	标准差/(m·s^-1)
北京站	10.3	2.4	66	1.3
霸州站	9.3	1.9	61	1.0
天津站	10.3	2.4	58	1.4
唐山站	9.3	2.3	49	1.1
保定站	8.3	1.8	59	0.9

项目	大风日频次	大风日平均风速	非大风日平均风速
年际方差	22.9 d² (54%)	0.03 m²·s^-2 (70%)	0.007 m²·s^-2 (41%)
年代际方差	17.9 d² (42%)	0.01 m²·s^-2 (13%)	0.011 m²·s^-2 (58%)

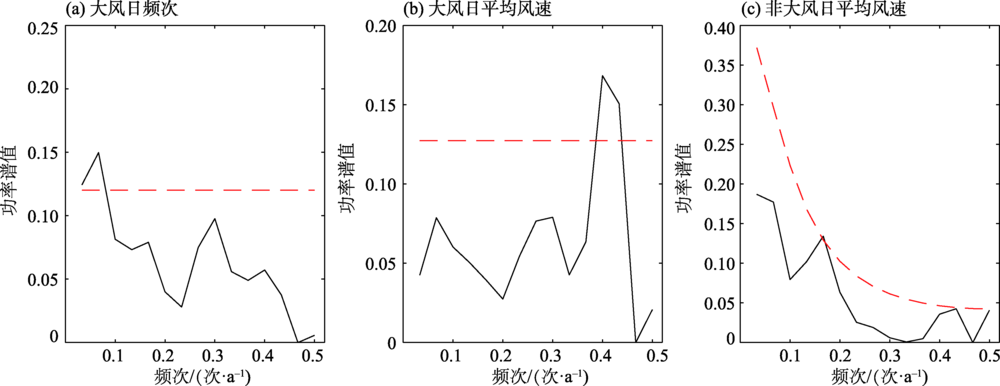

显著年际周期	3~4 a	2~3 a	2~3 a, 6 a
显著年代际周期	14~15 a	无	无

环流指数	大风日频次	大风日平均风速

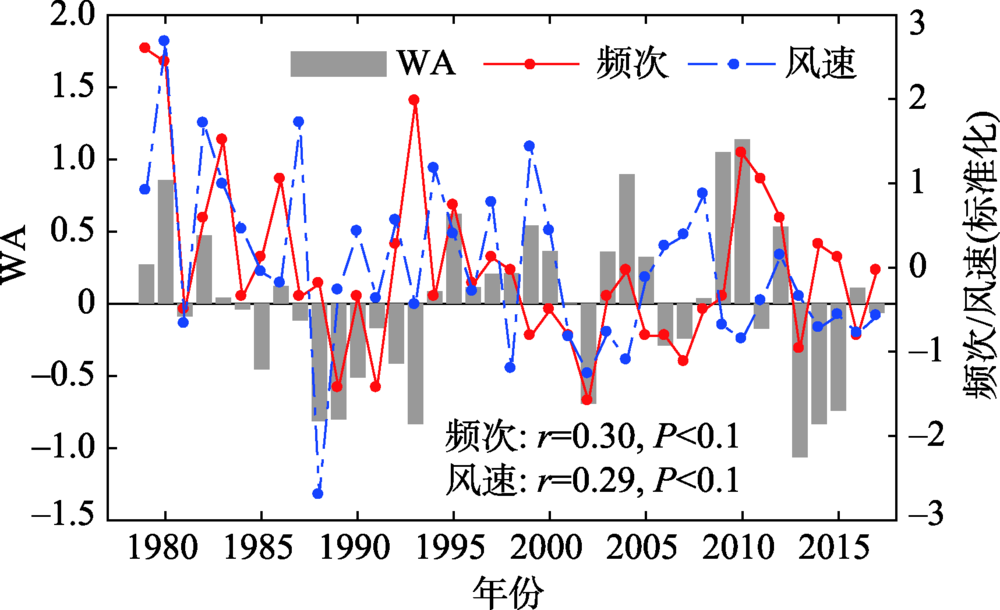

WA(西大西洋遥相关)	0.30^*	0.29^*
NAO(北大西洋涛动)	-0.01	-0.05

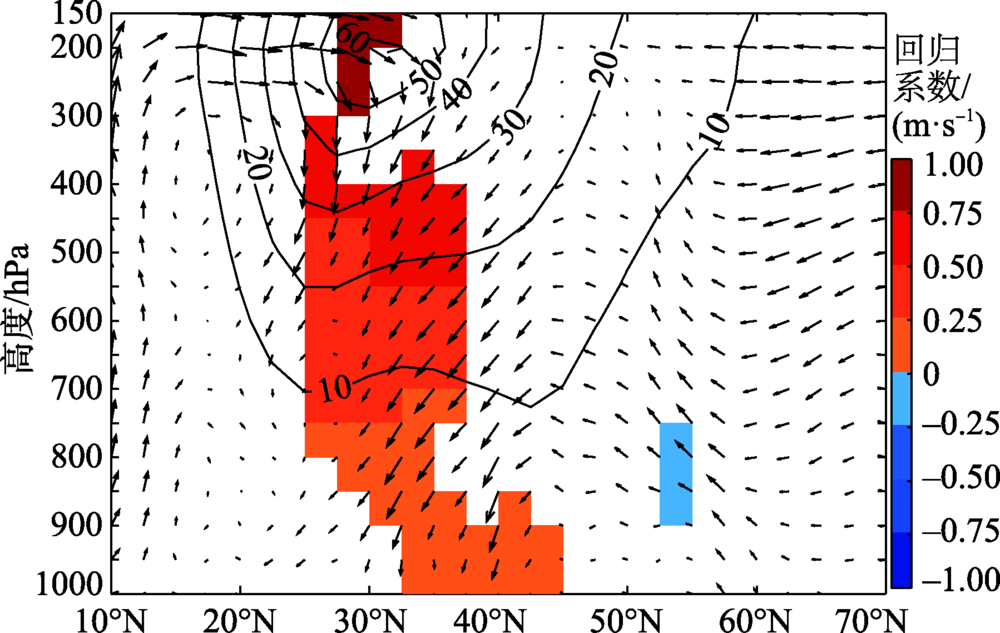

东亚平均200 hPa纬向风^a	0.37^*	0.15
