暴雨内涝影响下的城市道路交通拥挤特征识别

doi:10.18306/dlkxjz.2018.06.004

地理科学进展 ›› 2018, Vol. 37 ›› Issue (6): 772-780.doi: 10.18306/dlkxjz.2018.06.004

暴雨内涝影响下的城市道路交通拥挤特征识别

胡文燕^1,²(), 李梦雅^1,², 王军^1,^2,^*(), 黄清雨^1,²

1. 华东师范大学地理信息科学教育部重点实验室,上海 200241
2. 华东师范大学地理科学学院,上海 200241

收稿日期:2017-07-18 修回日期:2018-01-10 出版日期:2018-06-28 发布日期:2018-06-28
通讯作者: 王军
作者简介:
作者简介：胡文燕(1993-)，女，天津人，硕士生，主要从事城市灾害风险研究，E-mail: huwenyan1121@163.com。
基金资助:
国家自然科学基金项目(51761135024，41671095，71373084)

Urban traffic congestion caused by rainstorms and innudation

Wenyan HU^1,²(), Mengya LI^1,², Jun WANG^1,^2,^*(), Qingyu HUANG^1,²

1. Key Laboratory of Geographic Information Science (Ministry of Education), East China Normal University, Shanghai 200241, China
2. School of Geographic Sciences, East China Normal University, Shanghai 200241, China

Received:2017-07-18 Revised:2018-01-10 Online:2018-06-28 Published:2018-06-28
Contact: Jun WANG
Supported by:
National Natural Science Foundation of China, No.51761135024, No.41671095, No.71373084

摘要/Abstract

摘要：

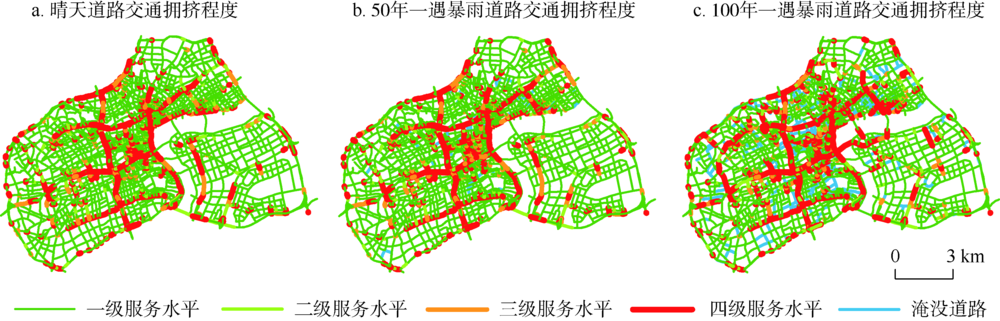

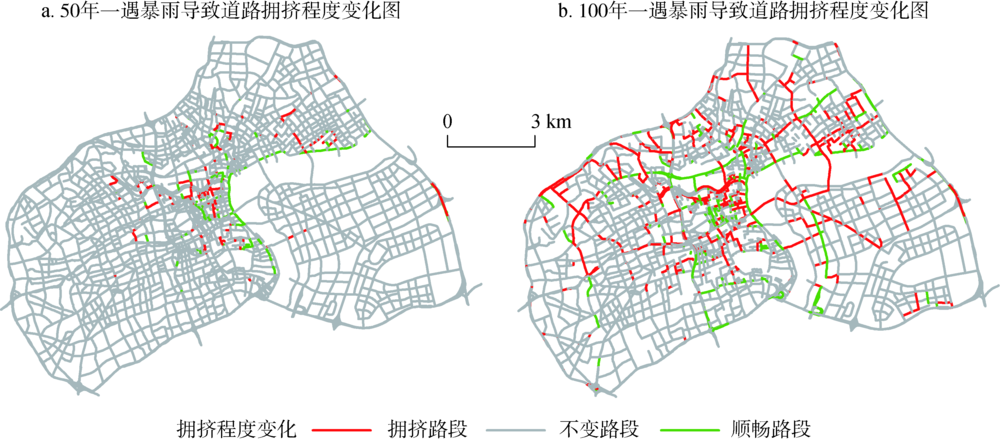

近年来,暴雨内涝频繁发生,常引发严重的城市交通拥堵问题。本文利用自主开发的宏观交通模拟工具,模拟了上海市中心城区50年一遇和100年一遇暴雨强度情景下每条路段的小时交通量,通过计算道路饱和度,研究了不同强度暴雨内涝对中心城区高架出入口和重要道路拥挤程度的影响。结果表明：①100年一遇暴雨内涝对上海市中心城区道路交通服务能力影响显著,可导致7个高架道路出入口关闭,部分出入口严重拥堵;②暴雨内涝对道路拥堵状况影响的差异性明显,变拥挤路段占道路总里程的13.35%,其中一级道路的拥挤程度变化最为明显,如：大连路、武宁路,周家嘴路和长寿路等主要路段服务水平下降。

关键词: 交通模拟, 暴雨内涝, 道路网络, 饱和度, 上海市

Abstract:

In recent years, pluvial flash floods (PFF) have caused serious traffic congestion and disruption in many big cities. This study investigated the traffic congestion pattern due to PFFs in an intra-urban area through a macro traffic simulation method. A macro traffic flow model was built based on trip distribution and the characteristics of roads and routing. We incorporated rainfall data and simulated the hourly traffic volume on each road segment under two PFF scenarios of 50-year and 100-year return periods by the macro traffic flow model. Next, the variation of volume/capacity (V/C) on each road was calculated to derive the spatial pattern of traffic condition under different PFF scenarios. The results were contrasted to demonstrate the change of congestion pattern on the main roads and entrances/exits of the expressways in the city center of Shanghai to analyze the influence of different PFF scenarios on traffic congestion. The results indicate that ①PFFs of 50-year return period may have a marginal effect on the traffic system, but PFFs of 100-year return period can pose great threat to the traffic system in the central urban area of Shanghai. Seven exits and entrances of the expressways are closed due to serious inundation and a large portion of the road network becomes more congested; ②the effect of PFFs on V/C also exhibits spatial disparity over the entire network. Overall, 13.35% of the roads become more congested under 100-year return period. Additionally, the most obvious change of congestion pattern is found on the first-class highways (23.31%), such as Dalian Road, Wuning Road, Zhoujiazui Road, and Changshou Road.

Key words: macro traffic simulation, pluvial flash flood, road network, volume/capacity, Shanghai

胡文燕, 李梦雅, 王军, 黄清雨. 暴雨内涝影响下的城市道路交通拥挤特征识别[J]. 地理科学进展, 2018, 37(6): 772-780.

Wenyan HU, Mengya LI, Jun WANG, Qingyu HUANG. Urban traffic congestion caused by rainstorms and innudation[J]. PROGRESS IN GEOGRAPHY, 2018, 37(6): 772-780.

图/表 14

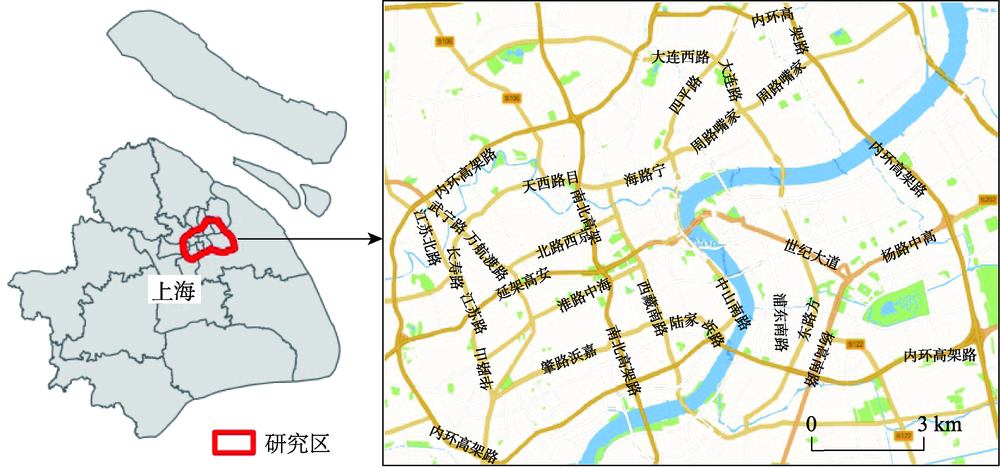

图1

图2

表1

图3

图4

表2

图5

表3

表4

图6

图7

图8

表5

图9

参考文献 19

[1]	陈小鸿. 2004. 上海城市道路分级体系研究[J]. 城市交通, (1): 39-45.
	[Chen X H.2004. Research on classification system of urban roads in Shanghai[J]. Urban Transport of China, (1): 39-45.]
[2]	董军刚. 2014. 城市暴雨内涝灾害风险评估工具集开发与应用研究: 以上海市为例[D]. 上海: 华东师范大学.
	[Dong J G.2014. Research on development and application of urban rainstorm waterlogging disaster risk assessment toolset: A case study of Shanghai[D]. Shanghai, China: East China Normal University.]
[3]	费茉莉, 刘苇航, 王席, 等. 2017. 城市暴雨内涝模拟模型优化与精度验证[J]. 地球信息科学学报, 19(7): 895-900. doi: 10.3724/SP.J.1047.2017.00895
	[Fei M L, Liu W H, Wang X, et al.2017. Optimization and verification of a novel hydrodynamic model for urban flood simulation[J]. Journal of Geo-information Science, 19(7): 895-900.] doi: 10.3724/SP.J.1047.2017.00895
[4]	郭泽斌, 李振龙. 2013. 城市道路拥堵程度评判方法研究[J]. 交通标准化, (11): 62-65. doi: 10.3969/j.issn.1002-4786.2013.11.020
	[Guo Z B, Li Z L.2013. Evaluation method of city road congestion degree[J]. Transportation Standardization, (11): 62-65.] doi: 10.3969/j.issn.1002-4786.2013.11.020
[5]	黄清雨. 2017. 暴雨内涝影响下城市交通动态模拟工具的开发与应用: 以上海市黄浦区为例[D]. 上海: 华东师范大学.
	[Huang Q Y.2017. Development of a toolset for modeling the urban traffic flow with influence of pluvial flooding: A case study for Huangpu District in Shanghai[D]. Shanghai, China: East China Normal University.]
[6]	黄清雨, 董军刚, 李梦雅, 等. 2016. 暴雨内涝危险性情景模拟方法研究: 以上海中心城区为例[J]. 地球信息科学学报, 18(4): 506-513. doi: 10.3724/SP.J.1047.2016.00506
	[Huang Q Y, Dong J G, Li M Y, et al.2016. Research on the scenario simulation method of rainstorm waterlogging hazard: A case study in the central urban area of Shanghai[J]. Journal of Geo-information Science, 18(4): 506-513.] doi: 10.3724/SP.J.1047.2016.00506
[7]	刘家宏, 陈根发, 王海潮, 等. 2015. 暴雨径流管理模型理论及其应用: 以SWMM为例[M]. 北京: 科学出版社.
	[Liu J H, Chen G F, Wang H C, et al.2015. Baoyu jingliu guanli moxing lilun jiqi yingyong: Yi SWMM wei li[M]. Beijing, China: Science Press.]
[8]	陆锋. 2001. 最短路径算法: 分类体系与研究进展[J]. 测绘学报, 30(3): 269-275.
	[Lu F.2001. Shortest path algorithms: Taxonomy and advance in research[J]. Acta Geodaetica et Cartographica Sinica, 30(3): 269-275.]
[9]	沈颖, 朱翀, 徐英俊. 2007. 道路饱和度计算方法研究[J]. 交通标准化, (1): 125-129. doi: 10.3869/j.issn.1002-4786.2007.01.042
	[Shen Y, Zhu C, Xu Y J.2007. Research on calculation method for road saturation[J]. Communications Standardization, (1): 125-129.] doi: 10.3869/j.issn.1002-4786.2007.01.042
[10]	王笑. 2015. 暴雨天气下城市快速路交通流特性研究[D]. 北京: 北京交通大学.
	[Wang X.2015. Research on the impact of torrential rain on traffic flow characteristics of expressways[D]. Beijing, China: Beijing Jiaotong University.]
[11]	张波良, 张瑞昌, 关佶红. 2014. 道路网上最短路径算法综述[J]. 计算机应用与软件, 31(10): 1-9.
	[Zhang B L, Zhang R C, Guan J H.2014. A survey on shortest path algorithms in road networks[J]. Computer Applications and Software, 31(10): 1-9.]
[12]	张林. 2008. 动态车辆导航系统车道级路径引导方法研究[D]. 长春: 吉林大学.
	[Zhang L.2008. Research on lane level route guidance methods for dynamic vehicle navigation system[D]. Changchun, China: Jilin University.]
[13]	Hassan Y A, Barker D J.1999. The impact of unseasonable or extreme weather on traffic activity within Lothian region, Scotland[J]. Journal of Transport Geography, 7(3): 209-213. doi: 10.1016/S0966-6923(98)00047-7
[14]	Hu Y J, Wang F H.2015. Decomposing excess commuting: A Monte Carlo simulation approach[J]. Journal of Transport Geography, 44: 43-52. doi: 10.1016/j.jtrangeo.2015.03.002
[15]	Huang Q Y, Wang J, Li M Y, et al.2017. Modeling the influence of urbanization on urban pluvial flooding: A scenario-based case study in Shanghai, China[J]. Natural Hazards, 87(2): 1035-1055. doi: 10.1007/s11069-017-2808-4
[16]	Mitsakis E, Stamos I, Diakakis M, et al.2014. Impacts of high-intensity storms on urban transportation: Applying traffic flow control methodologies for quantifying the effects[J]. International Journal of Environmental Science and Technology, 11(8): 2145-2154. doi: 10.1007/s13762-014-0573-4
[17]	Su B N, Huang H, Li Y T.2016. Integrated simulation method for waterlogging and traffic congestion under urban rainstorms[J]. Natural Hazards, 81(1): 23-40. doi: 10.1007/s11069-015-2064-4
[18]	Tsapakis I, Cheng T, Bolbol A.2013. Impact of weather conditions on macroscopic urban travel times[J]. Journal of Transport Geography, 28: 204-211. doi: 10.1016/j.jtrangeo.2012.11.003
[19]	Yin J, Yu D, Lin N, et al.2017. Evaluating the cascading impacts of sea level rise and coastal flooding on emergency response spatial accessibility in Lower Manhattan, New York City[J]. Journal of Hydrology, 555. doi: 10.1016/j.jhydrol.2017.10.067

	快速路/ (m/s)	主干道路/(m/s)	一级道路/(m/s)	二级道路/(m/s)	支路/ (m/s)
道路限速	22.22	16.67	13.89	11.11	8.33
校正车速	10.27	7.71	6.42	5.14	3.85

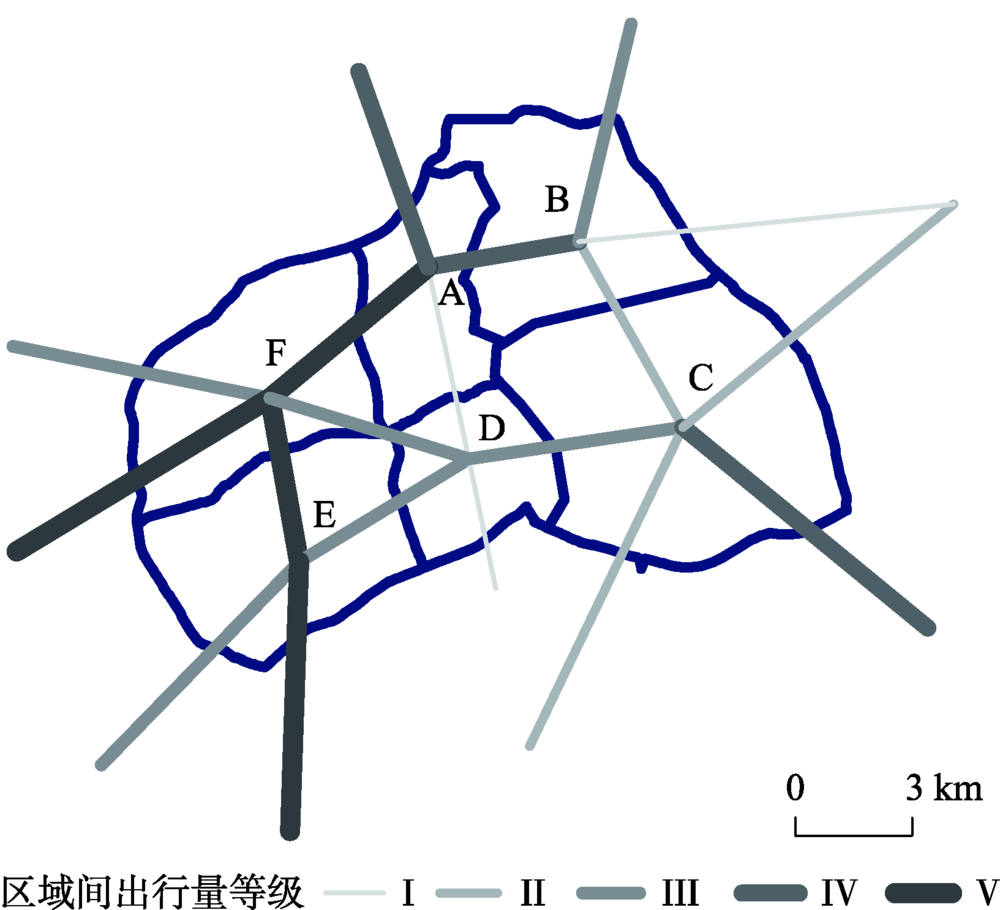

	A	B	C	D	E	F	OUT
A	1.12	2.23	1.40	0.56	1.96	2.79	2.23
B	2.23	1.12	1.12	1.40	1.96	2.23	2.23
C	1.40	1.12	1.12	1.68	1.68	1.68	5.03
D	0.56	1.40	1.68	1.12	1.68	1.68	0.56
E	1.96	1.96	1.68	1.68	1.12	2.79	5.03
F	2.79	2.23	1.68	1.68	2.79	1.12	4.47
OUT	2.23	2.23	5.03	0.56	4.47	4.47	1.12

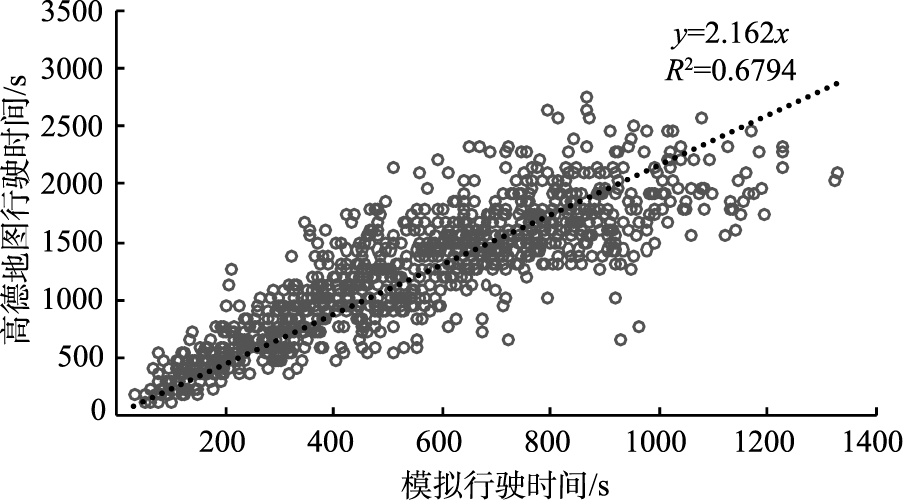

	行驶路程/m	行驶时间/s	行驶速度/(m/s)
高德地图_平均值	8236.17	1255.77	6.56
模拟_平均值	9021.22	1187.65	7.60

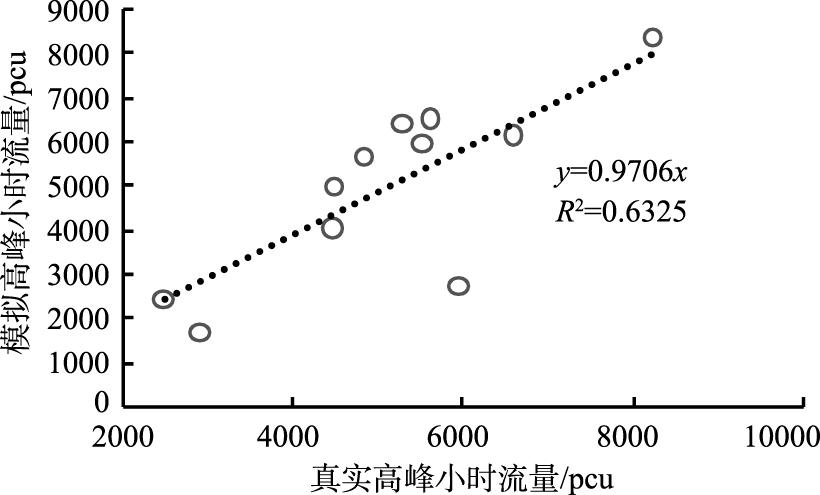

时间	验证路口模拟小时交通总量/pcu	验证路口实际小时交通总量/pcu
6:00	16369	11104
8:00	54570	56445
10:00	43660	43490
12:00	38197	37938
16:00	43660	43490
18:00	54570	56445
22:00	27282	27760

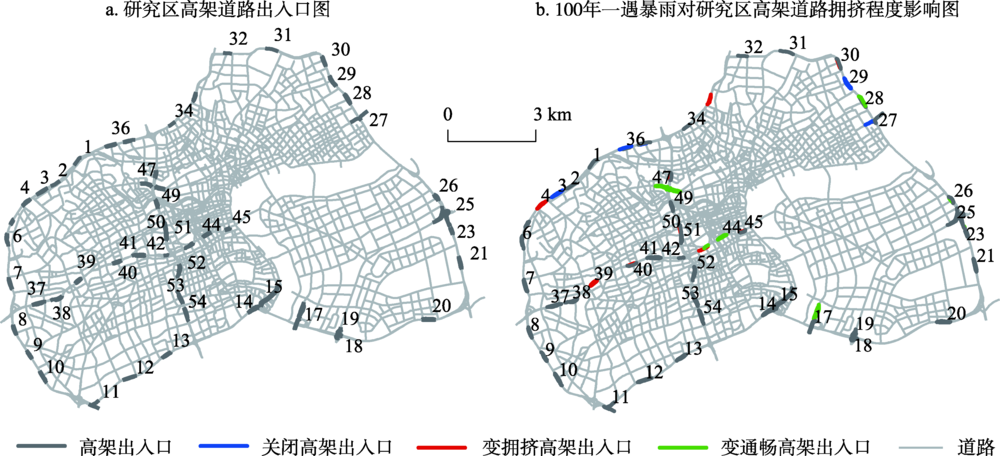

出入口代号	变拥堵的高架出入口		出入口代号	变顺畅的高架出入口
出入口代号	晴天饱和度	100年一遇暴雨饱和度	出入口代号	晴天饱和度	100年一遇暴雨饱和度
入口4	0.13	1.11	入口16	0.38	0.13
入口30	0.69	0.91	入口43	1.83	1.58
入口33	1.77	2.31	入口44	0.56	0.36
入口39	1.44	1.92	入口47	1.73	1.19
入口46	2.19	2.94	入口48	1.16	0.93
入口50	1.11	1.44	出口16	0.40	0.12
出口4	0.05	0.46	出口23	2.68	0.00
出口33	0.59	0.95	出口28	0.55	0.34
出口39	2.12	2.41	出口44	0.77	0.32
出口40	2.13	2.51	出口47	1.31	0.60
出口43	0.40	0.65	出口48	1.47	1.19
