中国机场总规模分层优化测算研究——基于人口覆盖角度

doi:10.11820/dlkxjz.2014.12.007

摘要/Abstract

摘要：

适宜的机场数量规模是中国机场发展战略和中长期规划的重要研究内容。传统的定性方法难以满足规划的需求,而采用合理的定量测算方法求解中国机场规模对未来的规划更具有参考意义。本文根据不同等级需求点的可达性要求,设置不同的机场服务半径,并规定新建机场腹地人口规模,通过制定位置集合覆盖模型(Location Set Covering Problem,LSCP)和最大覆盖选址模型(Maximal Covering Location Problem, MCLP)的综合修正模型,对中国机场规模进行分层测算。结果表明,不同地、县级需求组合下,在地面道路距离100 km范围内覆盖中国95%总人口时,中国机场规模以370~385个为宜。其中,中部、西部地区地级机场与县级机场均需建设;东北地区需要多新建地级机场,黑龙江省还需新建少量县级机场;东部地区新建少量地级机场以及适量县级机场。对于本文结果中出现的首层地级测算中地级市没有布局机场,但在第二层县级测算时下属县却布局机场,以及同一地级市布局多个县级机场的现象,认为是合理的。测算结果对未来民航机场规划具有一定参考价值。

关键词: 机场规划, 机场规模, 分层优化, 可达性, LSCP, MCLP, 中国

Abstract:

Determining the appropriate number of civil airports is an important topic in Chinese civil airport planning and development. Qualitative estimation of the number of airports cannot meet the requirement of future planning, thus appropriate quantitative methods are needed for providing sound support for decision making. According to the different accessibility requirements of various demand points, this paper defines different accessibility thresholds for different levels of airports, sets the minimum number of population that an airport should serve, and utilizes the revised Location Set Covering Problem (LSCP) and Maximal Covering Location Problem (MCLP) models for the stratified estimation of the total number and location of Chinese civil airports. The result reveals that to cover 95% of the total population within 100 km rectilinear distance, the required number of airports is 370~385. In the central and western regions, city-and county-level airports are all required. City-level airports need to be constructed in northeast China and there should be a number of new county-level airports in Heilongjiang Province. In the eastern region, seldom any city-level airports but some county-level airports are demanded. The result that some cities do not need new airports in the city-level estimation but the counties under these cities need one or more new airports in the county-level estimation may seem counter intuitive, but this research found that this result is reasonable. The result is heuristic for future civil airport planning.

Key words: airport planning, airport number and location, stratified estimation, accessibility, LSCP, MCLP, China

中图分类号:

钟晴, 戴特奇. 中国机场总规模分层优化测算研究——基于人口覆盖角度[J]. 地理科学进展, 2014, 33(12): 1642-1649.

Qing ZHONG, Teqi DAI. Stratified estimation of the total number and location of Chinese civil airports based on population coverage using revised LSCP and MCLP models[J]. PROGRESS IN GEOGRAPHY, 2014, 33(12): 1642-1649.

图/表 5

表1

图1

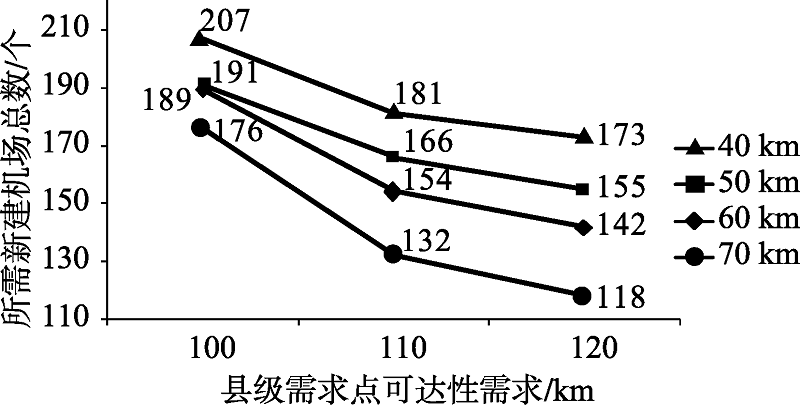

图2

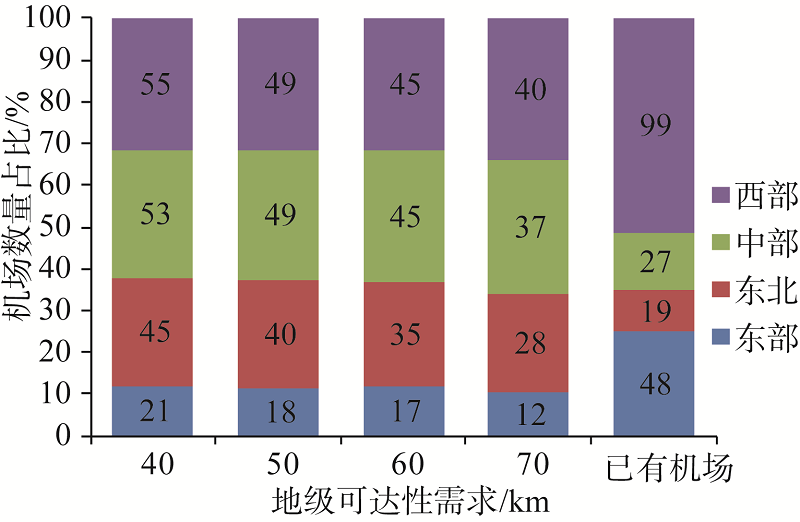

图3

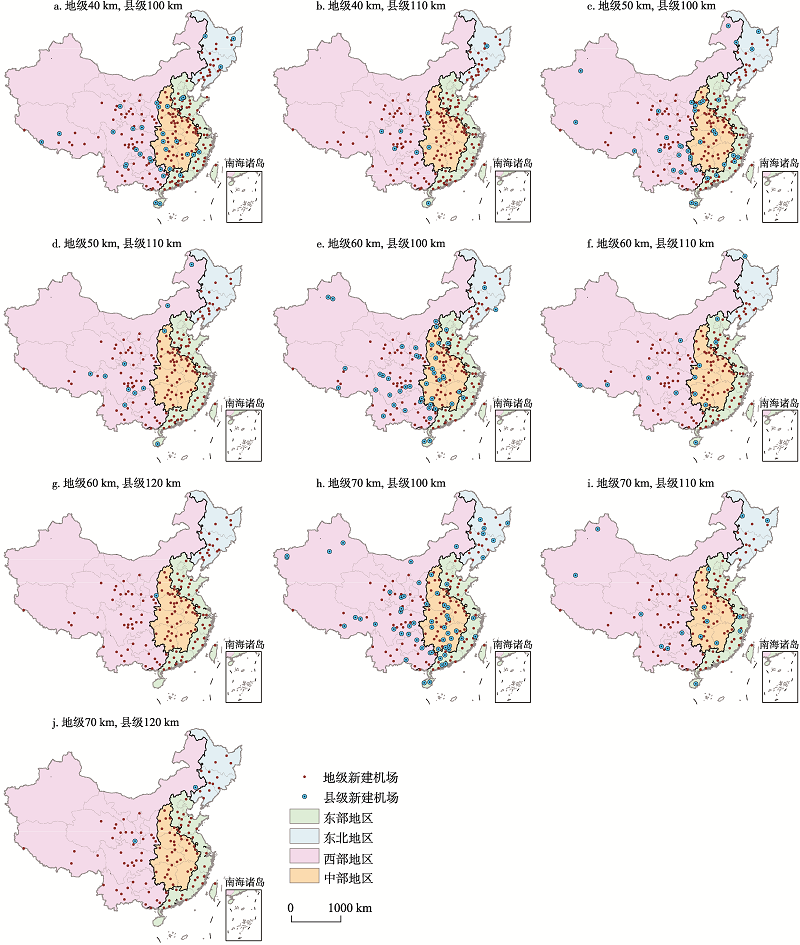

图4

参考文献 20

[1]	戴特奇, 张玉韩, 陶卓霖. 2013. 不同可达性目标下我国民航机场总规模测算. 综合运输,(12): 14-18. [Dai T Q
	Zhang Y H, Tao Z L.2013. Butong kedaxing mubiao xia woguo minhang jichang zongguimo cesuan. Comprehensive Transportation, (12): 14-18.]
[2]	李平华, 陆玉麒. 2005. 可达性研究的回顾与展望. 地理科学进展, 24(3): 69-78.
	[Li P H, Lu Y Q.2005. Review and prospectation of accessibility research. Progress in Geography, 24(3): 69-78.]
[3]	刘万明. 2002. 我国民航机场布局规划问题研究和探讨. 中国民用航空, 19(7): 39-42.
	[Liu W M.2002. A probe to Chinese civil airport planning. China Civil Aviation, 19(7): 39-42.]
[4]	刘晓明, 夏洪山. 2006. 我国民用机场等级分布的合理性分析. 综合运输, (7): 21-24.
	[Liu X M, Xia H S.2006. Woguo minyong jichang dengji fenbu de helixing fenxi. Comprehensive Transportation, (7): 21-24.]
[5]	王成金, 丁金学, 杨威. 2011. 中国高速公路规划网的空间效应与政策机制. 地理学报, 66(8): 1076-1088.
	[Wang C J, Ding J X, Yang W.2011. Policy and spatial effect of expressway planning network in China. Acta Georaphica Sinica, 66(8): 1076-1088.]
[6]	王法辉, 金凤君, 曾光. 2003. 中国航空客运网络的空间演化模式研究. 地理科学, 23(5): 519-525.
	[Wang F H, Jin F J, Zeng G.2003. Geographic patterns of air passenger transport in China. Scientia Georaphica Sinica, 23(5): 519-525.]
[7]	王姣娥, 金凤君, 孙炜, 等. 2006. 中国机场体系的空间格局及其服务水平. 地理学报, 61(8): 829-838.
	[Wang J E, Jin F J, Sun W, et al.2006. Research on spatial distribution and service level of Chinese airport system. Acta Georaphica Sinica, 61(8): 829-838.]
[8]	王姣娥, 莫辉辉. 2009. 民航机场布局方法探讨. 中国民航飞行学院学报, 20(6): 7-10.
	[Wang J E, Mo H H.2009. Minhang jichang buju fangfa tantao. Journal of Civil Aviation Flight University of China, 20(6): 7-10.]
[9]	王姣娥, 莫辉辉, 金凤君. 2008. 世界机场空间格局及对中国的启示. 世界地理研究, 17(3): 8-18.
	[Wang J E, Mo H H, Jin F J.2008. Spatial pattern of the worldwide airports and its enlightenment. World Regional Studies, 17(3): 8-18.]
[10]	王姣娥, 莫辉辉, 金凤君. 2009. 中国航空网络空间结构的复杂性. 地理学报, 64(8): 899-910.
	[Wang J E, Mo H H, Jin F J.2009. Spatial structural characteristics of Chinese aviation network based on complex network theory. Acta Georaphica Sinica, 64(8): 899-910.]
[11]	吴传钧. 1998. 中国经济地理. 北京: 科学出版社.
	[Wu C J.1998. Zhongguo jingji dili. Beijing, China: Science Press.]
[12]	熊朝, 关羽. 2012. 关于全国民用机场布局规划调整的思考. 中国民用航空, 138(6): 24-27.
	[Xiong C, Guan Y.2012. Thoughts on national civil airport layout planning adjustment. China Civil Aviation, 138(6): 24-27.]
[13]	徐涛, 王黎明, 张大泉. 2008. 中国民用航空机场的可达性研究. 地理与地理信息科学, 24(4): 88-102.
	[Xu T, Wang L M, Zhang D Q.2008. Empirical study on accessibility of Chinese civil aviation airports. Geography and Geo-Information Science, 24(4): 88-102.]
[14]	应习文, 石京. 2006. 大型枢纽机场可达性量化的初步研究. 交通运输系统工程与信息, 6(6): 136-142.
	[Ying X W, Shi J.2006. Some studies of the accessibility of large aeronautic hub. JournaI of Transportation Systems Engineering and Information Technology, 6(6): 136-142.]
[15]	周荣征. 2007. 中长期铁路网规划布局及优化方法研究[D]. 成都: 西南交通大学.
	[Zhou R Z.2007. Research on the planning and optimization of the long-term railway network[D]. Chengdu, China: Southwest Jiaotong University.]
[16]	Ballis A.2003. Airport site selection based on multicriteria analysis: the case study of the island of Samothraki. Operational Research, 3(3): 261-279.
[17]	Church R, ReVelle C.1974. The maximal covering location problem. Papers in Regional Science, 32(1): 101-118.
[18]	Khalafallah A, El-Rayes K.2011. Automated multi-objective optimization system for airport site layouts. Automation in Construction, 20(4): 313-320.
[19]	Saatcioglu O.1982. Mathematical programming models for airport site selection. Transportation Research Part B, 16(6): 435-447.
[20]	Toregas C, Swain R, ReVelle C, et al.1971. The location of emergency service facilities. Operations Research, 19(6): 1363-1373.

地（市）级需求点可达性需求/km	地级尺度新建机场数量/个	县级需求点不同可达性需求下的新建机场数量/个
地（市）级需求点可达性需求/km	地级尺度新建机场数量/个	100 km	110 km	120 km
40	174	34	8	0
50	156	36	11	0
60	142	48	13	1
70	117	60	16	2
