近30年苏北滨海滩涂湿地演变特征与空间格局

doi:10.11820/dlkxjz.2014.09.008

摘要/Abstract

摘要：

苏北滨海滩涂湿地位于现代长江口与废黄河口之间,是最典型的淤泥质平原海岸,其演变特征及空间格局具有鲜明的特征。本文选用1980年、1992年、2008年的TM 和ALOS影像为主要数据源,构建了基于空间分割和转移矩阵分析模型,研究了近30年来苏北滨海滩涂湿地的演变特征及其空间格局。结果表明： ①苏北滨海滩涂发生了巨大变化,近30年间滩涂总面积减少了1273.11 km²,平均每年减少45.47 km²;滩涂湿地侵蚀/淤积面积约965.14 km²,0 m等深线冲刷后退减少的面积约为307.97 km²。②苏北滨海滩涂湿地区域差异性明显。南北方向上可划分为6个自然地理单元,东西方向上可划分为3个区域。③苏北滨海滩涂湿地演变中,湿地转型、湿地丧失和湿地演替分别占总面积的38.39%、14.80%、20.51%;其中天然湿地减少354.1 km²,人工湿地增加1061.45 km²,非湿地增加253.09 km²。④滩涂湿地主要植被群落演替特征和空间分布也呈现出差异性。湿地演替主要发生在净变区,与对应岸段的海岸侵蚀/淤积类型基本吻合。

关键词: 滩涂湿地, 演变特征, 空间格局, 固有区, 净变区, 江苏省

Abstract:

Coastal wetlands and tidal land in North Jiangsu Province are the most typical mudflat in China, which lies between the estuaries of the Yangtze River and the former Yellow River channel. This article examines the evolution and spatial distribution of wetlands and tidal land in North Jiangsu Province between 1980 and 2008 through image analysis of Landsat TM images from 1980 and 1992 and ALOS images from 2008. The results indicate that: (a) The study region had experienced enormous changes in this time period. The total area of coastal wetlands decreased by 1273.11 km², that is, at an annual rate of 45.47 km²; the erosion-sedimentation area was 965.14 km² and the erosion area was about 307.97 km². (b)This region can be divide into six geographic units from the north to the south, and three zones from the east to the west (overlay unit, changed unit, and mudflat unit); (c) In these natural units, the proportion of transformed wetlands was 38.39%, while the proportion of lost wetlands was 14.97%. Natural wetlands decreased by 354.1 km², constructed wetlands increased by 1061.45 km², and non-wetland area increased by 253.09 km². Changed units were about 20.51% of the total area, in which most wetlands are in natural successions. (d) The study area also had distinct regional succession characteristics and distribution patterns of vegetation communities. Natural wetlands succession occurred mainly in the changed units with a total area of 554.52 km², which is in agreement with the erosion/sedimentation situations of corresponding section.

Key words: tidal wetland, evolution feature, spatial distribution pattern, natural unit, changed unit, Jiangsu Province

中图分类号:

X142

廖华军, 李国胜, 王少华, 崔林林, 欧阳宁雷. 近30年苏北滨海滩涂湿地演变特征与空间格局[J]. 地理科学进展, 2014, 33(9): 1209-1217.

Huajun LIAO, Guosheng LI, Shaohua WANG, Linlin CUI, Ninglei OUYANG. Evolution and spatial patterns of tidal wetland in North Jiangsu Province in the past 30 Years[J]. PROGRESS IN GEOGRAPHY, 2014, 33(9): 1209-1217.

图/表 9

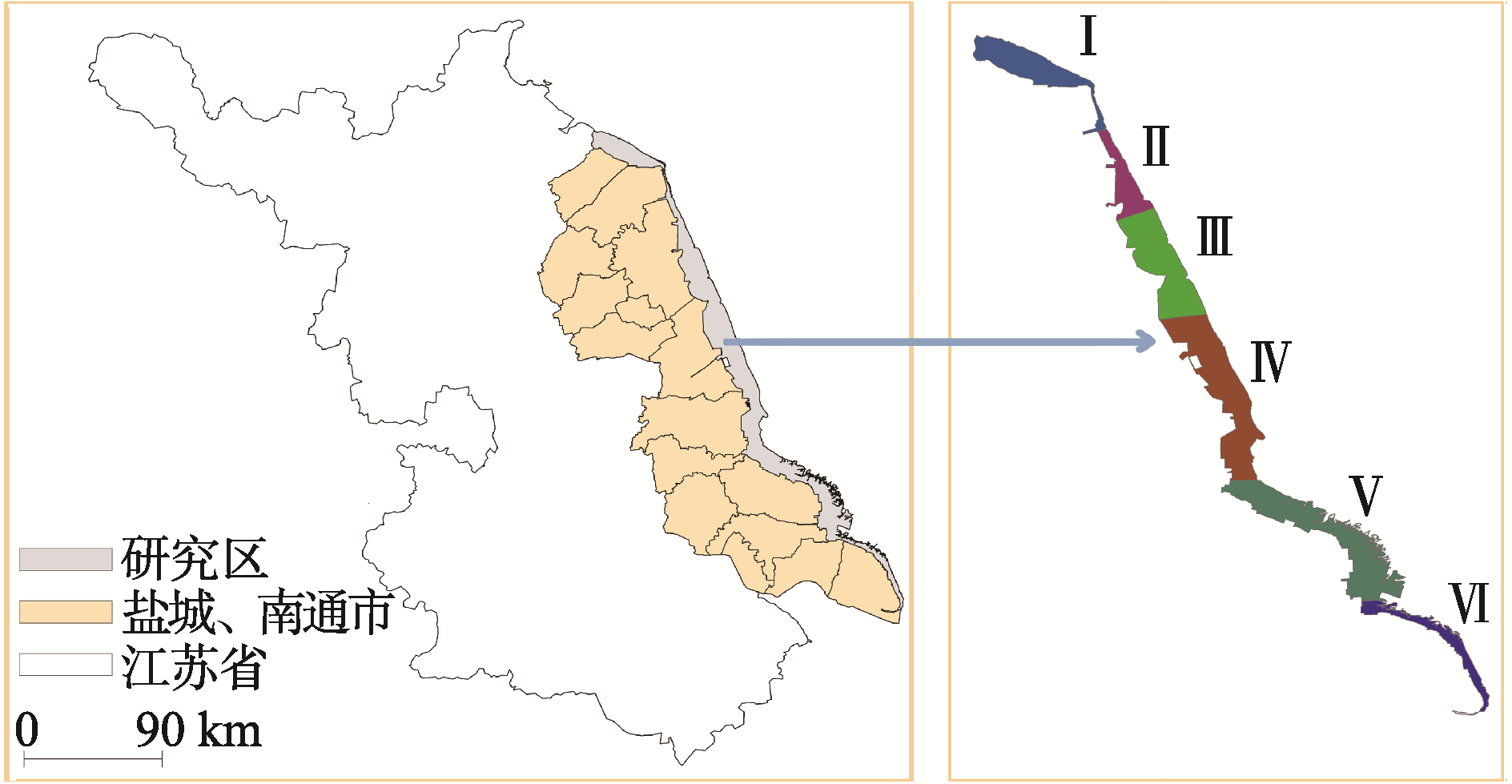

图1

图2

表1

图3

表2

表3

表4

表5

图4

参考文献 27

[1]	陈宏友.1990. 苏北南通海涂近期冲淤动态及其开发. 海洋科学, (2): 28-35.
	Chen H Y.1990. The recent trends of deposition and erosion of beach area in Nantong Jiangsu and its exploitation. Marine Sciences, (2): 28-35.
[2]	丁晶晶, 王磊, 季永华, 等. 2009. 江苏省盐城海岸带湿地景观格局变化研究. 湿地科学, 7(3): 202-207.
	Ding J J, Wang L, Ji Y H, et al.2009. Landscape pattern change of Yancheng coastal wetland in Jiangsu. Wetland Science, 7(3): 202-207.
[3]	江苏省908专项办公室. 2012. 江苏近海海洋综合调查与评价总报告. 北京: 科学出版社.
	908 Group of Jiangsu Province. 2012. Comprehensive investigations and assessment of coastal zone in Jiangsu Province. Beijing, China: Science Press.
[4]	任美锷.1986. 江苏省海岸带和海涂资源综合调查报告. 北京: 海洋出版社.
	Ren M E.1986. Investigation report on Jiangsu comprehensive investigations of the coastal zone and tidal land resources. Beijing, China: Ocean Press.
[5]	孙伟红.2012. 江苏海岸滩涂资源分布与动态演变[D]. 南京: 南京师范大学.
	Sun W H.2012. Distribution and dynamic evolution of tidal flat resource on Jiangsu coast[D]. Nanjing, China: Nanjing Normal University.
[6]	王建.2012. 江苏省海岸带滩涂及其利用潜力. 北京: 海洋出版社.
	Wang J.2012. Jiangsusheng hai'andai tantu jiqi liyong qianli. Beijing, China: Ocean Press.
[7]	王艳红.2006. 废黄河三角洲海岸侵蚀过程中的变异特征及整体防护研究[D]. 南京: 南京师范大学.
	Wang Y H.2006. Study of variation features during coastal erosion processes on the abandoned Huanghe River Delta and integrated protection measures[D]. Nanjing, China: Nanjing Normal University.
[8]	张芳, 陆殿梅. 2010. 遥感技术在江苏沿海滩涂动态变化分析中的运用. 地质学刊, 34(2): 187-191.
	Zhang F, Lu D M.2010. Application of remote sensing technology in analysis of dynamic variation of coastal shoal in Jiangsu. Journal of Geology, 34(2): 187-191.
[9]	张忍顺, 陆丽云, 王艳红. 2002. 江苏海岸侵蚀过程及其趋势. 地理研究, 21(4): 469-478.
	Zhang R S, Lu L Y, Wang Y H.2002. The mechanism and trend of coastal erosion of Jiangsu Province in China. Geographical Research, 21(4): 469-478.
[10]	张晓龙, 李培英, 李萍, 等. 2005. 中国滨海湿地研究现状与展望. 海洋科学进展, 23(1): 87-95.
	Zhang X L, Li P Y, Li P, et al.2005. Present conditions and prospects of study on coastal wetlands in China. Advances in Marine Science, 23(1): 87-95.
[11]	Antogiovanni M, Metzger J P.2005. Influence of matrix habitats on the occurrence of insectivorous bird species in Amazonian forest fragments. Biological Conservation, 122(3): 441-451.
[12]	BrL A, Smith L M, Takekawa J Y, et al.2012. Trajectory of early tidal marsh restoration: elevation, sedimentation and colonization of breached salt ponds in the Northern San Francisco Bay. Ecological Engineering, 42: 19-29.
[13]	Day J W, Britsch L D, Hawes S R, et al.2000. Pattern and process of land loss in the Mississippi Delta: a spatial and temporal analysis of wetland habitat change. Estuaries, 23(4): 425-438.
[14]	Deng H, Ye Z H, Wong M H.2004. Accumulation of lead, zinc, copper and cadmium by 12 wetland plant species thriving in metal-contaminated sites in China. Environmental Pollution, 132(1): 29-40.
[15]	Kadlee R H, Knight R L.1996. Treatment wetlands. Boca Raton, FL:Lews Publishers.
[16]	Keddy P A.2000. Wetland ecology-principles and conservation. Cambridge, UK: Cambridge University Press.
[17]	Kennedy Okello W, Kooiman A, Kennedy Okello W, et al.2010. Application of earth remote sensing and GIS in mapping land cover patterns in kinangop division, Kenya. Journal of Remote Sensing, 14(1): 180-196.
[18]	Liang G F, Ding S Y.2004. Impacts of human activity and natural change on the wetland landscape pattern along the Yellow River in Henan Province. Journal of Geographical Sciences, 14(3): 339-348.
[19]	Lin A Y C, Debroux J F, Cunningham J A, et al.2003. Comparison of rhodamine WT and bromide in the determination of hydraulic characteristics of constructed wetlands. Ecological Engineering, 20(1): 75-88.
[20]	Mitsch W J, Gosselink J G.2000. Wetlands. New York, NY: John Wiley & Sons.
[21]	Philip H.2013. Hydrological modelling of tidal re-inundation of an estuarine wetland in South-Eastern Australia. Ecological Engineering, 52: 79-87.
[22]	Prevedello J A, Vieira M V.2010. Does the type of matrix matter: a quantitative review of the evidence. Biodiversity and Conservation, 19(5): 1205-1223.
[23]	Ramsar Convention Secretariat.2006. The Ramsar Convention manual: a guide to the convention on wetlands (Ramsar, Iran, 1971). Gland, Switzerland: Ramsar Convention Secretariat.
[24]	Tooth S, McCarthy T S.2007. Wetlands in drylands: geomorphological and sedimentological characteristics, with emphasis on examples from Southern Africa. Progress in Physical Geography, 31(1): 19-23.
[25]	Weiers S, Bock M, Wissen M, et al.2004. Mapping and indicator approaches for the assessment of habitats at different scales using remote sensing and GIS methods. Landscape and Urban Planning, 67(1-4): 43-65.
[26]	Xie Z L, Xu L F, Duan X F, et al.2012. Analysis of boundary adjustments and land use policy change: a case study of Tianjin Palaeocoast and Wetland National Natural Reserve, China. Ocean & Coastal Management, 56(3): 56-63.
[27]	Zhang R Q.2009. Approaches of research on geo-information TuPu. Science of Surveying and Mapping, 34(1): 14-16.

岸段	自然地理特征	生态保护区	入海河流流域分区	港口建设	海岸工程	海岸侵蚀/淤积状况
Ⅰ	废黄河三角洲冲积平原,粉砂-淤泥质海岸		三级：南四湖及运河区(灌河、中山河、废黄河、扁担河)	滨海港	废黄河三角洲海岸防护工程	严重侵蚀
Ⅱ	废黄河三角洲冲积平原,粉砂-淤泥质海岸		三级：里下河(运粮河、射阳河)	射阳港		侵蚀逐渐转向稳定略有淤涨
Ⅲ	海积平原,粉砂质潮滩,平均潮滩宽3~6 km	盐城珍禽国家级自然保护区	三级：里下河(黄沙港、新洋港、斗龙港)			淤涨
Ⅳ	海积平原,粉砂质潮滩,平均潮滩宽3~6 km,弶港附近可达14 km	大丰麋鹿国家级自然保护区	三级：里下河(王港河、疆界河、川东港、东台河、方塘河)	大丰港	大丰港引堤工程、东台近岸高涂匡围工程	淤涨明显
Ⅴ	长江三角洲冲积平原,粉砂、泥质粉砂为主,平均潮滩宽5~10 km		三级：里下河(长角河、梁垛河、北凌河)	洋口港、吕四港	如东西太阳沙人工岛工程	淤涨
Ⅵ	长江三角洲冲积平原,粉砂、泥质粉砂为主,平均潮滩宽0.6~3 km		三级：长江干流(团结河、通启运河)			岸段稳定

岸段	1980年	1992年	2008年	侵蚀/淤积面积/km²		速率/(m/a)
岸段	1980年	1992年	2008年	1980-1992		1992-2008	1980-2008	1980-1992	1992-2008	1980-2008
Ⅰ	448.59	445.72	435.25	-2.87	-10.47	-13.34		-3.39	-9.29	-6.77
Ⅱ	213.87	214.59	232.02	0.72	17.43	18.15		1.58	28.64	17.04
Ⅲ	443.30	493.73	645.65	50.43	151.92	202.35		75.99	171.69	130.68
Ⅳ	341.92	392.83	760.04	50.91	367.21	418.12		49.82	269.49	175.35
Ⅴ	208.06	219.44	480.36	11.38	260.92	272.30		9.89	170.13	101.46
Ⅵ	78.77	66.22	146.33	-12.55	80.11	67.56		-12.51	59.93	28.88

岸段	固有区								净变区
	天然湿地面积变化/km²					人工湿地面积变化/km²			天然湿地面积变化/km²				人工湿地面积变化/km²
	1980- 1992	1992- 2008		1980- 2008	1980- 1992		1992- 2008	1980- 2008		1980- 1992	1992- 2008	1980- 2008	1980- 1992	1992- 2008	1980- 2008
Ⅰ	-52.9	-1.18	-54.08		60.1	-14.35	45.75		-4	-1.34	-5.34		2.19	-3.85	-1.66
Ⅱ	-80.88	-83.81	-164.69		71.52	67.48	139		8.94	2.07	11.01		0	7.26	7.26
Ⅲ	52.65	-277.84	-225.19		68.11	148.02	216.13		43.94	34.75	78.69		0.84	120.8	121.64
Ⅳ	18.03	-282.69	-264.66		59.3	155.22	214.52		47.48	135.76	183.24		0.23	190.94	191.17
Ⅴ	2.07	-63.64	-61.57		45.27	-3.5	41.77		10.02	122.19	132.21		2.8	55.93	58.73
Ⅵ	-28.79	18.46	-10.33		0.04	-1.57	-1.53		-14.63	41.24	26.61		0.19	28.48	28.67
合计	-89.82	-690.7	-780.52		304.34	351.30	655.64		91.75	334.67	426.42		6.25	399.56	405.81

	湿地丧失							湿地转型						湿地演替
岸段	天然湿地/km²				人工湿地/km²				天然湿地/km²			人工湿地/km²		天然湿地/km²
岸段	1980- 1992	1992- 2008	1980- 2008	1980- 1992		1992- 2008	1980- 2008	1980- 1992	1992- 2008	1980- 2008	1980- 1992	1992- 2008	1980- 2008	1980- 1992	1992- 2008	1980- 2008
Ⅰ	8.73	13.20	21.93	6.22		5.94	12.16	46.39	0.64	47.03	2.73	2.21	4.94	6.45	1.45	7.90
Ⅱ	33.00	0.59	33.59	0.33		0.75	1.08	68.97	73.88	142.85	0.00	0.00	0.00	39.05	6.07	45.12
Ⅲ	18.08	39.57	57.65	3.01		0.02	3.03	42.19	255.36	297.55	0.00	0.00	0.00	97.73	27.71	125.44
Ⅳ	43.63	60.78	104.41	0.04		5.58	5.62	49.53	358.16	407.69	0.01	3.19	3.20	95.70	10.09	105.79
Ⅴ	12.29	103.8	116.09	4.96		9.36	14.32	23.02	71.01	94.03	1.46	0.00	1.46	14.48	3.79	18.27
Ⅵ	4.10	12.19	16.29	4.89		8.89	13.78	1.19	28.14	29.33	1.76	7.98	9.74	9.89	2.41	12.30
合计	119.83	230.13	349.96	19.45		30.54	49.99	231.29	787.19	1018.48	5.96	13.38	19.34	263.30	51.52	314.82

分段	芦苇/km²			大米草/km²				盐蒿/km²				茅草/km²
分段	1980-1992		1992-2008	1980-2008		1980-1992	1992-2008	1980-2008	1980-1992	1992-2008	1980-2008	1980-1992	1992-2008	1980-2008
Ⅰ	0.45	-22.38	-21.93	+1.38	2.54	+3.92		-3.57	-32.73	-36.3		0.45	-5.13	-4.68
Ⅱ	-17.47	-31.2	-48.67	+2.97	7.74	+10.71		31.24	-81.85	-50.61		-16.73	-45.49	-62.22
Ⅲ	42.66	-83.39	-40.73	+7.54	29.28	+36.82		21.85	-84.6	-62.75		-72.05	-16.6	-88.65
Ⅳ	-7.56	-13.91	-21.47	+6.15	133.53	+139.68		82.69	-187.76	-105.07		-81.28	-31.51	-112.79
Ⅴ	+1.68	10.35	+12.03	+11.60	56.97	+68.57		-13.16	-39.99	-53.15		-0.05	4.27	+4.22
Ⅵ	0	13.65	+13.65	-3.89	-7.44	-11.33		+3.89	-2.75	+1.14		0	9.54	+9.54
合计	19.76	-126.88	-107.12	25.75	222.62	248.37		122.94	-429.68	-306.74		-169.66	-84.92	-254.58
