信阳城市人口—城区用地异速生长分析

doi:10.11820/dlkxjz.2014.08.006

摘要/Abstract

摘要：

城市人口规模和用地面积随着时间的改变过程理论上服从异速生长定律,即在一定时空范围内表现为幂指数关系,并且标度指数小于1。但由于种种原因,中国的统计数据大多不满足纵向异速标度关系,或者标度指数严重异常。为深入研究这一问题,借助最小二乘法和对数线性回归分析技术,基于信阳的人口普查数据和城市用地现状图资料,开展城市人口和城市用地面积的标度分析,发现城市生长长期服从纵向异速生长定律,可用幂函数描绘,并且标度指数(约为0.86)接近于理论预期值(0.85)。然而,由于近年的“造城运动”,这种标度关系遭到破坏,城市人—地关系出现混乱。因此,揭示城市演化规律的前提是数据质量的保证,而人文系统的规律也会因为人为的因素而暂时破坏。本文提供了一个城市纵向异速生长及其标度破坏的简明案例,并给出了估计和预测信阳城市人口和用地的数学模型,其计算结果可以作为了解同类城市人—地关系的演化进程和未来趋势的重要参考。

关键词: 异速生长, 异速标度, 分维, 标度间断, 城市人—地关系, 信阳

Abstract:

The relationship between urban population and construction land area is supposed to follow the law of allometric growth, which is based on exponential growth or distribution. However, if we apply the allometric scaling law to Chinese cities using data from the statistical yearbooks of China, the relationship is often unclear or unconvincing, possibly due to the quality of the statistical data used. In this study, the ordinary least square method and log-linear regression analysis are employed to make a longitudinal allometric analysis of urban evolution of Xinyang, a medium-sized city of Henan Province, China. Population of the urban area (which is greater than the non-agricultural population of the same city) was estimated by using the census data from multiple years; the area of urban construction land was estimated using the land-use maps. The quality of these data is clearly higher than those provided in the statistical yearbooks. The result of the analysis shows that from 1949 to 2004, the urban population and area of construction land in Xinyang followed the allometric scaling law. During the period between 2007 and 2013, the scaling relation was disrupted due to the "city-making movement" in the context of an overheated economy based on real estate development and rapid urbanization. The following conclusion can be drawn: the urban evolution of Chinese cities follows the allometric growth law, but the allometric scaling can be disturbed by government policies in a largely command and control economy. The significance of this work lies in that, first, it provides a typical case of longitudinal allometry of China's cities for urban studies; second, it gives a set of models that can be used to estimate and project population size and urban land area of cities like Xinyang; and third, it lays a foundation for future allometric studies based on logistic growth rather than exponential growth.

Key words: allometric growth, allometric scaling, fractal dimension, scaling breaking, urban human-environment relation, Xinyang

中图分类号:

K901.8

陈彦光, 张莉. 信阳城市人口—城区用地异速生长分析[J]. 地理科学进展, 2014, 33(8): 1058-1067.

Yanguang CHEN, Li ZHANG. An allometric analysis of the scaling relations between population and urban area of Xinyang[J]. PROGRESS IN GEOGRAPHY, 2014, 33(8): 1058-1067.

图/表 7

表1

图1

图2

图3

图4

表2

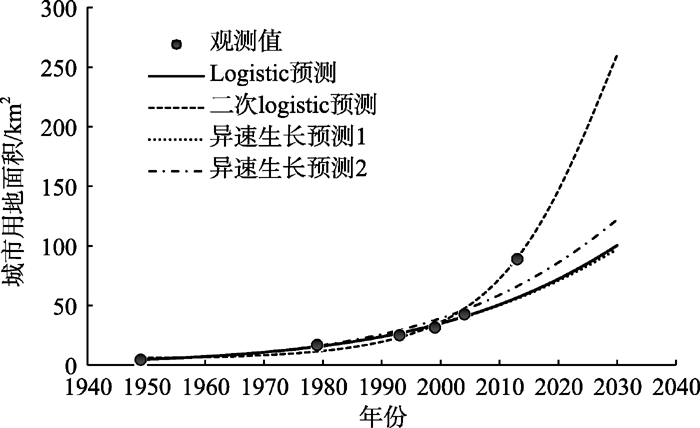

信阳城市人口和城市建设用地面积估计值和预测值"

年份 n	时序 t	人口规模P_t/万人	建设用地面积A_t/km²
年份 n	时序 t	Logistic预测值	Logistic预测	二次logistic预测	异速生长预测1	异速生长预测2
1949	0	3.76	4.63	6.14	4.70	4.30
1950	1	3.94	4.82	6.14	4.89	4.50
1951	2	4.12	5.02	6.15	5.09	4.70
1952	3	4.32	5.23	6.17	5.30	4.91
1953	4	4.53	5.44	6.21	5.52	5.14
1954	5	4.74	5.67	6.24	5.74	5.37
1955	6	4.97	5.90	6.29	5.98	5.61
1956	7	5.21	6.15	6.35	6.22	5.87
1957	8	5.46	6.40	6.42	6.48	6.13
1958	9	5.72	6.67	6.49	6.74	6.41
1959	10	5.99	6.94	6.58	7.02	6.70
1960	11	6.27	7.23	6.68	7.30	7.00
1961	12	6.57	7.53	6.78	7.60	7.32
1962	13	6.89	7.84	6.90	7.91	7.65
1963	14	7.21	8.16	7.03	8.23	8.00
1964	15	7.56	8.50	7.18	8.57	8.36
1965	16	7.91	8.85	7.34	8.92	8.73
1966	17	8.29	9.21	7.51	9.28	9.12
1967	18	8.68	9.59	7.69	9.66	9.53
1968	19	9.09	9.98	7.89	10.05	9.96
1969	20	9.52	10.39	8.11	10.46	10.41
1970	21	9.97	10.81	8.34	10.88	10.88
1971	22	10.44	11.26	8.59	11.32	11.36
1972	23	10.94	11.71	8.87	11.78	11.87
1973	24	11.45	12.19	9.16	12.26	12.40
1974	25	11.99	12.69	9.48	12.75	12.96
1975	26	12.55	13.21	9.82	13.26	13.53
1976	27	13.14	13.74	10.18	13.80	14.14
1977	28	13.76	14.30	10.58	14.35	14.77
1978	29	14.40	14.88	11.00	14.93	15.42
1979	30	15.08	15.48	11.46	15.53	16.11
1980	31	15.78	16.11	11.95	16.15	16.82
1981	32	16.52	16.76	12.48	16.80	17.56
1982	33	17.29	17.43	13.05	17.47	18.34
1983	34	18.09	18.13	13.67	18.16	19.15
1984	35	18.93	18.86	14.33	18.89	19.99
1985	36	19.80	19.61	15.04	19.63	20.87
1986	37	20.72	20.40	15.81	20.41	21.78
1987	38	21.67	21.21	16.64	21.22	22.73
1988	39	22.67	22.06	17.53	22.06	23.73
1989	40	23.71	22.93	18.50	22.93	24.76
1990	41	24.80	23.84	19.54	23.83	25.83
1991	42	25.93	24.79	20.67	24.76	26.95
1992	43	27.11	25.77	21.89	25.73	28.12
1993	44	28.34	26.78	23.20	26.73	29.33
1994	45	29.63	27.83	24.63	27.77	30.59
1995	46	30.96	28.92	26.17	28.85	31.90
1996	47	32.36	30.05	27.83	29.96	33.27
1997	48	33.81	31.22	29.64	31.11	34.68
1998	49	35.32	32.43	31.59	32.31	36.16
1999	50	36.90	33.69	33.71	33.54	37.69
2000	51	38.54	34.99	36.00	34.82	39.27
2001	52	40.24	36.34	38.48	36.14	40.92
2002	53	42.02	37.73	41.17	37.51	42.63
2003	54	43.86	39.17	44.08	38.92	44.41
2004	55	45.78	40.66	47.24	40.38	46.25
2005	56	47.77	42.20	50.65	41.89	48.16
2006	57	49.84	43.79	54.34	43.45	50.14
2007	58	51.99	45.44	58.33	45.05	52.19
2008	59	54.22	47.14	62.64	46.71	54.31
2009	60	56.53	48.89	67.30	48.42	56.51
2010	61	58.93	50.70	72.32	50.18	58.79
2011	62	61.41	52.57	77.72	52.00	61.14
2012	63	63.99	54.50	83.53	53.87	63.57
2013	64	66.65	56.49	89.77	55.79	66.08
2014	65	69.41	58.54	96.45	57.77	68.67
2015	66	72.26	60.66	103.59	59.81	71.35
2016	67	75.21	62.83	111.21	61.90	74.11
2017	68	78.25	65.08	119.30	64.05	76.96
2018	69	81.40	67.38	127.88	66.26	79.89
2019	70	84.64	69.76	136.94	68.53	82.92
2020	71	87.99	72.20	146.48	70.85	86.03
2021	72	91.44	74.71	156.47	73.24	89.22
2022	73	94.99	77.28	166.90	75.68	92.51
2023	74	98.64	79.93	177.72	78.18	95.89
2024	75	102.40	82.65	188.91	80.73	99.36
2025	76	106.26	85.43	200.41	83.35	102.91
2026	77	110.23	88.29	212.15	86.02	106.56
2027	78	114.30	91.22	224.08	88.74	110.29
2028	79	118.47	94.22	236.13	91.52	114.11
2029	80	122.75	97.29	248.21	94.36	118.02
2030	81	127.12	100.43	260.25	97.25	122.01

表2

图5

参考文献 32

[1]	陈彦光.2002. 城市人口—城区面积异速生长模型的理论基础、推广形式及其实证分析. 华中师范大学学报: 自然科学版, 36(3): 375-380.
	Chen Y G.2002. The allometric models on the relationships between area and population of urban systems. Journal of Central China Normal University: Natural Science, 36(3): 375-380.
[2]	陈彦光.2008. 三个城市地域概念辨析. 城市发展研究, 15(2): 81-84, 116.
	Chen Y G.2008. Distinguishing three spatial concepts of cities by using the idea from system science. Urban Development Studies, 15(2): 81-84, 116.
[3]	陈彦光.2009a. 人口与资源预测中Logistic模型承载量参数的自回归估计. 自然资源学报, 24(6): 1105-1113.
	Chen Y G.2009a. Carrying capacity estimation of logistic model in population and resources prediction by nonlinear autoregression. Journal of Natural Resources, 24(6): 1105-1113.
[4]	陈彦光.2009b. 对称性与人文地理系统的规律性. 地理科学进展, 28(2): 312-320.
	Chen Y G.2009b. New way of looking at human geographical laws using the idea from symmetry. Progress in Geography, 28(2): 312-320.
[5]	陈彦光.2010. 基于Excel的地理数据分析. 北京: 科学出版社.
	Chen Y G.2010. Geographical data analysis using Excel. Beijing, China: Scientific Press.
[6]	陈彦光.2012a. 基于Matlab的地理数据分析. 北京: 高等教育出版社.
	Chen Y G.2012a. Geographical data analysis with Matlab. Beijing, China: Higher Education Press.
[7]	陈彦光.2012b. 中国城市化水平统计数据的问题分析. 现代城市研究, 27(7): 4-8.
	Chen Y G.2012b. On the enigma of China's level of urbanization. Modern Urban Research, 27(7): 4-8.
[8]	陈彦光.2013. 城市异速标度研究的起源、困境和复兴. 地理研究, 32(6): 1033-1045.
	Chen Y G.2013. The rise, fall, and revival process of allometric scaling analysis in urban studies. Geographical Research, 32(6): 1033-1045.
[9]	陈彦光, 许秋红. 1999. 区域城市人口—面积异速生长关系的分形几何模型. 信阳师范学院学报: 自然科学版, 12(2): 198-203.
	Chen Y G, Xu Q H.1999. Studies on the fractal geometric model of allometric growth relationships between area and population of urban systems. Journal of Xinyang Teachers College: Natural Science Edition, 12(2): 198-203.
[10]	陈彦光, 余斌. 2004. 异速生长律与城市郊区化的分维刻画. 华中师范大学学报: 自然科学版, 38(3): 370-373, 378.
	Chen Y G, Yu B.2004. The law of allometric growth and theoretical foundation of several suburbanization models. Journal Of Central China Normal University: Natural Science, 38(3): 370-373, 378.
[11]	陈彦光, 周一星. 2001. 基于RS数据的城市系统异速生长分析和城镇化水平预测模型: 基本理论与应用方法. 北京大学学报: 自然科学版, 37(6): 819-826.
	Chen Y G, Zhou Y X.2001. Researches on models of allometric analysis of urban systems and forecast of urbanization level based on RS data of urban area. Acta Scientiarum Naturalium Universitatis Pekinensis, 37(6): 819-826.
[12]	李郇, 陈刚强, 许学强. 2009. 中国城市异速增长分析. 地理学报, 64(4): 399-407.
	Li X, Chen G Q, Xu X Q.2009. Urban allometric growth in China: theory and facts. Acta Geographica Sinica, 64(4): 399-407.
[13]	梁进社, 王旻. 2002. 城市用地与人口的异速增长和相关经验研究. 地理科学, 22(6): 649-654.
	Liang J S, Wang M.2002. The allometric growth of urban land use and population and its experiential research. Scientia Geographica Sinica, 22(6): 649-654.
[14]	刘继生, 陈彦光. 2000. 长春地区城镇体系时空关联的异速生长分析: 1949-1988. 人文地理, 15(3): 6-12.
	Liu J S, Chen Y G.2000. An allometric analysis of the Changchun system of towns: 1949-1988. Human Geography, 15(3): 6-12.
[15]	刘继生, 陈彦光. 2004. 城市密度分布与异速生长定律的数理关系探讨. 东北师范大学学报: 自然科学版, 36(4): 139-148.
	Liu J S, Chen Y G.2004. The spatial complexity of the law of allometric growth and urban population density. Journal of Northeast Normal University: Natural Science Edition, 36(4): 139-148.
[16]	刘继生, 陈彦光. 2005. 山东省城市人口—城区面积的异速生长特征探讨. 地理科学, 25(2): 135-141.
	Liu J S, Chen Y G.2005. An allometric analysis of the Shandong urban system using ideas from fractals. Scientia Geographica Sinica, 25(2): 135-141.
[17]	赵岑, 冯长春. 2010. 我国城市化进程中城市人口与城市用地相互关系研究. 城市发展研究, 17(10): 113-118.
	Zhao C, Feng C C.2010. Research on the interrelation between urban land use and population in urbanization process of China. Urban Development Studies, 17(10): 113-118.
[18]	周一星.1999. 城市地理学. 北京: 商务印书馆.
	Zhou Y X.1999. Urban geography. Beijing, China: The Commercial Press.
[19]	Arbesman S.2012. The half-life of facts: why everything we know has an expiration date. New York, NY: Penguin Group.
[20]	Batty M, Longley P A.1994. Fractal cities: a geometry of form and function. London, UK: Academic Press.
[21]	Bertalanffy L von.1968. General system theory: foundations, development, and applications. New York, NY: George Breziller.
[22]	Carroll C.1982. National city-size distributions: what do we know after 67 years of research? Progress in Human Geography, 6(1): 1-43.
[23]	Chen Y G.2010. Characterizing growth and form of fractal cities with allometric scaling exponents. Discrete Dynamics in Nature and Society, Volume 2010, Article ID 194715, 22 pages.
[24]	Chen Y G.2014a. An allometric scaling relation based on logistic growth of cities. Chaos, Solitons & Fractals, 65: 65-77.
[25]	Chen Y G.2014b. Multifractals of central place systems: models, dimension spectrums, and empirical analysis. Physica A: Statistical Mechanics and its Applications, 402: 266-282.
[26]	Knox P L, Marston S A.2009. Places and regions in global context: human geography (5th ed). Upper Saddle River, NJ: Prentice Hall.
[27]	Lee Y.1989. An allometric analysis of the US urban system: 1960-80. Environment and Planning A, 21(4): 463-476.
[28]	Lo C P.2002. Urban indicators of China from radiance-calibrated digital DMSP-OLS nighttime images. Annals of the Association of American Geographers, 92(2): 225-240.
[29]	Lo C P, Welch R.1977. Chinese urban population estimates. Annals of the Association of American Geographers, 67(2): 246-253.
[30]	Moore D S.2009. Statistics: concepts and controversies (7th ed). New York, NY: W H Freeman and Company.
[31]	Naroll R S, Bertalanffy L von.1956. The principle of allometry in biology and social sciences. General Systems Yearbook, 1: 76-89.
[32]	Rubenstein J M.1999. The cultural landscape: an introduction to human geography (6th ed). New York, NY: Macmillan Publishing Company.
