TRMM卫星降水数据在川渝地区的适用性分析

doi:10.11820/dlkxjz.2014.10.009

摘要/Abstract

摘要：

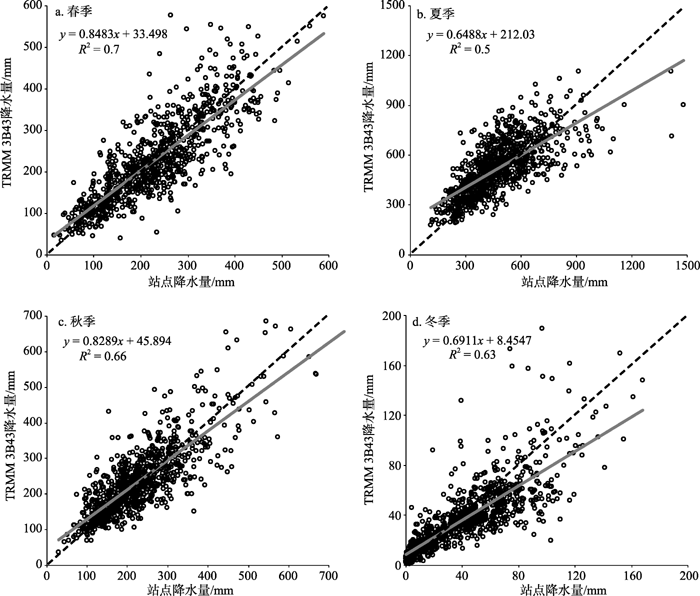

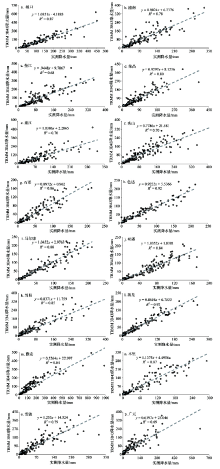

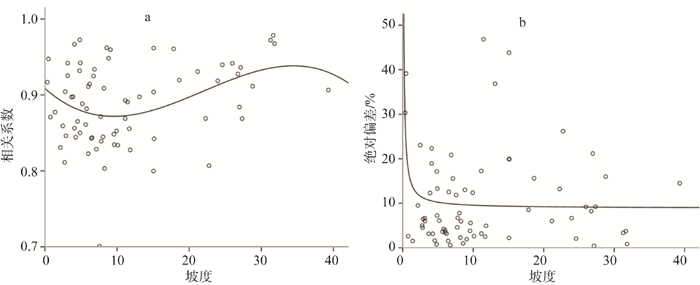

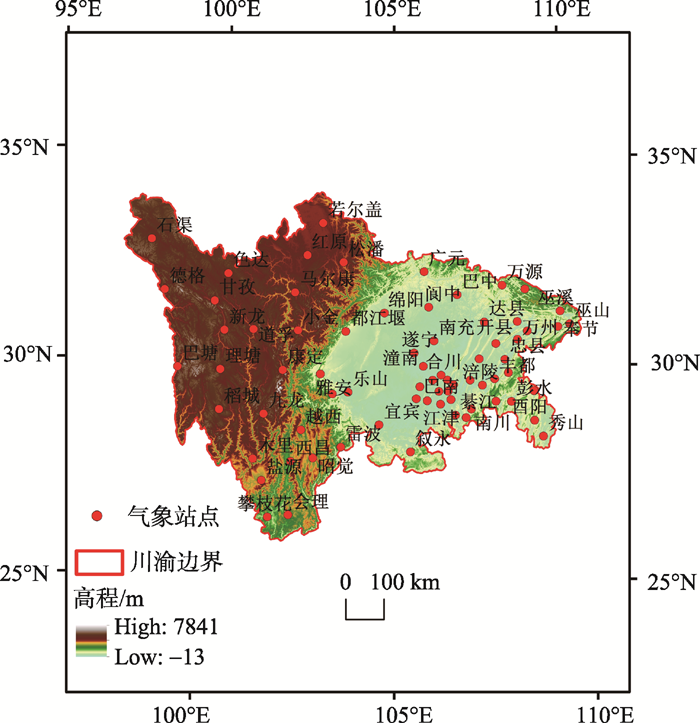

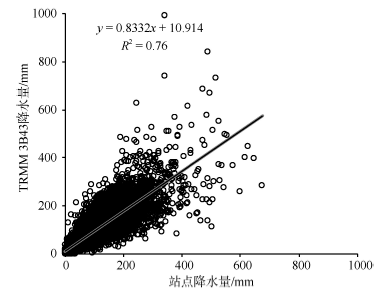

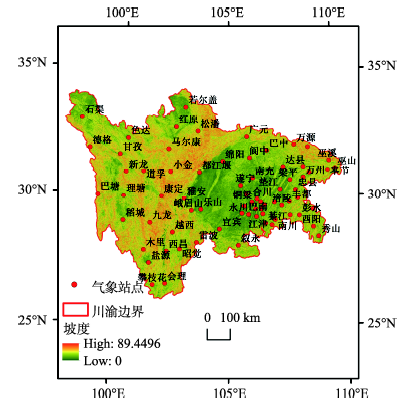

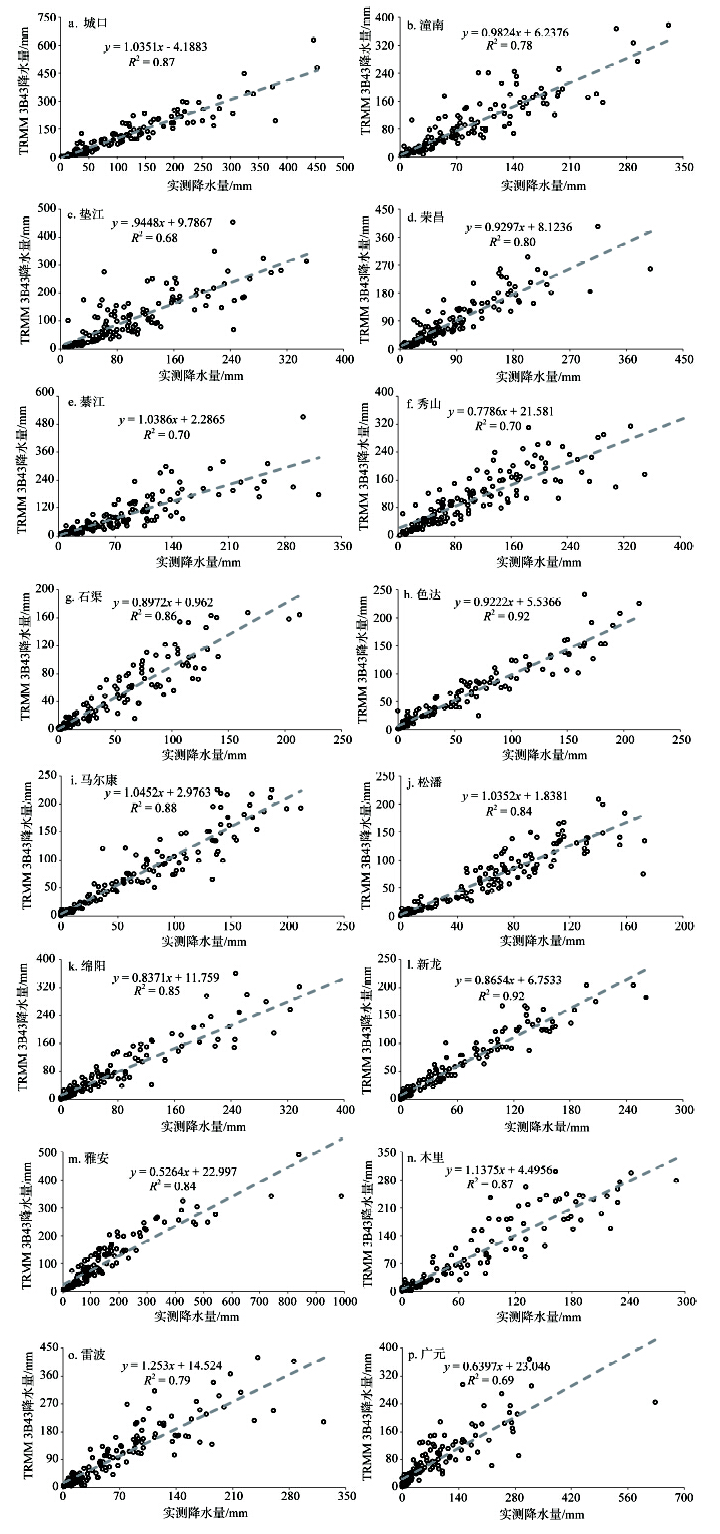

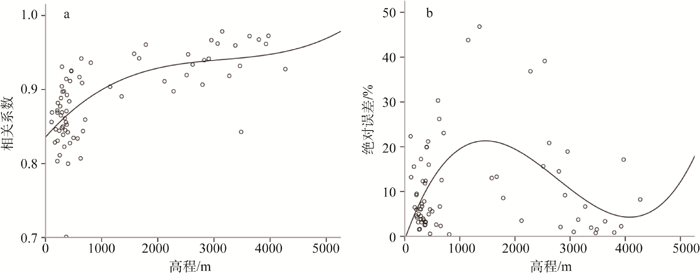

在地形复杂的川渝地区,利用72个气象站点的实测降水数据对TRMM( Tropical Rainfall Measurement Mission) 卫星降水数据的精度分别在年、季和月尺度上进行验证,并进一步分析了高程和坡度对月尺度验证结果的影响,同时借助主成分分析法,对比了高程与坡度对TRMM 3B43降水数据的影响程度。结果表明：TRMM 3B43估算的年降水量在川渝地区平均偏高5.38%,其中西部高原区估算结果比中东部地区相对精确。TRMM 3B43与气象站点的季尺度降水数据拟合优度较高,但各季拟合优度之间存在差异,其中春季降水的拟合优度高于其余季节。而TRMM 3B43的月数据与站点实测降水数据拟合优度R²=0.7615,相关系数R=0.87,表明两者之间相关性显著,数据精度较高;就单个站点而言,大部分站点相关系数较高,误差较小,但叙永站相关系数相对较低,小金、雅安、雷波、盐源以及攀枝花站点数据误差相对较大。高程对数据精度的影响较坡度大,且呈现三次非线性回归的变化特征,随着高程的升高,R呈现增大的变化趋势,|Bias(%)|则呈现出增大—减小—增大的变化趋势;坡度对降水数据精度的影响相对较小且变化规律也较复杂,整体上随坡度变化,TRMM 3B43数据精度受到明显的影响。

关键词: TRMM 3B43, 降水, 复杂地形, 川渝地区

Abstract:

Precipitation data is often needed for hydrological, meteorological, ecological, and other environmental and geographic applications. Currently there are mainly two sources of precipitation estimates: observation at meteorological stations and remote sensing data. However, a large number of studies has demonstrated that measurements at conventional meteorological stations are point data and they cannot reflect the spatial variation of precipitation effectively, especially in areas of more complex terrain. Remote sensing technology, on the other hand, is able to produce reasonably high resolution gridded precipitation fields. Precipitation products obtained by satellites have been widely used in previous studies in the world. The Sichuan-Chongqing region is a typical area with complicated terrain and climate characteristics. The meteorological stations are very unevenly distributed in this region, especially in the western area. Precipitation estimation using satellite data provides potential alternatives to precipitation measurements in this region. In this study,the performance of the TRMM (Tropical Rainfall Measurement Mission) 3B43 monthly precipitation data over 2000-2011 was evaluated in the Sichuan-Chongqing region with rainfall records from 72 meteorological stations at different time intervals. The influence of elevation and slope on the verification result was analyzed at the monthly scale. Finally, principal component analysis was used to compare the effects of elevation and slope on the accuracy of TRMM 3B43 precipitation estimates. The results show that: (1) Regional average annual precipitation estimated by TRMM 3B43 is higher than the observed data from meteorological stations by 5.38%, and the eastern area estimation results are less accurate than the western plateau. Goodness of fit of seasonal precipitation between TRMM 3B43 estimates and observed data is high, but varies between the seasons—the goodness of fit of spring precipitation is higher than other seasons. Correlation between observations at the 72 stations and TRMM 3B43 estimates is high and shows little numerical biases in the whole study area at the monthly scale. (2) For individual stations, at most stations the correlation coefficients are reasonably high and the estimation biases are small, but the correlation coefficient at the Xuyong Station is comparatively low and the estimation biases at the Xiaojin Station, Yaan Station, Leibo Station, Yanyuan Station, and Panzhihua Station are comparatively high. (3) Compared with slope, elevation has greater influence on the accuracy of TRMM 3B43 estimates, which can be characterized by a cubic nonlinear relationship. With the increase of Elevation, R shows an increasing trend and |Bias(%)| increases-decreases-increases. (4) The influence of slope on the accuracy of TRMM 3B43 estimates is more complicated. Generally speaking, slope significantly affects the accuracy of TRMM 3B43 estimates

Key words: TRMM 3B43, precipitation, complex terrain, Sichuan-Chongqing region

中图分类号:

F293.35

嵇涛, 杨华, 刘睿, 何太蓉, 吴建峰. TRMM卫星降水数据在川渝地区的适用性分析[J]. 地理科学进展, 2014, 33(10): 1375-1386.

Tao JI, Hua YANG, Rui LIU, Tairong HE, Jianfeng WU. Applicability analysis of the TRMM precipitation data in the Sichuan-Chongqing region[J]. PROGRESS IN GEOGRAPHY, 2014, 33(10): 1375-1386.

图/表 13

图1

图2

表1

2000-2011年72个气象站点年均降水量与TRMM 3B43对应像元年平均降水量对比"

气象站	气象站年降水量/mm	TRMM年降水量/mm	Bias/%	气象站	气象站年降水量/mm	TRMM年降水量/mm	Bias/%
城口	1276.5	1269.5	-0.55	德格	601.0	580.6	-3.39
开县	1279.8	1360.9	6.34	甘孜	629.5	640.9	1.81
云阳	1164.2	1316.5	13.08	色达	663.5	678.0	2.20
巫溪	1112.6	1289.3	15.88	道孚	585.5	695.9	18.87
奉节	1070.6	1295.8	21.03	马尔康	766.3	835.6	9.05
巫山	1018.2	1244.3	22.21	红原	705.0	715.0	1.42
潼南	949.9	1006.1	5.92	小金	631.6	862.9	36.63
垫江	1123.2	1177.2	4.81	松潘	704.1	750.3	6.56
梁平	1154.5	1222.5	5.90	都江堰	1047.4	805.2	-23.13
万州	1147.7	1325.0	15.45	绵阳	836.8	840.9	0.50
忠县	1130.7	1233.7	9.12	巴塘	488.1	564.3	15.61
石柱	1025.2	1285.9	25.43	新龙	649.6	643.0	-1.00
大足	980.2	1004.1	2.43	理塘	765.1	634.0	-17.13
荣昌	957.6	986.2	2.99	雅安	1618.9	1127.5	-30.36
永川	923.5	988.6	7.05	稻城	663.2	657.5	-0.86
万盛	1237.7	1023.0	-17.35	康定	865.1	882.8	2.04
铜梁	1036.2	995.1	-3.97	峨眉山	1545.8	1321.1	-14.54
北碚	1099.7	1047.5	-4.75	乐山	1147.1	1288.1	12.30
合川	1095.4	1047.5	-4.37	木里	761.1	919.5	20.82
渝北	1091.0	1050.1	-3.75	九龙	926.8	892.1	-3.74
璧山	1069.0	1019.2	-4.66	越西	1074.8	1216.3	13.17
沙坪坝	1067.8	1050.1	-1.66	昭觉	1009.7	1044.5	3.45
江津	940.2	1028.1	9.35	雷波	809.6	1188.1	46.75
巴南	1015.4	1046.1	3.02	宜宾	914.1	1025.7	12.21
南川	1024.5	1050.0	2.48	盐源	740.1	1029.5	39.10
长寿	1061.4	1101.6	3.79	西昌	965.1	1090.3	12.98
涪陵	1041.2	1091.7	4.85	攀枝花	815.2	1171.8	43.74
丰都	970.5	1162.6	19.79	会理	1088.4	1181.1	8.52
武隆	991.4	1186.5	19.68	广元	907.9	856.4	-5.67
黔江	1140.4	1280.3	12.27	万源	1360.1	1268.1	-6.77
彭水	1180.1	1248.5	5.79	阆中	1062.1	1026.9	-3.31
綦江	964.8	1028.2	6.57	巴中	1150.7	1112.3	-3.33
酉阳	1302.2	1270.8	-2.42	达县	1261.8	1336.2	5.90
秀山	1318.8	1283.6	-2.68	遂宁	932.3	1003.4	7.62
石渠	563.1	516.7	-8.25	南充	1006.4	1021.1	1.46
若尔盖	627.2	621.9	-0.83	叙永	1078.3	949.3	-11.96

表1

图3

图4

表2

图5

表3

表4

图6

图7

表5

图8

参考文献 28

[1]	白爱娟, 方建刚, 张科翔. 2008. TRMM 卫星资料对陕西及周边地区夏季降水的探测. 灾害学, 23(2): 41-45.
	Bai A J, Fang J G, Zhang K X.2008. Summer rainfall in Shaanxi and its neighborhood regions observed by TRMM satellite. Journal of Catastrophology, 23(2): 41-45.
[2]	白爱娟, 刘长海, 刘晓东. 2008. TRMM多卫星降水分析资料揭示的青藏高原及其周边地区夏季降水日变化. 地球物理学报, 51(3): 704-714.
	Bai A J, Liu C H, Liu X D.2008. Diurnal variation o f summer rainfall over the Tibetan Plateau and its neighboring regions revealed by TRMM multi-satellite precipitation analysis. Chinese Journal of Geophysics, 51(3): 704-714.
[3]	杜灵通, 田庆久, 黄彦, 等. 2012. 基于TRMM数据的山东省干旱监测及其可靠性检验. 农业工程学报, 28(2): 121-126.
	Du L T, Tian Q J, Huang Y, et al.2012. Drought monitoring based on TRMM data and its reliability validation in Shandong Province. Transactions of the Chinese Society of Agricultural Engineering, 28(2): 121-126.
[4]	傅云飞, 刘奇, 自勇, 等. 2008. 基于TRMM卫星探测的夏季青藏高原降水和潜热分析. 高原山地气象研究, 28(1): 8-18.
	Fu Y F, Liu Q, Zi Y, et al.2008. Summer precipitation and latent heating over the Tibetan Plateau based on TRMM measurements. Plateau and Mountain Meteorology Research, 28(1): 8-18.
[5]	胡亮, 李耀东, 杨松, 等. 2011. 东亚热带与副热带季风区对流降水和层云降水季节变化特征对比分析研究. 中国科学: 地球科学, 41(8): 1182-1191.
	Hu L, Li Y D, Yang S, et al.2011. Seasonal variability in tropical and subtropical convective and stratiform precipitation of the East Asian monsoon. Science China: Earth Sciences, 41(8): 1182-1191.
[6]	李景刚, 李纪人, 黄诗峰, 等. 2010. 基于TRMM 数据和区域综合 Z 指数的洞庭湖流域近10年旱涝特征分析. 资源科学, 32(6): 1103-1110.
	Li J G, Li J R, Huang S F, et al.2010. Characteristics of the recent 10-year flood/drought over the Dongting Lake Basin based on TRMM precipitation data and regional integrated Z-index. Resources Science, 32(6): 1103-1110.
[7]	李相虎,张奇,邵敏. 2012. 基于TRMM数据的鄱阳湖流域降雨时空分布特征及其精度评价. 地理科学进展, 31(9): 1164-1170.
	Li X H, Zhang Q, Shao M.2012. Spatio-temporal distribution of precipitation in Poyang Lake Basin based on TRMM Data and precision evaluation. Pogress in Geography, 31(9): 1164-1170.
[8]	刘俊峰, 陈仁升, 韩春坛, 等. 2010. 多卫星遥感降水数据精度评价. 水科学进展, 21(3): 343-348.
	Liu J F, Cheng R S, Han C T, et al.2010. Evaluation TRMM multi-satellite precipitation analysis using gauge precipitation and MODIS snow-cover products. Advances in Water Science, 21(3): 343-348.
[9]	刘俊峰, 陈仁升, 卿文武, 等. 2011. 基于TRMM降水数据的山区降水垂直分布特征. 水科学进展, 22(4): 447-454.
	Liu J F, Chen R S, Qing W W, et al.2011. Study on the vertical distribution of precipitation in mountainous regions using TRMM data. Advances in Water Science, 22(4): 447-454.
[10]	吕洋, 杨胜天, 蔡明勇, 等. 2013. TRMM卫星降水数据在雅鲁藏布江流域的适用性分析. 自然资源学报, 28(8): 1414-1425.
	Lv Y, Yang S T, Cai M Y, et al.2013. The applicability analysis of TRMM precipitation data in the Yarlung Zangbo River Basin. Journal of Natural Resources, 28(8): 1414-1425.
[11]	毛江玉, 吴国雄. 2012. 基于TRMM卫星资料揭示的亚洲季风区夏季降水日变化. 中国科学: 地球科学, 42(4): 564-576.
	Mao J Y, Wu G X.2012. Diurnal variations of summer precipitation over the Asian monsoon region as revealed by TRMM satellite data. Science China: Earth Sciences, 42(4): 564-576.
[12]	穆振侠, 姜卉芳. 2010. 基于 TRMM/TMI的天山西部山区降水研究. 干旱区资源与环境, 24(7): 115-119.
	Mu Z X, Jiang H F.2010. Research of precipitation in the Western Tianshan Mountain based on TRMM/TMI. Journal of Arid Land Resources and Environment, 24(7): 115-119.
[13]	齐文文, 张百平, 庞宇, 等. 2013. 基于TRMM数据的青藏高原降水的空间和季节分布特征. 地理科学, 33(8): 999-1005.
	Qi W W, Zhang B P, Pang Y, et al.2013. TRMM-Data-Based spatial and seasonal patterns of precipitation in the Qinghai-Tibet Plateau. Scientia Geographica Sinica, 33(8): 999-1005.
[14]	田文文, 宋星原, 廖为民. 2008. 集对分析在雷达定量测量降雨中的应用研究. 水电能源科学, 26(2): 20-23.
	Tian W W, Wang X Y, Liao W M.2008. Application of Set Pari Analysis (SPA) in quantitative precipitation estimation by radar. Water Resources and Power, 26(2): 20-23.
[15]	王超, 赵传燕. 2013. TRMM多卫星资料在黑河上游降水时空特征研究中的应用. 自然资源学报, 28(5): 862-872.
	Wang C, Zhao C Y.2013. A study of the spatio-temporal distribution of precipitation in upper reaches of Heihe River of China using TRMM data. Journal of Natural Resources, 28(5): 862-872.
[16]	吴雪娇, 杨梅学, 吴洪波, 等. 2013. TRMM多卫星降水数据在黑河流域的验证与应用. 冰川冻土, 35(2): 310-319.
	Wu X J, Yang M X, Wu H B, et al.2013. Verifying and applying the TRMM TMPA in Heihe River Basin. Journal of Glaciology and Geocryology, 35(2): 310-319.
[17]	谢志清, 杜银, 曾燕, 等. 2007. 长江三角洲城市带扩展对区域温度变化的影响. 地理学报, 62(7): 717-727.
	Xie Z Q, Du Y, Zeng Y, et al.2007. Impact of urbanization on regional temperature change in the Yangtze River Delta. Acta Geographica Sinica, 62(7): 717-727.
[18]	杨传国, 余钟波, 林朝晖, 等. 2009. 基于 TRMM 卫星雷达降雨的流域陆面水文过程. 水科学进展, 20(4): 461-466.
	Yang C G, Yu Z B, Lin Z H, et al.2009. Study on watershed hydrologic processes using TRMM satellite precipitation radar products. Advances in Water Science, 20(4): 461-466.
[19]	曾红伟, 李丽娟. 2011. 澜沧江及周边流域TRMM 3B43数据精度检验. 地理学报, 66(7): 994-1004.
	Zeng H W, Li L J.2011. Accuracy validation of TRMM 3B43 data in Lancang River Basin. Acta Geographica Sinica, 66(7): 994-1004.
[20]	赵志轩, 严登华, 王浩, 等. 2011. 基于WEP模型和 TRMM_PR的唐家山堰塞湖入湖径流预报. 水利学报, 42(7): 848-856, 861.
	Zhao Z X, Yan D H, Wang H, et al.2011. Predicting inflows to Tangjiashan Barrier Lake based on WEP model and TRMM precipitation data. Journal of Hydraulic Engineering, 42(7): 848-856, 861.
[21]	朱强, 陈秀万, 樊启祥, 等. 2011. 基于TRMM的降雨侵蚀力计算方法. 中国科学: 技术科学, 41(11): 1483-1492.
	Zhu Q, Chen X W, Fan Q X, et al.2011. A new procedure to estimate the rainfall erosivity factor based on Tropical Rainfall Measuring Mission (TRMM) data. Science China: Technological Sciences, 54(9): 2437-2445.
[22]	Collischonn B, Collischonn W, Tucci C E M.2008. Daily hydrological modeling in the Amazon Basin using TRMM rainfall estimates. Journal of Hydrology, 360(1): 207-216.
[23]	Huffman G J, Adler R F, Arkin P, et al.1997. The global precipitation climatology project (GPCP) combined precipitation dataset. Bulletin of the American Meteorological Society, 78(1): 5-20.
[24]	Huffman G J, Bolvin D T, Nelkin E J, et al.2007. The TRMM Multisatellite Precipitation Analysis (TMPA): quasi-global, multiyear, combined-sensor precipitation estimates at fine scales. Journal of Hydrometeorology, 8(1): 38-55.
[25]	Islam M N, Uyeda H.2007. Use of TRMM in determining the climatic characteristics of rainfall over Bangladesh. Remote Sensing of Environment, 108(3): 264-276.
[26]	Li X H, Zhang Q, Xu C Y.2012. Suitability of the TRMM satellite rainfalls in driving a distributed hydrological model for water balance computations in Xinjiang Catchment, Poyang Lake Basin. Journal of Hydrology, 426: 28-38.
[27]	New M, Todd M, Hulme M, et al.2001. Precipitation measurements and trends in the twentieth century. International Journal of Climatology, 21(15): 1889-1922.
[28]	Xie P, Arkin P A.1997. Global precipitation: a 17-year monthly analysis based on gauge observations, satellite estimates, and numerical model outputs. Bulletin of the American Meteorological Society, 78(11): 2539-2558.

方程	回归模型检验					参数估算值
方程	R²	F	df1	df2	Sig.	Constant	b1	b2	b3
三次方	0.462	19.439	3	68	.000	0.836	8.667E-5	-2.536E-8	2.673E-12
三次方	0.202	5.739	3	68	.001	-0.745	0.034	-1.588E-5	1.911E-9

方程	回归模型检验					参数估算值
方程	R²	F	df1	df2	Sig.	Constant	b1	b2	b3
三次方	0.133	3.485	3	68	.020	0.909	-0.009	0.001	-8.630E-6
反函数	0.080	6.076	1	70	.016	8.886	6.756
