城市热岛效应对天津市居住建筑供暖和制冷负荷的影响

doi:10.18306/dlkxjz.2020.08.005

地理科学进展 ›› 2020, Vol. 39 ›› Issue (8): 1296-1307.doi: 10.18306/dlkxjz.2020.08.005

城市热岛效应对天津市居住建筑供暖和制冷负荷的影响

孟凡超¹(), 任国玉²^,³^,^*(), 郭军¹, 张雷⁴, 张瑞雪⁵

1. 天津市气候中心,天津 300074
2. 中国气象局气候研究开放实验室/国家气候中心,北京 100081
3. 中国地质大学(武汉)环境学院大气科学系,武汉 430074
4. 中国气象局国家气象信息中心,北京 100081
5. 中国建筑科学研究院有限公司,北京 100013

收稿日期:2019-09-18 修回日期:2019-11-18 出版日期:2020-08-28 发布日期:2020-10-28
通讯作者: 任国玉
作者简介:孟凡超(1983— ),女,博士,工程师,主要从事城市气候与建筑节能研究。E-mail: mfc08014072@163.com
基金资助:
国家重点研发计划项目(2018YFA0606302);国家重点研发计划项目(2018YFA0605603);天津市气象局博士基金项目(201744bsjj04)

Impact of urban heat island effect on the heating and cooling loads of residential buildings in Tianjin City, China

MENG Fanchao¹(), REN Guoyu²^,³^,^*(), GUO Jun¹, ZHANG Lei⁴, ZHANG Ruixue⁵

1. Tianjin Climate Center, Tianjin 300074, China
2. Laboratory for Climate Studies, National Climate Center, China Meteorological Administration, Beijing 100081, China
3. Department of Atmospheric Science, School of Environmental Studies, China University of Geosciences, Wuhan 430074, China
4. National Meteorological Information Center, China Meteorological Administration, Beijing 100081, China
5. China Academy of Building Research, Beijing 100013, China

Received:2019-09-18 Revised:2019-11-18 Online:2020-08-28 Published:2020-10-28
Contact: REN Guoyu
Supported by:
National Key Research and Development Program of China(2018YFA0606302);National Key Research and Development Program of China(2018YFA0605603);Doctoral Fund of Tianjin Meteorological Service(201744bsjj04)

摘要/Abstract

摘要：

城市热岛效应已对建筑能源需求产生了重要影响,评估城市热岛效应影响下建筑的真实能耗需求及城乡差异对既有建筑的节能调控和未来建筑的方案设计都具有重要意义。论文以天津自动气象站2009—2017年逐时观测数据为基础,应用卫星遥感选站方法,选取天津市区周围4个有代表性的乡村参考气象站,对典型居住建筑全年逐时负荷进行了动态模拟,定量评估了城市热岛强度对不同时间尺度(年、日和小时)建筑负荷的影响。结果表明：① 随着城市热岛强度(I_UHI)的增强,城市居住建筑供暖负荷减少、制冷负荷增加,且年平均供暖负荷的减小幅度大于年平均制冷负荷的增加幅度。I_UHI每上升1 ℃,城市年平均供暖负荷较乡村减少4.01 kWh/m²、年平均制冷负荷增加1.05 kWh/m²。② 冬季供暖期和夏季制冷期逐日负荷变化表现为：供暖期的高负荷时段主要集中在12月下旬至翌年1月下旬、制冷期为7月下旬至8月上旬,高负荷时段城市日平均供暖和制冷负荷分别较乡村约减少10%、增加6%。③ 日内供暖负荷和制冷负荷小时变化均表现为夜间强于白天。在供暖期和制冷期,北京时间18:00至次日07:00时段无论在城市或是乡村都是高负荷时段;11:00至15:00时段在供暖期是低负荷时段,而在制冷期是高负荷时段,这可能与气温和供暖制冷需求有关。研究表明,应充分考虑小时、日尺度热岛强度对用能的影响,提高供暖和空调运行调控的精细化水平,以期达到降低供暖和制冷能耗的目的。

关键词: 城市热岛效应, 乡村参考站, 供暖和制冷负荷, 天津

Abstract:

The urban heat island (UHI) effect has had an important impact on building energy demand in big cities. It is of great significance, therefore, to evaluate the impact of the UHI on building energy demand in a metropolis in order to save energy for existing buildings and to better design for future buildings. Based on the hourly data from automatic weather stations and four representative rural weather stations selected by satellite remote-sensing method, the impacts of urban heat island intensity (I_UHI) on building heating and cooling loads of different time scales (annual, daily, and hourly) in Tianjing City were evaluated by simulating hour-by-hour loads of the typical residential buildings. The results show that: 1) The heating loads decreased and the cooling loads increased with the increase of the I_UHI in the past nine years. The decreased magnitude of the yearly heating load was larger than the increased magnitude of the yearly cooling load. When the I_UHI increased by 1 ℃, the annual mean heating loads decreased by 4.01 kWh/m² and the annual mean cooling loads increased by 1.05 kWh/m² in the urban areas compared to the rural areas. 2) The heating loads were the highest in the period from late December to late January of the following year, and the daily mean loads in the urban areas were about 10% lower than that in the rural areas. The cooling loads were the highest from late July to early August, and the daily mean loads in urban areas were about 6% higher than that in the rural areas. 3) Both heating and cooling loads were higher during the nighttime than daytime. The period from 18:00 to 07:00 Beijing Time was the high load stage in the urban and rural areas, regardless of heating period or cooling period. From 11:00 to 15:00 Beijing Time, however, the loads were low in the heating period but high in the cooling period, which may have been caused by changing temperature and the different heating or cooling demand of the urban residents. Therefore, the impact of UHI on hourly and daily building loads should be fully considered to promote the effective management of urban heating and cooling operation for reducing building energy consumption in big cities of northern China like Tianjin.

Key words: urban heat island effect, rural weather station, heating/cooling load, Tianjin City

孟凡超, 任国玉, 郭军, 张雷, 张瑞雪. 城市热岛效应对天津市居住建筑供暖和制冷负荷的影响[J]. 地理科学进展, 2020, 39(8): 1296-1307.

MENG Fanchao, REN Guoyu, GUO Jun, ZHANG Lei, ZHANG Ruixue. Impact of urban heat island effect on the heating and cooling loads of residential buildings in Tianjin City, China[J]. PROGRESS IN GEOGRAPHY, 2020, 39(8): 1296-1307.

图/表 11

图1

表1

表2

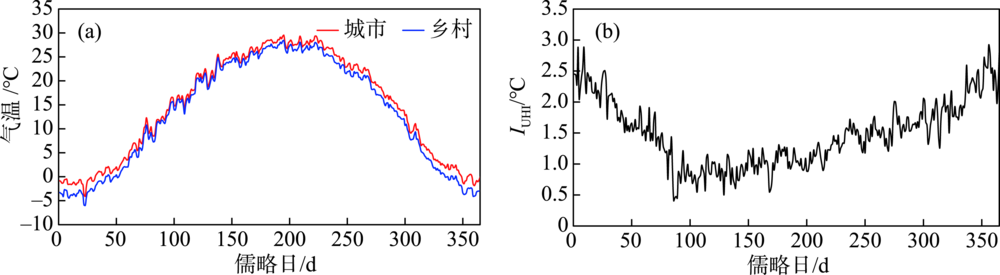

图2

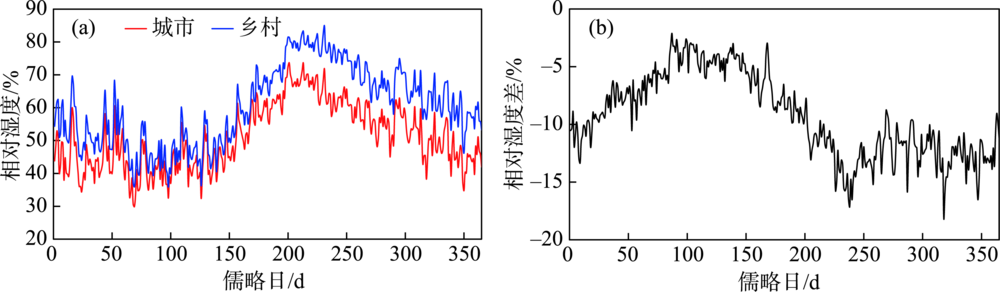

图3

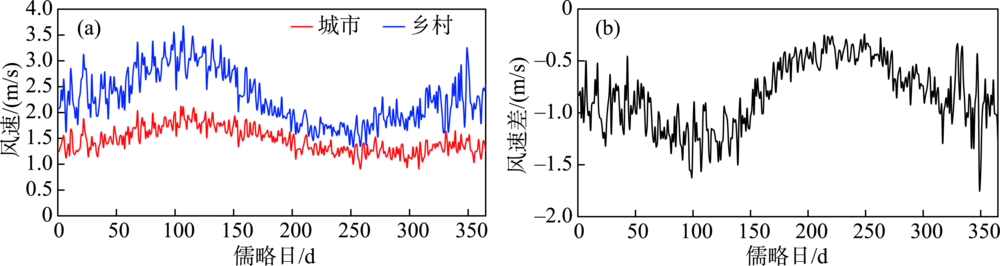

图4

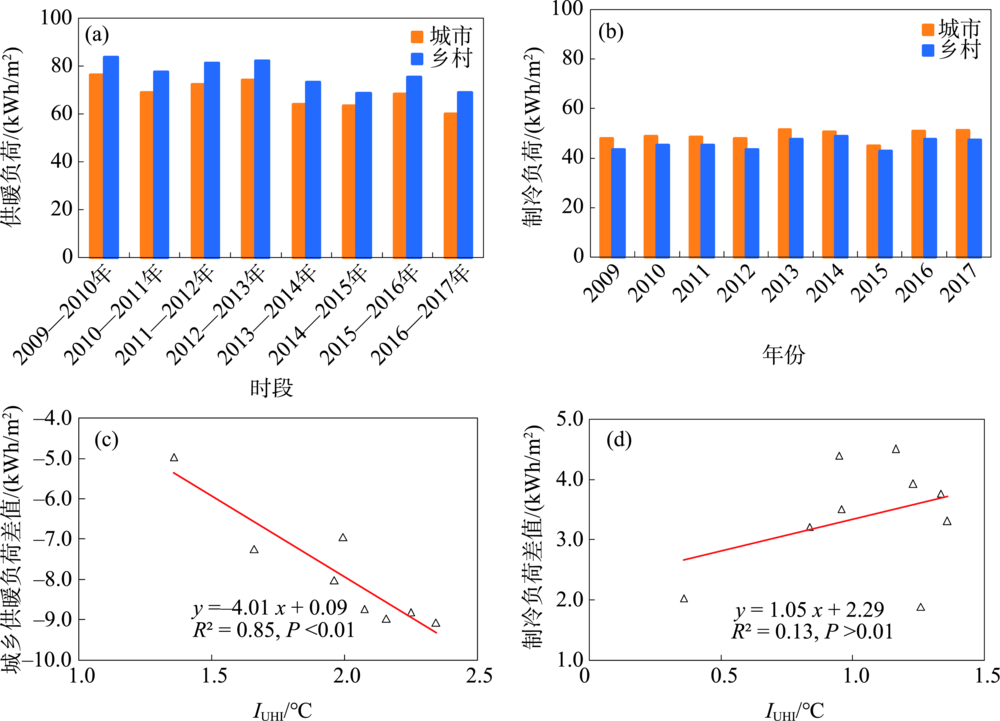

图5

图6

表3

图7

表4

参考文献 47

[1]	江亿. 我国建筑节能战略研究[J]. 中国工程科学, 2011,13(6):30-38.
	[ Jiang Yi. China building energy conservation stratagems study. Strategic Study of CAE, 2011,13(6):30-38. ]
[2]	Li X M, Zhou Y Y, Yu S, et al. Urban heat island impacts on building energy consumption: A review of approaches and ﬁndings[J]. Energy, 2019,174:407-419.
[3]	何正旭, 高浪. 我国城镇居住建筑能耗强度定量分析与预测[J]. 四川建筑, 2018,38(3):45-47.
	[ He Zhengxu, Gao Lang. Quantitative analysis and prediction of energy consumption intensity of urban residential buildings in China. Sichuan Architecture, 2018,38(3):45-47. ]
[4]	Huang J, Gurney K R. The variation of climate change impact on building energy consumption to building type and spatiotemporal scale[J]. Energy, 2016,111:137-153. doi: 10.1016/j.energy.2016.05.118
[5]	Lowe S A. An energy and mortality impact assessment of the urban heat island in the US[J]. Environmental Impact Assessment Review, 2016,56:139-144.
[6]	李元征, 尹科, 周宏轩, 等. 基于遥感监测的城市热岛研究进展[J]. 地理科学进展, 2016,35(9):1062-1074.
	[ Li Yuanzheng, Yin Ke, Zhou Hongxuan, et al. Progress in urban heat island monitoring by remote sensing. Progress in Geography, 2016,35(9):1062-1074. ]
[7]	Sailor D J. Risks of summertime extreme thermal conditions in buildings as a result of climate change and exacerbation of urban heat islands[J]. Building and Environment, 2014,78:81-88.
[8]	Palme M, Inostroza L, Villacreses G, et al. From urban climate to energy consumption. Enhancing building performance simulation by including the urban heat island effect[J]. Energy and Buildings, 2017,145:107-120.
[9]	He B J. Towards the next generation of green building for urban heat island mitigation: Zero UHI impact building[J]. Sustainable Cities and Society, 2019,101647. doi: 10.1016/j.scs.2019.101647.
[10]	Gunawardena K, Kershaw T, Steemers K. Simulation pathway for estimating heat island influence on urban/suburban building space-conditioning loads and response to facade material changes[J]. Building and Environment, 2019,150:195-205.
[11]	Morakinyo T E, Ren C, Shi Y, et al. Estimates of the impact of extreme heat events on cooling energy demand in Hong Kong[J]. Renewable Energy, 2019,142:73-84.
[12]	Santamouris M, Cartalis C, Synnefa A, et al. On the impact of urban heat island and global warming on the power demand and electricity consumption of buildings: A review[J]. Energy and Buildings, 2015,98:119-124.
[13]	Sun Y, Augenbroe G. Urban heat island effect on energy application studies of office buildings[J]. Energy and Buildings, 2014,77(7):171-179.
[14]	Arifwidodo S, Chandrasiri O. Urban heat island and household energy consumption in Bangkok, Thailand[J]. Energy Procedia, 2015,79:189-194. doi: 10.1016/j.egypro.2015.11.461
[15]	Ding F, Pang H J, Guo W H. Impact of the urban heat island on residents' energy consumption: A case study of Qingdao[J]. IOP Conference Series: Earth and Environmental Science, 2018,121:032026. doi: 10.1088/1755-1315/121/3/032026. doi: 10.1088/1755-1315/121/3/032026
[16]	Memon R A, Leung D Y C, Liu C H, et al. Urban heat island and its effect on the cooling and heating demands in urban and suburban areas of Hong Kong[J]. Theoretical and Applied Climatology, 2011,103(3-4):441-450. doi: 10.1007/s00704-010-0310-y
[17]	黄勇波. 城市热岛效应对建筑能耗影响的研究[D]. 天津: 天津大学, 2005.
	[ Huang Yongbo. Study on the impact of urban heat island on the energy consumption of buildings. Tianjin, China: Tianjin University, 2005. ]
[18]	Meng F C, Li M C, Cao J F, et al. The effects of climate change on heating energy consumption of office buildings in different climate zones in China[J]. Theoretical and Applied Climatology, 2018,133:521-530. doi: 10.1007/s00704-017-2206-6
[19]	田喆, 黄勇波, 朱能, 等. 城市热岛作用下办公建筑冷负荷的影响因素分析[J]. 流体机械, 2005,33(5):54-57.
	[ Tian Zhe, Huang Yongbo, Zhu Neng, et al. Analysis for the impact of UHI on office building cooling load for different factors. Fluid Machinery, 2005,33(5):54-57. ]
[20]	Li M C, Cao J F, Xiong M M, et al. Different responses of cooling energy consumption in office buildings to climatic change in major climate zones of China[J]. Energy and Buildings, 2018,173:38-44. doi: 10.1016/j.enbuild.2018.05.037
[21]	陈莉, 方修睦, 方修琦, 等. 过去20年气候变暖对我国冬季采暖气候条件与能源需求的影响[J]. 自然资源学报, 2006,21(4):590-597. doi: 10.11849/zrzyxb.2006.04.012
	[ Chen Li, Fang Xiumu, Fang Xiuqi, et al. Impacts of climate warming on heating climatic conditions and energy requirements over China in the past 20 years. Journal of Natural Resources, 2006,21(4):590-597. ]
[22]	史军, 崔林丽, 田展, 等. 气温变化对华东居住建筑取暖和降温耗能的影响[J]. 自然资源学报, 2011,26(3):460-467. doi: 10.11849/zrzyxb.2011.03.012
	[ Shi Jun, Cui Linli, Tian Zhan, et al. Impact of temperature change on heating and cooling energy consumption of residential buildings in East China. Journal of Natural Resources, 2011,26(3):460-467. ]
[23]	Hwang R L, Lin C Y, Huang K T. Spatial and temporal analysis of urban heat island and global warming on residential thermal comfort and cooling energy in Taiwan[J]. Energy and Buildings, 2017,152:804-812. doi: 10.1016/j.enbuild.2016.11.016
[24]	Cui Y, Yan D, Hong T Z, et al. Comparison of typical year and multiyear building simulations using a 55-year actual weather data set from China[J]. Applied Energy, 2017,195:890-904. doi: 10.1016/j.apenergy.2017.03.113
[25]	Ren Y Y, Ren G Y. A remote-sensing method of selecting reference stations for evaluating urbanization effect on surface air temperature trends[J]. Journal of Climate, 2011,24(13):3179-3189. doi: 10.1175/2010JCLI3658.1
[26]	Yang P, Ren G Y, Liu W D. Spatial and temporal characteristics of Beijing urban heat island intensity[J]. Journal of Applied Meteorology and Climatology, 2013,52(8):1803-1816. doi: 10.1175/JAMC-D-12-0125.1
[27]	宁巍. 基于TRNSYS的变风量空调系统优化控制仿真[D]. 哈尔滨: 哈尔滨工业大学, 2013.
	[ Ning Wei. Simulation on the optimized control of VAV air-conditioning system based on TRNSYS. Harbin, China: Harbin Institute of Technology, 2013. ]
[28]	安册册. 数据中心空调系统预测模型研究[D]. 北京: 北京建筑大学, 2017.
	[ An Cece. Research on forecast model of air conditioning system in data center. Beijing, China: Beijing University of Civil Engineering and Architecture, 2017. ]
[29]	Magli S, Lodi C, Lombroso L, et al. Analysis of the urban heat island effects on building energy consumption[J]. International Journal of Energy and Environmental Engineering, 2015,6(1):91-99. doi: 10.1007/s40095-014-0154-9
[30]	Guattari C, Evangelisti L, Balaras C A. On the assessment of urban heat island phenomenon and its effects on building energy performance: A case study of Rome (Italy)[J]. Energy and Buildings, 2018,158:605-615. doi: 10.1016/j.enbuild.2017.10.050
[31]	李明财, 郭军, 史珺, 等. 气候变化对天津市商场和居住建筑极端能耗的影响[J]. 高原气象, 2014,33(2):574-583. doi: 10.7522/j.issn.1000-0534.2012.00197
	[ Li Mingcai, Guo Jun, Shi Jun, et al. Effect of climate change on extreme energy consumption for residential and commercial buildings in Tianjin. Plateau Meteorology, 2014,33(2):574-583. ]
[32]	Song X Y, Ye C T, Li H S, et al. Field study on energy economic assessment of ofﬁce buildings envelope retroﬁtting in southern China[J]. Sustainable Cities and Society, 2017,28:154-161. doi: 10.1016/j.scs.2016.08.029
[33]	Li M C, Shi J, Guo J, et al. Climate impacts on extreme energy consumption of different types of buildings[J]. PLoS One, 2015,10(4):1-12.
[34]	任芝花, 熊安元. 地面自动站观测资料三级质量控制业务系统的研制[J]. 气象, 2007,33(1):19-24.
	[ Ren Zhihua, Xiong Anyuan. Operational system development on three-step quality control of observations from AWS. Meteorological Monthly, 2007,33(1):19-24. ]
[35]	李红莲, 吕凯琳, 杨柳. 气候变化下未来西安几种类型建筑暖通空调负荷分析预测[J]. 西安建筑科技大学学报(自然科学版), 2018,50(4):549-555.
	[ Li Honglian, Lv Kailin, Yang Liu. Analysis and prediction of the different building HVAC load under climate change for Xi'an. Journal of Xi'an University of Architecture and Technology (Natural Science Edition), 2018,50(4):549-555. ]
[36]	高静, 龚健, 李靖业. “源—汇”景观格局的热岛效应研究: 以武汉市为例[J]. 地理科学进展, 2019,38(11):1770-1782. doi: 10.18306/dlkxjz.2019.11.012
	[ Gao Jing, Gong Jian, Li Jingye. Effects of source and sink landscape pattern on land surface temperature: An urban heat island study in Wuhan City. Progress in Geography, 2019,38(11):1770-1782. ]
[37]	谢正辉, 刘斌, 延晓冬, 等. 应对气候变化的城市规划实施效应评估研究[J]. 地理科学进展, 2020,39(1):120-131.
	[ Xie Zhenghui, Liu Bin, Yan Xiaodong, et al. Effects of implementation of urban planning in response to climate change. Progress in Geography, 2020,39(1):120-131. ]
[38]	Duan S P, Luo Z W, Yang X Y, et al. The impact of building operations on urban heat/cool islands under urban densification: A comparison between naturally-ventilated and air-conditioned buildings[J]. Applied energy, 2019,235:129-138. doi: 10.1016/j.apenergy.2018.10.108
[39]	张雷, 任国玉, 任玉玉. 单次极端高温过程中城市热岛效应的识别[J]. 气候与环境研究, 2015,20(2):167-176.
	[ Zhang Lei, Ren Guoyu, Ren Yuyu. Identification of urban effect on a single extreme high temperature event. Climatic and Environmental Research, 2015,20(2):167-176. ]
[40]	李明财, 熊明明, 任雨, 等. 未来气候变化对天津市居住建筑制冷采暖能耗的影响[J]. 气候变化研究进展, 2013,9(6):398-405. doi: 10.3969/j.issn.1673-1719.2013.06.002
	[ Li Mingcai, Xiong Mingming, Ren Yu, et al. Impact of climate change on office building energy consumption for cooling and heating in Tianjin, China. Advances in Climate Change Research, 2013,9(6):398-405. ]
[41]	Santamouris M, Haddad S, Saliari M, et al. On the energy impact of urban heat island in Sydney: Climate and energy potential of mitigation technologies[J]. Energy and Buildings, 2018,166:154-164. doi: 10.1016/j.enbuild.2018.02.007
[42]	陈怡. 广州城市热岛强度对建筑空调采暖能耗影响研究[D]. 广州: 华南理工大学, 2017.
	[ Chen Y. Study on the impact of UHI intensity on the energy consumption of building air conditioning in Guangzhou. Guangzhou, China: South China University of Technology, 2017. ]
[43]	刘树华, 刘振鑫, 李炬, 等. 京津冀地区大气局地环流耦合效应的数值模拟[J]. 中国科学: 地球科学, 2009,39(1):88-98.
	[ Liu Shuhua, Liu Zhenxin, Li Ju, et al. Numerical simulation of the coupling effect of local atmospheric circulation in Beijing-Tianjin-Hebei region. Scientia Sinica Terrae, 2009,39(1):88-98. ]
	东高红, 尉英华, 解以扬, 等. 天津地区城市热岛环流与海风环流相互作用的研究[J]. 气象, 2015,41(12):1447-1455.
	[ Dong Gaohong, Wei Yinghua, Xie Yiyang, et al. Research on the interaction of Tianjin urban heat island circulation and sea breeze circulation. Meteorological Monthly, 2015,41(12):1447-1455. ]
[45]	Lee T W, Choi H S, Lee J. Generalized scaling of urban heat island effect and its applications for energy consumption and renewable energy[J]. Advances in Meteorology, 2014,2014. doi: 10.1155/2014/948306.
[46]	刘玉莲, 任国玉. 基于度—时法的哈尔滨冬季采暖强度评价[J]. 自然资源学报, 2018,33(1):139-148.
	[ Liu Yulian, Ren Guoyu. Analysis of heating intensity in Harbin based on degree-hours method. Journal of Natural Resources, 2018,33(1):139-148. ]
[47]	Tewari M, Salamanca F, Martilli A, et al. Impacts of projected urban expansion and global warming on cooling energy demand over a semiarid region[J]. Atmospheric Science Letters, 2017,18(11):419-426. doi: 10.1002/asl.2017.18.issue-11

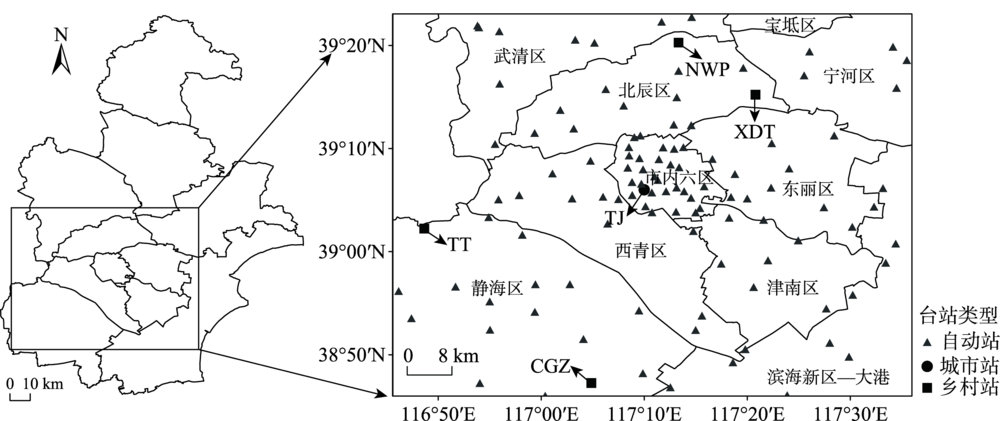

台站类型	站号	站名	缩写	经度/(°E)	纬度/(°N)	海拔/m
城市站	54517	天津	TJ	117.20	39.07	2.2
乡村站	A2565	静海台头	TT	116.81	39.04	1
乡村站	A2566	静海蔡公庄	CGZ	117.08	38.79	1
乡村站	A3405	北辰南王平	NWP	117.22	39.34	1
乡村站	A3465	北辰西堤头	XDT	117.35	39.25	1

建筑围护结构传热系数/(W·m^-2·℃^-1)			室内设计条件夏季/冬季			室内得热参数			窗墙比
墙	屋顶	窗户	温度/℃	相对湿度 /%	新风量/ (m3/h)	人员密度/ (m²/人)	照明功率密度/(W/m²)	电器设备功率/(W/m²)	东	南	西	北
0.60	0.45	2.50	26/18	60/35	30	32	5	5	0.28	0.41	0.28	0.41

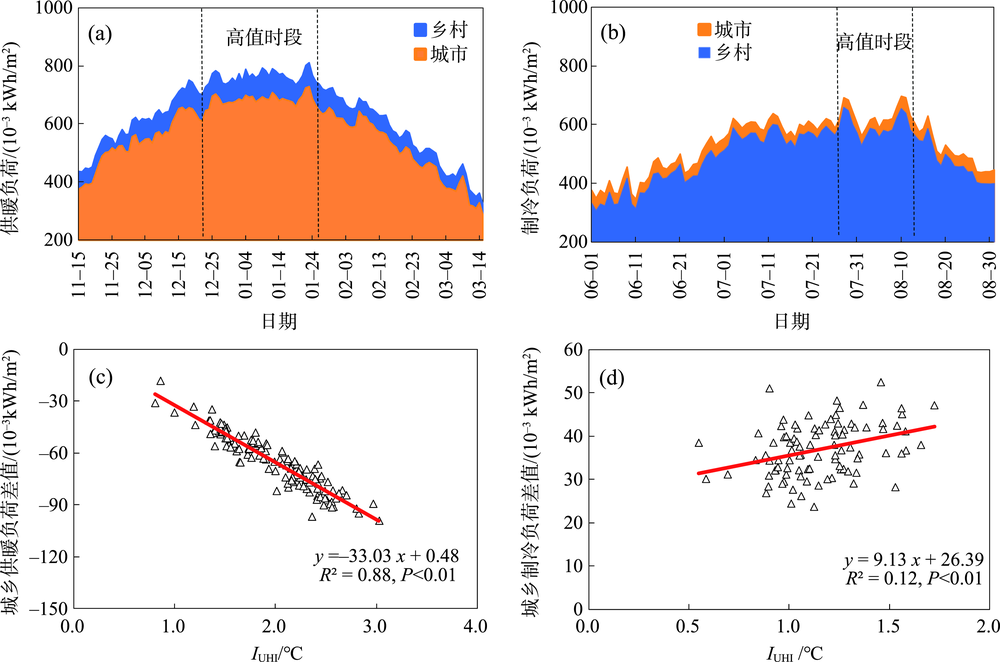

比较项目	供暖期			制冷期
比较项目	城市	乡村	城市较乡村变化/%	城市	乡村	城市较乡村变化/%
高负荷时段	12月23日至翌年1月26日	12月24日至翌年1月26日	-10.54	7月27日— 8月13日	7月27日— 8月13日	6.27
日平均高负荷值 /(10^-3kWh/m²)	683.8	764.4	-10.54	629.9	592.7	6.27
低负荷时段	3月11日—15日	3月11日—15日	-11.67	6月1日—11日	6月1日—14日	9.31
日平均低负荷值 /(10^-3kWh/m²)	313.3	354.7	-11.67	379.2	346.9

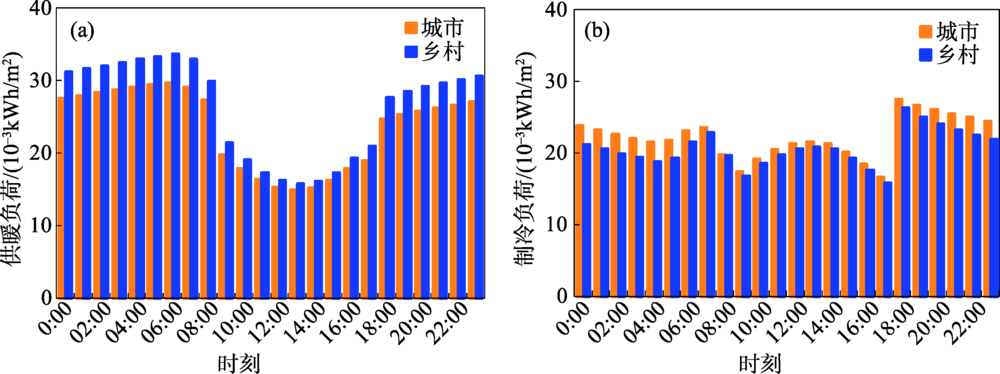

比较项目	供暖期			制冷期
比较项目	城市	乡村	城市较乡村变化/%	城市	乡村	城市较乡村变化/%
平稳高值时段	18:00~ 次日07:00	18:00~ 次日07:00	-11.63	18:00~次日07:00, 11:00~15:00	18:00~次日07:00, 11:00~15:00	9.84, 3.68
平均高负荷值/ (10^-3kWh/m²)	27.54	31.17	-11.63	24.06, 20.96	21.90, 20.21	9.84, 3.68
平稳低值时段	11:00~15:00	11:00~15:00	-5.83	—	—	—
平均低负荷值/ (10^-3kWh/m²)	15.60	16.57	-5.83	—	—	—
