长江中游城市群创新平台空间分布及其影响因素分析

doi:10.18306/dlkxjz.2020.04.001

摘要/Abstract

摘要：

创新是引领发展的第一动力。创新平台作为区域创新体系的重要组成部分和集聚创新资源的核心支撑载体,是推动创新驱动发展的主要抓手。论文以长江中游城市群为研究区域,运用最邻近指数、核密度估计、Ripley's K函数、地理探测器等方法,探究2017年长江中游城市群省级以上创新平台的空间分布特征及其影响因素。结果表明：① 长江中游城市群创新平台整体呈现出集聚分布特征,以武汉、长沙和南昌为核心呈“品字形”的分布格局;② 基于不同等级和不同功能类型划分的各类创新平台均呈现出显著集聚的特征,但集聚强度和集聚状态存在一定差异;③ 创新平台总体和不同类型创新平台的空间集聚存在尺度效应,随地理距离的变化空间集聚趋势先增强后减弱;④ 创新平台的空间分异是多因素综合作用的结果,金融实力、信息化程度、利用外资水平、人力资本条件的影响最为显著,其次为交通可达性、城镇化水平、经济基础和创新氛围。

关键词: 创新平台, 空间分布, 长江中游城市群

Abstract:

Innovation is the primary driving force behind development. As an important part of the regional innovation system and the core supporting carrier for the accumulation of innovative resources, innovation platforms are the main way to promote innovation-driven development. This study took the urban agglomerations of the middle reaches of the Yangtze River Basin as the research area and used the nearest neighbor index, kernel density estimation, Ripley's K function, and geo-detector to explore the spatial distribution characteristics and influencing factors of the innovation platforms above provincial level in the urban agglomerations in 2017. The results show that: 1) The overall spatial distribution of the innovation platforms in the urban agglomerations is clustered, showing a triangular distribution pattern with Wuhan, Changsha, and Nanchang as the cores. 2) Innovation platforms of various scales and functional types exhibit significant agglomeration characteristics, but there exist certain differences in agglomeration intensity and state among them. 3) The overall innovation platforms and various types of innovation platforms show scale effect, which first strengthens and then weakens with the change of geographical distance. 4) The spatial differentiation of the innovation platforms is the result of multiple factors. Strength of financial resources, degree of informationalization, level of foreign investment, and conditions of human capital are most significant, followed by traffic accessibility, urbanization level, economic base, and innovation atmosphere.

Key words: innovation platforms, spatial distribution, urban agglomerations of the middle reaches of the Yangtze River Basin

唐承丽, 郭夏爽, 周国华, 吴佳敏, 陈伟杨. 长江中游城市群创新平台空间分布及其影响因素分析[J]. 地理科学进展, 2020, 39(4): 531-541.

TANG Chengli, GUO Xiashuang, ZHOU Guohua, WU Jiamin, CHEN Weiyang. Spatial distribution and influencing factors of innovation platforms in urban agglomerations of the middle reaches of the Yangtze River Basin[J]. PROGRESS IN GEOGRAPHY, 2020, 39(4): 531-541.

图/表 9

表1

图1

表2

图2

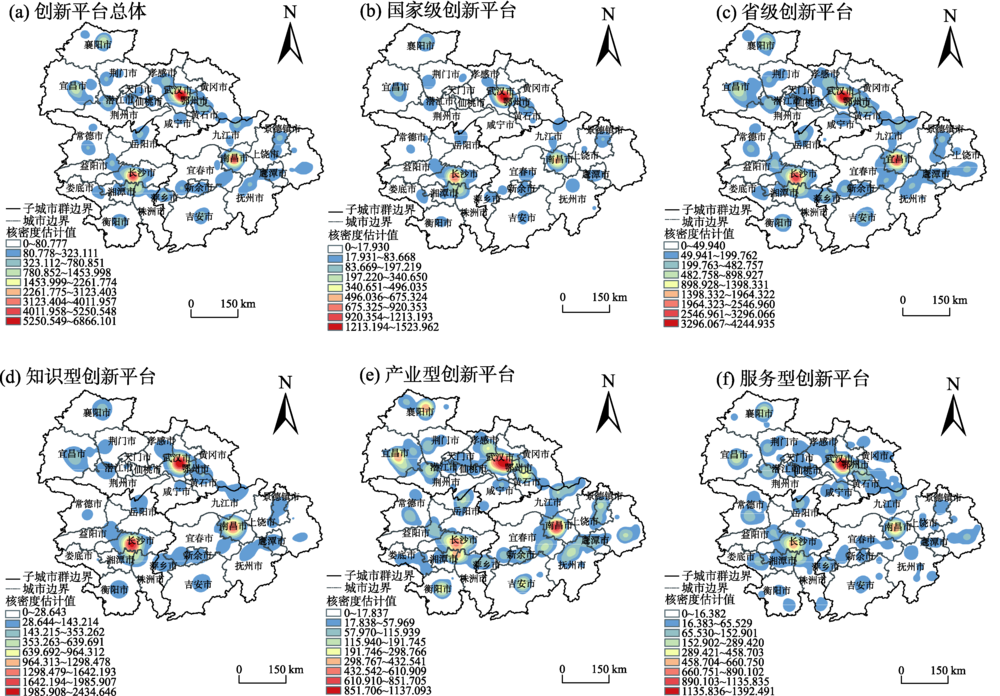

图3

表3

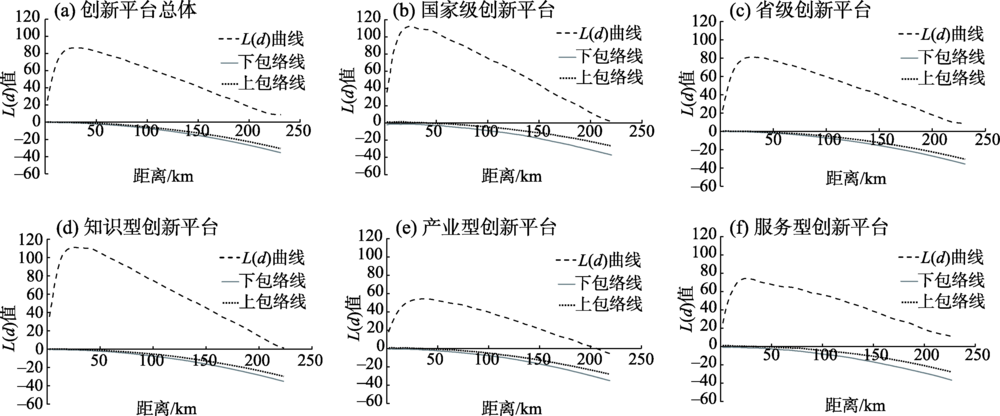

图4

表4

表5

参考文献 34

[1]	孙庆, 王宏起 . 地方科技创新平台体系及运行机制研究[J]. 中国科技论坛, 2010(3):18-21.
	[ Sun Qing, Wang Hongqi . Research on the system framework and operating mechanism of local sci-tech innovative platform. Forum on Science and Technology in China, 2010(3):18-21. ]
[2]	周灿, 曾刚, 曹贤忠 . 中国城市创新网络结构与创新能力研究[J]. 地理研究, 2017,36(7):1297-1308.
	[ Zhou Can, Zeng Gang, Cao Xianzhong . Chinese inter-city innovation networks structure and city innovation capability. Geographical Research, 2017,36(7):1297-1308. ]
[3]	Harmaakorpi V . Regional Development Platform Method (RDPM) as a tool for regional innovation policy[J]. European Planning Studies, 2006,14(8):1085-1104.
[4]	王雪原, 王宏起, 李文奇 . 创新平台的识别与等级认定[J]. 科学学研究, 2011,29(6):924-929, 867.
	[ Wang Xueyuan, Wang Hongqi, Li Wenqi . Identification and rank confirmation of innovation platform. Studies in Science of Science, 2011,29(6):924-929, 867. ]
[5]	陈志辉 . 科技创新平台内涵特征与发展思考[J]. 科技管理研究, 2013,33(17):34-37.
	[ Chen Zhihui . Research on connotation, characteristics and development of science and technology innovation infrastructure. Science and Technology Management Research, 2013,33(17):34-37. ]
[6]	王雪原, 王宏起, 李文奇 . 基于网络演化过程的区域创新平台运行模式探讨[J]. 中国科技论坛, 2012(6):24-29.
	[ Wang Xueyuan, Wang Hongqi, Li Wenqi . Regional innovation platform operational model. Forum on Science and Technology in China, 2012(6):24-29. ]
[7]	Schenk E, Guittard C, Pénin J . Open or proprietary? Choosing the right crowdsourcing platform for innovation[J]. Technological Forecasting and Social Change, 2019,144:303-310.
[8]	Hallonsten O, Heinze T . Institutional persistence through gradual organizational adaptation: Analysis of national laboratories in the USA and Germany[J]. Science and Public Policy, 2012,39(4):450-463.
[9]	王斌, 谭清美 . 产业创新平台评价指标体系及其权重设置研究[J]. 科学学与科学技术管理, 2013,34(12):63-68.
	[ Wang Bin, Tan Qingmei . Study on the evaluation index system of industrial innovation platform and its weight setting. Science of Science and Management of Science and Technology, 2013,34(12):63-68. ]
[10]	Carroll G P, Srivastava S, Volini A S , et al. Measuring the effectiveness and impact of an open innovation platform[J]. Drug Discovery Today, 2017,22(5):776-785. doi: 10.1016/j.drudis.2017.01.009 pmid: 28137644
[11]	孟国力, 吕拉昌, 黄茹 . 北京“众创空间”区位选择特征及影响因子分析[J]. 首都经济贸易大学学报, 2016,18(5):89-97.
	[ Meng Guoli, Lv Lachang, Huang Ru . The characteristics of location selection and influencing factors of "Maker-Space" in Beijing. Journal of Capital University of Economics and Business, 2016,18(5):89-97. ]
[12]	郭泉恩, 孙斌栋 . 中国高技术产业创新空间分布及其影响因素: 基于面板数据的空间计量分析[J]. 地理科学进展, 2016,35(10):1218-1227. doi: 10.18306/dlkxjz.2016.10.005
	[ Guo Quan'en, Sun Bindong . Spatial distribution and influencing factors of high-tech industry innovation in China: Based on spatial econometric analysis of panel data. Progress in Geography, 2016,35(10):1218-1227. ] doi: 10.18306/dlkxjz.2016.10.005
[13]	滕堂伟, 葛冬亚, 胡森林 . 上海企业孵化器空间布局演化及区位影响因子[J]. 世界地理研究, 2018,27(4):118-126.
	[ Teng Tangwei, Ge Dongya, Hu Senlin . Spatial distribution and location influencing factors of incubators in Shanghai. World Regional Studies, 2018,27(4):118-126.]
[14]	Breheny M J, McQuaid R . The development of high technology industries: An international survey[M]. London, UK: Routledge, 2018.
[15]	孙庆, 王宏起 . 区域科技创新平台网络化发展路径研究[J]. 科技进步与对策, 2010,27(17):44-47.
	[ Sun Qing, Wang Hongqi . Research on network development path of regional science and technology innovation platform. Science & Technology Progress and Policy, 2010,27(17):44-47. ]
[16]	王晶, 甄峰 . 城市众创空间的特征、机制及其空间规划应对[J]. 规划师, 2016,32(9):5-10.
	[ Wang Jing, Zhen Feng . Spatial characters and planning strategy for mass innovation space. Planner, 2016,32(9):5-10. ]
[17]	段德忠, 杜德斌, 刘承良 . 上海和北京城市创新空间结构的时空演化模式[J]. 地理学报, 2015,70(12):1911-1925. doi: 10.11821/dlxb201512005
	[ Duan Dezhong, Du Debin, Liu Chengliang . Spatial-temporal evolution mode of urban innovation spatial structure: A case study of Shanghai and Beijing. Acta Geographica Sinica, 2015,70(12):1911-1925. ] doi: 10.11821/dlxb201512005
[18]	张永波, 张峰 . 基于企业投资数据的京津冀科技创新空间网络研究[J]. 城市规划学刊, 2017(S2):72-78.
	[ Zhang Yongbo, Zhang Feng . A research on the spatial technological innovation network of Beijing-Tianjin-Hebei region based on the enterprise investment data. Urban Planning Journal, 2017(S2):72-78. ]
[19]	鲜果, 曾刚, 曹贤忠 . 中国城市间创新网络结构及其邻近性机理[J]. 世界地理研究, 2018,27(5):136-146.
	[ Xian Guo, Zeng Gang, Cao Xianzhong . Structural feature and proximity mechanism of Chinese intercity innovation network. World Regional Studies, 2018,27(5):136-146. ]
[20]	李凌月, 张啸虎, 罗瀛 . 基于创新产出的城市科技创新空间演化特征分析: 以上海市为例[J]. 城市发展研究, 2019,26(6):87-92, 33.
	[ Li Lingyue, Zhang Xiaohu, Luo Ying . Research on the evolution characteristics of innovation space from an output perspective: A case study of Shanghai. Urban Development Studies, 2019,26(6):87-92, 33. ]
[21]	孙庆 . 区域科技创新平台空间布局模式及其选择研究[J]. 科技管理研究, 2012,32(18):36-39, 44.
	[ Sun Qing . Research on spatial distribution modes and choose method of regional sci-tech innovation platform. Science and Technology Management Research, 2012,32(18):36-39, 44. ]
[22]	王雪原, 王宏起, 李文奇 . 区域创新平台四维度布局优化方法设计与实证研究[J]. 科学学与科学技术管理, 2012,33(6):100-106.
	[ Wang Xueyuan, Wang Hongqi, Li Wenqi . Four-dimension distribution optimizing method design and positive research of regional innovation platform. Science of Science and Management of Science and Technology, 2012,33(6):100-106. ]
[23]	丛海彬, 邹德玲, 蒋天颖 . 浙江省区域创新平台空间分布特征及其影响因素[J]. 经济地理, 2015,35(1):112-118.
	[ Cong Haibin, Zou Deling, Jiang Tianying . The spatial distribution and elements of regional innovation platforms in Zhejiang Province. Economic Geography, 2015,35(1):112-118. ]
[24]	滕堂伟, 覃柳婷, 胡森林 . 长三角地区众创空间的地理分布及影响机制[J]. 地理科学, 2018,38(8):1266-1272. doi: 10.13249/j.cnki.sgs.2018.08.008
	[ Teng Tangwei, Qin Liuting, Hu Senlin . Spatial distribution and influencing factors of national Mass Makerspaces in the Yangtze River Delta. Scientia Geographica Sinica, 2018,38(8):1266-1272. ] doi: 10.13249/j.cnki.sgs.2018.08.008
[25]	唐凯, 翟国方, 何仲禹 , 等. 南京市众创空间时空分布格局及演化机制研究[J]. 现代城市研究, 2019(4):52-59.
	[ Tang Kai, Zhai Guofang, He Zhongyu , et al. The study on the spatio-temporal distribution patterns and evolution mechanism of makerspaces in Nanjing. Modern Urban Research, 2019(4):52-59. ]
[26]	唐承丽, 吴佳敏, 贺艳华 , 等. 城市群-开发区-产业集群互动研究的理论思考[J]. 地理科学, 2018,38(1):49-57. doi: 10.13249/j.cnki.sgs.2018.01.006
	[ Tang Chengli, Wu Jiamin, He Yanhua , et al. Theoretical thinking on the interaction of urban-agglomeration development zone-industrial cluster. Scientia Geographica Sinica, 2018,38(1):49-57. ] doi: 10.13249/j.cnki.sgs.2018.01.006
[27]	方创琳, 周成虎, 王振波 . 长江经济带城市群可持续发展战略问题与分级梯度发展重点[J]. 地理科学进展, 2015,34(11):1398-1408. doi: 10.18306/dlkxjz.2015.11.007
	[ Fang Chuanglin, Zhou Chenghu, Wang Zhenbo . Sustainable development strategy and priorities of spatially differentiated development of urban agglomerations along the Yangtze River Economic Belt. Progress in Geography, 2015,34(11):1398-1408. ] doi: 10.18306/dlkxjz.2015.11.007
[28]	肖刚, 杜德斌, 李恒 , 等. 长江中游城市群城市创新差异的时空格局演变[J]. 长江流域资源与环境, 2016,25(2):199-207. doi: 10.11870/cjlyzyyhj201602004
	[ Xiao Gang, Du Debin, Li Heng , et al. The temporal and spatial evolution of city innovation differences in urban agglomeration in the middle reaches of the Yangtze River. Resources and Environment in the Yangtze Basin, 2016,25(2):199-207. ] doi: 10.11870/cjlyzyyhj201602004
[29]	贾垚焱, 胡静, 刘大均 , 等. 长江中游城市群A级旅游景区空间演化及影响机理[J]. 经济地理, 2019,39(1):198-206.
	[ Jia Yaoyan, Hu Jing, Liu Dajun , et al. Spatial evolution and influence mechanism of A-level scenic spots in urban agglomeration in the middle reaches of the Yangtze River. Economic Geography, 2019,39(1):198-206. ]
[30]	王劲峰, 廖一兰, 刘鑫 . 空间数据分析教程 [M]. 北京: 科学出版社, 2010.
	[ Wang Jinfeng, Liao Yilan, Liu Xin. Analysis on spatial data. Beijing, China: Science Press, 2010. ]
[31]	徐维祥, 张筱娟, 刘程军 . 长三角制造业企业空间分布特征及其影响机制研究: 尺度效应与动态演进[J]. 地理研究, 2019,38(5):1236-1252. doi: 10.11821/dlyj020170859
	[ Xu Weixiang, Zhang Yujuan, Liu Chengjun . Spatial distribution pattern and influencing factors of manufacturing enterprises in Yangtze River Delta: Scale effect and dynamic evolution. Geographical Research, 2019,38(5):1236-1252. ] doi: 10.11821/dlyj020170859
[32]	Besag J E . Comments on Ripley's paper[J]. Journal of the Royal Statistical Society, Series B, 1977,39:193-195.
[33]	王劲峰, 徐成东 . 地理探测器: 原理与展望[J]. 地理学报, 2017,72(1):116-134. doi: 10.11821/dlxb201701010
	[ Wang Jinfeng, Xu Chengdong . Geodetector: Principle and prospect. Acta Geographica Sinica, 2017,72(1):116-134. ] doi: 10.11821/dlxb201701010
[34]	古志文 . 群落生态学视角下的产业技术创新平台建设与发展[J]. 科技管理研究, 2016,36(17):117-122.
	[ Gu Zhiwen . Construction and development of industrial technological innovation platform from the perspective of community ecology approach. Science and Technology Management Research, 2016,36(17):117-122. ]

名称	主要功能	功能类型	国家级	省级	总计
重点实验室	组织基础研究	知识型	49	485	534
工程技术研究中心	工程应用方面的技术研究	知识型	39	894	933
国际科技合作基地	发挥国际科技合作	知识型	55	—	55
企业技术中心	企业开展自主创新、成果转化	产业型	103	898	1001
高新技术产业开发区(园区)	发展高新技术产业	产业型	20	27	47
众创空间	提供创业公共服务	服务型	139	249	388
科技企业孵化器	为高新技术中小企业提供服务	服务型	78	161	239
星创天地	提供农业科技创新创业服务	服务型	87	68	155
总计	—	—	570	2782	3352

类型		平均观测距离/km	预期平均距离/km	NNI	Z值	P值	分布模式
创新平台总体		1.18	5.88	0.2009	-88.5038	<0.0001	显著集聚
按等级	国家级创新平台	4.27	13.98	0.3052	-31.7333	<0.0001	显著集聚
按等级	省级创新平台	1.38	6.41	0.2155	-79.1598	<0.0001	显著集聚
按功能类型	知识型创新平台	2.00	8.20	0.2441	-56.4158	<0.0001	显著集聚
	产业型创新平台	3.07	10.11	0.3040	-43.1013	<0.0001	显著集聚
	服务型创新平台	3.85	11.87	0.3247	-36.1253	<0.0001	显著集聚

维度	指标名称	指标描述	q值
城市经济发展水平	X₁经济基础	人均GDP	0.5638^*
	X₂产业结构	第二、三产业产值占GDP比重	0.1793
	X₃金融实力	金融机构贷款余额占GDP比重	0.8944^*
城市对外开放程度	X₄交通可达性	交通情况赋值	0.6665^*
城市对外开放程度	X₅利用外资水平	人均实际使用外资金额	0.8908^*
城市科技创新环境	X₆人力资本条件	每万人拥有R&D人员数	0.7655^*
	X₇创新投入	R&D内部经费支出占GDP比重	0.2606
	X₈科技进步	高新技术产业增加值占GDP的比重	0.1069
城市社会公共环境	X₉创新氛围	每万人拥有专利申请数	0.4720^*
	X₁₀城镇化水平	城镇化率	0.6247^*
	X₁₁信息化程度	互联网普及率	0.8921^*
	X₁₂绿色资源禀赋	人均绿地面积	0.2499

因素	X₁	X₂	X₃	X₄	X₅	X₆	X₇	X₈	X₉	X₁₀	X₁₁	X₁₂
X₁	0.5638
X₂	0.6510	0.1793
X₃	0.9041	0.9030	0.8944
X₄	0.9083	0.8379	0.9731	0.6665
X₅	0.9189	0.9006	0.9099	0.9734	0.8908
X₆	0.9362	0.8414	0.9347	0.9875	0.9320	0.7655
X₇	0.8922	0.3620	0.9762	0.8043	0.9775	0.8761	0.2606
X₈	0.8830	0.6659	0.9698	0.8558	0.9720	0.8256	0.7146	0.1069
X₉	0.8540	0.7984	0.9462	0.9223	0.9326	0.9343	0.8850	0.5082	0.4720
X₁₀	0.6533	0.6430	0.9056	0.9845	0.9085	0.9478	0.8756	0.8705	0.8442	0.6247
X₁₁	0.9050	0.9009	0.8995	0.9760	0.8962	0.9349	0.9701	0.9658	0.9345	0.9024	0.8921
X₁₂	0.5903	0.4887	0.9159	0.9106	0.9030	0.9713	0.7149	0.7300	0.7163	0.6557	0.9093	0.2499

交互作用类型	因素
非线性减弱	—
单因子非线性减弱	—
双因子增强	X₁∩X₂、X₁∩X₃、X₁∩X₄、X₁∩X₅、X₁∩X₆、X₁∩X₉、X₁∩X₁₀、X₁∩X₁₁、X₁∩X₁₂、X₂∩X₃、X₂∩X₄、X₂∩X₅、X₂∩X₆、X₂∩X₇、X₂∩X₁₀、X₂∩X₁₁、X₃∩X₄、X₃∩X₅、X₃∩X₆、X₃∩X₇、X₃∩X₈、X₃∩X₉、X₃∩X₁₀、X₃∩X₁₁、X₃∩X₁₂、X₄∩X₅、X₄∩X₆、X₄∩X₇、X₄∩X₉、X₄∩X₁₀、X₄∩X₁₁、X₄∩X₁₂、X₅∩X₆、X₅∩X₇、X₅∩X₈、X₅∩X₉、X₅∩X₁₀、X₅∩X₁₁、X₅∩X₁₂、X₆∩X₇、X₆∩X₈、X₆∩X₉、X₆∩X₁₀、X₆∩X₁₁、X₆∩X₁₂、X₇∩X₁₀、X₇∩X₁₁、X₈∩X₉、X₈∩X₁₁、X₉∩X₁₀、X₉∩X₁₁、X₉∩X₁₂、X₁₀∩X₁₁、X₁₀∩X₁₂、X₁₁∩X₁₂
独立	—
非线性增强	X₁∩X₇、X₁∩X₈、X₂∩X₈、X₂∩X₉、X₂∩X₁₂、X₄∩X₈、X₇∩X₈、X₇∩X₉、X₇∩X₁₂、X₈∩X₁₀、X₈∩X₁₂
