城市地表温度与NDVI空间相关性的尺度效应

doi:10.18306/dlkxjz.2018.10.006

摘要/Abstract

摘要：

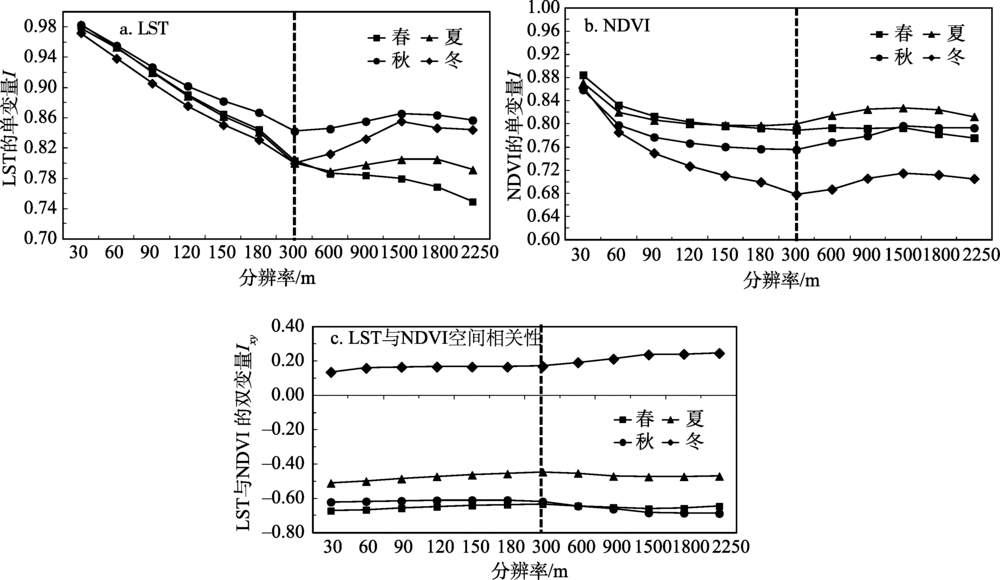

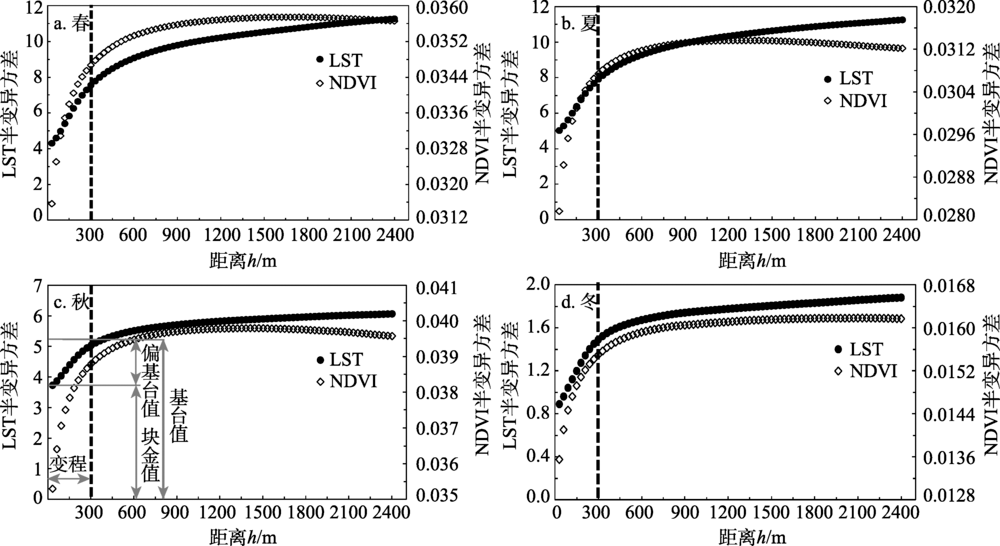

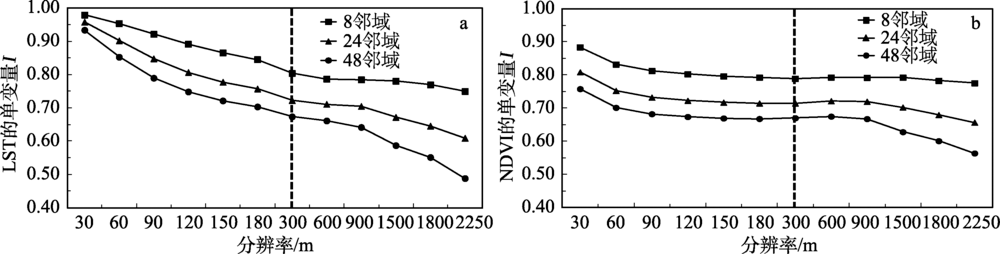

城市地表温度与NDVI的空间相关性已被广泛研究,但是其尺度效应常常被忽略,给研究结果带来不确定性。本文以郑州市为例,基于四幅Landsat8影像,经辐射传导法反演地表温度(LST),运用半变异函数识别地表温度的空间相关性分析尺度,并结合空间相关指数Moran's I,从多尺度、多季节、多邻接范围3个方面对地表温度与植被覆盖的空间相关性的尺度效应进行了探讨,结果表明：①LST和NDVI的单变量空间自相关和双变量空间相关尺度均在300 m左右;②300 m相关尺度内,单变量空间自相关性存在显著尺度效应,相比之下双变量空间相关性尺度效应较为微弱;③LST和NDVI的单变量空间自相关性和双变量空间相关性尺度效应均表现出明显的季节差异;④随着邻接范围增大,LST和NDVI的空间自相关性减弱,尺度效应更明显。因此度量LST和NDVI的空间相关性要考虑时空尺度效应,本文研究结果有助于进一步认识LST和NDVI间空间相关性的尺度效应。

关键词: 地表温度, NDVI, 半变异函数, 空间相关性, 尺度效应, 郑州市

Abstract:

The spatial correlation between urban land surface temperature (LST) and vegetation coverage (NDVI) has been widely studied, but its scale effect is often ignored, which brings uncertainty to the results. Taking Zhengzhou City as an example and based on four Landsat8 images, this study retrieved the land surface temperature by the radiation conduction method, and identified the spatial correlation analysis scale of the land surface temperature by using the semivariance function. It then combined the spatial correlation index Moran's I to discuss the spatial correlation between land surface temperature and vegetation coverage from three aspects: multi-scales, multi-seasons, and multi-adjacent ranges. The results show that: (1) Both the univariate spatial autocorrelation scale and bivariate spatial correlation scale of LST and NDVI are around 300 m; (2) Within the 300 m correlation scale, there is a significant scale effect in the univariate spatial autocorrelation, but the scale effect of bivariate spatial correlation is much weaker by comparison; (3) The univariate spatial autocorrelation and bivariate spatial correlation scale effects of LST and NDVI show significant seasonal differences; (4) With the increase of adjacent range, the spatial autocorrelation of LST and NDVI weakens, and the scale effect is more obvious. Therefore, to measure the spatial correlation between LST and NDVI, spatiotemporal scale effect should be taken into consideration. This study should be helpful for further understanding the scale effect of spatial correlation between LST and NDVI.

Key words: land surface temperature, NDVI, semi-variogram, spatial correlation, scale effect, Zhengzhou City

江颖慧, 焦利民, 张博恩. 城市地表温度与NDVI空间相关性的尺度效应[J]. 地理科学进展, 2018, 37(10): 1362-1370.

Yinghui JIANG, Limin JIAO, Boen ZHANG. Scale effect of the spatial correlation between urban land surface temperature and NDVI[J]. PROGRESS IN GEOGRAPHY, 2018, 37(10): 1362-1370.

图/表 4

参考文献 30

[1]	柏延臣, 王劲峰. 2004. 基于特征统计可分性的遥感数据专题分类尺度效应分析[J]. 遥感技术与应用, 19(6): 443-449.
	[Bo Y C, Wang J F.2004. Exploring the scale effect in thematic classification of remotely sensed data: The statistical separability-based method[J]. Remote Sensing Technology and Application, 19(6): 443-449.]
[2]	陈斐, 杜道生. 2002, 空间统计分析与GIS在区域经济分析中的应用[J]. 武汉大学学报: 信息科学版, 27(4): 391-396. doi: 10.3321/j.issn:1671-8860.2002.04.013
	[Chen F, Du D S.2002. Application of the integration of spatial statistical analysis with GIS to the analysis of regional economy[J]. Geomatics and Information Science of Wuhan University, 27(4): 391-396.] doi: 10.3321/j.issn:1671-8860.2002.04.013
[3]	陈公德, 徐建华, 戴晓燕, 等. 2008. 运用遥感数据挖掘解析城市地表温度的空间变异规律[J]. 遥感技与应用, 23(4): 405-409.
	[Chen G D, Xu J H, Dai X Y, et al.2008. Applying Geo-data Mining to analysis spatial variance characters of urban land surface temperature[J]. Remote Sensing Technology and Application, 23(4): 405-409.]
[4]	陈小勇, 林鹏. 2000. 我国红树植物分布的空间自相关分析[J]. 华东师范大学学报, (3): 104-109. doi: 10.3969/j.issn.1000-5641.2000.03.018
	[Chen X Y, Lin P.2000. Spatial autocorrelation analysis on the distribution of mangrove in China[J]. Journal of East China Normal University, (3): 104-109.] doi: 10.3969/j.issn.1000-5641.2000.03.018
[5]	池腾龙, 曾坚, 王思彤. 2016. 基于RS和GIS的郑州市植被覆盖度与地表温度演化研究[J]. 中国园林, 32(10): 78-83.
	[Chi T L, Zeng J, Wang S T.2016. Research of the relationship between vegetation fraction and evolution of thermal environment in Zhengzhou based on RS and GIS technology[J]. Chinese Landscape Architecture, 32(10): 78-83.]
[6]	韩贵锋, 梁保平. 2011. 地表温度与植被指数相关性的空间尺度特征: 以重庆市为例[J]. 中国园林, 27(1): 68-72. doi: 10.3969/j.issn.1000-6664.2011.01.019
	[Han G F, Liang B P.2011. Spatial scale characteristics of correlation between land surface tempe-rature and vegetation index: A case study of Chongqing City[J]. Chinese Landscape Architecture, 27(1): 68-72.] doi: 10.3969/j.issn.1000-6664.2011.01.019
[7]	李斌, 王慧敏, 秦明周, 等. 2017. NDVI、NDMI与地表温度关系的对比研究[J]. 地理科学进展, 36(5): 589-596. doi: 10.18306/dlkxjz.2017.05.006
	[Li B, Wang H M, Qin M Z, et al.2017. Comparative study on the correlations between NDVI, NDMI and LST[J]. Progress in Geography, 36(5): 585-596.] doi: 10.18306/dlkxjz.2017.05.006
[8]	李月臣, 杨华, 张锦水, 等. 2006. 土地利用/覆盖变化空间变异特征与遥感影像空间分辨率的选取: 以北京地区为例[J]. 干旱区地理, 29(4): 570-575. doi: 10.3321/j.issn:1000-6060.2006.04.019
	[Li Y C,Yang H, Zhang J S, et al.2006. Spatial variation in landuse/cover change and choice of spatial resolution for remote sensing: A case study in Beijing[J]. Arid Land Geography, 29(4): 570-575.] doi: 10.3321/j.issn:1000-6060.2006.04.019
[9]	马恭博. 2014. 莱州湾南岸土壤盐分时空变异性及运移模拟研究[D]. 青岛: 国家海洋局第一海洋研究所.
	[Ma G B.2014. Soil salinity spatial-temporal variation and salinity transport simulation in southern Laizhou Bay[D]. Qingdao, China: The First Institute of Oceanography, State Oceanic Administration.]
[10]	倪万魁, 牛富俊, 刘东燕. 2002. 黄土土性的空间自相关性研究[J]. 西安工程学院学报, 24(2): 4-9.
	[Ni W K, Niu F J, Liu D Y.2002. A study on the spatial selfcorrelation of loess parameters[J]. Journal of Xi'an Engineering University, 24(2): 4-9.]
[11]	覃志豪, 李文娟, 徐斌, 等. 2004. 陆地卫星TM6波段范围内地表比辐射率的估计[J]. 国土资源遥感,(3): 28-32, 36, 41, 74. doi: 10.3969/j.issn.1001-070X.2004.03.007
	[Qin Z H, Li W J, Xu B, Chen Z X, Liu J.2004. The estimation of land surface emissivity for Landsat TM6[J]. Remote Sensing for Land & Rescorces,(3): 28-32, 36, 41, 74.] doi: 10.3969/j.issn.1001-070X.2004.03.007
[12]	田平, 田光明, 王飞儿, 等. 2006. 基于TM影像的城市热岛效应和植被覆盖指数关系研究[J]. 科技通报, 22(5): 708-713. doi: 10.3969/j.issn.1001-7119.2006.05.029
	[Tian P, Tian G M, Wang F E, et al.2006. Urban heat island effect and vegetation cover index relation using Landsat TM image[J]. Bulletin of Science and Technology, 22(5): 708-713.] doi: 10.3969/j.issn.1001-7119.2006.05.029
[13]	王劲峰. 2006. 空间分析[M]. 北京: 科学出版社, 76-84.
	[Wang J F.2006. Spatial analysis[M]. Beijing, China: Science Press: 76-84.]
[14]	武鹏飞, 王茂军, 张学. 2009. 北京市植被绿度与城市热岛效应关系研究[J]. 北京林业大学学报, 31(5): 54-60.
	[Wu P F, Wang M J, Zhang X.2009. Relationship between vegetation greenness and urban heat island effect in Beijing[J]. Journal of Beijing Forestry University, 31(5): 54-60.]
[15]	毋亭, 张勇, 侯西勇. 2014. 基于半变异函数的环渤海地区NDVI空间格局特征研究[J]. 生态科学, 33(2): 313-320.
	[Wu T, Zhang Y, Hou X Y.2014. Analysis of spatial patterns of NDVI over the Circum-Bohai Sea region based on semi-variogram[J]. Ecological Science, 33(2): 313-320.]
[16]	谢苗苗, 王仰麟, 付梅臣. 2011. 城市地表温度热岛影响因素研究进展[J].地理科学进展, 30(1): 35-41. doi: 10.11820/dlkxjz.2011.01.004
	[Xie M M, Wang Y L, Fu M C.2011. An overview and perspective about causative factors of surface urban heat island effects[J]. Progress in Geography, 30(1): 35-41.] doi: 10.11820/dlkxjz.2011.01.004
[17]	杨春华, 雷波, 张晟. 2013. 重庆市主城区热岛效应与植被覆盖关系研究[J]. 人民长江, 44(7): 51-55. doi: 10.3969/j.issn.1001-4179.2013.07.014
	[Yang C H, Lei B, Zhang S.2013. Relationship between urban heat island effect and vegetation cover in core area of Chongqing City[J]. Yangtze River, 44(7): 51-55.] doi: 10.3969/j.issn.1001-4179.2013.07.014
[18]	游绚. 2011. 福州盆地城市热环境的时空格局演变及其尺度效应研究[D]. 福州: 福建师范大学.
	[You X.2011. A study of spatiotemporal evolvement and scale effects on urban thermal environment in Fuzhou Basin[D]. Fuzhou, China: Fujian Normal University.]
[19]	游绚, 晏路明. 2009. 基于ETM+影像辐射传导方程算法的地表温度反演[J]. 科技情报开发与经济, 19(27): 134-136, 138.
	[You X, Yan L M.2009. Retrieving land surface temperature from the ETM+ image radioactive transfer equation[J]. Sci-Tech Information Development and Economy, 19(27): 134-136, 138.]
[20]	张穗, 何报寅, 杜耘. 2003. 武汉市城区热岛效应的遥感研究[J]. 长江流域资源与环境, 12(5): 445-449.
	[Zhang S, He B Y, Du Y.2003. Investigation on heat-island effection in Wuhan City zone by remote sensing[J]. Resources and Environment in the Yangtze Basin, 12(5): 445-449.]
[21]	张小飞, 王仰麟, 吴健生, 等. 2006. 城市地域地表温度-植被覆盖定量关系分析: 以深圳市为例[J]. 地理研究, 25(3): 369-377, 561. doi: 10.3321/j.issn:1000-0585.2006.03.001
	[Zhang X F, Wang Y L, Wu J S, et al.2006. Study on land surface temperature vegetation cover relationship in urban region: A case in Shenzhen City[J]. Geographical Research, 25(3): 369-377, 561.] doi: 10.3321/j.issn:1000-0585.2006.03.001
[22]	Bachmaier M, Backes M.2011. Variogram or semivariogram? Variance or semivariance? Allan variance or introducing a new term[J]. Mathematical Geosciences, 43(6): 735-740. doi: 10.1007/s11004-011-9348-3
[23]	Howard L.1833. Climate of London deduced from meteorologieal observation[J]. Harvey and Darton, l(3): 1-24.
[24]	Makoto Y, Robert D, Yoshitake K, et al.2001. The cooling effect of paddy fields on summertime air temperature in residential Tokyo, Japan[J]. Landscape and Urban Planning, 53(1): 17-27. doi: 10.1016/S0169-2046(00)00123-7
[25]	Meisel, J E, Turner M G.1998. Scale detection in real and artificial landscapes using semivariance analysis[J]. Landscape Ecology, 13(6): 347-362. doi: 10.1023/A:1008065627847
[26]	Mejia-dominguez N R, Meave J A, Díaz-Ávalos C.2012. Spatial structure of the abiotic environment and its association with sapling community structure and dynamics in a cloud forest[J]. International Journal of Bio-meteorology, 56(2): 305-318.
[27]	Sokal R R, Oden N L.1978. Spatial autocorrelation in biology: 1. Methodology[J]. Biological Journal of the Linnean Society, 10(2): 199-228. doi: 10.1111/bij.1978.10.issue-2
[28]	Wartenberg D.1985. Multivariate spatialcorrelation: A method for exploratory geographical analysis[J]. Geographical Analysis, 17(4): 263-283. doi: 10.1111/j.1538-4632.1985.tb00849.x
[29]	Weng Q H, Lu D, Schubring J.2004. Estimation of land surface temperature-vegetation abundance relationship for urban heat island studies[J]. Remote Sensing of Environment, 89(4): 467-483. doi: 10.1016/j.rse.2003.11.005
[30]	Yuan F, Bauer M E.2007. Comparision of impervious surface area and normalized difference vegetation index as indicators of surface urban heat island effects in landsat imagery[J]. Remote Sensing of Environment, 106(3): 375-386. doi: 10.1016/j.rse.2006.09.003
