中国沿海地区雨潮复合灾害联合分布及危险性研究

doi:10.18306/dlkxjz.2022.10.007

地理科学进展 ›› 2022, Vol. 41 ›› Issue (10): 1859-1867.doi: 10.18306/dlkxjz.2022.10.007

中国沿海地区雨潮复合灾害联合分布及危险性研究

许瀚卿¹^,²^,³^,⁴(), 谭金凯⁵, 李梦雅²^,³^,⁴, 刘青²^,³^,⁴, 王军¹^,²^,³^,⁴^,^*()

1.华东师范大学崇明生态研究院,上海 202162
2.华东师范大学地理信息科学教育部重点实验室,上海 200241
3.华东师范大学地理科学学院,上海 200241
4.华东师范大学上海城市公共安全研究中心,上海 200241
5.中山大学大气科学学院,广东珠海 519082

收稿日期:2021-12-24 修回日期:2022-03-08 出版日期:2022-10-28 发布日期:2022-12-28
通讯作者: *王军(1975— ),男,陕西汉中人,教授,博士生导师,主要研究方向为城市灾害风险与公共安全管理。 E-mail: jwang@geo.ecnu.edu.cn
作者简介:许瀚卿(1993— ),男,江苏连云港人,博士,助理研究员,主要研究方向为复合洪涝灾害风险评估和应对。E-mail: hqxu@chm.ecnu.edu.cn
基金资助:
国家社会科学基金重大项目(18ZDA105);上海市科委科技攻关项目(19DZ1201505);华东师范大学地理信息科学教育部重点实验室主任基金项目(KLGIS2022C01);广东省基础与应用基础研究青年项目(2020A1515110457)

Joint distribution and risk of the compound disaster caused by rainfall and storm surge across Chinese coastal region

XU Hanqing¹^,²^,³^,⁴(), TAN Jinkai⁵, LI Mengya²^,³^,⁴, LIU Qing²^,³^,⁴, WANG Jun¹^,²^,³^,⁴^,^*()

1. Institute of Eco-Chongming, East China Normal University, Shanghai 202162, China
2. Key Laboratory of Geographic Information Science of Ministry of Education, East China Normal University, Shanghai 200241, China
3. School of Geographic Sciences, East China Normal University, Shanghai 200241, China
4. Research Center for Urban Public Security, East China Normal University, Shanghai 200241, China
5. School of Atmospheric Sciences, Sun Yat-sen University, Zhuhai 519082, Guangdong, China

Received:2021-12-24 Revised:2022-03-08 Online:2022-10-28 Published:2022-12-28
Supported by:
Major Program of National Social Science Foundation of China(18ZDA105);The Shanghai Science and Technology Support Program(19DZ1201505);Director's Fund of Key Laboratory of Geographic Information Science (Ministry of Education), East China Normal University(KLGIS2022C01);Guangdong Basic and Applied Basic Research Foundation(2020A1515110457)

摘要/Abstract

摘要：

沿海地区极易受到极端降雨和高潮位引发的复合洪涝灾害影响。研究风暴增水和累积降雨同时发生的概率,设计雨潮联合分布函数,对提升沿海城市防洪除涝应对措施的有效性、减少城市复合洪涝灾害造成的损失具有重要意义。论文以1979—2014年中国沿海逐日最大风暴增水和邻近雨量站日累积降雨数据作为统计样本,采用Copula函数构建雨潮联合概率模型,并利用Kolmogorov-Smirnov检验、赤池信息准则、贝叶斯信息准则评价雨潮联合分布拟合优度,优选中国沿海雨潮联合概率分布函数模型。基于此模型,定量化设计中国沿海雨潮复合灾害情景。结果表明：在空间分布上,中国沿海雨潮复合灾害频次呈现明显的“两头多中间少”格局,其中,广东西部沿海、福建北部、浙江南部、山东及辽宁沿海频次相对较高;在50年一遇联合重现期下,北部湾、海南岛北部、浙江沿海、渤海湾部分沿海表现为极端降雨和较高的风暴增水,雨潮遭遇的复合灾害事件十分值得关注。研究结果在一定程度上揭示了中国沿海地区雨潮复合灾害的时空变化规律,并为复合灾害情景预测提供了定量化评估方案。

关键词: 复合灾害, Copula函数, 风暴增水, 极端降雨, 沿海地区

Abstract:

Coastal regions are extremely vulnerable to compound floods caused by extreme rainfall and strong storm surge. To improve the effectiveness of flood control measures in Chinese coastal cities and reduce the losses caused by urban compound flooding, it is important to analyze the joint probability of occurrence of extreme rainfall and strong storm surge and design the joint distribution function of daily storm surge and cumulative rainfall. In this study, we employed the Copula function to fit the joint probability distribution of storm surge and cumulative rainfall from 1979 to 2014. Then we used the Kolmogorov-Smirnov (K-S), Akaike Information Criteria (AIC), and Bayesian Information Criteria (BIC) statistical methods to obtain the optimal Copula function between storm surge and cumulative rainfall at each gauge alone the coast of China. Finally, based on the Copula method, we assessed the design value of compound scenarios of storm surge and rainfall in coastal China. The results indicate that the northern and southern parts of Chinese eastern coast have high frequency and the middle part has low frequency of compound disasters of strong storm surge and extreme rainfall. Western Guangdong, northern Fujian, southern Zhejiang, Shandong, and Liaoning provinces have a high frequency of compound disasters. Under the 50-year return period, the Beibu Gulf, northern Hainan Island, the coast of Zhejiang Province, and parts of the Bohai Bay have extreme rainfall and high storm surge. This study shows the temporal and spatial distribution of compound disasters of storm surge and rainfall in coastal China, and provides a framework for compound disaster scenario prediction.

Key words: compound disaster, Copula function, storm surge, extreme rainfall, coastal region

许瀚卿, 谭金凯, 李梦雅, 刘青, 王军. 中国沿海地区雨潮复合灾害联合分布及危险性研究[J]. 地理科学进展, 2022, 41(10): 1859-1867.

XU Hanqing, TAN Jinkai, LI Mengya, LIU Qing, WANG Jun. Joint distribution and risk of the compound disaster caused by rainfall and storm surge across Chinese coastal region[J]. PROGRESS IN GEOGRAPHY, 2022, 41(10): 1859-1867.

图/表 6

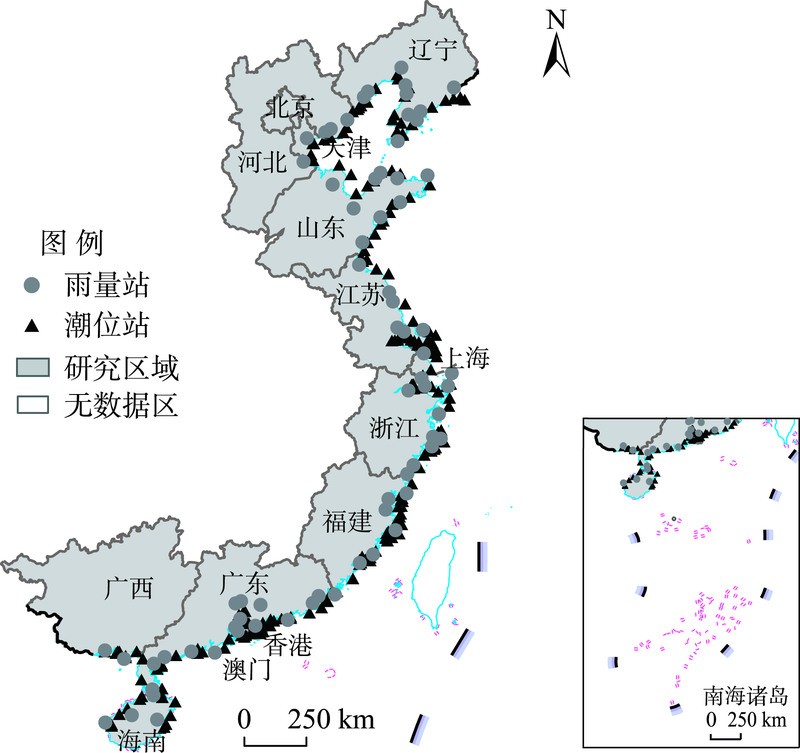

图1

表1

常用二维Copula函数表达式及参数范围

Copula函数	函数基本形式 $C μ, v$	参数范围
Gumbel	$e x p - - l n μ θ + - l n v θ 1 / θ$	$θ ∈ 1, ∞$
Clayton	$μ - θ + v - θ - 1 - 1 / θ$	$θ ∈ 0, ∞$
Frank	$- 1 θ l n 1 + e - θ μ - 1 e - θ v - 1 e - θ - 1$	θ∈R\{0}

表1

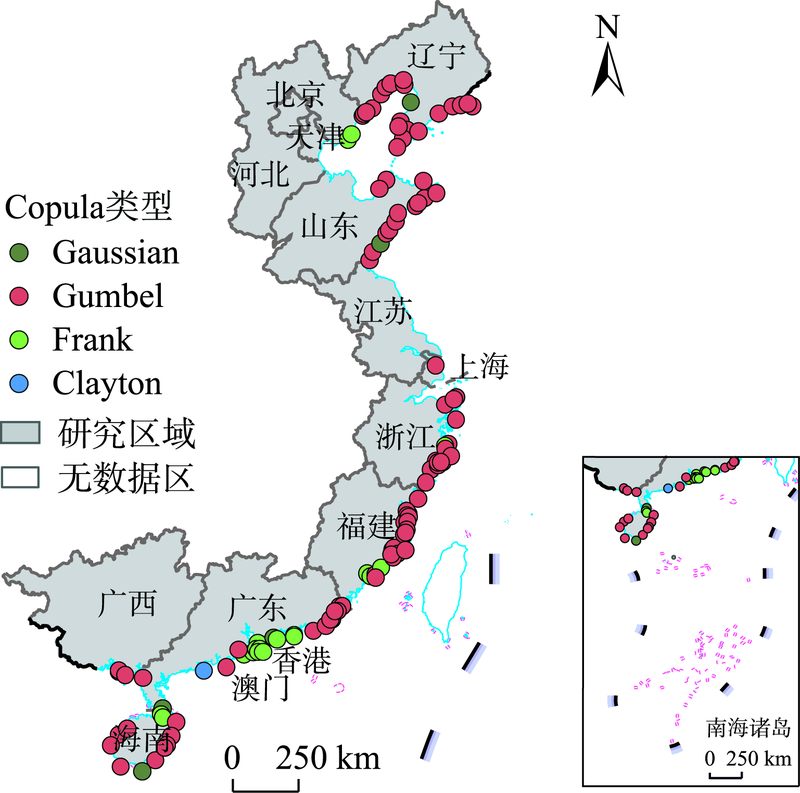

图2

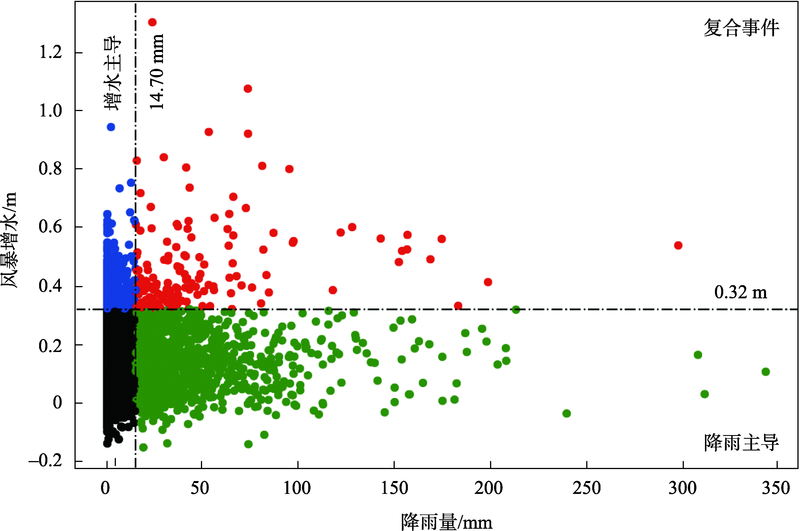

图3

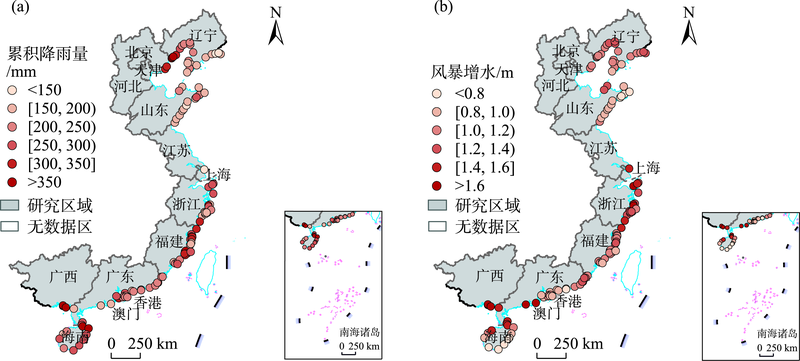

图4

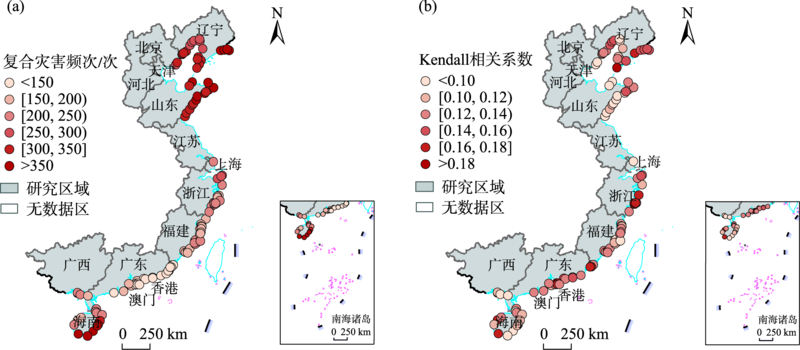

图5

参考文献 33

[1]	Shi P J. Natural disasters in China[M]. IHDP/Future Earth-Integrated Risk Governance Project Series. Berlin, Germany: Springer, 2016.
[2]	方佳毅, 史培军. 全球气候变化背景下海岸洪水灾害风险评估研究进展与展望[J]. 地理科学进展, 2019, 38(5): 625-636. doi: 10.18306/dlkxjz.2019.05.001
	[Fang Jiayi, Shi Peijun. A review of coastal flood risk research under global climate change. Progress in Geography, 2019, 38(5): 625-636. ] doi: 10.18306/dlkxjz.2019.05.001
[3]	许世远, 王军, 石纯, 等. 沿海城市自然灾害风险研究[J]. 地理学报, 2006, 61(2): 127-138.
	[Xu Shiyuan, Wang Jun, Shi Chun, et al. Research of the natural disaster risk on coastal cties. Acta Geographica Sinica, 2006, 61(2): 127-138. ]
[4]	赵庆良, 许世远, 王军, 等. 沿海城市风暴潮灾害风险评估研究进展[J]. 地理科学进展, 2007, 26(5): 32-40.
	[Zhao Qingliang, Xu Shiyuan, Wang Jun, et al. A review of risk assessment of storm surge on coastal cities. Progress in Geography, 2007, 26(5): 32-40. ] doi: 10.11820/dlkxjz.2007.05.004
[5]	李加林, 王艳红, 张忍顺, 等. 海平面上升的灾害效应研究: 以江苏沿海低地为例[J]. 地理科学, 2006, 26(1): 87-93.
	[Li Jialin, Wang Yanhong, Zhang Renshun, et al. Disaster effects of sea level rise: A case of Jiangsu coastal lowland. Scientia Geographica Sinica, 2006, 26(1): 87-93. ]
[6]	Anandalekshmi A, Panicker S T, Adarsh S, et al. Modeling the concurrent impact of extreme rainfall and reservoir storage on Kerala floods 2018: A Copula approach[J]. Modeling Earth Systems and Environment, 2019, 5(4): 1283-1296. doi: 10.1007/s40808-019-00635-6
[7]	Xu H Q, Tian Z, Sun L S, et al. Compound flood impact of water level and rainfall during tropical cyclone periods in a coastal city: The case of Shanghai[J]. Natural Hazards and Earth System Sciences, 2022, 22(7): 2347-2358.
[8]	Santos V M, Casas-Prat M, Poschlod B, et al. Statistical modelling and climate variability of compound surge and precipitation events in a managed water system: A case study in the Netherlands[J]. Hydrology and Earth System Sciences, 2021, 25(6): 3595-3615. doi: 10.5194/hess-25-3595-2021
[9]	冯爱青, 高江波, 吴绍洪, 等. 气候变化背景下中国风暴潮灾害风险及适应对策研究进展[J]. 地理科学进展, 2016, 35(11): 1411-1419. doi: 10.18306/dlkxjz.2016.11.011
	[Feng Aiqing, Gao Jiangbo, Wu Shaohong, et al. A review of storm surge disaster risk research and adaptation in China under climate change. Progress in Geography, 2016, 35(11): 1411-1419. ] doi: 10.18306/dlkxjz.2016.11.011
[10]	宋城城, 李梦雅, 王军, 等. 基于复合情景的上海台风风暴潮灾害危险性模拟及其空间应对[J]. 地理科学进展, 2014, 33(12): 1692-1703. doi: 10.11820/dlkxjz.2014.12.013
	[Song Chengcheng, Li Mengya, Wang Jun, et al. Simulation of typhoon storm surge impacts in Shanghai based on storm surge scenarios and disaster prevention measures. Progress in Geography, 2014, 33(12): 1692-1703. ] doi: 10.11820/dlkxjz.2014.12.013
[11]	Khanal S, Ridder N, de Vries H, et al. Storm surge and extreme river discharge: A compound event analysis using ensemble impact modeling[J]. Frontiers in Earth Science, 2019, 7: 224. doi: 10.3389/feart.2019.00224. doi: 10.3389/feart.2019.00224
[12]	方佳毅, 殷杰, 石先武, 等. 沿海地区复合洪水危险性研究进展[J]. 气候变化研究进展, 2021, 17(3): 317-328.
	[Fang Jiayi, Yin Jie, Shi Xianwu, et al. A review of compound flood hazard research in coastal areas. Climate Change Research, 2021, 17(3): 317-328. ]
[13]	杨蕊, 吴时强, 高学平, 等. 基于Vine Copula函数的河湖连通水环境多因子联合风险识别研究[J]. 水利学报, 2020, 51(5): 606-616.
	[Yang Rui, Wu Shiqiang, Gao Xueping, et al. A vine Copula-based study on identification of multivariate water environmental risk under different connectivity of rivers and lakes. Journal of Hydraulic Engineering, 2020, 51(5): 606-616. ]
[14]	刘章君, 郭生练, 许新发, 等. Copula函数在水文水资源中的研究进展与述评[J]. 水科学进展, 2021, 32(1): 148-159.
	[Liu Zhangjun, Guo Shenglian, Xu Xinfa, et al. Application of Copula functions in hydrology and water resources: A state-of-the-art review. Advances in Water Science, 2021, 32(1): 148-159. ]
[15]	侯静惟, 方伟华, 程锰, 等. 基于Copula函数的海南热带气旋风雨联合概率特征分析[J]. 自然灾害学报, 2019, 28(3): 54-64.
	[Hou Jingwei, Fang Weihua, Cheng Meng, et al. Joint probability analysis of tropical cyclone wind and rainfall for integrated hazard severity assessment in Hainan. Journal of Natural Disasters, 2019, 28(3): 54-64. ]
[16]	罗赟, 董增川, 管西柯, 等. 基于Copula函数的太湖流域汛期洪涝灾害危险性分析[J]. 湖泊科学, 2020, 32(1): 223-235.
	[Luo Yun, Dong Zengchuan, Guan Xike, et al. Flood risk analysis in the Taihu Basin during flood periods based on Copula function. Journal of Lake Sciences, 2020, 32(1): 223-235. ] doi: 10.18307/2020.0121
[17]	许红师, 练继建, 宾零陵, 等. 台风灾害多元致灾因子联合分布研究[J]. 地理科学, 2018, 38(12): 2118-2124. doi: 10.13249/j.cnki.sgs.2018.12.021
	[Xu Hongshi, Lian Jijian, Bin Lingling, et al. Joint distribution of multiple typhoon hazard factors. Scientia Geographica Sinica, 2018, 38(12): 2118-2124. ] doi: 10.13249/j.cnki.sgs.2018.12.021
[18]	陈浩, 徐宗学, 班春广, 等. 基于Copula函数的深圳河流域降雨潮位组合风险分析[J]. 北京师范大学学报(自然科学版), 2020, 56(2): 307-314.
	[Chen Hao, Xu Zongxue, Ban Chunguang, et al. Combination risk of precipitation and tide in Shenzhen River Basin as assessed by Copula function. Journal of Beijing Normal University ( Natural Science), 2020, 56(2): 307-314. ]
[19]	王一新. 超大城市洪涝灾害情景评估及其在太湖流域应用研究[D]. 天津: 天津大学, 2017.
	[Wang Yixin. Research on flood disaster scenario evaluation of megacity and application in Taihu Basin. Tianjin, China: Tianjin University, 2017. ]
[20]	Fang J Y, Wahl T, Fang J, et al. Compound flood potential from storm surge and heavy precipitation in coastal China: Dependence, drivers, and impacts[J]. Hydrology and Earth System Sciences, 2021, 25(8): 4403-4416. doi: 10.5194/hess-25-4403-2021
[21]	Muis S, Verlaan M, Nicholls R J, et al. A comparison of two global datasets of extreme sea levels and resulting flood exposure[J]. Earth's Future, 2017, 5(4): 379-392. doi: 10.1002/2016EF000430
[22]	Muis S, Verlaan M, Winsemius H C, et al. A global reanalysis of storm surges and extreme sea levels[J]. Nature Communications, 2016, 7(1): 11969. doi: 10.1038/ncomms11969. doi: 10.1038/ncomms11969
[23]	周向阳, 张荣, 雷文娟. 极端降水事件概率分布识别方法对比研究[J]. 自然灾害学报, 2018, 27(5): 158-168.
	[Zhou Xiangyang, Zhang Rong, Lei Wenjuan. Comparisons on probability distributions of extreme precipitation events identified by different methods. Journal of Natural Disasters, 2018, 27(5): 158-168. ]
[24]	张昕怡, 方国华, 闻昕, 等. 中国格点化日降水极值统计模型及阈值的选取[J]. 气候变化研究进展, 2017, 13(4): 346-355.
	[Zhang Xinyi, Fang Guohua, Wen Xin, et al. Statistical model and threshold value selection of gridded daily precipitation extremes in China. Climate Change Research, 2017, 13(4): 346-355. ]
[25]	顾西辉, 张强, 陈晓宏, 等. 中国多尺度不同量级极端降水发生率非平稳性研究[J]. 水利学报, 2017, 48(5): 505-515.
	[Gu Xihui, Zhang Qiang, Chen Xiaohong, et al. The spatiotemporal rates of heavy precipitation occurrence at difference scales in China. Journal of Hydraulic Engineering, 2017, 48(5): 505-515. ]
[26]	杨沛羽, 张强, 史培军, 等. 黄河流域极端降水时空分布特征及其影响因素[J]. 武汉大学学报(理学版), 2017, 63(4): 368-376.
	[Yang Peiyu, Zhang Qiang, Shi Peijun, et al. Spatiotemporal distribution of precipitation extremes and related implications across the Yellow River Basin, China. Journal of Wuhan University (Natural Science Edition), 2017, 63(4): 368-376. ]
[27]	王枭轩, 左小清, 杨泽楠, 等. 基于Mann-Kendall检验和信息熵的成都市1980—2016年降水时空变化[J]. 中国水土保持科学, 2019, 17(4): 26-33.
	[Wang Xiaoxuan, Zuo Xiaoqing, Yang Zenan, et al. Spatio-temporal changes of precipitation in Chengdu from 1980 to 2016 based on Mann-Kendall test and information entropy. Science of Soil and Water Conservation, 2019, 17(4): 26-33. ]
[28]	Zellou B, Rahali H. Assessment of the joint impact of extreme rainfall and storm surge on the risk of flooding in a coastal area[J]. Journal of Hydrology, 2019, 569: 647-665. doi: 10.1016/j.jhydrol.2018.12.028
[29]	Sklar A. Random variables, joint distribution functions, and Copulas[J]. Kybernetika, 1973, 9(6): 449-460.
[30]	陈永勤, 孙鹏, 张强, 等. 基于Copula的鄱阳湖流域水文干旱频率分析[J]. 自然灾害学报, 2013, 22(1): 75-84.
	[Chen Yongqin, Sun Peng, Zhang Qiang, et al. Copula-based analysis of hydrological drought frequency in Poyang Lake Basin. Journal of Natural Disasters, 2013, 22(1): 75-84. ]
[31]	Bevacqua E, Vousdoukas M I, Shepherd T G, et al. Brief communication: The role of using precipitation or river discharge data when assessing global coastal compound flooding[J]. Natural Hazards and Earth System Sciences, 2020, 20(6): 1765-1782.
[32]	许瀚卿, 谭金凯, 李梦雅, 等. 基于Copula函数的沿海城市雨潮复合灾害风险研究[J]. 自然灾害学报, 2022, 31(1): 40-48.
	[Xu Hanqing, Tan Jinkai, Li Mengya, et al. Compound flood risk of rainfall and storm surge in coastal cities as assessed by Copula formal. Journal of Natural Disasters, 2022, 31(1): 40-48. ]
[33]	Wahl T, Jain S, Bender J, et al. Increasing risk of compound flooding from storm surge and rainfall for major US cities[J]. Nature Climate Change, 2015, 5(12): 1093-1097. doi: 10.1038/NCLIMATE2736
