土壤侵蚀研究中降雨过程随机模拟综述

doi:10.18306/dlkxjz.2020.10.013

摘要/Abstract

摘要：

土壤侵蚀是中国严峻的环境问题之一。土壤侵蚀模型是诊断和防治土壤侵蚀问题的有力工具。降雨随机模拟模型可以弥补观测资料在时空尺度上的不足,满足土壤侵蚀模型对降雨过程数据的需求。论文总结了降雨过程基本特征、随机模拟的研究进展以及未来的发展方向。主要结论有：① 最小降雨间歇(Minimum Inter-event Time, MIT)为分割次降雨的最小时间间隔,当干期小于该临界值,则合并为1次降雨;否则分割为2次独立的次降雨事件。采用指数方法计算得到中国中东部最小降雨间歇变化于7.6~16.6 h 之间,平均值为10.7 h;当MIT值较小时,次降雨过程参数如次雨量、历时、平均雨强与峰值雨强等对MIT的变化敏感。② 降雨的时程分配特征反映次降雨量在降雨过程中的分配,是降雨过程随机模拟的重要方面。采用Huff雨型分析方法得到中国降雨以峰值出现在前期的降雨为主,峰值出现在前1/2时段的降雨占65.1%;峰值出现在前期的降雨事件,与峰值出现在后期的降雨事件相比,历时较短、雨强较大。③ 美国农业部水蚀预报项目WEPP中自带的天气随机模型CLIGEN能较好地模拟日雨量,整体上低估次降雨历时,高估峰值雨强;且对于不同大小的日雨量等级,次降雨历时和峰值雨强的偏差方向和程度不一致。④ CLIGEN的参数输入需要降雨过程观测资料,难以获取,小时降雨观测资料相对更易获取,基于此,发展了使用小时降雨数据计算CLIGEN中2个与降雨过程相关的参数TimePk和MX.5P的方法。未来需加强随机模型对极值的模拟能力,以及建立多站点、多气象要素相关的天气条件约束型随机模型。

关键词: 降雨, 随机模拟, 天气发生器, 土壤侵蚀, CLIGEN

Abstract:

Soil erosion is one of the most serious environmental problems in China. Soil erosion model is an efficient tool for diagnosing and preventing soil erosion. Stochastic simulation of precipitation can generate synthetic input data for soil erosion models when observation data are absent. This study summarized the main progress of rainfall process stochastic simulation in existing studies. One-minute resolution rainfall data were collected from 18 weather stations distributed in the main water erosion areas to analyze the characteristics of the storm process and calibrate, evaluate, and develop CLImate GENerator (CLIGEN) stochastic models for China. The main results are as follows: 1) Minimum inter-event time (MIT) for separating precipitation events from continuous precipitation recording ranged from 7.6 h to 16.6 h, with an average of 10.7 h. The MIT values calculated from 1-minute data and hourly data were not significantly different. Storm process characteristics such as the amount, duration, average intensity, and peak intensity of precipitation were sensitive to the variation of MIT values when the MIT values were smaller than 6 h, which suggests that the comparison of storm process characteristics for different storms and areas should use the same MIT value. 2) Events with peak intensity occurring in the first half of the duration of an event were dominant, which accounted for more than 65% of the total events and they were characterized by relatively short duration and greater intensity, comparing with events whose peak intensity fell in the second half of the duration of the events. 3) Weather generator CLIGEN in the Water Erosion Prediction Project (WEPP) soil erosion model can satisfactorily simulate the daily precipitation amounts (P), but it underestimated the storm duration (D) and overestimated the maximum 30-minute intensity (I₃₀). The direction and degree of the bias for D and I₃₀ were not consistent for different groups classified by different precipitation amounts. 4) A method was developed to use hourly precipitation data to prepare the TimePk and MX.5P parameters for CLIGEN input files for the generation of storm process data in the absence of high resolution hyetography precipitation data. More efforts are needed to improve the simulation of precipitation extremes and develop multi-site and multi-variable stochastic models conditioned on weather types in the future.

Key words: precipitation, stochastic simulation, weather generator, soil erosion, CLImate GENerator (CLIGEN)

殷水清, 王文婷. 土壤侵蚀研究中降雨过程随机模拟综述[J]. 地理科学进展, 2020, 39(10): 1747-1757.

YIN Shuiqing, WANG Wenting. A review on the stochastic simulation of rainfall process data for soil erosion assessment[J]. PROGRESS IN GEOGRAPHY, 2020, 39(10): 1747-1757.

图/表 10

表1

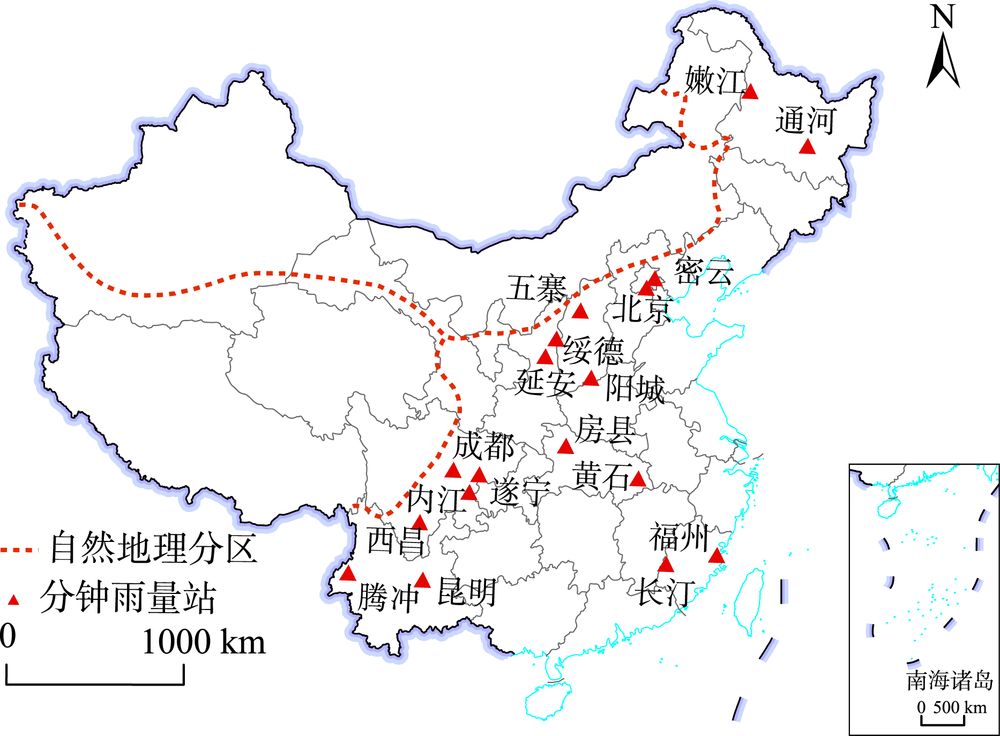

图1

图2

图3

表2

表3

表4

图4

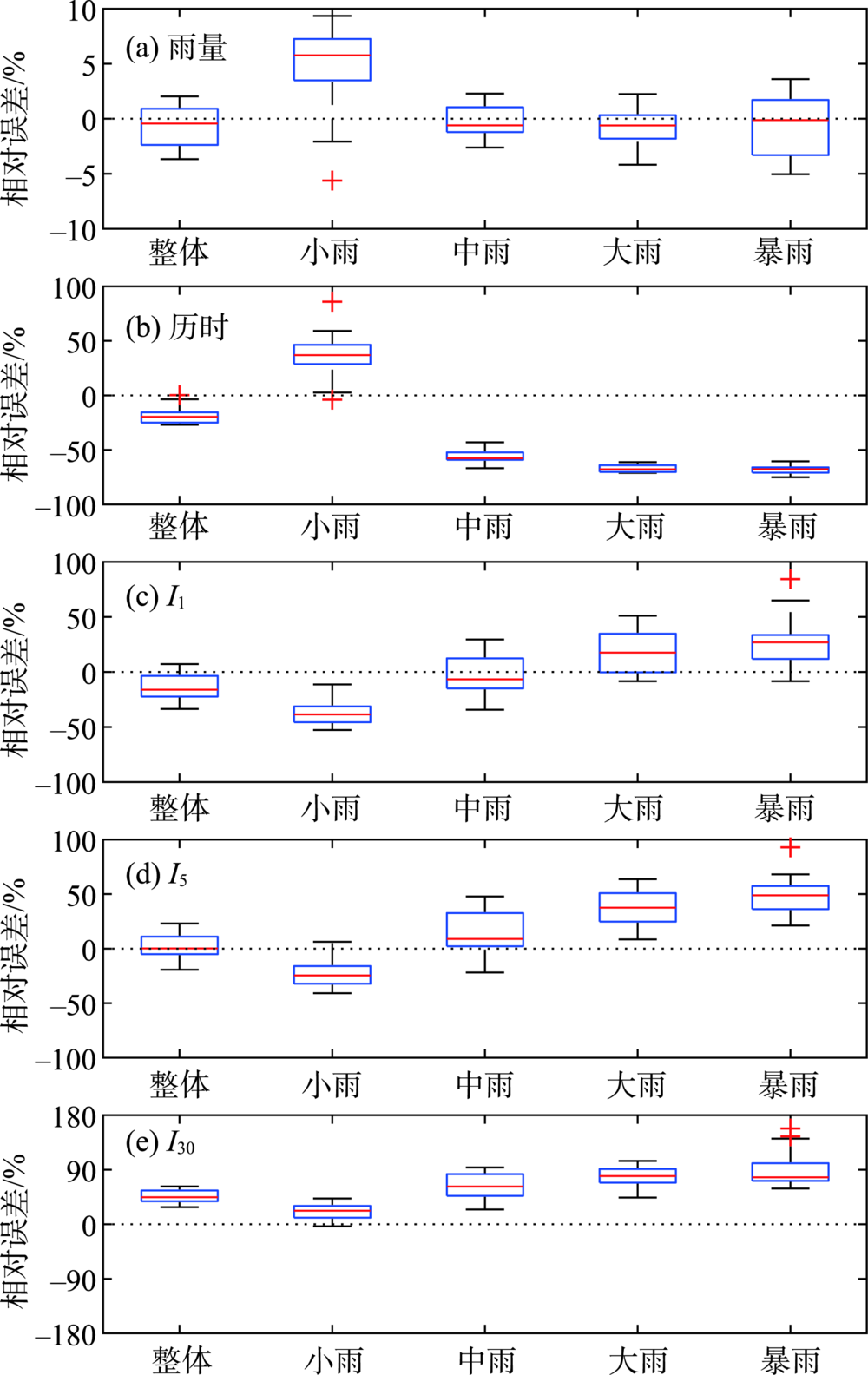

图5

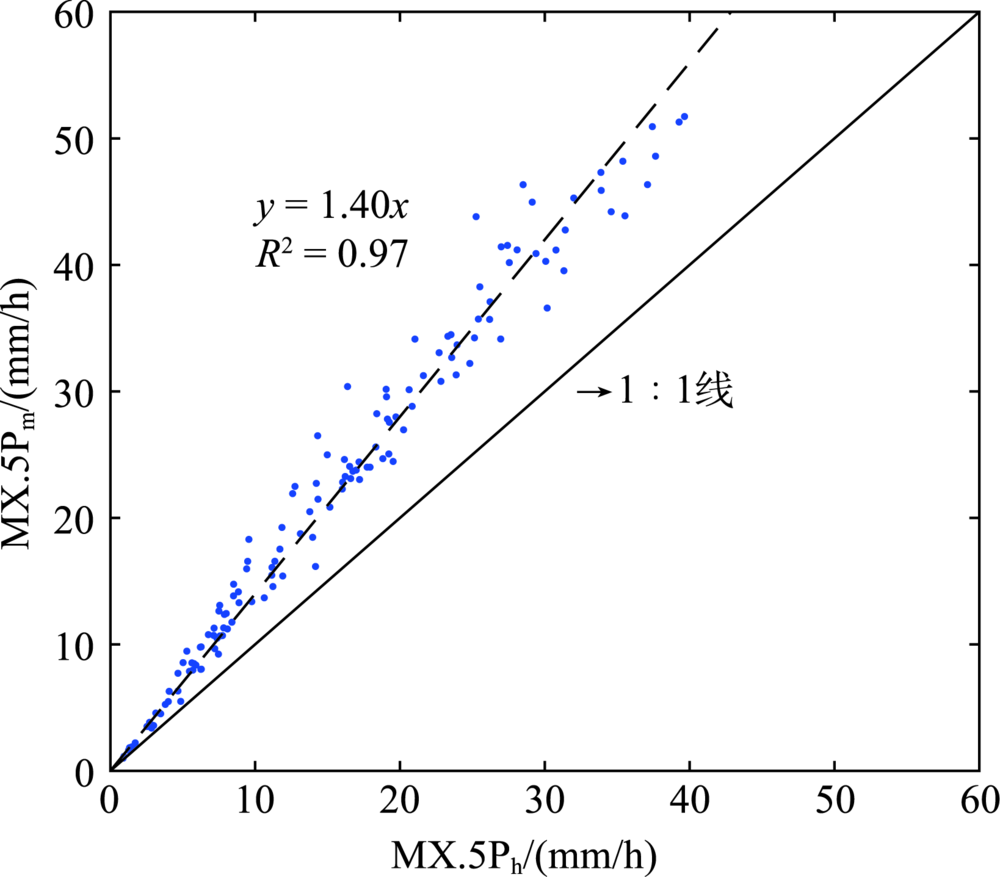

图6

参考文献 59

[1]	刘宝元, 谢云, 张科利. 土壤侵蚀预报模型 [M]. 北京: 中国科学技术出版社, 2001.
	[ Liu Baoyuan, Xie Yun, Zhang Keli. Soil erosion prediction model. Beijing, China: Science and Technology of China Press, 2001. ]
[2]	Yin S Q, Xie Y, Liu B Y, et al. Rainfall erosivity estimation based on rainfall data collected over a range of temporal resolutions[J]. Hydrology and Earth System Sciences, 2015,19:4113-4126. doi: 10.5194/hess-19-4113-2015
[3]	陈杰, 许崇育, 郭生练, 等. 统计降尺度方法的研究进展与挑战[J]. 水资源研究, 2016,5(4):299-313.
	[ Chen Jie, Xu Chongyu, Guo Shenglian, et al. Progress and challenge in statistically downscaling climate model outputs. Journal of Water Resources Research, 2016,5(4):299-313. ]
[4]	刘昌明, 刘文彬, 傅国斌, 等. 气候影响评价中统计降尺度若干问题的探讨[J]. 水科学进展, 2012,23(3):427-437.
	[ Liu Changming, Liu Wenbin, Fu Guobin, et al. A discussion of some aspects of statistical downscaling in climate impacts assessment. Advances in Water Science, 2012,23(3):427-437. ]
[5]	范丽军, 符淙斌, 陈德亮. 统计降尺度法对未来区域气候变化情景预估的研究进展[J]. 地球科学进展, 2005,20(3):320-329.
	[ Fan Lijun, Fu Congbin, Chen Deliang. Review on creating future climate change scenarios by statistical downscaling techniques. Advances in Earth Science, 2005,20(3):320-329. ]
[6]	Lake I, Gutowski W, Giorgi F, et al. CORDEX: Climate research and information for Regions[J]. Bulletin of the American Meteorological, 2017,98(8):189-192. doi: 10.1175/BAMS-D-17-0042.1.
[7]	Maraun D, Widmann M. Statistical downscaling and bias correction for climate research [M]. Cambridge, UK: UK: Cambridge University Press, 2018.
[8]	殷水清, 谢云, 陈德亮, 等. 日以下尺度降雨随机模拟研究进展[J]. 地球科学进展, 2009,24(9):981-989.
	[ Yin Shuiqing, Xie Yun, Chen Deliang, et al. Review of stochastic simulation of sub-daily scale precipitation. Advances in Earth Science, 2009,24(9):981-989. ]
[9]	Peleg N, Fatichi S, Paschalis A, et al. An advanced stochastic weather generator for simulating 2-D high-resolution climate variables[J]. Journal of Advances in Modeling Earth Systems, 2017,9(3):1595-1627. doi: 10.1002/2016MS000854.
[10]	Bonta J V, Rao A R. Factors affecting the identification of independent storm events[J]. Journal of Hydrology, 1988,98(3):275-293.
[11]	Bonta J V. Characterizing and estimating spatial and temporal variability of times between storms[J]. Transactions of the ASAE, 2001,44(6):1593-1601.
[12]	Huff F A. Time distribution of rainfall in heavy storms[J]. Water Resource Research, 1967,3(4):1007-1019.
[13]	Wenzel H G, Voorhees M L. An evaluation of the urban design storm concept [R]. Illinois, USA: Water Resources Center, University of Illinois, Urbana, 1981.
[14]	Ziegler A D, Negishi J N, Sidle R C, et al. Impacts of logging disturbance on hillslope saturated hydraulic conductivity in a tropical forest in Peninsular Malaysia[J]. Catena, 2006,67(2):89-104.
[15]	Cutrim E M C, Martin D W, Butzow D G, et al. Pilot analysis of hourly rainfall in central and Eastern Amazonia[J]. Journal of Climate, 2000,13(7):1326-1334.
[16]	Dunkerley D. Intra-event intermittency of rainfall: An analysis of the metrics of rain and no-rain periods[J]. Hydrological Processes, 2015,29(15):3294-3305.
[17]	Dunkerley D. Identifying individual rain events from pluviograph records: A review with analysis of data from an Australian dryland site[J]. Hydrological Processes, 2008,22(26):5024-5036.
[18]	Yen B C, Chow V T. Design hyetographs for small drainage structures[J]. Journal of the Hydraulics Division, 1980,106(6):1055-1076.
[19]	Wischmeier W H. A rainfall erosion index for a universal soil-loss equation[J]. Soil Science Society of America Journal, 1959,23(3):246-249.
[20]	Grace R A, Eagleson P S. The synreport of short-time-increment rainfall sequences [R]. No. 91. Cambridge, USA: Hydrodynamics Laboratory, Massachusetts Institute of Technology, 1966.
[21]	Restrepo-Posada P J, Eagleson P S. Identification of independent rainstorms[J]. Journal of Hydrology, 1982,55(1):303-319.
[22]	Yu R, Xu Y, Zhou T, et al. Relation between rainfall duration and diurnal variation in the warm season precipitation over central eastern China[J]. Geophysical Research Letters, 2007,34(13):173-180.
[23]	Li J, Yu R, Sun W. Duration and seasonality of hourly extreme rainfall in the central eastern China[J]. Journal of Meteorological Research, 2013,27(6):799-807.
[24]	Wang W, Yin S, Xie Y, et al. Effects of four storm patterns on soil loss from five soils under natural rainfall[J]. Catena, 2016,141:56-65.
[25]	Renard K G, Foster G R, Weesies G A, et al. Predicting soil erosion by water: A guide to conservation planning with the Revised Universal Soil Loss Equation (RUSLE)[M]. Washington D C, USA: US Department of Agriculture Agriculture Handbook, 1997.
[26]	USDA-Agricultural Research Service. Science documentation Revised Universal Soil Loss Equation Version 2 [M/OL]. . Washington D C, USA:USDA-ARS, 2013.
[27]	Flanagan D C, Foster G R, Moldenhauer W C. Storm pattern effect on infiltration, runoff, and erosion[J]. Transactions of the ASAE, 1988,31(2):414-420.
[28]	An J, Zheng F L, Han Y. Effects of rainstorm patterns on runoff and sediment yield processes[J]. Soil Science, 2014,179(6):293-303.
[29]	殷水清, 王杨, 谢云, 等. 中国降雨过程时程分型特征[J]. 水科学进展, 2014,25(5):617-624.
	[ Yin Shuiqing, Wang Yang, Xie Yun, et al. Characteristics of intra-storm temporal pattern over China. Advances in Water Science, 2014,25(5):617-624. ]
[30]	Nicks A D, Lane L J, Gander G A. Weather generator [M]. USDA-water erosion prediction project hillslope profile and watershed model documentation, NSERL report No. 10. West Lafayette, USA: USDA-ARS National Soil Erosion Research Laboratory, 1995: 2.1-2.22.
[31]	Flanagan D C, Meyer C R, Yu B, et al. Evaluation and enhancement of the CLIGEN weather generator [C]// Ascough II J C, Flanagan D C. Soil erosion research for the 21st century: Proceedings of the international symposium. St. Joseph, USA: American Society of Agricultural Engineers, 2001: 107-110.
[32]	Yu B. Improvement and evaluation of CLIGEN for storm generation[J]. Transactions of the ASAE, 2000,43(2):301-307.
[33]	Yu B. Using CLIGEN to generate RUSLE climate inputs[J]. Transactions of the ASAE, 2002,45(4):993-1001.
[34]	Zhang Y, Liu B, Wang Z, et al. Evaluation of CLIGEN for storm generation on the semiarid Loess Plateau in China[J]. Catena, 2008,73(1):1-9. doi: 10.1016/j.catena.2007.08.001
[35]	Chen J, Zhang X C, Liu W Z, et al. Assessment and improvement of CLIGEN non-precipitation parameters for the Loess Plateau of China[J]. Transactions of the ASAE, 2008,51(3):901-913.
[36]	Elliot W J, Arnold C D. Validation of the weather generator CLIGEN with precipitation data from Uganda[J]. Transactions of the ASAE, 2001,44(1):53-58.
[37]	Kou X, Ge J, Wang Y, et al. Validation of the weather generator CLIGEN with daily precipitation data from the Loess Plateau, China[J]. Journal of Hydrology, 2007,347(3):347-357.
[38]	Fan J, Yang C, Liu C, et al. Assessment and validation of CLIGEN-simulated rainfall data for Northern Taiwan[J]. Paddy and Water Environment, 2013,11(1-4):161-173.
[39]	Chen J, Zhang X C, Liu W Z, et al. Evaluating and extending CLIGEN precipitation generation for the Loess Plateau of China[J]. Journal of the American Water Resources Association, 2009,45(2):378-396.
[40]	Yu B. An assessment of uncalibrated CLIGEN in Australia[J]. Agricultural and Forest Meteorology, 2003,119(3):131-148.
[41]	Coppus R, Imeson A C. Extreme events controlling erosion and sediment transport in a semi-arid sub-andean valley[J]. Earth Surface Processes and Landforms, 2002,27(13):1365-1375.
[42]	González-Hidalgo J C, Peña-Monné J L, Luis M D. A review of daily soil erosion in Western Mediterranean areas[J]. Catena, 2007,71(2):193-199.
[43]	Yu B. Adjustment of CLIGEN parameters to generate precipitation change scenarios in southeastern Australia[J]. Catena, 2005,61(2):196-209.
[44]	赵松乔. 中国综合自然地理区划的一个新方案[J]. 地理学报, 1983,38(1):1-10.
	[ Zhao Songqiao. A new scheme for comprehensive physical regionalization in China. Acta Geographica Sinica, 1983,38(1):1-10. ]
[45]	Driscoll E D, Palhegyi G E, Strecker E W, et al. Analysis of storm event characteristics for selected rainfall gages throughout U.S [R]. Washington D C, USA: US Environmental Protection Agency, 1989.
[46]	Yoo C, Park M, Kim H J, et al. Classification and evaluation of the documentary-recorded storm events in the Annals of the Choson Dynasty (1392-1910), Korea[J]. Journal of Hydrology, 2015,520:387-396.
[47]	Wang W, Yin S, Xie Y, et al. Minimum inter-event times for rainfall in China[J]. Transactions of the ASABE, 2019,62(1):9-18.
[48]	Huff F A. Time distributions of heavy rainstorms in Illinois [R]. Circular 173. Champaign, USA: Illinois State Water Survey, 1990.
[49]	Back A J. Time distribution of heavy rainfall events in Urussanga, Santa Catarina State, Brazil[J]. Acta Scientiarum Agronomy, 2011,33(4):583-588.
[50]	Azli M, Rao A R. Development of huff curves for Peninsular Malaysia[J]. Journal of Hydrology, 2010,388:77-84.
[51]	Yin S, Xie Y, Nearing M, et al. Intra-storm temporal patterns of rainfall in China using Huff curves[J]. Transactions of the ASABE, 2016,59(6):1619-1632.
[52]	Wang W, Flanagan D C, Yin S, et al. Assessment of CLIGEN precipitation and storm pattern generation in China[J]. Catena, 2018,169:96-106.
[53]	Arnold J G, Williams J R. Stochastic generation of internal storm structure at a point[J]. Transactions of the ASAE, 1989,32(1):161-167.
[54]	Wang W, Yin S, Flanagan D C, et al. Comparing CLIGEN-generated storm patterns with 1-minute and hourly precipitation data from China[J]. Journal of Applied Meteorology and Climatology, 2018,57(9):2005-2017.
[55]	Li Z. A new framework for multi-site weather generator: A two-stage model combining a parametric method with a distribution-free shuffle procedure[J]. Climate Dynamics, 2014,43(3-4):657-669.
[56]	Chen D. A monthly circulation climatology for Sweden and its application to a winter temperature case study[J]. International Journal of Climatology, 2000,20(10):1067-1076.
[57]	Bardossy A, Plate E J. Space-time model for daily rainfall using atmospheric circulation patterns[J]. Water Resources Research, 1992,28(5):1247-1259.
[58]	Fowler H J, Kilsby C G, O'Connell P E, et al. A weather-type conditioned multi-site stochastic rainfall model for the generation of scenarios of climatic variability and change[J]. Journal of Hydrology, 2005,308:50-66.
[59]	Haberlandt U, Belli A, Bardossy A. Statistical downscaling of precipitation using a stochastic rainfall model conditioned on circulation patterns-an evaluation of assumptions[J]. International Journal of Climatology, 2015,35(3):417-432.

指标	常用符号	单位	定义

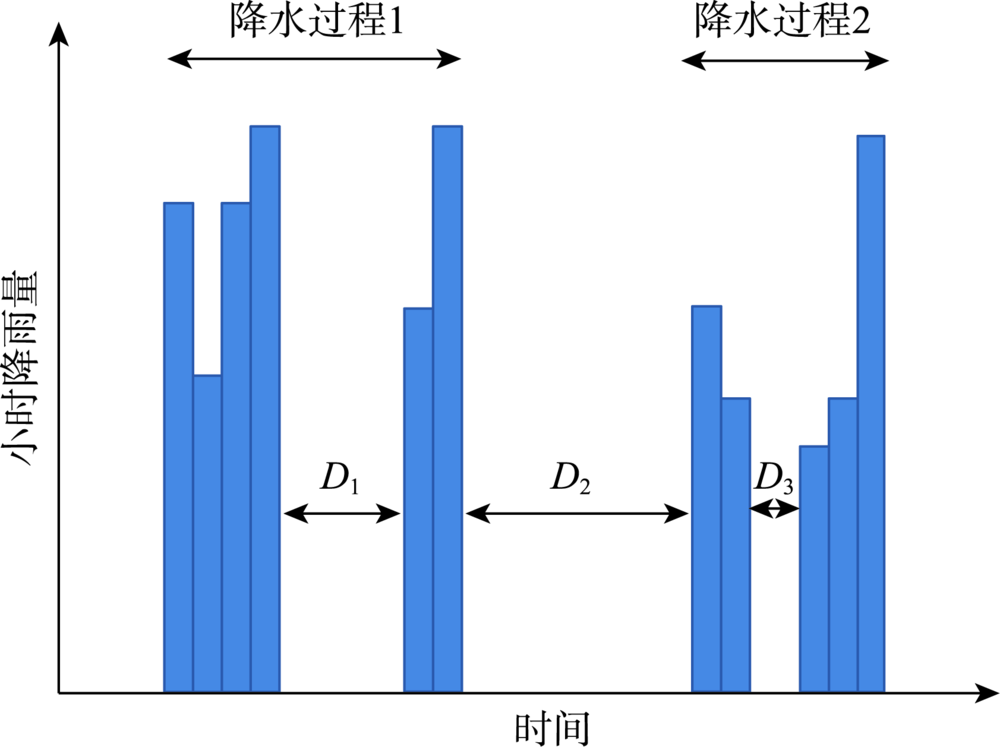

最小降雨间歇	MIT	h	分割次降雨的最小时间间隔,当干期小于该临界值,则合并为1次降雨;否则划分为2次独立的次降雨事件
次降雨量	P	mm	一次降雨过程内产生的降雨量总和
次降雨历时	D	h	次降雨过程的总时长,次降雨过程内部的干期成为次降雨历时的一部分
次降雨平均雨强	I	mm/h	次降雨量除以次降雨历时
次降雨峰值雨强	I₁、I₅、I₃₀	mm/h	次降雨过程中最大的时段雨强,比如最大1 min、5 min、30 min雨强,最大小时雨强等
到达峰值雨强的时刻	t_p	h	从降雨开始至到达峰值雨强时刻的时间

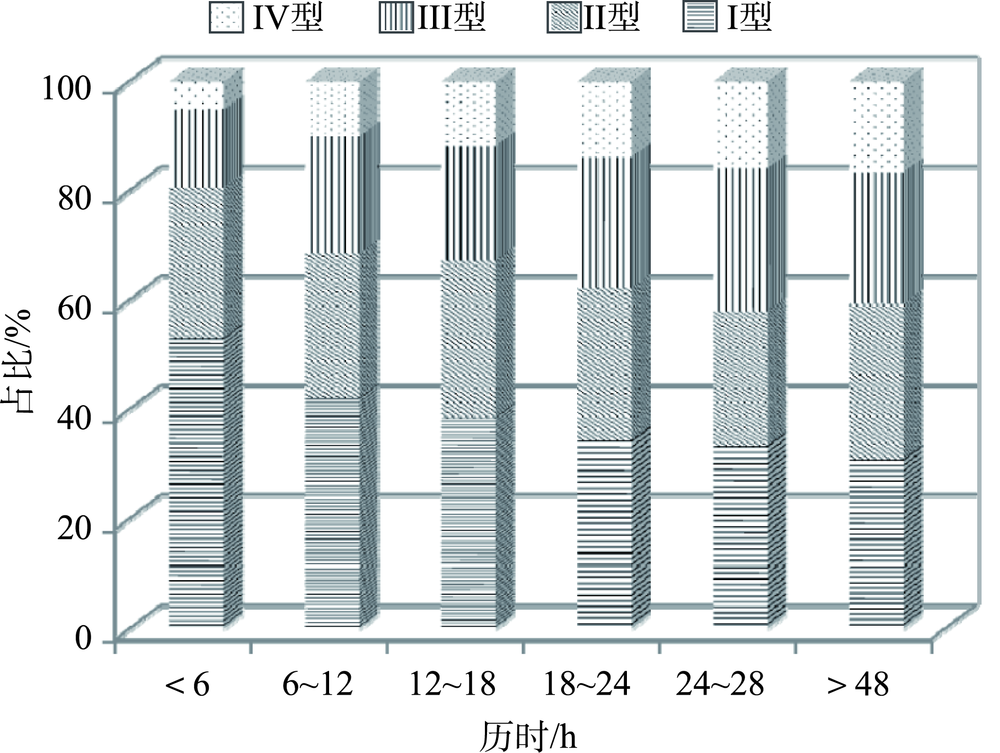

时程雨型			降雨过程中雨量随历时的分配,反映了降雨发生、发展和消亡的过程

站名	基于分钟资料计算	基于小时资料计算	相对偏差/%
嫩江	10.2	9.2	-9.8
通河	12.9	11.9	-7.8
五寨	7.9	6.8	-13.9
绥德	8.9	8.0	-10.1
延安	9.0	7.8	-13.3
阳城	8.6	7.7	-10.5
密云	10.1	9.3	-7.9
北京	11.9	11.9	0
成都	7.9	7.1	-10.1
西昌	9.1	8.4	-7.7
腾冲	11.1	10.8	-2.7
昆明	12.7	11.8	-7.1
房县	7.8	6.8	-12.8
遂宁	8.2	7.6	-7.3
内江	7.6	6.9	-9.2
黄石	14.7	14.0	-4.8
福州	16.6	15.6	-6.0
长汀	16.5	15.6	-5.5
平均值	10.7	9.8	-8.1
标准差	2.9	3.0	3.6

站点	雨量P/mm				历时D/h				平均雨强I/(mm/h)				峰值雨强I₃₀/(mm/h)
站点	2 h	6 h	10 h	MIT_exp	2 h	6 h	10 h	MIT_exp	2 h	6 h	10 h	MIT_exp	2 h	6 h	10 h	MIT_exp
嫩江	6.3	9.1	11.3	11.3	6.6	15.8	24.1	24.5	1.3	0.8	0.7	0.7	5.5	6.7	7.6	7.6
通河	6.3	8.8	10.8	12.0	5.5	11.7	18.1	22.5	1.6	1.1	0.8	0.7	5.7	6.7	7.5	7.8
五寨	6.3	8.1	9.1	8.6	5.2	8.3	10.8	9.5	1.7	1.5	1.4	1.5	4.9	5.7	6.0	5.8
绥德	7.1	9.1	10.1	9.8	5.6	9.2	11.6	10.8	1.9	1.8	1.7	1.7	5.4	6.3	6.7	6.6
延安	8.2	10.3	11.4	11.1	6.7	10.2	12.9	12.2	1.9	1.7	1.5	1.6	5.7	6.5	6.9	6.8
阳城	9.5	12.0	13.3	13.0	8.4	13.0	15.9	15.2	1.4	1.3	1.2	1.2	6.5	7.6	8.1	8.0
密云	10.5	12.8	14.3	14.4	5.2	7.9	10.2	10.2	2.8	2.6	2.5	2.4	9.2	10.5	11.2	11.3
北京	9.6	12.3	13.6	14.5	4.7	8.3	10.7	12.6	2.4	2.1	2.0	1.8	8.2	9.7	10.4	10.7
成都	10.1	12.7	14.7	13.6	7.6	12.3	16.3	14.2	1.6	1.3	1.2	1.2	7.4	8.5	9.3	8.9
西昌	8.4	12.0	14.4	14.3	5.8	10.8	14.9	14.7	1.5	1.4	1.3	1.3	5.7	7.4	8.2	8.2
腾冲	5.6	9.3	13.4	14.8	3.4	8.3	15.5	18.2	1.9	1.6	1.5	1.4	5.1	6.7	7.9	8.3
昆明	6.9	11.5	15.1	17.1	5.3	13.6	21.3	26.2	1.7	1.3	1.1	1.1	6.3	8.4	9.8	10.4
房县	9.2	12.0	13.8	13.0	7.9	12.3	15.9	14.3	1.5	1.4	1.4	1.4	6.1	7.3	8.1	7.8
遂宁	10.2	12.3	13.7	13.1	7.3	9.8	12.1	11.0	1.8	1.7	1.6	1.7	7.2	8.2	8.8	8.5
内江	10.6	13.8	15.5	14.8	6.7	10.5	13.2	12.1	1.9	1.8	1.7	1.7	7.5	8.9	9.6	9.3
黄石	14.0	18.4	21.0	23.2	6.9	10.7	13.5	16.4	2.6	2.6	2.4	2.4	9.8	11.7	12.6	13.4
福州	12.4	18.2	22.8	28.4	10.1	19.9	28.4	39.9	1.4	1.0	1.0	0.9	8.5	10.7	12.4	13.9
长汀	12.9	17.9	21.3	26.8	8.5	15.4	21.0	30.0	1.9	1.6	1.5	1.5	10.2	12.0	13.1	14.6
平均值	9.1	12.3	14.4	15.2	6.5	11.6	15.9	17.5	1.8	1.6	1.5	1.5	6.9	8.3	9.1	9.3

降雨特征指标	2 h与6 h	2 h与10 h	2 h与MIT_exp	6 h与10h	6 h与MIT_exp	10 h与MIT_exp
雨量P	0.002	<0.001	<0.001	0.072^**	0.057^**	0.626^**
历时D	<0.001	<0.001	<0.001	0.004	0.007	0.508^**
平均雨强I	0.134^**	0.033^*	0.026^*	0.528^**	0.467^**	0.922^**
峰值雨强I₃₀	0.027^*	0.001	0.002	0.235^**	0.190^**	0.805^**
