1960—2016年黄土高原干旱和热浪时空变化特征

doi:10.18306/dlkxjz.2020.04.006

摘要/Abstract

摘要：

基于1960—2016年黄土高原49个气象台站日最高气温和月降水数据,论文利用百分位高温阈值和标准化降水指标对黄土高原干旱和热浪时空变化特征进行了分析,识别并探讨了干旱和热浪同时发生事件的演变规律。结果表明：① 黄土高原热浪频次整体呈增加趋势,日高温热浪增加趋势最大,增速达到0.29次/a,1995年之后增加趋势更为明显,显著增加区域集中在山西东北部、青海省东部和甘肃中南部;② 1960—2016年黄土高原旱涝指数呈下降趋势,即表现为由涝转旱,20世纪90年代初为旱涝变化的转折点,年旱涝指数下降趋势显著区占整个研究区的62%,其中黄土高原沟壑区南部、陕北南部、山西南部、甘肃东部干旱趋势较为明显;③ 干旱和热浪同时发生事件总体呈现增加趋势,增速为0.66次/10 a,其中1960—1979年呈下降趋势,降速为-0.26次/a,1980—2002年呈增加趋势,2003年之后变化趋势较为平稳;空间上,山西东部、陕北南部和甘肃东南部发生频次较高,并且显著增加区主要位于山西东北部、甘肃中东部和宁夏北部。

关键词: 高温热浪, 旱涝演变, 并发事件, 时空变化, 黄土高原

Abstract:

Based on daily maximum temperature and monthly precipitation data of 49 meteorological stations on the Loess Plateau during 1960-2016 and using the 90th percentile of the temperature as extreme temperature thresholds and standardized precipitation index (SPI), this study examined the spatiotemporal variation characteristics of heatwaves and droughts and the dynamics of concurrent droughts and heatwaves across the Loess Plateau. The results show that: 1) The occurrence frequency of heatwaves presented an increasing trend on the Loess Plateau during the recent 57 years with a liner tendency of 0.29 times/a, of which a significant increasing trend was detected after 1995. The significantly increasing areas were mainly distributed in the northeast of Shanxi Province, eastern Qinghai Province, and southern and central Gansu Province. 2) Standardized precipitation index (SPI) showed a downward trend in the recent 57 years, indicating a trend from water-logging to drought, and the early 1990s was a turning point. Particularly, areas with the declining trend of SPI₁₂accounted for 62% of the whole study area, and regions with significant drought were mainly distributed in the south of the gully areas of the Loess Plateau, the southern part of Northern Shaanxi, the south of Shanxi Province, and the east of Gansu Province. 3) The simultaneous occurrence frequency of droughts and heatwaves showed an overall increasing trend, with a growth rate of 0.66 times/10 a. From 1960 to 1979 it showed a declining trend of -0.26 times/a, then an increasing trend of 0.52 times/a from 1980 to 2002, while a steady increasing trend was detected after 2003. Spatially, the high incidence of droughts and heatwaves was observed in the eastern of Shanxi, the south of Northern Shaanxi, and the southwest of Gansu; areas with increasing trend were mainly concentrated in the northeast of Shanxi, central and eastern Gansu, and northern Ningxia.

Key words: heatwave, drought, concurrent extremes, spatiotemporal variations, Loess Plateau

孙艺杰, 刘宪锋, 任志远, 段艺芳. 1960—2016年黄土高原干旱和热浪时空变化特征[J]. 地理科学进展, 2020, 39(4): 591-601.

SUN Yijie, LIU Xianfeng, REN Zhiyuan, DUAN Yifang. Spatiotemporal changes of droughts and heatwaves on the Loess Plateau during 1960-2016[J]. PROGRESS IN GEOGRAPHY, 2020, 39(4): 591-601.

图/表 7

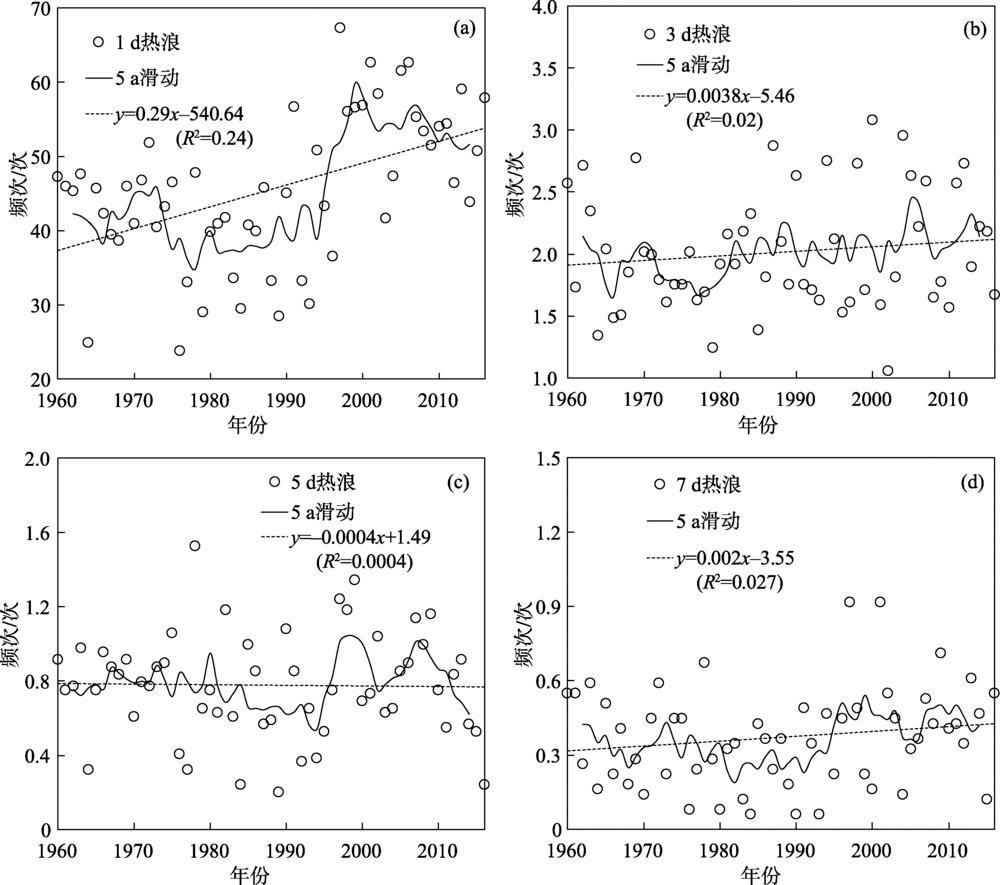

图1

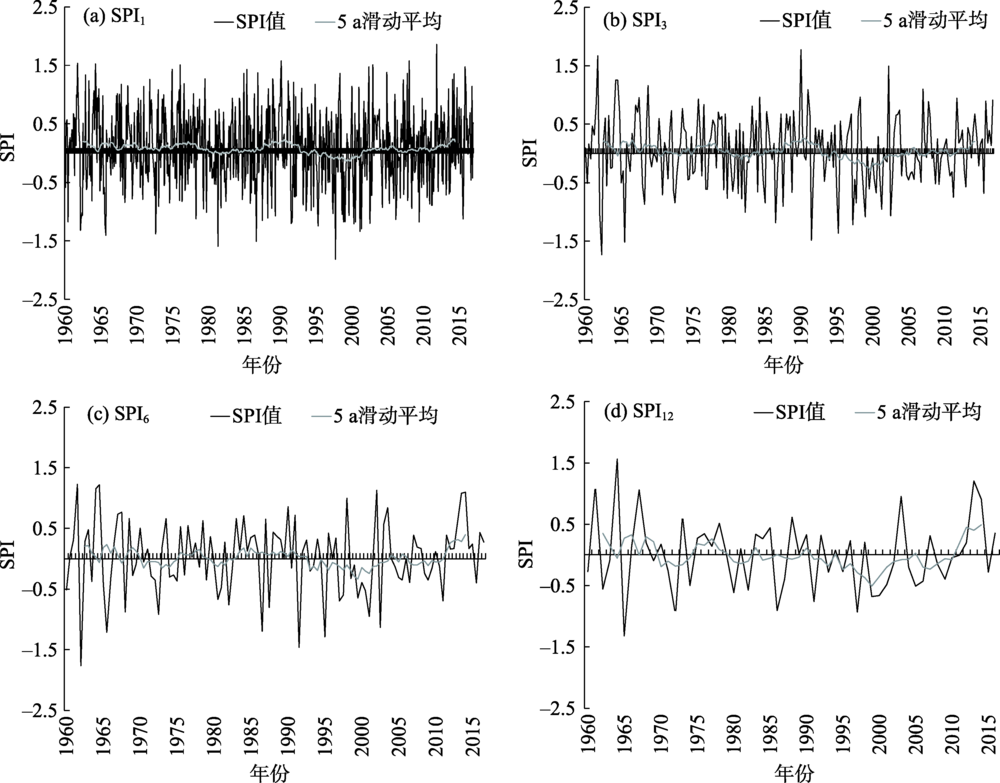

图2

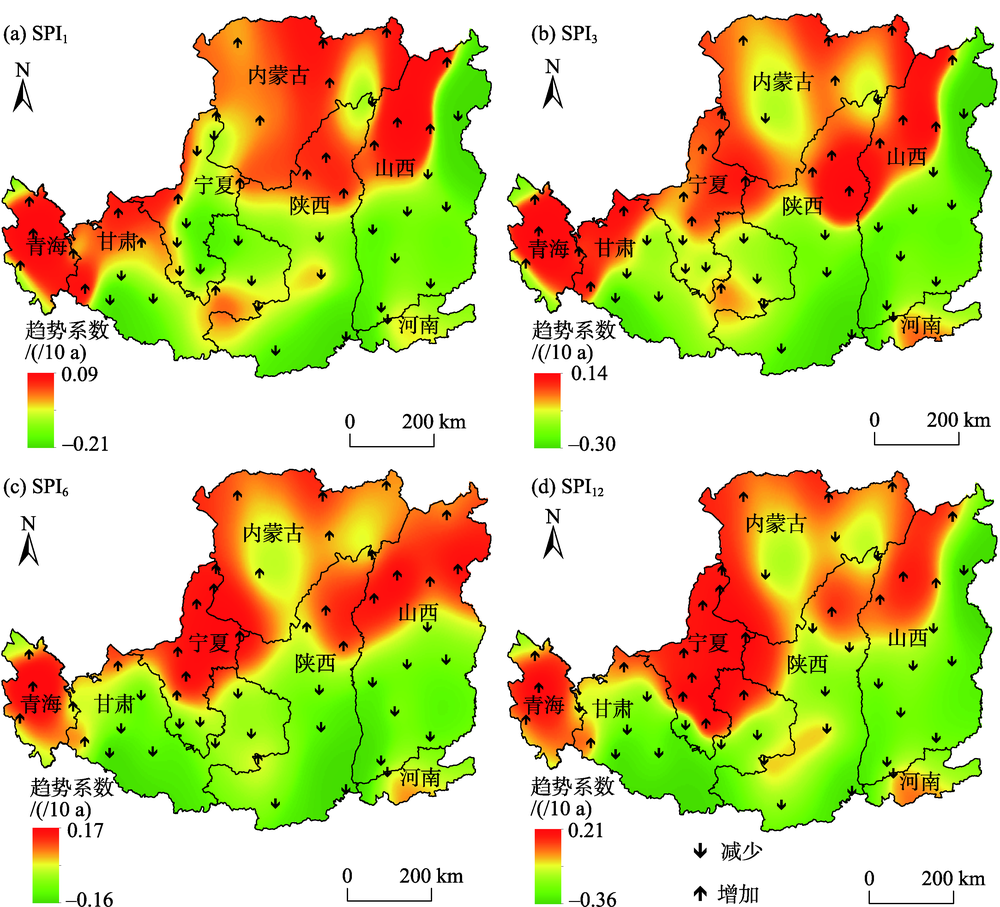

图3

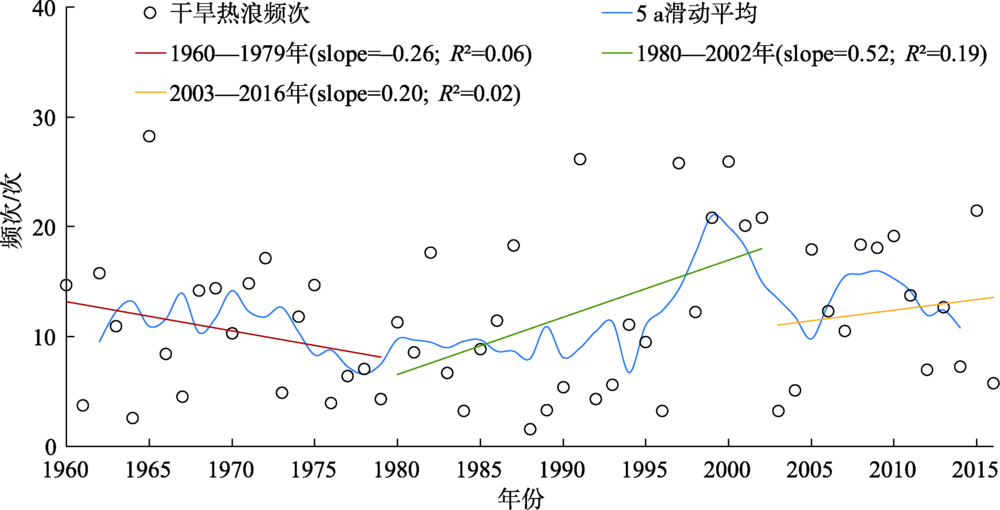

图4

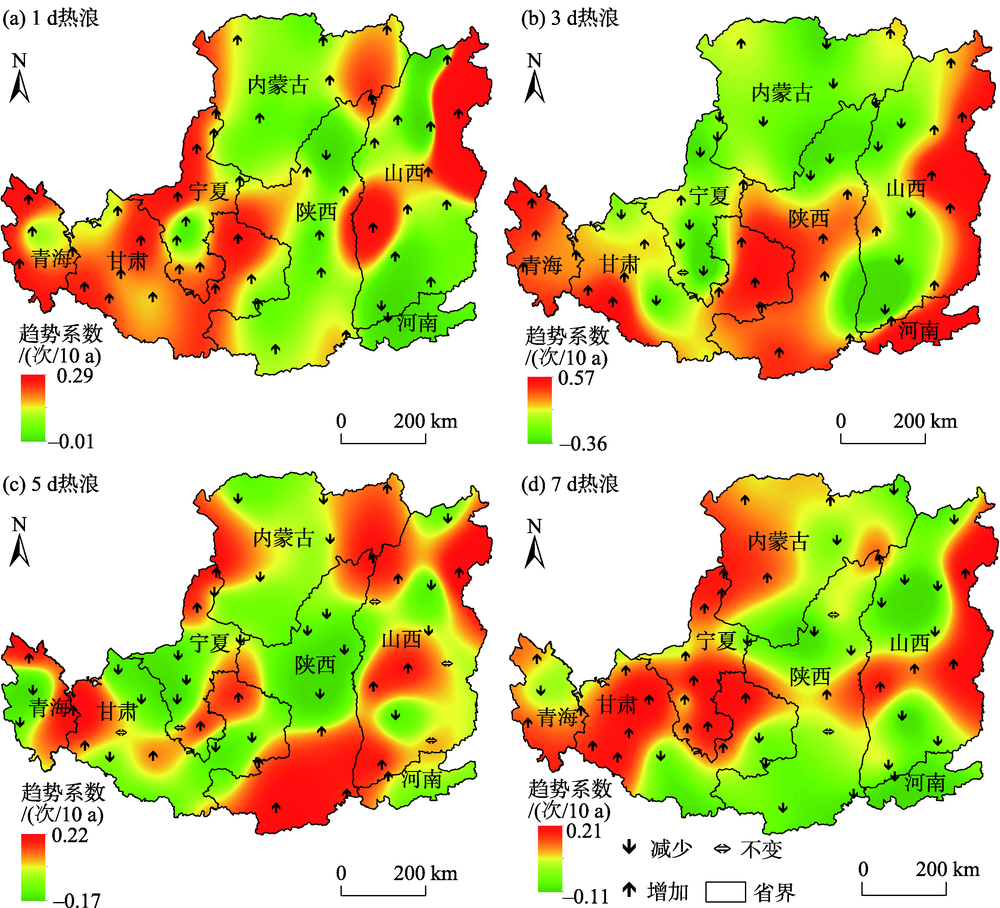

图5

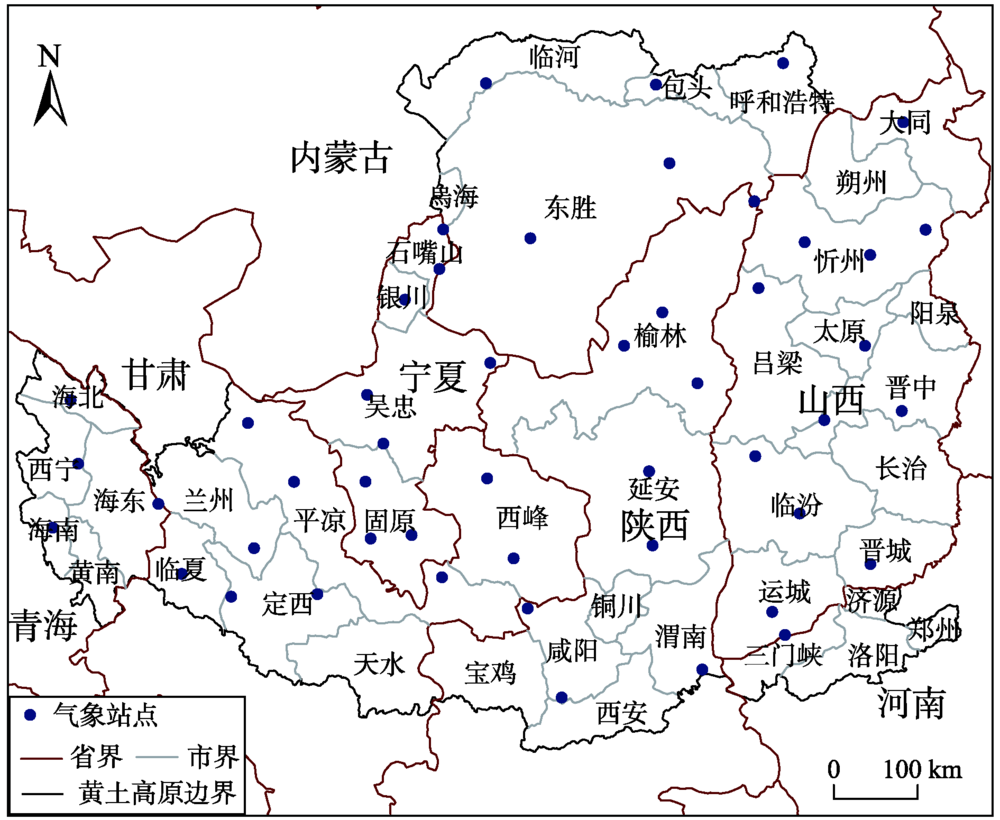

图6

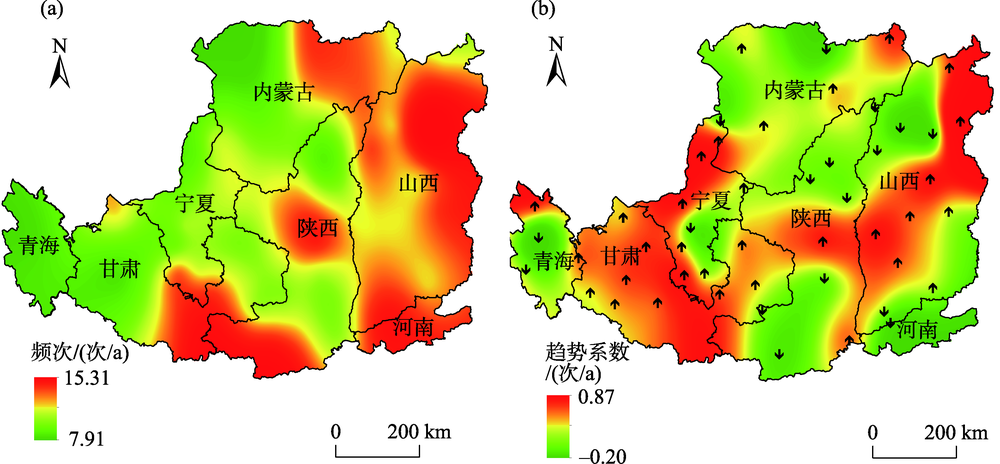

图7

参考文献 36

[1]	刘宪锋, 朱秀芳, 潘耀忠 , 等. 近53年内蒙古寒潮时空变化特征及其影响因素[J]. 地理学报, 2014,69(7):1013-1024. doi: 10.11821/dlxb201407013
	[ Liu Xianfeng, Zhu Xiufang, Pan Yaozhong , et al. The spatial-temporal changes of cold surge in Inner Mongolia during recent 53 years. Acta Geographica Sinica, 2014,69(7):1013-1024. ] doi: 10.11821/dlxb201407013
[2]	郑景云, 郝志新, 方修琦 , 等. 中国过去2000年极端气候事件变化的若干特征[J]. 地理科学进展, 2014,33(1):3-12. doi: 10.11820/dlkxjz.2014.01.001
	[ Zheng Jingyun, Hao Zhixin, Fang Xiuqi , et al. Changing characteristics of extreme climate events during past 2000 years in China. Progress in Geography, 2014,33(1):3-12. ] doi: 10.11820/dlkxjz.2014.01.001
[3]	崔林丽, 史军, 周伟东 . 上海极端气温变化特征及其对城市化的响应[J]. 地理科学, 2009,29(1):93-97.
	[ Cui Linli, Shi Jun, Zhou Weidong . Characteristics of extreme temperature variations and their response to urbanization in Shanghai. Scientia Geographica Sinica, 2009,29(1):93-97. ]
[4]	秦大河 . 气候变化科学与人类可持续发展[J]. 地理科学进展, 2014,33(7):874-883. doi: 10.11820/dlkxjz.2014.07.002
	[ Qin Dahe . Climate change science and sustainable development. Progress in Geography, 2014,33(7):874-883. ] doi: 10.11820/dlkxjz.2014.07.002
[5]	Formayer H, Boroneant C, Stepanek P , et al. Observational evidence for soil-moisture impact on hot extremes in southeastern Europe[J]. Nature Geoscience, 2011,4(1):17-21. doi: 10.1038/ngeo1032
[6]	李双双, 延军平, 杨赛霓 , 等. 1960—2016年秦岭—淮河地区热浪时空变化特征及其影响因素[J]. 地理科学进展, 2018,37(4):504-514. doi: 10.18306/dlkxjz.2018.04.006
	[ Li Shuangshuang, Yan Junping, Yang Saini , et al. Spatiotemporal variability of heat waves and influencing factors in the Qinling-Huaihe region, 1960-2016. Progress in Geography, 2018,37(4):504-514. ] doi: 10.18306/dlkxjz.2018.04.006
[7]	贾佳, 胡泽勇 . 中国不同等级高温热浪的时空分布特征及趋势[J]. 地球科学进展, 2017,32(5):546-559.
	[ Jia Jia, Hu Zeyong . Spatial and temporal features and trend of different level heat waves over China. Advances in Earth Science, 2017,32(5):546-559. ]
[8]	黄强, 陈子燊 . 全球变暖背景下珠江流域极端气温与降水事件时空变化的区域研究[J]. 地球科学进展, 2014,29(8):956-967. doi: 10.11867/j.issn.1001-8166.2014.08.0956
	[ Huang Qiang, Chen Zishen . Regional study on the trends of extreme temperature and precipitation events in the Pearl River Basin. Advances in Earth Science, 2014,29(8):956-967. ] doi: 10.11867/j.issn.1001-8166.2014.08.0956
[9]	赵安周, 刘宪锋, 朱秀芳 , 等. 1965—2013年黄土高原地区极端气温趋势变化及空间差异[J]. 地理研究. 2016,35(4):639-652. doi: 10.11821/dlyj201604004
	[ Zhao Anzhou, Liu Xianfeng, Zhu Xiufang , et al. Trend variations and spatial difference of extreme air temperature events in the Loess Plateau from 1965 to 2013. Geographical Research, 2016,35(4):639-652. ] doi: 10.11821/dlyj201604004
[10]	王芝兰, 李耀辉, 王素萍 , 等. 1901—2012年中国西北地区东部多时间尺度干旱特征[J]. 中国沙漠, 2015,35(6):1666-1673. doi: 10.7522/j.issn.1000-694X.2014.00190
	[ Wang Zhilan, Li Yaohui, Wang Suping , et al. Characteristics of drought at multiple time scales in the east of Northwest China from 1901 to 2012. Journal of Desert Research, 2015,35(6):1666-1673. ] doi: 10.7522/j.issn.1000-694X.2014.00190
[11]	胡子瑛, 周俊菊, 张利利 , 等. 中国北方气候干湿变化及干旱演变特征[J]. 生态学报, 2018,38(6):1908-1919. doi: 10.5846/stxb201702260315
	[ Hu Ziying, Zhou Junju, Zhang Lili , et al. Climate dry-wet change and drought evolution characteristics of different dry-wet areas in Northern China. Acta Ecologica Sinica, 2018,38(6):1908-1919. ] doi: 10.5846/stxb201702260315
[12]	Mueller B, Seneviratne S I . Hot days induced by precipitation deficits at the global scale[J]. PNAS, 2012,109(31):12398-12403. doi: 10.1073/pnas.1204330109 pmid: 22802672
[13]	Shukla S, Safeeq M, Aghakouchak A , et al. Temperature impacts on the water year 2014 drought in California[J]. Geophysical Research Letters, 2015,42(11):4384-4393. doi: 10.1002/grl.v42.11
[14]	Caesar J, Alexander L, Vose R . Large-scale changes in observed daily maximum and minimum temperatures: Creation and analysis of a new gridded data set[J]. Journal of Geophysical Research Atmospheres, 2006,111(D5). doi: 10.1029/2005jd006280.
[15]	Alexander L V, Zhang X, Peterson T C , et al. Global observed changes in daily climate extremes of temperature and precipitation[J]. Journal of Geophysical Research Atmospheres, 2006,111(D5):1042-1063.
[16]	Fouillet A, Rey G, Laurent F , et al. Excess mortality related to the August 2003 heat wave in France[J]. International Archives of Occupational and Environmental Health, 2006,80(1):16-24. doi: 10.1007/s00420-006-0089-4
[17]	李洋, 王玉辉, 吕晓敏 , 等. 1961—2013年东北三省极端气候事件时空格局及变化[J]. 资源科学, 2015,37(12):2501-2513.
	[ Li Yang, Wang Yuhui, Lv Xiaomin , et al. Spatial distribution and temporal change in extreme weather events in three provinces in Northeast China. Resources Science, 2015,37(12):2501-2513. ]
[18]	李运刚, 何娇楠, 李雪 . 基于SPEI和SDI指数的云南红河流域气象水文干旱演变分析[J]. 地理科学进展, 2016,35(6):758-767. doi: 10.18306/dlkxjz.2016.06.009
	[ Li Yungang, He Jiaonian, Li Xue . Hydrological and meteorological droughts in the Red River Basin of Yunnan Province based on SPEI and SDI indices. Progress in Geography, 2016,35(6):758-767. ] doi: 10.18306/dlkxjz.2016.06.009
[19]	邓振镛, 文小航, 黄涛 , 等. 干旱与高温热浪的区别与联系[J]. 高原气象, 2009,28(3):702-709.
	[ Deng Zhenyong, Wen Xiaohang, Huang Tao , et al. Relationship and difference between drought and high temperature heat waves. Plateau Meteorology, 2009,28(3):702-709. ]
[20]	Mazdiyasni O, Aghakouchak A . Substantial increase in concurrent droughts and heatwaves in the United States[J]. PNAS, 2015,112(37):11484-11489. doi: 10.1073/pnas.1422945112 pmid: 26324927
[21]	Hao Z, Aghakouchak A, Phillips T J . Changes in concurrent monthly precipitation and temperature extremes[J]. Environmental Research Letters, 2013,8(3):34014. doi: 10.1088/1748-9326/8/3/034014. doi: 10.1016/j.scitotenv.2019.01.366 pmid: 30738255
[22]	Zhang Q, Xiao M, Singh V P , et al. Observational evidence of summer precipitation deficit-temperature coupling in China[J]. Journal of Geophysical Research: Atmospheres, 2015,120(19):10040-10049.
[23]	Aghakouchak A, Cheng L, Mazdiyasni O , et al. Global warming and changes in risk of concurrent climate extremes: Insights from the 2014 California drought[J]. Geophysical Research Letters, 2014,41(24):8847-8852. doi: 10.1002/2014GL062308
[24]	Sun Q, Miao C, Aghakouchak A , et al. Unraveling anthropogenic influence on the changing risk of heat waves in China[J]. Geophysical Research Letters, 2017,44(10):5078-5085. doi: 10.1002/2017GL073531
[25]	刘宇峰, 原志华, 李文正 , 等. 1961—2013年黄土高原地区旱涝特征及极端和持续性分析[J]. 地理研究, 2017,36(2):345-360. doi: 10.11821/dlyj201702012
	[ Liu Yufeng, Yuan Zhihua, Li Wenzheng , et al. Extreme and persistent analysis of drought-flood variation in the Loess Plateau during 1961-2013. Geographical Research, 2017,36(2):345-360. ] doi: 10.11821/dlyj201702012
[26]	任婧宇, 彭守璋, 曹扬 , 等. 1901—2014年黄土高原区域气候变化时空分布特征[J]. 自然资源学报, 2018,33(4):621-633.
	[ Ren Jingyu, Peng Shouzhang, Cao Yang , et al. Spatiotemporal distribution characteristics of climate change in the Loess Plateau from 1901 to 2014. Journal of Natural Resources, 2018,33(4):621-633. ]
[27]	王利娜, 朱清科, 翁白莎 , 等. 1961—2012年黄土高原干旱时空分布特征[J]. 水利水电技术, 2018,49(2):15-22.
	[ Wang Lina, Zhu Qingke, Weng Baisha , et al. Temporal and spatial distribution characteristics of drought in Loess Plateau from 1961 to 2012. Water Resources and Hydropower Engineering, 2018,49(2):15-22. ]
[28]	Robinson P J . On the definition of a heat wave[J]. Journal of Applied Meteorology, 2001,40(4):762-775. doi: 10.1175/1520-0450(2001)040<0762:OTDOAH>2.0.CO;2
[29]	Perkins S E, Alexander L V . On the Measurement of Heat Waves[J]. Journal of Climate, 2013,26(13):4500-4517. doi: 10.1175/JCLI-D-12-00383.1
[30]	徐金芳, 邓振镛, 陈敏 . 中国高温热浪危害特征的研究综述[J]. 干旱气象, 2009,27(2):163-167.
	[ Xu Jinfang, Deng Zhenyong, Chen Min . A summary of studying on characteristics of high temperature and heat wave damage in China. Journal of Arid Meteorology, 2009,27(2):163-167. ]
[31]	张苗苗 . 基于SPI的近51 a晋北地区旱涝变化及干旱事件时空特征研究[J]. 干旱区资源与环境, 2018,32(3):138-144.
	[ Zhang Miaomiao . Spatial-temporal characteristics of drought-flood and drought events based on standardized precipitation index in Northern Shanxi during recent 51 years. Journal of Arid Land Resources and Environment, 2018,32(3):138-144. ]
[32]	Zhang Q, Xiao M, Singh V P , et al. Copula-based risk evaluation of droughts across the Pearl River Basin, China[J]. Theoretical and Applied Climatology, 2013,111(1-2):119-131. doi: 10.1007/s00704-012-0656-4
[33]	Meng L, Shen Y . On the relationship of soil moisture and extreme temperatures in East China[J]. Earth Interactions, 2014,18(1):1-20.
[34]	李双双, 杨赛霓, 刘宪锋 . 1960—2013年北京旱涝变化特征及其影响因素分析[J]. 自然资源学报, 2015,30(6):951-962.
	[ Li Shuangshuang, Yang Saini, Liu Xianfeng . The characteristics of drought-flood variation and its influence factors in Beijing during 1960-2013. Journal of Natural Resources, 2015,30(6):951-962. ]
[35]	邓振镛, 张强, 徐金芳 , 等. 高温热浪与干热风的危害特征比较研究[J]. 地球科学进展, 2009,24(8):865-873.
	[ Deng Zhenyong, Zhang Qiang, Xu Jinfang , et al. Comparative studies of the ham characteristic of hot-dry wind and high temperature heatwaves. Advances in Earth Science, 2009,24(8):865-873. ]
[36]	张翀, 任志远, 李小燕 . 黄土高原植被对气温和降水的响应[J]. 中国农业科学, 2012,45(20):4205-4215. doi: 10.3864/j.issn.0578-1752.2012.20.010
	[ Zhang Chong, Ren Zhiyuan, Li Xiaoyan . Research on vegetation response to temperature and precipitation in Loess Plateau. Scientia Agricultura Sinica, 2012,45(20):4205-4215. ] doi: 10.3864/j.issn.0578-1752.2012.20.010
