电动汽车充电站选址研究进展

doi:10.18306/dlkxjz.2019.01.012

摘要/Abstract

摘要：

在电动汽车产业高速发展的科技浪潮中,充电站选址未来将成为城市发展战略布局不可或缺的一部分,深受交通工程、电力能源、管理学等各领域学者的广泛关注。已有的综述类文章缺乏对充电站选址相关研究进行全面梳理,论文利用CiteSpace软件对电动汽车充电站选址文献进行梳理,一方面归纳总结2009—2017年间国内外该研究主题的研究现状和热点,对其进行可视化分析;另一方面梳理充电站选址影响因素、选址方法和选址的成本-效益评估等研究内容,同时对国内外充电站选址研究的趋势予以简要介绍,厘清研究发展脉络,为充电站选址在地理学中的研究和实践提供方法和指引。未来,随着各地新能源汽车充电站选址研究的不断发展,有望在充电站选址布局中识别多元化和精细化充电需求和服务、统筹不同主体间成本-效益目标等方面不断完善,从而优化城市交通网络及基础设施布局,为新一轮的城市规划提供指引。

关键词: 电动汽车充电站, 选址, 研究进展, CiteSpace

Abstract:

In the rapid development of electric vehicle industry, location planning of charging stations will become an indispensable part of the strategic planning of urban development, and it is deeply concerned by scholars in various fields such as traffic engineering, power and energy, management, and so on. Existing reviews lack a comprehensive inventory of related research on charging station location. In this study, we used CiteSpace to analyze literatures on charging station location of new energy vehicles. This article, on the one hand, summarizes and visualizes the research status and hotspots on this topic in China and internationally from 2009 to 2017. On the other hand, it examines the research contents including influencing factors, siting methodologies, and cost-benefit evaluation of charging station siting. It also briefly introduces the research trends of charging station location in China and abroad, clarifies the research development context, and provides methods and guidelines for research and practice. In the future, with the continuous development of research on the location of new energy vehicle charging stations, it is expected that the diversified charging requirements and refined services can be identified and the balancing of cost-benefit objectives among different subjects can be comprehensively improved in the location and siting of charging stations.

Key words: electric vehicle charging stations, location, research progress, CiteSpace

曹小曙, 胡培婷, 刘丹. 电动汽车充电站选址研究进展[J]. 地理科学进展, 2019, 38(1): 139-152.

Xiaoshu CAO, Peiting HU, Dan LIU. Progress of research on electric vehicle charging stations[J]. PROGRESS IN GEOGRAPHY, 2019, 38(1): 139-152.

图/表 10

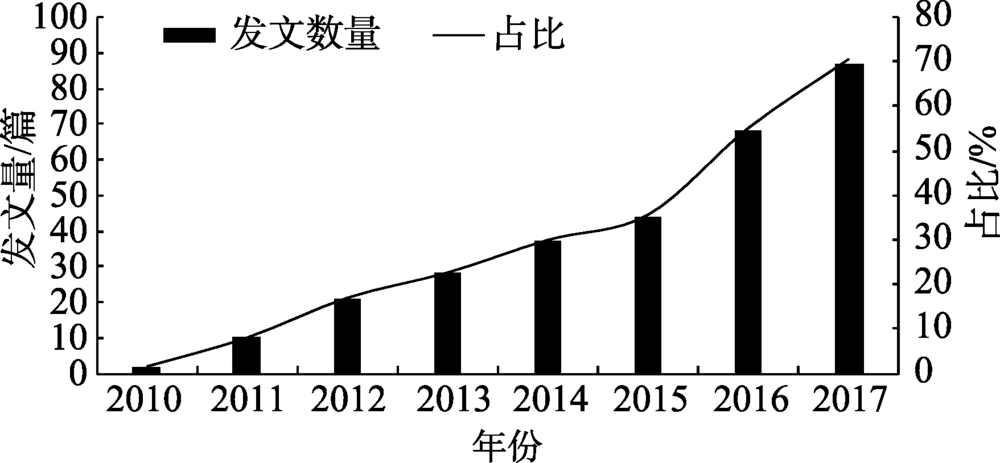

图1

表1

表2

图2

图3

表3

图4

图5

图6

表4

充电站选址评价研究"

文献	评价指标	评价方法
Liu et al, 2012	交通便利性(巷道口数、道路条件、主要道路) 运行经济性(建设总投资、年运行成本、运行损耗成本) 建造技术适宜性(地理水文条件、变电站容量、变电站距离、综合利用条件) 合理影响(社会影响、环境影响、电力格网安全性影响)	GAHP
Wang et al, 2013	自然因素(天气条件、地质条件、水文条件),管理因素(政府规划、政治环境、电动汽车分布、交通条件、土地利用条件),公共设施因素(电网情况、站点谐波污染问题、防爆防火条件),经济因素(总投资成本、年度运营成本)	模糊AHP
张成等, 2014	充电站负荷率、投资回收期、充电行驶里程、综合满意度
Guo et al, 2015	环境指标(植物水文破坏程度、废弃物排放、减少温室气体排放、减少粉尘排放),经济指标(建设成本、年运营和维护成本、投资回报周期),社会指标(城市路网和电网发展规划协调性、交通便捷程度、服务能力、大众生活影响程度)	模糊TOPSIS
Yagcitekin et al, 2016	充电器数量、步行距离、变电站和停车区距离、人口和使用密度、可扩展性、可达性	排队-层次分析法QT-AHP
Philipsen et al, 2016	多重利用、可靠、可达、习惯兼容、驾驶员和乘客安全、车辆安全、公共交通接驳	问卷调查
Wu et al, 2016	经济因素(建设成本、运行和维护成本、投资回收周期),技术可行性(变电所距离、电力系统影响、资源可用度),服务有效性(交通便利度、服务能力、服务半径),社会因素(未来扩张能力、当地居民态度、当地政府支持),环境因素(生态环境影响、废物处置空间可用性、节能效益、粉尘排放降低),土地因素(地形、土壤地质类型)	PROMETHEE ANP
Zhao et al, 2016	经济指标(投资回报周期、总建设成本、年经济利润、内部回报利率、土地获取成本、年运营和维护成本、拆迁成本、道路造价),社会指标(服务区域EV保有量、服务区人口、服务半径、服务容量、居民专业性、居民消费习惯、交通便捷程度、居住生活水平影响、城市发展规划协调水平、公共设施水平),环境指标(水资源恶化、土壤和植物退化、废物排放、噪音污染、大气颗粒排放减少、工业电磁场、无线电干扰、温室气体排放、生态影响),技术指标(变电所容量允许、变电所距离、电能质量影响、电能平衡水平、电网安全影响、变压器载荷比、界面处电流裕度、电压波动、电力系统频率、谐波污染)	模糊Delphi Fuzzy GRA-VIKOR

表4

参考文献 78

[1]	褚玉婧, 马良, 张惠珍. 2015. 时间满意逐渐覆盖电动汽车充电站选址及算法[J]. 数学的实践与认识, (10): 101-106.
	[Chu Y J, Ma L, Zhang H Z.2015. Location-allocation and its algorithm for gradual covering electric vehicle charging stations. Mathematics in Practice and Theory, (10): 101-106. ]
[2]	高亚静, 郭艳东, 李天天. 2013. 城市电动汽车充电站两步优化选址方法[J]. 中国电力, 46(8): 143-147.
	[Gao Y J, Guo Y D, Li T T.2013. Optimal location of urban electric vehicle charging stations using a two-step method. China Electric Power, 46(8): 143-147. ]
[3]	冯超, 周步祥, 林楠, 等. 2012. Delphi和GAHP集成的综合评价方法在电动汽车充电站选址最优决策中的应用[J]. 电力自动化设备, 32(9): 25-29.
	[Feng C, Zhou B X, Lin N, et al.2012. Application of comprehensive evaluation method integrating Delphi and GAHP in optimal siting of electric vehicle charging station. Electric Power Automation Equipment, 32(9): 25-29. ]
[4]	葛少云, 冯亮, 刘洪, 等. 2012. 电动汽车充电站规划布局与选址方案的优化方法[J]. 中国电力, (11): 96-101.
	[Ge S Y, Feng L, Liu H, et al.2012. An optimization approach for the layout and location of electric vehicle charging stations. China Electric Power, (11): 96-101. ]
[5]	宫娅宁, 秦红. 2017. 基于电动汽车充电需求的充电站选址定容研究[J]. 通信电源技术, 34(3): 57-62.
	[Gong Y N, Qin H.2017. Research on locationg and sizing of electric vehicles charging stations based on power-charging demand of electric vehicles. Telecom Power Technology, 34(3): 57-62. ]
[6]	郭春林, 肖湘宁. 2013. 电动汽车充电基础设施规划方法与模型[J]. 电力系统自动化, (13): 70-75.
	[Guo C L, Xiao X N.2013. Planning method and model of electric vehicle charging infrastructure. Automation of Electric Power Systems, (13): 70-75. ]
[7]	李菱, 李燕青, 姚玉海, 等. 2011. 基于遗传算法的电动汽车充电站的布局规划[J]. 华东电力, (6): 1004-1006.
	[Li L, Li Y Q, Yao Y H, et al.2011. Layout planning of electric vehicle charging stations based on genetic algorithm. East China Electric Power, (6): 1004-1006. ]
[8]	刘柏良, 黄学良, 李军, 等. 2015. 含分布式电源及电动汽车充电站的配电网多目标规划研究[J]. 电网技术, (2): 450-456.
	[Liu B L, Huang X L, Li J, et al.2015. Multi-objective planning of distribution network containing distributed generation and electric vehicle charging stations. Power System Technology, (2): 450-456. ]
[9]	刘锴, 孙小慧, 左志. 2015. 电动汽车充电站布局优化方法研究综述[J]. 武汉理工大学学报(交通科学与工程版), (3): 523-528.
	[Liu K, Sun X H, Zuo Z.2015. Review on location optimization of recharging stations for electric vehicles. Journal of Wuhan University of Technology (Transportation Science & Engineering), (3): 523-528. ]
[10]	刘亮, 周羽生, 周文晴, 等. 2016. 电动汽车充电站选址规划评价体系研究[J]. 电测与仪表, (18): 1-5.
	[Liu L, Zhou Y S, Zhou W Q, et al.2016. Research on siting planning evaluation system of electric vehicle charging station. Electrical Measurement & Instrumentation, (18): 1-5. ]
[11]	刘志鹏, 文福拴, 薛禹胜, 等. 2012. 电动汽车充电站的最优选址和定容[J]. 电力系统自动化, (3): 54-59.
	[Liu Z P, Wen F S, Xue Y S, et al.2012. Optimal siting and sizing of electric vehicle charging stations. Automation of Electric Power Systems, (3): 54-59. ]
[12]	刘自发, 张伟, 王泽黎. 2012. 基于量子粒子群优化算法的城市电动汽车充电站优化布局[J]. 中国电机工程学报, (22): 39-45.
	[Liu Z F, Zhang W, Wang Z L.2012. Optimal planning of charging station for electric vehicle based on quantum PSO algorithm. Proceeding of the CSEE, (22): 39-45. ]
[13]	陆坚毅, 杨超, 揭婉晨. 2017. 考虑绕行特征的电动汽车快速充电站选址问题及自适应遗传算法[J]. 运筹与管理, (1): 8-17.
	[Lu J Y, Yang C, Jie W C.2017. An adaptive-self genetic algorithm for solving electric vehicle fast recharging location problem with detour characteristic. Operations Research and Management Science, (1): 8-17. ]
[14]	孙丽玮. 2012. 中国新能源汽车发展现状与对策研究[J]. 中国科技信息, (7): 135-141.
	[Sun L W.2012. Research on the development status and countermeasures of China's new energy vehicles. China Science and Technology Information, (7): 135-141. ]
[15]	孙小慧, 刘锴, 左志. 2012. 考虑时空间限制的电动汽车充电站布局模型[J]. 地理科学进展, 31(6): 686-692. doi: 10.11820/dlkxjz.2012.06.003
	[Sun X H, Liu K, Zuo Z.2012. A spatiotemporal location model for locating electric vehicle charging stations. Progress in Geography, 31(6): 686-692. ] doi: 10.11820/dlkxjz.2012.06.003
[16]	吴丽霞, 王贝贝, 胡静, 等. 2016. 基于熵权模糊物元的电动汽车充电站选址研究[J]. 公路与汽运, (6): 45-47.
	[Wu L X, Wang B B, Hu J, et al.2016. Study on the location of ev charging station based on entropy weight fuzzy matter-element. Highways & Automotive Applications, (6): 45-47. ]
[17]	徐凡, 俞国勤, 顾临峰, 等. 2009. 电动汽车充电站布局规划浅析[J]. 华东电力, (10): 1678-1682.
	[Xu F, Yu G Q, Gu L F, et al.2009. Tentative analysis of layout of electrical vehicle charging stations. East China Electric Power, (10):1678-1682. ]
[18]	徐青山, 蔡婷婷, 刘瑜俊, 等. 2016. 考虑驾驶人行为习惯及出行链的电动汽车充电站站址规划[J]. 电力系统自动化, (4): 59-65.
	[Xu Q S, Cai T T, Liu Y J, et al.2016. Location planning of charging stations for electric vehicles based on drivers behaviors and travel chain. Automation of Electric Power Systems, (4): 59-65. ]
[19]	杨珺, 张敏, 陈新. 2006. 一类带服务半径的服务站截流选址-分配问题[J]. 系统工程理论与实践, (1): 117-122.
	[Yang J, Zhang M, Chen X.2006. A class of the flow capturing location-allocation model with service radius. System Engineering—Theory and Practice, (1): 117-122. ]
[20]	姚龙. 2015. 基于层次分析法和模糊评价法的电动汽车充电站选址研究[J]. 黑龙江电力, (4): 313-317.
	[Yao L.2015. Research on site selection for electric vehicle charging stations based on AHP and fuzzy evaluation method. Heilongjiang Electric Power, (4): 313-317. ]
[21]	张成, 滕欢. 2014. 电动汽车充电站规划模型及评价方法[J]. 电力系统及其自动化学报, (1): 49-52.
	[Zhang C, Teng H.2014. Planning model and evaluation method for electric vehicle charging station. Journal of Power System and Automation, (1): 49-52. ]
[22]	张港, 李明, 潘浩, 等. 2015. 市场化的电动汽车充电站规划布局研究[J]. 陕西电力, (4): 40-44.
	[Zhang G, Li M, Pan H, et al.2015. Marketization of electric vehicle charging station layout research. Shaanxi Electric Power, (4): 40-44. ]
[23]	张国亮, 李波, 王运发. 2011. 多等级电动汽车充电站的选址与算法[J]. 山东大学学报(工学版), (6): 136-142.
	[Zhang G L, Li B, Wang Y F.2011. Location and algorithm of multi-level electric vehicle charging stations. Journal of Shandong University (Engineering Science), (6): 136-142. ]
[24]	周洪超, 李海锋. 2011. 基于博弈论的电动汽车充电站选址优化模型研究[J]. 科技和产业, (2): 51-54.
	[Zhou H C, Li H F.2011. Optimization model of electric vehicle charging station siting based on game theory science. Technology and Industry, (2): 51-54. ]
[25]	Baouche F, Billot R, Trigui R, et al.2014. Electric vehicle charging stations allocation model [R]. Transport research arena (TRA) 5th conference: Transport solutions from research to deployment.
[26]	Berman O, Krass D.1998. Flow intercepting spatial interaction model: A new approach to optimal location of competitive facilities[J]. Location Science, 6(1-4): 41-65. doi: 10.1016/S0966-8349(98)00047-3
[27]	Capar I, Kuby M, Leon V J, et al.2013. An arc cover-path-cover formulation and strategic analysis of alternative-fuel station locations[J]. European Journal of Operational Research, 227(1): 142-151. doi: 10.1016/j.ejor.2012.11.033
[28]	Chen Z, Liu W, Yin Y.2017. Deployment of stationary and dynamic charging infrastructure for electric vehicles along traffic corridors[J]. Transportation Research Part C: Emerging Technologies, 77: 185-206. doi: 10.1016/j.trc.2017.01.021
[29]	Church R, ReVelle C.1974. The maximal covering location problem[J]. Papers of the Regional Science Association, 32: 101-118. doi: 10.1007/BF01942293
[30]	Colmenar-Santos A, de Palacio C, Borge-Diez D, et al.2014. Planning minimum interurban fast charging infrastructure for electric vehicles: Methodology and application to Spain[J]. Energies, 7(3): 1207-1229. doi: 10.3390/en7031207
[31]	Current J, Ratick S, Revelle C.1998. Dynamic facility location when the total number of facilities is uncertain: A decision analysis approach[J]. European Journal of Operational Research, 110(3): 597-609. doi: 10.1016/S0377-2217(97)00303-2
[32]	Dong J, Liu C, Lin Z.2014. Charging infrastructure planning for promoting battery electric vehicles: An activity-based approach using multiday travel data[J]. Transportation Research Part C: Emerging Technologies, 38(1): 44-55. doi: 10.1016/j.trc.2013.11.001
[33]	Farahani R Z, Steadieseifi M, Asgari N.2010. Multiple criteria facility location problems: A survey[J]. Applied Mathematical Modelling, 34(7): 1689-1709. doi: 10.1016/j.apm.2009.10.005
[34]	Frade I, Ribeiro A, Goncalo A G, et al.2011. Optimal location of charging stations for electric vehicles in a neighborhood in Lisbon, Portugal[J]. Transportation Research Record: Journal of the Transportation Research Board, 2252:91-98. doi: 10.3141/2252-12
[35]	Ge S Y, Feng L, Liu H, et al.2012. The planning of electric vehicle charging stations in the urban area[C]// Electric & Mechanical Engineering and Information Technology Conference.China: 1598-1604.
[36]	Ghamami M, Zockaie A, Yu N.2016. A general corridor model for designing plug-in electric vehicle charging infrastructure to support intercity travel[J]. Transportation Research Part C: Emerging Technologies, 68: 389-402. doi: 10.1016/j.trc.2016.04.016
[37]	Ghosh A, MacLafferty S L.1987. Location strategies for retail and service firms[M]. Lexington Books.
[38]	Giménezgaydou D A, Ribeiro A S N, Gutiérrez J, et al.2016. Optimal location of battery electric vehicle charging stations in urban areas: A new approach[J]. International Journal of Sustainable Transportation, 10(5): 393-405. doi: 10.1080/15568318.2014.961620
[39]	González J, Alvaro R, Gamallo C, et al.2014. Determining electric vehicle charging point locations considering drivers' daily activities[J]. Procedia Computer Science, 32: 647-654. doi: 10.1016/j.procs.2014.05.472
[40]	Goodchild M F, Noronha V T.1987. Location-allocation and impulsive shopping: The case of gasoline retailing[M]//Ghosh A, Rushton G. Spatial analysisand location-allocation models. Van Nostrand Reinhold, New York: 121-136.
[41]	Guo S, Zhao H R.2015. Optimal site selection of electric vehicle charging station by using fuzzy TOPSIS based on sustainability perspective[J]. Applied Energy, 158: 390-402. doi: 10.1016/j.apenergy.2015.08.082
[42]	Hakimi S L.1964. Optimum locations of switching centers and the absolute centers and medians of a graph[J]. Operations Research, 12(3): 450-459. doi: 10.1287/opre.12.3.450
[43]	He F, Wu D, Yin Y, et al.2013. Optimal deployment of public charging stations for plug-in hybrid electric vehicles[J]. Transportation Research Part B: Methodological, 47: 87-101. doi: 10.1016/j.trb.2012.09.007
[44]	He F, Yin Y, Lawphongpanich S.2014. Network equilibrium models with battery electric vehicles[J]. Transportation Research Part B: Methodological, 67(3): 306-319. doi: 10.1016/j.trb.2014.05.010
[45]	He F, Yin Y, Zhou J.2015. Deploying public charging stations for electric vehicles on urban road networks[J]. Transportation Research Part C: Emerging Technologies, 60: 227-240. doi: 10.1016/j.trc.2015.08.018
[46]	Hodgson M J.1990. A flow-capturing location-allocation model[J]. Geographical Analysis, 22(3): 270-279.
[47]	Hodgson M J, Rosing K E.1992. A network location-allocation model trading off flow capturing and p-median objectives[J]. Annals of Operations Research, 40(1): 247-260.
[48]	Hosseini M, Mirhassani S A.2015. Selecting optimal location for electric recharging stations with queue[J]. KSCE Journal of Civil Engineering, 19(7): 2271-2280. doi: 10.1007/s12205-015-0153-2
[49]	Hsu V N, Daskin M, Jones P C, et al.1995. Tool selection for optimal part production: A Lagrangian relaxation approach[J]. IIE Transactions, 27(4): 417-426. doi: 10.1080/07408179508936758
[50]	Jia L, Hu Z, Liang W, et al.2014. A novel approach for urban electric vehicle charging facility planning considering combination of slow and fast charging[C]// 2014 IEEE International Conference on Power System Technology. Chengdu, China: 3354-3360.
[51]	Kang N, Feinberg F M, Papalambros P Y.2015. Integrated decision making in electric vehicle and charging station location network design[J]. Journal of Mechanical Design, 137(6): 061402. doi: 10.1115/1.4029894
[52]	Kim J G, Kuby M.2012. The deviation-flow refueling location model for optimizing a network of refueling stations[J]. International Journal of Hydrogen Energy, 37(6): 5406-5420. doi: 10.1016/j.ijhydene.2011.08.108
[53]	Kuby M, Lines L, Schultz R, et al.2009. Optimization of hydrogen stations in Florida using the flow-refueling location model[J]. International Journal of Hydrogen Energy, 34(15): 6045-6064. doi: 10.1016/j.ijhydene.2009.05.050
[54]	Lam A Y S, Leung Y W, Chu X.2017. Electric vehicle charging station placement: Formulation, complexity, and solutions[J]. IEEE Transactions on Smart Grid, 5(6): 2846-2856.
[55]	Li S, Huang Y, Mason S J.2016. A multi-period optimization model for the deployment of public electric vehicle charging stations on network[J]. Transportation Research Part C: Emerging Technologies, 65: 128-143. doi: 10.1016/j.trc.2016.01.008
[56]	Lim S, Kuby M.2010. Heuristic algorithms for siting alternative-fuel stations using the flow-refueling location model[J]. European Journal of Operational Research, 204(1): 51-61. doi: 10.1016/j.ejor.2009.09.032
[57]	Liu Y, Zhou B X, Feng C, et al.2012. Application of comprehensive evaluation method integrated by Delphi and GAHP in optimal siting of electric vehicle charging station[C]// 2012 International Conference on Control Engineering and Communication Technology. Shenyang, China: 88-91.
[58]	Liu Z, Wen F, Ledwich G.2013. Optimal planning of electric-vehicle charging stations in distribution systems[J]. IEEE Transactions on Power Delivery, 28(1): 102-110.
[59]	Mak H Y, Rong Y, Shen Z J M.2013. Infrastructure planning for electric vehicles with battery swapping[J]. Management Science, 59(7): 1557-1575. doi: 10.1287/mnsc.1120.1672
[60]	Nie Y, Ghamami M.2013. A corridor-centric approach to planning electric vehicle charging infrastructure[J]. Transportation Research Part B: Methodological, 57:172-190. doi: 10.1016/j.trb.2013.08.010
[61]	Philipsen R, Schmidt T, Heek J V, et al.2016. Fast-charging station here, please! User criteria for electric vehicle fast-charging locations[J]. Transportation Research Part F: Traffic Psychology & Behaviour, 40:119-129.
[62]	Philipsen R, Schmidt T, Ziefle M.2015. A charging place to be-users' evaluation criteria for the positioning of fast-charging infrastructure for electro mobility[J]. Procedia Manufacturing, 3: 2792-2799. doi: 10.1016/j.promfg.2015.07.742
[63]	Rajabi-Ghahnavieh A, Sadeghi-Barzani P.2017. Optimal zonal fast charging station placement considering urban traffic circulation[J]. IEEE Transactions on Vehicular Technology, 66(1): 45-56.
[64]	Sadeghi-Barzani P, Rajabi-Ghahnavieh A, Kazemi-Karegar H.2014. Optimal fast charging station placing and sizing[J]. Applied Energy, 125(2): 289-299. doi: 10.1016/j.apenergy.2014.03.077
[65]	Sathaye N, Kelley S.2013. An approach for the optimal planning of electric vehicle infrastructure for highway corridors[J]. Transportation Research Part E: Logistics & Transportation Review, 59(11):15-33.
[66]	Sun Z H, Zhou X S, Du J, et al.2017. When traffic flow meets power flow: On charging station deployment with budget constraints[J]. IEEE Transactions on Vehicular Technology, 66(4): 2915-2926. doi: 10.1109/TVT.2016.2593712
[67]	Toregas C, Swain R, Revelle C, et al.1971. The location of emergency service facilities[J]. Operations Research, 19(6): 1363-1373. doi: 10.1287/opre.19.6.1363
[68]	Wang G B, Xu Z, Wen F, et al.2013. Traffic-constrained multiobjective planning of electric-vehicle charging stations[J]. IEEE Transactions on Power Delivery, 28(4): 2363-2372. doi: 10.1109/TPWRD.2013.2269142
[69]	Wang M, Liu K.2011. Optimization of electric vehicle charging station location based on game theory[C]// International Conference on Transportation, Mechanical, and Electrical Engineering. Changchun, China: 809-812.
[70]	Wang Y W, Lin C C.2009. Locating road-vehicle refueling stations[J]. Transportation Research Part E: Logistics and Transportation Review, 45(5): 821-829. doi: 10.1016/j.tre.2009.03.002
[71]	Wu Y N, Yang M, Zhang H B, et al.2016. Optimal site selection of electric vehicle charging stations based on a cloud model and the promethee method[J]. Energies, 9(3): 157. doi: 10.3390/en9030157. doi: 10.3390/en9030157
[72]	Xi X, Sioshansi R, Marano V.2013. Simulation-optimization model for location of a public electric vehicle charging infrastructure[J]. Transportation Research Part D: Transport & Environment, 22(4): 60-69.
[73]	Xiang Y, Liu J Y, Li R, et al.2016. Economic planning of electric vehicle charging stations considering traffic constraints and load profile templates[J]. Applied Energy, 178: 647-659. doi: 10.1016/j.apenergy.2016.06.021
[74]	Yagcitekin B, Uzunoglu M, Karakas A.2016. A new deployment method for electric vehicle charging infrastructure[J]. Turkish Journal of Electrical Engineering and Computer Sciences, 24(3): 1292-1305. doi: 10.3906/elk-1311-221
[75]	Yang J, Dong J, Hu L.2017. A data-driven optimization-based approach for siting and sizing of electric taxi charging stations[J]. Transportation Research Part C: Emerging Technologies, 77: 462-477. doi: 10.1016/j.trc.2017.02.014
[76]	Yi Z G, Bauer P H.2016. Optimization models for placement of an energy-aware electric vehicle charging infrastructure[J]. Transportation Research Part E: Logistics and Transportation Review, 91: 227-244. doi: 10.1016/j.tre.2016.04.013
[77]	Zhang C, Cheng Y.2016. Research on joint planning model for EVs charging/swapping facilities[C]// 2016 China International Conference on Electricity Distribution. Xi'an, China: 1-8.
[78]	Zhao H, Li N.2016. Optimal siting of charging stations for electric vehicles based on fuzzy delphi and hybrid multi-criteria decision making approaches from an extended sustainability perspective[J]. Energies, 9(4): 270. doi: 10.3390/en9040270. doi: 10.3390/en9040270

文献	文献题目	发表期刊	被引频次
He et al, 2013	Optimal deployment of public charging stations for plug-in hybrid electric vehicles	Transport RES B-METH	96
Liu et al, 2013	Optimal planning of electric-vehicle charging stations in distribution systems	IEEE Transactions on Power Delivery	84
Dong et al, 2014	Charging infrastructure planning for promoting battery electric vehicles: An activity-based approach using multiday travel data	Transport RES C-EMER	62
Frade et al, 2011	Optimal location of charging stations for electric vehicles in a neighborhood in Lisbon,Portugal	Transport RES REC	57
Mak et al, 2013	Infrastructure planning for electric vehicles with battery swapping	Manage SCI	53
Wang et al, 2013	Traffic-constrained multi-objective planning of electric-vehicle charging stations	IEEE Transactions on Power Delivery	43
Xi et al, 2013	Simulation-optimization model for location of a public electric vehicle charging infrastructure	Transport RES D-TR E	40
Nie et al, 2013	A corridor-centric approach to planning electric vehicle charging infrastructure	Transport RES B-METH	36
Sadeghi-Barzani et al, 2014	Optimal fast charging station placing and sizing	Apply Energy	34
Sathaye et al, 2013	An approach for the optimal planning of electric vehicle infrastructure for highway corridors	Transport RES E-LOG	32
Guo et al, 2015	Optimal site selection of electric vehicle charging station by using fuzzy TOPSIS based on sustainability perspective	Apply Energy	29
