京津冀城市用地形态的双分形特征及其演化

doi:10.18306/dlkxjz.2019.01.007

摘要/Abstract

摘要：

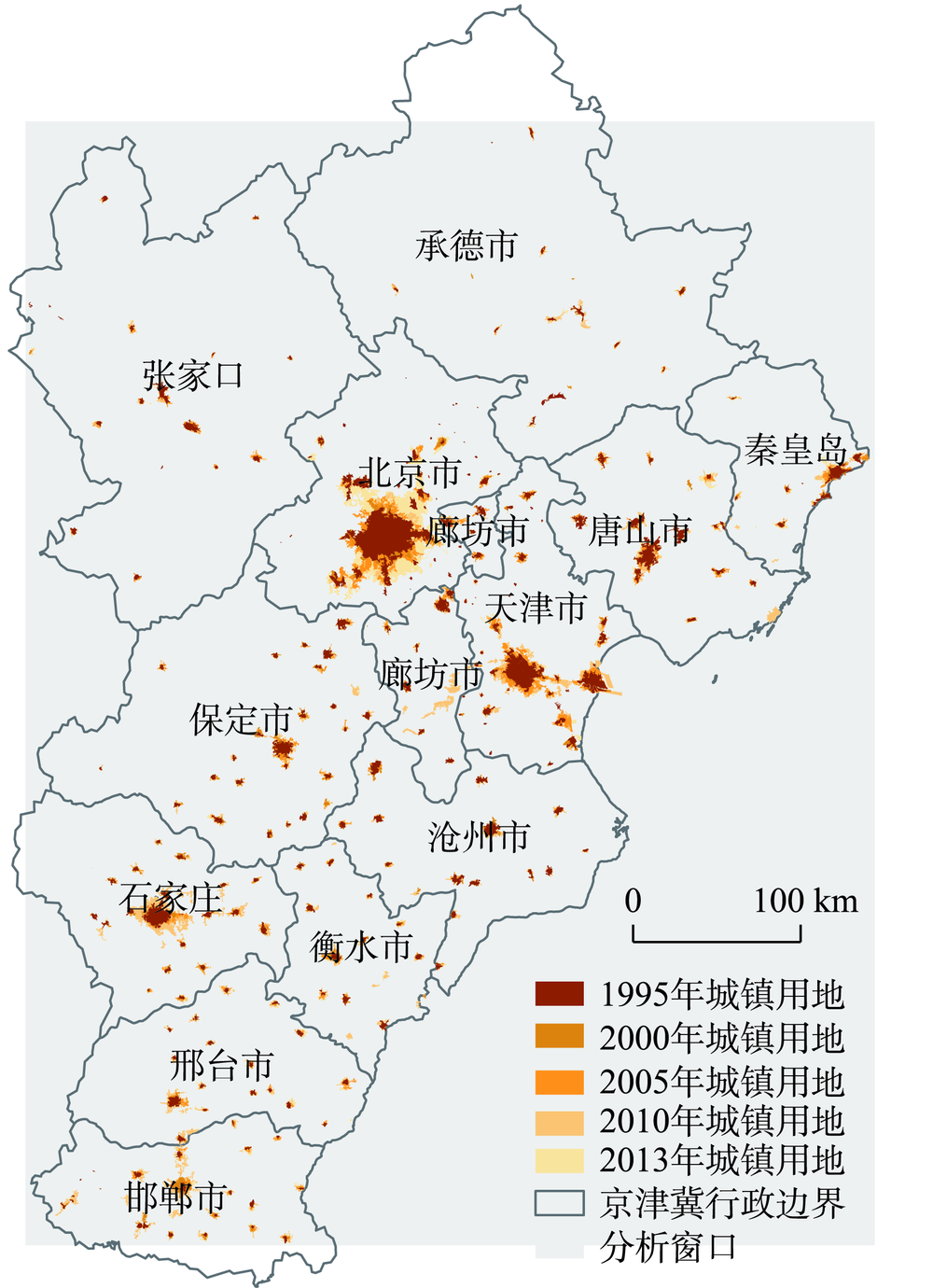

区域城乡一体化的标志之一是城镇体系结构的一体化,这个过程可以从标度的角度进行描述和评价。分形是标度分析的重要方法,地理空间无尺度分布特征的典型参数是分维。论文以京津冀城镇体系为例,利用遥感图像的解译数据和人口普查数据开展分形分析、位序-规模分布分析和异速标度分析,用以解释1995—2013年间京津冀城镇体系演化的过程。结果表明,京津冀城镇体系及其演化的特征有：①京津冀空间结构和位序-规模分布都表现为自仿射双分形结构;②京津冀区域的城市人口-城区面积异速标度退化为假线性关系;③随着城镇体系的演化,自仿射的双分形结构逐步向自相似分形结构演化。由此得出结论：其一,京津冀城镇体系存在结构性的不协调因素。其空间结构和等级结构具有二元化特征,但演化方向却呈现内在结构一体化的显著趋势。其二,大城市用地不够集约。城市边缘区的无序扩张导致土地利用铺张浪费。地方政府和规划专家可以有意识地利用城镇体系演化的这种特征和趋势制定管理措施和优化规划方案。

关键词: 城市土地利用, 分形, 自仿射性, 位序-规模分布, 异速标度, 京津冀城镇体系

Abstract:

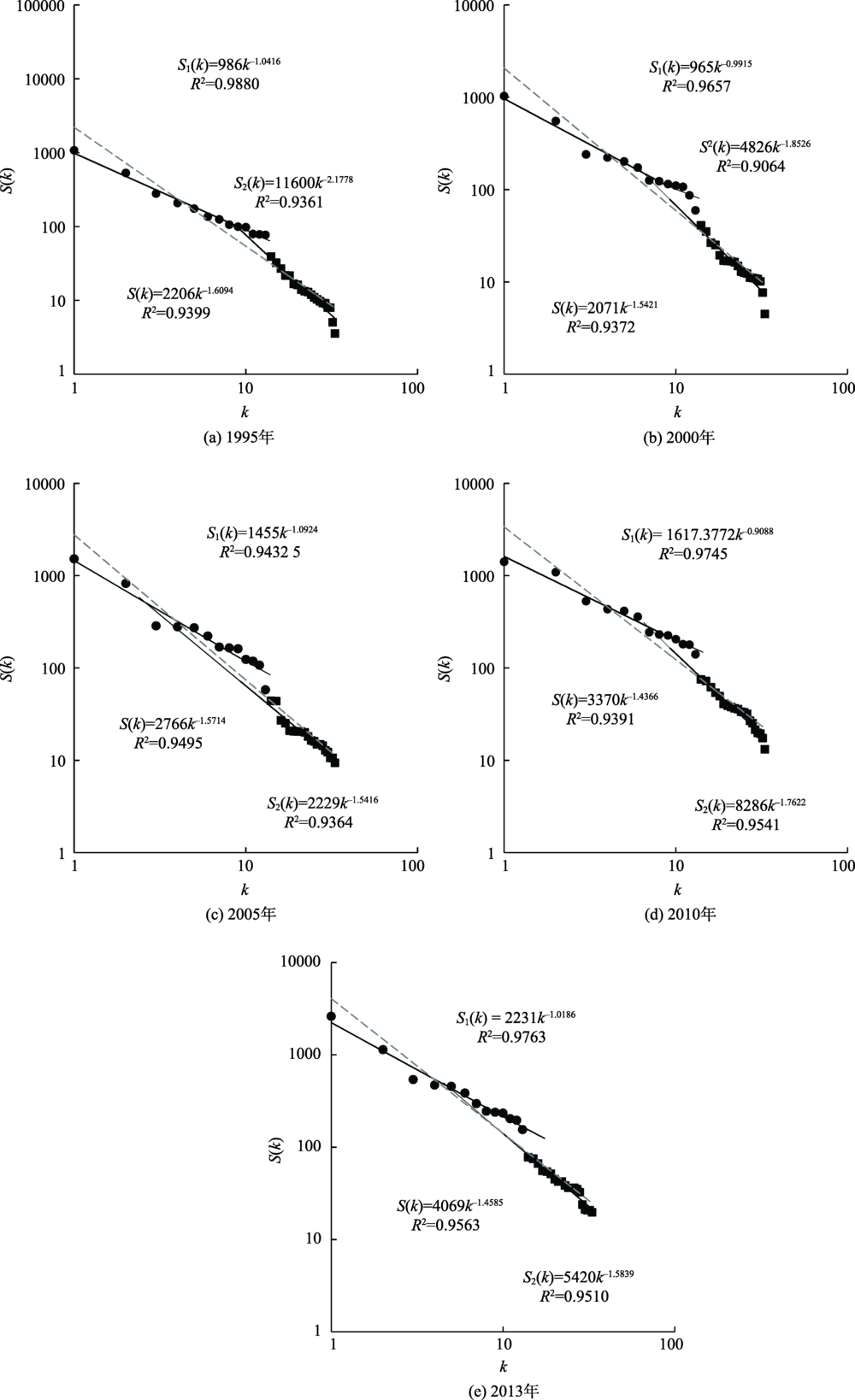

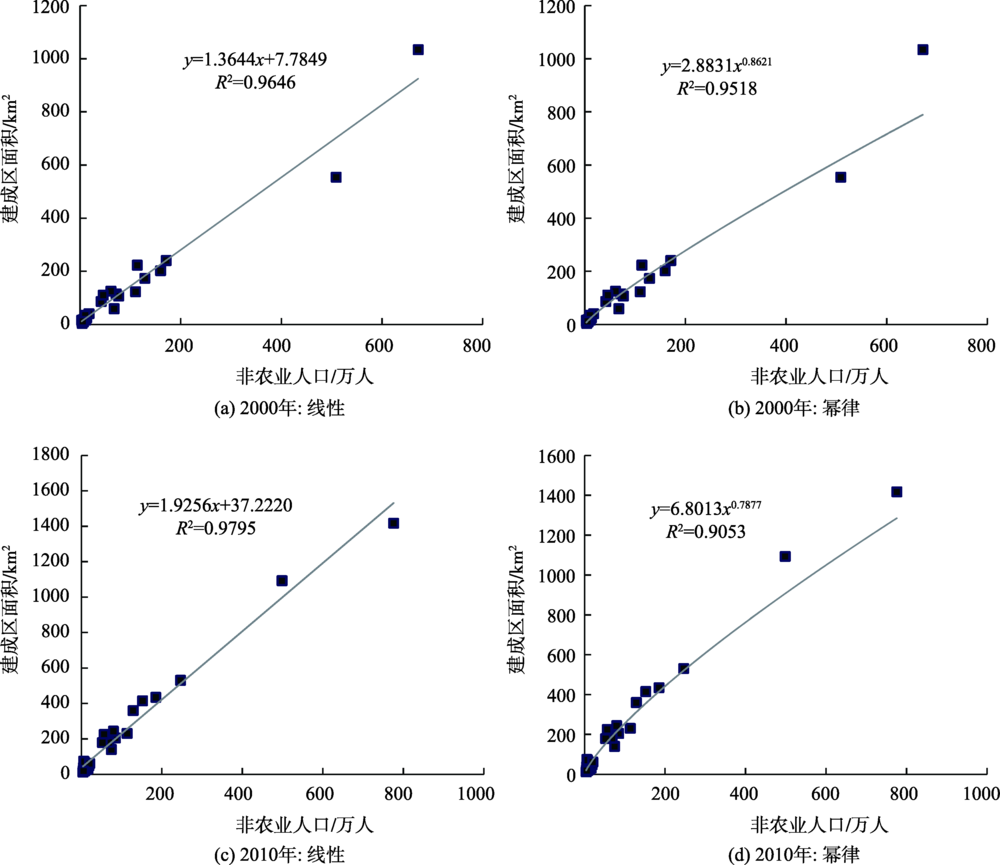

One of the indicators of regional integration of urban and rural areas is the integration of the structure of systems of cities and towns. This process can be described and evaluated using the concept of scaling. Fractal geometry is one of the powerful tools for scaling analysis. An important parameter of geographic spatial distribution characteristics is fractal dimension. Based on data derived from remote sensing images and census data, this study carried out fractal analysis, rank-size distribution analysis, and allometric scaling analysis of cities and urban system in the Beijing-Tianjin-Hebei region. The aim was to explain the process of urban growth in the region from 1995 to 2013. The results show three characteristics of urban form and growth: 1) Both the spatial structure and the rank-size distribution of the cities in the Beijing-Tianjin-Hebei region are of self-affine pattern, indicating bi-fractal property. 2) The relationship between urban population and urban area of the Beijing-Tianjin-Hebei region indicates a false linear correlation. 3) With the change of the urban system, the self-affine bi-fractal structure evolved gradually into a self-similar fractal structure. The main conclusions are as follows: 1) There is a structural incongruity in the system of cities and towns in the Beijing-Tianjin-Hebei region. The urban hierarchy takes on a dual structure, but the direction of urban change shows a significant trend of internal structure integration. 2) Land use in large cities is not intensive enough. The unordered expansion of urban fringe led to the waste of land resources. Planners and local governments should make use of the characteristics and trends of change of the urban system to formulate planning schemes and management measures.

Key words: urban land use, fractals, self-affinity, rank-size distribution, allometric scaling law, urban system of the Beijing-Tianjin-Hebei region

赵静湉, 陈彦光, 李双成. 京津冀城市用地形态的双分形特征及其演化[J]. 地理科学进展, 2019, 38(1): 77-87.

Jingtian ZHAO, Yanguang CHEN, Shuangcheng LI. Bi-fractal structure and evolution of the Beijing-Tianjin-Hebei region urban land-use patterns[J]. PROGRESS IN GEOGRAPHY, 2019, 38(1): 77-87.

图/表 5

图1

表1

图2

图3

图4

参考文献 36

[1]	陈涛. 1995. 豫北地区城镇体系的分形研究 [D]. 长春: 东北师范大学城市与环境学院.
	[Chen T.1995. Studies on fractal systems of towns in the central plains. Changchun, China: College of Urban and Environmental Sciences, Northeast Normal University. ]
[2]	陈彦光. 2008. 分形城市系统: 标度、对称和空间复杂性 [M]. 北京: 科学出版社.
	[Chen Y G.2008. Fractal urban systems: scaling, symmetry, and spatial complexity. Beijing, China: Science Press. ]
[3]	陈彦光. 2015. 简单、复杂与地理分布模型的选择[J]. 地理科学进展, 34(3): 321-329.
	[Chen Y G.2015. Simplicty, complexity, and mathematical modeling of geographical distributions. Progress in Geography, 34(3): 321-329. ]
[4]	陈彦光. 2017. 城市形态的分维估算与分形判定[J]. 地理科学进展, 36(5): 529-539.
	[Chen Y G.2017. Approaches to estimating fractal dimension and identifying fractals of urban form. Progress in Geography, 36(5): 529-539. ]
[5]	陈彦光, 刘继生. 1998. 城镇体系等级结构的分形维数及其测算方法[J]. 地理研究, 17(1): 82-89.
	[Chen Y G, Liu J S.1998. Fractal dimensions of hierarchical structure of urban systems and the methods of their determination. Geographical Research, 17(1): 82-89. ]
[6]	陈勇, 陈嵘, 艾南山, 等. 1993. 城市规模分布的分形研究[J]. 经济地理, 13(3): 48-53.
	[Chen Y, Chen R, Ai N S, et al.1993. On the fractal property of city-size distributions. Economical Geography, 13(3): 48-53. ]
[7]	姜世国. 2004. 基于北京遥感图像和GIS的分形城市形态研究: 理论、方法与实践 [D]. 北京: 北京大学环境学院.
	[Jiang S G.2004. Studies on fractal urban form using GIS and remote sensing images of Beijing: Theory, method and practice. Beijing, China: College of Environmental Sciences, Peking University. ]
[8]	刘继生, 陈彦光. 1999. 东北地区城市规模分布的分形特征[J]. 人文地理, 14(3): 1-6.
	[Liu J S, Chen Y G.1999. A preliminary study of fractal features of size distribution of cities in Northeast China. Human Geography, 14(3): 1-6. ]
[9]	刘继生, 陈彦光. 2005. 山东省城市人口-城区面积的异速生长特征讨论[J]. 地理科学, 25(2): 135-141.
	[Liu J S, Chen Y G.2005. An allometric analysis of the Shandong urban system using ideas from fractals. Scientia Geographica Sinica, 25(2): 135-141. ]
[10]	刘式达, 刘式适. 1993. 分形与分维引论 [M]. 北京: 气象出版社.
	[Liu S D, Liu S S.1993. An introduction to fractals and fractal dimension . Beijing, China: Meteorological Press. ]
[11]	秦静, 方创琳, 王洋, 等. 2015. 基于三维计盒法的城市空间形态分维计算和分析[J]. 地理研究, 34(1): 85-96.
	[Qin J, Fang C L, Wang Y, et al.2015. A three dimensional box-counting method for estimating fractal dimension of urban form. Geographical Research, 34(1): 85-96. ]
[12]	王洁晶. 2011. 长三角城市用地时空演化特征的分维与异速标度分析 [D]. 北京: 北京大学城市与环境学院.
	[Wang J J.2008. Fractal dimension and allometric analysis on spatio-temporal evolution of urban land-use in the Yangtze River Delta. Beijing, China: College of Urban and Environmental Sciences, Peking University. ]
[13]	周一星. 1995. 城市地理学 [M]. 北京: 商务印书馆.
	[Zhou Y X.1995. Urban geography . Beijing, China: The Commercial Press. ]
[14]	Allen P M.1997. Cities and regions as self-organizing systems: Models of complexity[M]. London & New York: Routledge.
[15]	Batty M.2008. The size, scale, and shape of cities[J]. Science, 319: 769-771. doi: 10.1126/science.1151419
[16]	Batty M, Longley P A.1994. Fractal cities: A geometry of form and function [M]. London, UK: Academic Press.
[17]	Benguigui L, Czamanski D, Marinov M, et al.2000. When and where is a city fractal?[J]. Environment and Planning B: Planning and Design, 27(4): 507-519. doi: 10.1068/b2617
[18]	Benguigui L, Daoud M.1991. Is the suburban railway system a fractal?[J]. Geographical Analysis, 23(4): 362-368.
[19]	Chen Y, Lin J.2009. Modeling the self-affine structure and optimization conditions of city systems using the idea from fractals[J]. Chaos, Soliton & Fractals, 41(2): 615-629.
[20]	Chen Y G.2014. The spatial meaning of Pareto’s scaling exponent of city-size distributions[J]. Fractals, 22(1-2): 1450001. doi: 10.1142/S0218348X14500017. doi: 10.1142/S0218348X14500017
[21]	Chen Y G, Feng J.2012. Fractal-based exponential distribution of urban density and self-affine fractal forms of cities[J]. Chaos, Solitons & Fractals, 45(11): 1404-1416.
[22]	Chen Y G, Feng J.2017. A hierarchical allometric scaling analysis of Chinese cities: 1991-2014[J]. Discrete Dynamics in Nature and Society, doi: 10.1155/2017/5243287.
[23]	Chen Y G, Wang J J.2013. Multifractal characterization of urban form and growth: The case of Beijing[J]. Environment and Planning B: Planning and Design, 40(5): 884-904. doi: 10.1068/b36155
[24]	Chen Y G, Zhou Y X.2006. Reinterpreting central place networks using ideas from fractals and self-organized criticality[J]. Environment and Planning B: Planning and Design, 33(3): 345-364. doi: 10.1068/b31131
[25]	Clark C.1951. Urban population densities[J]. Journal of Royal Statistical Society, 114(4): 490-496. doi: 10.2307/2981088
[26]	Feng J, Chen Y G.2010. Spatiotemporal evolution of urban form and land use structure in Hangzhou, China: Evidence from fractals[J]. Environment and Planning B: Planning and Design, 37(5): 838-856. doi: 10.1068/b35078
[27]	Frankhauser P.1998. The fractal approach: A new tool for the spatial analysis of urban agglomerations[J]. Population: An English Selection, 10(1): 205-240.
[28]	Knox P L, Marston S A.2009. Places and regions in global context: human geography[M]. The 5th Edition. Upper Saddle River, NJ: Prentice Hall.
[29]	Lee Y.1989. An allmetric analysis of the US urban system: 1960-80[J]. Environment and Planning A, 21(4): 463-476. doi: 10.1068/a210463
[30]	Portugali J.2000. Self-organization and the city[M]. Berlin, Germany: Springer.
[31]	Pumain D.2006. Hierarchy in natural and social sciences[M]. Dordrecht, the Netherland: Springer.
[32]	Qin J, Fang C L, Wang Y, et al.2015. Evaluation of three-dimensional yrban expansion: A case study of Yangzhou City, Jiangsu Province, China[J]. Chinese Geographical Science, 25(2): 224-236. doi: 10.1007/s11769-014-0728-8
[33]	Shen G.2002. Fractal dimension and fractal growth of urbanized areas[J]. International Journal of Geographical Information Science, 16(5): 419-437. doi: 10.1080/13658810210137013
[34]	Sun J, Southworth J.2013. Remote sensing-based fractal analysis and scale dependence associated with forest fragmentation in an Amazon tri-national frontier[J]. Remote Sensing, 5(2): 454-472. doi: 10.3390/rs5020454
[35]	White R, Engelen G.1993. Cellular automata and fractal urban form: A cellular modeling approach to the evolution of urban land-use patterns[J]. Environment and Planning A, 25(8): 1175-1199. doi: 10.1068/a251175
[36]	Zipf G K.1949. Human behavior and the principle of least effort[M]. Cambridge, MA: Addison-Wesley.

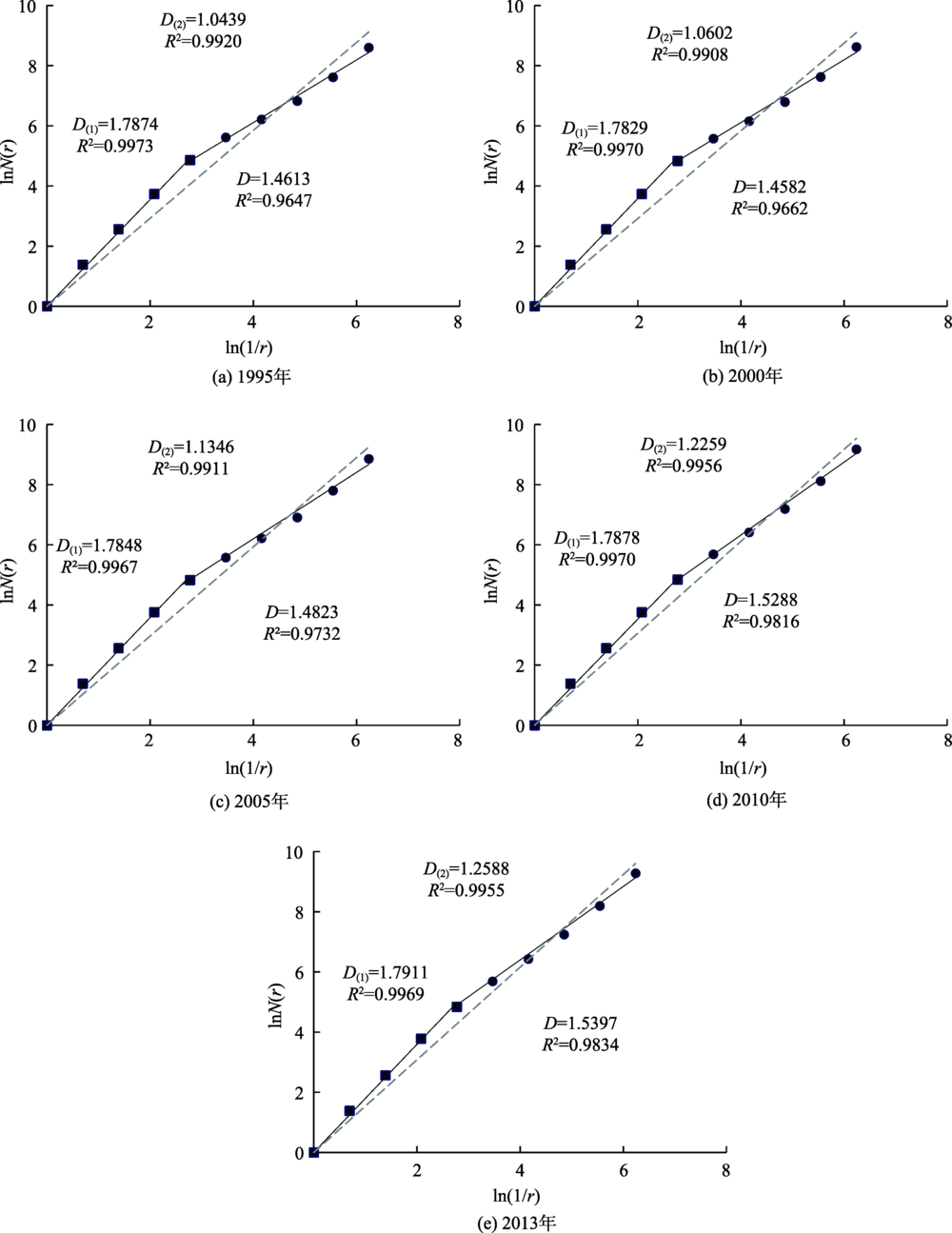

	容量维D₀								信息维D₁
年份	整体		第一标度区		第二标度区		分维差		整体
	D₀	R²	D₍₁₎	R²	D₍₂₎	R²	D₍₁₎-D₍₂₎	D₁	R²
1995	1.4613	0.9647	1.7874	0.9973	1.0439	0.9920	0.7435		1.3072	0.9940
2000	1.4582	0.9662	1.7829	0.9970	1.0602	0.9908	0.7227		1.3108	0.9933
2005	1.4823	0.9732	1.7848	0.9967	1.1346	0.9911	0.6502		1.3405	0.9958
2010	1.5288	0.9816	1.7878	0.9970	1.2259	0.9956	0.5619		1.4024	0.9960
2013	1.5397	0.9834	1.7911	0.9969	1.2588	0.9955	0.5323		1.4107	0.9975
