基于“功能节点—关键廊道”的城市生态安全格局构建——以深圳市为例

doi:10.18306/dlkxjz.2018.12.008

摘要/Abstract

摘要：

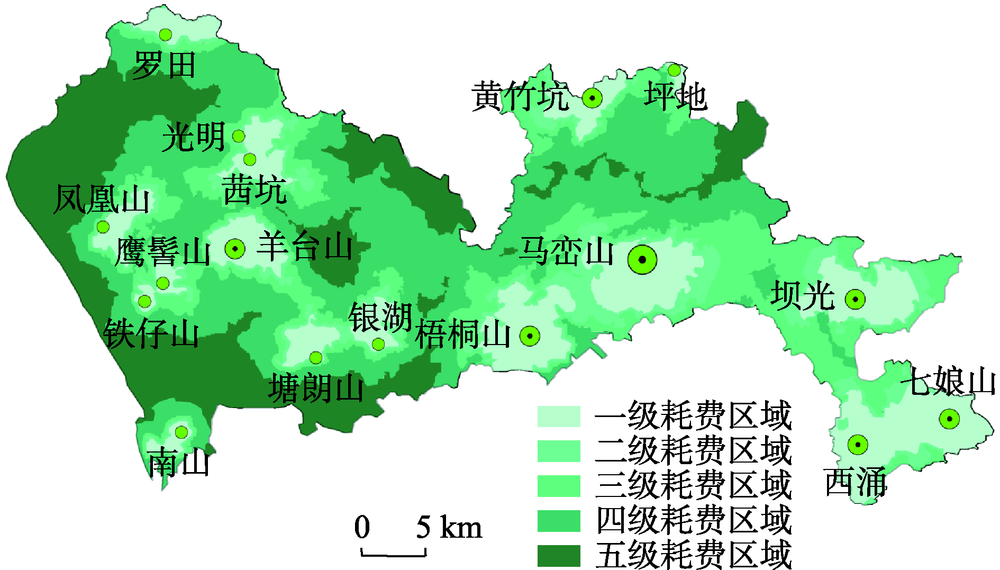

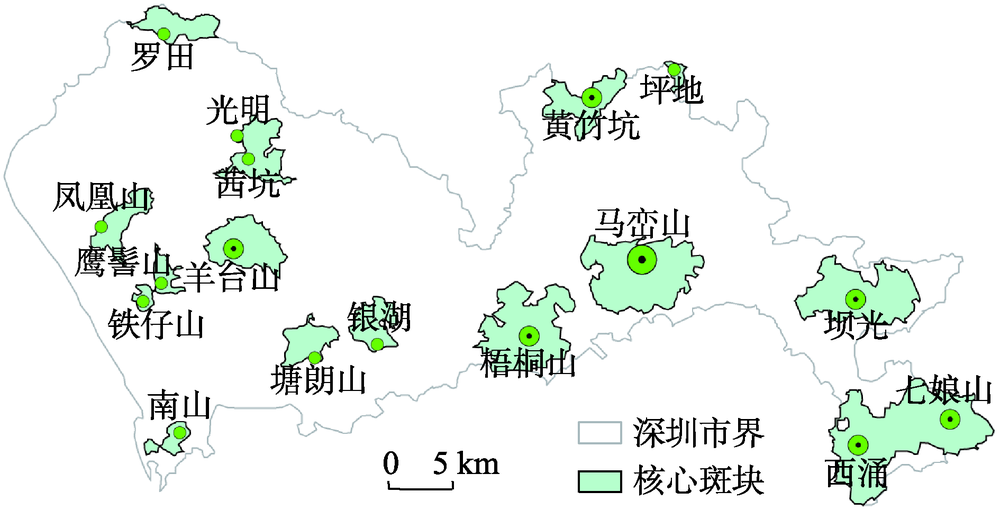

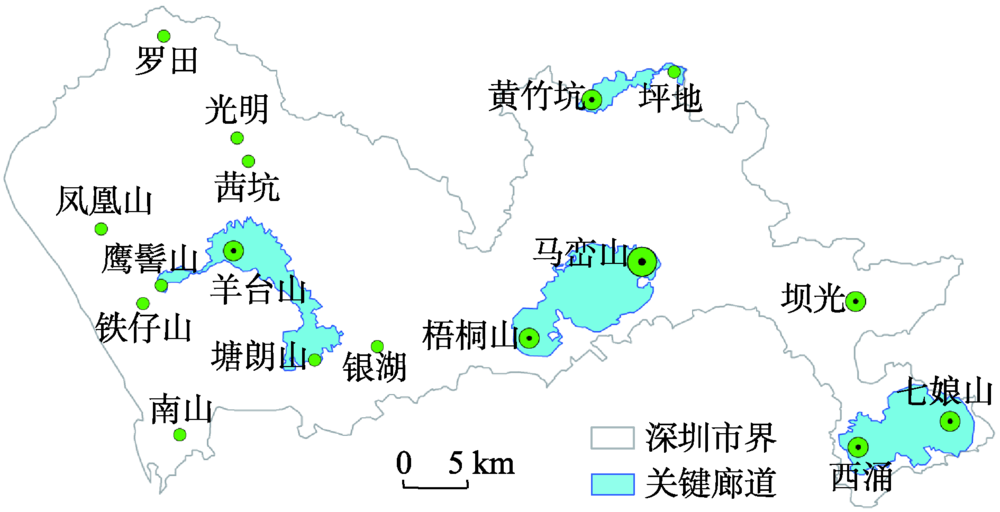

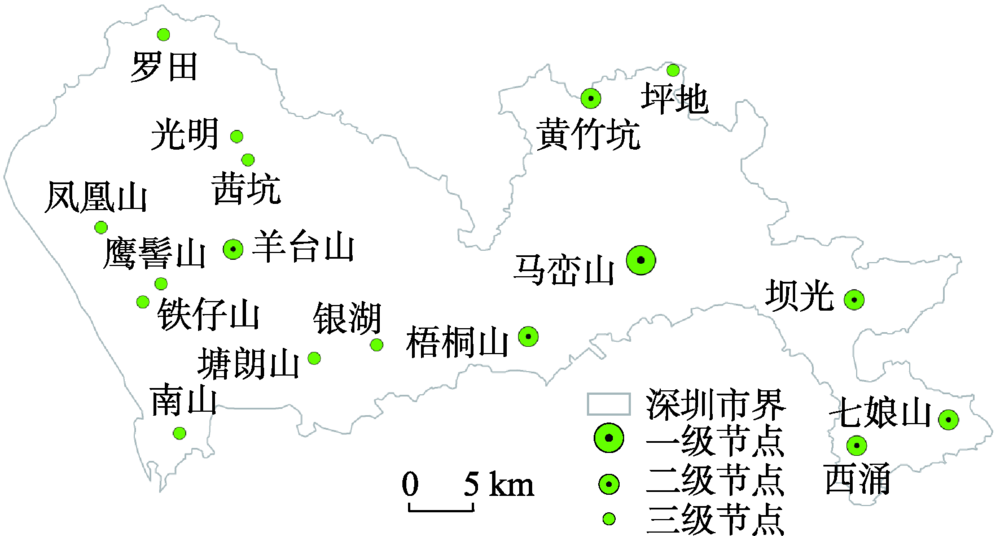

城市生态安全格局构建是综合协调生态保护与经济发展的重要举措,对于合理配置有限的生态资源并最大限度发挥其生态作用具有重要意义。本文以深圳市为例,在生态功能节点识别的基础上,结合景观的生态系统服务价值,根据耗费距离模型,生成生态功能耗费表面,并进行最短路径网络分析,在此基础上提取核心斑块、关键生态廊道。结果表明：各景观类型的生态阻力值,林地阻力最小,且远小于其他景观类型生态阻力值;生态功能耗费梯度表面的分布呈现围绕生态功能节点向周围辐散递减的趋势,东部地区较西部西南部建成区低;核心斑块的大小和形状均存在不同程度的差异,较大的斑块集中分布在东部地区,且对应的节点级别较高;所识别的关键廊道共有4条,空间位置大体上落在基本生态控制线内,羊台山向塘朗山的廊道外缘与基本生态控制线存在冲突,需要对该区域加以管控。建议一方面适时调整生态控制线范围并将冲突部分纳入生态控制线之内,另一方面对该地区进行必要的监管和保护,防止受到进一步破坏。

关键词: 城市生态安全格局, 耗费距离模型, 功能网络, 关键生态廊道, 深圳

Abstract:

Improving urban ecological security pattern is an important measure to coordinate ecological protection and economic development and is of great significance for rational allocation of ecological resources and maximization of ecological effects. Taking Shenzhen City as the case study area, this study first identified the ecological function nodes, then the ecological function cost surface was generated according to the cost distance model and a shortest path network analysis was carried out. Finally, key patches and key ecological corridors were extracted. The results are as follows: (1) According to the calculated ecological resistance values of each landscape type, the resistance of forest is the smallest, and it is much smaller than the ecological resistance values of other landscape types. Therefore, forest is of great significance to the ecological security of the study area. (2) Ecological function cost gradient surface in Shenzhen City diverges around a key ecological function node, and the eastern region is lower than the western region. (3) The area and shape of the key patches are different, the large patches are mainly distributed in the eastern part, and the corresponding node levels are high. (4) Four key ecological corridors can be identified, and their locations are mostly within the basic ecological control line. But some parts of them do not fall within the basic ecological control line, therefore strict control is needed in these areas. (5) Core patches and key corridors are basically within the ecological control line, indicating that the ecological security of Shenzhen City is overall controllable. (6) Given that outer edges of some core patches and key corridors fall outside the ecological control line and are highly likely to withstand the risk of human interference, it is recommended that on the one hand, the scope of the ecological control line should be adjusted and the conflict parts should be included within the ecological control line. On the other hand, necessary supervision and protection should be carried out to prevent damage.

Key words: urban ecological security pattern, least-cost distance model, function network, key ecological corridor, Shenzhen

吴健生, 马洪坤, 彭建. 基于“功能节点—关键廊道”的城市生态安全格局构建——以深圳市为例[J]. 地理科学进展, 2018, 37(12): 1663-1671.

Jiansheng WU, Hongkun MA, Jian PENG. Improving urban ecological security pattern based on functional nodes-key corridors: A case study of Shenzhen City[J]. PROGRESS IN GEOGRAPHY, 2018, 37(12): 1663-1671.

图/表 11

表1

图1

表2

表3

表4

图2

图3

表5

表6

图4

图5

参考文献 41

[1]	陈昕, 彭建, 刘焱序, 等. 2017. 基于"重要性—敏感性—连通性"框架的云浮市生态安全格局构建[J]. 地理研究, 36(3): 471-484.
	[Chen X, Peng J, Liu Y X, et al.2017. Constructing ecological security patterns in Yunfu City based on the framework of importance-sensitivity-connectivity[J]. Geographical Research, 36(3): 471-484.]
[2]	邓金杰, 陈柳新, 杨成韫, 等. 2017. 高度城市化地区生态廊道重要性评价探索: 以深圳为例[J]. 地理研究, 36(3): 573-582.
	[Deng J J, Chen L X, Yang C Y, et al.2017. Significance evaluation of ecological corridor in an highly-urbanized areas: A case study of Shenzhen[J]. Geographical Research, 36(3): 573-582.]
[3]	方创琳, 周成虎, 顾朝林, 等. 2016. 特大城市群地区城镇化与生态环境交互耦合效应解析的理论框架及技术路径[J]. 地理学报, 71(4): 531-550.
	[Fang C L, Zhou C H, Gu C L, et al.2016. Theoretical analysis of interactive coupled effects between urbanization and eco-environment in mega-urban agglomerations[J]. Acta Geographica Sinica, 71(4): 531-550.]
[4]	龚建周, 夏北成, 陈健飞. 2008. 快速城市化区域生态安全的空间模糊综合评价:以广州市为例[J]. 生态学报, 28(10): 4992-5001.
	[Gong J Z, Xia B C, Chen J F.2008. Spatially fuzzy assessment of regional eco-security in Guangzhou, a fast-urbanizing area: A case study in Guangzhou City[J]. Acta Ecologica Sinica, 28(10): 4992-5001.]
[5]	郭荣朝, 苗长虹, 夏保林, 等. 2010. 城市群生态空间结构优化组合模式及对策: 以中原城市群为例[J]. 地理科学进展, 29(3): 363-369.
	[Guo R C, Miao C H, Xia B L, et al.2010. Research on the model of optimization and reorganization of eco-spatial structure in urban agglomeration region and its application: A case study of the urban agglomeration in Central Plains region[J]. Progress in Geography, 29(3): 363-369.]
[6]	蒋艳灵, 刘春腊, 周长青, 等. 2015. 中国生态城市理论研究现状与实践问题思考[J]. 地理研究, 34(12): 2222-2237.
	[Jiang Y L, Liu C L, Zhou C Q, et al.2015. Overview of theoretical research and practical considerationson eco-cities of China[J]. Geographical Research, 34(12): 2222-2237.]
[7]	康相武, 刘雪华, 张爽. 2007. 北京西南地区区域生态安全评价[J]. 应用生态学报, 18(12): 2846-2852.
	[Kang X W, Liu X H, Zhang S.et al.2007. Regional eco-security assessment of southwest Beijing[J]. Chinese Journal of Applied Ecology, 18(12): 2846-2852.]
[8]	李双成, 赵志强, 王仰麟. 2009. 中国城市化过程及其资源与生态环境效应机制[J]. 地理科学进展, 28(1): 63-70.
	[Li S C, Zhao Z Q, Wang Y L.2009. Urbanization process and effects of natural resource and environment in China: Research trends and future directions[J]. Progress in Geography, 28(1): 63-70.]
[9]	刘珍环, 王仰麟, 彭建, 等. 2011. 基于不透水表面指数的城市地表覆被格局特征: 以深圳市为例[J]. 地理学报, 66(7): 961-971.
	[Liu Z H, Wang Y L, Peng J, et al.2011. Using ISA to analyze the spatial pattern of urban land cover change: A case study in Shenzhen[J]. Acta Geographica Sinica, 66(7): 961-971.]
[10]	蒙吉军, 王雅, 王晓东, 等. 2016. 基于最小累积阻力模型的贵阳市景观生态安全格局构建[J]. 长江流域资源与环境, 25(7): 1052-1061.
	[Meng J J, Wang Y, Wang X D, et al.2016. Construction of landscape ecological security pattern in guiyang based on MCR model[J]. Resources and Environment in the Yangtze Basin, 25(7): 1052-106.]
[11]	蒙吉军, 燕群, 向芸芸. 2014. 鄂尔多斯土地利用生态安全格局优化及方案评价[J]. 中国沙漠, 34(2): 590-596.
	[Meng J J, Yan Q, Xiang Y Y.2014. The optimization of ecological security pattern based on land use and assessment of schemes in Ordos, Inner Mongolia, China[J]. Journal of Desert Research, 34(2): 590-596.]
[12]	彭建, 郭小楠, 胡熠娜, 等. 2017. 基于地质灾害敏感性的山地生态安全格局构建: 以云南省玉溪市为例[J]. 应用生态学报, 28(2): 627-635.
	[Peng J, Guo X N, Hu Y N, et al.2017. Constructing ecological security patterns in mountain areas based on geological disaster sensitivity: A case study in Yuxi City, Yunnan Province, China[J]. Chinese Journal of Applied Ecology, 28(2): 627-635.]
[13]	彭建, 汪安, 刘焱序, 等. 2015. 城市生态用地需求测算研究进展与展望[J]. 地理学报, 70(2): 333-346.
	[Peng J, Wang A, Liu Y X, et al.2015, Research progress and prospect on measuring urban ecological land demand[J]. Acta Geographica Sinica, 70(2): 333-346.]
[14]	彭建, 王仰麟, 陈燕飞, 等. 2005. 城市生态系统服务功能价值评估初探: 以深圳市为例[J]. 北京大学学报: 自然科学版, 41(4): 594-604.
	[Peng J, Wang Y L, Chen Y F, et al.2005. Economic value of urban ecosystem services: A case study in Shenzhen[J]. Acta Scicentiarum Naturalum Universitis Pekinesis, 41(4): 594-604.]
[15]	彭建, 赵会娟, 刘焱序, 等. 2017. 区域生态安全格局构建研究进展与展望[J]. 地理研究, 36(3): 407-419.
	[Peng J, Zhao H J, Liu Y X, et al.2017. Research progress and prospect on regional ecological security pattern construction[J]. Geographical Research, 36(3): 407-419.]
[16]	谢高地, 鲁春霞, 冷允法, 等. 2003. 青藏高原生态资产的价值评估[J]. 自然资源学报, 18(2): 189-196.
	[Xie G D, Lu C X, Leng Y F, et al.2003. Ecological assets valuation of the Tibetan Plateau[J]. Journal of Natural Resourses, 18(2): 189-196.]
[17]	杨天荣, 匡文慧, 刘卫东, 等. 2017. 基于生态安全格局的关中城市群生态空间结构优化布局[J]. 地理研究, 36(3): 441-452.
	[Yang T R, Kuang W H, Liu W D, et al.2017. Optimizing the layout of eco-spatial structure in Guanzhong urban agglomeration based on the ecological security pattern[J]. Geographical Research, 36(3): 441-452.]
[18]	俞孔坚, 王思思, 李迪华, 等. 2009. 北京市生态安全格局及城市增长预景[J]. 生态学报, 29(3): 1189-1204.
	[Yu K J, Wang S S, Li D H, et al.2009. The function of ecological security patterns as an urban growth framework in Beijing[J]. Acta Ecological Sinica, 29(3): 1189-1204.]
[19]	周锐, 王新军, 苏海龙, 等. 2015. 平顶山新区生态用地的识别与安全格局构建[J]. 生态学报, 35(6): 2003-2012.
	[Zhou R, Wang X J, Su H L, et al.2015. Identification and security pattern of ecological land in Pingdingshan newly developed area[J]. Acta Ecologica Sinica, 35(6): 2003-2012.]
[20]	张小飞, 李正国, 王如松, 等. 2009. 基于功能网络评价的城市生态安全格局研究: 以常州市为例[J]. 北京大学学报: 自然科学版, 45(4): 728-736.
	[Zhang X F, Li Z G, Wang R S, et al.2009. Study on network analysis for urban ecological security pattern in Changzhou City[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 45(4): 728-736.]
[21]	Arnaizschmitz C, Schmitz M F, Herrerojáuregui C, et al.2018. Identifying socio-ecological networks in rural-urban gradients: Diagnosis of a changing cultural landscape[J]. Science of the Total Environment, 612: 625-635.
[22]	Benedict M A, McMahon E T.2002. Green infrastructure: Smart conservation for the 21st century[J]. Renewable Resources Journal, 20(3): 12-17.
[23]	Esbah H, Cook E A, Ewan J.2009. Effects of increasing urbanization on the ecological integrity of open space preserves[J]. Environmental Management, 43(5): 846-862.
[24]	Fang S B, Xiao D N, An S Q.2005. Regional ecosecuirty pattern in urban area based on land use analysis: A case study in Lanzhou[J]. Chinese Journal of Applied Ecology, 16(12): 2284-2290.
[25]	Fath B D, Scharler U M, Ulanowicz R E, et al.2007. Ecological network analysis: Network construction[J]. Ecological Modelling, 208(1): 49-55.
[26]	Gao Q C, Chen L D, Li YH, et al.2005. Regional pattern of ecological secuirty in Shanxi Section Along West-East Gsa Pipeline Project[J]. Journal of Soil and Water Conservation, 19(4): 164-172.
[27]	Guo M, Xiao D N, Li X.2006. Changes of landscape pattern between 1986 and 2000 in Jiuquanoasis, Heihe River Basin[J]. Acta Ecologica Sinica, 26(2): 457-466.
[28]	Li Y F, Sun X, Zhu X D, et al.2010. An early warning method of landscape ecological security in rapid urbanizing coastal areas and its application in Xiamen, China[J]. Ecological Modeling, 221(19): 2251-2260.
[29]	Li Y H, Hu Z B, Gao Q, et al.2007. Ecological safety pattem of spatial extension in Shenyang City[J]. Chinese Journal of Ecology, 26(6): 875-881.
[30]	Linehan J, Gross M, Finn J.1995. Greenway planning: Developing a landscape ecological network approach[J]. Landscape & Urban Planning, 33(1-3): 179-193.
[31]	Sirakaya A, An C, Harris J.2017. Ecosystem services in cities: Towards the international legal protection of ecosystem services in urban environments[J]. Ecosystem Services, 29: 205-212.
[32]	Su S L, Li D, Yu X, et al.2011. Assessing land ecological security in Shanghai (China) based on catastrophe theory[J]. Stochastic Environmental Research and Risk Assessment, 25(6): 737-746.
[33]	Sutton-Grier A E, Wowk K, Bamford H.2015. Future of our coasts: The potential for natural and hybrid infrastructure to enhance the resilience of our coastal communities, economies and ecosystems[J]. Environmental Science & Policy, 51: 137-148.
[34]	Steffen W, Richardson K, Rockström J, et al.2015. Planetary boundaries: Guiding human development on a changing planet[J]. Science, 347: 736-747.
[35]	Wu J G.2014. Urban ecology and sustainability: The state-of- the-science and future directions[J]. Landscape and Urban Planning, 125(2): 209-221.
[36]	Yu K J.1996. Security patterns and surface model in landscape ecological planning[J]. Landscape and Urban Planning, 36(1): 1-17.
[37]	Yu K J, Li D H, Huang G, et al.2005. Construction and organization of the landscape networks: Discussion on the landscape ecological planning of the Beijing Shihua Cavescenic area[J]. Urban Planning Forum, (3): 76-81.
[38]	Yu K J, Li D H, Liu H L, et al.2005. Growth pattern of Taizhou city based one cological infrastructure: An engative approach physical urban planning[J]. City Planning Review, 29(9): 76-80.
[39]	Yu K J, Xi X S, Wang S S.2008. Townseape planning based on ecological infrastructure: A case study of Weihai, Shandong[J]. City Planning Review, 32(3): 87-92.
[40]	Yu K J, Zhang L.2007. Ecological infrastructures unbuildable zone and urban green space system: Acase study of Heze[J]. City Planning Review, 31(12): 89-92.
[41]	Zhang L, Peng J, Liu Y, et al.2017. Coupling ecosystem services supply and human ecological demand to identify landscape ecological security pattern: A case study in Beijing-Tianjin-Hebei region, China[J]. Urban Ecosystems, 20(3): 1-14.

数据名称	用途	来源及说明
深圳市土地利用数据	景观类型划分,核心斑块与关键廊道的提取	2008年,ARC/INFO格式,深圳市规划和国土资源委员会,（www.szpl.gov.cn）
深圳市DEM数据	生态功能节点、核心斑块与关键廊道的提取	2009年,分辨率30 m,地理空间数据云（www.gscloud.cn）

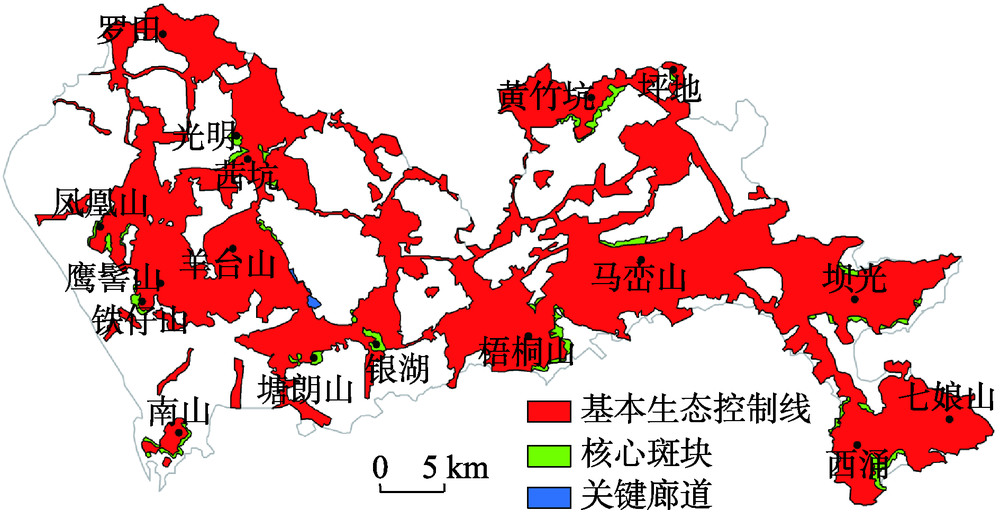

深圳市基本生态控制线数据	风险区识别	2005年,ARC/INFO格式,深圳市规划和国土资源委员会,（www.szpl.gov.cn）

景观类型	生态系统服务价值E/(万元/(a·hm²))	斑块面积指数 CA/hm²	最大斑块指数LPI/%	景观形状指数LSI	平均邻近指数MPI	平均最近距离MNN/m
正负性	-	-	-	+	-	-
园地	104	26450.37	0.89	28.92	493.12	112.36
耕地	35	4260.15	0.08	10.36	38.00	212.94
草地	39	4396.86	0.09	11.49	28.12	163.03
林地	174	58622.13	7.35	29.60	8789.51	141.76
水域	13	17219.25	1.87	22.43	331.54	103.33
w_j	0.128	0.146	0.244	0.069	0.358	0.055

景观类型	生态系统服务价值E	斑块面积指数 CA	最大斑块指数 LPI	景观形状指数 LSI	平均邻近指数 MPI	平均最近距离 MMN
园地	43.23	59.18	88.86	96.47	94.69	8.24
耕地	86.45	100.00	100.00	0.00	99.89	100.00
草地	83.67	99.75	99.86	5.87	100.00	54.47
林地	0.00	0.00	0.00	100.00	0.00	35.06
水域	100.00	76.16	75.38	62.73	96.54	0.00

一级向二级	直线距离/km	实际距离/km	变形系数
马峦山—黄竹坑	15.14	30.90	2.04
马峦山—羊台山	37.10	53.28	1.44
马峦山—西涌	26.02	30.89	1.19
马峦山—七娘山	31.42	36.86	1.17
马峦山—坝光	19.91	21.86	1.10
马峦山—梧桐山	12.14	13.27	1.09
总体	141.73	187.06	1.32

二级向三级	直线距离/km	实际距离/km	变形系数
羊台山—罗田	20.39	33.34	1.63
羊台山—凤凰山	11.94	17.64	1.48
羊台山—大南山	17.21	23.30	1.35
羊台山—光明	10.14	13.70	1.35
黄竹坑—坪地	7.79	10.32	1.32
羊台山—茜坑	8.14	10.60	1.30
羊台山—塘朗山	12.30	15.24	1.24
羊台山—铁仔山	9.58	11.39	1.19
羊台山—银湖	15.76	18.66	1.18
羊台山—鹰髻山	7.24	8.18	1.13
总体	120.50	162.36	1.35
