土地变化模型方法综述

doi:10.18306/dlkxjz.2018.01.016

地理科学进展 ›› 2018, Vol. 37 ›› Issue (1): 152-162.doi: 10.18306/dlkxjz.2018.01.016

土地变化模型方法综述

戴尔阜^1,^2,³(), 马良^1,^2,³

1. 中国科学院地理科学与资源研究所,北京 100101
2. 中国科学院大学,北京 100049
3. 中国科学院陆地表层格局与模拟重点实验室,北京 100101

收稿日期:2018-01-15 修回日期:2018-01-23 出版日期:2018-01-28 发布日期:2018-01-28
作者简介:
作者简介：戴尔阜(1972-),男,甘肃平凉人,研究员,主要从事自然地理综合研究、气候变化及其区域响应、土地变化模拟研究,E-mail: daief@igsnrr.ac.cn。
基金资助:
国家自然科学基金项目(L1624026,41571098,41530749);中国科学院学部学科发展战略研究项目(2016-DX-C-02);国家重点基础研究发展(973)计划项目(2015CB452702)

Review on land change modeling approaches

Erfu DAI^1,^2,³(), Liang MA^1,^2,³

1. Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. Key Laboratory of Land Surface Pattern and Simulation, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China

Received:2018-01-15 Revised:2018-01-23 Online:2018-01-28 Published:2018-01-28
Supported by:
National Natural Science Foundation of China, No.L1624026, No.41571098, No.41530749;Research Project on the Development Strategy of Chinese Academy of Sciences, No.2016-DX-C-02;National Basic Research Program of China (973Program), No.2015CB452702

摘要/Abstract

摘要：

土地系统变化长期以来不仅是地理学研究热点,也是资源环境经济学、生态学、城市规划等多学科领域关注的主题。构建模型模拟土地变化能够促进理解人地相互作用机制,模拟结果可为土地资源优化与资源环境政策制定提供依据。不同研究者基于不同学科理论、应用多种方法构建土地变化模型,模型从早期关注自然覆被类型变化发展到对人类决策行为的刻画,从统计方法发展到更突出空间分布的元胞自动机方法,以及更聚焦土地变化过程的经济学方法和多主体方法。未来土地变化模型发展方向为：在多尺度进行多方法耦合,对土地变化过程进行更为明晰地刻画,将土地变化模型与其他地球系统模型耦合等方面,进一步能够促进解释复杂人地系统,并推进模型在决策支持层面的应用。

关键词: 土地变化科学, 土地利用/覆被变化, 土地变化模型, 多主体模型, 元胞自动机

Abstract:

Land change has long been the research hot-spot of geography, and is also the focus of multiple disciplines including resource and environment economics, ecology, and urban planning. Land change models and simulations are an effective approach for understanding the mechanism of human-environment interactions. The modeling results are also valuable for the government to make resource management and environmental policies. Researchers of different fields have applied various approaches based on their theories to develop land change models. Attention has evolved from modeling land cover types to representation of human decision-making behaviors. The methods have shifted from statistical to cellular automata that can better characterize spatial patterns, and to economic methods and agent-based methods that can better represent the processes and mechanisms of land change. Future land change models should focus coupling multiple methods cross scales. Land change processes should be better represented. The complexity of the human-environment system can be better explained by a combination of land change models and other earth system models. The application of models to support policymaking also needs more attention.

Key words: land change science, land use/land cover change, land change model, agent-based model, cellular automata

戴尔阜, 马良. 土地变化模型方法综述[J]. 地理科学进展, 2018, 37(1): 152-162.

Erfu DAI, Liang MA. Review on land change modeling approaches[J]. PROGRESS IN GEOGRAPHY, 2018, 37(1): 152-162.

图/表 2

表1

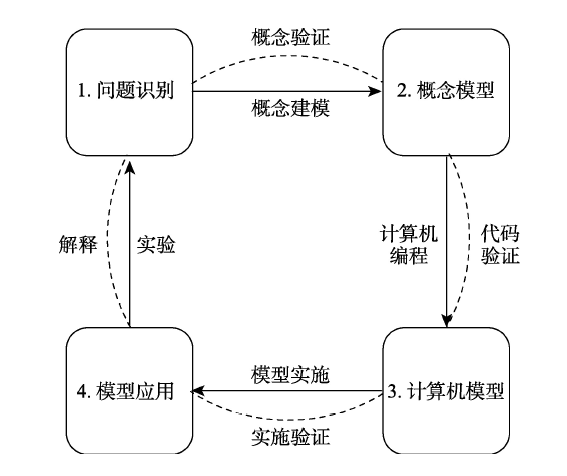

图1

参考文献 93

[1]	摆万奇, 赵士洞. 1997. 土地利用和土地覆盖变化研究模型综述[J]. 自然资源学报, 12(2): 74-80.
	[Bai W Q, Zhao S D.1997. A comprehensive description of the models of Land use and land cover change study[J]. Journal of Natural Resources, 12(2): 74-80.]
[2]	蔡玉梅, 刘彦随, 宇振荣, 等. 2004. 土地利用变化空间模拟的进展: CLUE-S模型及其应用[J]. 地理科学进展, 23(4): 63-71, 115. doi: 10.3969/j.issn.1007-6301.2004.04.008
	[Cai Y M, Liu Y S, YU Z R, et al.2004. Progress in spatial simulation of land use change: CLUE-S model and its application[J]. Progress in Geography,23(4): 63-71, 115.] doi: 10.3969/j.issn.1007-6301.2004.04.008
[3]	傅伯杰. 2014. 地理学综合研究的途径与方法: 格局与过程耦合[J]. 地理学报, 69(8):1052-1059. doi: 10.11821/dlxb201408002
	[Fu B J.2014. The integrated studies of geography: Coupling of patterns and processes[J]. Acta Geographica Sinica, 69(8): 1052-1059.] doi: 10.11821/dlxb201408002
[4]	傅伯杰, 冷疏影, 宋长青. 2015. 新时期地理学的特征与任务[J]. 地理科学, 35(8): 939-945. doi: 10.1016/S0168-9002(97)00311-2
	[Fu B J, Leng S Y, Song C Q.2015. The characteristics and tasks of geography in the new era[J]. Scientia Geographica Sinica, 35(8): 939-945.] doi: 10.1016/S0168-9002(97)00311-2
[5]	黄秋昊, 蔡运龙. 2005. 国内几种土地利用变化模型述评[J]. 中国土地科学, 19(5): 25-30. doi: 10.3969/j.issn.1001-8158.2005.05.005
	[Huang Q H, Cai Y L.2005. Review on several domestic land use change models[J]. China Land Science, 19(5): 25-30.] doi: 10.3969/j.issn.1001-8158.2005.05.005
[6]	柯新利, 邓祥征, 何书金. 2010. 地理元胞自动机模型的尺度敏感性及原因[J]. 地理研究, 29(5): 863-872.
	[Ke X L, Deng X Z, He S J.2010. Scale sensitivity and its causality for Geo-cellular Automata modelling[J]. Geographical Research, 29(5): 863-872.]
[7]	黎夏, 叶嘉安, 刘小平. 2006. 地理模拟系统在城市规划中的应用[J]. 城市规划, 30(6): 69-74. doi: 10.3321/j.issn:1002-1329.2006.06.015
	[Li X, Yeh A G O, Liu X P.2006. Geographical simulation systems for urban planning[J]. City Planning Review, 30(6): 69-74.] doi: 10.3321/j.issn:1002-1329.2006.06.015
[8]	黎夏, 叶嘉安, 刘小平, 等. 2007. 地理模拟系统: 元胞自动机与多智能体[M]. 北京: 科学出版社.
	[Li X, Yeh A G O, Liu X P, et al. 2007. Geographical simulation systems: Cellular automata and multi-agent system[M]. Beijing: Science Press.]
[9]	李明杰, 钱乐祥, 吴志峰, 等. 2010. 广州市海珠区高密度城区扩展SLEUTH模型模拟[J]. 地理学报, 65(10): 1163-1172. doi: 10.3724/SP.J.1142.2010.40466
	[Li M J, Qian L X, Wu Z F, et al.2010. The sleuth model simulation of high density urban sprawl in Haizhu district of Guangzhou city[J]. Acta Geographica Sinica, 65(10): 1163-1172.] doi: 10.3724/SP.J.1142.2010.40466
[10]	李少英, 刘小平, 黎夏, 等. 2017. 土地利用变化模拟模型及应用研究进展[J]. 遥感学报, 21(3): 329-340. doi: 10.11834/jrs.20176159
	[Li S Y, Liu X P, Li X, et al.2017. Simulation model of land use dynamics and application: Progress and prospects[J]. Journal of Remote Sensing, 21(3): 329-340.] doi: 10.11834/jrs.20176159
[11]	李月臣, 何春阳. 2008. 中国北方土地利用/覆盖变化的情景模拟与预测[J]. 科学通报, 53(6): 713-723.
	[Li Y C, He C Y.2008. Scenario simulation and prediction of land change and land cover in northern China[J]. Chinese Science Bulletin, 53(6): 713-723.]
[12]	刘小平, 黎夏, 陈逸敏, 等. 2010. 基于多智能体的居住区位空间选择模型[J]. 地理学报, 65(6): 695-707. doi: 10.11821/xb201006007
	[Liu X P, Li X, Chen Y M, et al.2010. Agent-based model of residential location[J]. Acta Geographica Sinica, 65(6): 695-707.] doi: 10.11821/xb201006007
[13]	刘小平, 黎夏, 叶嘉安. 2006. 基于多智能体系统的空间决策行为及土地利用格局演变的模拟[J]. 中国科学: 地球科学, 36(11): 1027-1036. doi: 10.3321/j.issn:1006-9267.2006.11.006
	[Liu X P, Li X, Yeh A G O.2006. Spatial decision making behavior and land use pattern evolution based on multi-agent system[J]. Science in China: Earth Sciences, 36(11): 1027-1036.] doi: 10.3321/j.issn:1006-9267.2006.11.006
[14]	裴彬, 潘韬. 2010. 土地利用系统动态变化模拟研究进展[J]. 地理科学进展, 29(9): 1060-1066. doi: 10.11820/dlkxjz.2010.09.006
	[Pei B, Pan T.2010. Land use system dynamic modeling: Literature review and future research direction in China[J]. Progress in Geography, 29(9): 1060-1066.] doi: 10.11820/dlkxjz.2010.09.006
[15]	唐华俊, 吴文斌, 杨鹏, 等. 2009. 土地利用/土地覆被变化(LUCC)模型研究进展[J]. 地理学报, 64(4): 456-468. doi: 10.3321/j.issn:0375-5444.2009.04.008
	[Tang H J, Wu W B, Yang P, et al.2009. Recent progress of land use and land cover change (LUCC) model[J]. Acta Geographica Sinica, 64(4): 456-468.] doi: 10.3321/j.issn:0375-5444.2009.04.008
[16]	严冬, 李爱农, 南希, 等. 2016. 基于Dyna-CLUE改进模型和SD模型耦合的山区城镇用地情景模拟研究: 以岷江上游地区为例[J]. 地球信息科学学报, 18(4): 514-525. doi: 10.3724/SP.J.1047.2016.00514
	[Yan D, Li A N, Nan X, et al.2016. The Study of urban land scenario simulation in mountain area based on modified Dyna-CLUE model and SDM: A case study of the upper reaches of Minjiang river[J]. Journal of Geo-information Science, 18(4): 514-525.] doi: 10.3724/SP.J.1047.2016.00514
[17]	杨济达, 欧晓昆, 呙靖雯, 等. 2014. 基于CA-Markov和Geomod模型橡胶林变化预测比较[J]. 山地学报, 32(3): 267-276.
	[Yang J D, Ou X K, Guo J W, et al.2014. Comparison of CA-Markov and Geomod models for rubber plantation prediction[J]. Mountain Research, 32(3): 267-276.]
[18]	余强毅, 吴文斌, 唐华俊, 等. 2014. 复杂系统理论与Agent模型在土地变化科学中的研究进展[J]. 地理学报, 66(11): 1518-1530. doi: 10.11821/xb201111008
	[Yu Q Y, Wu W B, Tang H J, et al.2014. Complex system theory and agent-based modeling: Progresses in land change science[J]. Acta Geographica Sinica, 66(11): 1518-1530.] doi: 10.11821/xb201111008
[19]	张明. 2001. 以土地利用/土地覆被变化为中心的土地科学研究进展[J]. 地理科学进展, 20(4): 297-304. doi: 10.3969/j.issn.1007-6301.2001.04.001
	[Zhang M.2001. The progress on comprehensive land sciences focused on land-use and land-cover change[J]. Progress in Geography, 20(4): 297-304.] doi: 10.3969/j.issn.1007-6301.2001.04.001
[20]	张永民, 赵士洞, Verburg P H.2003. CLUE-S模型及其在奈曼旗土地利用时空动态变化模拟中的应用[J]. 自然资源学报, 18(3): 310-318. doi: 10.11849/zrzyxb.2003.03.008
	[Zhang Y M, Zhao S D, Verburg P H.2003. CLUE-S and its application for simulating temporal and spatial change of land use in Naiman Banner[J]. Journal of Natural Resources, 18(3): 310-318.] doi: 10.11849/zrzyxb.2003.03.008
[21]	周成虎, 欧阳, 马廷, 等. 2009. 地理系统模拟的CA模型理论探讨[J]. 地理科学进展, 28(6): 833-838. doi: 10.11820/dlkxjz.2009.06.001
	[Zhou C H, Ou Y, Ma T, et al.2009. Theoretical perspectives of CA-based geographical system modeling[J]. Progress in Geography, 28(6): 833-838.] doi: 10.11820/dlkxjz.2009.06.001
[22]	Adams D, Alig R, Mccarl B A, et al.2005. FASOMGHG conceptual structure, and specification: documentation[Z]. Unpublished paper. College Station, TX: Texas A&M University, Department of Agricultural Economics.
[23]	Agarwal C, Green G M, Grove J M, et al.2002. A review and assessment of land-use change models: Dynamics of space, time and human choice[M]. Newton Square, PA: US Department of Agriculture, Forest Service, Northeastern Research Station.
[24]	Alcamo J E, Leemans R E, Kreileman E E.1998. Global change scenarios of the 21st century: Results from the IMAGE 2.1 model[M].Oxford, UK: Elsevier Science.
[25]	An L.2012. Modeling human decisions in coupled human and natural systems: Review of agent-based models[J]. Ecological Modelling, 229: 25-36. doi: 10.1016/j.ecolmodel.2011.07.010
[26]	Arthur W B.1988. Urban systems and historical path-dependence[M]. Ann Arbor, MI: The University of Michigan Press.
[27]	Baker W L.1989. A review of models of landscape change[J]. Landscape Ecology, 2(2): 111-133. doi: 10.1007/BF00137155
[28]	Benenson I, Torrens P M.2006. Geosimulation: Automata-based modeling of urban phenomena[M]. Chichester, UK: John Wiley & Sons.
[29]	Bert F, North M, Rovere S, et al.2015. Simulating agricultural land rental markets by combining agent-based models with traditional economics concepts: The case of the Argentine Pampas[J]. Environmental Modelling & Software, 71: 97-110.
[30]	Bockstael N E.1996. Modeling economics and ecology: The importance of a spatial perspective[J]. American Journal of Agricultural Economics, 78(5): 1168-1180. doi: 10.2307/1243487
[31]	Brady M, Kellermann K, Sahrbacher C, et al.2009. Impacts of decoupled agricultural support on farm structure, biodiversity and landscape mosaic: Some EU results[J]. Journal of Agricultural Economics, 60(3): 563-585. doi: 10.1111/j.1477-9552.2009.00216.x
[32]	Brown D G, Robinson D T.2006. Effects of heterogeneity in residential preferences on an agent-based model of urban sprawl[J]. Ecology and Society, 11(1): 46. doi: 10.1016/j.ecolecon.2005.06.002
[33]	Brown D G, Verburg P H, Pontius R G, et al.2013. Opportunities to improve impact, integration, and evaluation of land change models[J]. Current Opinion in Environmental Sustainability, 5(5): 452-457. doi: 10.1016/j.cosust.2013.07.012
[34]	Burnham B O.1973. Markov Intertemporal Land Use Simulation Model[J]. Journal of Agricultural and Applied Economics, 5(1): 253-258. doi: 10.1017/S0081305200011110
[35]	Carlson K M, Curran L M, Ratnasari D, et al.2012. Committed carbon emissions, deforestation, and community land conversion from oil palm plantation expansion in West Kalimantan, Indonesia[J]. Proceedings of the National Academy of Sciences, 109(19): 7559-7564. doi: 10.1073/pnas.1200452109
[36]	Castella J C, Pheng Kam S, Dinh Quang D, et al.2007. Combining top-down and bottom-up modelling approaches of land use/cover change to support public policies: Application to sustainable management of natural resources in northern Vietnam[J]. Land Use Policy, 24(3): 531-545. doi: 10.1016/j.landusepol.2005.09.009
[37]	Castella J C, Verburg P H.2007. Combination of process-oriented and pattern-oriented models of land-use change in a mountain area of Vietnam[J]. Ecological Modelling, 202(3-4): 410-420. doi: 10.1016/j.ecolmodel.2006.11.011
[38]	Casti J L.1997. Computing the uncomputable[J]. Complexity, 2(3): 7-12.
[39]	Chen X D, Lupi F, An L, et al.2012. Agent-based modeling of the effects of social norms on enrollment in payments for ecosystem services[J]. Ecological Modelling, 229: 16-24. doi: 10.1016/j.ecolmodel.2011.06.007 pmid: 22389548
[40]	Chen X D, Vina A, Shortridge A, et al.2014. Assessing the effectiveness of payments for ecosystem services: An agent-based modeling approach[J]. Ecology and Society, 19(1): 15. doi: 10.5751/ES-05578-190107
[41]	Clarke K C, Gaydos L J.1998. Loose-coupling a cellular automaton model and GIS: Long-term urban growth prediction for San Francisco and Washington/Baltimore[J]. International Journal of Geographical Information Science, 12(7): 699-714. doi: 10.1080/136588198241617 pmid: 12294536
[42]	Eastman J.2007. The land change modeler, a software extension for ArcGIS[M]. Worcester, MA: Clark University.
[43]	Erb K H, Krausmann F, Lucht W, et al.2009. Embodied HANPP: Mapping the spatial disconnect between global biomass production and consumption[J]. Ecological Economics, 69(2): 328-334. doi: 10.1016/j.ecolecon.2009.06.025
[44]	Foley J A, Defries R, Asner G P, et al.2005. Global consequences of land Use[J]. Science, 309: 570-574. doi: 10.1126/science.1111772
[45]	Fujita M, Krugman P, Mori T.1999. On the evolution of hierarchical urban systems[J]. European Economic Review, 43(2): 209-251. doi: 10.1016/S0014-2921(98)00066-X
[46]	GLP.2005. Science plan and implementation strategy[R]. IGBP Report no. 53/IHDP Report no. 19. IGBP Stockholm.
[47]	Hertel T W, Rose S, Tol R S J.2009. Land use in computable general equilibrium models: An overview[M]//Hertel T W, Rose S, Tol R S J. Economic analysis of land use in global climate change policy. London, UK: Routledge: 3-30.
[48]	Irwin E G, Geoghegan J.2001. Theory, data, methods: developing spatially explicit economic models of land use change[J]. Agriculture, Ecosystems & Environment, 85(1): 7-24. doi: 10.1016/S0167-8809(01)00200-6
[49]	Jakeman A J, Letcher R A, Norton J P.2006. Ten iterative steps in development and evaluation of environmental models[J]. Environmental Modelling & Software, 21(5): 602-614. doi: 10.1016/j.envsoft.2006.01.004
[50]	Kaimowitz D, Angelsen A.1998. Economic models of tropical deforestation: a review[M]. Bogor, Indonesia: Cifor.
[51]	Lambin E F, Geist H J.2005. Land-use and land-cover change: local processes and global impacts[M]. Berlin, Heidelberg, Germany: Springer.
[52]	Lewis D J.2010. An economic framework for forecasting land-use and ecosystem change[J]. Resource and Energy Economics, 32(2): 98-116. doi: 10.1016/j.reseneeco.2009.11.007
[53]	Lewis D J, Provencher B, Butsic V.2009. The dynamic effects of open-space conservation policies on residential development density[J]. Journal of Environmental Economics and Management, 57(3): 239-252. doi: 10.1016/j.jeem.2008.11.001
[54]	Liu X P, Li X, Yeh A G O.2006. Multi-agent systems for simulating spatial decision behaviors and land-use dynamics[J]. Science in China: Earth Sciences, 49(11): 1184-1194. doi: 10.1007/s11430-006-1184-9
[55]	Magliocca N R, Van Vliet J, Brown C, et al.2015. From meta-studies to modeling: Using synthesis knowledge to build broadly applicable process-based land change models[J]. Environmental Modelling & Software, 72: 10-20. doi: 10.1016/j.envsoft.2015.06.009
[56]	Mccarl B A, Schneider U A.2001. Greenhouse gas mitigation in U.S. agriculture and forestry[J]. Science, 294: 2481-2482. doi: 10.1016/j.agsy.2006.08.001 pmid: 11752558
[57]	Millington J D A, Perry G L W, Romero-Calcerrada R.2007. Regression techniques for examining land use/cover change: A case study of a mediterranean landscape[J]. Ecosystems, 10(4): 562-578. doi: 10.1007/s10021-007-9020-4
[58]	Mooney H A, Duraiappah A, Larigauderie A.2013. Evolution of natural and social science interactions in global change research programs[J]. Proceedings of the National Academy of Sciences, 110(S1): 3665-3672. doi: 10.1073/pnas.1107484110
[59]	Muller M R, Middleton J.1994. A Markov model of land-use change dynamics in the Niagara Region, Ontario, Canada[J]. Landscape Ecology, 9(2): 151-157. doi: 10.1007/BF00124382
[60]	Nelson E, Mendoza G, Regetz J, et al.2009. Modeling multiple ecosystem services, biodiversity conservation, commodity production, and tradeoffs at landscape scales[J]. Frontiers in Ecology and the Environment, 7(1): 4-11. doi: 10.1890/080023
[61]	North M J, Macal C M.2007. Managing business complexity: Discovering strategic solutions with agent-based modeling and simulation[M]. Oxford, UK: Oxford University Press.
[62]	NRC. 2014. Advancing land change modeling: Opportunities and research requirements[M]. Washiongton, DC: National Academies Press.
[63]	Overmars K P, Verburg P H, Veldkamp T.2007. Comparison of a deductive and an inductive approach to specify land suitability in a spatially explicit land use model[J]. Land Use Policy, 24(3): 584-599. doi: 10.1016/j.landusepol.2005.09.008
[64]	Parker D C, Filatova T.2008. A conceptual design for a bilateral agent-based land market with heterogeneous economic agents[J]. Computers, Environment and Urban Systems, 32(6): 454-463. doi: 10.1016/j.compenvurbsys.2008.09.012
[65]	Parker D C, Manson S M, Janssen M A, et al.2003. Multi-agent systems for the simulation of land-use and land-cover change: A review[J]. Annals of the Association of American Geographers, 93(2): 314-337. doi: 10.1111/1467-8306.9302004
[66]	Pijanowski B C, Pithadia S, Shellito B A, et al.2005. Calibrating a neural network-based urban change model for two metropolitan areas of the Upper Midwest of the United States[J]. International Journal of Geographical Information Science, 19(2): 197-215. doi: 10.1080/13658810410001713416
[67]	Pontius R G, Cornell J D, Hall C a S.2001. Modeling the spatial pattern of land-use change with GEOMOD2: Application and validation for Costa Rica[J]. Agriculture, Ecosystems & Environment, 85(1): 191-203. doi: 10.1016/S0167-8809(01)00183-9
[68]	Robinson D T, Vittorio A D, Alexander P, et al.2017. Modelling feedbacks between human and natural processes in the land system[J]. Earth System Dynamics Discussions, 1-47. doi: 10.5194/esd-2017-68
[69]	Rosegrant M W, Cai X, Cline S A.2002. World water and food to 2025: Dealing with scarcity[M]. Washington, DC: International Food Policy Research Institute.
[70]	Rounsevell M D A, Arneth A, Alexander P, et al.2014. Towards decision-based global land use models for improved understanding of the Earth system[J]. Earth System Dynamics, 5(1): 117. doi: 10.5194/esd-5-117-2014
[71]	Sands R D, Edmonds J A.2005. Climate change impacts for the conterminous USA: An integrated assessment[J]. Climatic Change, 69(1): 127-150. doi: 10.1007/s10584-005-3616-5
[72]	Sands R D, Leimbach M.2003. Modeling agriculture and land use in an integrated assessment framework[J]. Climatic Change, 56(1): 185-210. doi: 10.1023/A:1021344614845
[73]	Schaldach R, Alcamo J, Koch J, et al.2011. An integrated approach to modelling land-use change on continental and global scales[J]. Environmental Modelling & Software, 26(8): 1041-1051. doi: 10.1016/j.envsoft.2011.02.013
[74]	Schaldach R, Priess J A.2008. Integrated Models of the Land System: A review of modelling approaches on the regional to global scale[J]. Living Reviews in Landscape Research, 2: 1-34. doi: 10.12942/lrlr-2008-1
[75]	Schmit C, Rounsevell M D A.2006. Are agricultural land use patterns influenced by farmer imitation?[J]. Agriculture Ecosystems & Environment, 115(1-4): 113-127. doi: 10.1016/j.agee.2005.12.019
[76]	Schrojenstein Lantman J, Verburg P H, Bregt A, et al.2011. Core principles and concepts in land-use modelling: A literature review[M]//Koomen E, Borsboom-van Beurden. Land-use modelling in planning practice. New York:Springer: 35-57
[77]	Seto K C, Reenberg A, Boone C G, et al.2012. Urban land teleconnections and sustainability[J]. Proceedings of the National Academy of Sciences, 109(20): 7687-7692. doi: 10.1073/pnas.1117622109 pmid: 22550174
[78]	Shakhramanyan N G, Schneider U A, McCarl B A.2013. US agricultural sector analysis on pesticide externalities-the impact of climate change and a Pigovian tax[J]. Climatic Change, 117(4): 711-723. doi: 10.1007/s10584-012-0585-3
[79]	Shin J K, Fossett M.2008. Residential Segregation by Hill-Climbing Agents on the Potential Landscape[J]. Advances in Complex Systems, 11(6): 875-899. doi: 10.1142/S021952590800191X
[80]	Steffen W, Sanderson A, Tyson P D, et al.2005. Global change and the earth system: A planet under pressure[M]. Heidelberg, Germany: Springer.
[81]	Sun S, Parker D C, Huang Q, et al.2014. Market impacts on land-use change: An agent-based experiment[J]. Annals of the Association of American Geographers, 104(3): 460-484. doi: 10.1080/00045608.2014.892338
[82]	Tian Q, Holland J H, Brown D G.2016. Social and economic impacts of subsidy policies on rural development in the Poyang Lake Region, China: Insights from an agent-based model[J]. Agricultural Systems, 148: 12-27. doi: 10.1016/j.agsy.2016.06.005
[83]	Turner B L, Lambin E F, Reenberg A.2007. The emergence of land change science for global environmental change and sustainability[J]. Proceedings of the National Academy of Sciences of the United States of America, 104(52): 20666-20671. doi: 10.1073/pnas.0704119104
[84]	Van Vliet J, Bregt A K, Brown D G, et al.2016. A review of current calibration and validation practices in land-change modeling[J]. Environmental Modelling & Software, 82: 174-182. doi: 10.1016/j.envsoft.2016.04.017
[85]	Verburg P H, Dearing J A, Dyke J G, et al.2016. Methods and approaches to modelling the Anthropocene[J]. Global Environmental Change, 39: 328-340. doi: 10.1016/j.gloenvcha.2015.08.007
[86]	Verburg P H, Overmars K P.2009. Combining top-down and bottom-up dynamics in land use modeling: Exploring the future of abandoned farmlands in Europe with the Dyna-CLUE model[J]. Landscape Ecology, 24(9): 1167. doi: 10.1007/s10980-009-9355-7
[87]	Verburg P H, Schot P P, Dijst M J, et al.2004. Land use change modelling: current practice and research priorities[J]. GeoJournal, 61(4): 309-324. doi: 10.1007/s10708-004-4946-y
[88]	Verburg P H, Soepboer W, Veldkamp A, et al.2002. Modeling the spatial dynamics of regional land use: The CLUE-S model[J]. Environmental Management, 30(3): 391-405. doi: 10.1007/s00267-002-2630-x pmid: 12148073
[89]	Walsh R.2007. Endogenous open space amenities in a locational equilibrium[J]. Journal of Urban Economics, 61(2): 319-344. doi: 10.1016/j.jue.2006.09.002
[90]	Wong G Y, Alavalapati J R.2003. The land-use effects of a forest carbon policy in the US[J]. Forest Policy and Economics, 5(3): 249-263. doi: 10.1016/S1389-9341(02)00061-8
[91]	Würtenberger L, Koellner T, Binder C R.2006. Virtual land use and agricultural trade: Estimating environmental and socio-economic impacts[J]. Ecological Economics, 57(4): 679-697. doi: 10.1016/j.ecolecon.2005.06.004
[92]	Xu X, Du Z, Zhang H.2016. Integrating the system dynamic and cellular automata models to predict land use and land cover change[J]. International Journal of Applied Earth Observation and Geoinformation, 52: 568-579. doi: 10.1016/j.jag.2016.07.022
[93]	Zhang H, Zeng Y, Jin X, et al.2016. Simulating multi-objective land use optimization allocation using multi-agent system: A case study in Changsha, China[J]. Ecological Modelling, 320: 334-347. doi: 10.1016/j.ecolmodel.2015.10.017

模型类别	特征	主要优势	主要限制
机器学习和统计模型	利用过去观察的土地覆被(利用)变化数据,建立土地变化与特定时空要素之间的参数或非参数关系	① 可用于对机理过程不明的情形; ② 能很好地结合遥感数据	① 因假设驱动力不变,仅能用于短期预测; ② 存在过拟合风险
元胞模型	整合考虑邻居作用的土地覆被(利用)适宜性地图和预期土地变化量来预测未来土地变化与空间格局	① 空间直观地刻画微观机制; ② 较好地代表邻居作用	对决策过程的刻画隐含于空间转换规则中
部门经济学模型	采用局部或一般均衡结构模型,表达区域内按经济部门土地供给与需求	① 直观表示部门和区域间供给需求; ② 能较好刻画市场机制	对空间的表达不足
空间分解的经济学模型	利用结构(或简化形式)的计量经济模型来确定影响土地系统空间均衡的因果关系	① 基于微观经济学理论中价格机制来刻画主体行为; ② 能在一定程度表达空间格局	① 对土地自然属性考虑不足; ② 大量既定经济学假设
多主体模型	模拟异质土地利用主体(主体之间,主体与环境间相互作用)的决策和行为	① 基于主体分类刻画主体决策过程; ② 主体学习和进化能表达决策路径依赖性	① 往往根据案例情况定义规则,只适用于特定区域和情形; ② 对空间的刻画有待加强
混合方法模型	将不同方法整合到一个模型或模拟框架中	综合不同方法优点,能突破单一方法的固有限制	模型复杂度增加导致率定和验证更为复杂
