基于空间分形特征的城市群实体空间识别方法

doi:10.18306/dlkxjz.2017.06.003

摘要/Abstract

摘要：

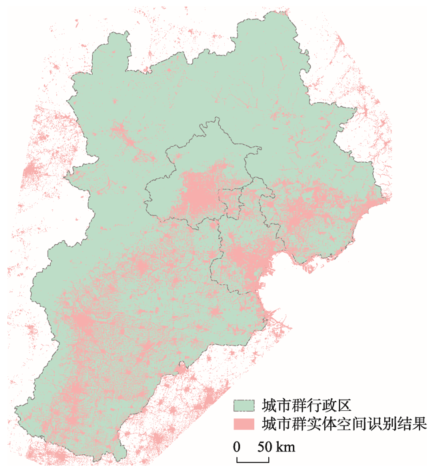

城市群是城市地理学的重要研究领域,对城市群的实体空间进行界定识别是研究城市群的前提和基础。城市群作为众多城镇的集群,前人对城市群的空间识别主要是以城市为单元进行的,缺少对识别单元空间形态的考虑。城市群实体空间的形态具有自相似性,空间分形特征可作为自相似性的表征工具,通过对空间分形特征的分析、识别及提取,可以实现对空间对象基于形态的客观测度。本文借鉴单个城市其边界的相关识别方法,从不同尺度的空间最小可识别单元出发,测度城市群城镇空间形态的分形特征,并据此提出了城市群城镇的客观识别方法。该方法利用城镇的空间分形特征识别归属于城市群的城镇,通过空间最小可识别单元的变化得到不同的城镇规模并获取城市群城镇的空间分形特征,再以此为基础对空间分形特征的存在范围进行识别,将其映射于空间最终实现对城市群城镇的识别,进而得到城市群在空间上的分布状况。本文将该方法应用于京津冀城市群,基于2016年Landsat卫星遥感影像,实现了对京津冀城市群构成城镇的识别,为界定城市群的实体空间提供了一次有益尝试。

关键词: 城市群, 实体空间, 空间识别, 空间形态, 分形特征

Abstract:

Urban system study is an important field of urban geography. Identification of the physical space of urban systems is a precondition and basis for the research on urban systems. Existing research on urban system identification primarily took city as the minimum unit since urban systems are aggregations of towns and cities. They determine whether a city belong to an urban system through the comparison between values of selected indicators and the criteria set by subjective estimates, which unfortunately lacks consideration of spatial morphology. The morphology of the physical space of urban systems has self-similarity, which can be expressed by the feature of fractal. Through the analysis, identification, and extraction of fractals we can describe the spatial objects objectively based on morphology. In this study, by referencing the experience in identifying boundary of individual cities by fractal, we measured the spatial fractal feature of towns of urban systems from the perspective of spatially identifiable minimum unit at different scales, and proposed a method to identify the towns of urban systems. Through the change of identifiable minimum unit we obtained different scales of towns by which we derive their spatial fractal feature. Then, the range of spatial fractal features was identified, and the identification of urban systems that is the spatial distribution of urban systems was achieved by mapping the range to the space. Finally, this study applied the method to the Beijing-Tianjin-Hebei urban system and achieved the identification of the system based on Landsat images in 2016.

Key words: urban systems, physical space, space identification, spatial morphology, fractal

刘飞, 郑新奇, 黄晴. 基于空间分形特征的城市群实体空间识别方法[J]. 地理科学进展, 2017, 36(6): 677-684.

Fei LIU, Xinqi ZHENG, Qing HUANG. Identification of the physical space of urban systems based on fractal analysis[J]. PROGRESS IN GEOGRAPHY, 2017, 36(6): 677-684.

图/表 10

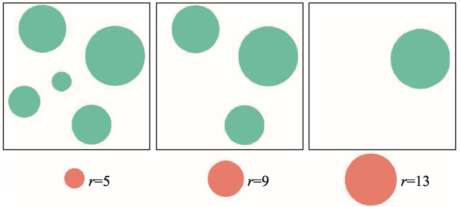

图1

表1

图2

图3

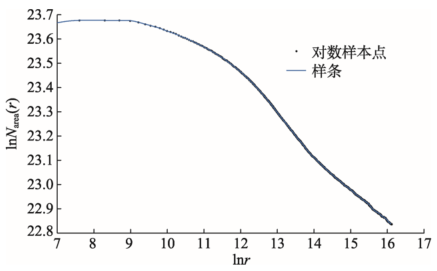

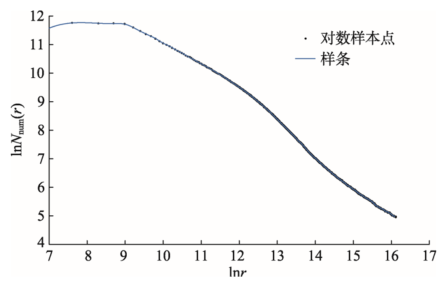

图4

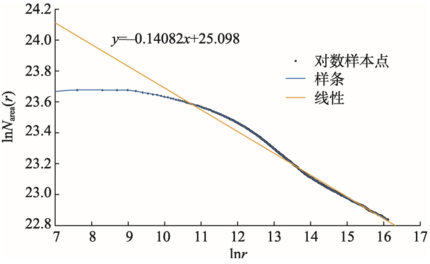

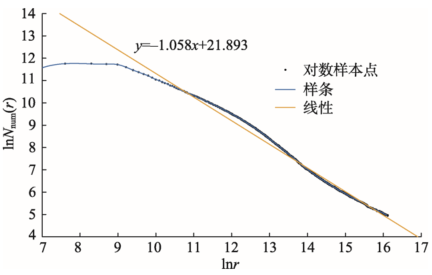

图5

图6

图7

图8

表2

参考文献 34

[1]	陈群元, 宋玉祥. 2010. 城市群空间范围的综合界定方法研究: 以长株潭城市群为例[J]. 地理科学, 30(5): 660-666.
	[Chen Q Y, Song Y X.2010. Methods of dividing the boundary of urban agglomerations: Chang-Zhu-Tan Urban Agglomeration as a case[J]. Scientia Geographica Sinica, 30(5): 660-666.]
[2]	方创琳. 2009. 城市群空间范围识别标准的研究进展与基本判断[J]. 城市规划学刊, (4): 1-6.
	[Fang C L.2009. Research progress and general definition about identification standards of urban agglomeration space[J]. Urban Planning Forum, (4): 1-6.]
[3]	方创琳. 2011. 中国城市群形成发育的新格局及新趋向[J]. 地理科学, 31(9): 1025-1034. doi: 10.1007/s12182-011-0124-2
	[Fang C L.2011. New structure and new trend of formation and development of urban agglomerations in China[J]. Scientia Geographica Sinica, 31(9): 1025-1034.] doi: 10.1007/s12182-011-0124-2
[4]	黄金川, 刘倩倩, 陈明. 2014. 基于GIS的中国城市群发育格局识别研究[J]. 城市规划学刊, (3): 37-44.
	[Huang J C, Liu Q Q, Chen M.2014. The identification of urban agglomeration distribution in China based on GIS analysis[J]. Urban Planning Forum, (3): 37-44.]
[5]	江曼琦. 2013. 对城市群及其相关概念的重新认识[J]. 城市发展研究, 20(5): 30-35.
	[Jiang M Q.2013. Rein-terpret urban agglomeration and related concepts[J]. Urban Development Studies, 20(5): 30-35.]
[6]	李震, 顾朝林, 姚士谋. 2006. 当代中国城镇体系地域空间结构类型定量研究[J]. 地理科学, 26(5): 544-550. doi: 10.3969/j.issn.1000-0690.2006.05.005
	[Li Z, Gu C L, Yao S M.2006. A quantitative study on regional spatial structure of urban system in con-temporary China[J]. Scientia Geographica Sinica, 26(5): 544-550.] doi: 10.3969/j.issn.1000-0690.2006.05.005
[7]	刘继生, 陈彦光. 2003. 河南省城镇体系空间结构的多分形特征及其与水系分布的关系探讨[J]. 地理科学, 23(6): 713-720. doi: 10.3969/j.issn.1000-0690.2003.06.012
	[Liu J S, Chen Y G.2003. Multifractal measures based on man-land relationships of the spatial structure of the urban system in Henan[J]. Scientia Geographica Sinica, 23(6): 713-720.] doi: 10.3969/j.issn.1000-0690.2003.06.012
[8]	潘竟虎, 刘伟圣. 2014. 基于腹地划分的中国城市群空间影响范围识别[J]. 地球科学进展, 29(3): 352-360. doi: 10.11867/j.issn.1001-8166.2014.03.0352
	[Pan J H, Liu W S.2014. Identification of spatial influence sphere of urban agglomerations in China based on urban hinter-land delimitation[J]. Advances in Earth Science, 29(3): 352-360.] doi: 10.11867/j.issn.1001-8166.2014.03.0352
[9]	谭兴业, 陈彦光. 2015. 基于邻域扩展量化法的城市边界识别[J]. 地理科学进展, 34(10): 1259-1265.
	[Tan X Y, Chen Y G.2015. Urban boundary identification based on neighborhood dilation[J]. Progress in Geography, 34(10): 1259-1265.]
[10]	王成龙, 刘慧, 张梦天. 2016. 行政边界对城市群城市用地空间扩张的影响: 基于京津冀城市群的实证研究[J]. 地理研究, 35(1): 173-183. doi: 10.11821/dlyj201601015
	[Wang C L, Liu H, Zhang M T.2016. The influence of administrative boundary on the spatial expansion of urban land: A case study of Beijing-Tianjin-Hebei urban agglomeration[J]. Geo-graphical Research, 35(1): 173-183.] doi: 10.11821/dlyj201601015
[11]	姚士谋, 陈振光, 朱英明, 等. 2006. 中国城市群[M]. 第3版. 合肥: 中国科学技术大学出版社.
	[Yao S M, Chen Z G, Zhu Y M, et al.2006. The urban agglomerations of China[M]. 3rd ed. Hefei, China: Press of Uni-versity of Science and Technology of China.]
[12]	张京祥, 邹军, 吴启焰, 等. 2001. 论都市圈地域空间的组织[J]. 城市规划, 25(5): 19-23. doi: 10.3321/j.issn:1002-1329.2001.05.006
	[Zhang J X, Zou J, Wu Q Y, et al.2001. On the spatial organization of the metropolitan area[J]. City Planning Review, 25(5): 19-23.] doi: 10.3321/j.issn:1002-1329.2001.05.006
[13]	周一星, 史育龙. 1995. 建立中国城市的实体地域概念[J]. 地理学报, 50(4): 289-301. doi: 10.11821/xb199504001
	[Zhou Y X, Shi Y L.1995. Toward establishing the concept of physical urban area in China[J]. Acta Geographica Sinica, 50(4): 289-301.] doi: 10.11821/xb199504001
[14]	Ariza-Villaverde A B, Jiménez-Hornero F J, De Ravé E G.2013. Multifractal analysis of axial maps applied to the study of urban morphology[J]. Computers, Environment and Urban Systems, 38: 1-10. doi: 10.1016/j.compenvurbsys.2012.11.001
[15]	Chen Y G.2016. Defining urban and rural regions by multifractal spectrums of urbanization[J]. Frac-tals-Complex Geometry, Patterns, and Scaling in Nature and Society, 24(1): 1650004. doi: 10.1142/S0218348X16500043
[16]	Chen Y G, Wang J J.2013. Multifractal characterization of urban form and growth: The case of Beijing[J]. Environment and Planning B: Planning and Design, 40(5): 884-904. doi: 10.1068/b36155
[17]	Chen Y G, Zhou Y X.2004. Multi-fractal measures of city-size distributions based on the three parameter Zipf model[J]. Chaos, Solitons & Fractals, 22(4): 793-805. doi: 10.1016/j.chaos.2004.02.059
[18]	Christaller W.1933. Die zentralen orte in suddeutschland[M]. Jena, Germany: Fischer.
[19]	Ferreira J A, Condessa B, Castro e Almeida J, et al.2010. Urban settlements delimitation in low-density are-as-An application to the municipality of Tomar (Portugal)[J]. Landscape and Urban Planning, 97(3): 156-167. doi: 10.1016/j.landurbplan.2010.05.007
[20]	Fragkias M, Seto K C.2009. Evolving rank-size distributions of intra-metropolitan urban clusters in South China[J]. Computers, Environment and Urban Systems, 33(3): 189-199. doi: 10.1016/j.compenvurbsys.2008.08.005
[21]	Frankhauser P.1998. The fractal approach. A new tool for the spatial analysis of urban agglomerations[J]. Population, 10(1): 205-240. doi: 10.2307/1534622
[22]	Goodchild M F.2004. The validity and usefulness of laws in geographic information science and geography[J]. Annals of the American Association of Geographers, 94(2): 300-303. doi: 10.1111/j.1467-8306.2004.09402008.x
[23]	Haag G.1994. The rank-size distribution of settlements as a dynamic multifractal phenomenon[J]. Chaos, Solitons & Fractals, 4(4): 519-534. doi: 10.1016/0960-0779(94)90063-9
[24]	Martin D.1998. Automatic neighbourhood identification from population surfaces[J]. Computers, Environ-ment and Urban Systems, 22(2): 107-120.
[25]	Mu L, Wang X.2006. Population landscape: A geometric approach to studying spatial patterns of the US urban hierarchy[J]. International Journal of Geographical Information Science, 20(6): 649-667. doi: 10.1080/13658810600661342
[26]	Openshaw S, Charlton M, Craft A W, et al.1988. Investigation of leukaemia clusters by use of a geographical analysis machine[J]. The Lancet, 331: 272-273. doi: 10.1016/S0140-6736(88)90352-2 pmid: 2893085
[27]	Openshaw S, Charlton M, Wymer C, et al.1987. A mark 1 geographical analysis machine for the automated analysis of point data sets[J]. International Journal of Geographical Information Systems, 1(4): 335-358.
[28]	Rozenfeld H D, Rybski D, Andrade Jr J S, et al.2008. Laws of population growth[J]. Proceedings of the Na-tional Academy of Sciences of the United States of America, 105(48): 18702-18707.
[29]	Rozenfeld H D, Rybski D, Gabaix X, et al.2011. The area and population of cities: New insights from a dif-ferent perspective on cities[J]. American Economic Review, 101(5): 2205-2225. doi: 10.1257/aer.101.5.2205
[30]	Scott A J.2001. Global city-regions: Trends, theory, policy[M]. Oxford, UK: Oxford University Press.
[31]	Tannier C, Thomas I.2013. Defining and characterizing urban boundaries: A fractal analysis of theoretical cities and Belgian cities[J]. Computers, Environment and Urban Systems, 41: 234-248. doi: 10.1016/j.compenvurbsys.2013.07.003
[32]	Tannier C, Thomas I, Vuidel G, et al.2011. A fractal approach to identifying urban boundaries[J]. Geographical Analysis, 43(2): 211-227. doi: 10.1111/j.1538-4632.2011.00814.x
[33]	White R, Engelen G.1993. Cellular automata and fractal urban form: A cellular modelling approach to the evolution of urban land-use patterns[J]. Environment and Planning A, 25(8): 1175-1199.
[34]	White -R, Engelen G.1994. Urban systems dynamics and cellular automata: Fractal structures between order and chaos[J]. Chaos, Solitons & Fractals, 4(4): 563-583. doi: 10.1016/0960-0779(94)90066-3

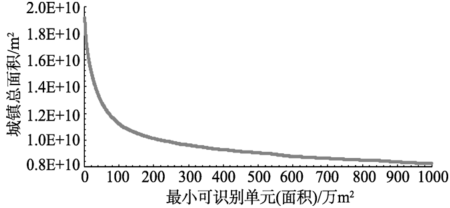

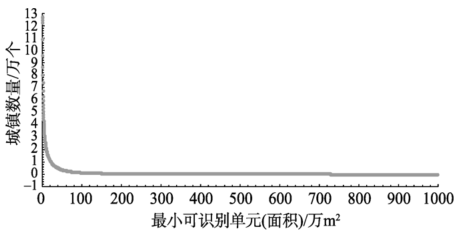

最小可识别单元(面积)/m²	城镇数量/个	城镇总面积/m²
2000	127448	19182219429
4000	126204	19178354882
6000	124706	19170842330
8000	122453	19155247742
10000	108958	19030279736
……	……	……
1455784000	1	1455790901
1455786000	1	1455790901
1455788000	1	1455790901
1455790000	1	1455790901
1455792000	0	0

对比内容	传统据指标判别方法	基于空间分形特征的识别方法
识别角度	自下而上	自上而下
识别目标	城市	实体空间
行政边界	需要	不需要
行政单元分拆性	不可分	可分
贴近客观存在	否	是
空间形态	未充分考虑	已考虑
捕捉影响因素	需要	不需要
空间相互作用及要素流	需要但未考虑	无需单独考虑
评价指标体系	需要	不需要
判别标准	需要	不需要
城市双分形特征	未考虑	已体现
