NDVI、NDMI与地表温度关系的对比研究

doi:10.18306/dlkxjz.2017.05.006

地理科学进展 ›› 2017, Vol. 36 ›› Issue (5): 585-596.doi: 10.18306/dlkxjz.2017.05.006

NDVI、NDMI与地表温度关系的对比研究

李斌^1,²(), 王慧敏³, 秦明周^2,^4,^*(), 张鹏岩^2,⁴

1. 黄河中下游数字地理技术教育部重点实验室,河南开封 475004
2. 河南大学环境与规划学院,河南开封 475004
3. 新乡市规划设计研究院,河南新乡 453000
4. 河南大学环境与健康工程技术中心,河南开封 475004

收稿日期:2016-06-01 出版日期:2017-05-20 发布日期:2017-05-20
通讯作者: 秦明周
作者简介:
作者简介：李斌(1974-),河南汝州人,高级实验师,博士研究生,主要从事GIS与环境地理研究,E-mail:libin@henu.edu.cn。
基金资助:
国家自然科学基金项目(41171439,41401457)

Comparative study on the correlations between NDVI, NDMI and LST

Bin LI^1,²(), Huimin WANG³, Mingzhou QIN^2,^4,^*(), Pengyan ZHANG^2,⁴

1. Key Laboratory of Geospatial Technology for Middle and Lower Yellow River Regions, Ministry of Education, Kaifeng 475004, Henan, China
2. College of Environment and Planning, Henan University, Kaifeng 475004, Henan, China
3. Xinxiang Institute of Planning and Design, Xinxiang 453003, Henan, China
4. Environmental and Health Engineering Center, Henan University, Kaifeng 475004, Henan, China

Received:2016-06-01 Online:2017-05-20 Published:2017-05-20
Contact: Mingzhou QIN
Supported by:
National Natural Science Foundation of China, No.41171439, 41401457

摘要/Abstract

摘要：

通过研究归一化植被指数(NDVI)、归一化水汽指数(NDMI)与地表温度(LST)的相关关系,对比NDVI和NDMI定量分析LST的适宜程度。以Landsat 8遥感影像为数据源,以郑汴都市区为例,反演LST,计算NDVI和NDMI。从整体、分区、像元等不同层面分析NDVI和NDMI与LST的相关关系,并利用GEO-Da软件,分析150 m、300 m、450 m三种不同采样间隔数据的NDVI、NDMI与LST的空间相关性。主要结论为：①NDVI与LST的线性拟合度较差,而NDMI与LST具有很强的线性关系,剖面分析显示NDMI与LST呈显著负相关关系。②缓冲区分析结果表明,随着距城市中心距离的增加,用地类型增多,LST和NDMI之间的相关性逐渐增强。③在Moran's I空间相关性分析中,不同采样间隔下两指数与LST的负相关关系均比较明显,但由于水体在2个指数中数值的差异,使NDMI与LST表现出更强的空间负相关性,而NDVI与LST空间相关性则相对较弱。因此,总的来说NDMI是热环境研究的有效指标,与NDVI相比,NDMI与LST的负相关关系更强、更稳定,也更适宜于对LST的定量分析。

Abstract:

Through the comparative study of the correlations between the normalized difference vegetation index (NDVI), normalized difference moisture index (NDMI) and land surface temperature (LST), the suitability to research LST using NDVI and NDMI was verified. Based on Landsat 8 remote sensing imagery in the Zhengzhou-Kaifeng metropolitan area, LST was retrieved, and both NDVI and NDMI were calculated. At the overall, regional, and pixel levels, the correlations between LST and NDVI, NDMI were analyzed. Using GEO-Da, the spatial correlations between LST and NDVI, NDMI were simulated with the data of three sampling intervals of 150 m, 300 m and 450 m. The conclusions are as follows. First, there is a stronger linear negative correlation between LST and NDMI, and sectional analysis shows that NDMI resembles a mirror image of LST, whereas the correlation between LST and NDVI is much weaker. Second, buffer analysis shows that with the increase of distance from the down town and increase of the number of land use types, the correlation between NDMI and LST also increases gradually. Third, in the analysis of Moran's I spatial correlation, the negative correlations between LST and the two indices were significant, but because of the great difference between the values of water body in the two indices, NDMI and LST show stronger negative correlation, while the correlation between NDVI and LST is relatively weak. In general, compared with NDVI, NDMI is more suitable as an effective indicator for quantitative analysis of LST.

Key words: spatial correlation, normalized difference vegetation index (NDVI), normalized difference moistureindex (NDMI), land surface temperature (LST), Zhengzhou-Kaifeng metropolitan area

李斌, 王慧敏, 秦明周, 张鹏岩. NDVI、NDMI与地表温度关系的对比研究[J]. 地理科学进展, 2017, 36(5): 585-596.

Bin LI, Huimin WANG, Mingzhou QIN, Pengyan ZHANG. Comparative study on the correlations between NDVI, NDMI and LST[J]. PROGRESS IN GEOGRAPHY, 2017, 36(5): 585-596.

图/表 11

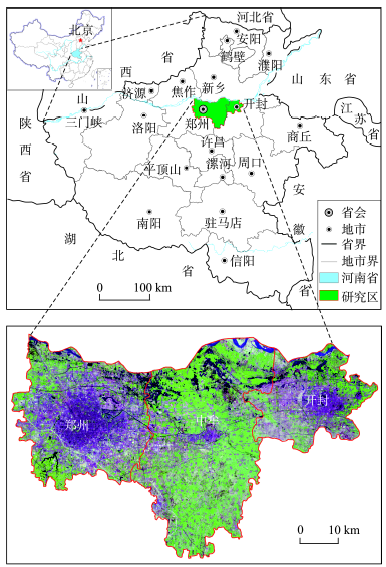

图1

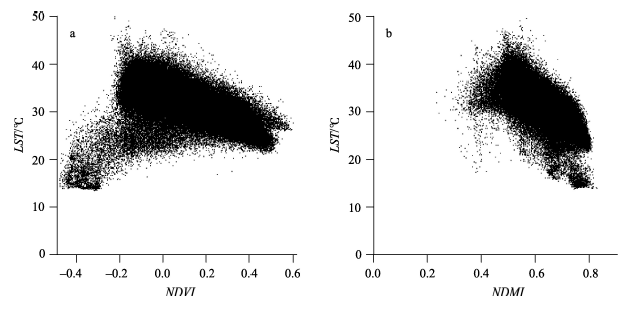

图2

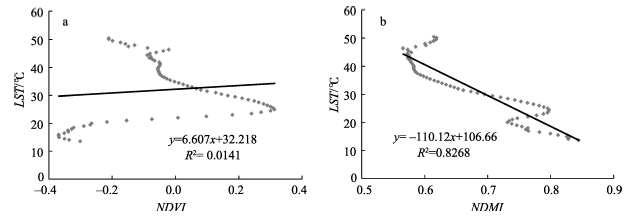

图3

图4

表1

表2

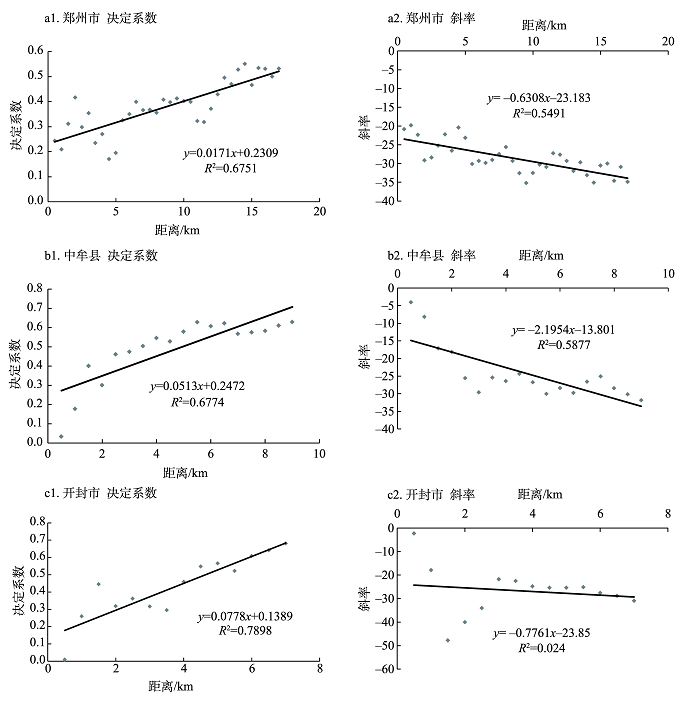

缓冲区NDMI-LST的线性回归分析"

区域	缓冲区半径/km	R²	回归方程	自由度	区域	缓冲区半径/km	R²	回归方程	自由度
郑州市	0.5	0.243	y = -20.849x + 49.209	928	中牟县	0.5	0.033	y = -4.084x + 35.724	925
	1.0	0.209	y = -19.815x + 48.136	2664		1.0	0.178	y = -8.180x + 37.840	2661
	1.5	0.311	y = -22.342x + 49.152	4396		1.5	0.401	y = -17.166x + 43.225	4408
	2.0	0.417	y = -29.190x + 53.907	6160		2.0	0.301	y = -18.166x + 44.008	6145
	2.5	0.298	y = -28.433x + 53.888	7910		2.5	0.461	y = -25.607x + 48.666	7925
	3.0	0.354	y = -25.252x + 51.525	9647		3.0	0.474	y = -29.608x + 50.836	9645
	3.5	0.234	y = -22.235x + 49.628	11407		3.5	0.505	y = -25.396x + 47.723	11426
	4.0	0.270	y = -26.600x + 52.205	13168		4.0	0.546	y = -26.417x + 48.295	13097
	4.5	0.171	y = -20.423x + 48.116	14882		5.0	0.579	y = -26.752x + 48.306	16654
	5.0	0.195	y = -23.178x + 49.911	16636		5.5	0.628	y = -30.059x + 50.703	18346
	5.5	0.326	y = -30.130x + 54.403	18369		6.0	0.607	y = -28.380x + 49.686	20138
	6.0	0.350	y = -29.325x + 53.308	20129		6.5	0.623	y = -29.759x + 50.838	21815
	6.5	0.399	y = -29.839x + 53.812	21835		7.0	0.568	y = -26.586x + 48.513	23608
	7.0	0.366	y = -29.070x + 53.401	23616		7.5	0.576	y = -25.094x + 47.324	25370
	7.5	0.367	y = -27.477x + 52.335	25287		8.0	0.584	y = -28.452x + 49.986	27039
	8.0	0.356	y = -25.619x + 51.066	27104		8.5	0.610	y = -30.197x + 51.334	28823
	8.5	0.407	y = -29.332x + 53.511	28842		9.0	0.630	y = -31.872x + 52.685	30638
	9.0	0.398	y = -32.580x + 55.542	30525	开封市	0.5	0.009	y = -2.313x + 33.926	925
	9.5	0.413	y = -35.210x + 57.236	32347		1.0	0.260	y = -17.877x + 42.875	2667
	10.0	0.402	y = -32.520x + 55.566	34074		1.5	0.446	y = -47.803x + 60.906	4391
	10.5	0.399	y = -30.274x + 54.014	35794		2.0	0.319	y = -40.069x + 56.520	6154
	11.0	0.323	y = -30.914x + 54.005	37546		2.5	0.362	y = -34.108x + 52.790	7918
	11.5	0.318	y = -27.295x + 51.801	39631		3.0	0.316	y = -21.770x + 45.261	9646
	12.0	0.372	y = -27.668x + 52.344	41009		3.5	0.295	y = -22.519x + 45.753	11421
	12.5	0.429	y = -29.299x + 53.172	42844		4.0	0.459	y = -24.834x + 47.320	13125
	13.0	0.496	y = -32.015x + 54.758	44149		4.5	0.547	y = -25.370x + 47.443	14885
	13.5	0.470	y = -29.711x + 53.287	43346		5.0	0.566	y = -25.419x + 47.248	16651
	14.0	0.528	y = -33.138x + 55.629	43118		5.5	0.522	y = -25.170x + 47.163	18374
	14.5	0.551	y = -35.129x + 56.732	43307		6.0	0.609	y = -27.567x + 48.530	20084
	15.0	0.466	y = -30.534x + 53.455	43318		6.5	0.642	y = -28.850x + 49.537	20669
	15.5	0.534	y = -30.042x + 52.985	43960		7.0	0.681	y = -30.975x + 50.972	21169
	16.0	0.531	y = -34.612x + 55.691	42313
	16.5	0.500	y = -30.932x + 53.374	42435
	16.5	0.500	y = -30.932x + 53.374	42435		17.0	0.532	y = -34.884x + 55.999	39269

表2

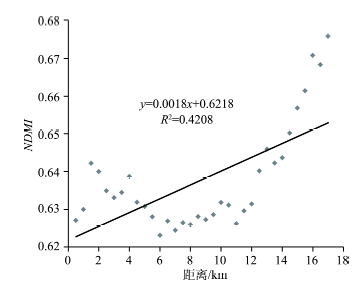

图5

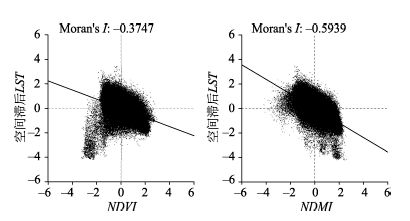

图6

图7

图8

表3

参考文献 28

[1]	白洁, 刘绍民, 扈光. 2008. 针对TM/ETM+遥感数据的地表温度反演与验证[J]. 农业工程学报, 24(9): 148-154.
	[Bai J, Liu S M, Hu G.2008. Inversion and verification of land surface temperature with remote sensing TM/ETM+ data[J]. Transactions of the Chinese Society of Agricultural Engineering, 24(9): 148-154.]
[2]	宫阿都, 陈云浩, 李京, 等. 2007. 北京市城市热岛与土地利用/覆盖变化的关系研究[J]. 中国图象图形学报, 12(8): 1476-1482. doi: 10.3969/j.issn.1006-8961.2007.08.028
	[Gong A D, Chen Y H, Li J, et al.2007. Study on relationship between urban heat island and urban land use and cover change in Beijing[J]. Journal of Image and Graphics, 12(8): 1476-1482.] doi: 10.3969/j.issn.1006-8961.2007.08.028
[3]	胡菊旸, 唐世浩, 董立新. 2014. FY3A/MERSI地表温度反演[J]. 遥感技术与应用, 29(4): 531-538.
	[Hu J Y, Tang S H, Dong L X.2014. Land surface temperature retrieval from FY3A/MERSI[J]. Remote Sensing Technology and Application, 29(4): 531-538.]
[4]	蒋大林, 匡鸿海, 曹晓峰, 等. 2015. 基于Landsat 8的地表温度反演算法研究: 以滇池流域为例[J]. 遥感技术与应用, 30(3): 448-454.
	[Jiang D L, Kuang H H, Cao X F, et al.2015. Study of land surface temperature retrieval based on Landsat 8: With the sample of Dianchi Lake basin[J]. Remote Sensing Technology and Application, 30(3): 448-454.]
[5]	历华, 柳钦火, 邹杰. 2009. 基于MODIS数据的长株潭地区NDBI和NDVI与地表温度的关系研究[J]. 地理科学, 29(2): 262-267.
	[Li H, Liu Q H, Zou J.2009. Relationships of LST to NDBI and NDVI in Changsha-Zhuzhou-Xiangtan area based on MODIS data[J]. Scientia Geographica Sinica, 29(2): 262-267.]
[6]	马伟, 赵珍梅, 刘翔, 等. 2010. 植被指数与地表温度定量关系遥感分析: 以北京市TM数据为例[J]. 国土资源遥感, 22(4): 108-112. doi: 10.6046/gtzyyg.2010.04.22
	[Ma W, Zhao Z M, Liu X, et al.2010. A quantitative analysis of the relationship between vegetation indices and land surface temperature based on remote sensing: A case study of TM data for Beijing[J]. Remote Sensing for Land & Resources, 22(4): 108-112.] doi: 10.6046/gtzyyg.2010.04.22
[7]	钱乐祥, 崔海山. 2008. 归一化水汽指数与地表温度的关系[J]. 地理研究, 27(6): 1358-1366.
	[Qian L X, Cui H S.2008. Relationship between normalized difference moisture index and land surface temperature[J]. Geographical Research, 27(6): 1358-1366.]
[8]	覃志豪, Li W J, Zhang M H, 等. 2003. 单窗算法的大气参数估计方法[J]. 国土资源遥感, 15(2): 37-43. doi: 10.3969/j.issn.1001-070X.2003.02.010
	[Qin Z H, Li W J, Zhang M H, et al.2003. Estimating of the essential atmospheric parameters of mono-window algorithm for land surface temperature retrieval from Landsat TM6[J]. Remote Sensing for Land & Resources, 15(2): 37-43.] doi: 10.3969/j.issn.1001-070X.2003.02.010
[9]	覃志豪, Zhang M H, Karnieli A, 等. 2001. 用陆地卫星TM6数据演算地表温度的单窗算法[J]. 地理学报, 56(4): 456-466.
	[Qin Z H, Zhang M H, Karnieli A, et al.2001. Mono-window algorithm for retrieving land surface temperature from Landsat TM6 data[J]. Acta Geographica Sinica, 56(4): 456-466.]
[10]	万鲁河, 王绍巍, 陈晓红. 2011. 基于GeoDA的哈大齐工业走廊GDP空间关联性[J]. 地理研究, 30(6): 977-984. doi: 10.11821/yj2011060002
	[Wan L H, Wang S W, Chen X H.2011. GeoDA-based spatial correlation analysis of GDP in Hadaqi industrial corridor[J]. Geographical Research, 30(6): 977-984.] doi: 10.11821/yj2011060002
[11]	王敏, 孟浩, 白杨, 等. 2013. 上海市土地利用空间格局与地表温度关系研究[J]. 生态环境学报, 22(2): 343-350.
	[Wang M, Meng H, Bai Y, et al.2013. Relationships between landscapes spatial pattern and land surface temperature in Shanghai[J]. Ecology and Environmental Sciences, 22(2): 343-350.]
[12]	夏浪, 毛克彪, 马莹, 等. 2014. 基于可见光红外成像辐射仪数据的地表温度反演[J]. 农业工程学报, 30(8): 109-116. doi: 10.3969/j.issn.1002-6819.2014.08.013
	[Xia L, Mao K B, Ma Y, et al.2014. Retrieval land surface temperature from visible infrared imager radiometer suite data[J]. Transactions of the Chinese Society of Agricultural Engineering, 30(8): 109-116.] doi: 10.3969/j.issn.1002-6819.2014.08.013
[13]	谢苗苗, 王仰麟, 付梅臣. 2011. 城市地表温度热岛影响因素研究进展[J]. 地理科学进展, 30(1): 35-41.
	[Xie M M, Wang Y L, Fu M C.2011. An overview and perspective about causative factors of surface urban heat island effects[J]. Progress in Geography, 30(1): 35-41.]
[14]	张小飞, 王仰麟, 吴健生, 等. 2006. 城市地域地表温度-植被覆盖定量关系分析: 以深圳市为例[J]. 地理研究, 25(3): 369-377. doi: 10.3321/j.issn:1000-0585.2006.03.001
	[Zhang X F, Wang Y L, Wu J S, et al.2006. Study on land surface temperature vegetation cover relationship in urban region: A case in Shenzhen City[J]. Geographical Research, 25(3): 369-377.] doi: 10.3321/j.issn:1000-0585.2006.03.001
[15]	朱怀松, 刘晓锰, 裴欢, 等. 2007. 热红外遥感反演地表温度研究现状[J]. 干旱气象, 25(2): 17-21. doi: 10.3969/j.issn.1006-7639.2007.02.004
	[Zhu H S, Liu X M, Pei H, et al.2007. Summary on retrieval of land surface temperature using thermal infrared remote sensing[J]. Arid Meteorology, 25(2): 17-21.] doi: 10.3969/j.issn.1006-7639.2007.02.004
[16]	Essa W, Verbeiren B, van der Kwast J, et al.2012. Evaluation of the DisTrad thermal sharpening methodology for urban areas[J]. International Journal of Applied Earth Observation and Geoinformation, 19: 163-172. doi: 10.1016/j.jag.2012.05.010
[17]	Gao B C.1996. NDWI: A normalized difference water index for remote sensing of vegetation liquid water from space[J]. Remote Sensing of Environment, 58(3): 257-266. doi: 10.1016/S0034-4257(96)00067-3
[18]	Gillies R R, Kustas W P, Humes K S.1997. A verification of the 'triangle' method for obtaining surface soil water content and energy fluxes from remote measurements of the Normalized Difference Vegetation Index (NDVI) and surface e[J]. International Journal of Remote Sensing, 18(15): 3145-3166. doi: 10.1080/014311697217026
[19]	Hardisky M A, Klemas V, Smart R M.1983. The influence of soil salinity, growth form, and leaf moisture on the spectral radiance of Spartina alterniflora canopies[J]. Photogrammetric Engineering & Remote Sensing, 49(1): 77-84.
[20]	Hunt Jr E R, Rock B N, Nobel P S.1987. Measurement of leaf relative water content by infrared reflectance[J]. Remote Sensing of Environment, 22(3): 429-435. doi: 10.1016/0034-4257(87)90094-0
[21]	Lyon J G, Yuan D, Lunetta R S, et al.1998. A change detection experiment using vegetation indices[J]. Photogrammetric Engineering & Remote Sensing, 64(2): 143-150. doi: 10.1144/petgeo.4.1.95
[22]	Mallick J, Singh C K, Shashtri S, et al.2012. Land surface emissivity retrieval based on moisture index from LANDSAT TM satellite data over heterogeneous surfaces of Delhi city[J]. International Journal of Applied Earth Observation and Geoinformation, 19: 348-358. doi: 10.1016/j.jag.2012.06.002
[23]	Raynolds M K, Comiso J C, Walker D A, et al.2008. Relationship between satellite-derived land surface temperatures, arctic vegetation types, and NDVI[J]. Remote Sensing of Environment, 112(4): 1884-1894. doi: 10.1016/j.rse.2007.09.008
[24]	Sun D L, Kafatos M.2007. Note on the NDVI-LST relationship and the use of temperature-related drought indices over North America[J]. Geophysical Research Letters, 34(24): 497-507. doi: 10.1029/2007GL031485
[25]	Wan Z, Wang P, Li X.2004. Using MODIS Land Surface Temperature and Normalized Difference Vegetation Index products for monitoring drought in the southern Great Plains, USA[J]. International Journal of Remote Sensing, 25(1): 61-72. doi: 10.1080/0143116031000115328
[26]	Weng Q H, Lu D S, Schubring J.2004. Estimation of land surface temperature-vegetation abundance relationship for urban heat island studies[J]. Remote Sensing of Environment, 89(4): 467-483. doi: 10.1016/j.rse.2003.11.005
[27]	Yuan F, Bauer M E.2007. Comparison of impervious surface area and normalized difference vegetation index as indicators of surface urban heat island effects in Landsat imagery[J]. Remote Sensing of Environment, 106(3): 375-386. doi: 10.1016/j.rse.2006.09.003
[28]	Zhang Y S, Odeh I O A, Han C F.2009. Bi-temporal characterization of land surface temperature in relation to impervious surface area, NDVI and NDBI, using a sub-pixel image analysis[J]. International Journal of Applied Earth Observation and Geoinformation, 11(4): 256-264. doi: 10.1016/j.jag.2009.03.001

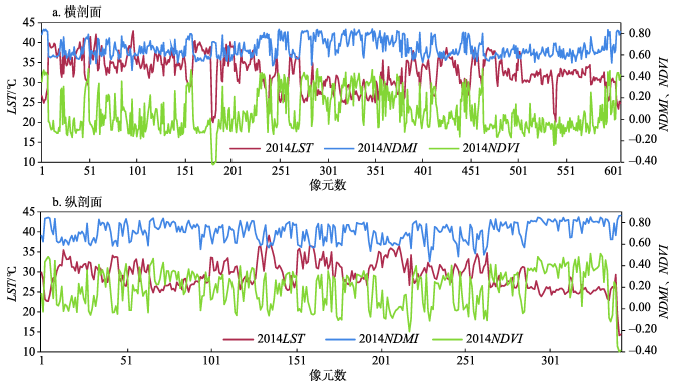

	NDMI-LST	NDVI-LST	NDMI-NDVI
横剖面	-0.7677	-0.5619	0.8523
纵剖面	-0.7903	-0.5540	0.8400

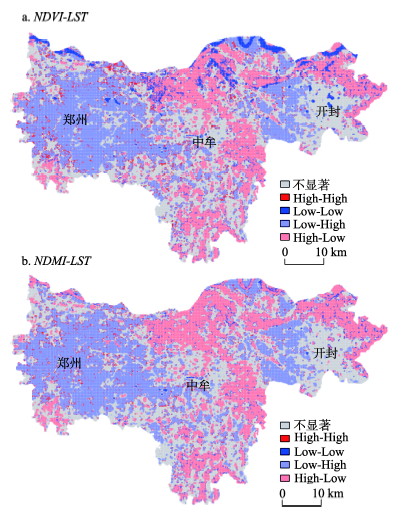

采样间隔/m	变量	不显著点数 (占比/%)	第一象限High-High 点数(占比/%)	第三象限Low-Low 点数(占比/%)	第二象限Low-High 点数(占比/%)	第四象限High-Low 点数(占比/%)
150	NDVI-LST	82199(61.8)	3483(2.6)	6068(4.6)	23635(17.8)	17671(13.3)
150	NDMI-LST	82189(61.8)	2522(1.9)	2496(1.9)	24612(18.5)	21237(16.0)
300	NDVI-LST	21630(65.0)	952(2.9)	1578(4.7)	5239(15.7)	3874(11.6)
300	NDMI-LST	21621(65.0)	815(2.4)	830(2.5)	5381(16.2)	4626(13.9)
450	NDVI-LST	9901(67.0)	457(3.1)	728(4.9)	2124(14.4)	1572(10.6)
450	NDMI-LST	9944(67.3)	410(2.8)	419(2.8)	2134(14.4)	1875(12.7)
