曹娥江下游XYC孔粒度特征及沉积记录

doi:10.18306/dlkxjz.2017.04.007

摘要/Abstract

摘要：

基于曹娥江下游星一村钻孔(XYC)1717个沉积物样品的粒度分析,探讨钱塘江南岸地区全新世沉积环境记录。初步结论如下：①基于粒度组成,XYC孔沉积物分为粉砂质砂、砂质粉砂、粉砂、粘土质粉砂等4种岩性,自下而上分为9个单元,组成多个粒度粗细变化旋回。其中,第1、4两层为粉砂质砂,砂含量高于粉砂,粘粒含量10%~15%,分选差,动力条件复杂;第3、5两层属砂质粉砂,粉砂为主但含量不超过70%,砂含量20%以上,粘粒含量低;第2、7、9三层为粉砂,粉砂含量超过70%,粘粒、砂含量均低于20%;第6、8两层为粘土质粉砂,粉砂含量高于70%,粘粒含量20%以上。②基于C-M图最大搬运动能和平均搬运动能强弱及其变化幅度分析,初步识别出4种沉积相,自下而上依次为河流相、潮坪相、浅海相、湖沼相。第1、2两层为高能且不稳定的水动力搬运环境,属河流相沉积;第3~7层,最大搬运动能减弱,搬运动力与上虞近海滩涂样品SYTT相似,为潮坪相沉积;第8~9层,搬运动能低且变幅小,属低能静水沉积环境;第8层下段为浅海相,该层上段至第9层为湖沼相。③粒度纵向变化表明,粘粒含量自下而上波动增加;砂含量自下而上波动减少,平均粒径向上变细、分选性向上变好。XYC孔记录了该地区9690~5131 cal.a BP时段海面上升,达到高海面继而又海退的过程。研究结果有利于进一步探索钱塘江流域的古环境演变特征。

关键词: 曹娥江下游, 粒度, 沉积相, 沉积环境变化

Abstract:

Based on the analysis of grain-size constitution and distribution curves of the XYC core in the downstream of the Cao'e River—the central section of the Ningshao plain, we arrived at the following conclusions: (1) According to the grain-size constitution, the sediments of the XYC Core can be divided into four lithologies: silty sand, sandy silt, silt, and clayey silt. They distribute along the core alternately. The core is divided into 9 layers and they compose multiple grain-size combinations. The 9 layers are marked as layer 1 to layer 9 from the bottom to the top. Among them, layer 1 and layer 4 are silty sand, and the percentage of clay is 10%~15%, which is poorly sorted and the dynamics is complicated. Layer 3 and layer 5 are sandy silt, the percentage of silt is no more than 70%, and clay is more than 20%. The percentage of clay is low. Layer 2, layer 7, and layer 9 are silt, the percentage of silt is more than 70%, and clay and sand are less than 20%. Layer 6 and layer 8 are clayey silt, the percentage of silt is more than 70%, and clay is more than 20%. The percentage of sand is very low. (2) According to the C-M graph of the max and the mean values and the analysis of its variation, there were four types of deposits from the bottom to the top: fluvial, tidal flat, shallow marine, and lakes and marshes. For layer 1 and layer 2, the hydrology was high energy and unstable, which indicates a fluvial environment; for layer 3 to layer 7, the max hydrology weakened, but the mean hydrology was strong and the range was still wide, and the hydrology was similar to the SYTT tidal flat samples. It referred to a tidal flat environment; for layer 8 and layer 9, the hydrology was weak and stable, which indicates still water environment. Based on the grain-size and biology information, it can be concluded that the under part of layer 8 belonged to shallow marine environment, but the upper part and layer 9 belonged to lakes and marshes environment. (3) Vertical variation of grain-size indicates that clay increased from the bottom to the top with fluctuation, while sand declined. The average grain diameter is decreasing and the sorting coefficient is higher. The sediments change from the bottom to the top reveals that the XYC Core and its adjacent area experienced sea level rise, and then water level decreased during 9690~5131 cal.a BP. The results of the study are helpful for identifying the paleoenvironmental evolution characteristics of the Qiantang River Basin.

Key words: downstream of the Cao'e River, grain-size, sediment, environmental change of deposit

朱丽东, 王俊, 裴豪杰, 叶玮, 李凤全, 莫东坡, 林海意. 曹娥江下游XYC孔粒度特征及沉积记录[J]. 地理科学进展, 2017, 36(4): 454-465.

Lidong ZHU, Jun WANG, Haojie PEI, Wei YE, Fengquan LI, Dongpo MO, Haiyi LIN. Grain-size and sedimentary records of the XYC Core in the downstream of the Cao’e River[J]. PROGRESS IN GEOGRAPHY, 2017, 36(4): 454-465.

图/表 11

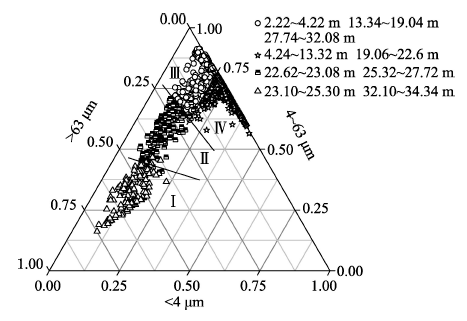

图1

表1

表2

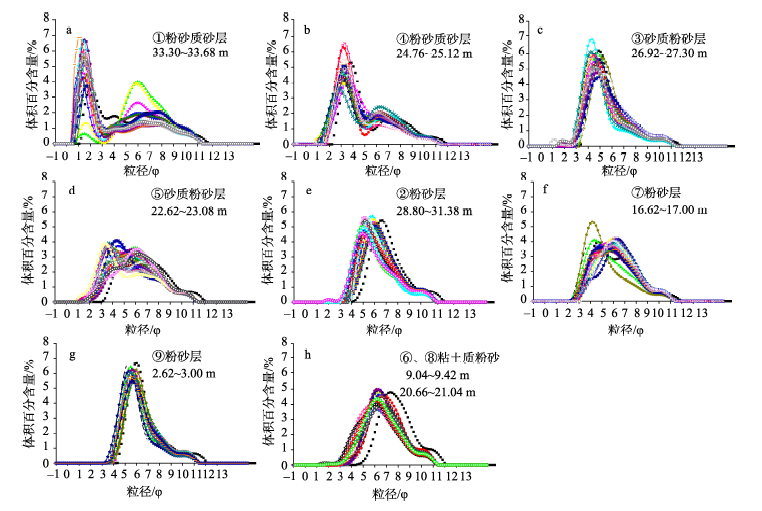

图2

表3

XYC孔不同岩性段粒度组成及参数特征"

岩性深度/m	项目	(<4 μm)/%	(4~63 μm)/%	(>63 μm)/%	(4~10 μm)/%	(10~63 μm)/%	粗细粉砂比	粉粘比
岩性深度/m	项目	(<4 μm)/%	(4~63 μm)/%	(>63 μm)/%	(4~10 μm)/%	(10~63 μm)/%	(10~63 μm)/(4~10 μm)	(10~63 μm)/(<4 μm)
⑩填土层	最小	4.02	33.51	0.52	2.22	30.87	2.81	2.84
0.00~2.20	最大	20.34	90.10	62.47	20.60	85.61	20.68	14.08
	平均	10.55	83.88	5.57	8.08	75.79	10.73	7.58
⑨粉砂层	最小	7.06	56.43	0.00	5.75	27.56	0.85	0.64
2.22~4.22	最大	42.96	91.29	7.95	35.26	85.36	14.73	12.10
	平均	13.66	85.06	1.28	15.02	70.04	5.80	6.14
⑧ 粘土质粉砂	最小	15.10	57.83	0.00	17.37	16.60	0.37	0.43
4.24~13.32	最大	40.69	83.96	15.03	44.43	65.02	3.74	4.31
	平均	27.34	72.01	0.66	33.26	38.75	1.24	1.58
⑦粉砂	最小	7.14	34.12	1.06	7.29	21.56	1.20	1.44
13.34~19.04	最大	27.07	80.87	54.46	32.67	66.57	5.89	6.02
	平均	16.70	71.99	11.31	20.44	51.55	2.66	3.21
⑥粘土质粉砂	最小	10.46	30.91	0.63	10.87	19.25	1.10	1.25
19.06~22.60	最大	29.05	84.55	57.64	33.40	58.13	4.86	4.81
	平均	20.93	71.17	7.91	24.65	46.52	1.99	2.34
⑤砂质粉砂	最小	9.15	42.90	10.10	9.73	31.93	1.88	1.94
22.62~23.08	最大	20.72	72.34	47.95	22.49	52.14	3.97	3.62
	平均	16.84	61.82	21.34	17.52	44.30	2.58	2.67
④ 粉砂质砂	最小	6.05	25.33	20.49	6.64	18.06	1.63	1.66
23.10~25.30	最大	16.94	68.77	66.84	18.73	58.45	5.66	5.44
	平均	11.59	40.53	47.87	11.84	28.69	2.48	2.53
③砂质粉砂	最小	6.85	45.03	0.00	6.38	32.86	2.33	2.76
25.32~27.72	最大	17.90	88.91	44.65	23.07	77.26	10.95	10.67
	平均	10.87	67.32	21.81	10.83	56.48	5.51	5.39
② 粉砂	最小	7.15	33.17	0.00	6.72	22.99	1.49	1.71
27.74~32.08	最大	23.78	88.36	25.67	30.91	76.47	10.21	9.60
	平均	17.88	78.78	3.34	21.84	56.94	2.84	3.31
①粉砂质砂	最小	8.20	16.20	1.36	5.82	10.39	1.34	0.90
32.10~34.34	最大	31.78	74.92	74.86	26.49	60.62	6.73	5.86
	平均	15.14	39.30	45.56	11.63	27.67	2.40	1.95

表3

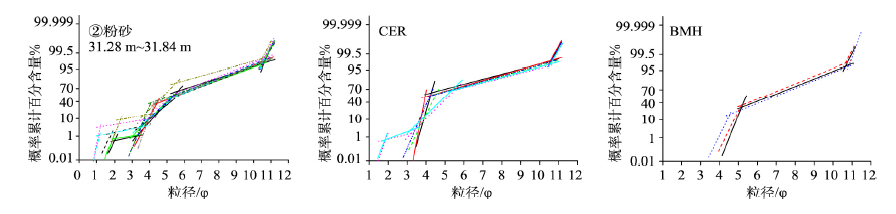

图3

表4

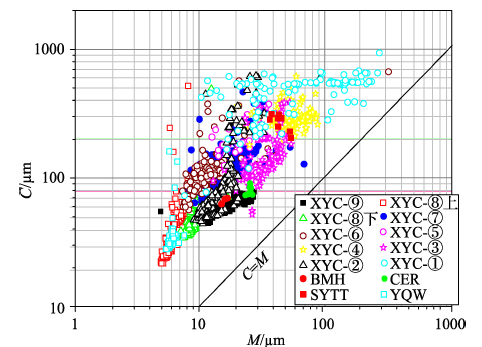

图4

图5

图6

表5

参考文献 40

[1]	陈桥驿, 吕以春, 乐祖谋. 1984. 论历史时期宁绍平原的湖泊演变[J]. 地理研究, 3(3): 29-43.
	[Chen Q Y, Lv Y C, Yue Z M.1984. On the lacustrine fluctuation in the regions of Ningbo-Shaoxing Plain in historical periods[J]. Geographical Research, 3(3): 29-43.]
[2]	陈小英, 陈沈良, 刘勇胜. 2006. 黄河三角洲滨海区沉积物的分异特征与规律[J]. 沉积学报, 24(5): 714-721.
	[Chen X Y, Chen S L, Liu Y S.2006. Sediment differentiation along nearshore zone of the Yellow River Delta[J]. Acta Sedimentologica Sinica, 24(5): 714-721.]
[3]	冯利华, 鲍毅新. 2005. 曹娥江出口江道的演变与整治[J]. 水科学进展, 16(1): 52-55.
	[Feng L H, Bao Y X.2005. Evolvement of water outlet of Cao'e River and its dredging[J]. Advances in Water Science, 16(1): 52-55.]
[4]	高抒, Collins M.1998. 沉积物粒径趋势与海洋沉积动力学[J]. 中国科学基金, (4): 241-246. doi: 10.3969/j.issn.1000-8217.1998.04.002
	[Gao S, Collins M.1998. The use of grain size trends in marine sediment dynamics[J]. Bulletin of National Natural Science Foundation of China, (4): 241-246.] doi: 10.3969/j.issn.1000-8217.1998.04.002
[5]	侯新花, 吴艳宏, 杨丽原. 2006. 全新世镜泊湖粒度特征记录的该地区古降水变化历史[J]. 湖泊科学, 18(6): 605-614.
	[Hou X H, Wu Y H, Yang L Y.2006. The Paleo-Precipitation history recorded by the characteristics of grain-size of Lake Jingpo during Holocene[J]. Journal of Lake Sciences, 18(6): 605-614.]
[6]	胡雪峰, 朱煜, 沈铭能. 2005. 南方网纹红土多元成因的粒度证据[J]. 科学通报, 50(9): 918-925. doi: 10.1360/04TD0252
	[Hu X F, Zhu Y, Shen M N.2005. Grain-size evidence for multiple origins of the reticulate red clay in southern China[J]. Chinese Science Bulletin, 50(9): 918-925.] doi: 10.1360/04TD0252
[7]	蒋国俊. 1995. 潮滩悬沙粒度参数的动力沉积学意义[J]. 海洋与湖沼, 26(1): 90-97.
	[Jiang G J.1995. The dynamic sedimentological meaning of grain-size parameters of tidal flat suspended sediments[J]. Oceanologia et Limnologia Sinica, 26(1): 90-97.]
[8]	李凤全, 叶玮, 朱丽东, 等. 2010. 第四纪网纹红土的类型与网纹化作用[J]. 沉积学报, 28(2): 346-355.
	[Li F Q, Ye W, Zhu L D, et al.2010. The types and format-ion of quaternary plinthitic red earth[J]. Acta Sedimentologica Sinica, 28(2): 346-355.]
[9]	李艳丽. 2010. 晚第四纪以来钱塘江下切河谷充填物特征及古环境演化[D]. 南京: 南京大学: 29-37.
	[Li Y L.2010. Characteristics of fill and palaeoenvironment evolution since the late Quaternary in the Qiantang River incised valley[D]. Nanjing, China: Nanjing University: 29-37.]
[10]	林春明. 1997. 杭州湾地区15000a以来层序地层学初步研究[J]. 地质评论, 43(3): 273-280.
	[Lin C M.1997. Sequence stratigraphic study on the Hangzhou Bay since 15000 a B.P.[J]. Geological Review, 43(3): 273-280.]
[11]	刘东生. 1985. 黄土与环境[M]. 北京: 科学出版社.
	[Liu D S.1985. Loess and environment[M]. Beijing, China: Science Press.]
[12]	骆丁. 2011. 浙江宁波地区第四系特征及岩相古地理研究[D]. 成都: 成都理工大学: 38.
	[Luo D.2011. Quaternary Characteristics and lithofacies paleogeography of Ningbo area in ZheJiang[D]. Chengdu, China: Chengdu University of Technology: 38.]
[13]	吕雁斌, 赵家驹, 黄伟, 等. 2011. 新疆巴里坤湖粒度组分分解及其环境指示意义[J]. 沉积学报, 29(1): 134-142.
	[Lv Y B, Zhao J J, Huang W, et al.2011. Decomposition of the grain-size component and its climate implication from lake Barkol, Xinjiang[J]. Acta Sedimentologica Sinica, 29(1): 134-142.]
[14]	潘存鸿, 蔡军, 施祖蓉, 等. 2000. 曹娥江径流特性及其对河口冲淤的影响[J]. 浙江大学学报: 理学版, 27(6): 671-676. doi: 10.3321/j.issn:1008-9497.2000.06.017
	[Pan C H, Cai J, Shi Z R, et al.2000. Runoff characteristics of Cao'e River and its effect on processes of the estuary[J]. Journal of Zhejiang University: Sciences Edition, 27(6): 671-676.] doi: 10.3321/j.issn:1008-9497.2000.06.017
[15]	潘峰, 林春明, 李艳丽, 等. 2011. 钱塘江南岸SE2孔晚第四纪以来沉积物粒度特征及环境演化[J]. 古地理学报, 13(2): 236-244. doi: 10.7605/gdlxb.2011.02.012
	[Pan F, Lin C M, Li Y L, et al.2011. Sediments grain-size characteristics and environmental evolution of Core SE2 in southern bank of Qiangtang River since the Late Quaternary[J]. Journal of Palaeogeography, 13(2): 236-244.] doi: 10.7605/gdlxb.2011.02.012
[16]	钱塘江志编纂委员会. 1998. 钱塘江志[M]. 北京: 方志出版社.
	[Qiantang jiang zhi bian zuan wei yuan hui. 1998. Qiantang Jiang Zhi[M]. Beijing, China: Fang Zhi Chu Ban She.]
[17]	史威, 陈炜. 2012. 古今洪水沉积粒度参数的对比分析[J]. 山东科技大学学报: 自然科学版, 31(5): 78-85. doi: 10.3969/j.issn.1672-3767.2012.05.013
	[Shi W, Chen W.2012. Contrastive analysis on grain size parameters of ancient and modern flood deposits[J]. Journal of Shandong University of Science and Technology: Natural Edition, 31(5): 78-85.] doi: 10.3969/j.issn.1672-3767.2012.05.013
[18]	史威, 马春梅, 焦锋, 等. 2008. 宁绍平原史前遗址、埋藏泥炭与中全新世海面变化[J]. 海洋学报, 30(4): 169-175. doi: 10.3321/j.issn:0253-4193.2008.04.021
	[Shi W, Ma C M, Jiao F, et al.2008. Archaeological sites, buried peat and fluctuation of sea-level in Holocene in the Ningshao Plain in Zhejiang Province, China[J]. Acta Oceanologica Sinica, 30(4): 169-175.] doi: 10.3321/j.issn:0253-4193.2008.04.021
[19]	王建华, 周洋, 郑卓, 等. 2006. 杭州湾晚第四纪沉积与古环境演变[J]. 古地理学报, 8(4): 551-558. doi: 10.3969/j.issn.1671-1505.2006.04.012
	[Wang J H, Zhou Y, Zheng Z, et al.2006. Late Quaternary sediments and paleoenvironmental evolution in Hangzhou Bay[J]. Journal of Palaeogeography, 8(4): 551-558.] doi: 10.3969/j.issn.1671-1505.2006.04.012
[20]	王昕. 2011. 冰后期以来长江水下三角洲地区沉积作用及沉积环境演化[D]. 青岛: 中国科学院大学: 95-101.
	[Wang X.2011. Post-glacial sediment environment evolution of the sub-aqueous Yangtze Delta[D]. Qingdao, China: University of Chinese Academy of Sciences: 95-101.]
[21]	吴立, 朱诚, 郑朝贵, 等. 2012. 全新世以来浙江地区史前文化对环境变化的响应[J]. 地理学报, 67(7): 903-916.
	[Wu L, Zhu C, Zheng C G, et al.2012. Response of prehistoric culture to climatic environmental changes since Holocene in Zhejiang, East China[J]. Acta Geographica Sinica, 67(7): 903-916.]
[22]	熊尚发, 丁仲礼, 刘东生. 2001. 南方红土元素迁移特征及其古环境意义[J]. 土壤学报, 38(1): 25-31. doi: 10.3321/j.issn:0564-3929.2001.01.004
	[Xiong S F, Ding Z L, Liu D S.2001. Mass balance geochemistry of the red earth in southern China and its environmental implications[J]. Acta Pedologica Sinica, 38(1): 25-31.] doi: 10.3321/j.issn:0564-3929.2001.01.004
[23]	徐涛玉. 2013. 全新世以来长江三角洲高分辨率层序地层学研究[D]. 青岛: 中国科学院大学24-32.
	[Xu T Y.2013. The study of high resolution sequence stratigraphy of Holocene in the Yangtze River delta area[D]. Qingdao, China: University of Chinese Academy of Sciences: 24-32.]
[24]	薛春汀. 2002. 对我国沿海全新世海面变化研究的讨论[J]. 海洋学报, 24(4): 58-67. doi: 10.3321/j.issn:0253-4193.2002.04.007
	[Xue C T.2002. Holocene sea-level change along China coast[J]. Acta Oceanologica Sinica, 24(4): 58-67.] doi: 10.3321/j.issn:0253-4193.2002.04.007
[25]	杨怀仁, 谢志仁. 1984. 中国东部近20000年来的气候波动与海面升降运动[J]. 海洋与湖沼, 15(1):1-13.
	[Yang H R, Xie Z R.1984. Sea-level changes along the east coast of China over the last 20000 years[J]. Oceanologia ET Limnologia Sinica, 15(1): 1-13.]
[26]	杨立辉, 叶玮, 朱丽东, 等. 2008. 第四纪加积型红土与黄土的风成相似性探讨[J]. 干旱区地理, 31(3): 341-347.
	[Yang L H, Ye W, Zhu L D, et al.2008. Aeolian-genesis comparability of aggraded red earth in South China with loess in North China[J]. Arid Land Geography, 31(3): 341-347.]
[27]	张桂甲, 李从先. 1996. 冰后期钱塘江河口湾地区的海陆相互作用[J]. 海洋通报, 15(2): 43-49.
	[Zhang G J, Li C X.1996. Land-ocean interaction in Qiantangjiang estuarine area since last glaciation[J]. Marine Science Bulletin, 15(2): 43-49.]
[28]	张瑞虎, 谢建磊, 刘韬, 等. 2011. 长江口水下三角洲沉积物记录的古环境演化[J]. 海洋地质与第四纪地质, 31(1): 1-10.
	[Zhang R H, Xie J L, Liu T, et al.2011. Palaeoenvironmental evolution of subaqueous Yangtze Delta inferred from sedimentary records[J]. Marine Geology＆ Quaternary Geology, 31(1):1-10.]
[29]	赵希涛, 唐领余, 沈才明, 等. 1994. 江苏建湖庆丰剖面全新世气候变迁和海平面变化[J]. 海洋学报, 16(1): 78-88.
	[Zhao X T, Tang L Y, Shen C M, et al.1994. Jiangsu Jianhu Qingfeng poumian Quanxinshi qihou bianqian he haipingmian bianhua[J]. Acta Oceanologica Sinica, 16(1): 78-88.]
[30]	赵亚楠, 王张华, 吴绪旭, 等. 2015. 长江口现代潮滩沉积物粒度特征及其在沉积相识别中的应用[J]. 古地理学报, 17(3): 405-416. doi: 10.7605/gdlxb.2015.03.34
	[Zhao Y N, Wang Z H, Wu X X, et al.2015. Grain size distribution of modern tidal flat sediments at the Yangtze river mouth and its application to identification of sedimentary facies[J]. Journal of Palaeogeography, 17(3): 405-416.] doi: 10.7605/gdlxb.2015.03.34
[31]	朱诚, 郑朝贵, 马春梅, 等. 2003. 对长江三角洲和宁绍平原一万年来高海面问题的新认识[J]. 科学通报, 48(23): 2428-2438.
	[Zhu C, Zheng C G, Ma C M, et al.2003. On the Holocene sea-level highstand along the Yangtze Delta and Ningshao Plain, East China[J]. Chinese Science Bulletin, 48(24): 2428-2438.]
[32]	朱丽东, 谷喜吉, 叶玮, 等. 2014. 洞庭湖周边地区第四纪红土粒度特征及环境意义[J]. 地理科学进展, 33(1): 13-22. doi: 10.11820/dlkxjz.2014.01.002
	[Zhu L D, Gu X J, Ye W, et al.2014. Grain-size features of Quaternary red earth in Dongting Lake Area and their paleoenvironmental significance[J]. Progress in Geography, 33(1): 13-22.] doi: 10.11820/dlkxjz.2014.01.002
[33]	Doeglas D J.1968. Grain-size indices, classification and environment[J]. Sedimentology, 10(2): 83-100. doi: 10.1111/j.1365-3091.1968.tb01101.x
[34]	Flemming B W.2000. A revised textural classification of gravel-free muddy sediments on the basis of ternary diagrams[J]. Continental Shelf Research, 20(10-11): 1125-1137. doi: 10.1016/S0278-4343(00)00015-7
[35]	Friedman G M.1979. Address of retiring President of the International Association of Sedimentologists: Differences in size distributions of populations of particles among sands from various origins[J]. Sedimentology, 26(1): 3-22. doi: 10.1111/j.1365-3091.1979.tb00336.x
[36]	Hori K, Saito Y, Zhao Q H, et al.2001. Sedimentary facies of the tide-dominated paleo-Changjiang (Yangtze) estuary during the last transgression[J]. Marine Geology, 177(3-4): 331-351. doi: 10.1016/S0025-3227(01)00165-7
[37]	Liu R, Qin J G, Mei X.2014. Sedimentary environment changes of the Ningshao Plain since the later stage of the Late Pleistocene: Evidence from palynology and stable organic carbon isotopes[J]. Quaternary International, 333: 188-197. doi: 10.1016/j.quaint.2013.10.055
[38]	Passega R.1957. Texture as characteristic of clastic deposition[J]. AAPG Bulletin, 41(9): 1952-1984.
[39]	Sahu B K.1964. Depositional mechanisms from the size analysis of clastic sediments[J]. Journal of Sedimentary Research, 34(1): 73-83. doi: 10.1306/74D70FCE-2B21-11D7-8648000102C1865D
[40]	Shepard F P.1954. Nomenclature based on sand-silt-clay ratios[J]. Journal of Sedimentary Research, 24(3): 151-158. doi: 10.1306/D4269774-2B26-11D7-8648000102C1865D

分层及深度	岩性特征描述
⑩(0~2.20 m)	厚约2.20 m,灰黄色,质地松散,不粘;有大量植物根系,表层堆有生活垃圾,人为扰动较大
⑨(2.22~4.22 m)	厚约2.02 m,灰黄色至灰黑色,含水量高,粘,见微层理;在2.22~2.72 m处有铁锈色斑点,在2.72~3.18 m处含少量黑色碳斑;在3.18~4.22 m处有大量碳化植物碎屑;含2个厚度分别为10 cm和38 cm的泥炭层
⑧(4.24~13.32 m)	厚约9 m,灰黑色和青灰色为主,质地紧实,粘;4.24~4.60 m可见碳化植物碎屑;含植物残体及黑斑;在6.40~11.00 m处可见少量气孔;在11.00~13.32 m处有可见贝壳碎屑
⑦(13.34~19.04 m)	厚约5.72 m,青灰色,质地较软,较粘;含较多气孔、少量贝壳碎屑和黑色斑点
⑥(19.06~22.60 m)	厚约3.56 m,青灰色,质地较软,较粘;含较多气孔和少量贝壳碎屑;可见少量粉砂透镜体;偶见灰黄色淤泥呈团块状
⑤(22.62~23.08 m)	厚约0.48 m,灰色,质地略松散;含少量气孔和黑斑;见极少量贝壳碎屑
④(23.10~25.30 m)	厚约2.22 m,灰色,质地略松散;24.22~25.18 m出现较多完整贝壳,并见黑色斑块;含少量砾石,偶见植物碎屑
③(25.32~27.72 m)	厚约2.42 m,青灰色,质地较粘;25.32~26.42 m处有黑斑,27.28~27.72 m处含少量气孔;含少量贝壳碎片
②(27.74~32.08 m)	厚约4.36 m,青灰色,略松散;含少量气孔;在27.74~28.82 m处含黑斑和极少量贝壳碎屑,28.82~29.64 m处局部可见少量灰黄色钙结核,29.64~32.08 m处有黑斑;可见粉砂透镜体,偶见植物碎屑
①(32.10-34.34 m)	厚约2.26 m,灰黄色为主,松散;以砂为主,表面具锈色,含较多肉眼可见的、磨圆度较高的砾石

样品编号及深度	¹⁴C年龄/a BP	校正年代/cal.a BP
XYC-3-028(2.76 m)	4600±30	5284~5329
XYC-10-039(9.78 m)	6620±40	7440~7570
XYC-26-026(26.72 m)	8150±30	9009~9137
XYC-30-053(31.74 m)	8600±30	9524~9622

岩性/深度/m	M_φ/φ	σ	SK_φ	K_g	Q3/φ	Md/φ	Q1/φ	Q3-Q1
⑩填土0.00~2.20	5.49	1.40	0.42	1.45	6.12	5.21	4.61	1.51
⑨粉砂2.22~4.22	6.09	1.41	0.35	1.28	6.80	5.85	5.18	1.62
⑧粘土质粉砂4.24~13.32	7.13	1.46	0.20	1.07	8.04	6.99	6.14	1.90
⑦粉砂13.34~19.04	6.10	1.80	0.18	0.99	7.30	5.94	4.82	2.48
⑥粘土质粉砂19.06~22.60	6.46	1.80	0.12	1.01	7.66	6.37	5.21	2.45
⑤砂质粉砂22.62~23.08	5.80	2.07	0.18	0.91	7.26	5.61	4.25	3.02
④粉砂质砂23.10~25.30	4.78	2.18	0.43	0.88	6.41	4.16	3.15	3.26
③砂质粉砂25.32~27.72	5.30	1.77	0.37	1.21	6.21	4.93	4.12	2.09
②粉砂27.74~32.08	6.40	1.63	0.27	1.10	7.39	6.16	5.30	2.08
①粉砂质砂32.10~34.34	4.56	2.68	0.35	0.83	6.67	3.91	2.41	4.26
全剖面	6.16	1.73	0.26	1.07	7.26	5.92	4.95	2.31

钻孔名称	层或沉积类型	参数	(<4 μm)/%	(4~8 μm)/%	(8~32 μm)/%	(32~63 μm)/%	(>63 μm)/%
XYC	⑦	变化范围	7.14~21.07	5.23~23.54	16.36~51.97	4.00~31.72	1.06~54.46
		均值	16.70	14.54	40.04	17.55	11.31
	⑥	变化范围	10.46~29.05	7.77~24.48	18.56~55.05	3.89~28.95	0.63~57.64
		均值	20.93	17.77	40.53	12.86	7.91
	⑤	变化范围	9.15~20.72	6.81~16.51	21.16~41.07	12.08~23.44	10.10~47.95
		均值	16.84	12.72	32.04	17.07	21.34
	④	变化范围	6.05~16.94	4.68~13.59	10.18~37.51	8.90~9.23	20.49~66.84
		均值	11.59	8.62	19.20	12.72	47.87
	③	变化范围	6.85~17.90	4.82~19.26	16.61~57.65	5.66~38.67	0.00~44.65
		均值	10.87	9.26	33.17	25.96	21.81
TJS-1	低潮滩	变化范围	8.60~15.40	4.20~7.10	21.80~38.00	19.00~40.50	16.30~32.10
		均值	12.30	5.70	28.90	28.80	24.40
TJS-2	高潮滩	变化范围	19.30~28.40	13.30~19.80	37.00~44.10	7.90~16.30	4.70~13.70
		均值	24.70	15.20	40.00	12.60	7.50
FX-1	中潮滩	变化范围	15.20~33.80	8.00~16.70	34.70~45.30	9.70~29.10	2.70~12.60
		均值	21.40	11.00	39.50	21.10	7.00
FX-2	中潮滩	变化范围	13.40~29.00	5.60~14.80	33.20~46.10	11.90~34.50	2.60~13.80
		均值	19.20	9.20	41.00	24.20	6.30
