城市群视角下空间联系与城市扩张的关联分析

doi:10.18306/dlkxjz.2016.10.001

摘要/Abstract

摘要：

在城市群发展的不同阶段,城市扩张表现出不同的时空特征。从城市群视角研究城市扩张的时空规律,对于理解城市扩张与城市群网络化组织结构之间的复杂耦合关系具有重要意义。本文以长江三角洲城市群为例,基于交通网络、引力模型和空间句法模型,结合1980、1990、2000和2010年Landsat遥感影像提取建设用地扩张信息,计算城市扩张强度与速度指标;采用核心城市可达性与空间相互作用力强度分析城市的交通网络区位;采用空间句法模型计算城市交通网络的通达性和城市在城市群交通路网中的地位。结果表明：城市扩张强度与核心城市可达性、核心城市空间相互作用力强度、空间句法变量指标呈正相关关系。城市扩张速度与上述指标在第一阶段(1980-1990年)和第二阶段(1990-2000年)呈正相关关系;但在第三阶段(2000-2010年)整体表现为负相关,分布在城市群外围、交通路网联系程度较低的城市扩张速度更快,呈现出空间收敛的趋势。表明城市群中的城市空间联系在城市扩张中起到重要但又不断演变的作用,研究结果对于长三角城市群规划和其他城市群城市扩张调控具有借鉴意义。

关键词: 城市扩张, 交通路网, 空间句法, 空间相互作用, 长三角城市群

Abstract:

Urban expansion displays varied spatial characteristics in different periods of urban agglomeration development. Studying the spatial and temporal patterns of urban expansion from the perspective of urban agglomeration is important for understanding the complex relationship between urban expansion and network structure of urban agglomerations. In this study we analyzed urban expansion in the Yangtze River Delta urban agglomeration based on road network, a gravity model, and a space syntax model. Construction land expansion was obtained from Landsat remote sensing data in 1980, 1990, 2000, and 2010 and then was used to calculate intensity and speed of urban expansion. Position of cities in the traffic network of the urban agglomeration was analyzed by accessibility to and spatial interaction intensity of core cities. The space syntax model was used to compute accessibility of the road network and the status of a city in the network of the urban agglomeration. The results show that, first, urban expansion intensity displayed a positive correlation with accessibility to core cities, spatial interaction intensity of core cities, and space syntax indicators. Second, there was a positive correlation between urban expansion velocity and indicators identified above in the first (1980-1990) and second (1990-2000) periods. However, it exhibited a negative correlation in the third period (2000-2010). Cities with a relatively poor interconnectivity of traffic network and located in the periphery of the urban agglomeration developed more quickly in the last time period, displaying a trend of spatial convergence. This study shows that spatial linkage played an important but evolving role in urban expansion within the urban agglomeration of the Yangtze River Delta. In addition, it serves as a reference for the planning of the Yangtze River Delta urban agglomeration and the regulation of urban expansion of other urban agglomerations.

Key words: urban expansion, road network, space syntax, spatial interaction, Yangtze River Delta Urban Agglomeration

焦利民, 唐欣, 刘小平. 城市群视角下空间联系与城市扩张的关联分析[J]. 地理科学进展, 2016, 35(10): 1177-1185.

Limin JIAO, Xin TANG, Xiaoping LIU. Spatial linkage and urban expansion:An urban agglomeration perspective[J]. PROGRESS IN GEOGRAPHY, 2016, 35(10): 1177-1185.

图/表 13

图1

表1

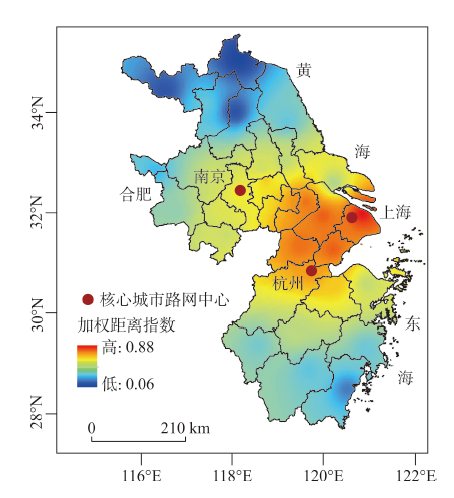

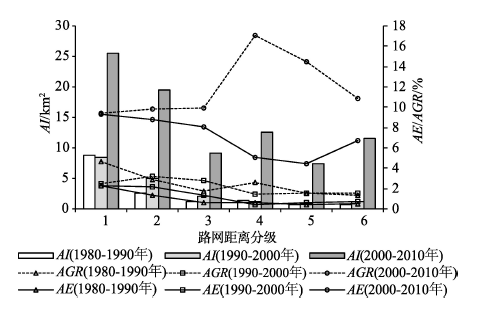

基于加权距离指数分级结果"

级别	$d j ˉ$	城市	1980年主城区面积/km²
1	0.81	上海市、苏州市、嘉兴市、湖州市、无锡市	166.10
2	0.68	常州市、杭州市、绍兴市、镇江市、南京市	123.04
3	0.53	马鞍山市、扬州市、滁州市、芜湖市、宁波市	55.31
4	0.44	泰州市、金华市、南通市、合肥市、衢州市	59.65
5	0.31	台州市、盐城市、宿迁市、丽水市、淮南市	63.54
6	0.13	温州市、徐州市、淮安市、连云港市	93.03

表1

图2

图3

表2

加权距离指数与城市扩张指标的斯皮尔曼秩相关系数值"

$d j ˉ$	AI/km²	AGR/%	AE/%
1990年	0.345	0.297	0.307^*
2000年	0.576^**	0.372^**	0.614^**
2010年	0.315	-0.210	0.391^*

表2

表3

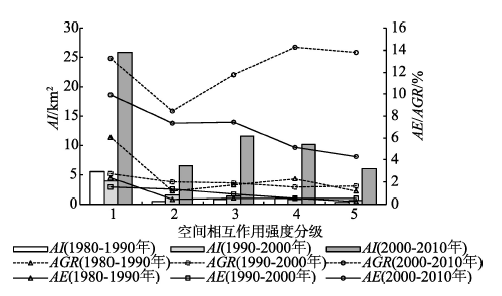

基于空间相互作用强度分级结果"

级别	$F ˉ$ /(元·人×10⁸/km²)	城市	1980年主城区面积/km²
1	21.09	苏州市、无锡市、常州市、宁波市、合肥市	98.89
2	3.80	镇江市、马鞍山市、扬州市、嘉兴市、绍兴市	70.72
3	1.59	湖州市、芜湖市、南通市、徐州市、温州市	69.23
4	0.45	泰州市、台州市、淮安市、盐城市、金华市	68.85
5	0.19	滁州市、淮南市、宿迁市、衢州市、连云港市、丽水市	54.24

表3

图4

表4

图5

表5

表6

表7

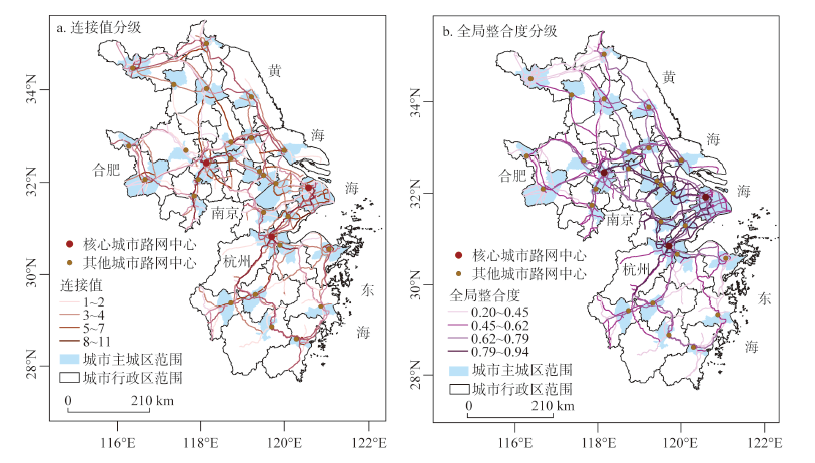

图6

参考文献 20

[1]	陈明星, 沈非, 查良松, 等. 2005. 基于空间句法的城市交通网络特征研究: 以安徽省芜湖市为例[J]. 地理与地理信息科学, 21(2): 39-42. doi: 10.3969/j.issn.1672-0504.2005.02.010
	[Chen M X, Shen F, Zha L S, et al.2005. A research on urban traffic network based on space syntax: A case study on Wuhu City[J]. Geography and Geo-Information Science, 21(2): 39-42.] doi: 10.3969/j.issn.1672-0504.2005.02.010
[2]	方创琳, 刘晓丽, 蔺雪芹. 2008. 中国城市化发展阶段的修正及规律性分析[J]. 干旱区地理, 31(4): 512-523.
	[Fang C L, Liu X L, Lin X Q.2008. Stages correction and regularity analysis of urbanization course of China[J]. Arid Land Geography, 31(4): 512-523.]
[3]	冯志新, 陈颖彪, 千庆兰, 等. 2014. 东莞市交通路网格局对城市空间扩张影响研究[J]. 地球信息科学学报, 16(1): 79-86. doi: 10.3724/SP.J.1047.2014.00079
	[Feng Z X, Chen Y B, Qian Q L, et al.2014. Relationship between the structure of urban traffic network and urban spatial expansion: A case study of Dongguan City[J]. Journal of Geo-Information Science, 16(1): 79-86.] doi: 10.3724/SP.J.1047.2014.00079
[4]	关伟, 周忻桐. 2014. 辽中南城市群空间相互作用的时空演变[J]. 经济地理, 34(9): 48-55.
	[Guan W, Zhou X T.2014. The spatio-temporal evolvement of spatial interaction among cities of south central Liaoning[J]. Economic Geography, 34(9): 48-55.]
[5]	李京涛, 周生路, 吴绍华. 2014. 道路交通网络与城市土地利用时空耦合关系: 以南京市为例[J]. 长江流域资源与环境, 23(1): 18-25. doi: 10.11870/cjlyzyyhj201401003
	[Li J T, Zhou S L, Wu S H.2014. Relationship between traffic network and urban land use in Nanjing with Landsat TM/ETM+ images[J]. Resources and Environment in the Yangtze Basin, 23(1): 18-25.] doi: 10.11870/cjlyzyyhj201401003
[6]	刘承良, 余瑞林, 段德忠. 2015. 基于空间句法的武汉城市圈城乡道路网通达性演化分析[J]. 地理科学, 35(6): 698-707.
	[Liu C L, Yu R L, Duan D Z.2015. The evolution of spatial accessibility of urban-rural road network based on the space syntax in Wuhan Metropolitan Area[J]. Scientia Geographica Sinica, 35(6): 698-707.]
[7]	刘士林, 刘新静. 2014. 中国城市群发展报告2014[M]. 上海: 东方出版中心: 1-270.
	[Liu S L, Liu X J.2014. Zhongguo chengshiqun fazhan baogao 2014[M]. Shanghai, China: Orient Publishing Center: 1-270.]
[8]	王明. 2015. 改革开放以来中国城市化的历程演进、态势与新进程[J]. 经济与社会发展, 13(4): 81-85. doi: 10.3969/j.issn.1672-2728.2015.04.020
	[Wang M.2015. Gaige kaifang yilai Zhongguo chengshihua de lishi yanjin, taishi yu xinjincheng[J]. Economic and Social Development, 13(4): 81-85.] doi: 10.3969/j.issn.1672-2728.2015.04.020
[9]	杨丽华, 孙桂平. 2014. 京津冀城市群交通网络综合分析[J]. 地理与地理信息科学, 30(2): 77-81. doi: 10.7702/dlydlxxkx20140216
	[Yang L H, Sun G P.2014. Comprehensive analysis of the Beijing-Tianjin-Hebei city cluster transportation network[J]. Geography and Geo-Information Science, 30(2): 77-81.] doi: 10.7702/dlydlxxkx20140216
[10]	朱桃杏, 吴殿廷, 马继刚, 等. 2011. 京津冀区域铁路交通网络结构评价[J]. 经济地理, 31(4): 561-565, 572.
	[Zhu T X, Wu D T, Ma J G, et al.2011. Evaluation of rail transport network within Beijing-Tianjin-Hebei region[J]. Economic Geography, 31(4): 561-565, 572.]
[11]	Iacono M, Levinson D.2016. Mutual causality in road network growth and economic development[J]. Transport Policy, 45: 209-217.
[12]	Jiang B, Claramunt C, Klarqvist B.2000. Integration of space syntax into GIS for modelling urban spaces[J]. International Journal of Applied Earth Observation and Geoinformation, 2(3-4): 161-171. doi: 10.1016/S0303-2434(00)85010-2
[13]	Jiao L M.2015. Urban land density function: A new method to characterize urban expansion[J]. Landscape and Urban Planning, 139: 26-39. doi: 10.1016/j.landurbplan.2015.02.017
[14]	Jiao L M, Mao L F, Liu Y L.2015. Multi-order landscape expansion index: Characterizing urban expansion dynamics[J]. Landscape and Urban Planning, 137: 30-39. doi: 10.1016/j.landurbplan.2014.10.023
[15]	Liu X P, Li X, Chen Y M, et al.2010. A new landscape index for quantifying urban expansion using multi-temporal remotely sensed data[J]. Landscape Ecology, 25(5): 671-682. doi: 10.1007/s10980-010-9454-5
[16]	Liu X P, Ma L, Li X, et al.2014. Simulating urban growth by integrating Landscape Expansion Index (LEI) and cellular automata[J]. International Journal of Geographical Information Science, 28(1): 148-163. doi: 10.1080/13658816.2013.831097
[17]	Lu C, Wu Y Z, Shen Q P, et al.2013. Driving force of urban growth and regional planning: A case study of China's Guangdong Province[J]. Habitat International, 40: 35-41. doi: 10.1016/j.habitatint.2013.01.006
[18]	Sohn J.2012. Does city location determine urban population growth? The case of small and medium cities in Korea[J]. Tijdschrift voor Economische en Sociale Geografie, 103(3): 276-292. doi: 10.1111/j.1467-9663.2011.00685.x
[19]	Wu K, Fang C L, Huang H B, et al.2013. Comprehensive delimitation and ring identification on urban spatial radiation of regional central cities: Case study of Zhengzhou[J]. Journal of Urban Planning and Development, 139(4): 258-273. doi: 10.1061/(ASCE)UP.1943-5444.0000120
[20]	Yang T X, Jing D, Wang S B.2015. Applying and exploring a new modeling approach of functional connectivity regarding ecological network: A case study on the dynamic lines of space syntax[J]. Ecological Modelling, 318: 126-137. doi: 10.1016/j.ecolmodel.2014.11.015

F	AI/km²	AGR/%	AE/%
1990年	0.442^*	0.312	0.495^*
2000年	0.740^**	0.402^*	0.708^**
2010年	0.551^**	-0.106	0.584^**

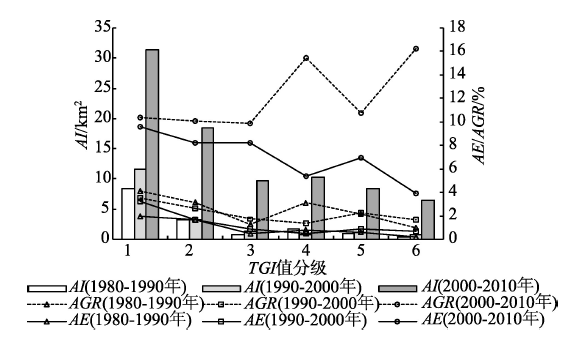

TGI	AI/km²	AGR/%	AE/%
1990年	0.744^***	0.328^*	0.574^**
2000年	0.860^***	0.482^**	0.870^***
2010年	0.850^***	-0.254	0.373^*

级别	城市(2010年)
1	上海市- -、南京市- -、杭州市- -、苏州市- -、镇江市↓-
2	徐州市↓-、合肥市- -、无锡市↑-、嘉兴市- -、宁波市-↓
3	常州市↑↑、湖州市- -、马鞍山市- -、芜湖市- -、绍兴市- -
4	淮安市↓↓、扬州市- -、衢州市- -、金华市- -、南通市- -
5	泰州市↑↑、连云港市- -、温州市- -、盐城市-↓、淮南市- -
6	台州市-↑、丽水市- -、滁州市- -、宿迁市- -
