黄土坡面片蚀过程稳定含沙量及其影响因素

doi:10.18306/dlkxjz.2016.08.010

摘要/Abstract

摘要：

黄土高原地区坡面土壤侵蚀具有明显的垂直分带性,溅蚀片蚀带是坡面侵蚀的最上方地带,研究片蚀过程含沙量变化有助于阐明坡面侵蚀规律。本文采用人工模拟降雨试验方法研究了黄土坡面片蚀稳定含沙量及其影响因素;试验处理包括2种质地的黄土(塿土和黑垆土),2个雨强(90和120 mm/h)和4个坡度(10°、15°、20°和25°)。结果表明：在不同质地黄土、降雨强度和坡度条件下,水流含沙量均呈现先减小后平稳的规律;稳定含沙量与土壤颗粒体积分形维数、降雨强度和坡度呈幂函数关系,稳定含沙量随土壤颗粒体积分形维数的增大而减小,随降雨强度和坡度的增大而增大,影响程度依次为土壤颗粒体积分形维数、降雨强度和坡度;所分析的水动力学指标中单位水流功率与稳定含沙量关系最密切,降雨强度对稳定含沙量的影响大于单位水流功率。

关键词: 片蚀, 稳定含沙量, 降雨强度, 坡度, 黄土质地, 单位水流功率

Abstract:

Soil erosion on the loess hillslope shows clear vertical zonal differentiation. From upslope to downslope locations, the erosion zones are sheet erosion zone, rill erosion zone, and shallow gully erosion zone. Sediment concentration of sheet erosion zone has important impacts on detachment, deposition, and transportation processes of rill erosion zone. The purpose of this study was to investigate the relationship between steady sediment concentration and different influencing factors including loess soil type, rainfall intensity, and slope gradient. The relationship between steady sediment concentration and shear stress, stream power, and unit stream power were also examined. The impacts of loess soil type, rainfall intensity, and slope gradient on sediment concentration in rain-induced sheet flow were examined by artificial rainfall experiment from June to August 2015. Two loess soils from Yangling and Changwu districts were subjected to simulated rainfall using a detachment tray under infiltration condition. Two rainfall intensities of 90 and 120 mm/h were simulated on slope gradients from 10° to 25°, resulting in rain-induced overland flow. The sediment was sampled at several time intervals and sediment concentration was determined. Different hydraulic parameters including flow velocity, shear stress, stream power, and unit stream power were measured. The results show that: (1) Sediment concentration demonstrated a similar trend under different conditions: first sharply decreased and then became steady. A new equation can be used to model changes of sediment concentration, with the minimum value of the equation as steady sediment concentration. Sediment concentration was greater at higher rainfall intensity and steeper slope gradients. With slope gradient increasing from 10°to 25°, sediment concentration increased from 4.3 to 6.25 kg/m³ and 9.56 to 18.53 kg/m³ at rainfall intensities of 90 and 120 mm/h on Lou soil hillslope; and increased from 4.76 to 12.42 kg/m³ and 9.72 to 19.08 kg/m³ at rainfall intensities of 90 and 120 mm/h on Dark loessil soil hillslope, respectively. The steady sediment concentration was lower with higher fractal dimension of loess particles. The impacts of factors on steady sediment concentration are in the following order: fractal dimension of loess particles > rainfall intensity > slope gradient; (2) Unit stream power was the hydrodynamic parameter that was most closely correlated with steady sediment concentration, and a new model including rainfall intensity, unit stream power, and fractal dimension of loess particles was advanced to calculate steady sediment concentration. The impacts of factors on steady sediment concentration are in the following order: fractal dimension of loess particles > rainfall intensity > unit stream power.

Key words: sheet erosion, steady sediment concentration, rainfall intensity, slope gradient, loessial soil texture, unit stream power

盛贺伟, 孙莉英, 蔡强国. 黄土坡面片蚀过程稳定含沙量及其影响因素[J]. 地理科学进展, 2016, 35(8): 1008-1016.

Hewei SHENG, Liying SUN, Qiangguo CAI. Steady sediment concentration of sheet erosion on loess slope and influencing factors[J]. PROGRESS IN GEOGRAPHY, 2016, 35(8): 1008-1016.

图/表 9

表1

表2

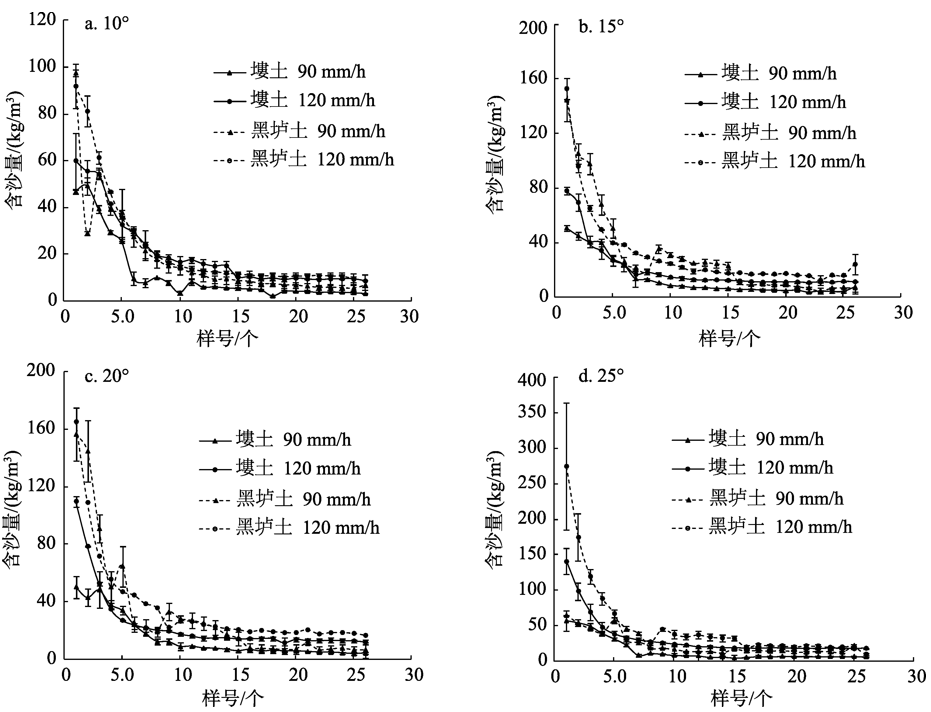

图1

表3

表4

表5

表6

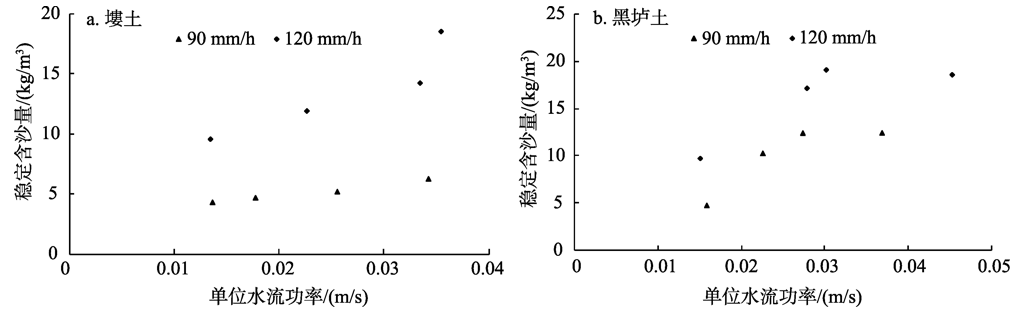

图2

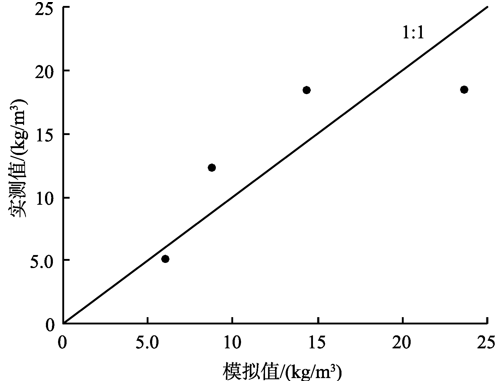

图3

参考文献 43

[1]	李浩宏, 王占礼, 申楠, 等. 2015. 黄土坡面片蚀水流含沙量变化过程试验研究[J]. 中国水土保持, (3): 46-49.
	[Li H H, Wang Z L, Shen N, et al.2015. Experimental study on variation process of flow sedimsent concentration of sheet erosion of loess slope surface[J]. Soil and Water Conservation in China, (3): 46-49.]
[2]	李玉山, 韩仕峰, 汪正华. 1985. 黄土高原土壤水分性质及其分区[J]. 中国科学院西北水土保持研究所集刊, (2): 1-17.
	[Li Y S, Han S F, Wang Z H.1985. Soil water properties and its zonation in the Loess Plateau[J]. Memoir of Northwestern Institute of Soil and Water Conservation, Academia Sinica, (2): 1-17.]
[3]	刘光崧. 1996. 土壤理化分析与剖面描述[M]. 北京: 中国标准出版社.
	[Liu G S.1996. Turang lihua fenxi yu poumian miaoshu[M]. Beijing, China: Standards Press of China.]
[4]	刘俊娥, 王占礼, 高素娟. 2011. 黄土坡面片蚀过程试验研究[J]. 水土保持学报, 25(3): 35-39.
	[Liu J E, Wang Z L, Gao S J.2011. Experimental study of sheet erosion processes on loess hillslope[J]. Journal of Soil and Water Conservation, 25(3): 35-39.]
[5]	刘俊娥, 王占礼, 高素娟, 等. 2013. 黄土坡面片流产流过程模拟研究[J]. 土壤学报, 50(2): 268-274.
	[Liu J E, Wang Z H, Gao S J, et al.2013. Simulated-rainfall experimental study on runoff of sheet flow on loess hillslope[J]. Acta Pedologica Sinica, 50(2): 268-274.]
[6]	刘元保, 朱显谟, 周佩华, 等. 1988. 黄土高原土壤侵蚀垂直分带性研究[J]. 中国科学院西北水土保持研究所集刊, (1): 5-8.
	[Liu Y B, Zhu X M, Zhou P H, et al.1988. A study on the vertical zoning of soil erosion in the Loess Plateau[J]. Memoir of Northwestern Institute of Soil and Water Conservation, Academia Sinica, (1): 5-8.]
[7]	卢嘉, 郑粉莉, 安娟, 等. 2016. 降雨侵蚀过程中黑土团聚体流失特征研究[J]. 生态学报, 36(8): 2264-2273. doi: 10.5846/stxb201410282108
	[Lu J, Zheng F L, An J, et al.2016. An experiment study of Mollisol arrregate loss characteristics during rainfall erosion processes[J]. Acta Ecologica Sinica, 36(8): 2264-2273.] doi: 10.5846/stxb201410282108
[8]	罗佑新, 张龙庭, 李敏. 2001. 灰色系统理论及其在机械工程中的应用[M]. 长沙: 国防科技大学出版社.
	[Luo Y X, Zhang L T, Li M.2001. Huise xitong lilun jiqi zai jixie gongchengzhong de yingyong[M]. Changsha, China: National University of Defence and Technology Press.]
[9]	沈晔娜. 2010. 流域非点源污染过程动态模拟及其定量控制[D]. 杭州: 浙江大学.
	[Shen Y N.2010. Modeling about non-point source pollution and quantity control for it within watershed[D]. Hangzhou, China: Zhejiang University.]
[10]	王彬. 2013. 土壤可蚀性动态变化机制与土壤可蚀性估算模型[D]. 杨凌: 西北农林科技大学.
	[Wang B.2013. Dynamic mechanism of soil erodibility and soil erodibility calculation model[D]. Yangling, China: Northwest A&F University.]
[11]	王国梁, 周生路, 赵其国. 2005. 土壤颗粒的体积分形维数及其在土地利用中的应用[J]. 土壤学报, 42(4): 545-550. doi: 10.3321/j.issn:0564-3929.2005.04.003
	[Wang G L, Zhou S L, Zhao Q G.2005. Volume fractal dimension of soil particles and its applications to land use[J]. Acta Pedologica Sinica, 42(4): 545-550.] doi: 10.3321/j.issn:0564-3929.2005.04.003
[12]	王恒俊. 1991. 黄土高原地区土壤资源及其合理利用[M]. 北京: 中国科学技术出版社.
	[Wang H J.1991. Soil resources and utilization in reason on Loess Plateau[M]. Beijing, China: China Science and Technology Press.]
[13]	吴焕焕. 2013. 激光衍射法测定土壤质地的方法及其在土壤结构研究中的应用[D]. 杨凌: 西北农林科技大学.
	[Wu H H.2013. The method to measure soil texture by laser diffraction and its application on soil structure [D]. Yangling, China: Northwest A&F University.]
[14]	吴普特, 周佩华. 1992. 雨滴击溅在薄层水流侵蚀中的作用[J]. 水土保持通报, 12(4): 19-26, 47.
	[Wu P T, Zhou P H.1992. The action of raindrop splash on sheet flow erosion[J]. Bulletin of Soil and Water Conservation, 12(4): 19-26, 47.]
[15]	吴普特, 周佩华. 1994. 雨滴击溅对薄层水流水力摩阻系数的影响[J]. 水土保持学报, 8(2): 39-42.
	[Wu P T, Zhou P H.1994. The effects of raindrop splash on the sheet flow hydraulic friction factor[J]. Jounrnal of Soil and Water Conservation, 8(2): 39-42.]
[16]	肖培青, 郑粉莉, 贾媛媛. 2003. 基于双土槽试验研究的黄土坡面侵蚀产沙过程[J]. 中国水土保持科学, 1(4): 10-15. doi: 10.3969/j.issn.1672-3007.2003.04.003
	Xiao P Q, Zheng F L, Jia Y Y. 2003.Loess hill slope erosion and sediment yield process using a dual box system[J]. Science of Soil and Water Conservation, 1(4): 10-15.] doi: 10.3969/j.issn.1672-3007.2003.04.003
[17]	张光辉, 刘宝元, 李平康. 2007. 槽式人工模拟降雨机的工作原理与特性[J]. 水土保持通报, 27(6): 56-60. doi: 10.3969/j.issn.1000-288X.2007.06.013
	[Zhang G H, Liu B Y, Li P K.2007. Principles and properties of artificial trough rainfall simulator[J]. Bulletin of Soil and Water Conservation, 27(6): 56-60.] doi: 10.3969/j.issn.1000-288X.2007.06.013
[18]	赵春红, 高建恩, 王飞, 等. 2013. 含沙量对坡面流水动力学特性的影响研究[J]. 农业机械学报, 44(9): 79-85. doi: 10.6041/j.issn.1000-1298.2013.09.015
	[Zhao C H, Gao J E, Wang F, et al.2013. Effects of sediment load on hydrodynamic characteristics of overland flow[J]. Transactions of the Chinese Society for Agricultural Machinery, 44(9): 79-85.] doi: 10.6041/j.issn.1000-1298.2013.09.015
[19]	郑子成, 秦凤, 李廷轩. 2015. 不同坡度下紫色土地表微地形变化及其对土壤侵蚀的影响[J]. 农业工程学报, 31(8): 168-175. doi: 10.3969/j.issn.1002-6819.2015.08.025
	[Zheng Z C, Qin F, Li T X.2015. Changes in soil surface micro-relief of purple soil under different slope gradients and its effects on soil erosion[J]. Transactions of the Chinese Society of Agricultural Engineering, 31(8): 168-175.] doi: 10.3969/j.issn.1002-6819.2015.08.025
[20]	中国科学院黄土高原综合科学考察队. 1990. 中国黄土高原地区耕地坡度分级数据集[M]. 北京: 中国海洋出版社.
	[Zhongguo Kexueyuan Huangtugaoyuan Zonghe Kexue Kaochadui. 1990. Zhongguo Huangtugaoyuan diqu gengdi podu fenji shujuji[M]. Beijing, China: Ocean Press of China.]
[21]	周佩华, 王占礼. 1987. 黄土高原土壤侵蚀暴雨标准[J]. 水土保持通报, 7(1): 38-44.
	[Zhou P H, Wang Z L.1987. Soil erosion storm rainfall standard in the Loess Plateau[J]. Bulletin of Soil and Water Conservation, 7(1): 38-44.]
[22]	Agassi M, Bradford J.1999. Methodologies for interrill soil erosion studies[J]. Soil and Tillage Research, 49(4): 277-287. doi: 10.1016/S0167-1987(98)00182-2
[23]	Arjmand Sajjadi S, Mahmoodabadi M.2015. Sediment concentration and hydraulic characteristics of rain-induced overland flows in arid land soils[J]. Journal of Soils and Sediments, 15(3): 710-721. doi: 10.1007/s11368-015-1072-z
[24]	Asadi H, Ghadiri H, Rose C W, et al.2007. Interrill soil erosion processes and their interaction on low slopes[J]. Earth Surface Processes and Landforms, 32(5): 711-724. doi: 10.1002/esp.1426
[25]	Assouline S, Ben-Hur M.2006. Effects of rainfall intensity and slope gradient on the dynamics of interrill erosion during soil surface sealing[J]. Catena, 66(3): 211-220. doi: 10.1016/j.catena.2006.02.005
[26]	Bagnold R A.1966. An approach to the sediment transport problem from general physics[M]. Washington: United States Government Printing Office.
[27]	Balacco G.2013. The interrill erosion for a sandy loam soil[J]. International Journal of Sediment Research, 28(3): 329-337. doi: 10.1016/S1001-6279(13)60043-8
[28]	de Roo A P J, Wesseling C G, Ritsema C J.1996. LISEM: A single-event physically based hydrological and soil erosion model for drainage basins: I. Theory, input and output[J]. Hydrological Processes, 10(8): 1107-1117.
[29]	Foster G R, Huggins L F, Meyer L D.1984. A laboratory study of rill hydraulics:Ⅱ. Shear stress relationships[J]. Transactions of the American Society of Agricultural Engineers, 27(3): 797-804. doi: 10.13031/2013.32874
[30]	Foster G R, Meyer L D, Onstad C A.1977. An erosion equation derived from basic erosion principles[J]. Transacction of the American Society of Agricultural Engineers, 20(4): 678-682. doi: 10.13031/2013.35627
[31]	Fox D M, Bryan R B.2000. The relationship of soil loss by interrill erosion to slope gradient[J]. Catena, 38(3): 211-222. doi: 10.1109/TIFS.2013.2263499
[32]	Gabet E J, Dunne T.2003. Sediment detachment by rain power[J]. Water Resources Research, 39(1): ESG 1-1-ESG 1-12. doi: 10.1029/2001WR000656
[33]	Govers G.1992. Relationship between discharge, velocity and flow area for rills eroding loose, non-layered materials[J]. Earth Surface Processes and Landforms, 17(5): 515-528. doi: 10.1002/esp.3290170510
[34]	Kinnell P I A.2009. The impact of slope length on the discharge of sediment by rain impact induced saltation and suspension[J]. Earth Surface Processes and Landforms, 34(10): 1393-1407. doi: 10.1002/esp.1828
[35]	Kinnell P I A.2010. Comment on a new splash and sheet erosion equation for range lands[J]. Soil Science Society of America Journal, 74(1): 340-341. doi: 10.2136/sssaj2009.0265l
[36]	Liu J E, Wang Z L, Yang X M, et al.2014. The impact of natural polymer derivatives on sheet erosion on experimental loess hillslope[J]. Soil and Tillage Research, 139: 23-27. doi: 10.1016/j.still.2014.01.004
[37]	Mahmoudabadi M, Rouhipour H.2011. Study on process changes in some indices of soil erodibility and depositability using rainfall simulator[J]. Journal of Water and Soil Conservation, 18(4): 145-166.
[38]	Misra R K, Rose C W.1996. Application and sensitivity analysis of process-based erosion model GUEST[J]. European Journal of Soil Science, 47(4): 593-604. doi: 10.1111/j.1365-2389.1996.tb01858.x
[39]	Morgan R P C, Quinton J N, Smith R E, et al.1998. The European Soil Erosion Model (EUROSEM): A dynamic approach for predicting sediment transport from fields and small catchments[J]. Earth Surface Processes and Landforms, 23(6): 527-544. doi: 10.1002/(SICI)1096-9837(199806)23:6<527::AID-ESP868>3.0.CO;2-5
[40]	Shih H, Yang C T.2009. Estimating overland flow erosion capacity using unit stream power[J]. International Journal of Sediment Research, 24(1): 46-62. doi: 10.1016/S1001-6279(09)60015-9
[41]	Yang C T.1973. Incipient motion and sediment transport[J]. Journal of the Hydraulics Division, 99(10): 1679-1704.
[42]	Zhang G S, Chan K Y, Oates A, et al.2007. Relationship between soil structure and runoff/soil loss after 24 years of conservation tillage[J]. Soil and Tillage Research, 92(1-2): 122-128. doi: 10.1016/j.still.2006.01.006
[43]	Zhang X C, Nearing M A, Norton L D, et al.1998. Modeling interrill sediment delivery[J]. Soil Science Society of America Journal, 62(2): 438-444. doi: 10.2136/sssaj1998.03615995006200020021x

	粒径组成/%					有机质/(g/kg)
	<0.002 mm		0.002~0.02 mm	0.02~0.05 mm	0.05~0.25 mm	>0.25 mm
塿土	26.06	36.55	27.92	4.25	5.22	13.3
黑垆土	24.16	38.04	31.32	9.17	0.30	12.3

雨强/(mm/h)	塿土
雨强/(mm/h)	坡度/°	A	B	β	M	R²	稳定含沙量/(kg/m³)
90	10	50.49	2.63	0.50	54.79	0.983	4.30
	15	46.06	2.77	0.37	50.74	0.987	4.68
	20	45.27	3.43	0.38	50.47	0.994	5.19
	25	50.58	5.08	0.56	56.83	0.989	6.25
120	10	50.49	1.90	0.29	60.04	0.989	9.56
	15	66.12	1.51	0.47	78.03	0.984	11.91
	20	95.62	1.12	0.49	109.85	0.995	14.23
	25	121.87	0.96	0.42	140.39	0.997	18.53
雨强/(mm/h)	黑垆土
雨强/(mm/h)	坡度/°	A	B	β	M	R²	稳定含沙量/(kg/m³)
90	10	92.74	0.40	0.16	97.50	0.997	4.76
	15	134.30	0.88	0.26	144.56	0.949	10.26
	20	143.90	2.35	0.60	156.30	0.952	12.40
	25	52.07	2.38	0.26	64.49	0.877	12.42
120	10	82.17	1.55	0.37	91.89	0.991	9.72
	15	135.80	0.59	0.30	152.94	0.994	17.14
	20	146.02	0.63	0.29	165.10	0.993	19.08
	25	255.96	0.25	0.16	274.53	0.997	18.57

稳定含沙量/(kg/m³)			剪切力/P_a		水流功率/(N/(m·s))			单位水流功率/(m/s)
塿土		黑垆土		塿土	黑垆土	塿土	黑垆土	塿土	黑垆土
4.30	4.76		0.37	0.37	0.03	0.03		0.01	0.02
4.68	10.26		0.55	0.48	0.04	0.04		0.02	0.02
5.19	12.40		0.66	0.67	0.05	0.05		0.03	0.03
6.25	12.42		0.79	0.69	0.06	0.06		0.03	0.04
9.56	9.72		0.35	0.36	0.03	0.03		0.01	0.02
11.91	17.14		0.45	0.38	0.04	0.04		0.02	0.03
14.23	19.08		0.50	0.58	0.05	0.05		0.03	0.03
18.53	18.57		0.69	0.61	0.06	0.07		0.04	0.05

C₀(K)			C₁(K)		C₂(K)			C₃(K)
塿土		黑垆土		塿土	黑垆土	塿土	黑垆土	塿土	黑垆土
1.00	1.00		1.00	1.00	1.00	1.00		1.00	1.00
1.09	2.16		1.48	1.32	1.28	1.26		1.30	1.43
1.21	2.61		1.77	1.82	1.68	1.59		1.87	1.72
1.45	2.61		2.13	1.88	2.20	1.80		2.51	2.33
2.22	2.04		0.94	0.98	0.92	0.92		0.98	0.95
2.77	3.60		1.20	1.04	1.34	1.22		1.66	1.76
3.31	4.01		1.34	1.57	1.67	1.52		2.46	1.90
4.31	3.90		1.86	1.67	1.99	1.96		2.60	2.86

	γ_剪切力	γ_水流功率	γ_{单位水流功率}
塿土	0.5915	0.6158	0.6332
黑垆土	0.5559	0.5471	0.6160
