广州市多类型商业中心识别与空间模式

doi:10.18306/dlkxjz.2016.08.005

摘要/Abstract

摘要：

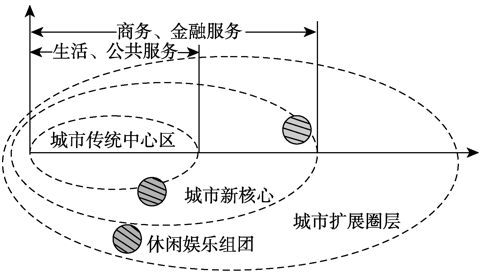

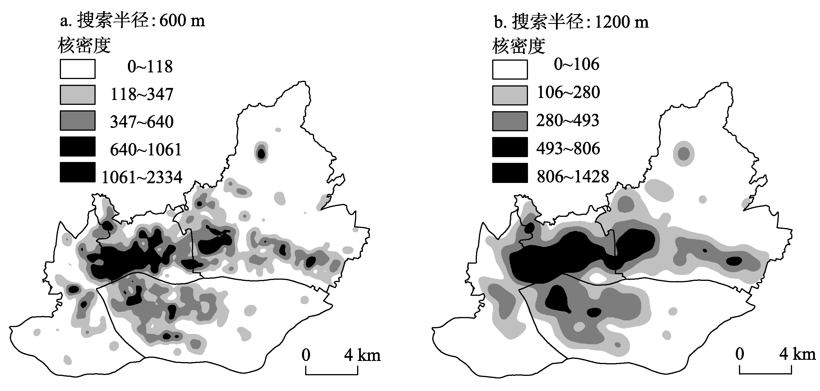

不同职能类型商业中心识别对研究城市商业空间结构有重要意义。与传统识别方法相比,大数据的分析更为精确和便捷。本文以广州市核心区59125条城市热点(POI)数据为基础,利用核密度分析、统计分析、最邻近距离分析等方法识别广州市多类型商业中心的边界,探索其商业空间结构与模式。结果表明：①广州市商业结构呈现明显双核集聚式分布,传统的越秀分区与现代的天河分区构成当前广州市商业空间的双中心;②不同类型的商业中心在空间上呈现显著分异,其中城市生活与公共服务中心在越秀区,商务与金融中心在天河区,休闲娱乐中心呈现分散集聚式特征;③广州市商业结构的空间模式是“圈层+组团”式分布,其中,生活、公共服务、商务职能集中分布于内圈层,娱乐休闲职能呈组团状镶嵌于各圈层中。

关键词: 商业地理, 商业空间结构, 商业中心, 城市热点(POI), 广州

Abstract:

The identification of different functional types of commercial center in a city is of great significance to understanding the spatial structure of business. Compared to the traditional methods, the analysis of big data produces more accurate result and is more convenient. Taking the 59125 POI (Point of Interest) data of Guangzhou City as the basic data, we identified the boundaries of the multi-functional commercial centers and explore their spatial structure and pattern by using the methods of kernel density analysis, statistical analysis, and nearest distance analysis. The result shows that: (1) The commercial area structure presents a clear dual-core distribution, with the Yuexiu District and the Tianhe District constituting the cores. (2) Different types of commercial centers show clear spatial variations. The urban services center and the public service center are located in the Yuexiu District and the business center and the financial center are located in the Tianhe District. Entertainment centers present the characteristics of dispersed clusters. (3) The spatial structure of business is a combination of zones and clusters. The urban services, public service, and business functions are concentrated in the inner zones and the entertainment functions can be found in all areas.

Key words: business geography, spatial structure of business, commercial center, POI (Point of Interest), Guangzhou

吴康敏, 张虹鸥, 王洋, 吴旗韬, 叶玉瑶. 广州市多类型商业中心识别与空间模式[J]. 地理科学进展, 2016, 35(8): 963-974.

Kangmin WU, Hongou ZHANG, Yang WANG, Qitao WU, Yuyao YE. Identify of the multiple types of commercial center in Guangzhou and its spatial pattern[J]. PROGRESS IN GEOGRAPHY, 2016, 35(8): 963-974.

图/表 15

图1

图2

表1

图3

图4

图5

图6

表2

表3

图7

图8

图9

表4

图10

图11

参考文献 34

[1]	陈晨, 王法辉, 修春亮. 2013. 长春市商业网点空间分布与交通网络中心性关系研究[J]. 经济地理, 33(10): 40-47. doi: 10.3969/j.issn.1673-0410.2014.11.280
	[Chen C, Wang F H, Xiu C L.2013. The relationship between the spatial distribution of commercial networks and street centrality in Changchun[J]. Economic Geography, 33(10): 40-47.] doi: 10.3969/j.issn.1673-0410.2014.11.280
[2]	陈鹏, 李欣, 胡啸峰, 等. 2015. 北京市长安街沿线的扒窃案件高发区分析及防控对策[J]. 地理科学进展, 34(10): 1250-1258. doi: 10.18306/dlkxjz.2015.10.005
	[Chen P, Li X, Hu X F, et al.2015. Clustering pattern analysis and prevention strategies to pickpocketing offence along the Chang'an Street in Beijing[J]. Progress in Geography, 34(10): 1250-1258.] doi: 10.18306/dlkxjz.2015.10.005
[3]	陈蔚珊, 柳林, 梁育填. 2015. 广州轨道交通枢纽零售业的特征聚类及时空演变[J]. 地理学报, 70(6): 879-892. doi: 10.11821/dlxb201506003
	[Chen W S, Liu L, Liang Y T.2015. Characterizing the spatio-temporal evolution of retail business at transfer hubs of Guangzhou metro[J]. Acta Geographica Sinica, 70(6): 879-892.] doi: 10.11821/dlxb201506003
[4]	陈彦光. 2009. 基于Moran统计量的空间自相关理论发展和方法改进[J]. 地理研究, 28(6): 1449-1463. doi: 10.11821/yj2009060002
	[Chen Y G.2009. Reconstructing the mathematical process of spatial autocorrelation based on Moran's statistics[J]. Geographical Research, 28(6): 1449-1463.] doi: 10.11821/yj2009060002
[5]	胡庆武, 王明, 李清泉. 2014. 利用位置签到数据探索城市热点与商圈[J]. 测绘学报, 43(3): 314-321. doi: 10.13485/j.cnki.11-2089.2014.0045
	[Hu Q W, Wang M, Li Q Q.2014. Urban hotspot and commercial area exploration with check-in data[J]. Acta Geodaetica et Cartographica Sinica, 43(3): 314-321.] doi: 10.13485/j.cnki.11-2089.2014.0045
[6]	贾生华, 聂冲, 温海珍. 2008. 城市CBD功能成熟度评价指标体系的构建: 以杭州钱江新城CBD为例[J]. 地理研究, 27(3): 649-658. doi: 10.3321/j.issn:1000-0585.2008.03.018
	[Jia S H, Nie C, Wen H Z.2008. The construction of the CBD functional maturity index system: A case of Qianjiang new city CBD[J]. Geographical Research, 27(3): 649-658.] doi: 10.3321/j.issn:1000-0585.2008.03.018
[7]	林彰平, 闫小培. 2006. 转型期广州市金融服务业的空间格局变动[J]. 地理学报, 61(8): 818-828. doi: 10.3321/j.issn:0375-5444.2006.08.004
	[Lin Z P, Yan X P.2006. Analysis on the change of the spatial pattern of financial service industry in Guangzhou during the transition period[J]. Acta Geographica Sinica, 61(8): 818-828.] doi: 10.3321/j.issn:0375-5444.2006.08.004
[8]	陆娟, 汤国安, 张宏, 等. 2012. 犯罪热点时空分布研究方法综述[J]. 地理科学进展, 31(4): 419-425. doi: 10.11820/dlkxjz.2012.04.004
	[Lu J, Tang G A, Zhang H, et al.2012. A review of research methods for spatiotemporal distribution of the crime hot spots[J]. Progress in Geography, 31(4): 419-425.] doi: 10.11820/dlkxjz.2012.04.004
[9]	田光进, 沙默泉. 2010. 基于点状数据与GIS的广州大都市区产业空间格局[J]. 地理科学进展, 29(4): 387-395. doi: 10.11820/dlkxjz.2010.04.001
	[Tian G J, Sha M Q.2010. The spatial pattern of Guangzhou metropolitan area industry based on point data and GIS[J]. Progress in Geography, 29(4): 387-395.] doi: 10.11820/dlkxjz.2010.04.001
[10]	王芳, 高晓路, 许泽宁. 2015. 基于街区尺度的城市商业区识别与分类及其空间分布格局: 以北京为例[J]. 地理研究, 34(6): 1125-1134. doi: 10.11821/dlyj201506011
	[Wang F, Gao X L, Xu Z N.2015. Identification and classification of urban commercial districts at block scale[J]. Geographical Research, 34(6): 1125-1134.] doi: 10.11821/dlyj201506011
[11]	王慧, 田萍萍, 刘红, 等. 2007. 西安城市CBD体系发展演进的特征与趋势[J]. 地理科学, 27(1): 31-39. doi: 10.3969/j.issn.1000-0690.2007.01.005
	[Wang H, Tian P P, Liu H, et al.2007. Development of urban CBD system in Xi'an: Characters and tendency[J]. Scientia Geographica Sinica, 27(1): 31-39.] doi: 10.3969/j.issn.1000-0690.2007.01.005
[12]	王劲峰, 葛咏, 李连发, 等. 2014. 地理学时空数据分析方法[J]. 地理学报, 69(9): 1326-1345. doi: 10.11821/dlxb201409007
	[Wang J F, Ge Y, Li L F, et al.2014. Spatiotemporal data analysis in geography[J]. Acta Geographica Sinica, 69(9): 1326-1345.] doi: 10.11821/dlxb201409007
[13]	谢顺平, 冯学智, 王结臣, 等. 2009. 基于网络加权Voronoi图分析的南京市商业中心辐射域研究[J]. 地理学报, 64(12): 1467-1476. doi: 10.11821/xb200912007
	[Xie S P, Feng X Z, Wang J C, et al.2009. Radiation domain of commercial centers in Nanjing based on analysis of road network weighted voronoi diagram[J]. Acta Geographica Sinica, 64(12): 1467-1476.] doi: 10.11821/xb200912007
[14]	薛东前, 黄晶, 马蓓蓓, 等. 2014. 西安市文化娱乐业的空间格局及热点区模式研究[J]. 地理学报, 69(4): 541-552. doi: 10.11821/dlxb201404010
	[Xue D Q, Huang J, Ma B B, et al.2014. Spatial distribution characteristics and hot zone patterns of entertainment industry in Xi'an[J]. Acta Geographica Sinica, 69(4): 541-552.] doi: 10.11821/dlxb201404010
[15]	阎小培, 周春山, 冷勇, 等. 2000. 广州CBD的功能特征与空间结构[J]. 地理学报, 55(4): 475-486.
	[Yan X P, Zhou C S, Leng Y, et al.2000. Functional features and spatial structure of CBDs in Guangzhou[J]. Acta Geographica Sinica, 55(4): 475-486.]
[16]	杨振山, 龙瀛, Nicolas Douay.2015. 大数据对人文—经济地理学研究的促进与局限[J]. 地理科学进展, 34(4): 410-417. doi: 10.11820/dlkxjz.2015.04.002
	[Yang Z S, Long Y, Douay N.2015. Opportunities and limitations of big data applications to human and economic geography: The state of the art[J]. Progress in Geography, 34(4): 410-417.] doi: 10.11820/dlkxjz.2015.04.002
[17]	于伟, 王恩儒, 宋金平. 2012. 1984年以来北京零售业空间发展趋势与特征[J]. 地理学报, 67(8): 1098-1108. doi: 10.11821/xb201208008
	[Yu W, Wang E R, Song J P.2012. Changing retail spatial patterns in metropolitan Beijing since 1984[J]. Acta Geographica Sinica, 67(8): 1098-1108.] doi: 10.11821/xb201208008
[18]	张珣, 钟耳顺, 张小虎, 等. 2013. 2004-2008年北京城区商业网点空间分布与集聚特征[J]. 地理科学进展, 32(8): 1207-1215. doi: 10.11820/dlkxjz.2013.08.004
	[Zhang X, Zhong E S, Zhang X H, et al.2013. Spatial distribution and clustering of commercial network in Beijing during 2004-2008[J]. Progress in Geography, 32(8): 1207-1215.] doi: 10.11820/dlkxjz.2013.08.004
[19]	周春山, 罗彦, 尚嫣然. 2004. 中国商业地理学的研究进展[J]. 地理学报, 59(6): 1028-1036. doi: 10.3321/j.issn:0375-5444.2004.06.027
	[Zhou C S, Luo Y, Shang Y R.2004. Research progress of commercial geography in China[J]. Acta Geographica Sinica, 59(6): 1028-1036.] doi: 10.3321/j.issn:0375-5444.2004.06.027
[20]	周素红, 郝新华, 柳林. 2014. 多中心化下的城市商业中心空间吸引衰减率验证: 深圳市浮动车GPS时空数据挖掘[J]. 地理学报, 69(12): 1810-1820. doi: 10.11821/dlxb201412007
	[Zhou S H, Hao X H, Liu L.2014. Validation of spatial decay law caused by urban commercial center's mutual attraction in polycentric city: Spatio-temporal data mining of floating cars' GPS data in Shenzhen[J]. Acta Geographica Sinica, 69(12): 1810-1820.] doi: 10.11821/dlxb201412007
[21]	Borruso G, Porceddu A.2009. A tale of two cities: Density analysis of CBD on two midsize urban areas in northeastern Italy[M]//Murgante B, Borruso G, Lapucci A. Geocomputation and urban planning. Berlin & Heidelberg, Germany: Springer: 37-56.
[22]	Chainey S, Reid S, Stuart N.2002. When is a hotspot a hotspot? A procedure for creating statistically robust hotspot maps of crime[M]//Kidner D B, Higgs G, White S D. Innovations in GIS 9: Socio-economic applications of geographic information science. London, UK: Taylor & Francis.
[23]	Chu H J, Liau C J, Lin C H, et al.2012. Integration of fuzzy cluster analysis and kernel density estimation for tracking typhoon trajectories in the Taiwan region[J]. Expert Systems with Applications, 39(10): 9451-9457. doi: 10.1016/j.eswa.2012.02.114
[24]	Davies D H.1959. Boundary study as a tool in CBD analysis: An interpretation of certain aspects of the boundary of Cape Town's central business district[J]. Economic Geography, 35(4): 322-345. doi: 10.2307/142466
[25]	Goodchild M F.2007. Citizens as sensors: The world of volunteered geography[J]. GeoJournal, 69(4): 211-221. doi: 10.1007/s10708-007-9111-y
[26]	Goodchild M F.2009. Geographic information systems and science: Today and tomorrow[J]. Annals of GIS, 15(1): 3-9. doi: 10.1016/j.proeps.2009.09.160
[27]	Harris R, Sleight P, Webber R.2005. Geodemographics, GIS and neighbourhood targeting[M]. London, UK: John Wiley and Sons.
[28]	Li L N, Goodchild M F, Xu B.2013. Spatial, temporal, and socioeconomic patterns in the use of Twitter and Flickr[J]. Cartography and Geographic Information Science, 40(2): 61-77. doi: 10.1080/15230406.2013.777139
[29]	Liu Y, Liu X, Gao S, et al.2015. Social sensing: A new approach to understanding our socioeconomic environments[J]. Annals of the Association of American Geographers, 105(3): 512-530. doi: 10.1080/00045608.2015.1018773
[30]	Murphy R E, Vance Jr J E.1954. Delimiting the CBD[J]. Economic Geography, 30(3): 189-222. doi: 10.2307/141867
[31]	Okabe A, Satoh T, Sugihara K.2009. A kernel density estimation method for networks, its computational method and a GIS-based tool[J]. International Journal of Geographical Information Science, 23(1): 7-32. doi: 10.1080/13658810802475491
[32]	Thurstain-Goodwin M, Unwin D.2000. Defining and delineating the central areas of towns for statistical monitoring using continuous surface representations[J]. Transactions in GIS, 4(4): 305-317. doi: 10.1111/1467-9671.00058
[33]	Xie Z X, Yan J.2008. Kernel density estimation of traffic accidents in a network space[J]. Computers, Environment and Urban Systems, 32(5): 396-406. doi: 10.1016/j.compenvurbsys.2008.05.001
[34]	Yu W H, Ai T H, Shao S W.2015. The analysis and delimitation of central business district using network kernel density estimation[J]. Journal of Transport Geography, 45: 32-47. doi: 10.1016/j.jtrangeo.2015.04.008

POI类	子类	POI个数	比例/%
生活类	快餐店、异国风味餐馆、中餐馆、酒吧、茶楼、咖啡店、冷饮店、地方风味餐馆、便利店、超市、小商品城、百货商城、烟酒副食店、电器商城、服装鞋帽店、体育用品店、化妆品店、花卉店、文化用品店	42792	72.38
商务类	写字楼、商务会馆	1239	2.09
金融类	银行网点、ATM、保险公司,投资机构	3423	5.79
公共服务类	药店、门诊、专科医院、综合医院、卫生站、政府机关、街道办、派出所、司法机构	4898	8.28
休闲娱乐类	动植物园、水族馆、各类体育场馆、电影院、剧场戏剧音乐厅、KTV	6773	11.45

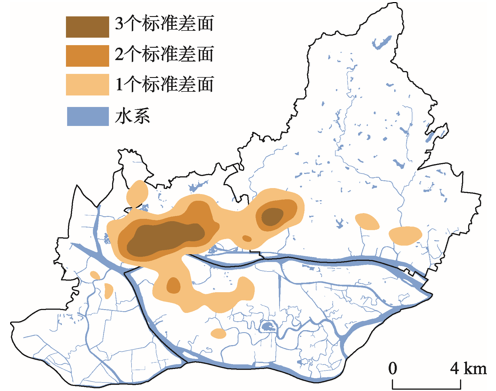

区域	面积/km²	面积比/%	POI个数	个数比/%	POI密度/ (个/km²)
市区	326.00	100.00	58610	100.00	179.79
1st标准差曲线	44.77	13.73	30904	52.73	690.36
2st标准差曲线	16.30	5.00	15406	26.29	945.63
3st标准差曲线	6.90	2.12	8530	14.56	1236.03

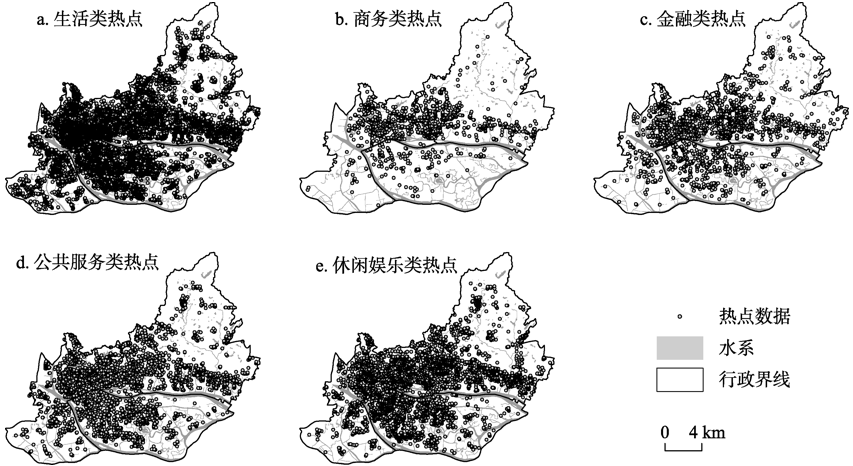

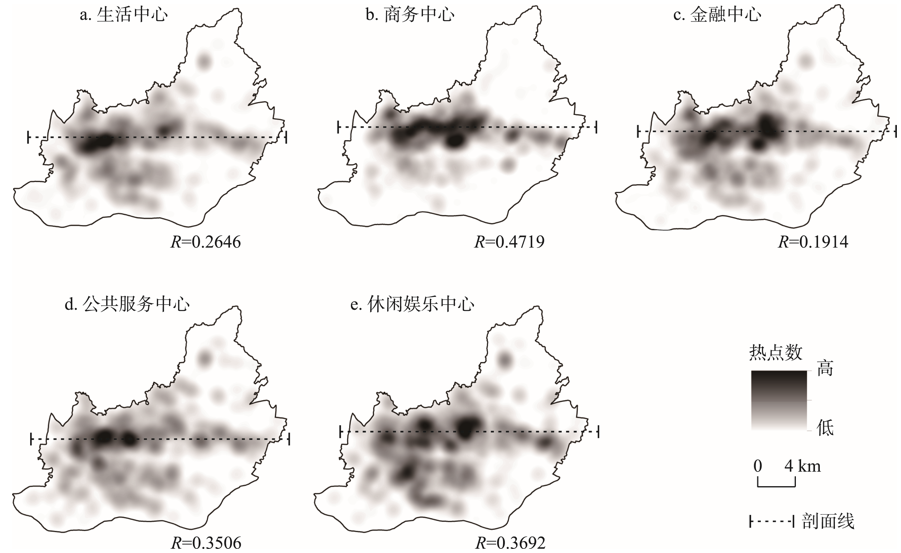

热点职能类型	POI类型	POI数	比例/%	R值	平均邻近距离/m	分布特征
生活类热点	餐饮、购物	42792	72.37	0.2646	13.88	强烈集聚
商务类热点	大厦、商务会馆	1239	2.10	0.4719	126.47	一般集聚
金融类热点	金融业相关	3423	5.79	0.1914	33.48	强烈集聚
公共服务类热点	医疗机构、政府机构	4898	8.28	0.3506	51.58	比较集聚
休闲娱乐类热点	休闲娱乐类	6773	11.46	0.3692	47.03	比较集聚

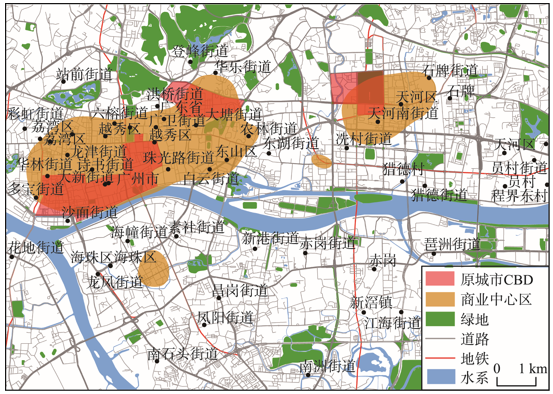

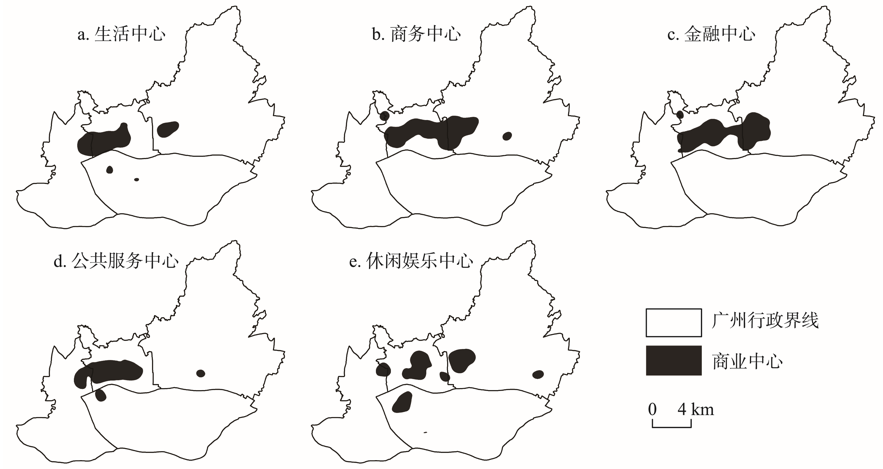

商业中心类型	POI个数	数量比/%	面积/km²	面积比/%	POI密度/(个/km²)	空间位置	生长模式
生活中心	11035	25.79	14.66	4.50	752.73	多宝街、农林街、天河南	点状生长
商务中心	603	48.67	22.08	6.78	27.31	广卫街、冼村、石牌	带状延伸
金融中心	1275	37.25	21.00	6.44	60.71	农林街、冼村、石牌	带状延伸
公共服务中心	1207	24.43	15.02	4.61	80.36	多宝街、农林街、海幢	带状延伸
休闲娱乐中心	1801	26.59	17.54	5.38	102.68	金花、大塘、天河南、素社	点状生长
