DEM空间插值方法对土壤侵蚀模拟的影响研究——以USPED分析干热河谷典型冲沟为例

doi:10.18306/dlkxjz.2016.07.008

地理科学进展 ›› 2016, Vol. 35 ›› Issue (7): 870-877.doi: 10.18306/dlkxjz.2016.07.008

DEM空间插值方法对土壤侵蚀模拟的影响研究——以USPED分析干热河谷典型冲沟为例

徐亚莉, 罗明良^*(), 梁倍瑜, 昌小莉, 向卫, 张斌

西华师范大学国土资源学院,四川南充 637009

收稿日期:2016-01-01 修回日期:2016-05-01 出版日期:2016-07-20 发布日期:2016-07-20
通讯作者: 罗明良
作者简介:
作者简介：徐亚莉(1991-),女,四川绵竹人,硕士研究生,主要从事水土保持与荒漠化防治研究,E-mail: 1573955072@qq.com。
基金资助:
基金项目：国家自然科学基金项目(41101348,41101360); 四川省教育厅自然科学重点项目(2016ZA0168); 西华师范大学基本科研业务费专项资金资助项目(15C002);Foundation: National Natural Science Foundation of China, No.41101348, No.41101360;Key Project of Natural Science Research of Sichuan Provincial Department of Education, No.2016ZA0168; Basic Research Projects Financed from the Special Fund of China West Normal University, No.15C002

Effects of different DEM spatial interpolation methods on soil erosion simulation:A case study of a typical gully of dry-hot valley based on USPED

Yali XU, Mingliang LUO^*(), Beiyu LIANG, Xiaoli CHANG, Wei XIANG, Bin ZHANG

School of Land and Resources, China West Normal University, Nanchong 637009, Sichuan, China

Received:2016-01-01 Revised:2016-05-01 Online:2016-07-20 Published:2016-07-20
Contact: Mingliang LUO

摘要/Abstract

摘要：

为探索不同空间插值方法得到的DEM如何影响土壤侵蚀模拟效果,本文选择金沙江干热河谷区典型冲沟为研究对象,利用野外测量高程数据,采用反距离加权(IDW)、析取克里格(DK)、局部多项式(LPI)和张力样条函数(ST)4种方法构建高精度DEM。基于USPED模型模拟冲沟的土壤侵蚀,对比不同空间插值方法的精度、土壤侵蚀的空间分布,采用相对差系数对比不同插值在土壤侵蚀研究中的相似性。结果表明：DEM空间插值的精度排序为ST

关键词: 土壤侵蚀, 空间插值, USPED, 相对差系数, 冲沟

Abstract:

Digital elevation models (DEMs) have been widely used in soil erosion simulation, but how different interpolation methods affect the simulation results is not well researched. In this article, a typical gully in the dry-hot valley of the Jinsha River was selected as the case study area. First, field measurement of elevations of the gully was preformed. Inverse Distance Weighted (IDW), Disjunctive Kriging (DK), Spline with Tension (ST), and Local Polynomial Interpolation (LPI) methods were then used to produce high-precision DEMs of the gully. The United Stream Power-based Erosion Deposition (USPED) model was used to simulate the spatial distribution of erosion and deposition in the gully. The coefficient of relative difference was used to analyze the similarity of USPED results. The result shows that the precision of DEMs from high to low is: DK, LPI, IDW, and ST. The results of USPED simulation show that DK revealed the main distribution pattern of erosion and deposition, but IDW highlighted the details, and LPI and ST were in-between. The coefficient of relative difference shows that IDW was similar with other interpolation methods in soil erosion simulation, but when the layout of sampling points is reasonable and the density of the sampling points is sufficiently high, IDW is more suitable for soil erosion simulation using USPED.

Key words: soil erosion, spatial interpolation, USPED, coefficient of relative difference, gully

徐亚莉, 罗明良, 梁倍瑜, 昌小莉, 向卫, 张斌. DEM空间插值方法对土壤侵蚀模拟的影响研究——以USPED分析干热河谷典型冲沟为例[J]. 地理科学进展, 2016, 35(7): 870-877.

Yali XU, Mingliang LUO, Beiyu LIANG, Xiaoli CHANG, Wei XIANG, Bin ZHANG. Effects of different DEM spatial interpolation methods on soil erosion simulation:A case study of a typical gully of dry-hot valley based on USPED[J]. PROGRESS IN GEOGRAPHY, 2016, 35(7): 870-877.

图/表 7

表1

表2

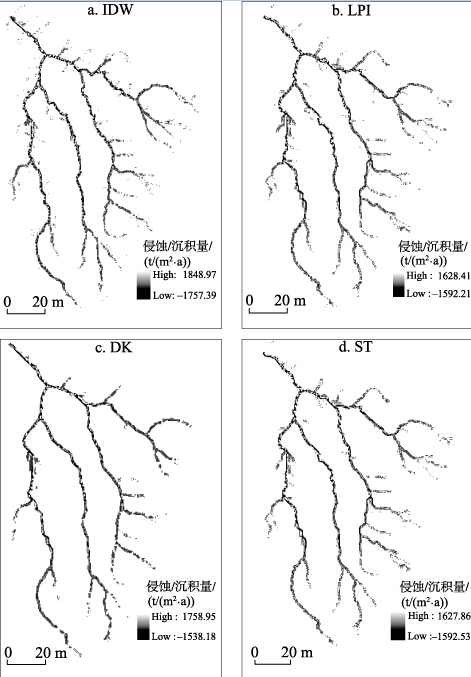

图1

表3

表4

表5

表6

参考文献 35

1	蔡强国, 刘纪根. 2003. 关于我国土壤侵蚀模型研究进展[J]. 地理科学进展, 22(3): 242-250. doi: 10.11820/dlkxjz.2003.03.003
	[Cai Q G, Liu J G.2003. Evolution of soil erosion models in China[J]. Progress in Geography, 22(3): 242-250.] doi: 10.11820/dlkxjz.2003.03.003
2	陈娟, 罗明良, 张斌, 等. 2015. 反距离加权插值参数变化对元谋冲沟DEM构建的影响[J]. 中国水土保持科学, 13(1): 29-34.
	[Chen J, Luo M L, Zhang B, et al.2015. Effects of interpolation parameters in Inverse Distance Weighted method on DEM accuracy in dry-hot valleys of Yuanmou[J]. Science of Soil and Water Conservation, 13(1): 29-34.]
3	陈云明, 刘国彬, 郑粉莉, 等. 2004. RUSLE侵蚀模型的应用及进展[J]. 水土保持研究, 11(4): 80-83.
	[Chen Y M, Liu G B, Zheng F L, et al.2004. Proceeding and application on soil erosion model of RUSLE[J]. Research of Soil and Water Conservation, 11(4): 80-83.]
4	迟文学, 吴信才, 于海洋, 等. 2007. 张力样条函数在雨量等值线光滑中的应用研究[J]. 水文, 27(1): 22-25. doi: 10.3969/j.issn.1000-0852.2007.01.006
	[Chi W X, Wu X C, Yu H Y, et al.2007. Application of the tension spline function in rainfall isoline smoothing[J]. Journal of China Hydrology, 27(1): 22-25.] doi: 10.3969/j.issn.1000-0852.2007.01.006
5	韩富江, 刘学军, 潘胜玲. 2007. DEM内插方法与可视性分析结果的相似性研究[J]. 地理与地理信息科学, 23(1): 31-35. doi: 10.3969/j.issn.1672-0504.2007.01.008
	[Han F J, Liu X J, Pan S L.2007. Research on DEM interpolation methods and similarity of results of visibility analysis[J]. Geography and Geo-Information Science, 23(1): 31-35.] doi: 10.3969/j.issn.1672-0504.2007.01.008
6	何毓蓉, 周红艺, 张保华, 等. 2002. 金沙江干热河谷典型区土壤退化机理研究: 土壤侵蚀对土壤退化的作用[J]. 水土保持学报, 16(3): 24-27. doi: 10.3321/j.issn:1009-2242.2002.03.007
	[He Y R, Zhou H Y, Zhang B H, et al.2002. Mechanism of soil degradation in dry and hot valley of Jinshajiang River area: Effect of soil erosion on soil degradation[J]. Journal of Soil and Water Conservation, 16(3): 24-27.] doi: 10.3321/j.issn:1009-2242.2002.03.007
7	黄金良, 洪华生, 张珞平, 等. 2004. 基于GIS和USLE的九龙江流域土壤侵蚀量预测研究[J]. 水土保持学报, 18(5): 75-79. doi: 10.3321/j.issn:1009-2242.2004.05.019
	[Huang J L, Hong H S, Zhang L P, et al.2004. Study on predicting soil erosion in Jiulong River watershed based on GIS and USLE[J]. Journal of Soil and Water Conservation, 18(5): 75-79.] doi: 10.3321/j.issn:1009-2242.2004.05.019
8	刘善建. 1953. 天水水土流失测验的初步分析[J]. 科学通报,(12): 59-65, 54.
	Liu S J.1953. Tianshan shuitu liushi ceyan de chubu fenxi[J]. Chinese Science Bulletin,(12): 59-65, 54.
9	刘学军, 晋蓓, 王彦芳. 2008. DEM流径算法的相似性分析[J]. 地理研究, 27(6): 1347-1357.
	[Liu X J, Jin B, Wang Y F.2008. Similarity analysis of flow route algorithms for extracting drainage network from grid-based terrain model[J]. Geographical Research, 27(6): 1347-1357.]
10	秦耀东, 李保国. 1998. 应用析取克里格方法估计区域地下水埋深分布[J]. 水利学报, 29(8): 28-33. doi: 10.3321/j.issn:0559-9350.1998.08.006
	[Qin Y D, Li B G.1998. Estimation of ground water depth distribution by disjunctive Kriging[J]. Journal of Hydraulic Engineering, 29(8): 28-33.] doi: 10.3321/j.issn:0559-9350.1998.08.006
11	青亚兰, 罗明良, 张斌, 等. 2015. 径向基函数对干热河谷冲沟DEM构建的影响[J]. 测绘科学, 40(7): 113-117. doi: 10.16251/j.cnki.1009-2307.2015.07.024
	[Qing Y L, Luo M L, Zhang B, et al.2015. Effects of interpolation parameters in radial basis function on DEM accuracy in dry-hot valleys[J]. Science of Surveying and Mapping, 40(7): 113-117.] doi: 10.16251/j.cnki.1009-2307.2015.07.024
12	宋向阳, 吴发启. 2010. 几种插值方法在微DEM构建中的应用[J]. 水土保持研究, 17(5): 45-50.
	[Song X Y, Wu F Q.2010. Application of the spatial interpolation methods to the study on Micro-DEM[J]. Research of Soil and Water Conservation, 17(5): 45-50.]
13	汤国安, 杨昕. 2006. ArcGIS地理信息系统空间分析实验教程[M]. 北京: 科学出版社.
	Tang G A, Yang X. 2006. ArcGIS dili xinxi xitong kongjian fenxi shiyan jiaocheng[M]. Beijing, China: Science Press.
14	王春, 江岭, 徐静, 等. 2014. DEM地面形态重构方法的精度差异特征研究[J]. 地理与地理信息科学, 30(4): 18-21, 26. doi: 10.3969/j.issn.1672-0504.2014.04.004
	[Wang C, Jiang L, Xu J, et al.2014. Accuracy differences among approaches of DEM surface morphology reconstruction[J]. Geography and Geo-Information Science, 30(4): 18-21, 26.] doi: 10.3969/j.issn.1672-0504.2014.04.004
15	王树良, 史文中, 李德毅, 等. 2003. 基于张力样条插值函数的土地数据挖掘[J]. 计算机工程与应用, 39(25): 5-7. doi: 10.3321/j.issn:1002-8331.2003.25.002
	[Wang S L, Shi W Z, Li D Y, et al.2003. Land data mining based on tension spline interpolation function[J]. Computer Engineering and Applications, 39(25): 5-7.] doi: 10.3321/j.issn:1002-8331.2003.25.002
16	杨勤科, 赵牡丹, 刘咏梅, 等. 2009. DEM与区域土壤侵蚀地形因子研究[J]. 地理信息世界, 7(1): 25-31, 45. doi: 10.3969/j.issn.1672-1586.2009.01.005
	[Yang Q K, Zhao M D, Liu Y M, et al.2009. Application of DEMs in regional soil erosion modeling[J]. Geomatics World, 7(1): 25-31, 45.] doi: 10.3969/j.issn.1672-1586.2009.01.005
17	杨子生. 2002. 云南金沙江流域重力侵蚀量分析[J]. 水土保持学报, 16(6): 4-8, 35. doi: 10.3321/j.issn:1009-2242.2002.06.002
	[Yang Z S.2002. Analysis on amount of gravitational erosion in Jinsha River Basin of Yunnan Province[J]. Journal of Soil and Water Conservation, 16(6): 4-8, 35.] doi: 10.3321/j.issn:1009-2242.2002.06.002
18	杨子生, 贺一梅, 李云辉, 等. 2004. 近40年来金沙江南岸干热河谷区的土地利用变化及其土壤侵蚀治理研究: 以云南宾川县为例[J]. 地理科学进展, 23(2): 16-26. doi: 10.11820/dlkxjz.2004.02.003
	[Yang Z S, He Y M, Li Y H, et al.2004. Land use change and soil erosion control in dry-hot valley zone in the middle reaches of Jinsha River during 1960-2000: A case study in Binchuan County, Yunnan Province[J]. Progress in Geography, 23(2): 16-26.] doi: 10.11820/dlkxjz.2004.02.003
19	怡凯, 王诗阳, 王雪, 等. 2015. 基于RUSLE模型的土壤侵蚀时空分异特征分析: 以辽宁省朝阳市为例[J]. 地理科学, 35(3): 365-372.
	[Yi K, Wang S Y, Wang X, et al.2015. The characteristics of spatial-temporal differentiation of soil erosion based on RUSLE model: A case study of Chaoyang City, Liaoning Province[J]. Scientia Geographica Sinica, 35(3): 365-372.]
20	易湘生, 李国胜, 尹衍雨, 等. 2012. 土壤厚度的空间插值方法比较: 以青海三江源地区为例[J]. 地理研究, 31(10): 1793-1805. doi: 10.11821/yj2012100006
	[Yi X S, Li G S, Yin Y Y, et al.2012. Comparison on soil depth prediction among different spatial interpolation methods: A case study in the Three-River Headwaters region of Qinghai Province[J]. Geographical Research, 31(10): 1793-1805.] doi: 10.11821/yj2012100006
21	张斌, 史凯, 刘春琼, 等. 2009. 元谋干热河谷近50年分季节降水变化的DFA分析[J]. 地理科学, 29(4): 561-566.
	[Zhang B, Shi K, Liu C Q, et al.2009. Changes of seasonal precipitation of Yuanmou dry-hot valley in recent 50 years based on method of DFA[J]. Scientia Geographica Sinica, 29(4): 561-566.]
22	张洪江. 2008. 土壤侵蚀原理[M]. 2版. 北京: 中国林业出版社.
	Zhang H J. 2008. Principle of soil erosion[M]. 2nd ed. Beijing, China: China Forestry Press.
23	张岩, 刘宪春, 李智广, 等. 2012. 利用侵蚀模型普查黄土高原土壤侵蚀状况[J]. 农业工程学报, 28(10): 165-171.
	[Zhang Y, Liu X C, Li Z G, et al.2012. Surveying soil erosion condition in Loess Plateau using soil erosion model[J]. Transactions of the Chinese Society of Agricultural Engineering, 28(10): 165-171.]
24	郑粉莉, 刘峰, 杨勤科, 等. 2001. 土壤侵蚀预报模型研究进展[J]. 水土保持通报, 21(6): 16-18, 32. doi: 10.3969/j.issn.1000-288X.2001.06.006
	[Zheng F L, Liu F, Yang Q K, et al.2001. Review of research progress in soil erosion prediction model[J]. Bulletin of Soil and Water Conservation, 21(6): 16-18, 32.] doi: 10.3969/j.issn.1000-288X.2001.06.006
25	郑粉莉, 王占礼, 杨勤科. 2008. 我国土壤侵蚀科学研究回顾和展望[J]. 自然杂志, 30(1): 12-16.
	[Zheng F L, Wang Z L, Yang Q K.2008. The retrospection and prospect on soil erosion research in China[J]. Chinese Journal of Nature, 30(1): 12-16.]
26	朱会义, 刘述林, 贾绍凤. 2004. 自然地理要素空间插值的几个问题[J]. 地理研究, 23(4): 425-432.
	[Zhu H Y, Liu S L, Jia S F.2004. Problems of the spatial interpolation of physical geographical elements[J]. Geographical Research, 23(4): 425-432.]
27	Bek S, Ježek J.2011. Optimization of interpolation parameters when deriving DEM from contour lines[J]. Stochastic Environmental Research and Risk Assessment, 25(8): 1049-1055. doi: 10.1007/s00477-011-0482-8
28	Cook H L.1937. The nature and controlling variables of the water erosion process[J]. Soil Science Society of America Journal, 1: 487-494. doi: 10.2136/sssaj1937.03615995000100000085x
29	Kim Y.2014. Soil erosion assessment using GIS and revised universal soil loss equation(RUSLE)[D]. Austen, TX: University of Texas at Austin.
30	Mitas L, Mitasova H.1998. Distributed soil erosion simulation for effective erosion prevention[J]. Water Resources Research, 34(3): 505-516. doi: 10.1029/97WR03347
31	Mitasova H, Hofierka J, Zlocha M, et al.1996. Modelling topographic potential for erosion and deposition using GIS[J]. International Journal of Geographical Information Systems, 10(5): 629-641. doi: 10.1080/02693799608902101
32	Neteler M, Mitasova H.2008. Open source GIS: A grass GIS approach[M]. New York: Springer.
33	Pistocchi A, Cassani G, Zani O.2002. Use of the USPED model for mapping soil erosion and managing best land conservation practices[C]//Rizzoli A E, Jakeman A J. International environmental modelling and software society, congress proceedings. Lugano, Swizerland: iEMSs: 163-168.
34	Renard K G, Foster G R, Weesies G A, et al.1997. Predicting soil erosion by water: A guide to conservation planning with the revised universal soil loss equation(RUSLE)[Z]. Washington DC: United States Department of Agriculture, Agriculture Handbook, No.703.
35	Wischmeier W H, Smith D D.1965. Predicting rainfall-erosion losses from cropland and east of the Rocky Mountains: A guide to conservation planning[Z]. Washington DC: United States Department of Agriculture, Agriculture Handbook, No.282.

数据集	误差项	插值方法
数据集	误差项	IDW	DK	LPI	ST
样本数据集	ME	0.0143	0.0030	0.0048	0.0061
样本数据集	RMSE	0.5252	0.3896	0.4199	0.7487
验证数据集	ME	-0.0030	-0.0059	0.0024	-0.0071
验证数据集	RMSE	0.5115	0.2758	0.4155	0.5157

插值方法	土壤侵蚀/沉积量
插值方法	最大沉积量	最大侵蚀量	沉积均值	侵蚀均值	侵蚀模拟均值
IDW	1848.97	1757.39	181.57	-159.05	4.37
LPI	1628.41	1592.21	170.25	-161.23	0.57
DK	1758.95	1538.18	161.49	-145.85	5.99
ST	1627.86	1592.53	169.94	-157.01	0.85

	IDW	LPI	DK	ST
A/m²	4573.00	4573.00	4573.00	4573.00
S/m²	796.65	746.50	667.29	784.99
SE/m²	426.38	383.10	324.39	372.60
SD/m²	370.27	363.40	342.90	412.39
SE/S	0.5352	0.5132	0.4861	0.4747
SD/S	0.4648	0.4868	0.5139	0.5253
S/A	0.1742	0.1632	0.1459	0.1717

[1]	殷水清, 王文婷. 土壤侵蚀研究中降雨过程随机模拟综述[J]. 地理科学进展, 2020, 39(10): 1747-1757.
[2]	薛天翼, 王红亚. 湖泊(水库)沉积物分析在土壤侵蚀研究中的运用[J]. 地理科学进展, 2018, 37(7): 890-900.
[3]	李致颖, 方海燕. 基于TETIS模型的黑土区乌裕尔河流域径流与侵蚀产沙模拟研究[J]. 地理科学进展, 2017, 36(7): 873-885.
[4]	赵明伟, 岳天祥. 高精度曲面建模方法研究进展与分类[J]. 地理科学进展, 2016, 35(4): 401-408.
[5]	盛美玲, 方海燕. WaTEM/SEDEM模型及其应用研究进展与展望[J]. 地理科学进展, 2014, 33(1): 85-91.
[6]	林晨, 周生路, 吴绍华. 基于优化GeoCA模型的土壤侵蚀时空变化模拟——以福建省长汀县为例[J]. 地理科学进展, 2012, 31(7): 911-920.
[7]	朱先进, 于贵瑞, 高艳妮, 王秋凤. 中国河流入海颗粒态碳通量及其变化特征[J]. 地理科学进展, 2012, (1): 118-122.
[8]	周婷婷, 陈文惠. 基于MODIS数据和气象观测数据的气温空间插值方法比较[J]. 地理科学进展, 2011, 30(9): 1143-1151.
[9]	曾红伟, 李丽娟, 张永萱, 柳玉梅. 大样本降水空间插值研究——以2009 年中国年降水为例[J]. 地理科学进展, 2011, 30(7): 811-818.
[10]	王红兵, 许炯心, 颜明. 影响土壤侵蚀的社会经济因素研究进展[J]. 地理科学进展, 2011, 30(3): 268-274.
[11]	陈晓安, 蔡强国, 郑明国, 李君兰. 岔巴沟流域次暴雨坡面土壤侵蚀经验模型[J]. 地理科学进展, 2011, 30(3): 325-329.
[12]	张伟科, 杨艳昭, 封志明, 孙小舟. 西辽河流域潜在蒸散量时空格局[J]. 地理科学进展, 2010, 29(9): 1115-1120.
[13]	许月卿, 黄靖, 冯艳, 周东. 不同土地利用结构下的土壤侵蚀经济损失——以贵州省猫跳河流域为例[J]. 地理科学进展, 2010, 29(11): 1451-1456.
[14]	李秋艳1, 3\|蔡强国2, 3\|方海燕2. 风水复合侵蚀与生态恢复研究进展[J]. 地理科学进展, 2010, 29(1): 65-72.
[15]	罗明1,2\|裴韬1,3. [J]. 地理科学进展, 2009, 28(5): 663-672.

DEM空间插值方法对土壤侵蚀模拟的影响研究——以USPED分析干热河谷典型冲沟为例

Effects of different DEM spatial interpolation methods on soil erosion simulation:A case study of a typical gully of dry-hot valley based on USPED

RichHTML

PDF (PC)

赞

可视化

被引次数

摘要/Abstract

引用本文

使用本文

图/表 7

参考文献 35

相关文章 15

Metrics

本文评价

推荐阅读 0

插值方法	DK	IDW	LPI	ST
DK	—	(0.55,0.65)	(0.59,0.68)	(0.65,0.75)
IDW	(0.41,0.56)	—	(0.56,0.69)	(0.82,0.66)
LPI	(0.52,0.61)	(0.52,0.59)	—	(0.71,0.74)
ST	(0.59,0.70)	(0.51,0.69)	(0.78,0.81)	—

插值方法	DK	IDW	LPI	ST
DK	—	(0.55,0.33)	(0.50,0.42)	(0.57,0.44)
IDW	(0.65,0.06)	—	(0.51,0.07)	(0.47,0.06)
LPI	(0.41,0.46)	(0.51,0.38)	—	(0.41,0.26)
ST	(0.49,0.33)	(0.57,0.20)	(0.42,0.37)	—
