湖南省城镇空间时空压缩特征及其可视化表达——基于时空图分析模型
周恺(),钱芳芳(),邹宇
湖南大学建筑学院城乡规划系,长沙 410082
Visualizing time-space compression of urban system in Hunan Province:
Kai ZHOU(),Fangfang QIAN(),Yu ZOU
Department of Urban and Rural Planning, School of Architecture, Hunan University, Changsha 410082, China
全文: PDF(15781 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

本文构建了一个基于“时间-空间图(Time-Space Map)”的技术方法模型,用于分析交通网络建设给地理空间带来的时空压缩效应。现有基于可达性评价模型的“空间格局分析法”只能描述网络整体效率变化,而“等时圈分析法”局限于节点分析,两者都无法完整展现区域时空压缩。本文集成了网络大数据抓取技术、统计分析技术和可视化技术,通过绘制“时空图”实现区域时空压缩的可视化。首先,该方法利用网络大数据抓取技术,通过网络地图路径导航服务获取距离数据矩阵;然后,运用多尺度分析方法(Multidimensional Scaling),用通行时间(距离)取代欧氏距离计算求得最佳拟合空间,并对拟合误差进行估算和检验。最后,将拟合空间与地理空间在三维空间中叠加,观察和分析拟合空间的拉伸、延展、扭曲效果,总结区域时空压缩整体特点。在此基础上,以湖南省为案例绘制出了各地县级城市在现状公路网联系下的通行距离和通行时间时空图。研究验证了时空图在区域时空压缩格局可视化上的有效性和直观性,并在解读时空图集聚、偏移和皱起的基础上,提出改善省内公路网络可达性均衡的政策建议。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
周恺
钱芳芳
邹宇
关键词 时间—空间图多维尺度变换方法大数据交通可达性时空压缩可视化湖南
Abstract

Measuring and analyzing the time-space compression phenomenon caused by improved road network accessibility in geographical space have been a major challenge for transport researchers. Current attempts of comparing accessibility pattern maps only describe centrality of nodes, and the isochrone approach is capable of analyzing individual cities but fails to provide a complete picture of regions of concern. This study developed an analytical model using time-space map to visualize time-space compression phenomenon, based on a synergy of current big-data available on the internet and statistical and 3D-visualization technologies. OD (Origin and Destination) data matrix (travel distance and duration by cities) was generated from web-map-server's direction API using web-crawling programs. Multidimensional scaling method was then applied to find the best-fit configuration space, which redraw the map by replacing the euclidean distance with network distance or duration. The scale and distribution of errors were statistically tested to verify the validity and reliability of the results. Finally, 3D time-space maps were visualized and overlapped with the geographical map to observe stretching, shrinking, and wrinkling effects of space caused by uneven transportation accessibility improvements. Using Hunan Province as a case, this study produced two time-space maps of travel distance and duration between cities, and analyzed the errors on these maps. The case study supports the view that time-space analysis is a valid method to visualize time-space compression and a useful tool to generate policy recommendations for building a more balanced road network with higher accessibility of regions.

Key wordstime-space map    multidimensional scaling    web big data    accessibility    time-space compression    visualization    Hunan Province
     出版日期: 2014-12-30
基金资助:国家教育部博士点基金项目(20130161120047);留学回国人员科研启动基金项目(20141685);湖南大学青年教师成长计划项目(2012-075)
作者简介: 周恺(1981-),男,湖南长沙人,助理教授,主要从事城市规划新技术应用和城市与区域分析研究,E-mail:zhoukai_nju@hotmail.com
引用本文:
周恺,钱芳芳,邹宇. 湖南省城镇空间时空压缩特征及其可视化表达——基于时空图分析模型[J]. 地理科学进展, 2014, 33(12): 1666-1675.
Kai ZHOU,Fangfang QIAN,Yu ZOU. Visualizing time-space compression of urban system in Hunan Province:. PROGRESS IN GEOGRAPHY, 2014, 33(12): 1666-1675.
链接本文:
http://www.progressingeography.com/CN/10.11820/dlkxjz.2014.12.010      或      http://www.progressingeography.com/CN/Y2014/V33/I12/1666

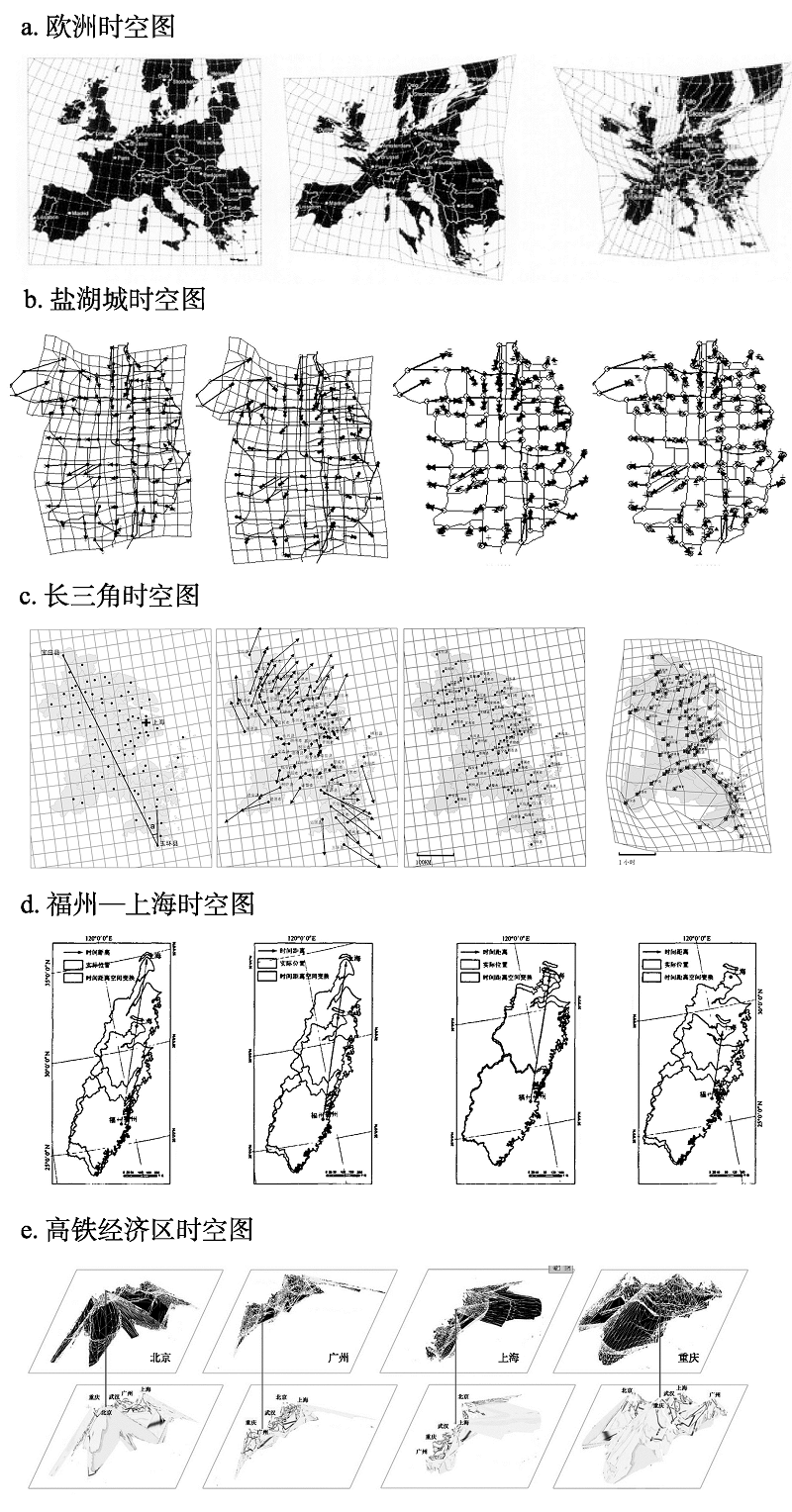

Fig. 1  现有时空图分析研究案例

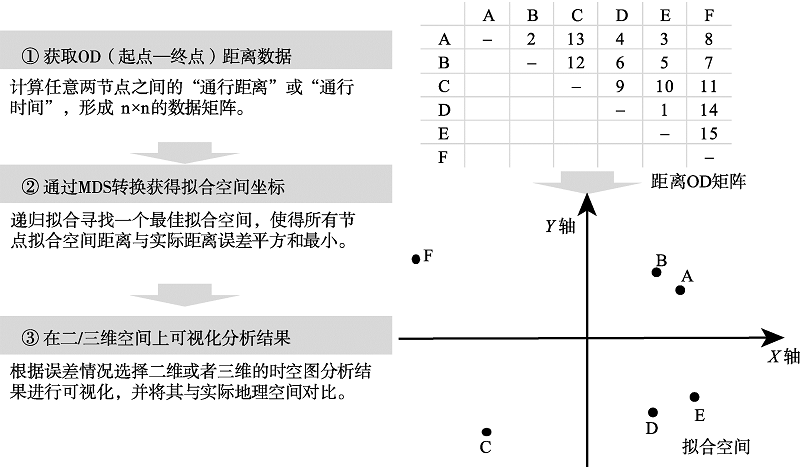

Fig. 2  时空图分析方法

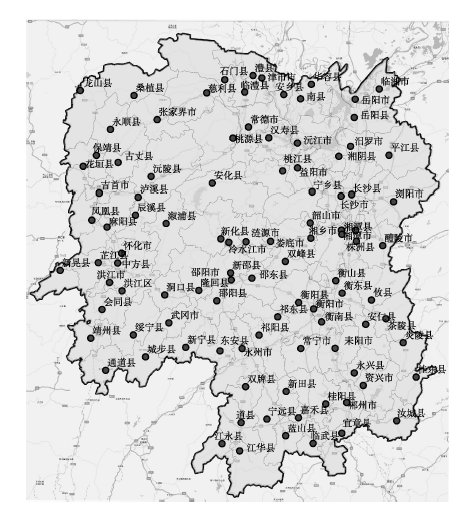

Fig. 3  湖南省地县级城市

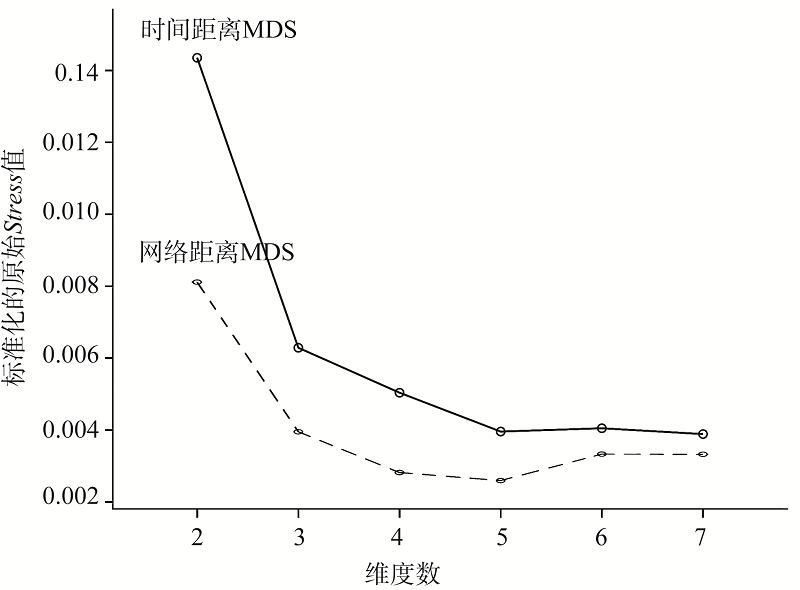

Fig. 4  2~7维MDS分析结果的Stress检验
分析参数 网络距离时空图 时间距离时空图
数据 城市样本数 101 101
有效OD数据 5050 5050
叠加锚点 长沙、株洲
有效性检验 标准拟合误差σ值 0.00653 0.00734
拟合误差系数Stress-I 0.0807 0.08567
误差分析a 拟合误差平均值 +4.5 km +0.18 h
拟合误差标准差 31.3 km 0.47 h
95%误差范围b -58.2~+67.2 km -0.77~+1.12 h
拟合误差率τ平均值 +0.00% +0.00%
拟合误差率τ标准差 +12.93% +20.71%
95% τ值范围b -25.86%~+25.86% -41.42%~41.42%
Tab. 1  时空图分析拟合结果

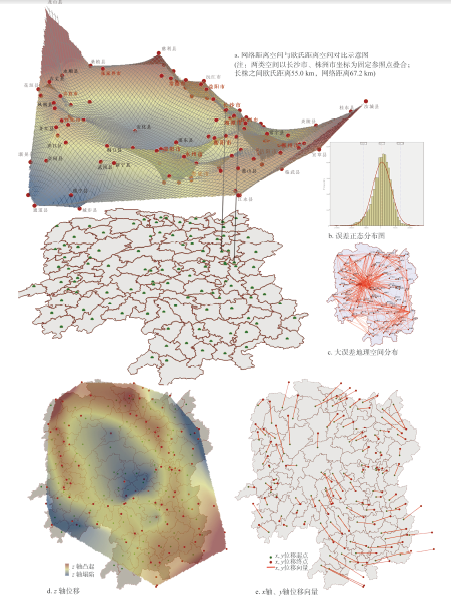

Fig. 5  根据通行距离计算的时空图

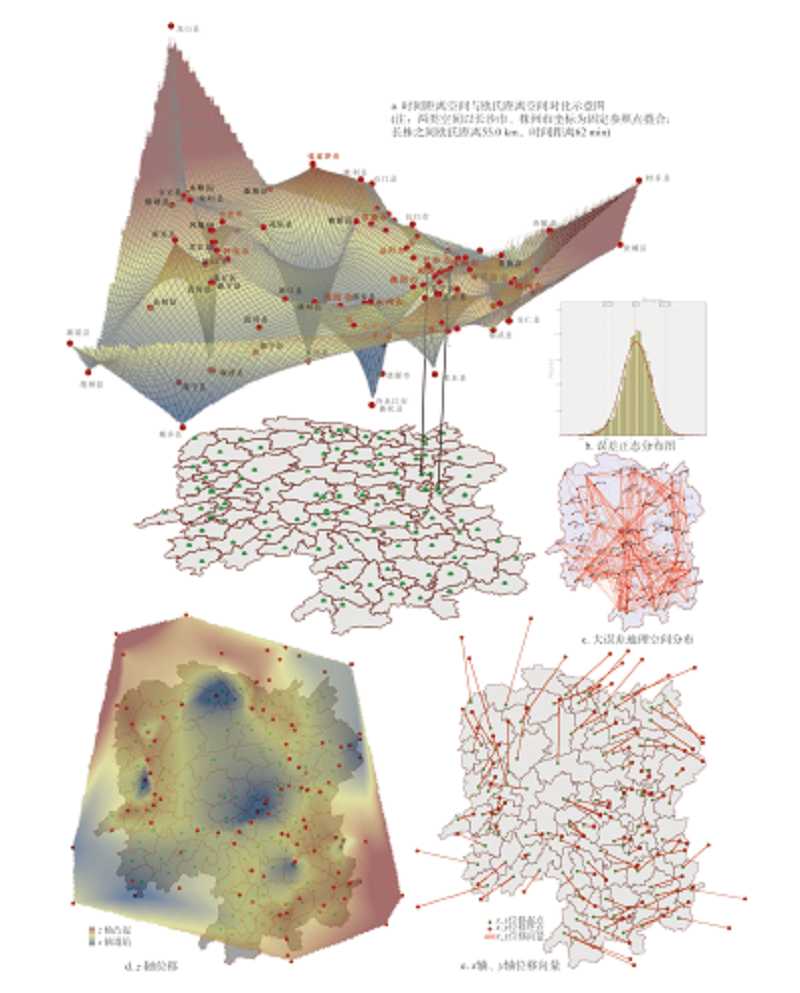

Fig. 6  根据通行时间计算的时空图
[1] 曹小曙, 阎小培. 2003. 经济发达地区交通网络演化对通达性空间格局的影响: 以广东省东莞市为例. 地理研究, 22(3): 305-312. [Cao X S, Yan X P. 2003. The impact of the evolution of land network on spatial structure of accessibility in the developed areas: the case of Dongguan City in Guangdong Province. Geographical Research, 22(3): 305-312.]
[2] 陈洁, 陆锋. 2008. 京津冀都市圈城市区位与交通可达性评价. 地理与地理信息科学, 24(2): 53-56. [Chen J, Lu F. 2008. Location advantage and accessibility evaluation on Beijing-Tianjin-Hebei metropolitan area. Geography and Geo-Information Science, 24(2): 53-56.]
[3] 冯长春, 丰学兵, 刘思君. 2013. 高速铁路对中国省际可达性的影响. 地理科学进展, 32(8): 1187-1194. [Feng C C, Feng X B, Liu S J. 2013. Effects of high speed railway network on the inter-provincial accessibilities in China. Progress in Geography, 32(8): 1187-1194.]
[4] 嵇昊威, 赵媛. 2014. 中国煤炭铁路运输网络可达性空间格局研究. 地域研究与开发, 33(1): 6-11. [Ji H W, Zhao Y. 2014. The accessibility spatial pattern of coal railway transport network in China. Areal Research and Development, 33(1): 6-11.]
[5] 蒋海兵, 徐建刚, 祁毅. 2010. 京沪高铁对区域中心城市陆路可达性影响. 地理学报, 65(10): 1287-1298. Jiang H B, Xu J G, Qi Y. 2010. The influence of Beijing-Shanghai High-speed railways on land accessibility of regional center cities. Acta Geographica Sinica, 65(10): 1287-1298.]
[6] 蒋海兵, 张文忠, 祁毅, 等. 2013. 区域交通基础设施可达性研究进展. 地理科学进展, 32(5): 807-817. [Jiang H B, Zhang W Z, Qi Y, et al.2013. Research progress on accessibility to regional transportation infrastructure. Progress in Geography, 32(5): 807-817.]
[7] 金凤君, 王姣娥. 2004. 20世纪中国铁路网扩展及其空间通达性. 地理学报, 59(2): 293-302. [Jin F J, Wang J E. 2004. Railway network expansion and spatial accessibility analysis in China: 1906-2000. Acta Geographica Sinica, 59(2): 293-302.]
[8] 李九全. 2008. 陕西省城市竞争力及其通达性比较研究. 地理科学, 28(4): 471-477. [Li J Q. 2008. A study of comparisons of urban competitiveness and accessibility in Shaanxi Province. Scientia Geographica Sinica, 28(4): 471-477.]
[9] 刘海隆, 包安明, 陈曦, 等. 2008. 新疆交通可达性对区域经济的影响分析. 地理学报, 63(4): 428-436. [Liu H L, Bao A M, Chen X, et al.2008. The effect of transport accessibility on regional economic performance. Acta Geographica Sinica, 63(4): 428-436.]
[10] 陆锋, 陈洁. 2008. 武汉城市圈城市区位与可达性分析. 地理科学进展, 27(4): 1068-1074. [Lu F, Chen J. 2008. Location superiority and accessibility analysis on Wuhan metropolitan region. Progress in Geography, 27(4): 1068-1074.]
[11] 陆军, 宋吉涛, 梁宇生, 等. 2013. 基于二维时空地图的中国高铁经济区格局模拟. 地理学报, 68(2): 147-158. [Lu J, Song J T, Liang Y S, et al.2013. The simulation of spatial distribution patterns of China's HSR-economic zones based on the 2D time-space map. Acta Geographica Sinica, 68(2): 147-158.]
[12] 孟德友, 范况生, 陆玉麒, 等. 2010. 铁路客运提速前后省际可达性及空间格局分析. 地理科学进展, 29(6): 709-715. [Meng D Y, Fan K S, Lu Y Q, et al.2010. Level and spatial pattern of interprovincial accessibility before and after train-speed upgrading. Progress in Geography, 29(6): 709-715.]
[13] 吴旗韬, 张虹鸥, 叶玉瑶, 等. 2012. 基于交通可达性的港珠澳大桥时空压缩效应. 地理学报, 67(6): 723-732. [Wu Q T, Zhang H O, Ye Y Y, et al.2012. The impact of Hong Kong-Zhuhai-Macao Bridge on the traffic pattern of Pearl River Delta. Acta Geographica Sinica, 67(6): 723-732.]
[14] 吴威, 曹有挥, 曹卫东, 等. 2009. 区域综合运输成本的空间格局研究: 以江苏省为例. 地理科学, 29(4): 487-492. [Wu W, Cao Y H, Cao W D, et al.2009. Spatial pattern of regional comprehensive transportation cost: the case of Jiangsu Province. Scientia Geographica Sinica, 29(4): 487-492.]
[15] 吴威, 曹有挥, 梁双波, 等. 2009. 中国铁路客运网络可达性空间格局. 地理研究, 28(5): 1389-1399. [Wu W, Cao Y H, Liang S B, et al.2009. The accessibility pattern of railway passenger transport network in China. Geographical Research, 28(5): 1389-1399.]
[16] 张文彤, 董伟. 2013. 高等学校教材: SPSS统计分析高级教程: 2版. 北京: 高等教育出版社. [Zhang W T, Dong W. 2013. SPSS tongji fenxi gaoji jiaocheng. 2nd ed. Beijing, China: Higher Education Press.]
[17] 钟少颖, 郭叶波. 2013. 中国高速铁路建设对城市通达性影响分析. 地域研究与开发, 32(2): 46-51. [Zhong S Y, Guo Y B. 2013. The impact of accessibility of railway network with the high-speed railway construction in China. Areal Research and Development, 32(2): 46-51.]
[18] 周恺. 2007. 长江三角洲高速公路交通网络通达性分析[D]. 南京: 南京大学. [Zhou K. 2007. Expressway network accessibility analysis in Yangtze River Delta[D]. Nanjing, China: Nanjing University.]
[19] 周恺. 2010. 长江三角洲高速公路网通达性与城镇空间结构发展. 地理科学进展, 29(2): 241-248. [Zhou K. 2010. Expressway network accessibility analysis and structure change of urban system in Yangtze Delta megalopolis. Progress in Geography, 29(2): 241-248.]
[20] 朱兵, 张小雷, 桂东伟, 等. 2010. 新疆城镇发展与交通可达性相互影响. 地理科学进展, 29(10): 1239-1248. [Zhu B, Zhang X L, Gui D W, et al.2010. The relationship between urban development and transport accessibility in Xinjiang. Progress in Geography, 29(10): 1239-1248.]
[21] 朱昱, 游建胜, 李晓. 2010. 时间距离地图超制图学研究: 以福州、上海间铁路客运为例. 杭州师范大学学报: 自然科学版, 9(3): 231-236. [Zhu Y, You J S, Li X. 2010. Research on temporal distance map based on metacartography: a case study on passenger trains between Fuzhou and Shanghai. Journal of Hangzhou Normal University: Natural Science Edition, 9(3): 231-236.]
[22] Ahmed N, Miller H J. 2007. Time-space transformations of geographic space for exploring, analyzing and visualizing transportation systems. Journal of Transport Geography, 15(1): 2-17.
[23] Bunge W. 1960. Theoretical geography[D]. Seattle, WA: University of Washington.
[24] Clark J W. 1977. Time-distance transformations of transportation networks. Geographical Analysis, 9(2): 195-205.
[25] Ewing G O, Wolfe R. 1977. Surface feature interpolation on two dimensional time-space maps. Environment and Planning A, 9(4): 429-437.
[26] Forer P. 1978. A place for plastic space? Progress in Human Geography, 2(2): 230-267.
[27] Hansen W G. 1959. How accessibility shapes land-use. Joumal of the American Institute of Planners, 25(2): 73-76.
[28] Kruskal J B. 1964. Multidimensional scaling by optimizing goodness of fit to a nonmetric hypothesis. Psycometrika, 29(1): 1-27.
[29] Spiekermann K, Wegener M. 1994. The shrinking continent: new time-space maps of Europe. Environment and Planning B, 21(6): 653-673.
[30] Tobler W. 1961. Map transformation of geographic space[D]. Seattle, WA: University of Washington.
[31] Vickerman R, Spiekermann K, Wegener M. 1999. Accessibility and economic development in Europe. Regional Studies, 33(1): 1-15.
